New Holland service manual 51543554, the March 2019 edition, gives the factory settings for the TK4.90, TK4.90M, TK4.100, TK4.100M, TK4.110 and TK4.110M crawler tractors, with cab and without. It lists the hitch relief pressures, steering clutch pressures, servo clutch figures and fill capacities that New Holland set for these tractors.
It covers the clutch, transmission and creeper, final drives, two-speed PTO, brakes, steering clutches, tracks and suspension, EGR/DPF/DOC, wiring sheets and fault codes.
Problem / Possible Cause / Correction tables cover the clutch, transmission, final drives, PTO, brakes, hitch and steering clutches, and the fault code section gives a check-and-correct procedure for each code. The book has no engine specifications or engine overhaul.
What's Inside This New Holland TK4.90–TK4.110M Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction, Capacities and Consumables | 1-24 | Model Variants with and Without Cab, Engine per Model and Market, Contents, Safety Rules, Basic Instructions, Consumables, Capacities |
| Engine Removal and Installation | 25-79 | Engine Oil Level Check, Engine Removal and Installation for Mechanical and Hydraulic Clutch Release Versions |
| Fuel Tanks and Engine Cooling | 80-189 | Fuel Tank and Auxiliary Tank Removal, Draining, Fuel Lines, Coolant Draining and Replacement, Radiator, Expansion Tank |

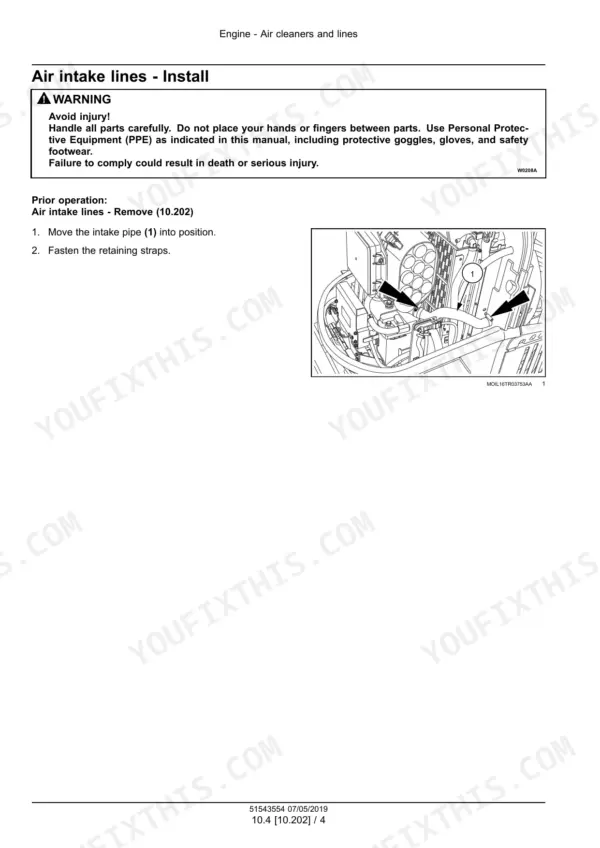

| Air Intake, Fuel Filters and Exhaust | 190-298 | Air Filters, Fuel Filters and Prefilter, Intercooler, Exhaust Pipes, Fan and Belt, EGR, DPF and DOC, Manual Regeneration |

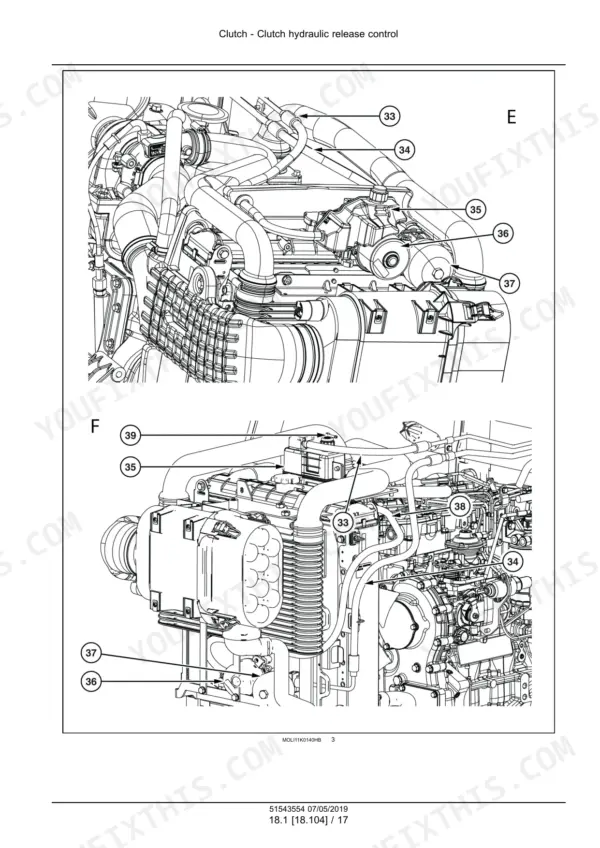

| Clutch Hydraulic Servo Release | 299-335 | Servo Release Specifications, Torques, Dynamic Description, Adjustment, Troubleshooting, Mechanical Release |

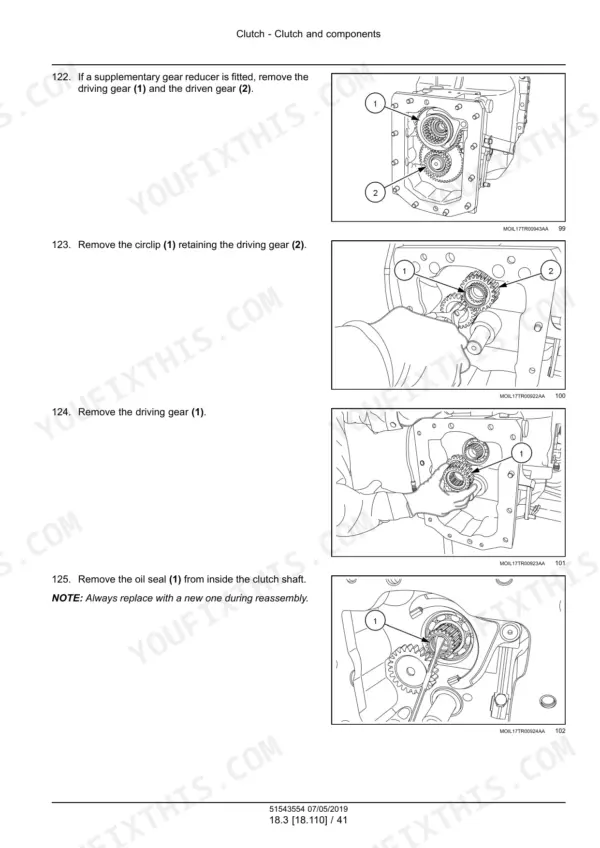

| Clutch and Components | 336-582 | Clutch Specifications, Torques, Sectional View, Overhaul, Removal and Installation for Hydraulic and Mechanical Control, Troubleshooting |
| Transmission | 583-670 | Transmission Oil Cooler, Transmission and Rear Drive Specifications, Housing Removal, Oil Level and Change, Gear Levers, Internal Components, Creeper, Troubleshooting |
| Rear Axle and Final Drives | 671-720 | Spur Gear and Final Drive Torques, Final Drive Housing Specifications, Sectional Views, Adjustments, Drive Sprocket Shaft, Side Reduction Gears, Troubleshooting |
| Power Take-Off (PTO) | 721-740 | Two-Speed Rear PTO Specifications, Torques, Sectional Views, Dynamic Description, Housing Disassembly, Troubleshooting |

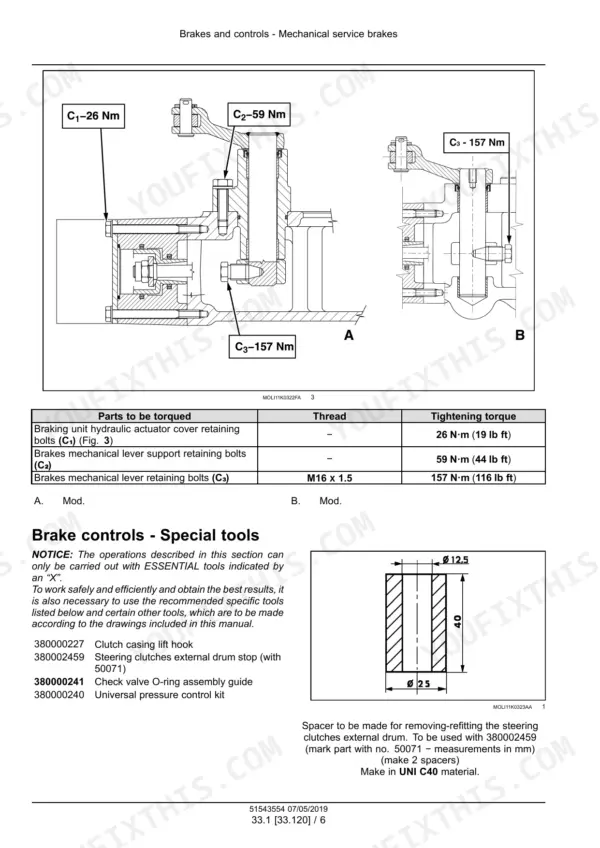

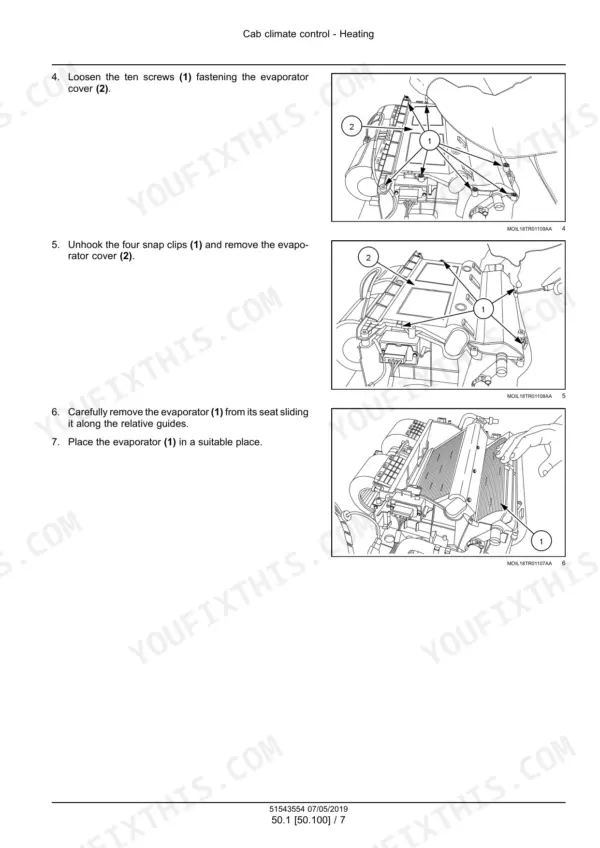

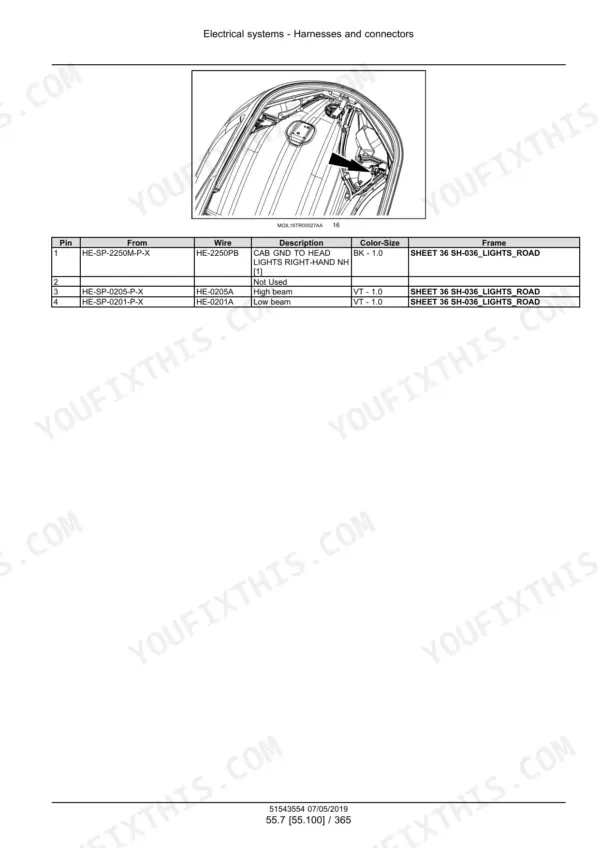

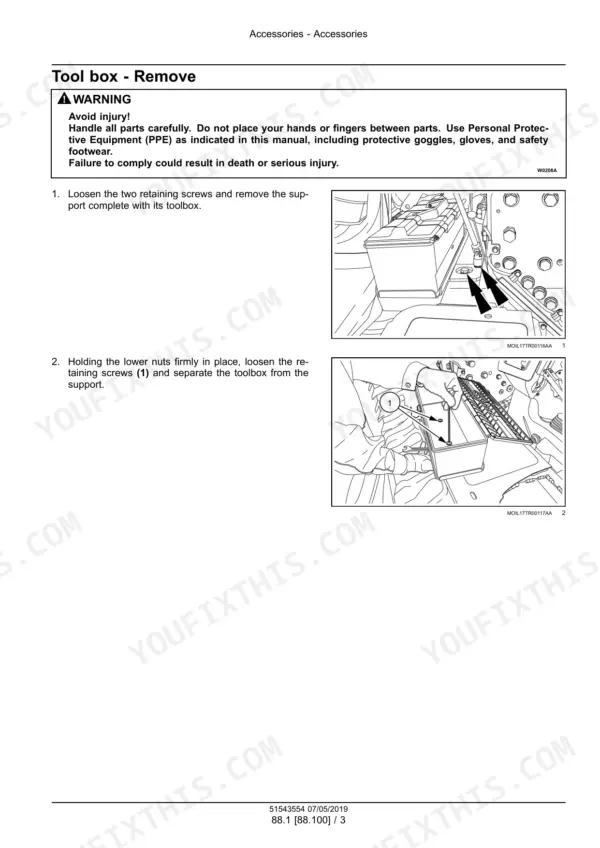

| Brakes and Controls | 741-780 | Mechanical Brakes Specifications and Torques, Removal, Adjustment, Troubleshooting, Hydraulic Brake Actuator, Parking Brake |
| Hydraulic Systems | 781-908 | Hitch Control Valve Specifications and Torques, Lift Dynamics, Adjustments, Troubleshooting, Low Pressure Pump, Remote Control Valves |
| Hitches, Drawbars and Implement Couplings | 909-972 | Hitch External Levers, Lift Links, Rear Drawbar |
| Steering Clutches | 973-1020 | Steering Clutch Specifications, Torques, Control Valve, Hydraulic Dynamics, Pressure Checks, Removal and Assembly, Troubleshooting |
| Tracks and Track Suspension | 1021-1122 | Track Frame and Drive Sprockets, Track Torques, Track Tension, Rubber Tracks, Front and Rear Suspension, Tensioner Units |
| Cab Climate Control | 1123-1256 | Heating, Cab Ventilation and Air Filters, Air Conditioning Specifications, Charging and Tests, Compressor, Condenser, Evaporator |
| Engine, Brake and PTO Electrical Controls | 1257-1305 | Fuel Injection, Fuel Tank and Level Sensor, Intake and Exhaust, Engine Control, Brake Electrical, PTO Control |
| Wiring Harnesses and Electrical Schematics | 1306-1547 | Ground Points, Component Identification, How to Read Schematics, Wire Colours and Abbreviations, Electrical Schematic Sheets 03 to 42 |
| Connectors, Fuses and Relays | 1548-1993 | Connector Component Diagrams 00 to 95, Fuse and Relay Boxes, Component Descriptions, Repair and Measurements |
| Starting, Charging, Modules and Lighting | 1994-2295 | Starter Motor, Alternator, Battery, Electronic Modules, Cab Controls, Lighting and Wipers, Exterior Lights |
| Fault Codes (DTC) | 2296-2778 | Fault Code List and Per-Code Diagnostic Procedures with Context, Checks and Corrections |
| Accessories | 2779-2786 | Tool Box Removal and Installation |
| Platform, Cab, Bodywork and Decals | 2787-3161 | Hood, Engine Side Panels, Operator Protection, Fenders, Steps, Seat, Cab Torques, Platform Without Cab, Doors and Windows |
| Special Tool Index | 3162-3167 | Special Tools with References to the Procedures That Use Them |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil capacity | 9.50 L (2.09 UK gal) with filter; 6.4 - 8.1 L (1.4 - 1.8 UK gal) sump only, MIN-MAX | p. 22 |
| Engine oil grade | 10W-40 (NEW HOLLAND AMBRA UNITEK 10W-40) or 0W-40 (UNITEK SSL 0W-40), API CJ-4, ACEA E9 | p. 21 |
| Cooling system capacity | 14.0 L (3.1 UK gal) | p. 22 |
| Drive line and hydraulic lift oil | 39.0 L (8.6 UK gal), NEW HOLLAND AMBRA MULTI F, NH 420 A | p. 22 |
| Steering clutches oil | 1.4 L (0.3 UK gal) | p. 22 |
| Fuel tank capacity | 74.2 L (16.3 UK gal) primary + 21.8 L (4.8 UK gal) auxiliary | p. 22 |
| Engine speed with PTO at 540 RPM | 1958 RPM TK4.90, TK4.90M; 2199 RPM TK4.100, TK4.100M, TK4.110, TK4.110M | p. 724 |
| Engine speed with PTO at 1000 RPM | 2381 RPM; 1050 RPM at the PTO at 2500 RPM maximum engine power | p. 724 |
| Hitch maximum pressure valve | 190 - 195 bar (2755. - 2827.5 psi) | p. 784 |
| Hitch cylinder safety valve | 210 - 215 bar (3045 - 3117.5 psi) | p. 784 |
| Maximum lift at lower link ends, full stroke | 3720 kg | p. 784 |
| Lift at 610 mm from lower link ends | 1850 kg | p. 784 |
| Lift pump rated output | 41.18 l/min TK4.90, TK4.90M; 44.77 l/min riser and 11.12 l/min oil cooler on the twin pump; 2720 RPM maximum pump speed | p. 830 |
| Steering clutch pump rated output | 20.41 l/min TK4.90, TK4.90M; 22.19 l/min TK4.100, TK4.100M, TK4.110, TK4.110M | p. 977 |
| Steering clutch working pressure | 27 - 29 bar ( 27.5 - 29.5 Kg/cm²) on first stop; 84 - 86 bar ( 85.6 - 87.7 Kg/cm²) on full steering | p. 977 |
| Main clutch hydraulic servo pressure | 55 bar (797.50 psi); peak 70 bar (1015 psi); minimum guaranteed 30 bar (435 psi) | p. 302 |
| Clutch driven disc thickness | 7.7 - 8.3 mm main clutch, each disc; 7.7 - 8.1 mm PTO clutch | p. 338 |
| Rubber track tension, grease pressure in tensioner | 180 - 200 bar (2610 - 2900 psi) 450 mm (18 in) tracks; 160 - 180 bar (2320 - 2610 psi) 300 mm (12 in) tracks | p. 1046 |
| Gears | 8 forward and 4 reverse; 16 forward and 8 reverse with creeper | p. 660 |
| Battery | 12 V, 850 A cold start, 105 A·h | p. 2040 |
New Holland TK4.90–TK4.110M Series Common Problems This Manual Covers
The hydraulic lift does not rise
Start with the oil filter. A clogged filter starves the hitch, so replace it. If the lift still won't come up, the control valve may be jammed in the discharge position and needs releasing. If neither fixes it, the hydraulic pump is faulty and must be overhauled or replaced.
Manual Section: Hydraulic Systems p. 825The main clutch slips
Measure the discs against the specification and replace worn parts, then adjust the levers and linkage. A weak or damaged Belleville spring also causes slip, and the fix is a new spring. If there is oil or grease on the friction material, replace the discs, find and stop the leak, and clean the surfaces.
Manual Section: Clutch and Components p. 579The brakes are weak, or stay locked after the pedals are released
Weak braking usually means the friction material on the brake disks is worn, so replace the disks. If the brakes stay locked after you release the pedals, the brake actuator has seized. Free it off and replace the damaged parts. The mechanical brakes chapter covers removal, adjustment and the hydraulic brake actuator.
Manual Section: Brakes and Controls p. 757The servo-operated clutch will not engage
Low system pressure is the first suspect. Check for leaks, replace any damaged pipes and check the accumulator preload. A fault in the electrical system can also stop it, so check for faulty parts and replace them. If pressure and wiring are both good, the piston spool has seized and the actuator needs an overhaul.
Manual Section: Clutch Hydraulic Servo Release p. 325Frequently Asked Questions
Does this manual cover my New Holland TK4.90, TK4.90M, TK4.100, TK4.100M, TK4.110 or TK4.110M crawler tractor?
Yes. This is New Holland service manual 51543554, in English, March 2019. It covers the TK4.90, TK4.90M, TK4.100, TK4.100M, TK4.110 and TK4.110M, each with cab and without cab. It lists the engine for each model: F5DFL413Z*A001 on the TK4.90 and TK4.90M, F5DFL4131*A003 on the TK4.100 and TK4.100M, and F5DFL413J*A032 on the TK4.110 and TK4.110M. Some shared tables also list related TK4.80, F, N and V models, which are not on the cover. p. 2
What oil and coolant capacities does the New Holland TK4 crawler take?
Engine oil is 9.50 L (2.09 UK gal) with the filter, or 6.4 - 8.1 L (1.4 - 1.8 UK gal) for the sump only. Use 10W-40 or 0W-40 to API CJ-4, ACEA E9. The cooling system holds 14.0 L (3.1 UK gal). The drive line and hydraulic lift share 39.0 L (8.6 UK gal) of NEW HOLLAND AMBRA MULTI F. The steering clutches take 1.4 L (0.3 UK gal). Fuel is 74.2 L (16.3 UK gal) in the primary tank plus 21.8 L (4.8 UK gal) in the auxiliary tank. p. 22
What are the New Holland TK4.90 to TK4.110M hitch relief pressures and lift capacity?
The hitch maximum pressure valve is set at 190 - 195 bar (2755 - 2827.5 psi). The cylinder safety valve is set at 210 - 215 bar (3045 - 3117.5 psi). Maximum lift at the lower link ends over the full stroke is 3720 kg. With the centre of gravity 610 mm from the lower link ends, it drops to 1850 kg. Check your gauge readings against these figures before you condemn the pump. p. 784
At what engine speed does the New Holland TK4 PTO run at 540 and 1000 RPM?
With the PTO at 540 RPM, the engine runs at 1958 RPM on the TK4.90 and TK4.90M. On the TK4.100, TK4.100M, TK4.110 and TK4.110M it runs at 2199 RPM. With the PTO at 1000 RPM, the engine runs at 2381 RPM. Mark those on the tach and your implement runs at its rated speed. p. 724
What is inside this manual: wiring diagrams, fault codes, troubleshooting?
It has electrical schematic sheets 03 to 42, in separate sets for cab and no-cab tractors. It also has connector diagrams 00 to 95, the fuse and relay boxes, and a fault code (DTC) section with a check-and-correct procedure for each code. Problem / Possible Cause / Correction tables cover the clutch, servo clutch release, transmission, final drives, PTO, brakes, hitch control valve and steering clutches. There are no engine specifications and no engine overhaul in this book. p. 2296
