New Holland TD5 Series Service Manual (incl. Wiring)

$39.95

Model: TD5.65 | TD5.75 | TD5.80 | TD5.90 | TD5.100 | TD5.110
Type: Tractors
678 Pages·24 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Hydraulic Schematics
  • ✓ Torque Specs
  • ✓ Bookmarks
Preview Sample Pages (PDF)

Download, file and refund questions: FAQ

Add to Cart
New Holland TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110 longitudinal engine section diagram with bolt callouts.
New Holland TD5 Series Service Manual (incl. Wiring)
$39.95

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

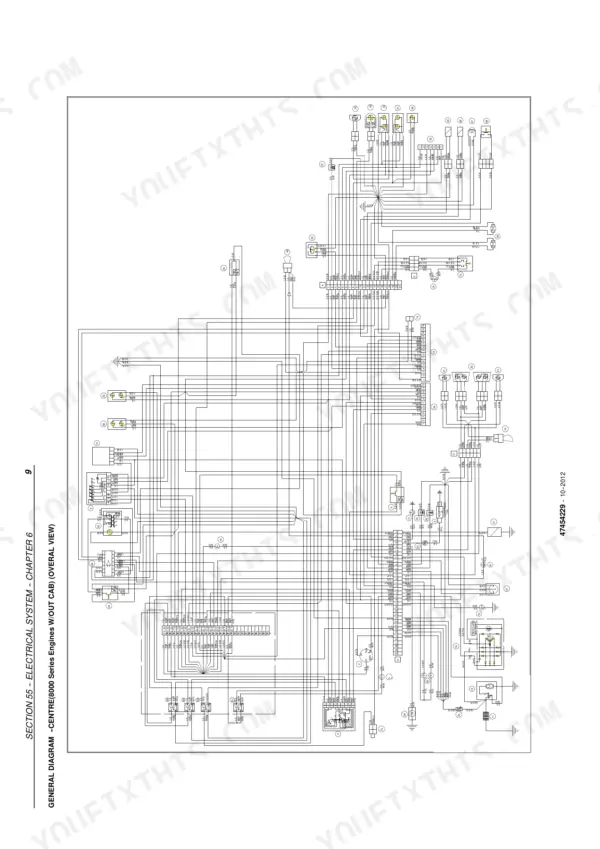

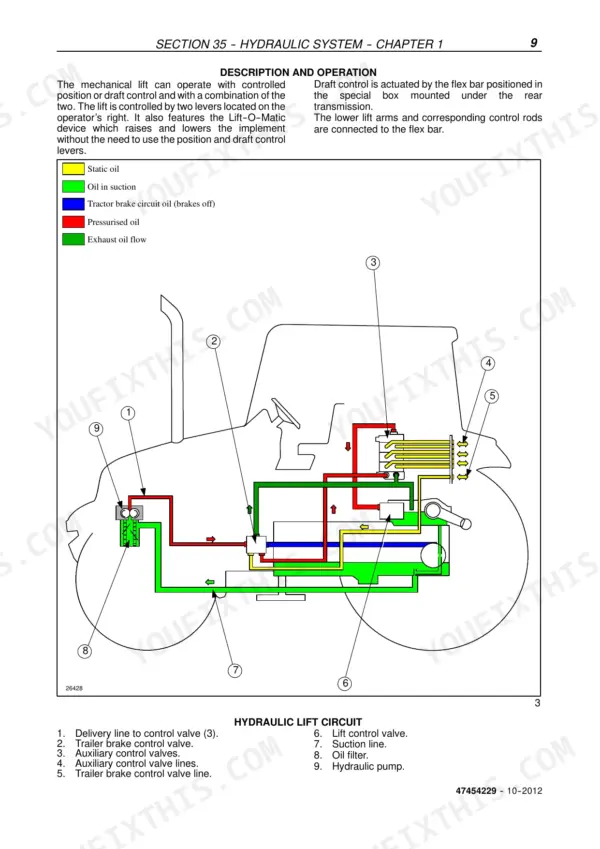

This New Holland TD5 Service Manual (OEM #47454229) runs to 678 pages built around six tractors: the TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, and TD5.110. Hydraulic schematics map the full circuit routing for the rear mechanical lift, Power Shuttle transmission, and hydrostatic steering. Wiring diagrams cover ground locations, fuse layouts, colour coding, and every circuit from the charging system through the instrument cluster. Torque tables, exploded views, and fault diagnosis charts back the repair work. Torque the cylinder head bolts to 70 Nm, then set the drive wheel hub nuts to 255 Nm: factory figures, not forum estimates. When a TD5.90 or TD5.100 is down, every hour costs money, so get the right answer on the first try. Bookmarked by section and keyword-searchable, it opens on your tablet at the bench.

Complete the set for your TD5.65 & variants

Other edition of this manual

What's Inside This Manual

SystemPagesKey Topics
General Instructions11-16Important Notice, Shimming, Rotating Shaft Seals, O Rings, Sealers, Bearings, Roll Pins, Notes for Spare Parts

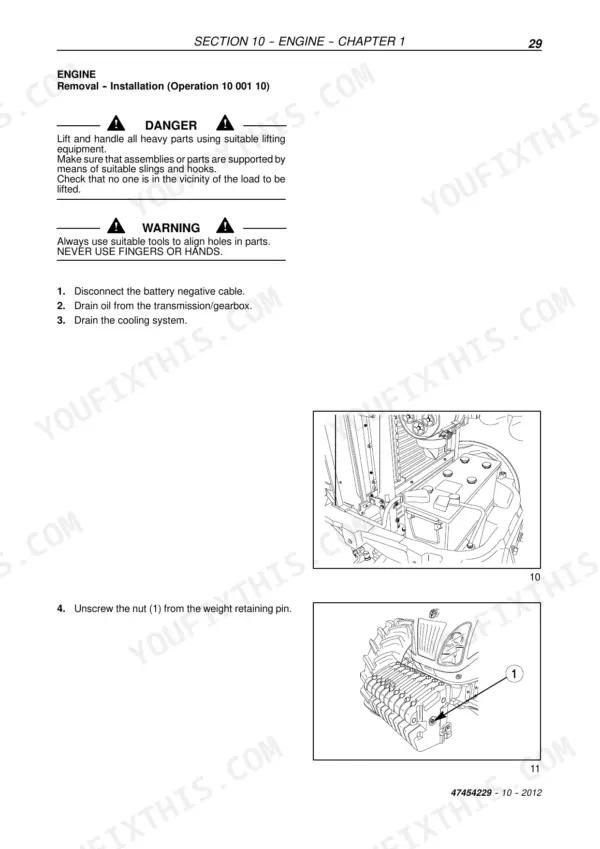

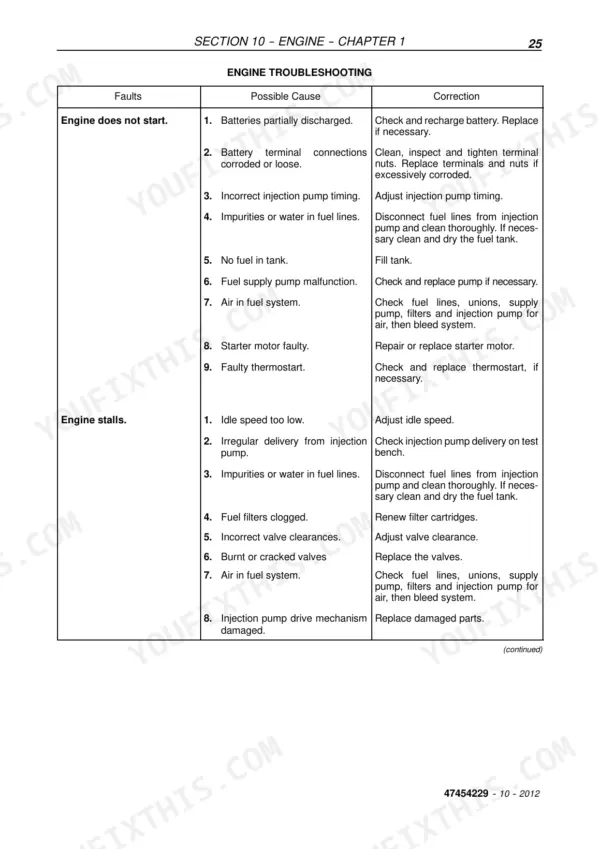

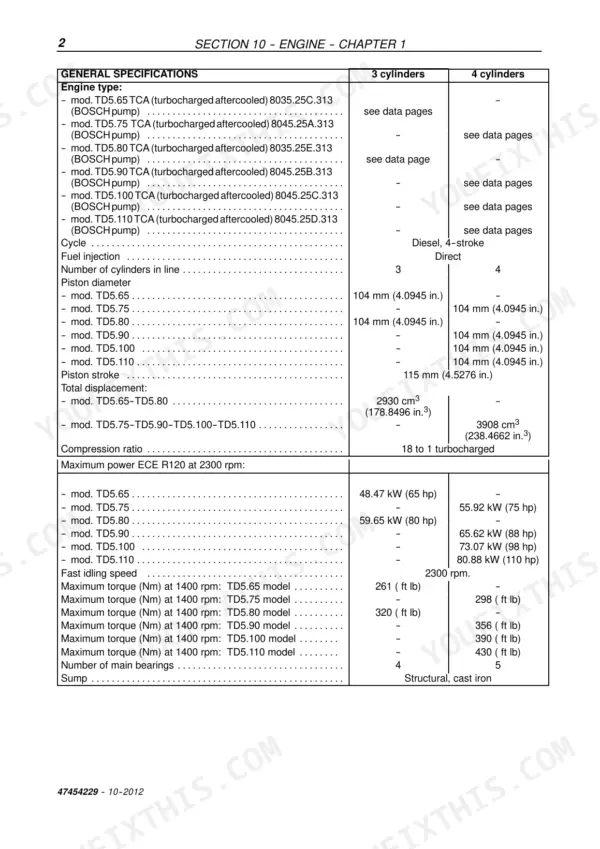

Engine17-134Injection Pump Calibration Data, Tightening Torques, Tools, Cross-Sectional Views, Lubrication and Cooling System Diagrams, Fault Diagnosis, Engine Removal-Installation, Engine Bench Overhaul, Checks, Measurements and Repairs, Radiator Removal-Installation, Crankshaft Front Oil Seal Removal Installation, Coolant Pump Removal Installation, Cooling System Thermostat, Bosch Injection Pump Removal Installation, Bosch Injection Pump Timing, Bosch Injection Pump Air Bleeding, Injectors Removal Installation, Valve Clearance Adjustment, Coolant Pump Overhaul, Compression Test
Clutch135-170Tightening Torques, Tools, Cross-Sectional Views, Clutch Troubleshooting, Removal -- Installation, Overhaul, Minimum Permissible Dimensions After Refacing, Adjustments, Main and PTO Clutch Control Linkage, PTO Clutch Servo Control
Transmissions171-216Main Data, Tightening Torques, Tools, Section Views, Description and Operation, Fault Diagnosis, Removal -- Refitting
Drive Lines217-240Main Specification, Torque Settings and Tools, Cross-Sectional Views, Transmission Shafts and Guard, Drive Gear Housing, Drive Gear Housing Removed
Front Axle Mechanical Transmission241-280Main Data, Tightening Torques, Tools, Cross-Sectional Views, Description and Operation, Complete Front Axle. Removal -- Installation, Front Axle. Removal -- Installation, Steering Knuckle Bearing Pins. Replacement, Stub Axle Adjustment, Wheel Hub Bearing Adjustment, Bevel Drive Adjustment, Front Axle Differential. Overhaul, Front Axle Differential with Lim-Slip. Overhaul, Leading Drive Wheels Toe-In Check
Rear Axle and Transmission281-326Main Data, Tightening Torques, Special Tools, Cross-Sectional Views, Description and Operation and Troubleshooting, Transmission-Gearbox Casing Removal-Installation, Transmission-Gearbox Casing Disassembly-Overhaul, Gearbox Driven Shaft End Float Adjustment, Differential Lock Engagement Sleeve Adjustment, Determining the Bevel Pinion Positioning Adjustment Ring, Taper Roller Bearings for the Bevel Pinion Shaft, Bearings and Checking the Backlash, Differential Pinion and Side Gear Backlash Adjustment
Power Take--Off327-350Main Specification, Tools, Torque Settings, Sectional Drawings, Description and Operation, Troubleshooting
Braking System351-376Main Data, Tightening Torques, Cross-Sectional Views, Description & Operation, Tools -- Troubleshooting, Front Brake Assembly Mod. TD5.65 and TD5.75 Removal and Refitting -- Overhauling on the Bench, Service Brake Removal and Refitting, Removal-Refitting of Front Brake Pumps, Bleeding Air From the Front Braking System, Service Brake Pedals Travel, Parking Brake Travel Adjustment
Hydraulic System377-442Rear Mechanical Hydraulic Lift, Main Specification, Main Specification of Rear Mechanical Hydraulic Lift, Main Specification of Implement Hitching Device
Steering443-476Chapter 1, Principal Data, Hydrostatic Steering, Control Valve, Main Specifications of Hydraulic Pump C25, Torque Settings, Hydrostatic Steering -- Oil Pump Components
Front Axle and Wheels477-496Main Data, Stub Axle Articulation, Axle Articulation, Diagram of 2WD Front Wheel Tracks, Sections of Stub Axle, Articulation Pin and Front Axle
Auxiliary Units497-538Safety Instructions, Equipment, Operating Principles, Fault Diagnosis, Cab Controls, Use, Main Components of the Cab Air Conditioning System
Electrical System539-654Instruments, Analogue Instruments Introduction, Analogue Instruments, Introduction, Condition Indicator, Fuel Level Gauge, Proofmeter, Engine Coolant Temperature Gauge
Cab655-678Removing Parts, Disassembly--Assembly, Control Levers, Seat, Electrical Controls Disassembly--Assembly, Rear Window, Handle and Lock Disassembly--Assembly

Quick Reference Specifications

SpecificationValuePage
Retaining bolt holding the disc to the wheel hub (2) torque115 Nmp. 244
Drive wheel hub to disc retaining nuts (C6) torque255 Nmp. 283

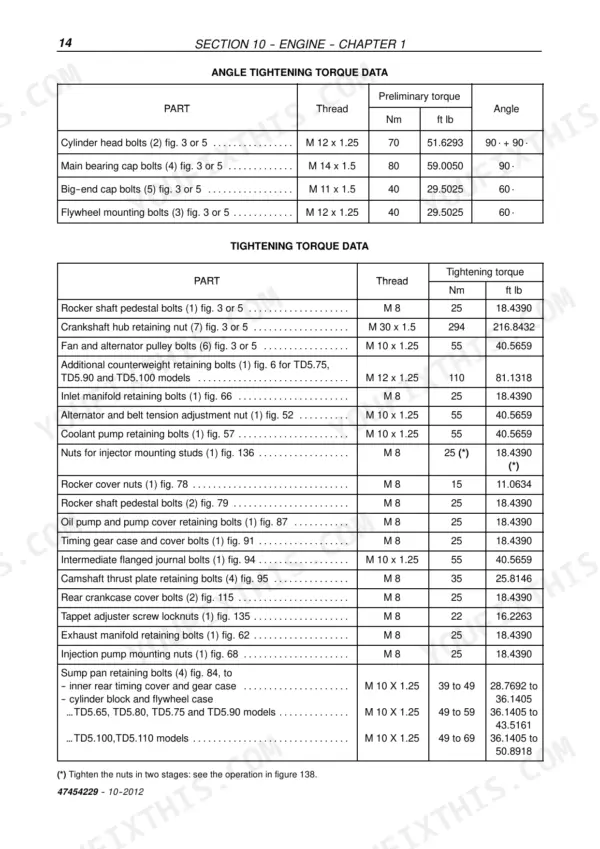

Cylinder head bolts (2) fig. 3 or 5 torque70 Nmp. 30
Insulated side voltage drop test (max)400 millivoltsp. 575
Ground side voltage drop test (max)200 millivoltsp. 576
Hydraulic pump filter typepaper cartridgep. 379
Hydraulic pump filter locationfixed to the pump housing on suction sidep. 379
Battery voltage12 Vp. 587
Battery capacity (105 Ah models)120 Ahp. 587
Alternator nominal voltage14 Vp. 569
Alternator max rotation speed (permanent)12000 rpmp. 569
Main beam headlights fuse15 Ampsp. 597
BrandNew Holland
ModelTD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110
Machine TypeTractors
Manual TypeService Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages678
File Size24 MB
Manual No.47454229
Wiring DiagramsYes
Hydraulic SchematicsYes
Torque SpecificationsYes
Bookmarked / IndexedYes
