An alarm sounds on the instrument cluster halfway through planting, and the book that decodes it is not in the cab pocket. This New Holland TD5.65-TD5.110 operator manual PDF closes that gap: the 272-page factory operator's book, OEM ID 51598759, covering the TD5.65, TD5.75, TD5.80, TD5.90, TD5.100 and TD5.110. Fault code tables decode the cluster alarms, and the maintenance chart schedules every service from the daily 10-hour checks to the 3600-hour jobs. PTO speed charts, three-point hitch setup, and liquid ballast weights each get their own working operations pages. Clutch pedal free travel should be about 40.0 mm (1.6 in), and your dealer adjusts it once it drops to 25.0 mm; mix coolant at 50 percent antifreeze, 50 percent distilled water. Nobody is coming to read that alarm for you. Bookmarked and text searchable, with product identification pages that get you the right serial number at the parts counter on the first call. Worth having before the weather turns.
What's Inside This New Holland TD5.65-TD5.110 Operator Manual

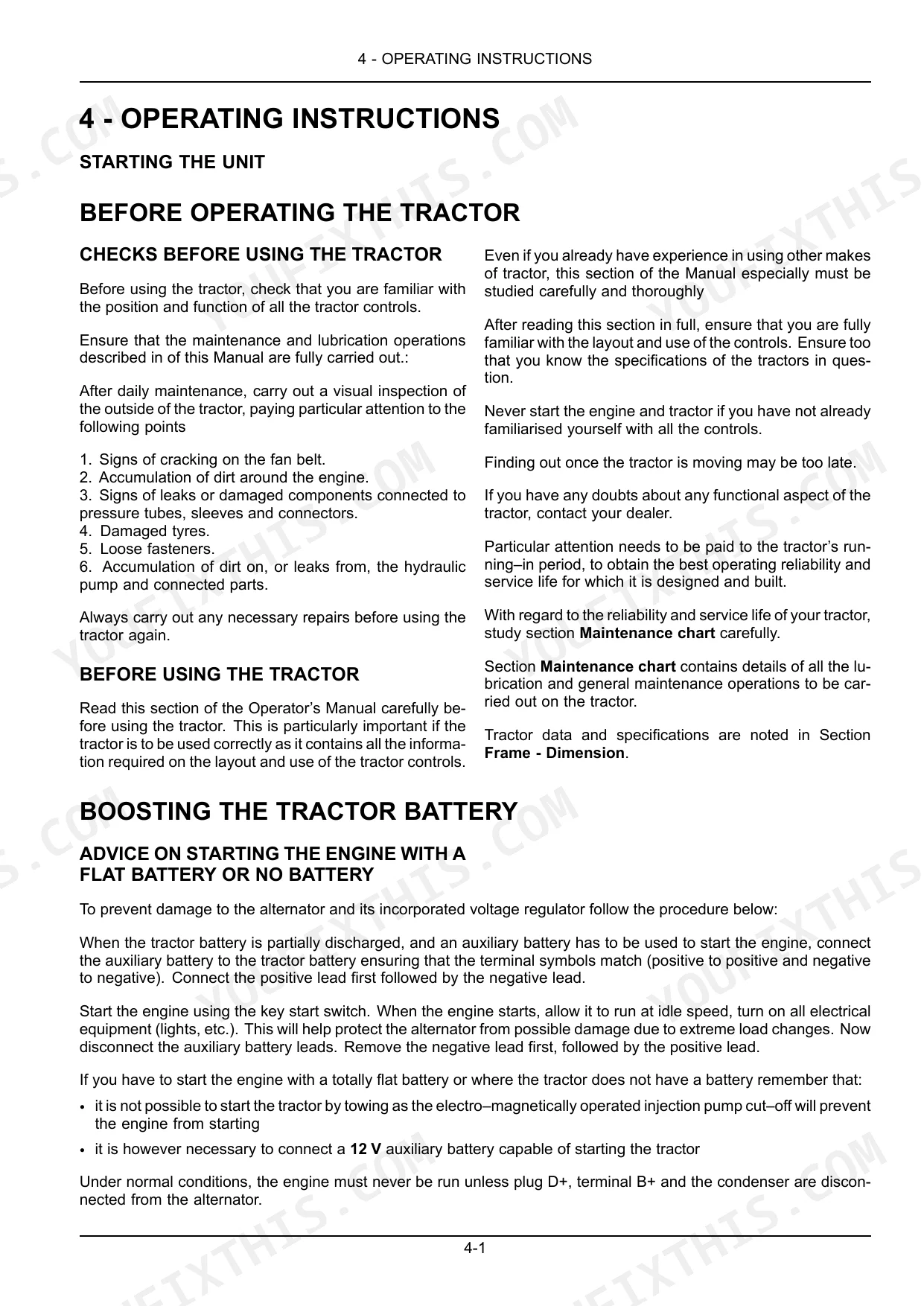

| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-16 | Introduction, Diesel Fuel Quality Specifications, Miscellaneous Checks, Protective Devices, Engine Cooling System - Basic Instructions |
| Safety Information | 17-54 | Safety Precautions, Commission Directive 2010/52/EU, Working Safely, Protection Offered by the Tractor, Dimensions, Tractor Jacking Points, Prevention of Fire or Explosion |
| Controls and Instruments | 55-94 | Access to Operator's Platform (Introduction, Instrument Cluster, Cab Controls and Adjustments, Steering Column, Cab Access/Exit, Adjust the Mirrors, Sun Protection, Control Elements/Side Console, Radio, Temperature Controls, Cab, Cab Air Filters, Air Conditioning System, Air Conditioning) |
| Operating Instructions | 95-98 | Starting the Unit (Before Operating the Tractor, Boosting the Tractor Battery, Starting the Engine, Grid Heater Cold Start Aid), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 99-100 | Preparing for Road Transport (Carrying the Tractor on a Transporter Loading the Tractor Onto a Transporter), Recovery Transport (Towing the Tractor) |
| Working Operations | 101-158 | Rear Mechanical Control (P.T.O. Operating Precautions, Independent Power Take Off Power Take–Off Operation, Ground Drive P.T.O., Independent Power Take Off, Independent Power Take-Off Servo Assist PTO, Power Take Off Speeds, Two Speed Power Take-Off Systems, Two Speed PTO Systems, Hydraulic Lift, External Hydraulic Power Lift Controls, Hydraulic Lift -Conditions of Use, Three Point Hitch, Equipment Mounting Points, Lower Links, Remote Control Valves) |

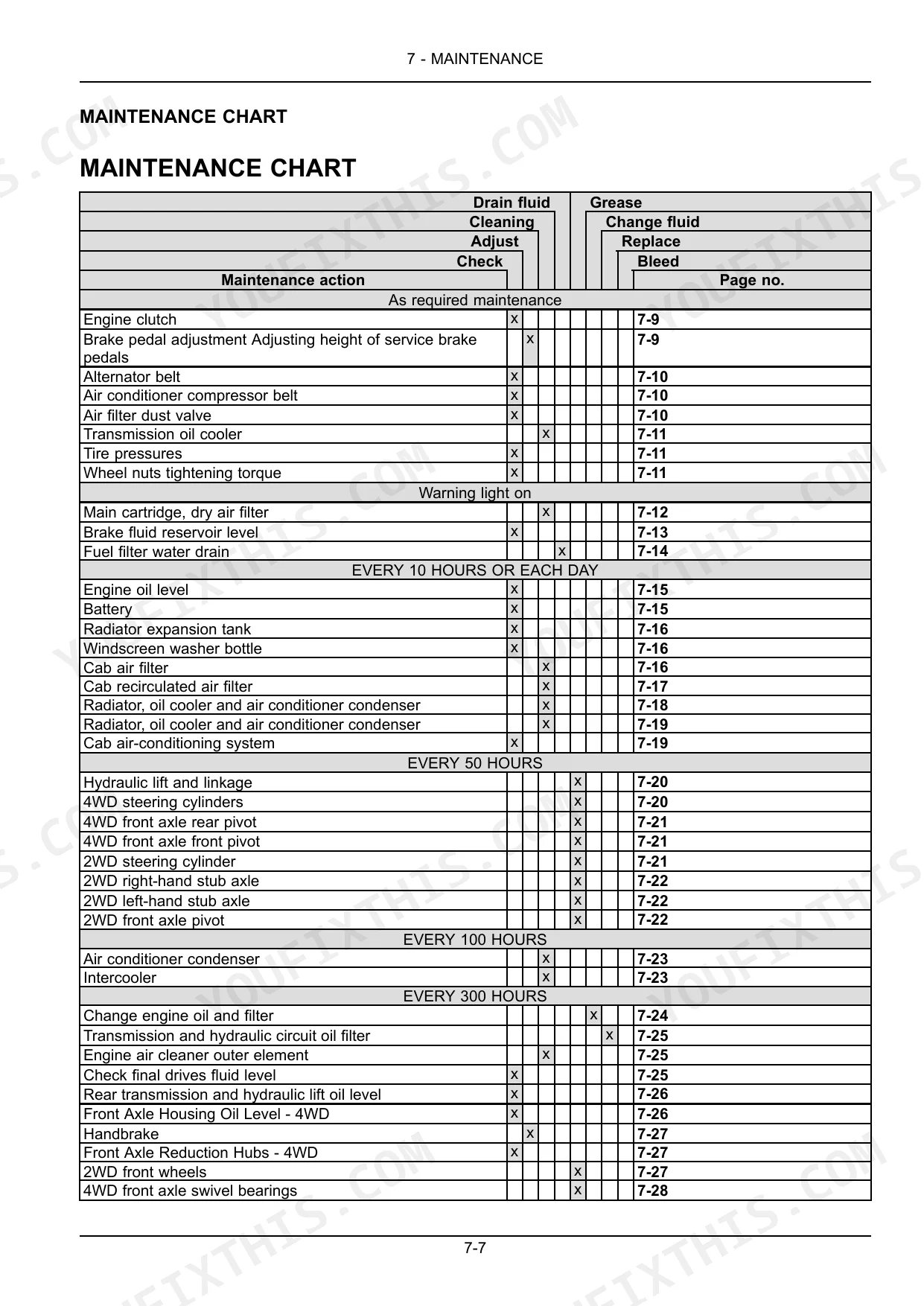

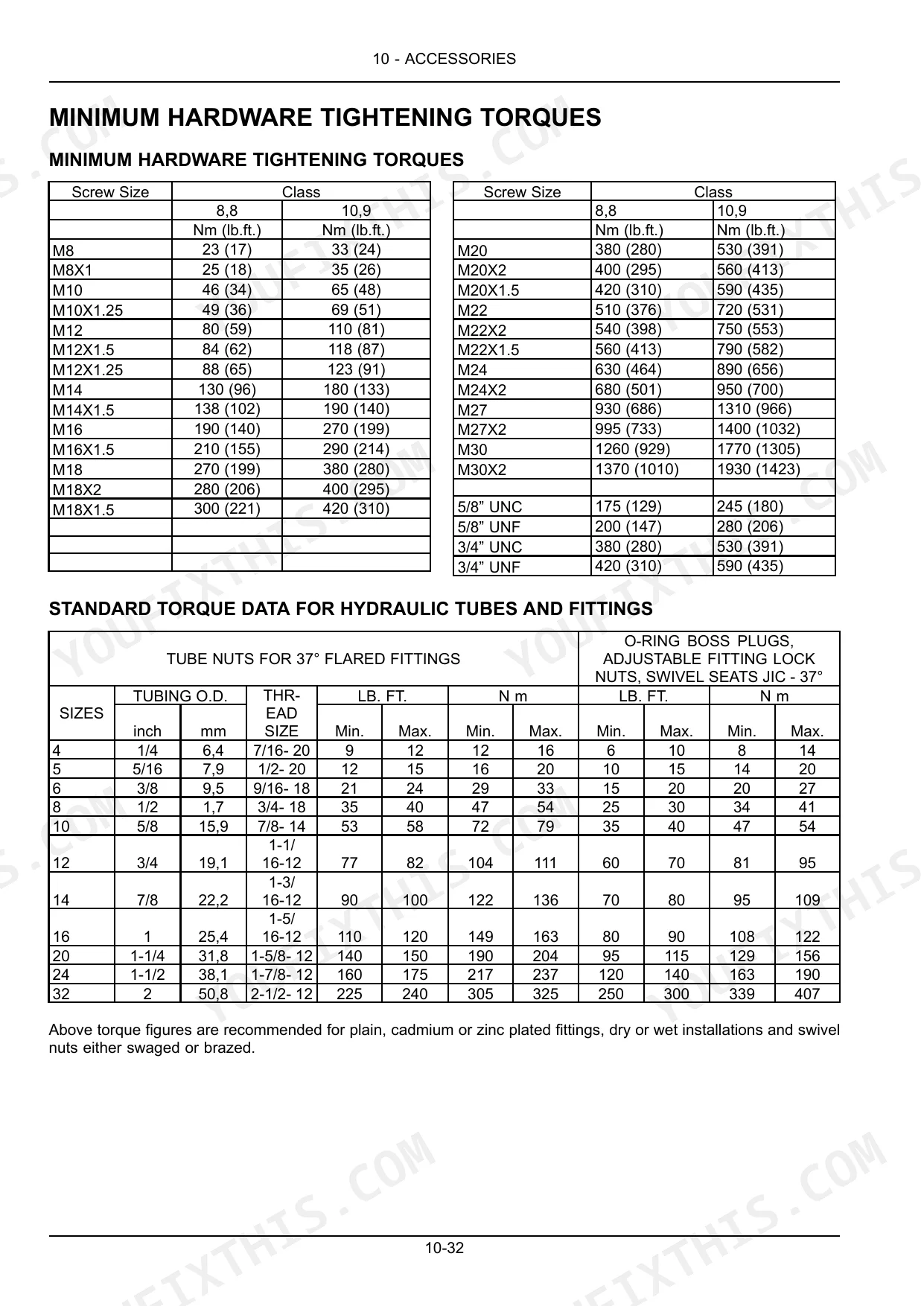

| Maintenance | 159-206 | Maintenance Chart (As Required Maintenance, Warning Light on), Every 10 Hours or Each Day, Every 50 Hours, Every 100 Hours, Every 300 Hours, Every 500 Hours |
| Troubleshooting | 207-214 | Fault Code Resolution, Alarm |
| Specifications | 215-230 | Fluid Capacities and Lubricant Specifications |
| Accessories | 231-262 | Rotating Beacon, Quick Hitch, Swinging Drawbars |
| Forms and Declarations | 263-272 | Service Record, Non-Functional Inspections, Operational Inspections, Functional Inspections, Safety Equipment Inspections |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Steering angle adjustment range | 40° – 50° | p. 143 |
| Clearance between tractor fairing and tyre at full lock | 20 mm (0.8 in) | p. 144 |
| Clutch pedal free travel | 40.0 mm (1.6 in) | p. 167 |
| Clutch pedal free travel limit for adjustment | 25.0 mm (1.0 in) | p. 167 |
| Coolant mixture ratio | 50% anti-freeze and 50% distilled water | p. 193 |
| Coolant capacity (models without cab) | 11 L (2.91 US gal) | p. 194 |
| Hydraulic pump pressure relief valve calibration | 190 bar (2756 psi) | p. 225 |
| Hydraulic pump pressure relief valve calibration (kg/cm2) | 194 kg/cm2 | p. 225 |
| Starter Motor Power | 3.5 kW | p. 229 |
| Alternator Output (ROPS models) | 65 A | p. 229 |
| Alternator Output (CAB models) | 80 A | p. 229 |
| Engine Oil Change Interval (Standard) | 300 hours | p. 182 |
New Holland TD5.65-TD5.110 Common Problems This Manual Covers
New Holland TD5 hydraulic lift raises slowly, jerks under load, or will not lift at all
Check the hydraulic oil level first: the lift draws its oil from the transmission through a gear pump driven directly by the engine, with a nominal flow of 36.2 l/min (9.56 US gal/min), or 47.6 l/min (12.58 US gal/min) with the optional Mega Flow pump, and a pressure relief valve calibrated at 190 bar (2756 psi) (page 225). The transmission and hydraulic lift circuit oil filter is on the maintenance chart (page 166); unscrew it, oil the rubber seal of the new cartridge and tighten it 3/4 of a turn by hand (page 183).
Manual Section: Hydraulic System Troubleshooting p. 225Clutch pedal free travel shrinking, clutch slips under load
Check that clutch pedal free travel (A) before clutch release is approximately 40.0 mm (1.6 in), measured from the pedal centre. When free travel is down to 25.0 mm (1.0 in), consult your authorised New Holland dealer for adjustment (page 167). Service brake pedal free travel should be the same for each pedal and not exceed 80 mm (page 167).
Manual Section: Maintenance p. 167Temperature gauge climbs into the red and coolant level drops between jobs

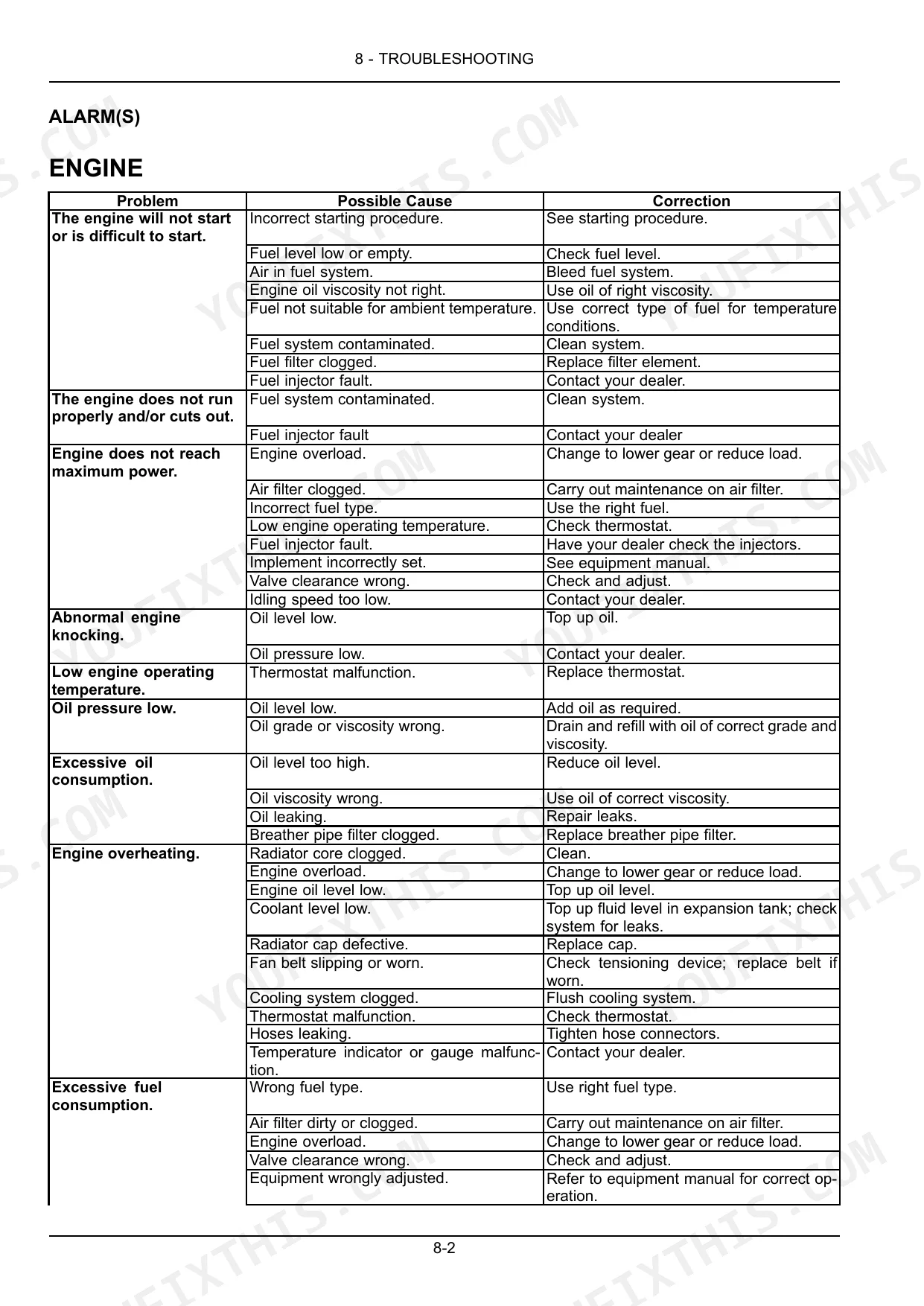

Work the engine overheating row of the troubleshooting table on page 208: a clogged radiator core, engine overload, low engine oil level, and low coolant level (top up the expansion tank and check the system for leaks). Refill with a premixed anti-freeze or a solution of 50% anti-freeze and 50% distilled water (page 193); models without a cab hold 11 L (2.91 US gal) and models with a cab 13 L (3.43 US gal) (page 194).
Manual Section: Engine Troubleshooting p. 208Engine cranks slowly or will not start in cold weather, battery seems weak
In low outside temperatures, keep each starting attempt under 15 seconds, or up to 30 seconds if the engine fires, wait at least one minute between attempts and make no more than six attempts; never use ether starting fluid with the grid heater cold start aid (page 97). Check the battery charge with a digital voltmeter against the charge table on page 196. The alternator is rated 65 A on ROPS models and 80 A on cab models (page 229).
Manual Section: Operating Instructions p. 97Wheel nuts working loose after roading, wobble or clunk felt from the rear axle
Torque the 2/4WD rear wheel hub disk nuts to 255 Nm (26 kgm) and the rim disk nuts to 245 Nm (28 kgm) (page 170). Wheel nut tightness is also checked during the first 50 hours of operation (page 159), and loose fasteners are part of the visual inspection after daily maintenance (page 95).
Manual Section: Maintenance p. 170Frequently Asked Questions
What is the maximum service brake pedal free travel on the New Holland TD5.65-TD5.110?
Check that pedal free travel (A) is the same for each service brake pedal and does not exceed 80 mm. If adjustment is required, consult your authorised New Holland dealer. p. 167
How do I replace the transmission and hydraulic lift circuit oil filter on the New Holland TD5.65-TD5.110?
The transmission and hydraulic lift circuit oil filter should be replaced by unscrewing the filter (1) and installing a new one. Oil the rubber seal and tighten the cartridge by 3/4 of a turn by hand, then top up with fresh oil as specified on page 183. p. 183
What is the engine oil capacity for the TD5.75 model with a filter?

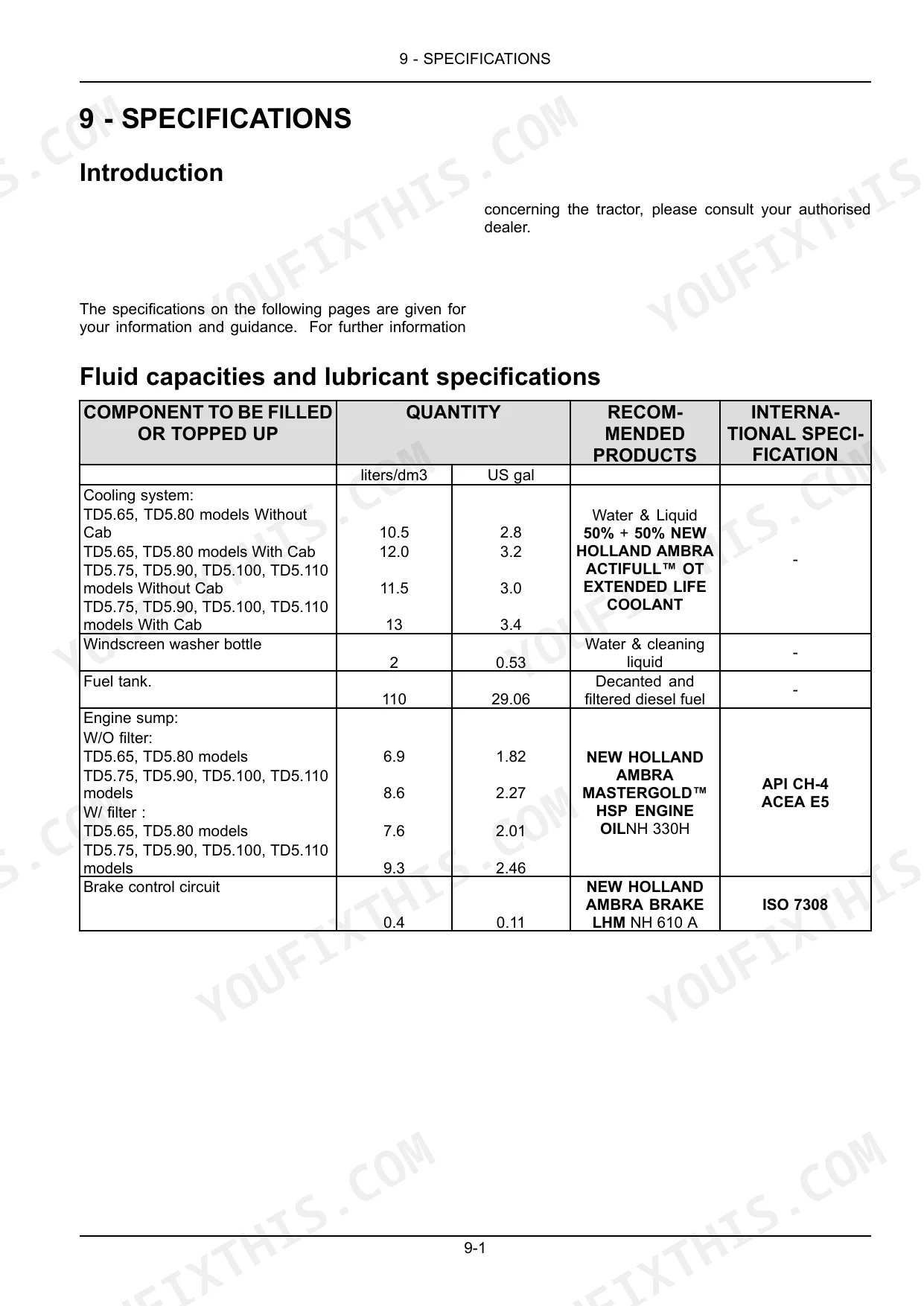

For the TD5.75 model, the engine oil capacity with a filter is 9.3 liters (2.46 US gal). p. 215
What is the valve clearance on the New Holland TD5.65-TD5.110 engine?
The valve clearance for the engine when cold is 0.30 mm +/- 0.05 mm for both the inlet and exhaust valves. p. 223
How often should the engine oil and filter be changed on the New Holland TD5.65-TD5.110?
The engine oil and filter should be changed every 300 hours of operation under normal conditions. However, this interval should be shortened to 150 hours if operating in temperatures below -12 °C or if the fuel sulphur content is between 0.5% and 1.0%. p. 182
Do I get instant access to this New Holland TD5.65-TD5.110 Operator Manual?
Delivery is instant: a 272-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Am I free to print this New Holland TD5.65-TD5.110 Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
