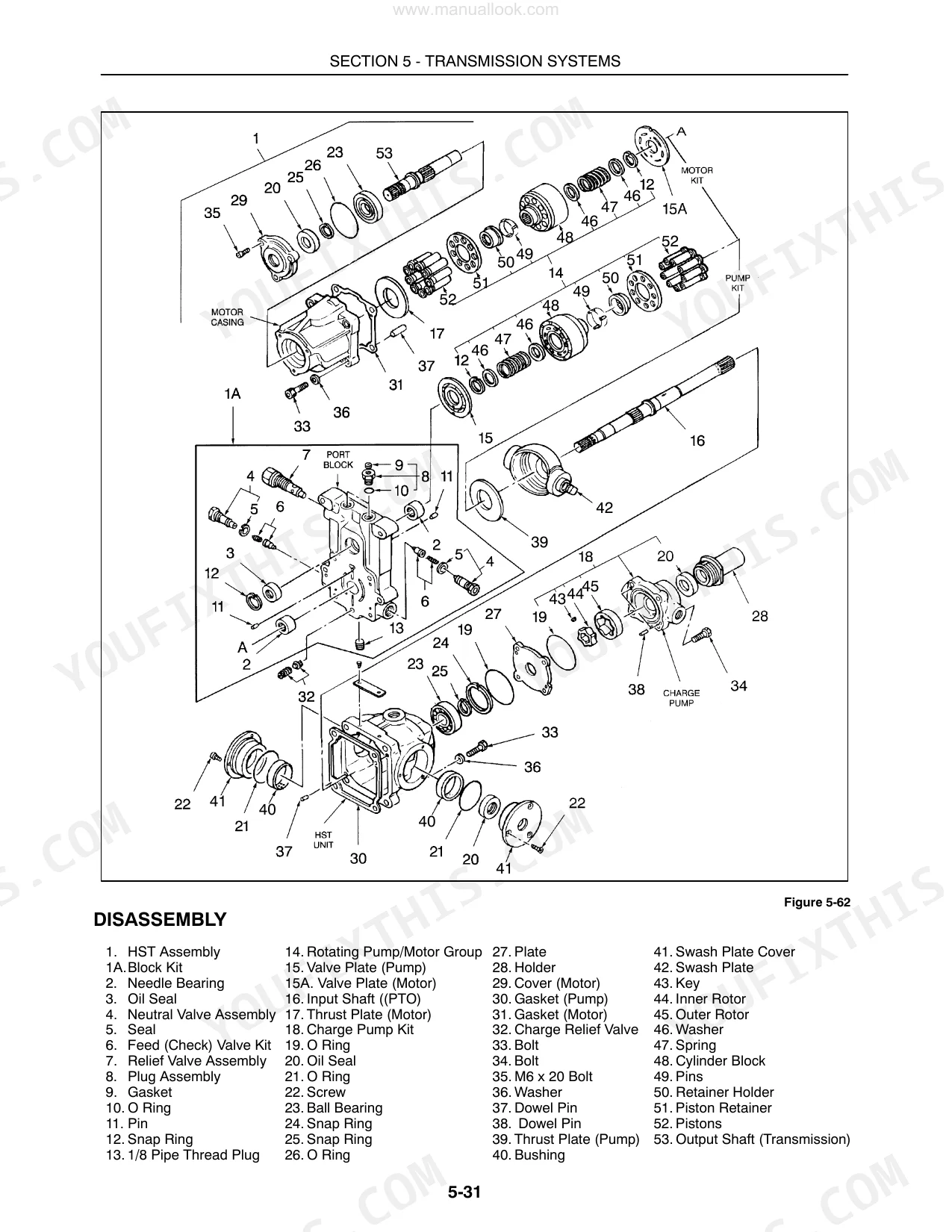

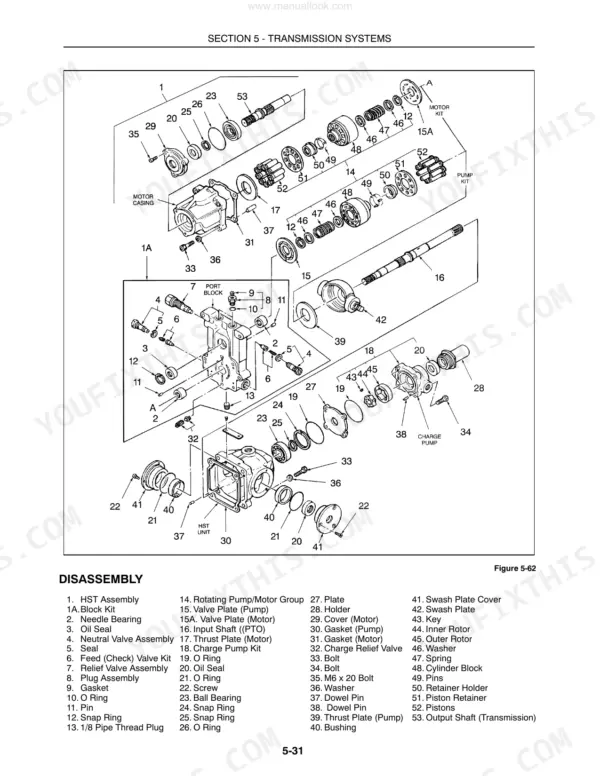

Whether you are tearing down a 1530 or need the factory New Holland TC33D service manual PDF, this 660-page compact tractor reference covers every variant including the 1630, 1725, 1925, TC25, TC29, TC25D, and TC29D. You get full electrical circuit schematics for chasing down voltage drops, plus massive hydraulic sections detailing the power steering and hydrostatic transmission systems. Inside, you will also find step-by-step engine overhaul procedures supported by exploded views and dedicated troubleshooting charts. Verify your system relief valve setting hits 147 bar (2130 psi) and confirm your clutch disc lining wear limit is less than 0.3 mm before putting the split tractor back together. Your machine is down and the farm is not waiting. Download the bookmarked file to your phone, jump straight to the exact procedure, and start wrenching.
What's Inside This New Holland TC33, TC33D Manual
| System | Pages | Key Topics |
|---|---|---|

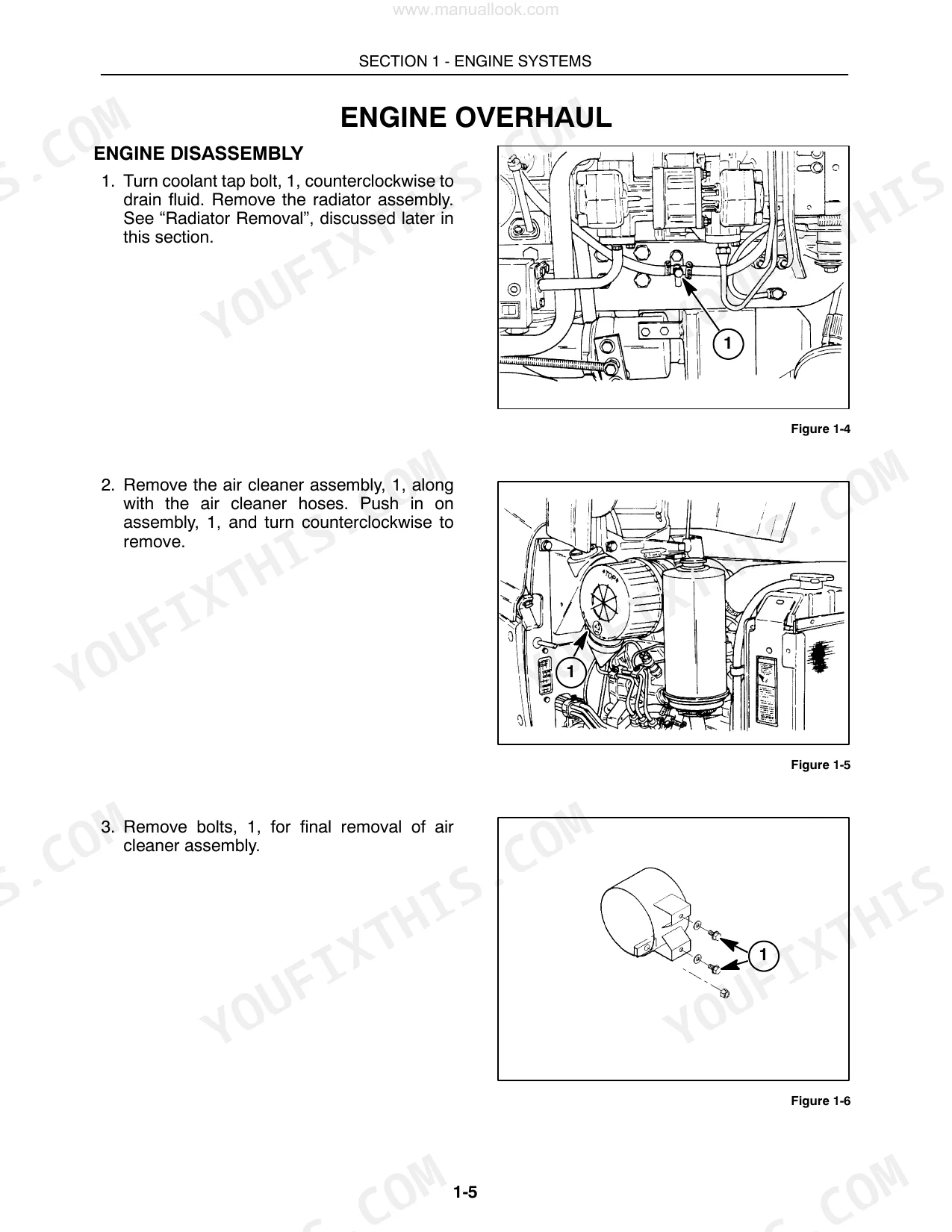

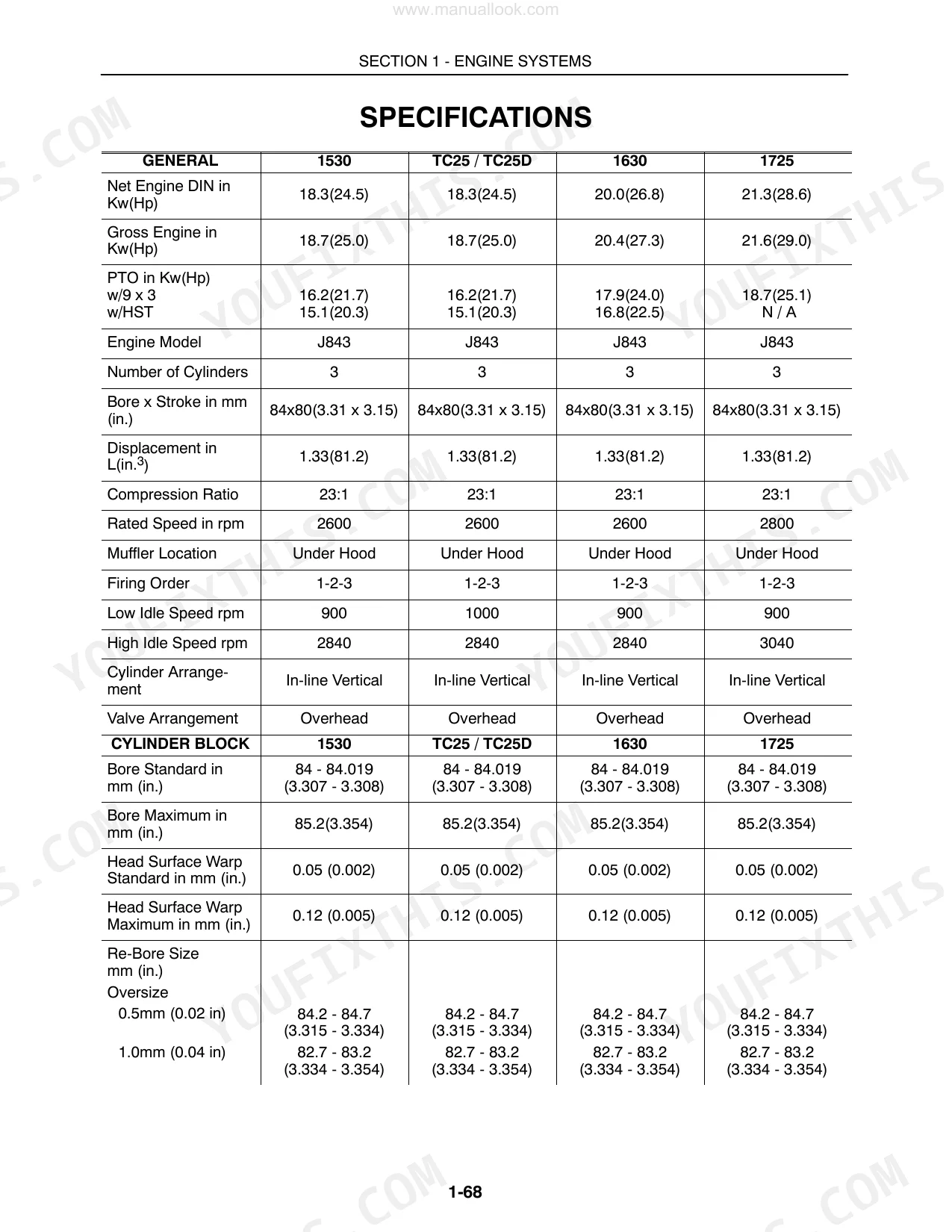

| Engine Systems | 9-92 | Engine Overhaul, Disassembly, Inspection, Fits, Clearances, And Assembly of Component Assemblies, Engine Reassembly, Engine Lubrication System |
| Fuel System | 93-132 | And, TC33D, TC33D . . . . . . . . . . . . . . . . . . . . . . . . . . Bar |

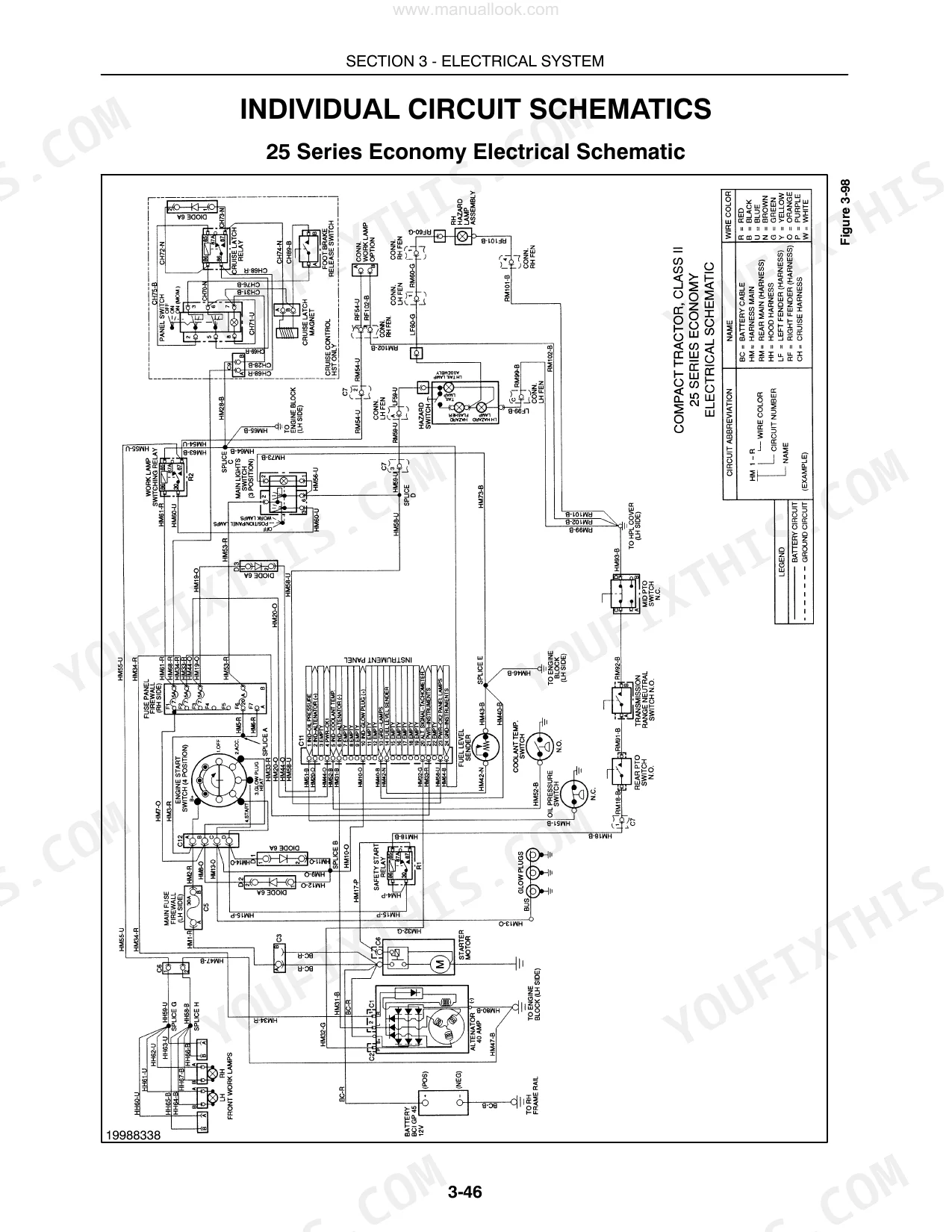

| Electrical System | 133-309 | Battery and Fuses, Electrical System Components - Description and Testing, Individual Circuit Schematics, Individual Electrical Circuits |
| Clutches | 310-331 | Single Clutch, Adjustment, Double Clutch, Servicing Clutch-Related Components, Overhaul |
| Transmission Systems | 332-403 | 9×3 Gear Transmission, Pressure Tests, Hydrostatic Transmission Gearbox, Hydrostatic Transmission, Bolt Torque Specifications, Troubleshooting, Specifications |
| Power Take-Off Systems | 404-423 | Description and Operation, Power Take-Off Overhaul, Mid-Mount Power Take-Off, Specifications |
| Differential, Rear Axle, and Brakes | 424-448 | Differential Overhaul, Rear Axle Overhaul, Brakes and Final Pinion Overhaul, Introduction, Bolt Torque Specifications, Specifications |

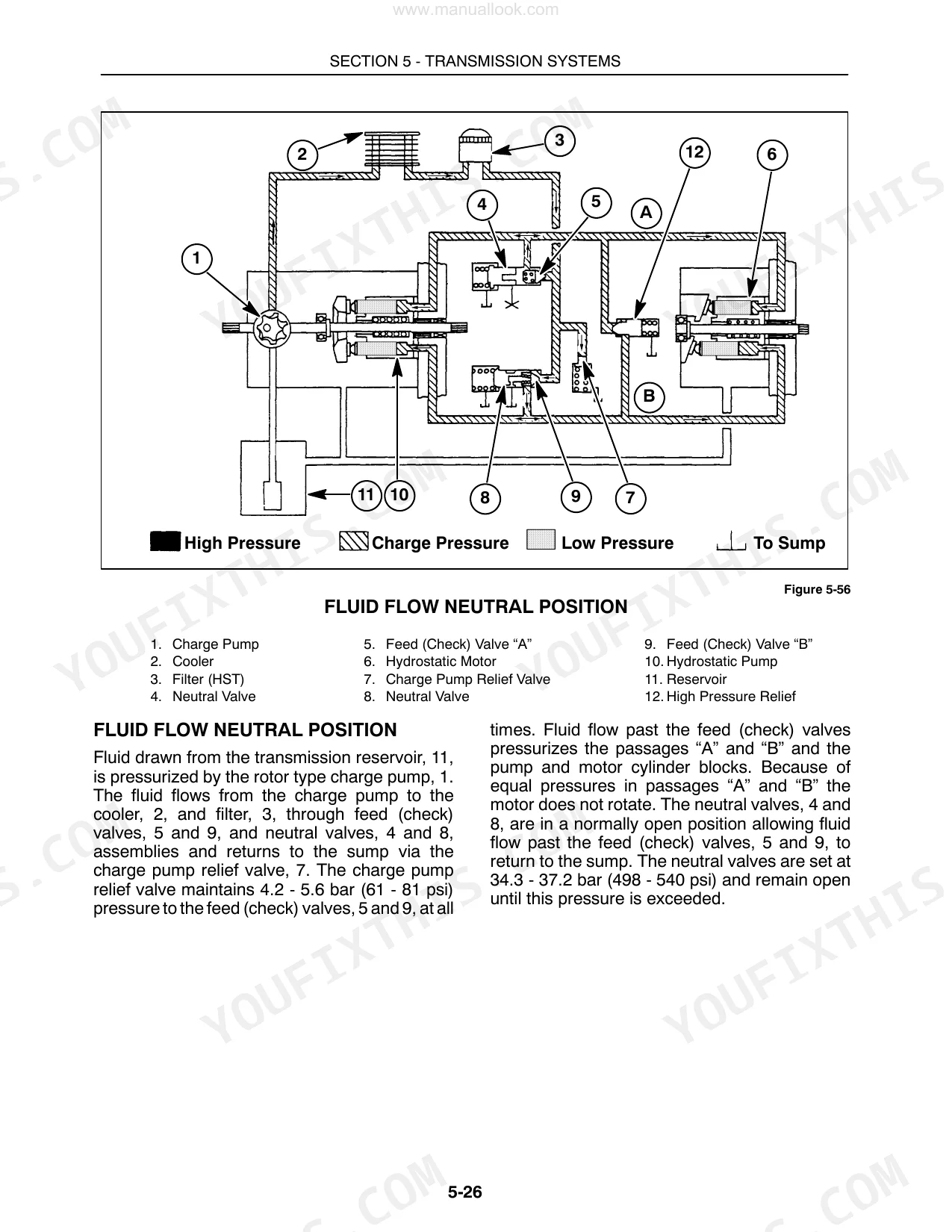

| Hydraulic System | 449-500 | Adjustments, Hydraulic Pump and Filter, Remote Valves, Introduction, Overhaul, Troubleshooting |
| Steering Systems Power Steering | 501-543 | Power Steering System, Power Steering System Overhaul, Special Tools, Pressure Testing, Troubleshooting, Specifications |
| Front Axle and Related Parts | 544-571 | Two-Wheel Drive, Front-Wheel Drive, Bolt Torque Specifications, Overhaul, Troubleshooting, Specifications |
| Super Steer, Front Axle, and Sensi Track | 572-633 | Supersteer, Front Axle, And Sensitrack, General Information, Pressure Testing, Overhaul, Troubleshooting |
| Wheels and Tires | 634-639 | - |
| Separating the Tractor | 640-660 | Separating the Tractor Between the Front Axle and Axle Support, Separating the Tractor Between the Front Axle Support and Engine |
Every system also includes contents.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Pressure Warning Light (closes when oil pressure is low) | 3 - 6 PSI | p. 168 |
| Brake Discs Lining Groove Depth Allowable Limit | 0.0 mm (0.0 in.) | p. 446 |
| Clutch Disc Lining Wear Limit | less than 0.3 mm (0.012″) | p. 316 |
| Clutch Mounting Bolts Torque | 22.6 - 28.4 N⋅m (16.6 - 21 ft lbs) | p. 330 |
| System Relief Valve Setting | 147 +/- 5 bar (2130 +/- 70 psi) | p. 498 |
| Coolant Capacity | 5.6 Liters (5.9 Qts.) | p. 90 |

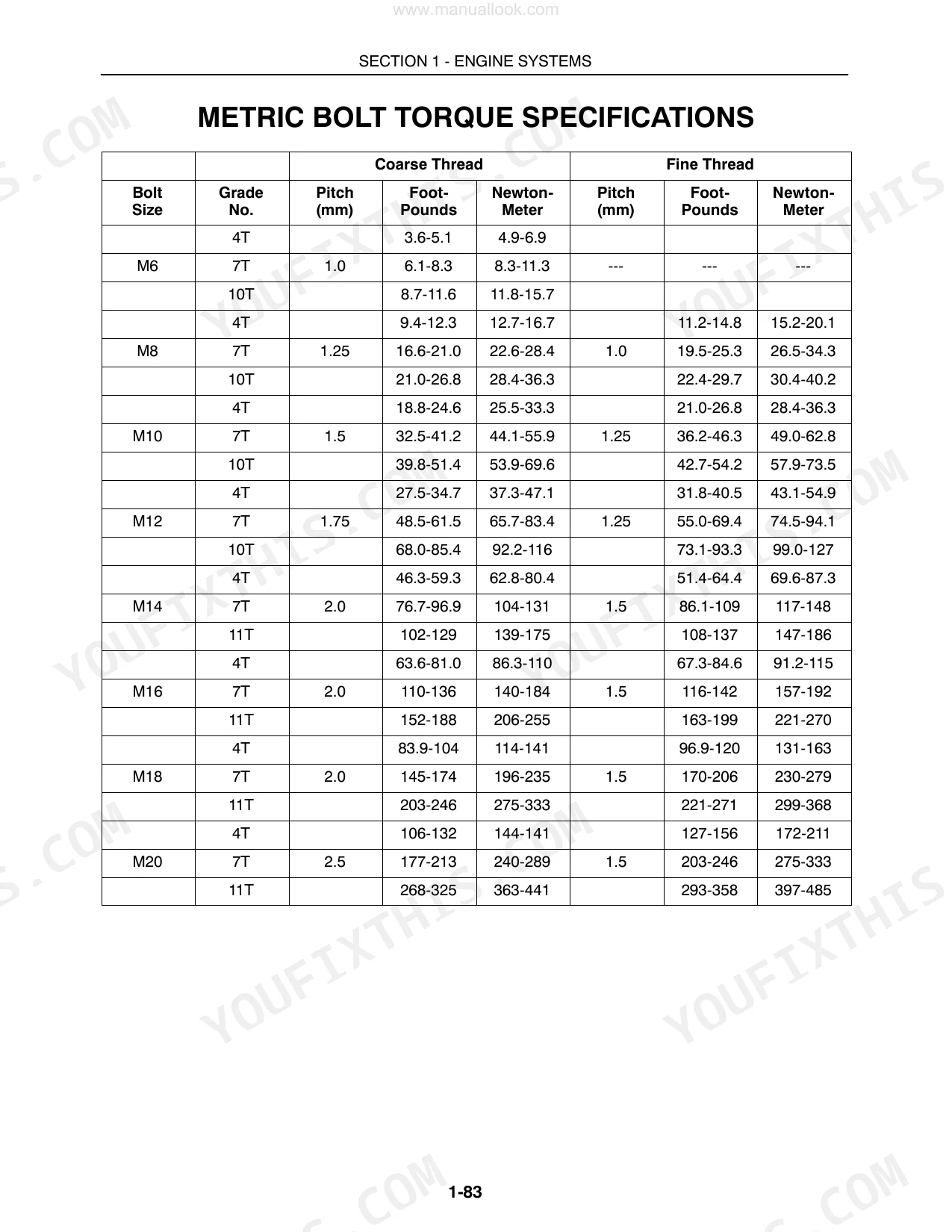

| Engine Head Bolts Torque | 88 - 94 N⋅m (65.1 - 68.7 ft lbs) | p. 90 |
| Connecting Rod Caps Torque | 49.0 - 53.9 N⋅m (36.2 - 39.8 ft lbs) | p. 90 |
| Valve Clearance Adjustment | 0.2 mm (0.008″) | p. 49 |
| Thermostat Opening Temperature | 82°C (180°F) | p. 71 |
| Radiator Cap Pressure Rating | 0.9 bar (13 psi) | p. 90 |
| Oil Pressure Relief Valve Opening Pressure | 2.4 - 3.4 bar (35 - 50 psi) | p. 88 |
New Holland TC33, TC33D Common Problems This Manual Covers

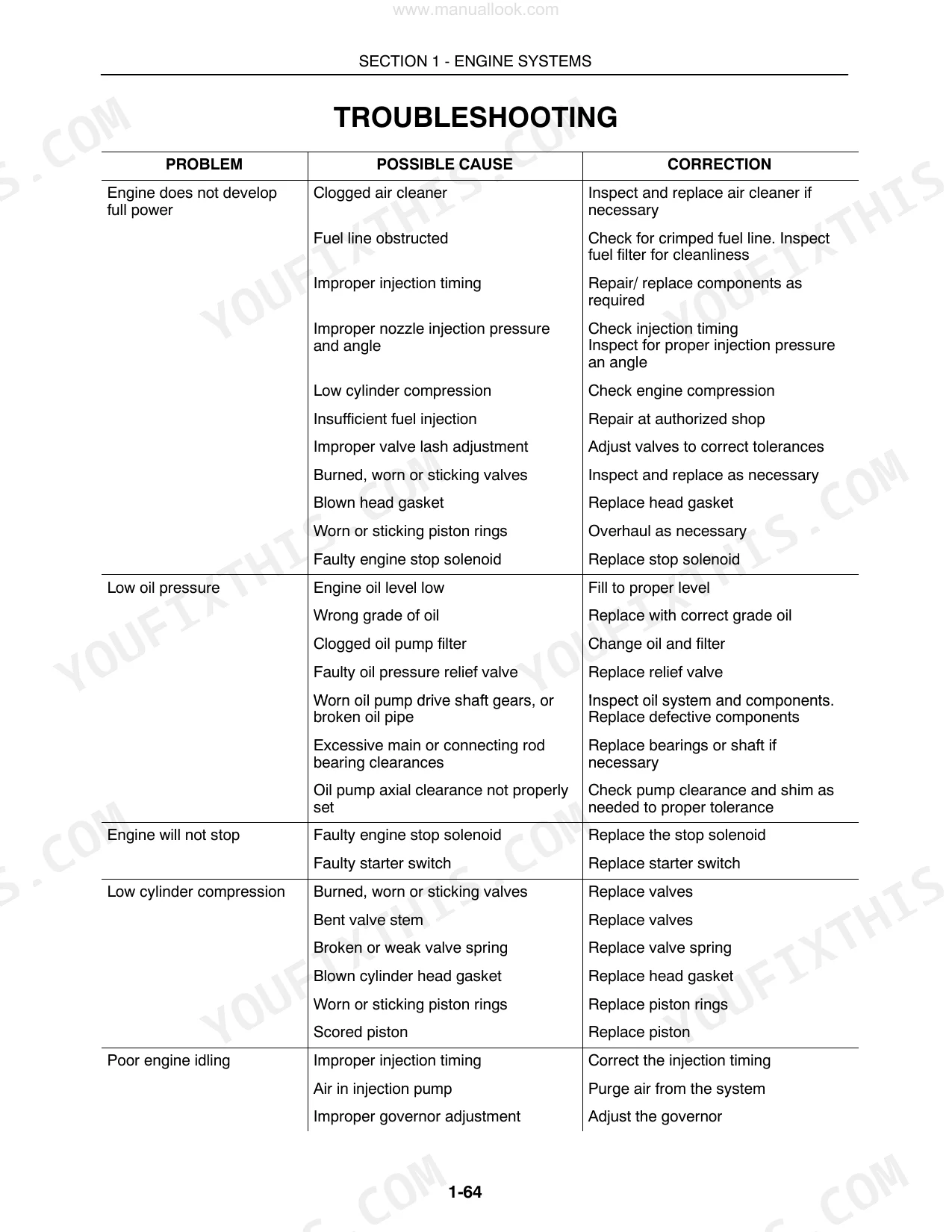

New Holland TC33D hydraulic lift arms won't raise or drift down rapidly under load
Check the system relief valve setting on page 498; it should hold 147 +/- 5 bar (2130 +/- 70 psi). If pressure bleeds off under load, pull the control valve spool and inspect for scoring, then replace the O-ring seals in the lift cylinder. Flush the reservoir since contaminated fluid is a common cause of a sticking spool.
Manual Section: Hydraulic System p. 498Engine loses power and overheats under heavy PTO load running a mower or bush hog
Verify the thermostat opens at 82°C (180°F) as specified on page 71 and confirm the radiator cap holds 0.9 bar (13 psi). Check coolant level against the 5.6 liter (5.9 qt) system capacity on page 90, then inspect the fuel line for collapse or kinks and clean or replace the air filter before pulling the water pump for bearing play.
Manual Section: Engine SystemsThree-point hitch arms bind or jerk during engagement
Inspect the adjustable lift arm end links for wear and uneven length side to side; replace both if worn. Drain and check hydraulic fluid condition since contamination causes valve sticking, and verify system relief pressure holds at 147 +/- 5 bar (2130 +/- 70 psi) per the spec on page 498 before adjusting linkage travel.
Manual Section: Hydraulic System p. 449Brake pedal sinks to the floor or loses pressure under braking
Check the brake discs lining groove depth against the allowable limit of 0.0 mm (0.0 in.) on page 446; any measurable wear past that point means replacement. Inspect the master cylinder for leaking seals and bleed the system fully, checking pedal return and looking for air trapped in the lines.
Manual Section: Differential, Rear Axle, and Brakes p. 446Engine cranks but won't start with no fuel delivery sound at the injectors
Check the fuel filter and screen for clogging first, then verify the fuel solenoid is energizing when the key is turned. Confirm oil pressure is above the 3 - 6 PSI threshold noted on page 168 that closes the warning light circuit, since a stuck low-pressure switch can mimic a no-start. Bleed air from the fuel system after any filter change.
Manual Section: Fuel System p. 93Clutch pedal has excessive free play or won't disengage fully
Measure clutch pedal free play; it should fall between 19 - 30 mm (0.79 - 1.18 in.) as listed on page 329. If out of spec, adjust the linkage, then check clutch disc lining wear against the 0.3 mm (0.012 in.) limit on page 316. Torque clutch mounting bolts to 22.6 - 28.4 N⋅m (16.6 - 21 ft lbs) after reassembly.
Manual Section: Clutches p. 329Frequently Asked Questions
What are the torque specs for the main bolt on New Holland 1530 engine?
For the New Holland 1530 engine, the main bearing holder bolts should be torqued to 49.0 - 53.9 N⋅m (36.2 - 39.8 ft lbs). This specification is crucial for proper engine reassembly. p. 90
What are the torque specs for the wheel nuts on New Holland TC29D?
For all models, including the New Holland TC29D, the front wheel bolts should be torqued to 122 N⋅m (90 ft lbs), and the rear wheel bolts should be torqued to 169 N⋅m (125 ft lbs). p. 639
What is the recommended replacement interval for the engine oil filter?
The engine oil filter must be replaced every 100 hours of operation. When installing a new filter, coat its face with clean oil and hand tighten only. p. 56
What is the total coolant capacity for all models?
The cooling system capacity for all models is 5.6 Liters (5.9 Qts.). It is recommended to use a 50/50 mixture of ethylene glycol base antifreeze and pure water. p. 90
How will I receive this New Holland 1530 & variants Service Manual?
This is a 660-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this New Holland 1530 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this New Holland 1530 & variants Service Manual cover the hydraulic system?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
