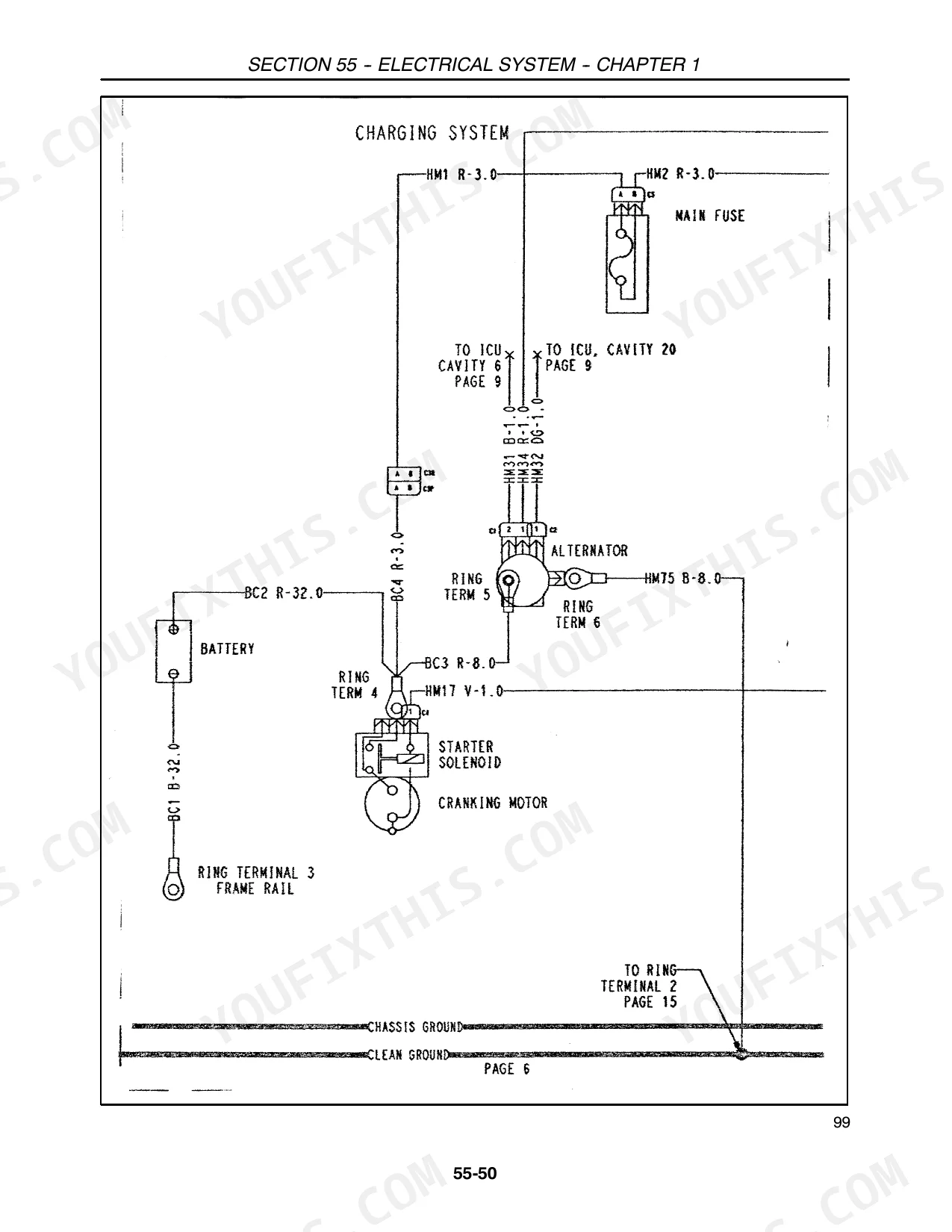

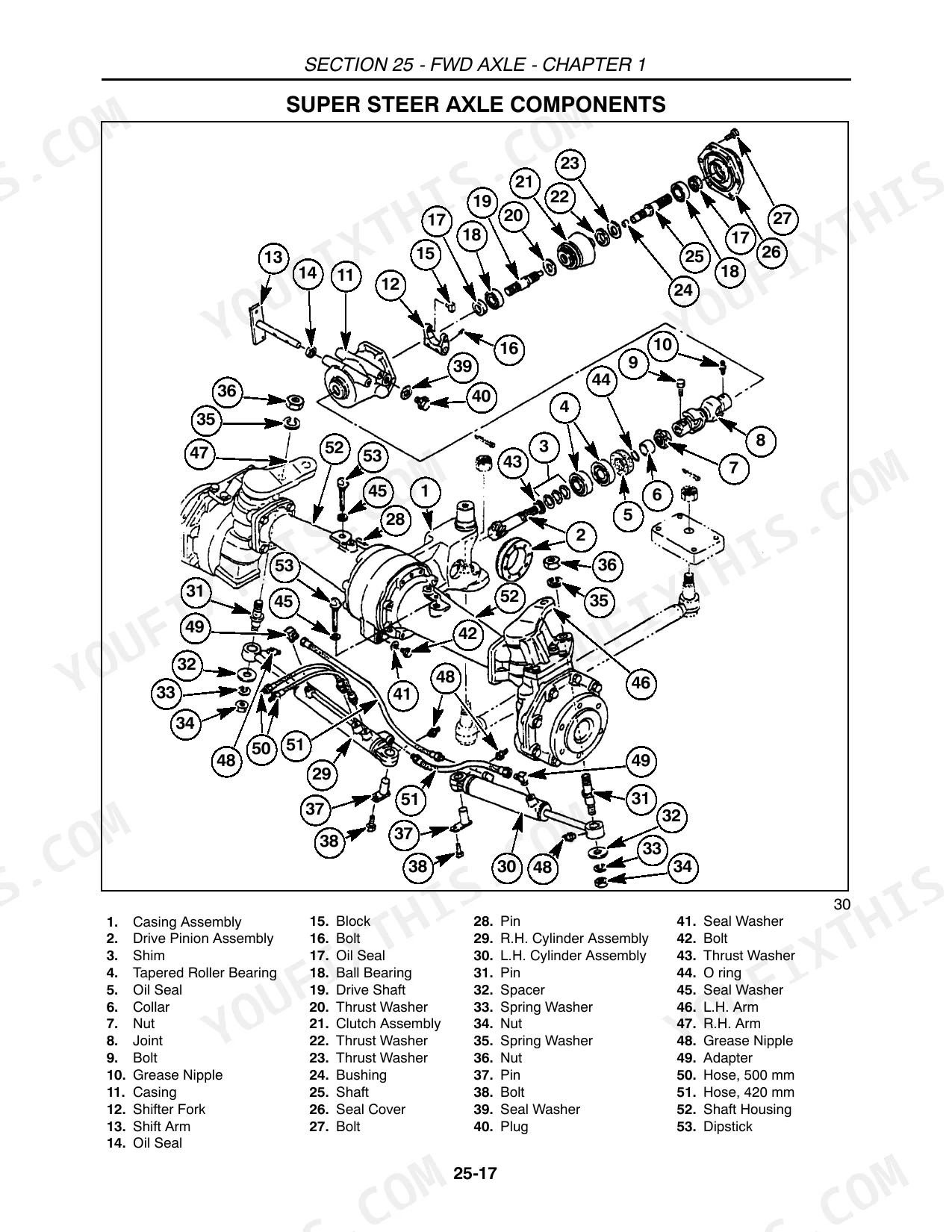

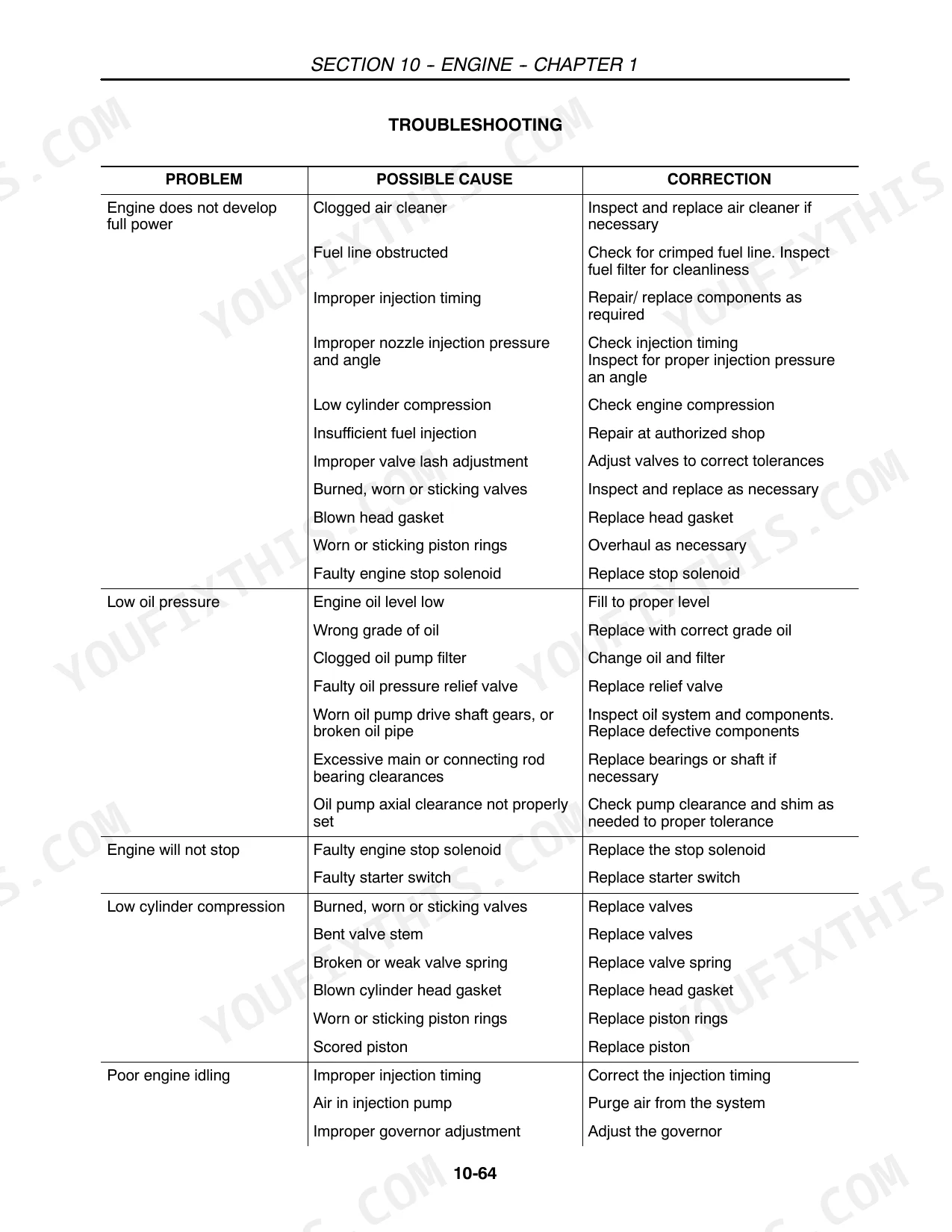

This 712-page New Holland TC29D, TC33D Repair Manual (OEM #87036760) covers both compact tractors nose to tail, from the diesel engine overhaul down to the last dash console screw. You get full wiring diagrams for the electrical system, hydraulic schematics covering the control valve and remote spool circuits, and a dedicated troubleshooting section for the hydrostatic transmission when your TC29D won't shift right. Inside you'll also find exploded views for the FWD axle and PTO gearbox, plus torque tables covering everything from cylinder head bolts to wheel nuts. The radiator cap holds 0.9 bar (13 PSI), and the thermostat starts opening at 71°C (160°F), real factory numbers, not a forum guess. No more pulling panels blind trying to trace a short. Bookmarked by system, so you jump straight from cover to hydrostatic overhaul without hunting through 700 pages on your phone in the shop.
What's Inside This New Holland TC29D, TC33D Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 21-46 | Description and Operation, Cylinder Head and Valve Train Components, Cylinder Block Assembly |

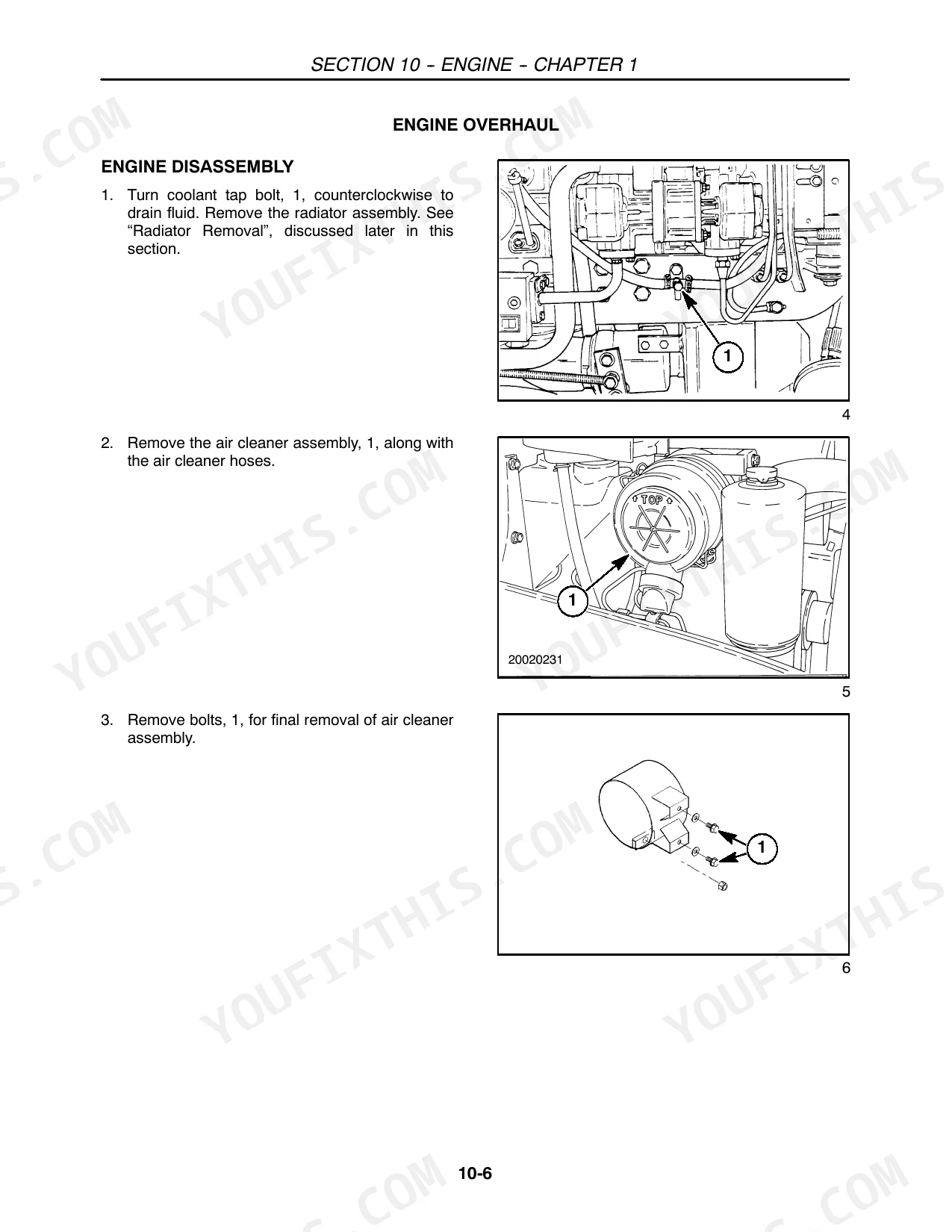

| Engine | 47-164 | Engine Overhaul (Engine Disassembly, Fuel Injector and Glow Plug Removal, Oil Pressure Switch, Temperature Sending Switch and Alternator Removal, Fan, Water Pump, And External Oil Tube Removal, Air Inlet Manifold Removal, Valve Cover Removal, Rocker Arm Shaft and Support Bracket Removal) |
| Clutches | 165-188 | Troubleshooting, Specifications, Special Tools, Single Clutch -- Description, Single Clutch -- General, Single Clutch -- Operation, Free-Play Adjustment |
| Gear Transmission | 189-232 | Operation, Powerflow, Overhaul, Separating the Tractor at Clutch Housing/Engine, Main Transmission Disassembly, Main Transmission Assembly |
| FWD Axle | 233-288 | Specifications, Front to Rear Axle Ratio, Special Tools, Supersteer, Front Axle, And Sensitrack, Description and Operation, Automatic Position -- Engaged |
| Differential, Rear Axle | 289-312 | Introduction, Operation, Differential Lock, Differential Overhaul, Rear Axle Overhaul, Specifications, Bolt Torque Specifications |
| Hydrostatic Transmission | 313-372 | Specifications, Minimum Hardware Tightening Torques, Special Tools, Troubleshooting, Hydrostatic Transmission Model TC29D and TC33D, Description and Operation |
| Power Take-Off System | 373-390 | Live Power Take-Off, Power Take-Off Drive - Hydrostatic Transmission, Power Take-Off Overhaul - Removal, Power Take-Off Output Shaft Removal |
| Brakes | 391-402 | Description of Operation, Brake Operation, Parking Brake, Overhaul, Brake Adjustment |

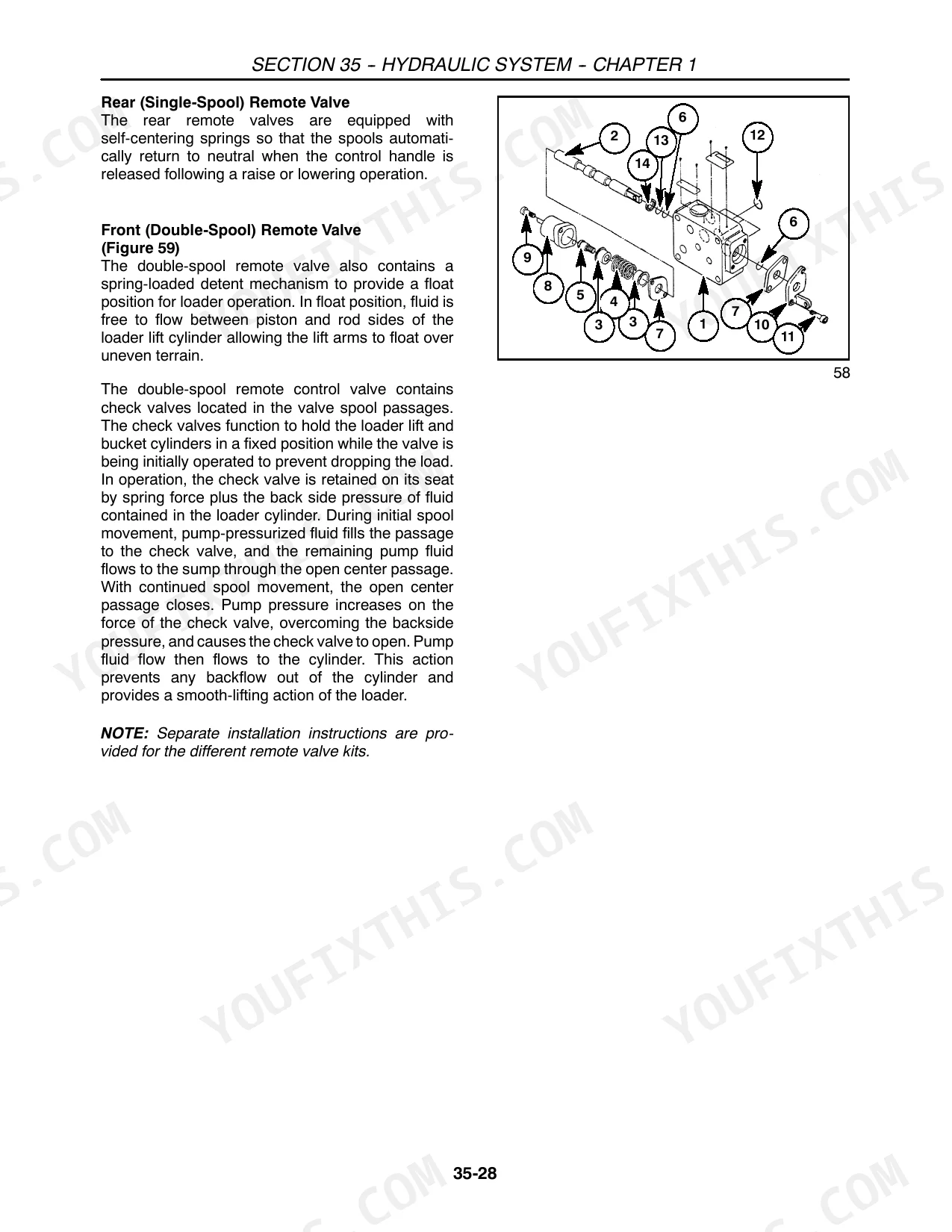

| Hydraulic System | 403-456 | Introduction, Hydraulic Fluid Filter, Combination System Relief--Diverter Valve Manifold Assembly, Control Valve Assembly, Neutral PositionóFluid Flow, Raising PositionóFluid Flow |
| Steering System | 457-502 | Power Steering System, Description and Operation, Power Steering Control Motor, Power Steering Pump, Power Steering Cylinder, Power Steering Operation, Manual Operation, Overhaul |
| Wheels and Tires | 503-510 | FWD Tread Setting, Rear Axle Tread Setting, Tractor Weighting, Rear Wheel Weight Installation, Tire Pressure |
| Electrical System | 511-686 | Introduction, Component Location and Function, Battery and Fuses, Fuse Block, Main Fuse, Electrical System ComponentsóDescription and Testing, Key Switch, Light Switch |
| Platform | 687-712 | Hood, Rear Hood Panels, Dash Console, Seat, ROPS, Fenders, Deck, PTO and Range Controls |

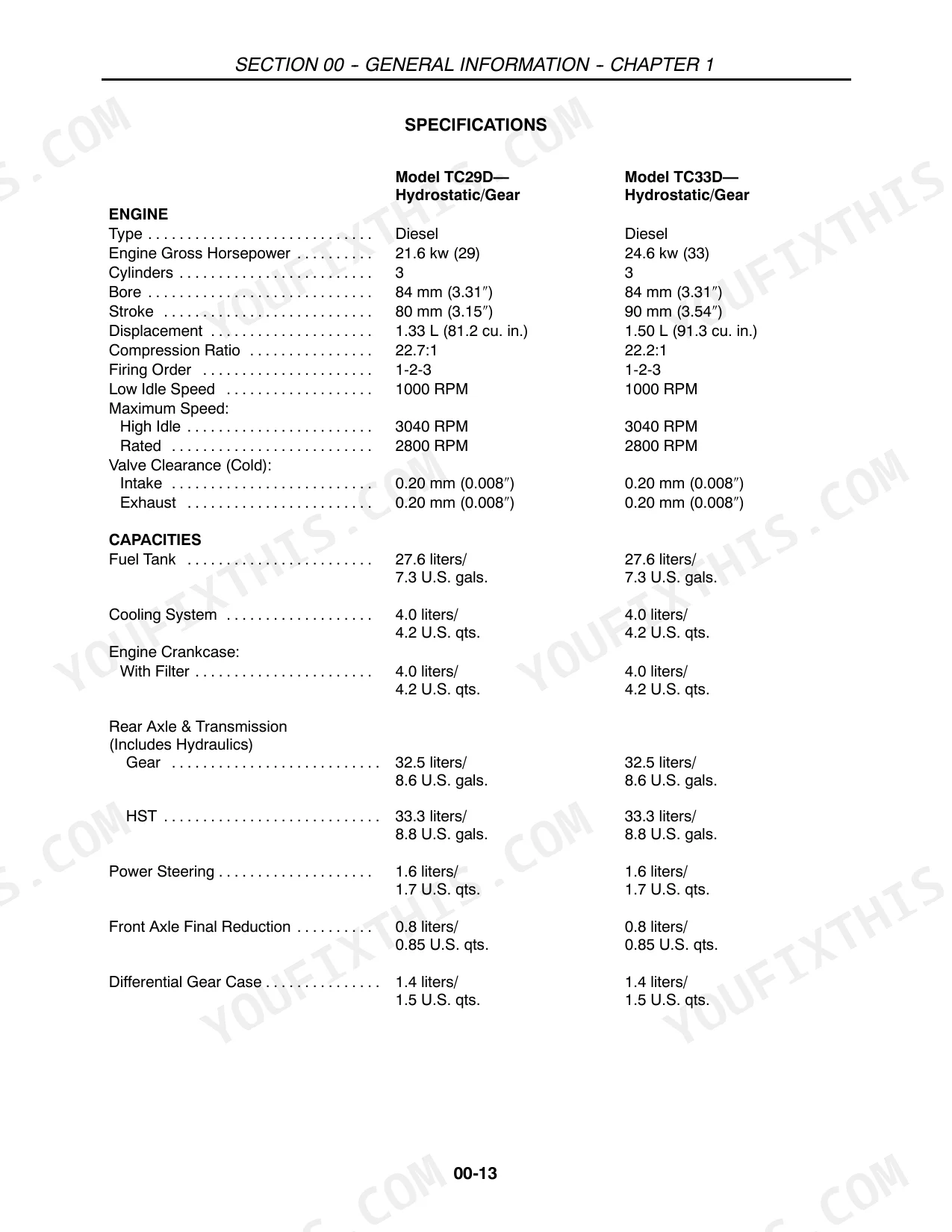

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Water Pump | 60 | p. 5 |
| Radiator | 56 | p. 5 |
| Water Pump: Type | Centrifugal | p. 34 |
| Radiator Cap | 0.9 bar (13 PSI) | p. 121 |
| Thermostat: Start to Open | 71°C (160°F) | p. 34 |
| Thermostat: Fully Open | 85°C (185°F) | p. 34 |
| HYDRAULIC LIFT SYSTEM: Pump Capacity | 7.6 U.S. gpm (29 lpm) | p. 427 |
| HYDRAULIC LIFT SYSTEM: System Relief Valve Setting | 147 bar (2133 PSI) | p. 35 |
| Rotor to vane clearance (Std.) | 0.01 - 0.15 mm (0.004 - 0.006") | p. 95 |
| Rotor to vane clearance (Max.) | 0.25 mm (0.010") | p. 95 |
| Oil pressure warning light fails to operate - Bulb burnt out | Replace the bulb | p. 111 |
| Oil pressure warning light fails to operate - Oil pressure sensor is faulty | Replace oil pressure sensor | p. 111 |
New Holland TC29D, TC33D Common Problems This Manual Covers
Hydraulic fluid overheating and turning dark after short work sessions
Drain and inspect the hydraulic fluid for contamination or a burnt smell; discoloration this fast points to internal pump wear generating heat. Measure rotor-to-vane clearance against the 0.01-0.15 mm (0.004-0.006 inch) standard on page 95, replacing the pump if clearance exceeds 0.25 mm (0.010 inch); worn vanes or rotor scoring beyond this limit require pump replacement.
p. 449Frequently Asked Questions
What are the torque specs for New Holland TC29D head bolts?
For the New Holland TC29D, the head bolts should be torqued to 88 - 94 N⋅m (65.1 - 68.7 ft lbs). This specification is crucial for proper engine assembly and performance. p. 121
How do you fix new Holland TC33D clutch slipping under load after 500 hours, tractor bogs down on hills?
Check clutch pedal free-travel first; it should measure 19 mm to 30 mm (0.79-1.18 inches) per page 167. If travel is out of spec, adjust the linkage. If travel is correct but slipping persists, the clutch disc has likely worn past its limit and needs replacement. p. 166
How do you fix engine overheating during operation in hot weather, temp gauge climbing at idle?
Check coolant level first and top off if low. Inspect the thermostat; it should start opening at 71°C (160°F) and be fully open by 85°C (185°F) per page 34. Test the radiator cap for a 0.9 bar (13 PSI) seal on page 121, and check V-belt deflection at 10-15 mm under 9-11 kg thumb pressure. Backflush the cooling system if rust or scale is clogging water ports. p. 112
How do you fix hydraulic system won't lift implement or lifts very slowly at low engine RPM?
Verify the external and internal lift linkage is properly adjusted; misadjustment is the most common cause of a no-lift condition. If lift is slow rather than absent, clean or replace the suction filter screen. Confirm pump output meets 29.0 L/min (7.6 GPM) rated capacity on page 453, and check the system relief valve is holding at 145 ± 5 bar (2133 ± 70 psi). p. 448
Is this New Holland TC29D, TC33D Repair Manual a digital download?
A 712-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this New Holland TC29D, TC33D Repair Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this New Holland TC29D, TC33D manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
