New Holland TM120-TM190 Repair Manual 87611250

4.5/5 on Trustpilot · 155 reviews

$39.95 USD · one-time payment

Model: TM120 | TM130 | TM140 | TM155 | TM175 | TM190
Type: Tractor
Years: 2002-2007
7954 Pages·154 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Hydraulic Schematics
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)

Download, file and refund questions: FAQ

Add to Cart

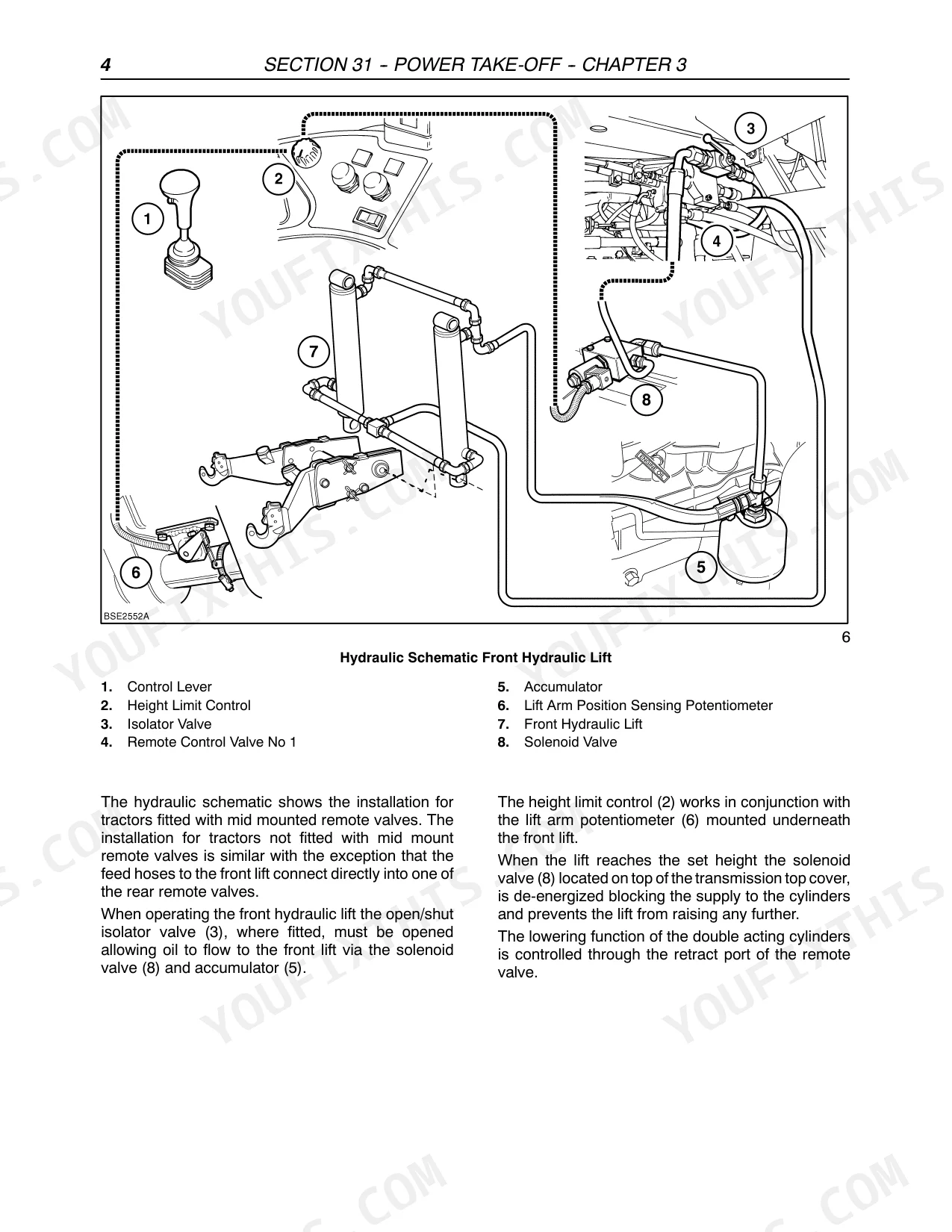

New Holland TM120-TM190 repair manual — hydraulic schematic of the front lift circuit with numbered components
New Holland TM120-TM190 Repair Manual 87611250
$39.95

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

This is the factory repair manual for the New Holland TM120, TM130, TM140, TM155, TM175 and TM190 tractors, part number 87611250. At 7954 pages it is the largest book in this range, and the reason is diagnostics: the electrical section alone runs from page 1635 to page 7942, and more than four thousand of those pages are step-by-step diagnostic procedures written per error code, split by transmission family and serial-number break. The engine section tabulates all six tractors side by side, from the 90 kW TM120 to the 168 kW TM190.

What's Inside This Repair Manual

SystemPagesKey Topics
General115-136Shop Safety, Standard Tightening Torques, Approved Fluids and Consumables, Tractor Identification
Engine137-2806-Cylinder 7500 Cc Diesel in Six Ratings, Specifications and Wear Limits, Mechanical and Electronic Governor Variants, Cylinder Head and Block, Compression Test, Engine Overhaul
Clutch281-294Clutch and Its Release Mechanism, Pedal Free Play, Clutch Removal and Refitting
Transmission Systems295-650Range Command and Full Powershift Transmissions, Clutch Packs and Control Valves, Shuttle, Creeper, Pressure Testing and Overhaul
Drive Lines651-684Drive Shafts and Couplings, Universal Joints, Drive Line Service
Front Axle685-778Driven Front Axle, Bevel Drive and Differential, Hub Reduction, Steering Knuckles, Axle Rebuild
Mechanical Rear Wheel Drive779-888Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash
Power Take-Off889-976Rear and Front PTO Clutch and Brake, Speed Selection and Shaft Change, PTO Overhaul
Brakes977-1060Service Brakes, Parking Brake, Trailer Brake, Pedal Adjustment, Bleeding the Circuit
Hydraulic System1061-1518Hydraulic Pump and Supply Circuit, Electronic Draft Control Lift, Remote Control Valves, Three-Point Linkage, Pressure Testing and Pump Overhaul
Steering1519-1554Hydrostatic Steering Unit and Circuit, Steering Control Valve and Cylinder, Steering Column
Front Axle and Wheels1555-1578Two-Wheel-Drive Front Axle, Hubs and Stub Axles, Wheel Track Adjustment, Tyre Fitment
Auxiliary Units1579-1634Cab Heating, Ventilation and Air Conditioning, Compressor and Condenser, Refrigerant Handling
Electrical System: Circuits and Components (Chapters 1-9)1635-2430Electrical System Overview, Starting and Charging Circuits, Harness and Connector Diagrams, Sensors and Switches, Instruments and Lighting, Fuses and Relays
Electrical System: Fault Code Descriptions (Chapters 10 and 10A)2431-2602Fault Code Descriptions for the Full Powershift and Range Command Transmissions, Split by Serial-Number Break, With the Four Electrical Test Procedures They Rely on
Electrical System: Diagnostic Procedures (Chapter 10B)2603-4696Step-By-Step Diagnostic Procedures per Error Code, For Example Rear PTO Failure to Start and Shuttle Lever Reverse Switch Input Voltage Faults
Electrical System: Diagnostic Procedures (Chapter 10C)4697-6802Step-By-Step Diagnostic Procedures for the Second Controller Family, Including Sender Open-Circuit Codes Such As Coolant Temperature
Electrical System: Circuits and Schematics (Chapters 11-14)6803-7942Wiring Schematics and Circuit Drawings for Each Build, Component Location and Connector Views
Cab7943-7954Cab Assembly and Mounts, Glazing, Operator Seat and Controls

Quick Reference Specifications

SpecificationValuePage
TM120 (engine TA/HD)
Gross power (ISO TR14396), TM120 (engine TA/HD)90 kW (121 Bhp)
TM130 (engine TA/HC)
Gross power (ISO TR14396), TM130 (engine TA/HC)98 kW (131 Bhp)
TM140 (engine TA/HB)
Gross power (ISO TR14396), TM140 (engine TA/HB)107 kW (143 Bhp)
TM155 (engine TA/HA)
Gross power (ISO TR14396), TM155 (engine TA/HA)114 kW (153 Bhp)
TM175 (engine TA/FB)
Gross power (ISO TR14396), TM175 (engine TA/FB)156 kW (209 Bhp)
TM190 (engine TA/FA)
Gross power (ISO TR14396), TM190 (engine TA/FA)168 kW (225 Bhp)
TM120 to TM155 / TM175 and TM190
Governor and boostMechanical governor, no boost / electronic governor, with boost
Low and high idle speed800 and 2375 rpm / 920 and 2380 rpm
All models
Engine6 cylinders, 7500 cc, firing order 1-5-3-6-2-4
Bore, stroke and compression ratio111.8 mm x 127.0 mm, 17.5:1
Compression at 200 rpm cranking speed25.5 bar (375 psi)
Rated speed2200 rpm
BrandNew Holland
ModelTM120, TM130, TM140, TM155, TM175, TM190
Machine TypeTractor
Manual TypeRepair Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages7,954
File Size154 MB
Year Range2002-2007
Manual No.87611250
Wiring DiagramsYes
Hydraulic SchematicsYes
Torque SpecificationsYes
Bookmarked / IndexedYes
