Part of the New Holland Repair Manuals.
Need the complete teardown and rebuild procedures for your 1986-1994 New Holland 250C, 260C, 345D, 445D, or 545D construction tractor? All 837 pages of this New Holland 545d service manual pdf focus on getting your heavy equipment back to factory condition. Inside, you get complete wiring diagrams, full hydraulic system schematics, and extensive troubleshooting charts for the 3-cylinder diesel engine. Open to detailed teardowns of the hydrostatic steering motor, fuel injection pump, and 4x4 transmission assemblies. Check that the rotor field winding resistance sits exactly at 3.2 ohms, and always use the FT.6209 seal replacer when servicing the water pump. Stop throwing parts at electrical faults. Grab this bookmarked download, open it right on your shop tablet, and get back to turning wrenches.
What's Inside This New Holland 250C–545D Series Manual

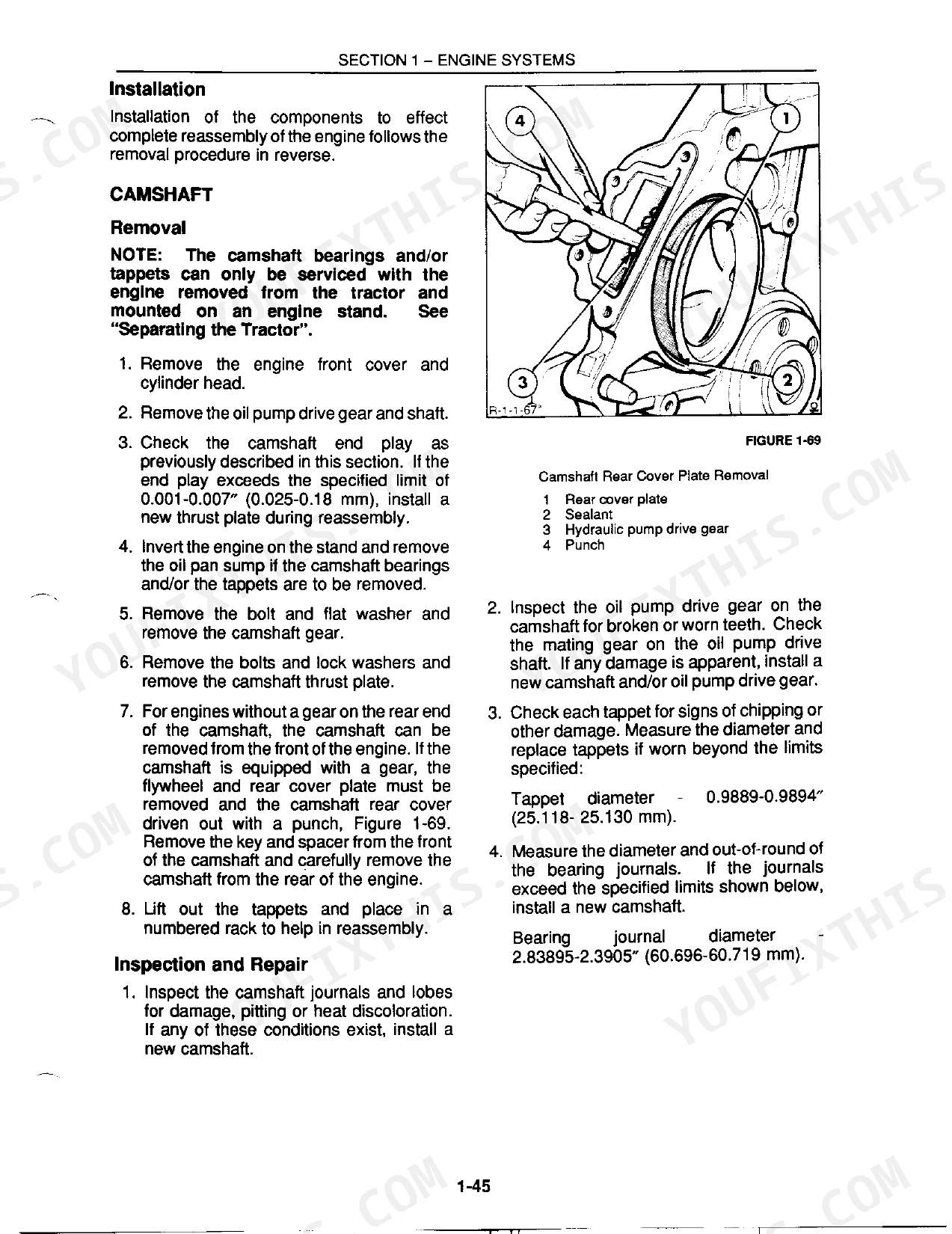

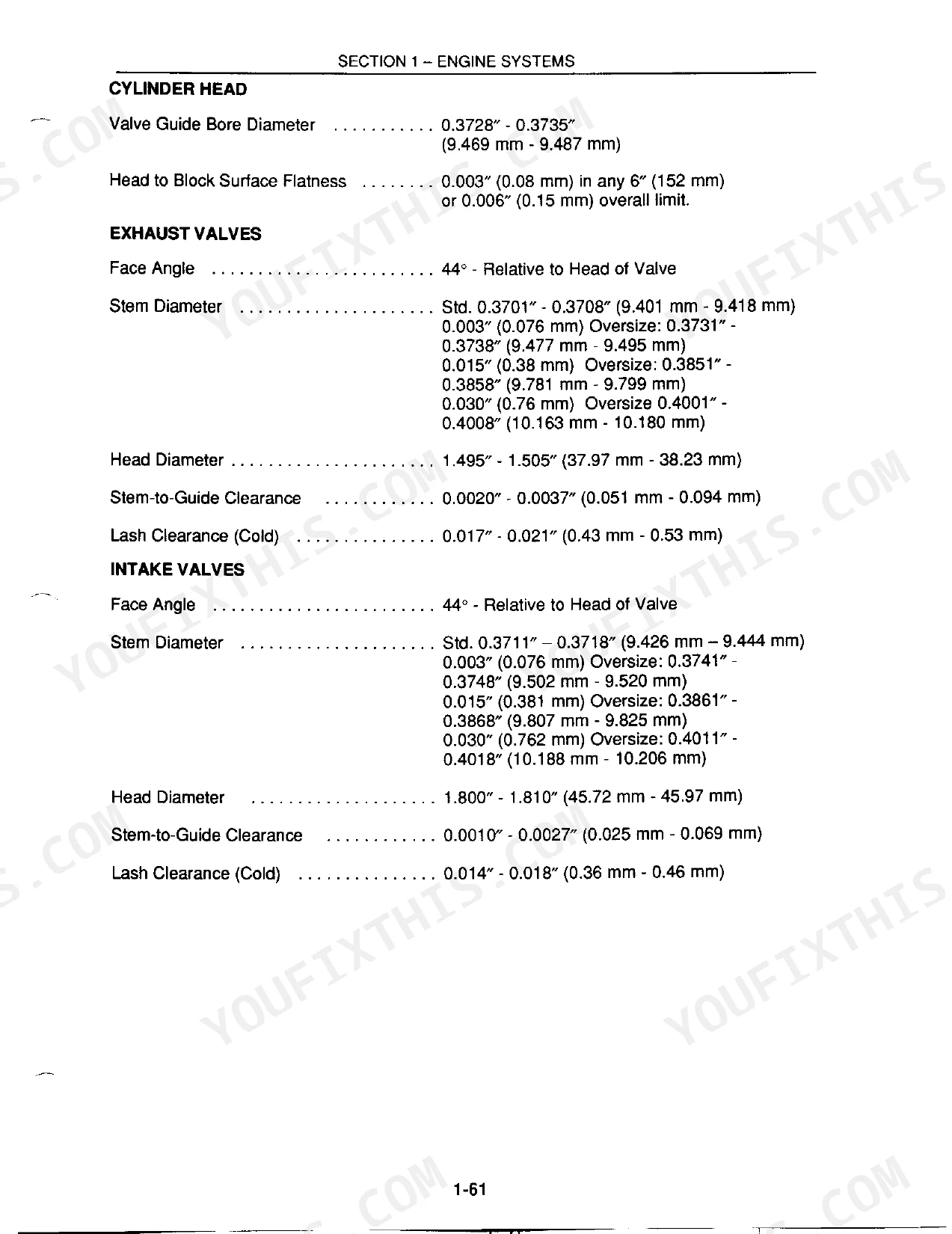

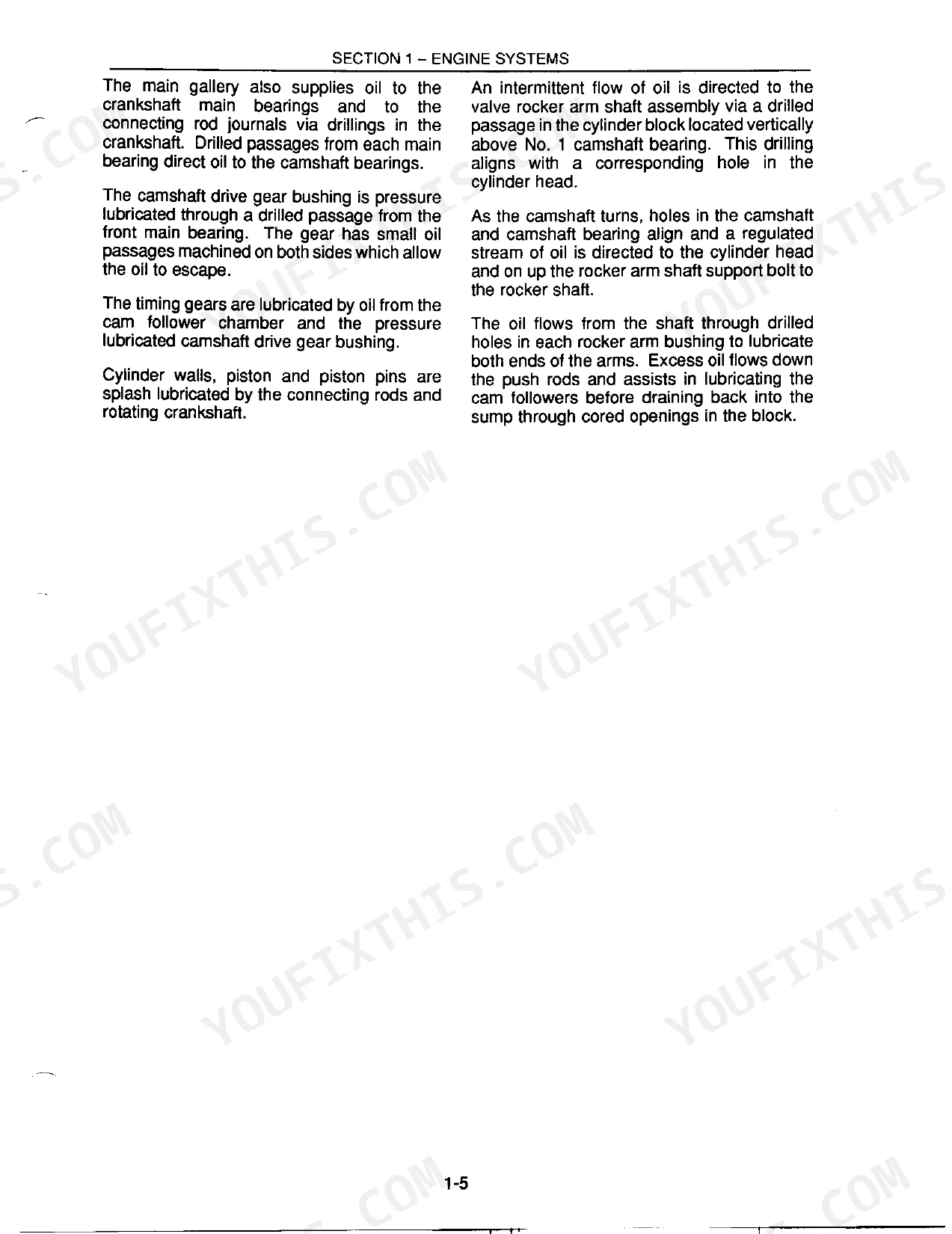

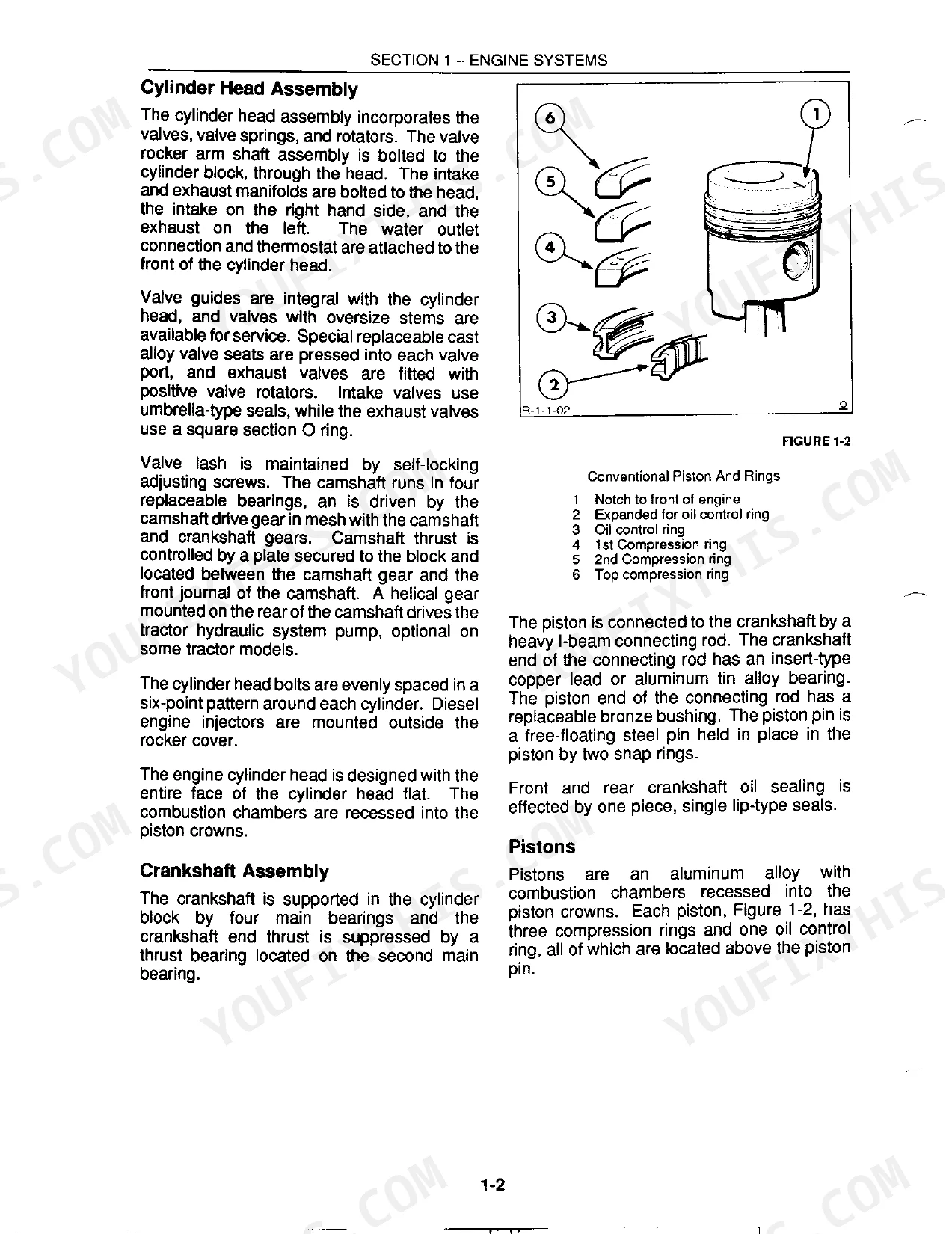

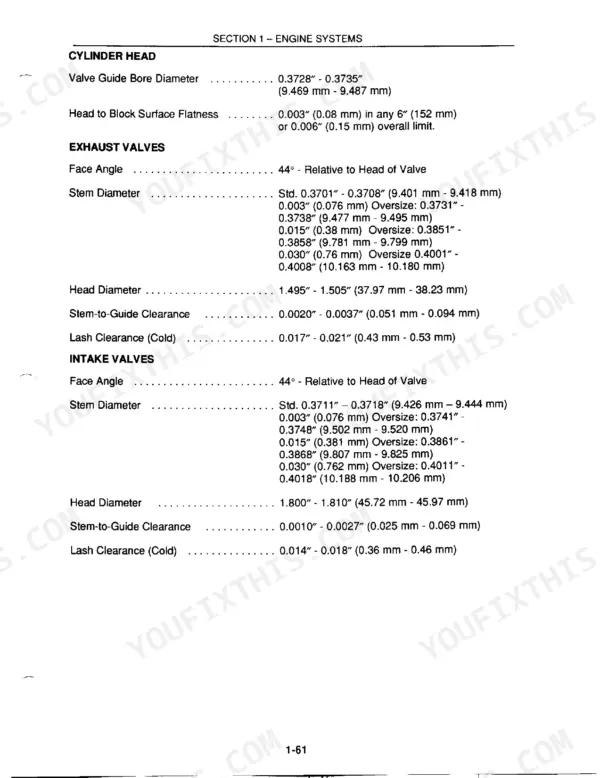

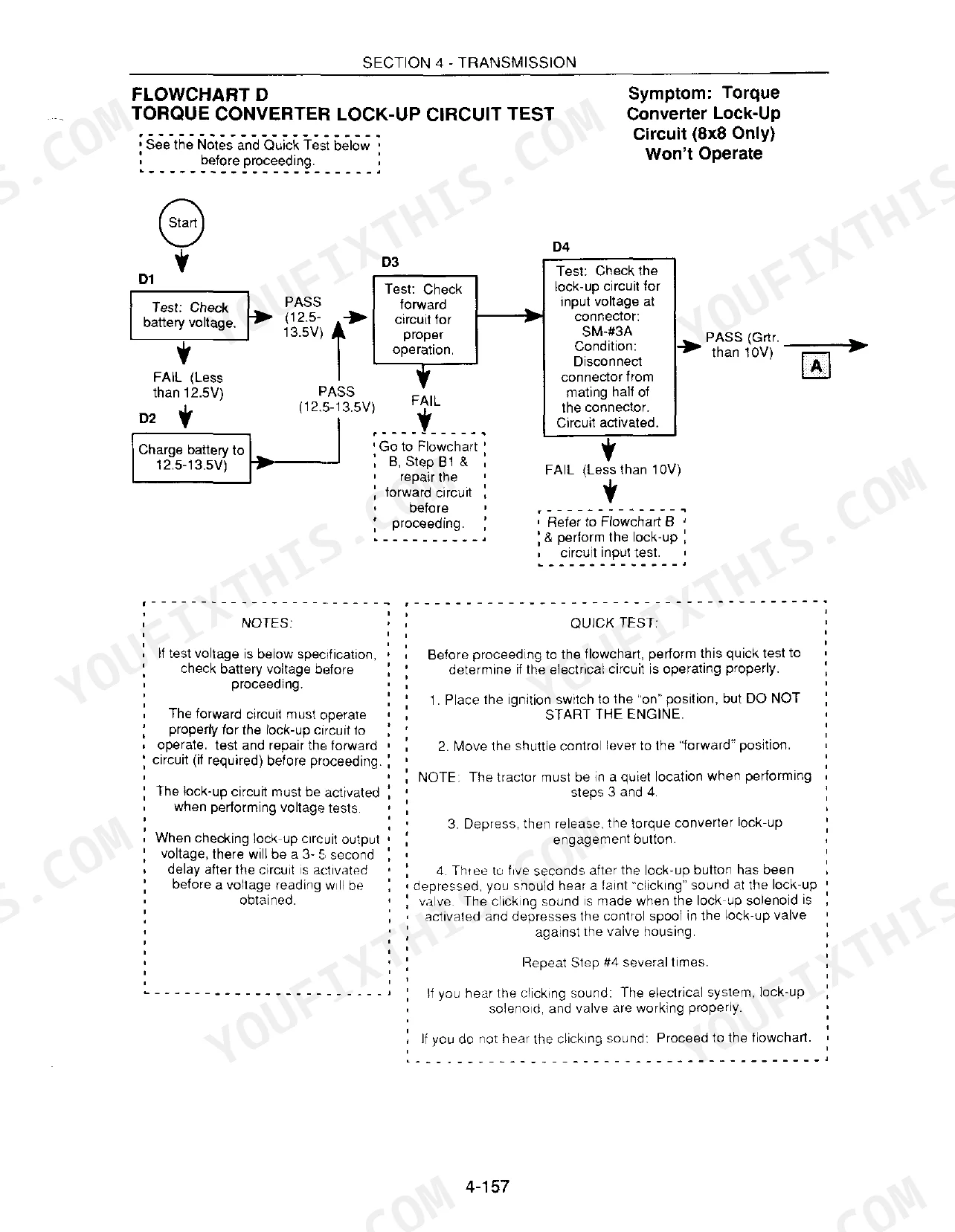

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | Production Date Codes, Serial Numbers, Loader Arm Support, Backhoe Safety Lock |
| Safety | 7-9 | Personal Safety, Machine Safety, Hand Tools, Housekeeping, Fire, First Aid |
| Engine | 12-84 | 3-Cylinder Diesel Engine, Cooling System, Troubleshooting, Specification and Special Tools |
| Fuel System | 85-130 | Fuel System - General, Fuel Injection Pump, Injectors, Air Cleaners, Troubleshooting, Specifications |
| Electrical System | 131-201 | Wiring, Lights, Switches and Instrumentation (Description and Operation, Overhaul), Battery (Description and Operation, Maintenance and Tests) |
| Transmission | 202-427 | 4x4 Transmission, 8x8 Transmission, Gearshift Lever, Modulator Unit, Clutch, Troubleshooting |
| Rear Axle and Brake | 428-461 | Rear Axle - Description and Operation, Rear Axle Shaft Assembly, Planetary Reduction Gear Assembly, Rear Wheel Brake Assembly, Differential and Differential Lock Assembly |
| Power Take-Off | 462-483 | Independent PTO, Pressure Regulating Valve, Control Valve, Clutch Assembly, Reduction Gear Assembly, Troubleshooting |
| Steering and Front Axle | 484-578 | Steering - Description and Operation, Hydrostatic Steering Motor, Power Steering Pump and Reservoir, Two-Wheel Drive Axle, Four-Wheel Drive Front Axle Assembly |
| Hydraulic Systems | 579-741 | Tractor Hydraulic System, Hydraulic Power Lift, Hydraulic Lift Cylinder Assembly, Hydraulic Pump, Hydraulic System Adjustments, Remote Control Valves |
| Cab | 742-757 | Cab Pressurizer/Heater, Cab Glass Installation, Cab Removal |
| Separating the Tractor | 758-766 | Separating the Tractor Between the Transmission and the Rear Axle, Separating the Tractor Between the Transmission and Engine |
| Accessories | 767-835 | Rear Tail/Stop Light Kit, Backup Alarm Wiring Kit, Hydraulic Pressure Tapping Manifold, Reduction Gear Set, Brush Guard Kit, Canopy Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Water Pump Seal Replacer | FT.6209 | p. 84 |
| Rotor field winding resistance | 3.2 ohms | p. 167 |

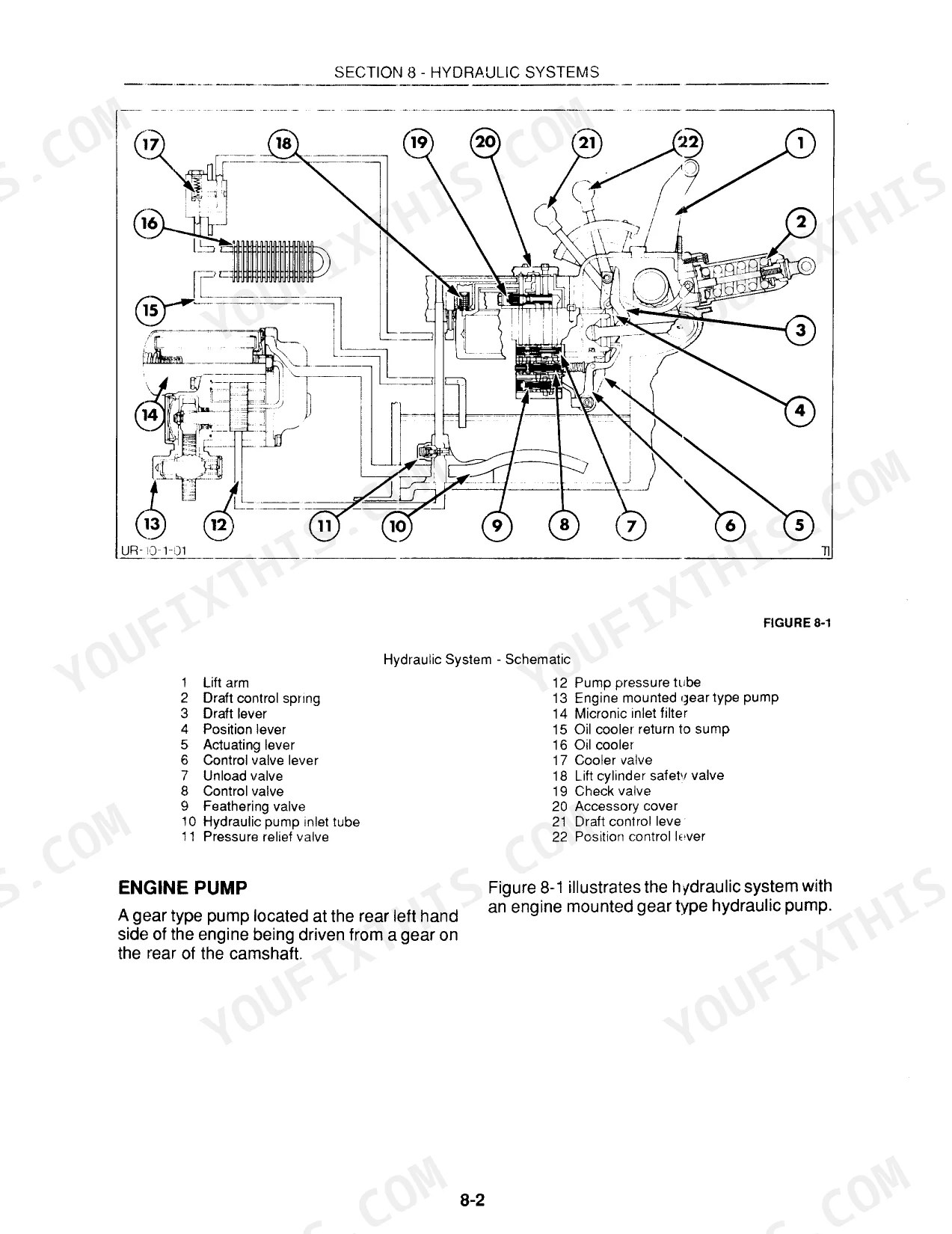

| Hydraulic pump | 8-103 | p. 580 |
| Loader control valve | 8-116 | p. 580 |
| Micronic intake filter | 14 | p. 516 |
| retaining bolts and tighten | 75-80 ft. lbs. | p. 605 |
| Fuel Tank Capacity | 16 gal (60.5 litres) | p. 482 |
| Transmission Lubricant Capacity (4x4 and 8x8) | 4.5 US Gal. (18 litres) | p. 419 |
| Brake Pedal Free Travel | 1.0-2.5" with a pressure of 15 lbf applied to pedals | p. 460 |
| PTO Speed | 540 RPM @ 1850 engine RPM | p. 481 |
| Steering Wheel Turn Lock to Lock | 3.7 | p. 513 |
New Holland 250C–545D Series Common Problems This Manual Covers
New Holland 250C loader won't lift or move at all, complete hydraulic failure
Check the hydraulic pump section starting at page 579 and the hydraulic schematic on page 580 (part number 8-103). Remove the pump and inspect for worn gears or a scored housing. Test the loader control valve seals per page 580 (part 8-116); if the check valve plug is loose, torque it to 45-55 ft. lbs. as specified on page 614.
Manual Section: Hydraulic Systems Troubleshooting p. 742Loader drifts down slowly after it's raised and latched in position
Inspect the load-holding check valves in the lift cylinder for internal leakage. Remove the cylinder retaining bolts and reseat the cylinder on its locating dowels, then tighten the retaining bolts to 75-80 ft. lbs. as specified on page 605. Replace worn piston seals if drift continues after reassembly.
Manual Section: Hydraulic Systems Troubleshooting p. 742Engine overheats and shuts down under load, especially in hot weather

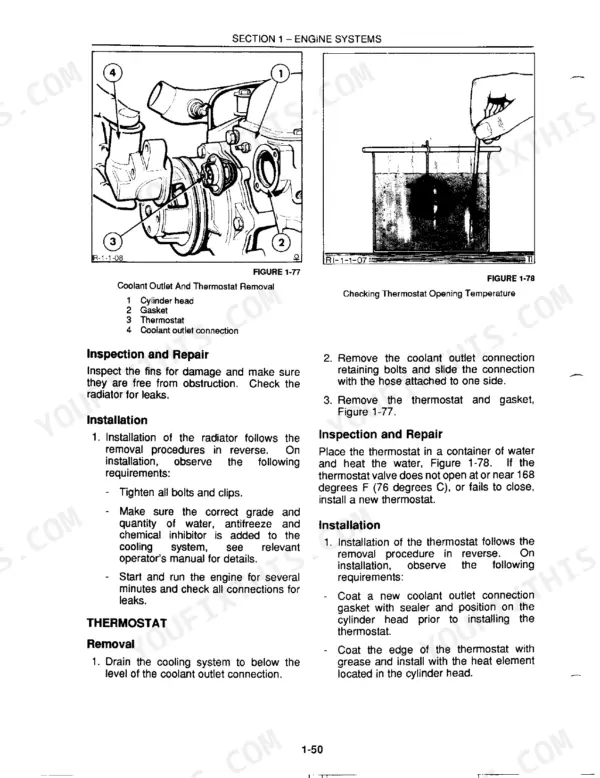

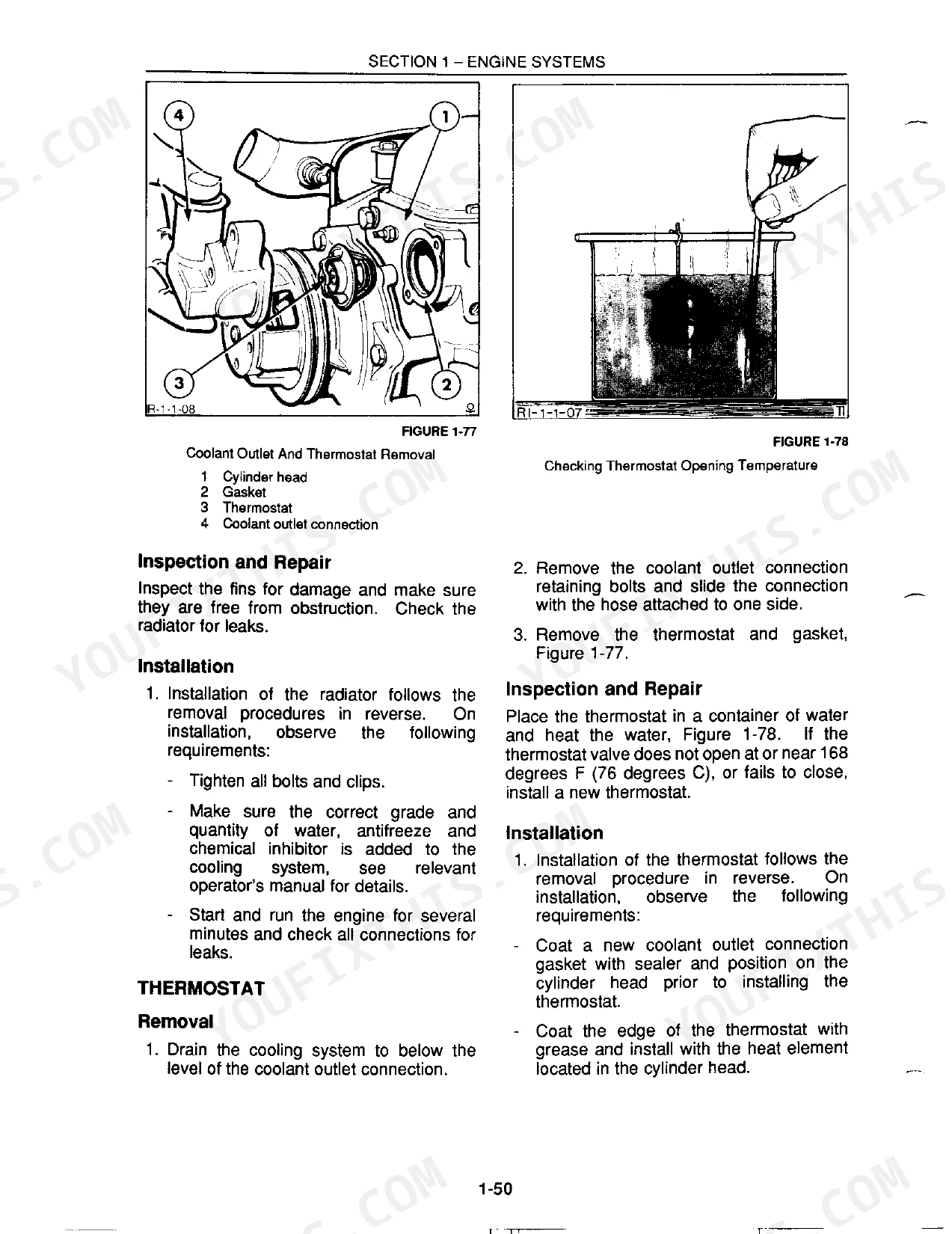

Check the engine troubleshooting procedures for overheating causes. Flush the radiator and verify coolant flow is not restricted by debris in the fins. Pull the water pump and check the shaft seal; if it needs replacement, use the Water Pump Seal Replacer FT.6209 listed on page 84 to reseat it correctly.
Manual Section: Engine Systems TroubleshootingSteering feels unresponsive, wanders, or the pump makes noise
Follow the steering troubleshooting procedures for pump cavitation or cylinder seal leaks. Verify steering wheel lock-to-lock travel matches the 3.7 turns specified on page 513; excess play points to worn cylinder piston seals. Check the reservoir fluid level and inspect the pump inlet line for air leaks causing cavitation noise.
Manual Section: Steering TroubleshootingDash warning lights flicker on and off intermittently with no clear pattern
Check the electrical system troubleshooting index starting for the relevant wiring circuit. Inspect the battery terminals and main harness connectors for corrosion, and test the rotor field winding resistance; it should read 3.2 ohms as specified on page 167. Clean and reseat any grounds showing resistance outside spec.
Manual Section: Electrical System TroubleshootingPTO won't engage or disengage properly under load
Check the PTO troubleshooting section on page 480 for engagement linkage or clutch pack wear. Verify PTO output speed reads 540 RPM at 1850 engine RPM as specified on page 481; a lower reading points to slipping clutch plates or low system pressure. Inspect the pressure regulating valve for sticking before replacing the clutch assembly.
Manual Section: Power Take-Off Troubleshooting p. 480Frequently Asked Questions
What are the torque specs for the engine bolts on New Holland 250C loader?
The manual provides torque values for various engine bolts. For example, Main Bearing Bolts should be tightened to 145 ft. lbs. (197 N·m), Connecting Rod Nuts to 80 ft. lbs. (109 N·m), and Cylinder Head Bolts (with Engine Cold) to 160 ft. lbs. (217 N·m). p. 521
How will I receive this New Holland 250C, 260C, 345D, 445D, 545D Service Manual?
This is a 837-page searchable PDF (30 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this New Holland 250C, 260C, 345D, 445D, 545D?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this New Holland 250C, 260C, 345D, 445D, 545D manual have electrical?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the New Holland 250C, 260C, 345D, 445D, 545D.
