Part of the New Holland Parts Manuals.
Spanning 453 pages, this New Holland 545D 3 CYL Tractor Loader parts catalog PDF breaks down every single component for your 1992-2000 machine. You get highly detailed exploded views showing the exact assembly order for the drivetrain, cab, boom, and engine block. Open to the wheel and chassis sections to see full hardware lists, factory part numbers, and cross-references for every pin, bolt, and bracket on the tractor. Verify you are ordering the correct 11-inch clutch disc assembly and confirm the remote hydraulic coupler is a Snap-Tite #6800 before calling the dealer. Ordering incorrect hardware wastes days of valuable shop time. Grab this digital reference now, open it on any device in the shop, and use the smart bookmarks to jump straight to the exact part numbers.
What's Inside This New Holland 545D 3 CYL Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| DealerNation-Inc | 1 | - |
| How to Use Figure Search | 2 | Locate Figure List Index, Use Search Feature, Press Ctrl Key and Letter F, Type Figure Number, Press Enter |
| General Infomation - Abbreviations | 438-451 | English Abbreviations, French Abbreviations, Spanish Abbreviations |
| General Infomation - Metric to Inches | 452-453 | Screw Diameter Conversion, Screw Length Conversion, Inch to Metric Hardware Conversion, Metric to Inch Hardware Conversion, Hardware Interchangeability |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Coupler, Remote Hydraulic | Snap-Tite #6800 | p. 129 |
| O-Ring | 90 Duro, .549" ID x .103" Thk | p. 88 |
| Disc Assy., Clutch | 11" | p. 192 |
| Knob | Start Year: 09/01/1992 | p. 120 |

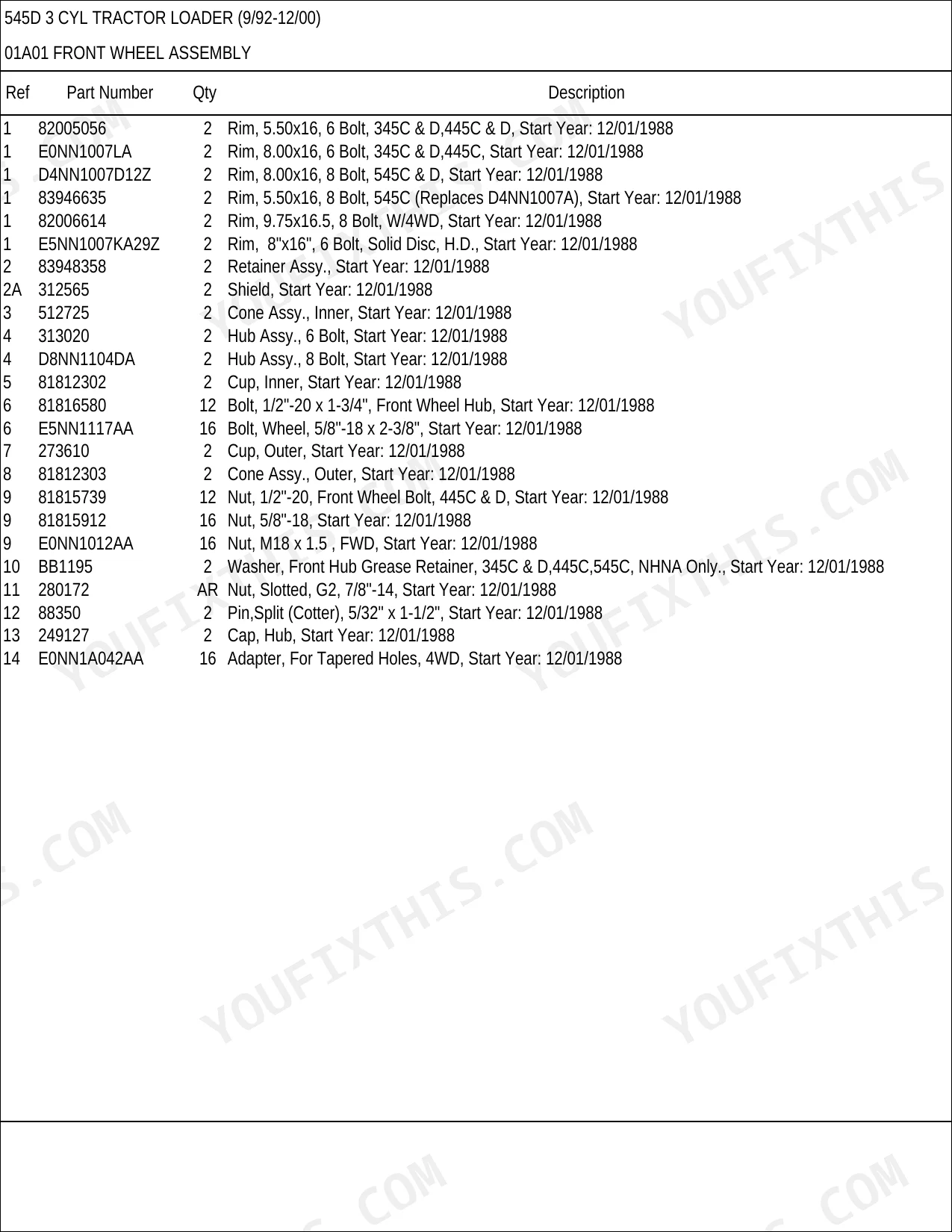

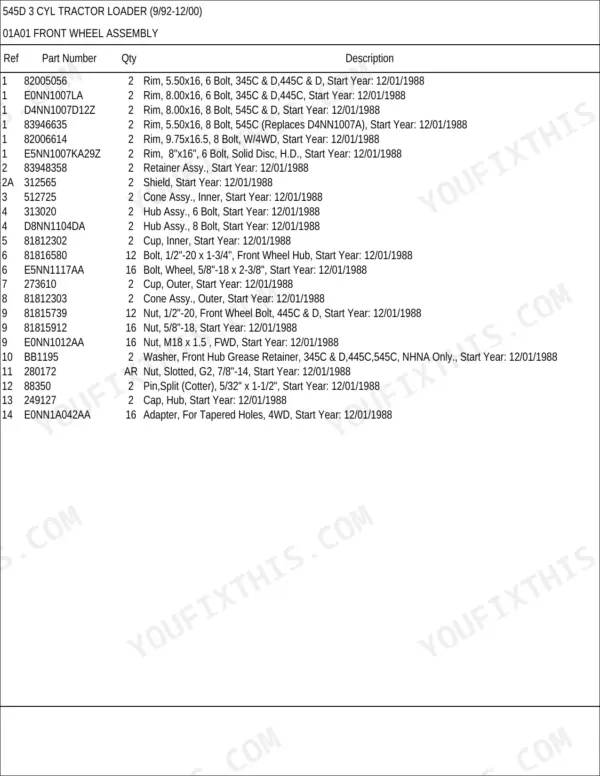

| Rim Size and Bolt Pattern (Option 1) | 5.50x16, 6 Bolt | p. 8 |
| Rim Size and Bolt Pattern (Option 2) | 8.00x16, 8 Bolt | p. 8 |
| Front Wheel Hub Bolt Size | 1/2"-20 x 1-3/4" | p. 8 |
| Rear Wheel Nut Grade and Size | G8, 3/4"-16 | p. 10 |
| Front End Weight | 560# | p. 14 |
| Cotter Pin Size (Brake Controls) | 1/8" x 1" | p. 18 |
| Shaft Length (Brake Controls) | 18.40" | p. 18 |
| O-Ring Dimension (Front Axle Steering) | .468" ID x .078" Thk | p. 31 |
New Holland 545D 3 CYL Common Problems This Manual Covers
Sourcing the rear axle differential O-ring after a suction tube reseal job
Pull up the exploded view referencing the rear axle differential seal, sized at 13.50" ID x .139" Thk. Match the part number stamped in the parts list against your rim and hub spec on page 8 (5.50x16, 6 Bolt or 8.00x16, 8 Bolt) to confirm you're ordering for the right axle configuration.
Manual Section: Rear Axle Differential p. 73Identifying the PTO release collar part number for a stuck reversing transmission
Check the Transmission Case & Shift Lever diagram covering the 6x4 manual reversing transmission for the collar callout and figure number. Cross-reference the listed part against the parts index abbreviations on page 438 if the diagram uses French or Spanish designators, then confirm compatibility with your build date.
Manual Section: Transmission Case & Shift Lever (6x4)Ordering a replacement clutch disc assembly without knowing the correct diameter spec
Reference the clutch pack parts diagram and confirm the disc assembly measures 11" before ordering, since off-spec discs won't seat correctly in the housing. Cross-check the part number against the parts index and note any start-year cutoffs listed for your serial range.
Manual Section: Clutch Pack Components p. 192Finding the 3-point transport lock knob part number after it seized in the locked position
Locate the knob callout in the parts diagram covering the seat and 3-point hitch controls, listed with a 09/01/1992 start-year production range. Verify the figure number against your tractor's build date on page 452 and cross-reference the metric-to-inch hardware chart if the mounting thread size isn't specified.
Manual Section: 3-Point Hitch Controls p. 120Frequently Asked Questions
What are the replacement specifications for Hydraulic couplers (especially rear/loader couplers)?
The replacement specification for hydraulic couplers is part number 86508779, which is a Remote Hydraulic, Snap-Tite #6800 coupler. This applies to units starting from the year 09/01/1992. p. 129
What are the replacement specifications for Suction tube (rear axle assembly)?
For the rear axle assembly, the inlet tube assembly specifications include part number F2NN7A030AB for a 1-piece inlet tube starting from 09/01/1992. For units starting 05/12/1998, part number 84056179 is for the rear 2-piece inlet tube assembly, and 84058637 is for the front 2-piece inlet tube assembly. p. 86
How do you fix can't find the right O-ring part number for the New Holland 545D front axle steering cylinder?
Check the Front Axle, Steering Repair exploded view on page 31. The steering component O-ring is listed at .468" ID x .078" Thk. Cross-reference the part number against the parts index and confirm it matches your tractor's start-year production range before ordering. p. 31
How do you fix need the correct remote hydraulic coupler part number for a leaking loader coupler?
Open the Hydraulic Parts Diagram on page 44 and locate the remote coupler callout. The listed part is a Snap-Tite #6800 coupler, referenced on page 129 with a 09/01/1992 start-year production range. Verify the figure number matches your serial plate before pulling the trigger on a replacement order. p. 44
How will I receive this New Holland 545D 3 CYL Tractor Loader Parts Catalog?
Instant PDF download. You get the full 453-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this New Holland 545D 3 CYL Tractor Loader?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
