The shuttle lever on a 445D only feels vague until the day it will not pick reverse with a bale on the forks, and that is usually the day the dealer is closed. This operator manual for the New Holland 345D, 445D and 545D tractor loaders (serial number A442024 and above, publication 86570567) puts the factory answer in your shop instead of an hour up the road.
Its 156 pages walk through the instrument panel, shuttle and range shifting, the loader valve, and the hydraulic lift and PTO controls, then move into the full lubrication and maintenance schedule: 50, 300, 600 and 1200 hour services, valve clearance, injector care and filter changes on the 332T/JC diesel.
The Specifications section closes it out with capacities, pressures and torque figures, so when you order parts or set wheel nuts you do it once, correctly, and get back in the field.
What's Inside This New Holland 345D, 445D, 545D Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Owner Assistance | 8 | Dealership Service Department, Branch Office Contact, Machine Model and Serial Number, Service Publications Catalog |
| Safety | 9-20 | - |

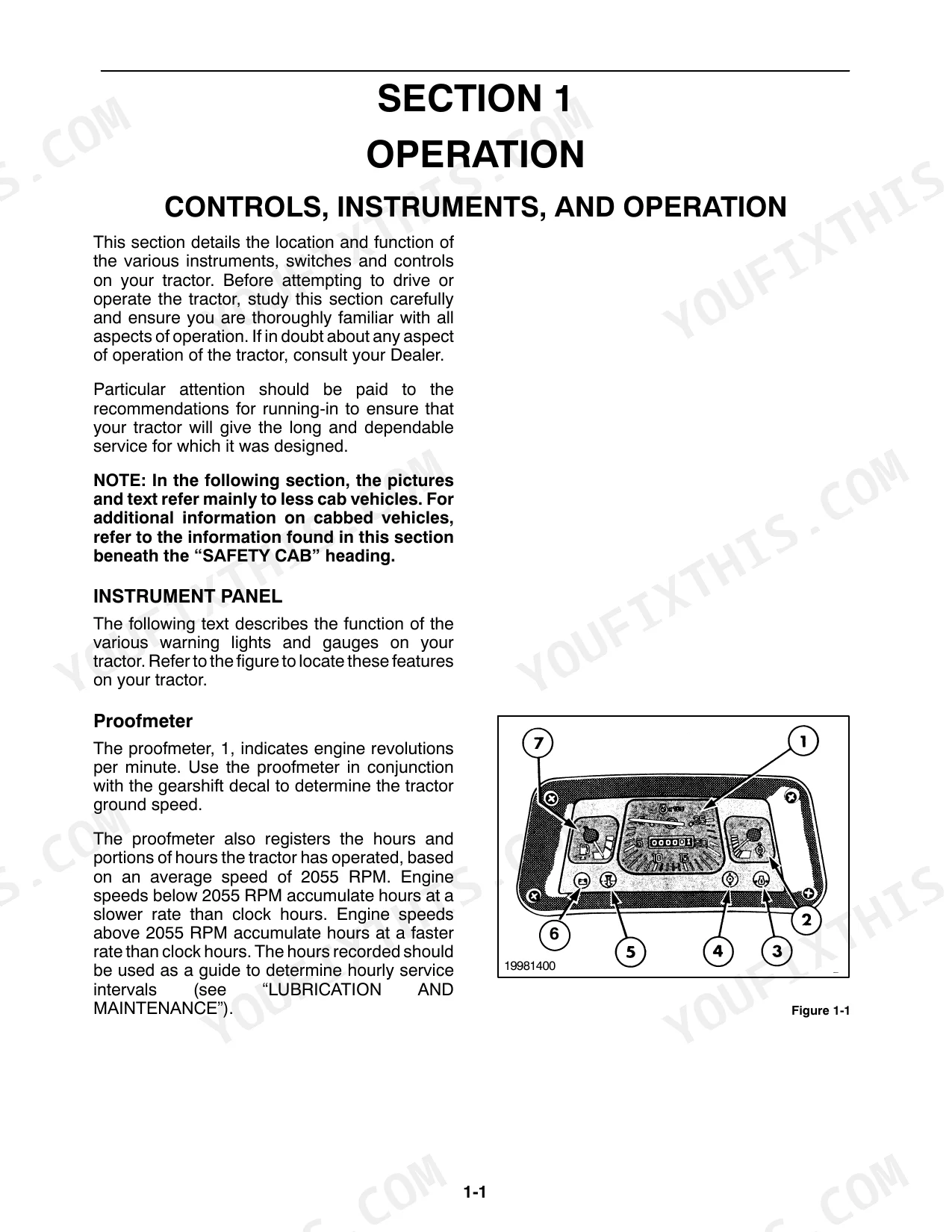

| Operation | 21-82 | Instrument Panel, Hand Controls and Switches, Starting the Engine, Foot Controls, Transmission, Loader Controls and Operation, Hydraulic Lift and PTO Controls and Operation |

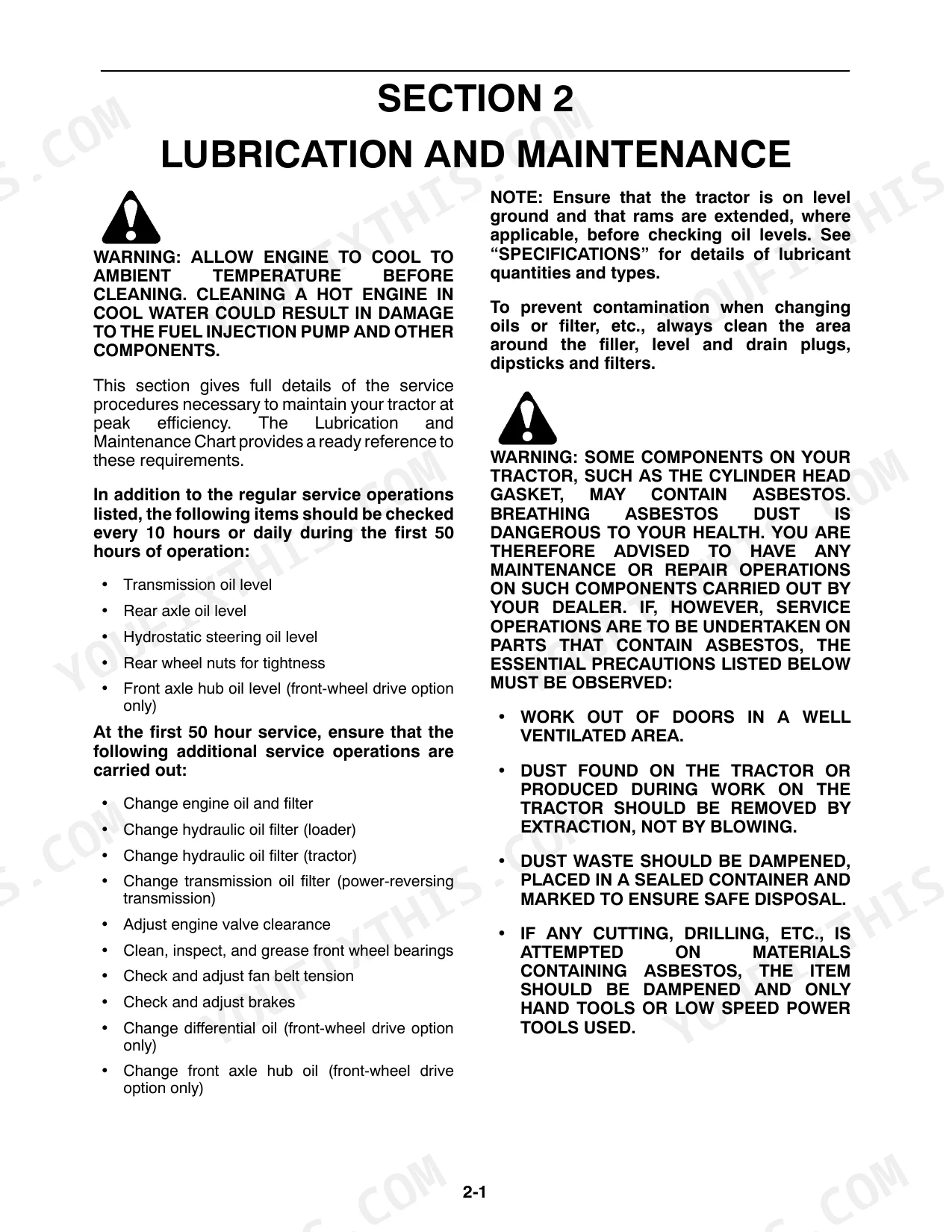

| Lubrication and Maintenance | 83-132 | Service As Required, Every 50 Hours, Every 300 Hours, Every 600 Hours, Every 1200 Hours or Annually, General Maintenance |
| Specifications | 133-142 | Engine, Electrical Equipment, Hydraulic System, Torques, Capacities |
| Pre-Delivery Service | 147-150 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks, Safety Items Checks |
| Hour Service | 151-156 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks, Safety Items Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear disc to hub nuts | 250 ft.lbs. (475 N·m) | p. 43 |
| Rear disc to rim nuts (wheels up to 30 in diameter) | 129 ft.lbs. (176 N·m) | p. 43 |
| Fan belt deflection | 13-19 mm (0.5-0.75 in) | p. 105 |
| Alternator | 12v 55amp | p. 134 |
| Engine Rated Speed | 2200 RPM | p. 133 |
| Inlet Valve Clearance (Cold) | 0.36-0.41 mm | p. 109 |
| Exhaust Valve Clearance (Cold) | 0.43-0.48 mm | p. 109 |
| Cooling System Capacity | 10.4L | p. 138 |
| Front Wheel Nut Torque (2WD) | 130 ft.lbs. | p. 136 |
| ROPS Attaching Bolt Torque (2 Post) | 200 ft.lbs. | p. 136 |
| Hydraulic System Nominal Pressure | 2500 PSI | p. 135 |
| Steering System Pressure | 1600 PSI | p. 135 |
New Holland 345D, 445D, 545D Common Problems This Manual Covers
Loader slows down as the oil warms
A starved hydraulic system on these tractor loaders often traces back to a plugged transmission hydraulic suction filter. The manual covers replacing the filter assembly with a new gasket and tightening the retaining bolts to 38 ft.lbs.
Manual Section: Lubrication and Maintenance p. 83Hard starting and rough idle
As hours pile on, valve clearances on the 332T/JC diesel drift and injectors foul. The manual gives the cold clearance settings (0.36-0.41 mm inlet, 0.43-0.48 mm exhaust) and the injector service procedure with correct retaining bolt torques.
Manual Section: Lubrication and Maintenance p. 83Battery keeps going flat
A loose fan belt quietly kills the 12 volt 55 amp charging system before you notice the gauge. The maintenance schedule shows how to check belt tension against the 13-19 mm deflection spec and correct it.
Manual Section: Lubrication and Maintenance p. 83PTO or hydraulic lift not responding
When the PTO will not engage or the lift acts up, it is often a control setup issue rather than a failure. The Operation section walks through the hydraulic lift and PTO controls step by step so you can rule out operator side causes before pulling anything apart.
Manual Section: Operation p. 21Wheel nuts working loose
Loader work shakes wheel hardware loose faster than field work does. The Specifications section lists the wheel nut torques, 130 ft.lbs. front on 2WD and 200 ft.lbs. on FWD, along with ROPS bolt torque so the frame stays where it belongs.
Manual Section: Specifications p. 133Running hot during heavy loader cycles
A crusted radiator and neglected coolant will overheat these machines long before the engine itself is tired. The maintenance schedule covers cooling system service through the 50 to 1200 hour intervals, and the book lists the 10.4 liter system capacity for a proper refill.
Manual Section: Lubrication and Maintenance p. 83Frequently Asked Questions
Which tractors does this manual cover?
It covers the New Holland 345D, 445D and 545D tractor loaders with serial number A442024 and above, fitted with the 332T/JC engine. The OEM publication number is 86570567.
What is the engine oil change interval on the New Holland 345D, 445D, 545D?
The Lubrication and Maintenance section schedules engine oil changes every 300 hours, and it lays out the rest of the service plan at 50, 600 and 1200 hour or annual intervals, plus service as required items. p. 83
Does it include torque specs and capacities?
Yes. The Specifications section lists engine data such as the 2200 RPM rated speed, hydraulic system pressure of 2500 PSI, steering pressure of 1600 PSI, wheel nut and ROPS bolt torques, and fluid capacities including the 10.4 liter cooling system. p. 133
Will it help me learn the loader and transmission controls?
Yes. The Operation section covers the instrument panel, hand controls and switches, starting the engine, the transmission, loader controls and operation, and the hydraulic lift and PTO controls, which is most of what a new owner needs on day one. p. 21
Do I get instant access to this New Holland 345D Operator Manual?
All 156 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Am I free to print this New Holland 345D Operator Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
