Hunting for a Ford 445C parts catalog PDF? All 389 pages of this factory parts book cover the 345, 445, and 545 Tractor Loaders in both C and D trim, built 1992 through 2000. You get exploded views with numbered callouts tied to genuine Ford part numbers for every assembly: 4WD front axles and differential boxes, 4x4 and 8x8 transmissions, hydraulic pumps and lift cylinders, loader arms, bucket assemblies, right down to decals and seat hardware. Identify a worn gland, seal, or bushing by its drawing, then order by exact number instead of guessing at the counter. Handy ratings ride along too: the loader pump and reservoir assembly runs 1600 PSI, and the rear wheel weights spec at 280 pounds. Your dealer's parts counter moved on; these part numbers didn't. Bookmarked and text-searchable, it opens on any device, so pull it up beside the machine and find the piece you need.
What's Inside This Ford New Holland 345C–545D Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank & Related Parts, Emissionized, Fuel Sedimenter & Filter Assembly, Non-Emmissionized, Fuel Filter Assembly, Emissionised, Asn A442030, Fuel Injector Assembly, Fuel Injection Pump, Dpa Rotary, Upper Half, Lower Half, Air Cleaner Assembly for Non-Emissionized Engine, Air Cleaner for Emmisionized Engines | |
| Cooling System | Radiator & Fan, Water Pump | |

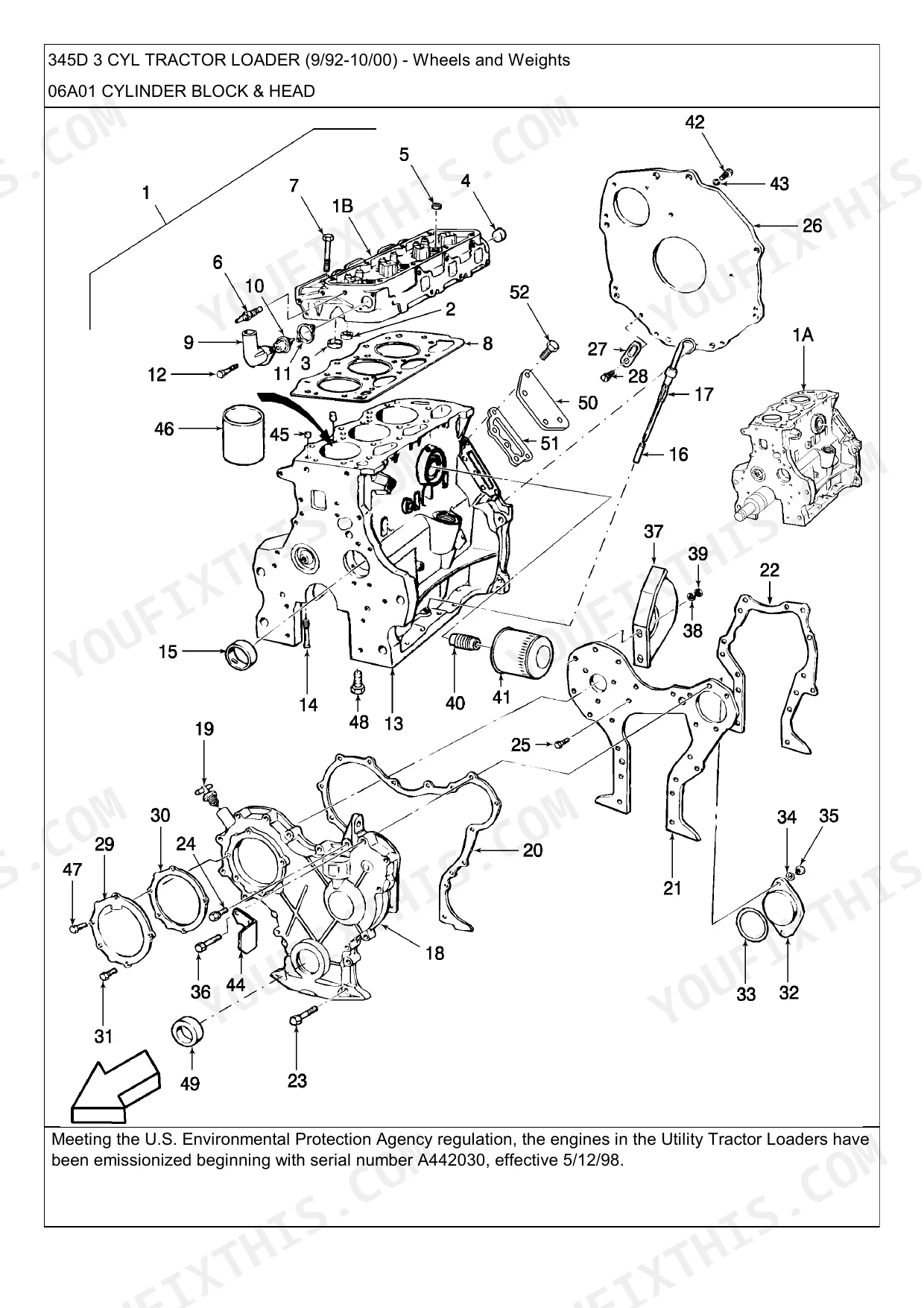

| Engine | Rear Axle Oil Cooler, Hydraulic Reservoir & Pump Drive, Non-Emissionized Engine, Hydraulic Reservoir, Emissionized Engines, Asn A442030, Cylinder Block & Head, Crankshaft & Flywheel, Camshaft, Rocker Arm & Valves, Pistons & Connecting Rods, Oil Pump & Pan, Oil Cooler & Hoses, 5-98/, Transmission Oil Cooler, Battery & Support, Emmissionized Engine, Engine Hood, Engine Grille, Non-Emissionized Engines, Emmissionized Engines, Lubricants - Lubrication Equipment | |
| Electrical System | Switch, Transmission Control Valve Pedal & Rel, Headlamp Assembly, Front Mounted L/Cab - N.a. Only, Flat Top Fender L/Cab - N.a. Only, Rear Lamps L/Cab - N.a. Only, Lamp Assembly, Emergency Warning L/Cab - N.a. Only, Flasher Warning L/Cab - N.a. Only, Implement Lamp Assembly L/Cab - N.a. Only, Implement Lamp, L/Cab, Na Only, Alternator Assembly, Horn Accessory Kit, D.i.a., Stop & Tail Lights, Stop & Tail Lamp, W/four Post ROPS, Lamp Assembly - License Plate | |

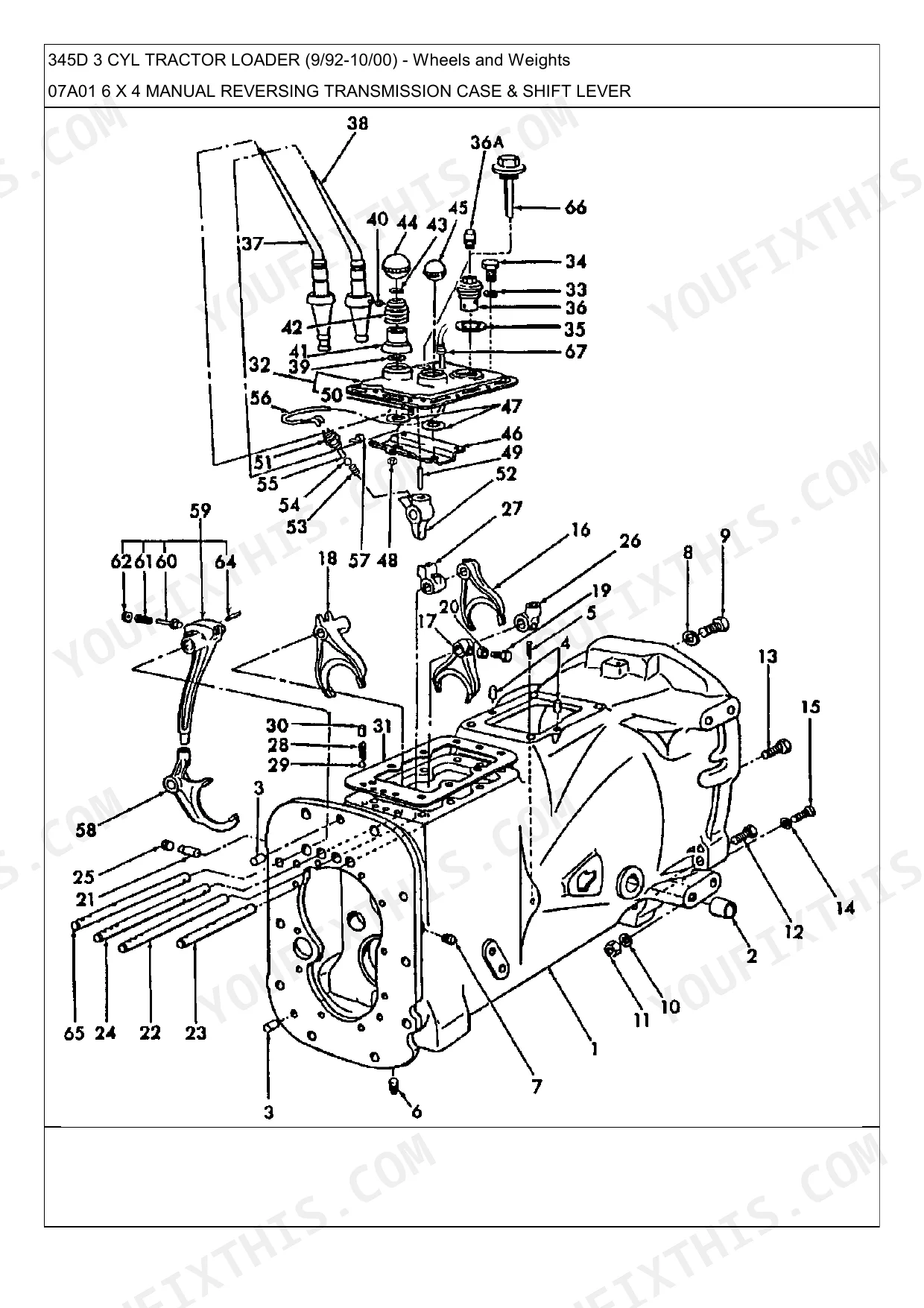

| Clutch & Transmission | Brake Controls - L/8x8 Transmission, Brake Controls - W/8x8 Transmission, Clutch Controls, Single Clutch Assembly, 13", Transmission Valve, Tubes & Fittings, 4 X 4 & 8 X 8, Transmission Case, 4 X 4, Transmission Rear Cover, Transmission Front Cover, Transmission Valve & Housing, Transmission Clutch & Input Shaft, Transmission Countershaft & Gears - 4 X 4, Transmission Output Shaft & Gears, Shift Fork & Rail, 1 & 2, W / 4 X 4, 3 & 4, W/4 X 4, Transmission Shift Lever & Dipstick, 8 X 8 | |
| PTO | Differential Lock & PTO Control, W/Cab, Independent PTO Assembly, FWD Related Parts L/pto, PTO Guard, PTO Shaft & Gears, 8 X 8 | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Square Disc, Brake Pedals, W/Cab, Handbrake Lever W/twin Cable, Rear Axle, Differential, W/4wd, Differential Lock Linkage, Manifold Assembly, Rear Axle Hydraulic | |

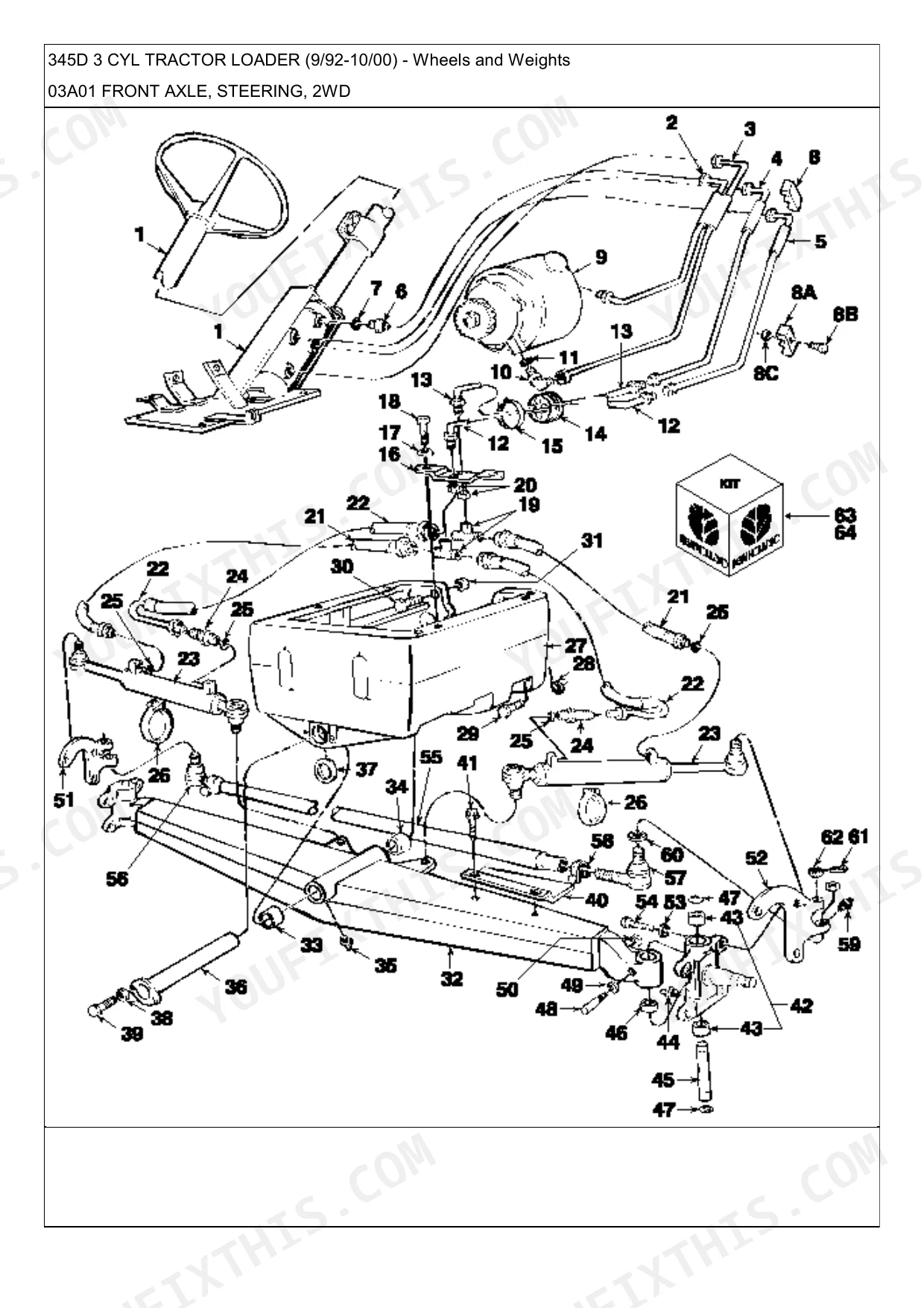

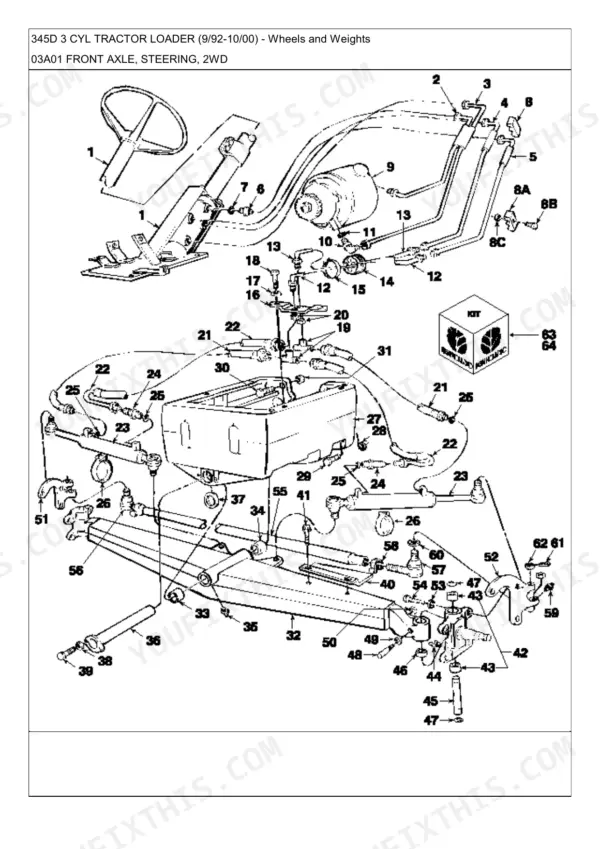

| Front Axle & Steering | Front Axle, Steering, 2WD, 4WD, Asn A442030, 5-98/, Steering Column & Motor, 12/88-4/98, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly - Trw, Power Steering Cylinder Assembly - "Cascade" | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder, Flow Control Valve Piping, Flow Control Valve, Hydraulic Lift Linkage, Swinging Drawbar Assembly, Valve Assembly, Loader Control, Lift & Draft Control - W/Cab, Hydraulic Lift Control, Remote Controls, W/Cab, Remote Control Valve & Coupler, Control Valve, Deluxe Remote, Coupling Assembly - Remote Control, Unload Valve, Hydraulic Pump Assembly | |
| Loader, Backhoe & Attachments | Stabilizer Kit - W/loader, Decals - Loader, Stabilizer Assembly, Bucket Assemblies | |

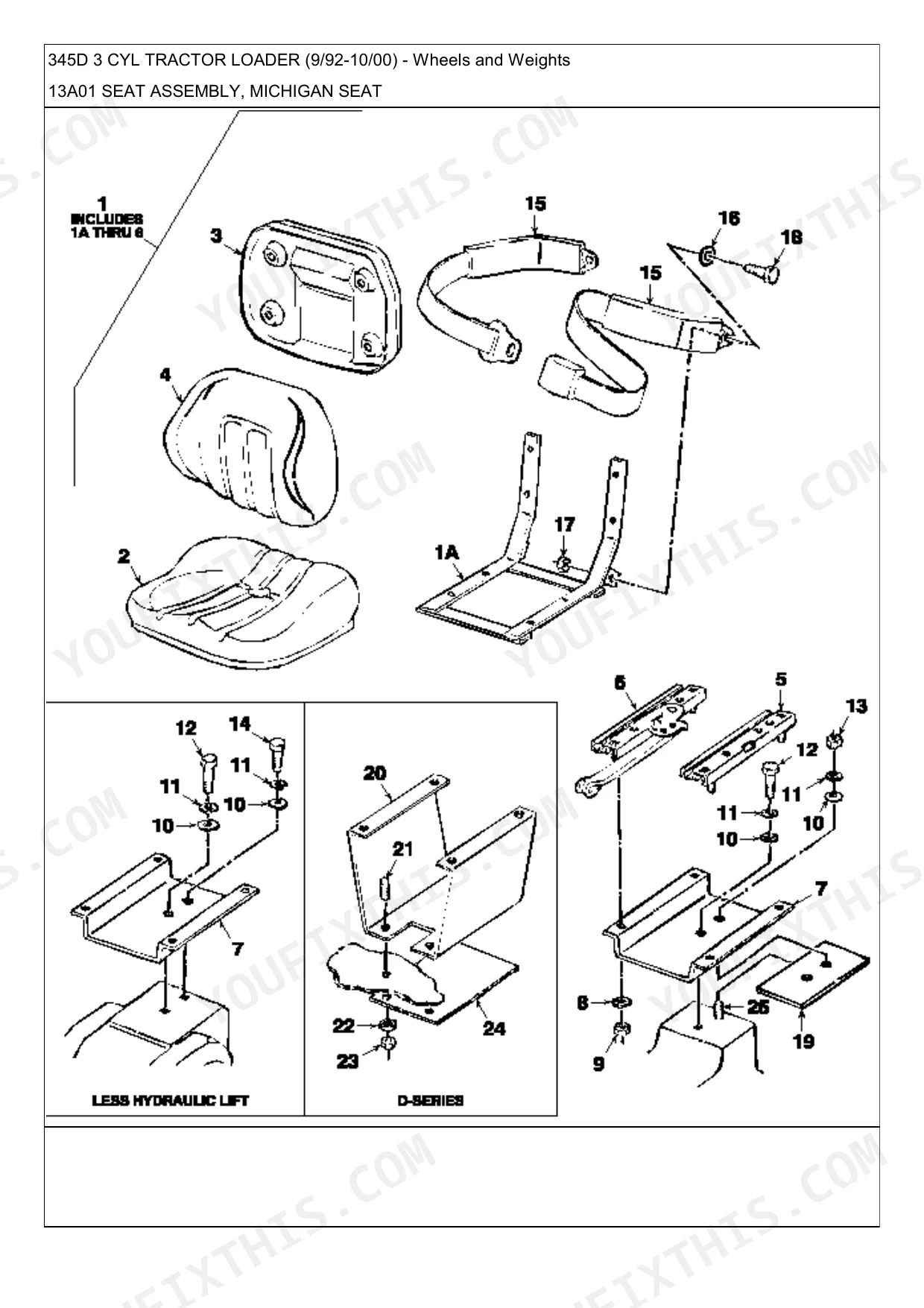

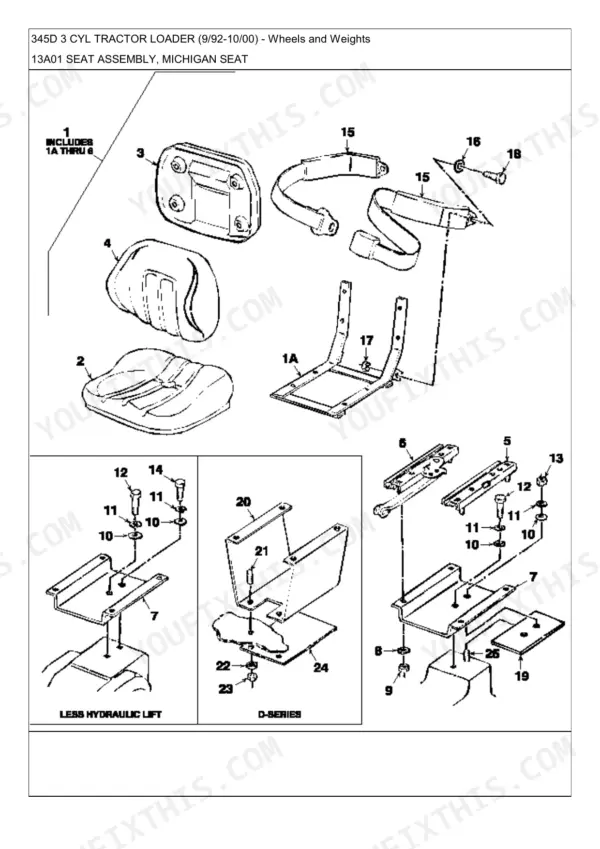

| Body & Operator Station | Throttle Controls, L/Cab, W/Cab, Kit, Turn Signal, Dia, Na Only, Seat Assembly, Michigan Seat, Grammer, Fenders, Mirror Assembly - Rear View - L/Cab - D.i.a., Subframe Assembly | |
| Decals & Accessories | Decals, Identificaton, Instructions, Warning & Caution, Shift Pattern Decals | |
| Other Components | Front End Weights, Center Housing, Box Assembly - Lift Leveling, Plugs - Block, Manifold & Exhaust System, Non-Emissionized, Emissionized, Reverse Idler Shaft & Gear, 4 X 4 & 8 X 8, Water Filter, Diesel Cold Start, Starting Motor Assembly, D.i.a., Back-Up Alarm, Instrument Cluster, Platform, Reflectors, Roof, Rollbar Kits, Safety |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pump & Reservoir Assy. Pressure | 1600 PSI | p. 33 |
| Valve Assy. Pressure | 1600 PSI | p. 33 |
| Pump & Reservoir Pressure | 1600 PSI | p. 33 |
| Weight, 560# | 560 lbs | p. 6 |
| Weight, 280 lbs | 280 lbs | p. 8 |
| Alternator Output | 51 AMP | p. 303 |
| Fuel Tank Capacity | 16 Gallon | p. 332 |
Ford New Holland 345C–545D Series Common Problems This Manual Covers
Ford 345D loader quick coupler leaking after reinstall, can't find replacement coupler and hose part numbers
Check the loader hydraulics exploded view on page 41 for tubes, hoses, and coupler callouts. Match each coupler half to its parts list entry and order the mating hose assembly at the same time. Couplers must hold the 1600 PSI pump and reservoir pressure listed on page 33, so verify the pressure rating and your serial number range.
Manual Section: Loader Hydraulics p. 41Power steering pump leaking at reservoir, need correct seal kit and O-ring part numbers
Check the pump and reservoir breakdown starting on page 32; it shows the pump assembly, reservoir, valve assembly, and seal kits as separate line items. Note the 1600 PSI pump and reservoir pressure spec on page 33 when ordering seals, and confirm the kit covers both the valve body O-rings and the shaft seal.
Manual Section: Power Steering Pump and Reservoir p. 32Alternator failed, parts listing shows 51 amp and 70 amp units, unsure which fits
Verify your alternator's output before ordering anything. Compare your unit against the 51 AMP breakdown on page 303 and the 55 Amp and 70 Amp versions on page 306, checking pulley and mounting lug positions in the exploded views. Match the regulator and brush assembly to the same rating, then pull the drive belt number from the same list.
Manual Section: Alternator Assembly p. 303Water in fuel, can't identify sedimenter bowl gasket and filter element part numbers
Check the sedimenter and filter exploded view on page 250 to pick out the element, bowl gasket, and drain valve line items. Cross-reference the fuel tank and line components on page 245 if fittings also need replacement. Plan on draining the 16 Gallon tank, listed on page 332, before pulling the sedimenter bowl.
Manual Section: Fuel Sedimenter and Filter p. 250Three point hitch lift cylinder weeping at gland, need the right seal kit part number
Check the lift cylinder breakdown on page 382; the gland, piston, and seal kit each carry their own part number in the list. Order the complete kit rather than reusing single seals; these hydraulics run at the 1600 PSI pump and reservoir pressure spec on page 33. Verify the cylinder matches your serial number range.
Manual Section: Hydraulic Lift Cylinder p. 382Frequently Asked Questions
What are the replacement specifications for hydraulic quick couplers?
The remote hydraulic coupler used is a Snap-Tite #6800. The part number for this coupler is 86508779. p. 118
What is the capacity of the hydraulic reservoir for the 345D tractor loader?
The hydraulic pump and reservoir assembly has a capacity of 2.74 U.S. Gallons at 1000 RPM. p. 33
What is the correct belt length for the radiator fan?
The correct fan belt for the 345D tractor loader is 55.26 inches in length. p. 240
What is the pressure rating for the power steering pump?
The power steering pump and reservoir assembly is rated for 1600 PSI. p. 33
What is the part number for the engine oil filter on non-emissionized engines?
The engine oil filter for non-emissionized engines is part number 86546614. p. 135
How quickly can I access this Ford 345D & variants manual after buying?
You get a 389-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Ford 345D & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
