Run the tank dry on a 65-88 in the middle of drilling and the diesel will not prime itself: the fuel system bleeding procedure on page 65 of this operator manual takes you from filter to injection pump in the right order. The 119 page PDF covers the New Holland Fiat 55-88, 60-88, 65-88, 70-88 and 80-88 tractors, with dedicated chapters for the FWD, reverser, creeper-reverser, 40 kph, No-Spin and heated Comfort Cab versions.
Guessed torque figures are how wheel studs stretch and ballasted rims crack. This book gives the factory numbers, 314 N-m on the front wheel nuts and 255 N-m disc to hub at the rear, alongside the maintenance schedule, brake and fuel system bleeding, cooling system service and a full specifications chapter.
Twenty-two bookmarks take you straight to the section you need, so a spongy brake pedal or a stuck differential lock costs you minutes, not a lost weather window.
What's Inside This New Holland 55-88, 60-88, 65-88, 70-88, 80-88 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Service | 4-6 | Authorized Shops, Repair Work, Overhaul Work, Skilled Servicemen |
| Identification Data | 7 | Frame Type, Frame Number, Tractor Data Plate, Engine Type, Engine Number |
| Safety Precautions | 8-14 | Safety Decals, PTO Shaft, Roll-Over Protection Frame, Hydraulic System, Fire Extinguisher |

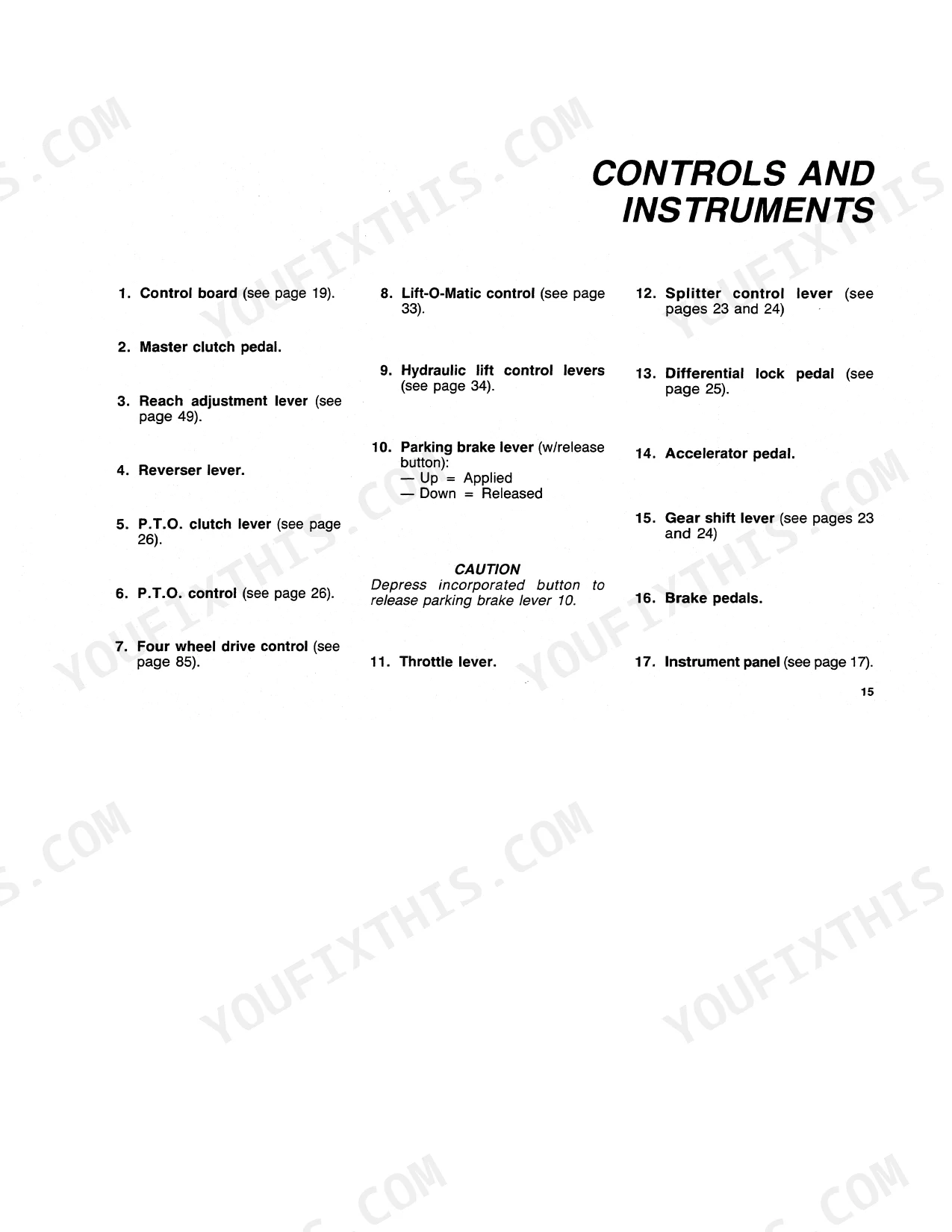

| Controls and Instruments | 15-19 | Instrument Panel, Control Board |

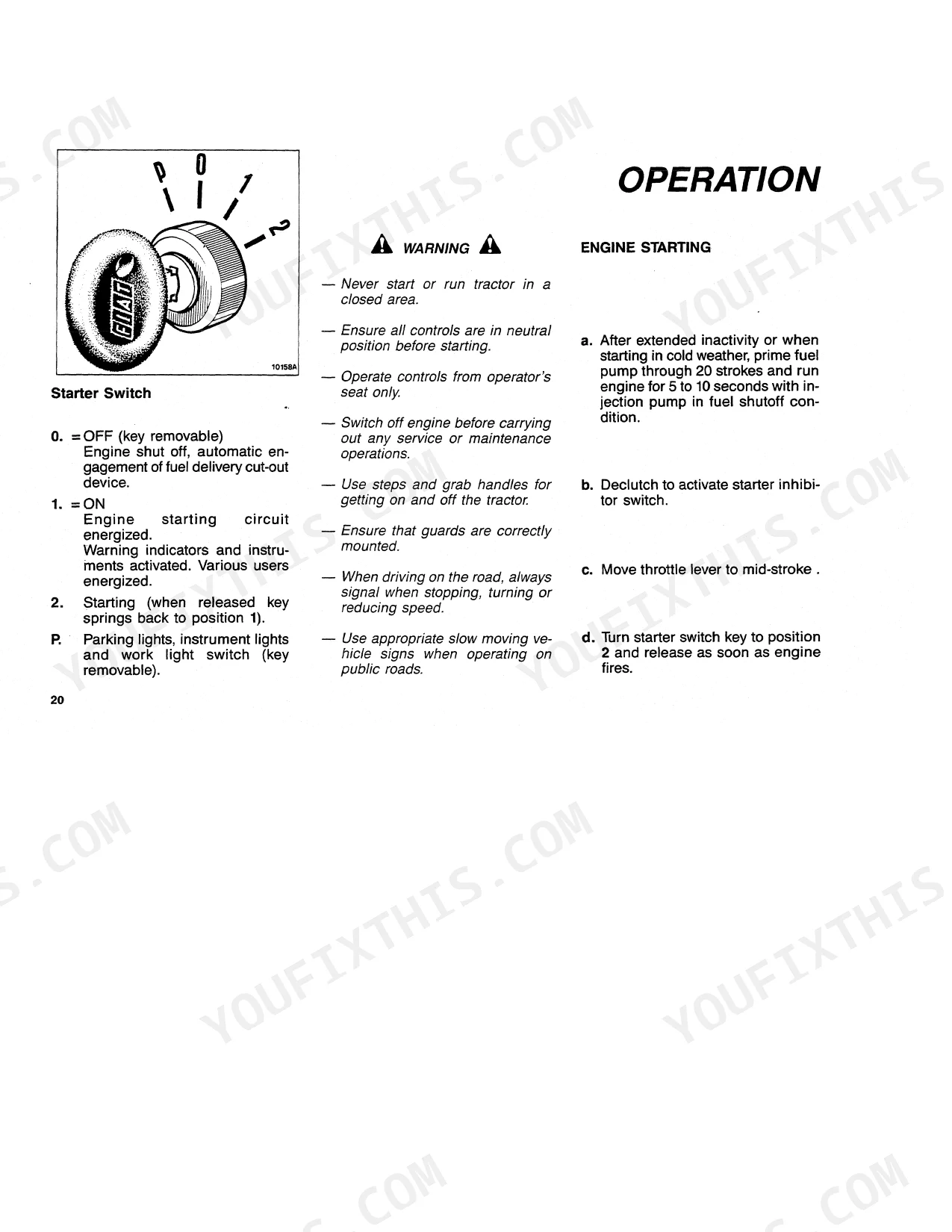

| Operation | 20-60 | Starting and Stopping, Transmission and Splitter, Transmission with Reverser, Differential Lock, Power Take-Off |

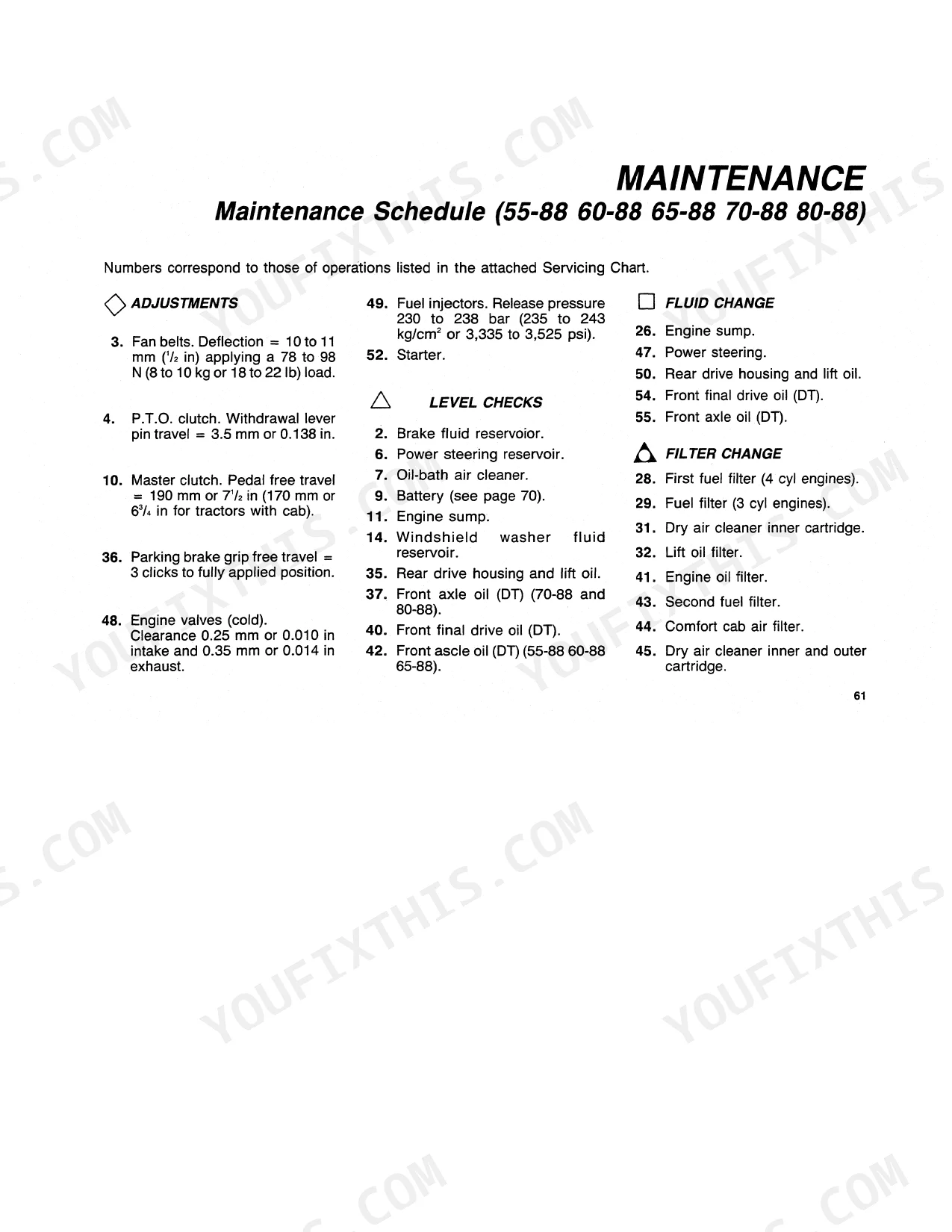

| Maintenance | 61-72 | Maintenance Schedule, Brake System Bleeding, Fuel System Bleeding, Cooling System, Panelling Maintenance |
| Specifications | 73-81 | Engine Type, Transmission, Steering, Service Brakes, Electrical System |
| FWD Tractors | 82-88 | Front-Wheel Drive Operation, Front Track Adjustment, Steering Angles |
| Reverser Version | 89 | Reverser-Splitter Unit, Transmission, Reverser Lever |
| Creeper-Reverser Version | 90-94 | Transmission with Overdrive |
| Kph Version | 95-101 | Front Axle Brake Bleeding |
| No-Spin Version | 102-104 | Front Axle Ring Gear Housing, Splined Sleeves, Dog Clutch Rings, Differential Unit |
| Heated and Ventilated Comfort Cab Version | 105-110 | Doors, Windshield Wiper, Cab Interior Lamp, Ventilation, Heater Fan, Heating Lever |
| Tractor Storage | 111 | Injection Pump, Engine Oil, Air Cleaner Cartridge, Cooling System, Battery, Fuel Tank |
| Optional Variants and Accessories | 112-119 | Start-Pilot, Mechanical Reverser, No-Spin Front Differential, Remote Control Valves, Trailer Brake Hydraulic Control Valves, ROPS Frame |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nuts torque | 314 N-m (32 kgm or 232 ft lb) | p. 44 |
| Front track beam extension clamp bolts 1 and 2 torque | 220 N-m (22.5 kgm or 163 ft lb) | p. 46 |
| P.T.O. clutch withdrawal lever pin travel | 3.5 mm or 0.138 in | p. 63 |
| Hydraulic pump relief valve setting | 186 bar (190 kg/cm² or 2,698 psi) | p. 78 |
| Steering pump relief valve setting | 100 bar (102 kg/cm² or 1451 psi) | p. 80 |
| P.T.O. clutch lever free travel | 3.5 mm (0.14 in) | p. 63 |
| Engine Oil Change Interval | 200 hours | p. 7 |
| Front Wheel Nut Torque | 314 N-m | p. 46 |
| Rear Wheel Disc to Hub Torque | 255 N-m | p. 48 |
| Rear Wheel Disc to Rim Torque | 245 N-m | p. 48 |
| 55-88, 60-88, 65-88 | ||
| Max Operating Weight (55-88, 60-88, 65-88) | 3500 kg | p. 52 |
| 70-88, 80-88 | ||
| Max Operating Weight (70-88, 80-88) | 4600 kg | p. 52 |
New Holland 55-88, 60-88, 65-88, 70-88, 80-88 Common Problems This Manual Covers
Spongy brake pedal after fluid work
Air left in the lines after a fluid change or seal repair makes the pedal sink under load. The Maintenance chapter gives the brake system bleeding procedure, and the 40 KPH Version chapter adds its own front axle brake bleeding steps for those tractors.
Manual Section: Maintenance p. 61Engine dies or will not restart
Running the tank dry or changing a fuel filter lets air into the injection system, and the engine will crank without firing until it is bled. The fuel system bleeding procedure in the Maintenance chapter walks the sequence step by step.
Manual Section: Maintenance p. 67Hydraulic lift erratic or unresponsive
An implement that hunts up and down or refuses to raise is often a draft and position control setup problem rather than a pump failure. The Operation chapter includes a guide to lift operation, lower link positions and implement attachment adjustments for the three-point hitch.
Manual Section: Operation p. 20Overheating under heavy tillage loads
Long pulls in hot weather expose a neglected radiator or low coolant fast. The Cooling System pages in the Maintenance chapter cover checking and servicing the system before a hot gauge becomes a head gasket job.
Manual Section: Maintenance p. 61PTO clutch drags or slips
A PTO that keeps spinning the shaft with the lever disengaged, or slips under a baler load, usually needs the clutch linkage set back to spec. The manual gives the PTO clutch lever free travel figure of 3.5 mm and the adjustment procedure.
Manual Section: Maintenance p. 61Flat battery, tractor will not crank
Cold mornings and short runs between fields leave these tractors with a dead battery at the worst time. The electrical pages cover battery care, the correct way to start the engine with a flat battery, fuse locations and headlamp alignment.
Manual Section: Maintenance p. 61Differential lock will not disengage
Operators who engage the lock in a wet headland sometimes find it stays locked and the tractor will not steer. The Differential Lock pages in the Operation chapter explain correct engagement and release so you avoid damaging the rear axle.
Manual Section: Operation p. 20Frequently Asked Questions
Which tractors does this operator manual cover?
It covers the New Holland Fiat 55-88, 60-88, 65-88, 70-88 and 80-88, with separate chapters for the FWD, Reverser, Creeper-Reverser, 40 KPH, No-Spin and Heated and Ventilated Comfort Cab versions, so one book serves the whole 88 series lineup.
Does it include wheel and track torque figures?
Yes. The Track Adjustment pages in the Operation chapter give factory torques: front wheel nuts at 314 N-m, rear disc to hub at 255 N-m, disc to rim at 245 N-m, plus clamp bolt and pivot nut values for setting front track width. p. 20
Is the front-wheel drive axle covered?
Yes. The FWD Tractors chapter has its own specifications plus front-wheel drive operation, front track adjustment and steering angles, so mechanical FWD models are covered alongside the two-wheel drive tractors. p. 82
How is this New Holland 55-88 Operator Manual delivered?
A single searchable PDF file of 119 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print specific sections of this New Holland 55-88 Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
