Around the three hundred hour mark a T5 starts asking questions: a warning symbol you have not seen before, a power shuttle that hesitates on a cold morning, a rear remote that will not hold pressure with the baler on. The answers are in this New Holland operator manual, 440 pages covering the T5.75, T5.85, T5.95, T5.105 and T5.115 with the F5C engine, serial number HLRT5095HHLE00237 and above.
It moves from the cab out: every control and display symbol explained, then rear and front PTO, remote valves, hydraulic lifts and the rear three-point hitch, then the full maintenance schedule from daily checks through the 300 hour services, with fluid capacities and wheel torque figures in tables instead of guesswork.
Guessing is the expensive part: the wrong oil quantity, a hub run loose after a track change, an afternoon lost to a fault code. When the weather opens you want the tractor rolling, not waiting on the dealer.
What's Inside This New Holland T5.75 – T5.115 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 13-36 | Note to the Owner, Intended Use, Electro-Magnetic Compatibility, Metric and Imperial Units Abbreviations, Identification Plates, Approval Data Plate, Operator's Manual Storage |
| Safety Information | 37-78 | Safety Rules and Signal Word Definitions, Safety Rules, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires |
| Controls and Instruments | 79-144 | Access to Operator's Platform, Operator's Seat, Instructional Seat, Forward Controls, Left-Hand Side Controls, Right-Hand Side Controls, Display, Warning and Advisory Symbols |
| Operating Instructions | 145-154 | Commissioning the Unit, Starting the Unit, Stopping the Unit, Moving the Unit |
| Transport Operations | 155-158 | Road Transport, Recovery Transport |

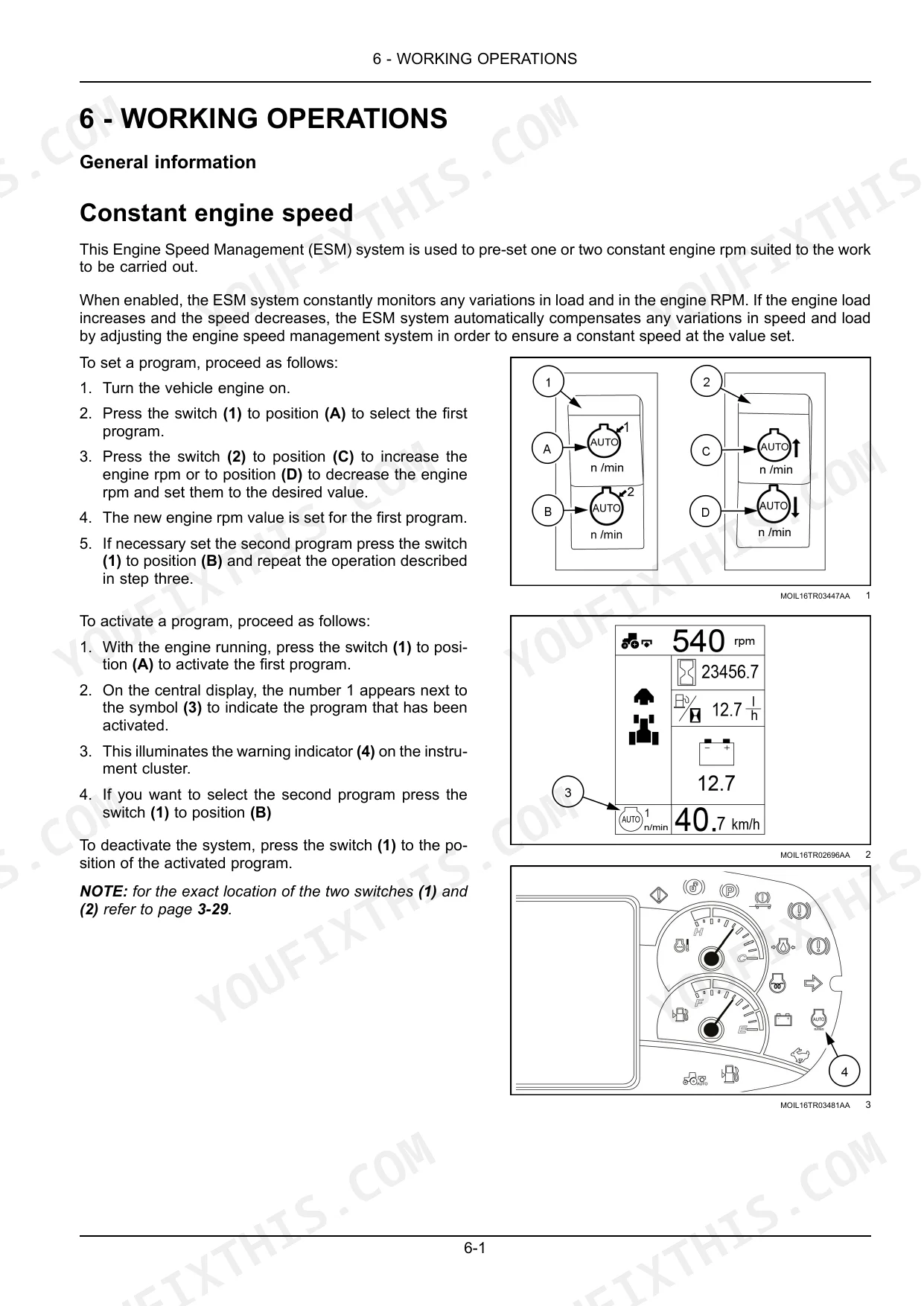

| Working Operations | 159-284 | Drive, Rear Remote Control Valves, Mid-Mount Control Valve, Rear Power Take-Off, Front Power Take-Off, Rear Hydraulic Lift, Front Hydraulic Lift, Rear Three-Point Hitch |

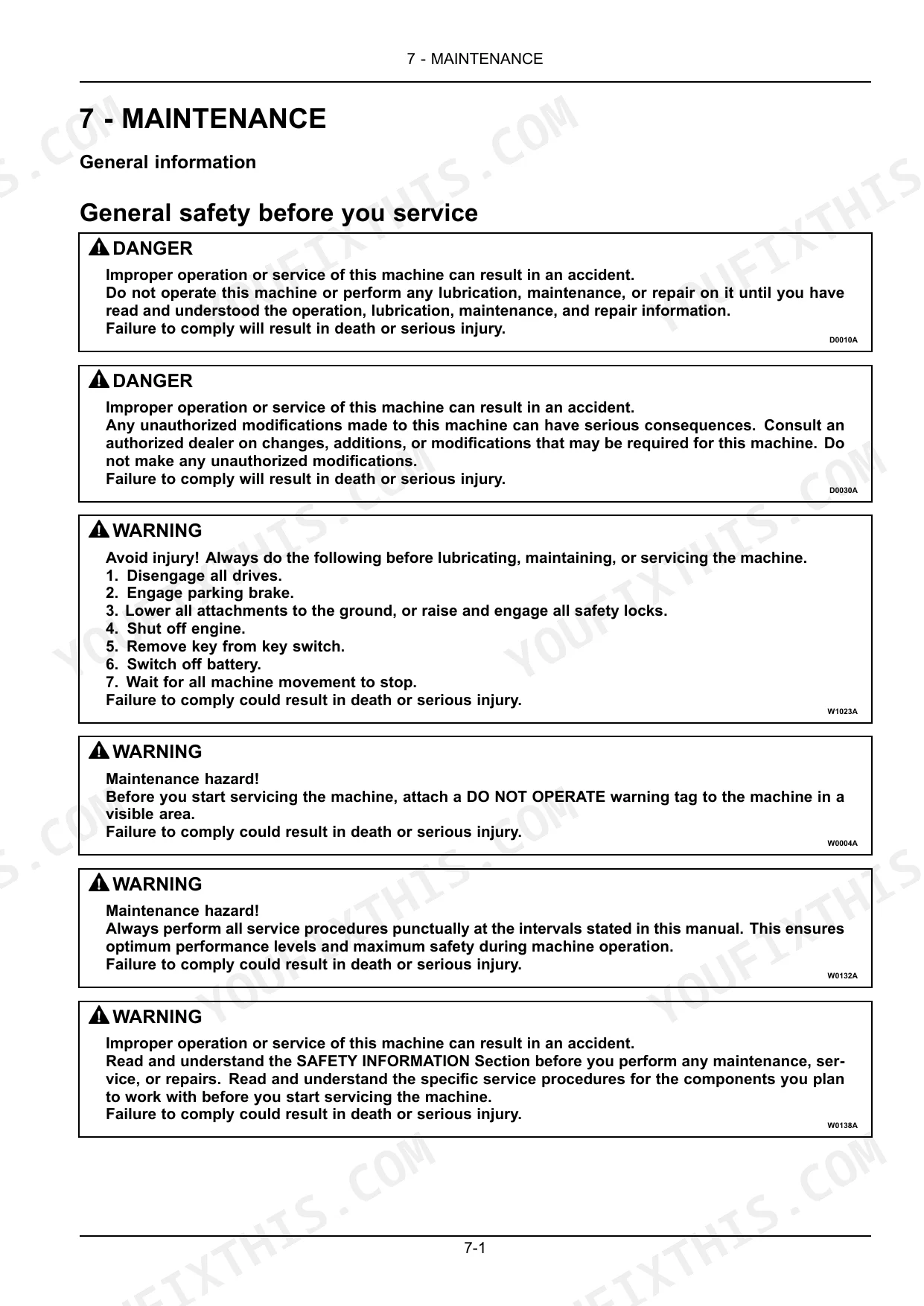

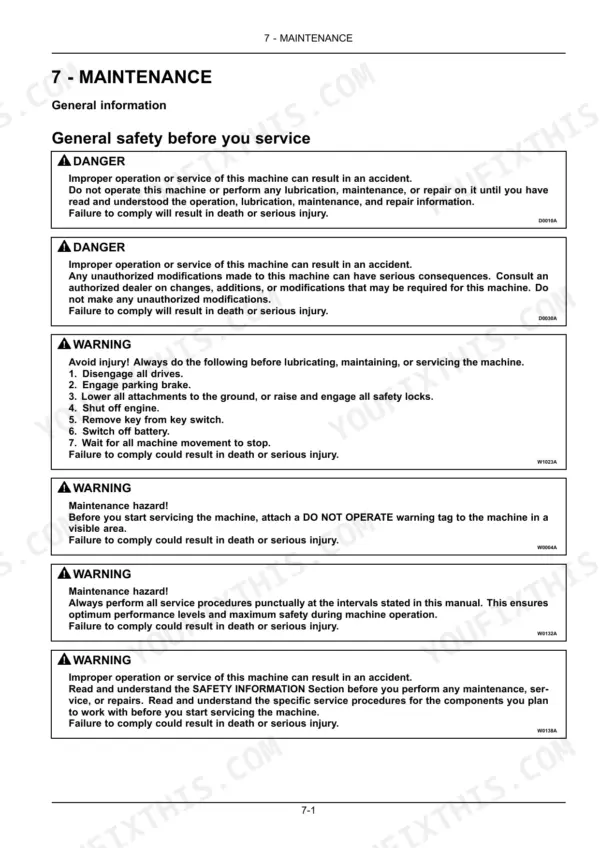

| Maintenance | 285-380 | Maintenance Planning, As Required, At Warning Message Display, Every 10 Hours or Daily, After the First 50 Hours of Operation, Every 50 Hours, Every 100 Hours, Every 300 Hours |

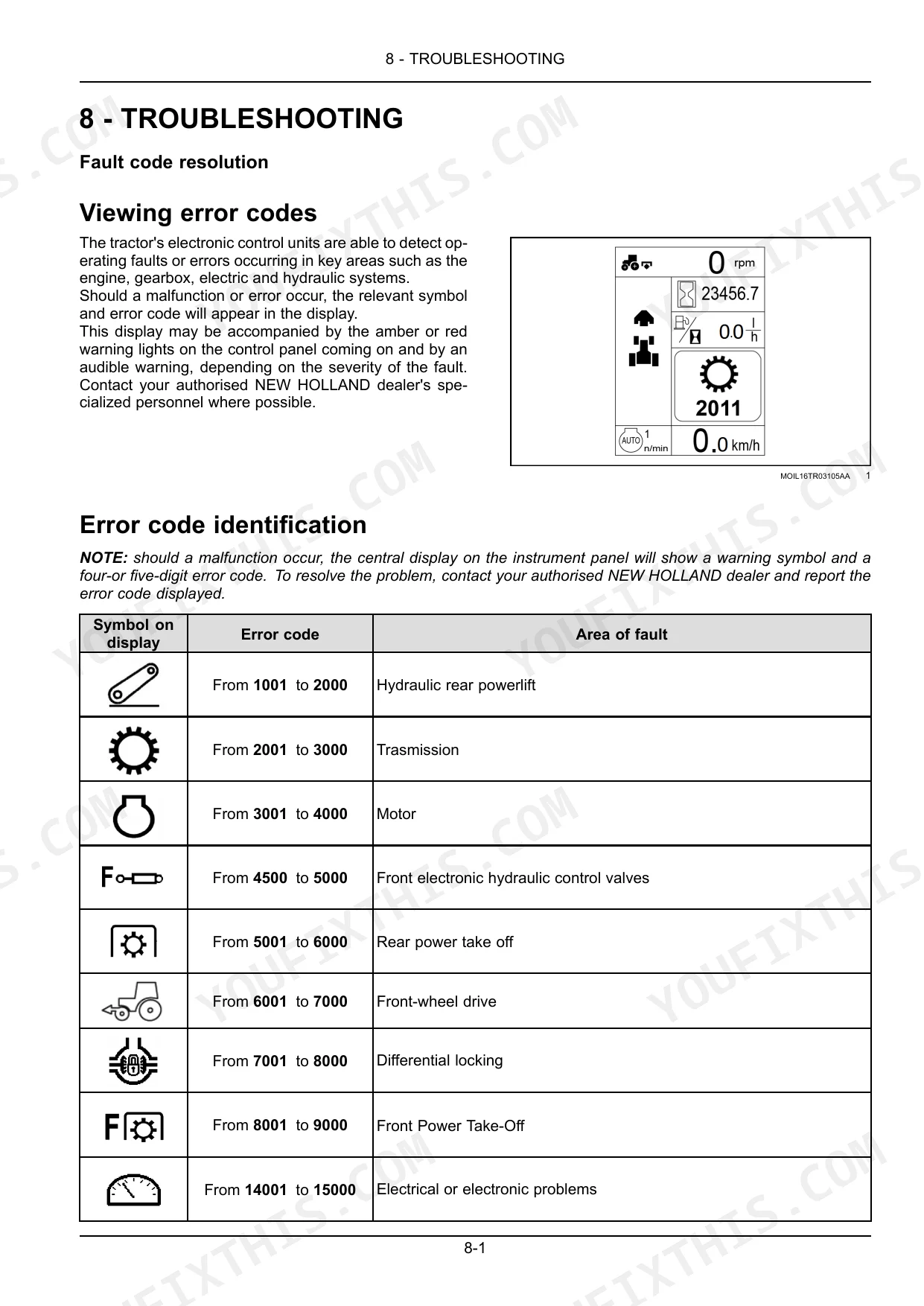

| Troubleshooting | 381-388 | Fault Code Resolution, Engine Troubleshooting |
| Specifications | 389-420 | General Dimensions, Maximum Permitted Loads, Speed Tables |
| Accessories | 421-440 | Radio, Bluetooth |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Output shaft size | 34.75 mm (1.37 in) | p. 187 |
| External PTO switch error message trigger time | more than 10 s | p. 207 |
| Maximum engine speed for engaging front PTO | 1200 RPM | p. 210 |
| Wait time for trailer parking brake engagement | 10 seconds | p. 250 |
| Air pressure for trailer brake system | 4.5 – 5.5 bar (65.2 – 80 psi) | p. 256 |
| Wheel hub tightening torque (Front - M16) | 215 N·m (159 lb ft) | p. 265 |
| Wheel hub tightening torque (Rear - M18) | 310 N·m (229 lb ft) | p. 265 |
| Engine RPM for clutch calibration | 1300 +/- 50 RPM | p. 370 |
| Clutch size | 305 mm | p. 415 |
| Drive line Synchro Shuttle™ high pressure circuit pump capacity | 19 cm³ | p. 416 |
| Drive line Synchro Shuttle™ low pressure circuit pump capacity | 11 cm³ | p. 416 |
| Drive line Synchro Shuttle™ high pressure circuit max pump pressure | 190.0 bar | p. 416 |
New Holland T5.75 – T5.115 Common Problems This Manual Covers
Rear PTO cuts out or will not engage
Mid-job the PTO drops out, or it refuses to start from the external fender switch. The Working Operations section covers rear and front PTO operation, including the error message triggered when the external switch is held for more than 10 seconds.
Manual Section: Working Operations p. 159Power shuttle jerky or slow to engage
Shuttle engagement turns harsh or lazy as the wet clutch wears. The Maintenance section includes the clutch calibration procedure, performed with the engine held steady at 1300 +/- 50 RPM.
Manual Section: Maintenance p. 285Fault code stops the morning start
A code on the display and no way to know if it is safe to drive to the field. The Troubleshooting section walks through fault code resolution and engine troubleshooting, so you can tell a sensor niggle from a park-it-now problem.
Manual Section: Troubleshooting p. 381Wheels loosen after track width adjustment
Reset the track for row work and a week later the hub nuts are backing off. The Maintenance section gives the retorque figures: 215 N·m for front M16 disc-to-hub nuts on 4WD axles and 310 N·m for the rear M18s.
Manual Section: Maintenance p. 285Trailer air brakes drag or release slowly
A loaded trailer that drags its brakes will cook them long before harvest is in. Working Operations covers the trailer brake system, including the 4.5 to 5.5 bar working pressure range and the 10 second wait for trailer parking brake engagement.
Manual Section: Working Operations p. 159Front PTO snatches on engagement
Dropping the front PTO in at high revs shock-loads the driveline and the implement. The Working Operations section sets a 1200 RPM maximum engine speed for engaging the front PTO and explains the engagement sequence.
Manual Section: Working Operations p. 159No service history on a used T5
Buy one second hand and the maintenance record is usually a shrug. The Maintenance section lays out every interval from daily checks to the 300 hour jobs, with capacities to match: 160 L fuel tank, 6.40 to 8.10 L engine oil sump, 60 L power shuttle transmission.
Manual Section: Maintenance p. 285Frequently Asked Questions
Which tractors does this manual cover?
The New Holland T5.75, T5.85, T5.95, T5.105 and T5.115 with the F5C engine, serial number HLRT5095HHLE00237 and above. It is the factory operator manual, publication number 51594048, in English, 440 pages.
Is this a repair manual or an operator manual?
It is the operator manual: controls and instruments, operating and working instructions, the complete maintenance schedule with fluid capacities and torque figures, troubleshooting, and specifications. It is not a teardown service manual, but it covers everything an owner services between dealer visits.
Does it include fluid capacities and service intervals?
Yes. The Maintenance section runs from daily 10 hour checks through the 50, 100 and 300 hour services, and lists capacities including the 160 L fuel tank, 6.40 to 8.10 L engine oil sump, 60 L power shuttle transmission, and front axle fills from 1.00 to 2.00 L by axle type. p. 285
Can it help with warning lights and fault codes?
Yes. The Troubleshooting section covers fault code resolution and engine troubleshooting, and the Controls and Instruments section explains the display along with the warning and advisory symbols, so you can identify what the tractor is flagging before deciding whether to keep working. p. 381
Is this New Holland T5 Series manual a PDF I download?
A single searchable PDF file of 440 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I able to print pages from this New Holland T5 Series manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
