The rear three-point hitch is where most Powerstar questions start: draft control that will not settle, lift arms sitting wrong for the baler, a top link pin you cannot verify by eye. The Working Operations section of this New Holland operator manual covers all of it, plus the rear PTO, remote control valves, tread settings, and front loader, with actual pin diameters and clearances printed on the page.
The rest of the book covers the whole tractor: controls and the display, starting and road transport, a full maintenance schedule with capacities and fuse locations, fault code troubleshooting, and specifications. It applies to the Powerstar 90, 100, 110, and 120, serial number ELRT5100PJLE50082 and above, publication 51594050, 368 pages in English.
When the hitch will not drop at dusk and there is nobody left to call, this PDF opens on a phone in the cab and gets you back in the field.
What's Inside This New Holland Powerstar 90, Powerstar 100, Powerstar 110, Powerstar 120 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 11-32 | Intended Use, Electro-Magnetic Compatability, Identification Plates, Machine Orientation, Selective Catalytic Reduction System |
| Safety Information | 33-68 | Safety Rules and Signal Word Definitions, Operator Protective Structure, Front End Loader, Ecology and the Environment, Tractor Jacking Points, Safety Signs |
| Controls and Instruments | 69-136 | Access to Operator's Platform, Operator's Seat, Forward Controls, Right-Hand Side Controls, Exterior Controls, Display |

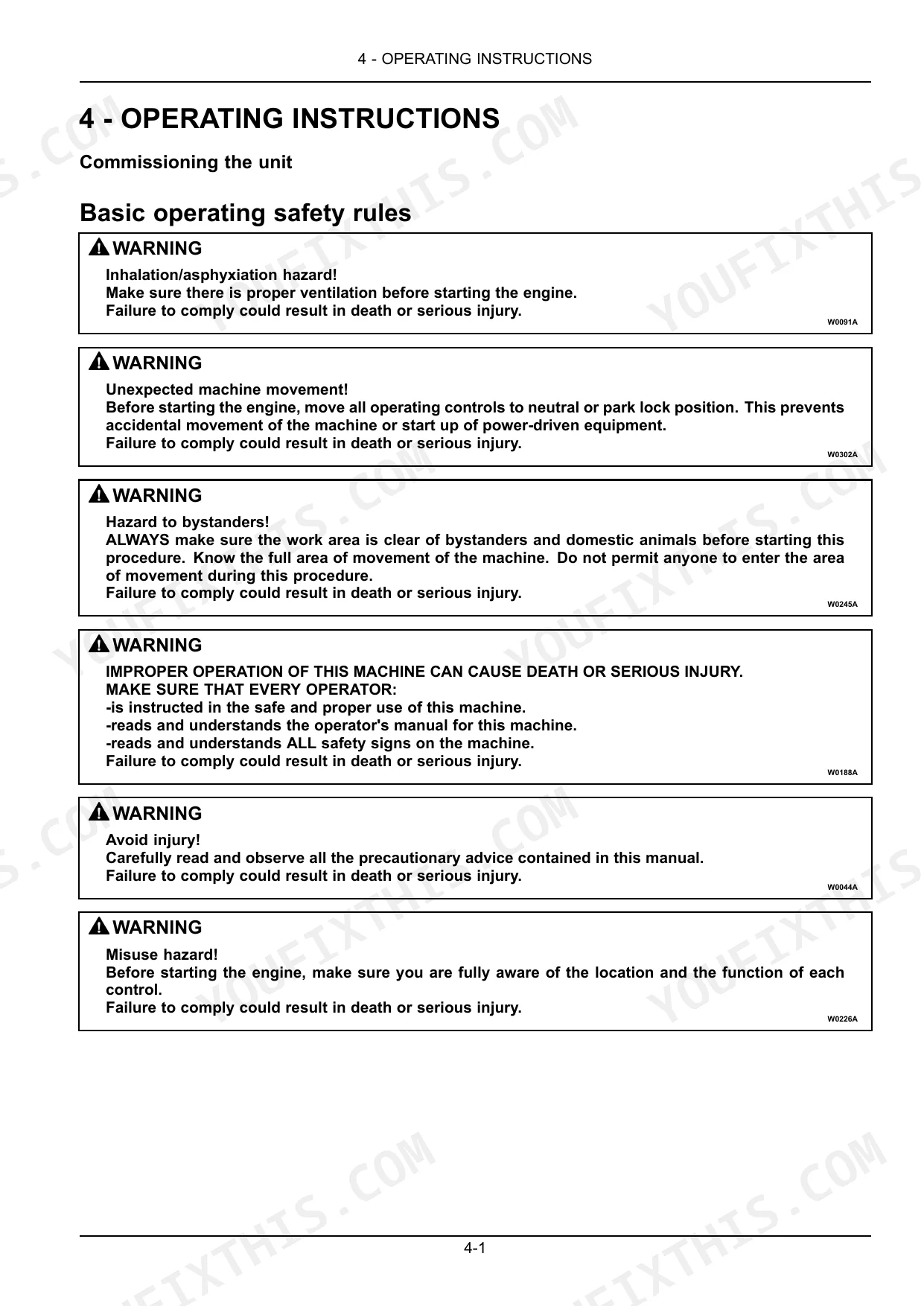

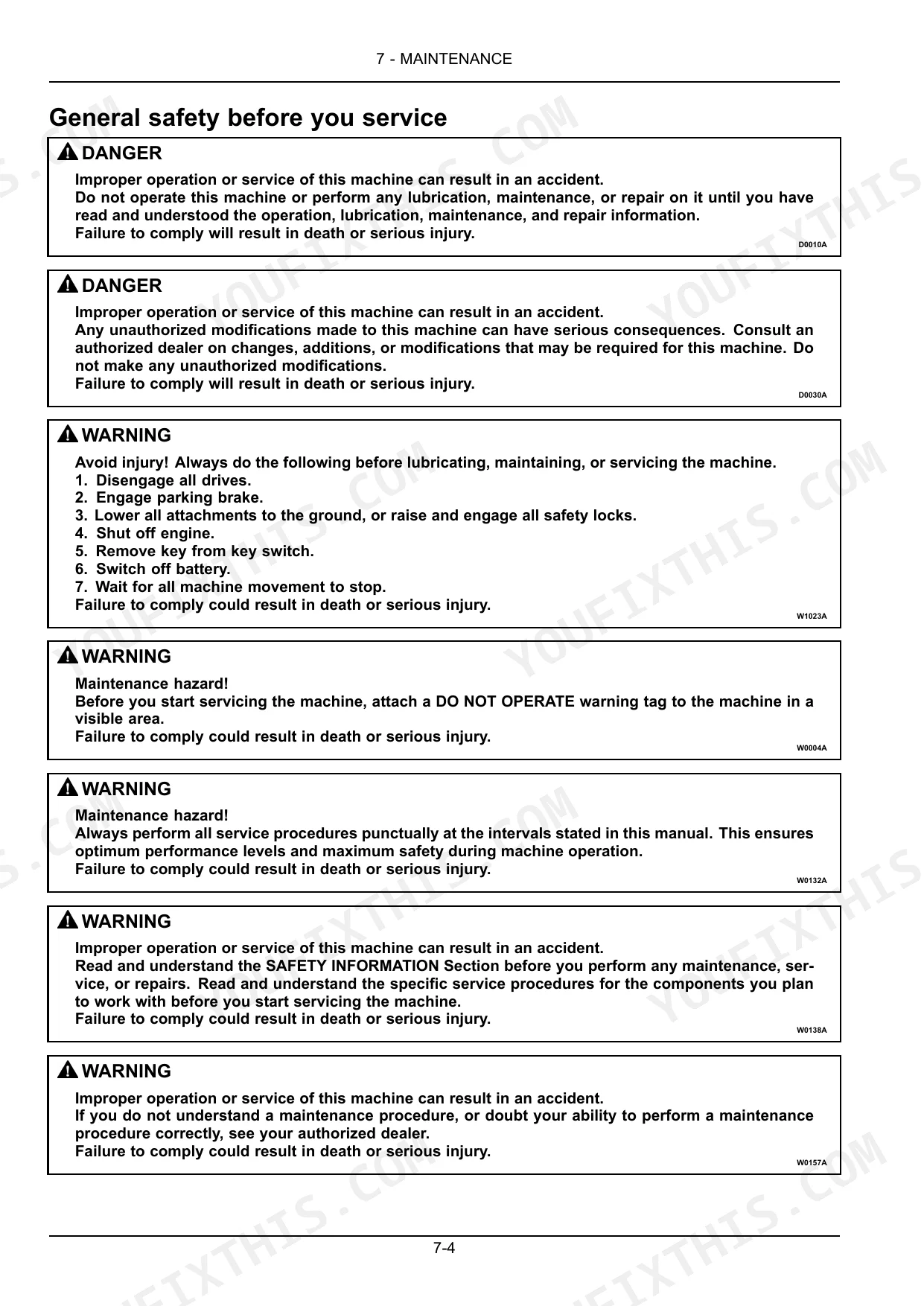

| Operating Instructions | 137-150 | Commissioning the Unit, Starting the Unit, Stopping the Unit, Moving the Unit |
| Transport Operations | 151-156 | Road Transport, Recovery Transport |
| Working Operations | 157-228 | Rear Remote Control Valves, Rear Power Take-Off, Rear Hydraulic Lift, Tread and Fender Settings, Rear Three-Point Hitch, Front Loader |
| Maintenance | 229-322 | Emissions Overview, Maintenance Planning, Engine Oil, Consumables, Capacities, Fuse and Relay Locations |

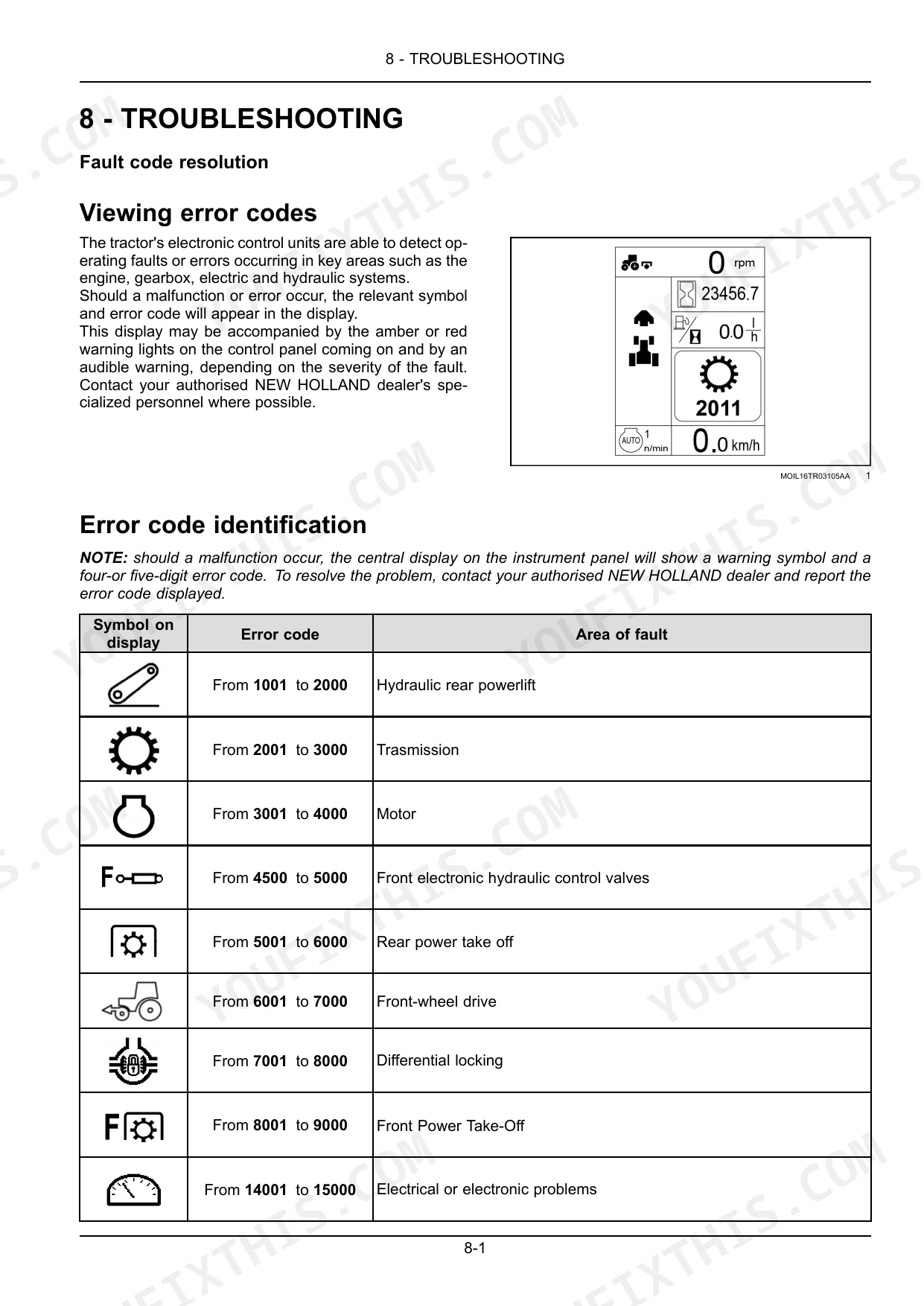

| Troubleshooting | 323-330 | Fault Code Resolution, Instrument Cluster, Hydraulic Systems, Hydraulic Service Brakes, Engine, Cab Climate Control |
| Specifications | 331-348 | General Dimensions, Maximum Permitted Loads, Speed Tables, Consumables, Capacities, Engine Main Data |
| Accessories | 349-368 | Radio, Single Piece Ballast, Coolant Immersion Heater |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clearance between the tire or the mudguard and the tractor body | 20 mm (0.79 in) | p. 202 |
| Top link pin diameter | 28 mm (1.1 in) | p. 203 |
| Transmission housing oil filter - Replacement - Auxiliary services | 300 hours | p. 248 |
| Lift oil filter tightening | 3/4 of a turn by hand | p. 275 |
| Air cleaner compressed air pressure | less than 5 bar (72.5 psi) | p. 274 |
| Standard hardware M6 torque (8.8) | 12 N·m (9 lb ft) | p. 273 |
| Standard hardware M6 torque (10.9) | 17 N·m (13 lb ft) | p. 273 |
| F-088 fuse size | 20.0 A | p. 298 |
| F-089 fuse size | 7.5 A | p. 298 |
| Weight to connect to implement coupling arms for valve calibration | 200 kg (440.9 lb) | p. 321 |
| Clutch | 305 mm (12 in) | p. 342 |
| Engine Oil Capacity (Only oil sump) | 6.40 – 8.10 L | p. 246 |
New Holland Powerstar 90, Powerstar 100, Powerstar 110, Powerstar 120 Common Problems This Manual Covers
Rear hydraulic lift slow or unresponsive
Implements that raise sluggishly or will not hold position are a common complaint on these tractors. The Troubleshooting section walks hydraulic system symptoms back to causes, including the rear hydraulic lift and service brakes.
Manual Section: Troubleshooting p. 323PTO shaft does not match the implement
Switching between 540 and 540E work, or hooking up a new baler, often stalls at the PTO stub. Working Operations covers changing the PTO shaft and attaching PTO-driven equipment step by step, along with the rear remote valves.
Manual Section: Working Operations p. 157DEF warnings and engine derates
A clogged DEF line filter or contaminated fluid will put the SCR system into a derate right when you need full power. The Maintenance section covers cleaning and replacing the DEF/AdBlue filters and changing the tank fluid.
Manual Section: Maintenance p. 229Display shows wrong speed or area
If the dashboard readouts drift after a tire change, the fix is recalibration, not a sensor. Controls and Instruments explains calibrating speed and tool width through the display, plus adjusting brightness and the buzzer.
Manual Section: Controls and Instruments p. 69Soft or uneven brake pedal
A pedal that sinks or pulls to one side usually traces to fluid level or pedal adjustment. The Maintenance section covers filling the brake fluid reservoir and checking the brake pedals on schedule.
Manual Section: Maintenance p. 229Hard starting on cold mornings
A tractor that cranks but will not fire in winter costs you the best hours of the day. Operating Instructions covers the correct starting procedure, and the Accessories section describes the coolant immersion heater for cold climates.
Manual Section: Operating Instructions p. 137Frequently Asked Questions
Which tractors does this operator manual cover?
It covers the New Holland Powerstar 90, Powerstar 100, Powerstar 110, and Powerstar 120, serial number ELRT5100PJLE50082 and above. It is the factory operator manual, publication number 51594050, 368 pages, in English.
Does it list fluid capacities for service?
Yes. The Maintenance section lists capacities for all four models, including 160.0 L for the fuel tank, 9.6 L for the DEF/AdBlue tank, 6.40 to 8.10 L for the engine oil sump, and 4.5 L for the front axle. p. 246
What are the engine oil change intervals on the New Holland Powerstar 90, 100, 110, 120?
The maintenance planning chart sets the engine oil and filter interval by oil spec: 600 hours with MAT3521 oil and 500 hours with MAT3522. The same section lays out the rest of the hour-based service schedule. p. 244
Does it give wheel torque specs?
Yes. The Maintenance section specifies 215 N·m for the front wheel hubs on 4WD models and 310 N·m for the rear wheel hubs, so you can recheck them after the first hours of work with the right numbers. p. 281
Do I get instant access to this New Holland Powerstar 90 Operator Manual?
Delivery is instant: a 368-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this New Holland Powerstar 90 manual print-friendly?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
