The maintenance chart says the engine oil is due at 600 hours, and the forecast says you have one dry day to do it. This 280 page operator manual for the New Holland PowerStar 65 and PowerStar 75 tractors (serial number ELRT40***HAN00001 and above, publication 51519280) puts the interval, the 9.50 L fill with filter, and the drain procedure in front of you before you crack the plug.
Inside are the factory instructions for daily operation and service: controls and instruments, starting and stopping, transmission and shuttle operation, four wheel drive and differential lock engagement, the full maintenance chart, and troubleshooting tables for the engine, electrical system, hydraulics, and rear three-point hitch, plus specifications with speed tables for the 8 x 8 gearbox and ballast weights.
It is a searchable PDF you can print by the section, so the greasy pages live on the bench and the clean file stays on your computer for the next job.
What's Inside This New Holland PowerStar 65, PowerStar 75 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-30 | Introduction, Various Controls, Consumables, Capacities, Engine Oil Recommended Operating Temperature Range, Organic Acid Technology Coolant, Front End Loader Maintenance |
| Safety Information | 31-62 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires, Safety Rules - Explosions and Fires |

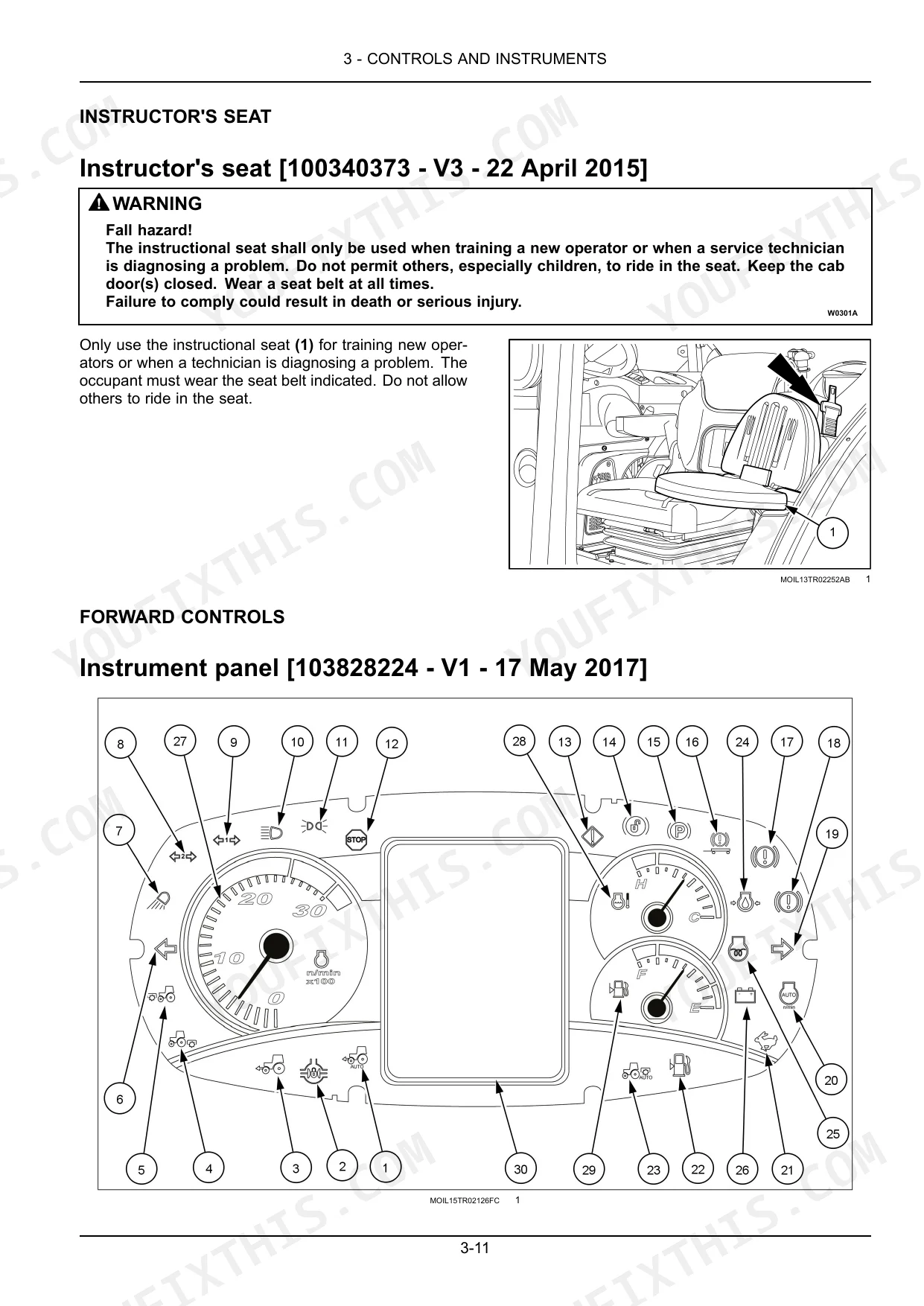

| Controls and Instruments | 63-104 | Access to Operator's Platform (Mounting and Dismounting, Getting to Know the Internal Parts of the Cab, Rear-View Outside Mirrors - Localization Overview, Clock Adjustment) |

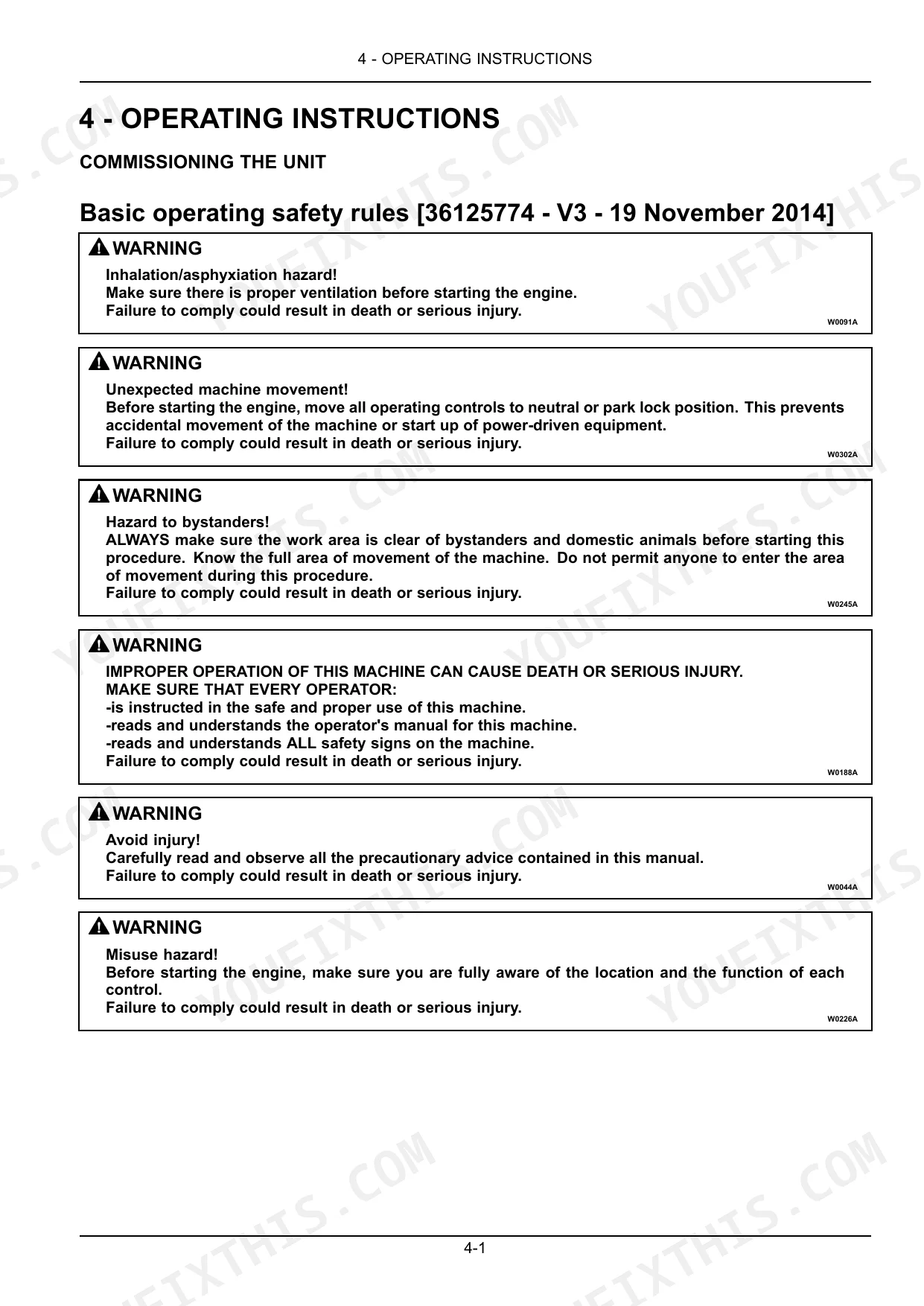

| Operating Instructions | 105-114 | Commissioning the Unit (Basic Operating Safety Rules, Refueling), Starting the Unit (Starting the Engine), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 115-116 | Road Transport (Tractor Transporting), Recovery Transport (Towing the Tractor) |
| Working Operations | 117-170 | Transmission (Operation), Four Wheel Drive (Four-Wheel Drive: Mechanical Engagement, Electro-Hydraulic Control), Differential Lock (Mechanical Differential Lock) |

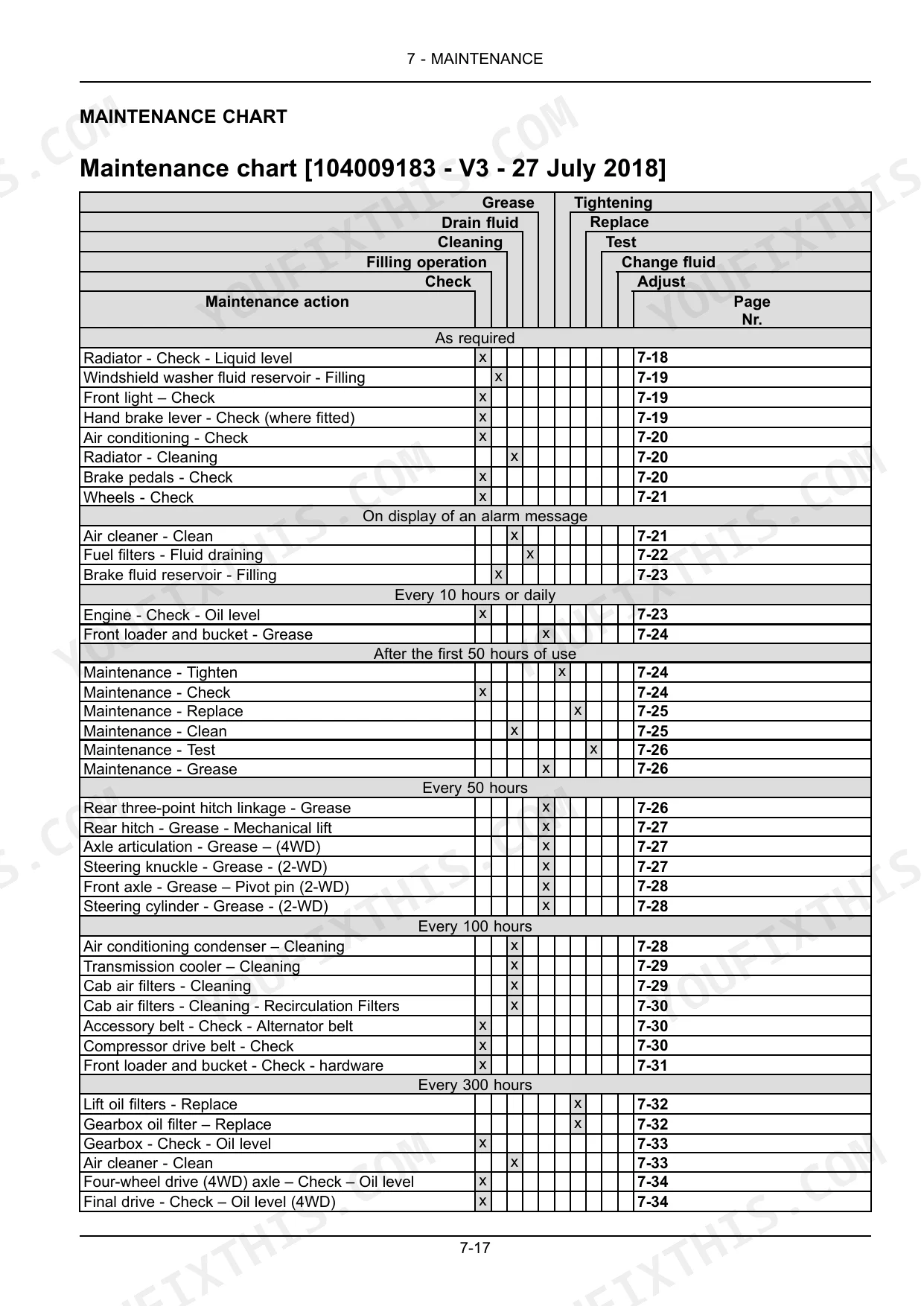

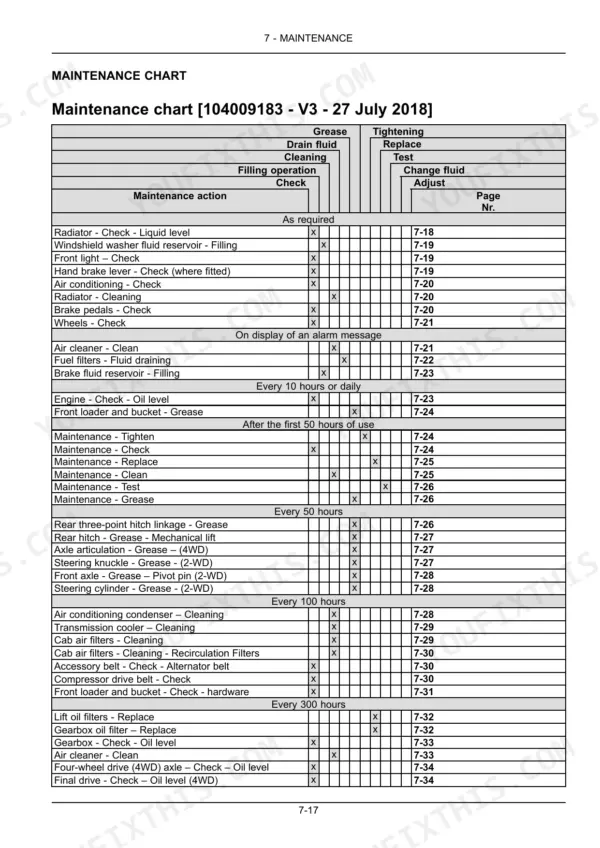

| Maintenance | 171-232 | Maintenance Chart |

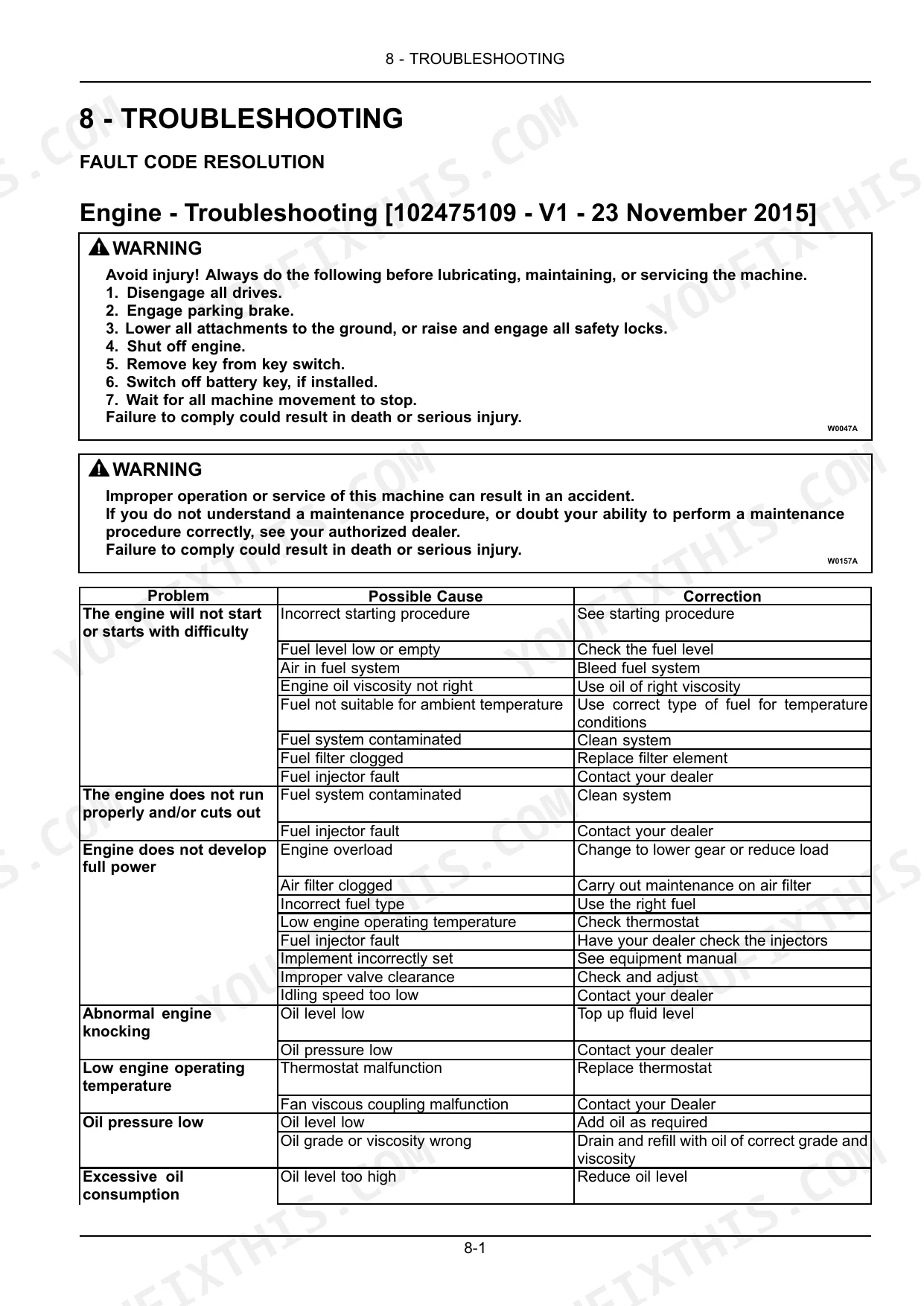

| Troubleshooting | 233-242 | Fault Code Resolution (Engine - Troubleshooting, Electrical System - Troubleshooting Electrical System, Hydraulic Systems - Troubleshooting Hydraulic System, Couplers - Troubleshooting, Rear Three-Point Hitch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Cab Climate Control - Troubleshooting, Front Loader and Bucket - Troubleshooting) |
| Specifications | 243-260 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Speed Table for 8 X 8 Gearbox, Speed Table for 8 X 8 Gearbox with Additional Reducer |
| Accessories | 261-280 | Radio, Single Piece Ballast, Coolant Immersion Heater |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 540 RPM engine speed | 1958 RPM | p. 126 |
| 540E RPM engine speed | 1592 RPM | p. 126 |
| Engine (cooling) capacity - Cab models | 16.0 L (4.2 US gal) | p. 179 |
| Engine (cooling) capacity - Model without cab | 14.0 L (3.1 US gal) | p. 179 |
| Lift oil filter tightening | 3/4 of a turn | p. 202 |
| Transmission oil filter tightening | 3/4 of a turn | p. 202 |
| Disc/hub tightening torque (Rear Axle) | 314.0 N·m (2779.1 lb in) | p. 254 |
| Disc/hub tightening torque (Front axle 2WD) | 314.0 N·m (2779.1 lb in) | p. 254 |
| Max pump pressure at rated speed (Drive line Synchro Shuttle™ High pressure circuit) | 190.0 bar (2755.0 psi) | p. 253 |
| Max pump pressure at rated speed (Drive line Synchro Shuttle™ Low pressure circuit) | 18 bar (261 psi) | p. 253 |
| Lubrication pressure when engine is hot and at a speed of 2300 RPM | 2.9 – 3.9 bar (42.05 – 56.55 psi) | p. 255 |
| Engine Power (PowerStar 65) | 48 kW (65 Hp) at 2300 RPM | p. 253 |
New Holland PowerStar 65, PowerStar 75 Common Problems This Manual Covers
PTO will not disengage
The baler keeps turning after you flip the switch, which is a known complaint on these tractors. The Working Operations section explains correct PTO engagement and the engine speeds for each PTO range so you can rule out operator-side causes before pulling anything apart.
Manual Section: Working Operations p. 117Rear three-point hitch will not lift
A loaded implement that stays on the ground with the engine running usually traces back to the hydraulic circuit or the hitch controls. The Troubleshooting section has dedicated tables for the hydraulic system and the rear three-point hitch to walk you from symptom to cause.
Manual Section: Troubleshooting p. 233Warning lights and fault codes
PowerStar owners regularly report unexplained warning symbols on the instrument panel mid-job. The Troubleshooting section covers fault code resolution for the engine, electrical system, couplers, service brakes, cab climate control, and the front loader.
Manual Section: Troubleshooting p. 233Engine runs hot under load
Heavy tillage on a warm day will find any weakness in the cooling system. The Maintenance section covers coolant service, capacities for cab and non-cab models, and how the thermostat controls circulation, so you can check the basics before blaming the radiator.
Manual Section: Maintenance p. 171Four wheel drive not engaging
When the front axle will not pull on a wet headland, the fix depends on whether your tractor has mechanical or electro-hydraulic engagement. The Working Operations section documents both systems along with the differential lock.
Manual Section: Working Operations p. 117Front end loader wear and slop
A loader that clunks at the pins is a loader that was greased on the dealer's schedule instead of the manual's. The General Information section includes front end loader maintenance so daily bucket work does not eat the pivots.
Manual Section: General Information p. 9Hard starting on cold mornings
Feeding cattle does not wait for the block to warm up. The Operating Instructions section covers the correct starting procedure and refueling practice, and the Accessories section describes the coolant immersion heater option for genuinely cold weather.
Manual Section: Operating Instructions p. 105Frequently Asked Questions
Which tractors does this manual cover?
It covers the New Holland PowerStar 65 and PowerStar 75 tractors with serial numbers ELRT40***HAN00001 and above. It is the factory operator manual, publication number 51519280, 280 pages, in English.
Does it list oil capacities and service intervals?
Yes. The Maintenance section carries the full maintenance chart, and the manual lists engine oil capacity at 9.50 L with filter, a 90.0 L fuel tank, and engine oil service intervals of 600 hours standard or 750 hours on the extended drain schedule. p. 171
Will it help me sort out a warning light or fault code?
The Troubleshooting section covers fault code resolution with separate tables for the engine, electrical system, hydraulic systems, couplers, rear three-point hitch, hydraulic service brakes, cab climate control, and the front loader and bucket. p. 233
How do I get the manual after buying?
It is a direct PDF download available immediately after purchase. No shipping and no waiting, which matters when the tractor is down and the weather window is closing. It opens on any computer, tablet, or phone with a PDF reader.
Do I get instant access to this New Holland PowerStar 65 Operator Manual?
Straight to your device: 280 pages of searchable Operator Manual, downloadable the moment payment goes through.
Am I free to print this New Holland PowerStar 65 Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
