The drop rate valve under a Boomer's seat decides whether a rear blade settles onto its pins or slams down on them, and the page that explains that knob is the difference between a clean hookup and a bent top link. This operator manual puts 296 pages of factory operating, maintenance, and troubleshooting instruction for the New Holland Boomer 45, Boomer 50, and Boomer 55 compact tractors on your screen as a PDF download.
Both cab and ROPS versions are covered: PTO operation, three-point linkage and drawbar setup, DPF regeneration, ballasting, daily and hourly service charts, and a symptom-based troubleshooting section spanning engine, clutch, brakes, hydraulic lift, steering, hydrostatic transmission, and electrical system. Wheel torque, tire pressures, and capacities sit in the specification tables at the back.
When the mower is hitched and the forecast gives you one dry afternoon, the bookmarked chapters take you from symptom to spec without waiting on the dealer.
What's Inside This New Holland Boomer 45, Boomer 50, Boomer 55 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-20 | Note to the Owner, Tractor Intended Use, Emissions Overview, Electro-Magnetic Compatibility, Manual Scope, Product Identification Number |
| Safety Information | 21-76 | Safety Rules and Signal Word Definitions, Safety Rules, Do Not Operate Tag, Folding Roll Over Protective Structure, Starting Up the Machine Safely, Stopping the Machine Safely |

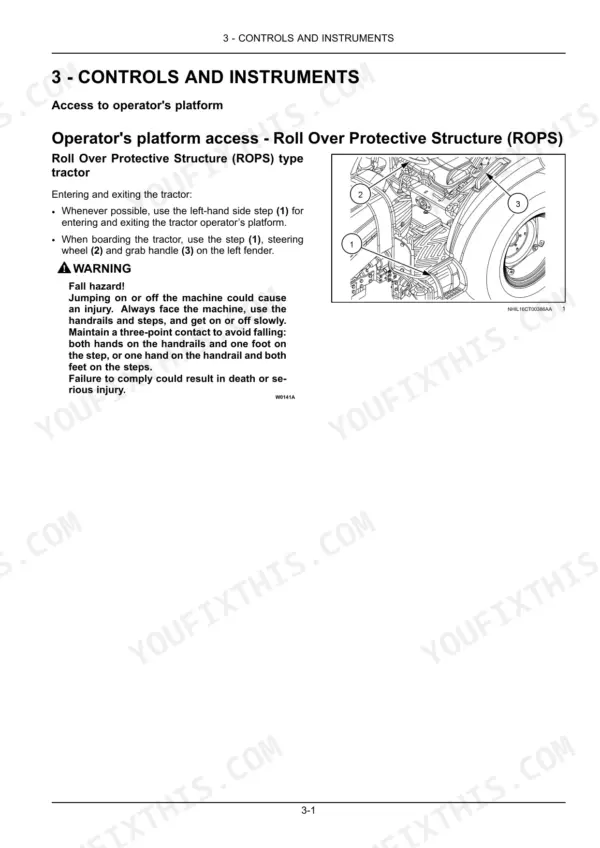

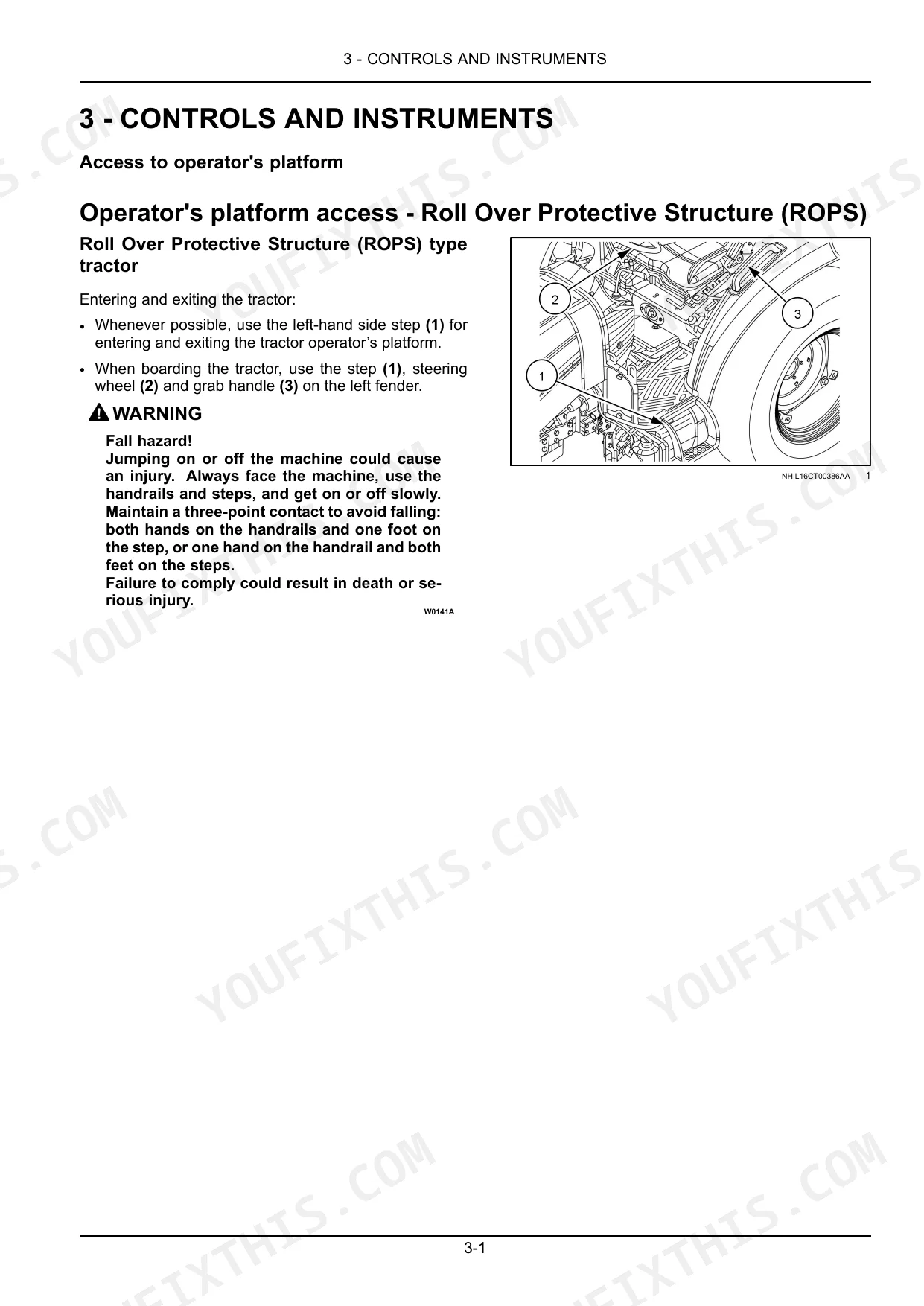

| Controls and Instruments | 77-134 | Access to Operator's Platform (Operator's Platform Access - Roll Over Protective Structure, Cab Door, Cab Side Window, Cab Rear Window) |

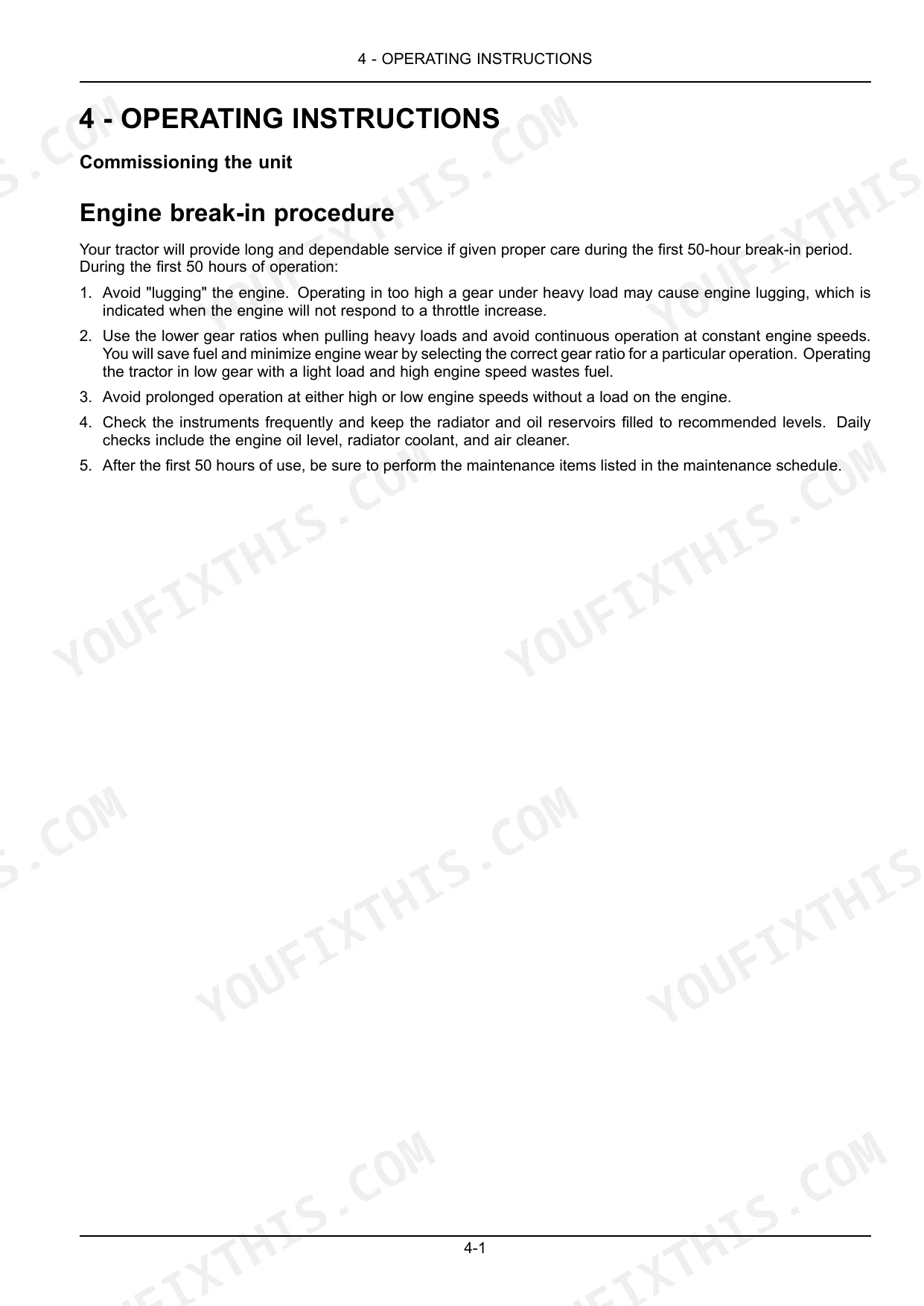

| Operating Instructions | 135-182 | Commissioning the Unit (Engine Break-In Procedure, Diesel Particulate Filter Regeneration, Engine Speed Management – Roll Over Protection Structure, Engine Speed Management – Cab, Power Take Off Operation - Cab, Power Take-Off - Roll Over Protective Structure, Three-Point Linkage, Attaching Three-Point Equipment, Extendable Drawbar - Cab, Extendable Drawbar - Roll Over Protective Structure -, Top Link Adjustment, Hydraulic Power Lift Drop Rate Control Valve, Roll Over Protective Structure Fold Up/Down) |
| Transport Operations | 183-194 | Road Transport (External Lighting - Cab, External Lighting - Roll Over Protective Structure -, Hazard Warning Light Operation - Cab, Hazard Warning Light Operation - Roll Over Protective Structure -, Turn Signal Operation - Cab, Turn Signal Operation - Roll Over Protective Structure, Road Lights - Operation - Cab, Road Lights Operation - ROPS, Work Lights - Operation - Cab, Work Lights - Operation - Roll Over Protective Structure, Driving the Vehicle) |
| Working Operations | 195-200 | Roll Over Protective Structure, Tractor Ballasting, Tractor Ballasting Weights |

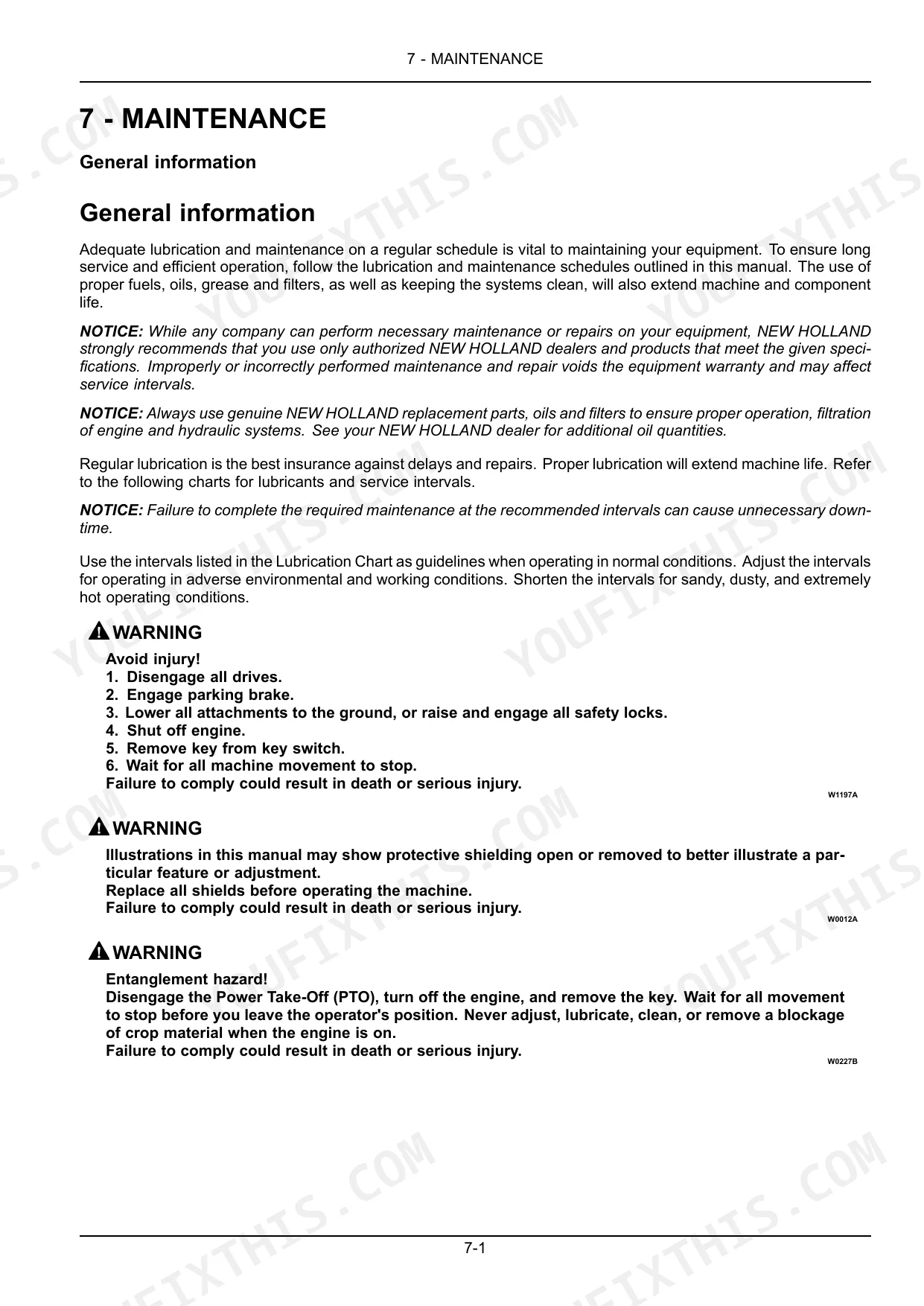

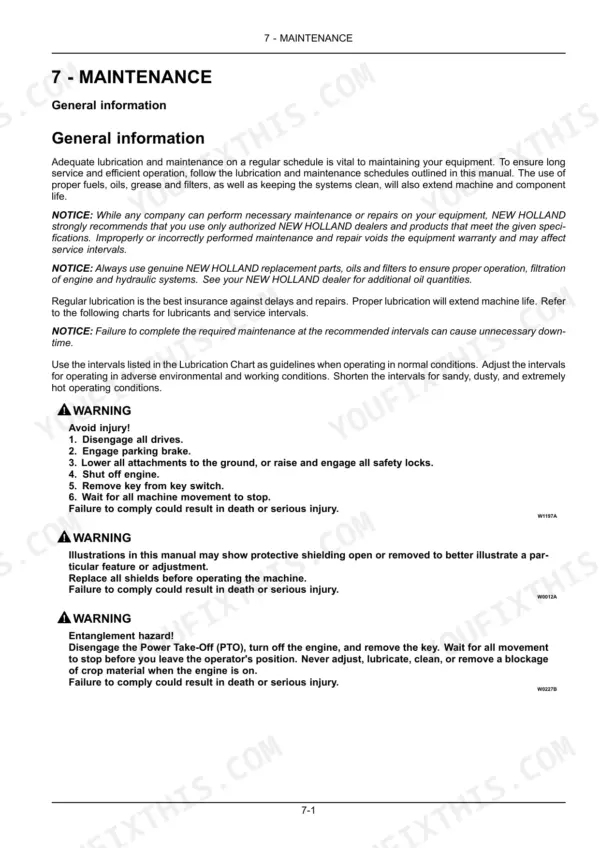

| Maintenance | 201-266 | Maintenance Planning (Maintenance Chart: Roll-Over Protective Structure, Cab), Every 10 Hours or Daily (Engine: Oil Level - Check, Cooling System - Check) |

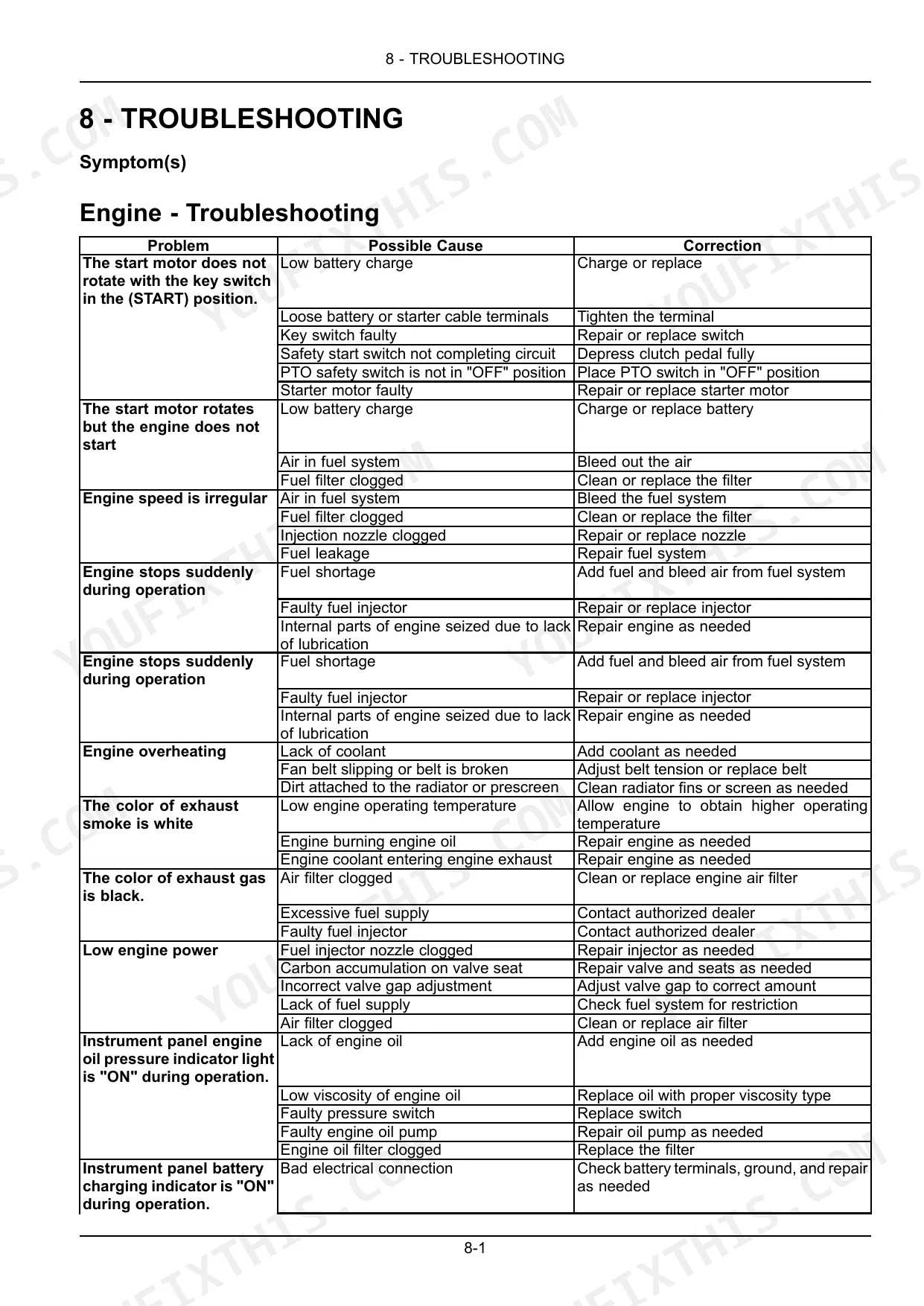

| Troubleshooting | 267-270 | Symptom (Engine - Troubleshooting, Clutch - Troubleshooting, Mechanical Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |
| Specifications | 271-284 | Wheel Tread Settings, Tire Inflation Pressures, Liquid Ballast, Consumables, Tractor Dimensions - Cab, Tractor Dimensions - Roll Over Protective Structure |
| Accessories | 285-286 | Optional Equipment |
| Forms and Declarations | 287-296 | Pre-Delivery Report - Dealer's Copy, Pre-Delivery Report - Owner's Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear remote valves standard female quick couplers | 12.7 mm (0.5 in) | p. 116 |
| Auxiliary power outlet | 12 V, 10 A | p. 127 |
| Front Wheel Torque | 176 – 196 N·m (130 – 145 lb ft) | p. 221 |
| Hydrostatic Transmission (HST) oil filter replacement interval | 300 hours | p. 235 |
| Battery cold cranking ability | 660 A at -18 °C (0 °F) | p. 253 |
| Battery voltage | 12 V | p. 253 |
| Torque front wheel bolts and nuts | 176 – 196 N·m (130 – 145 lb ft) | p. 271 |
| Thermostat start to open | 76 °C (170 °F) | p. 273 |
| Thermostat fully open | 90 °C (194 °F) | p. 273 |
| Engine Oil Capacity (with filter) | 5.5 L | p. 211 |
| Fuel Tank Capacity (Cab) | 47 L | p. 211 |
| Fuel Tank Capacity (ROPS) | 40 L | p. 211 |
New Holland Boomer 45, Boomer 50, Boomer 55 Common Problems This Manual Covers
Engine cranks but will not start
Cold mornings and stale fuel are the usual suspects, but the cause list is longer than that. The symptom-based troubleshooting chart walks the engine complaints in order, from fuel supply to electrical faults, so you check the cheap items before pulling anything apart.
Manual Section: Troubleshooting p. 267Hydrostatic transmission sluggish or jerky
A tired HST filter shows up as lazy response on the foot pedals long before anything fails outright. The maintenance schedule sets the HST oil filter replacement at 300 hours and lays out the service procedure alongside the other fluid checks.
Manual Section: Maintenance p. 201PTO will not engage or stay engaged
A tiller that dies the moment you release the switch usually traces back to operating sequence, not a broken shaft. The manual covers Power Take-Off operation separately for cab and ROPS tractors, including the interlocks that have to be satisfied before the PTO will run.
Manual Section: Operating Instructions p. 135Three-point hitch drops or will not lift
An implement that leaks down overnight or a lift that stalls under load points at the hydraulic power lift system. The troubleshooting section lists hydraulic lift symptoms with their likely causes, and the operating chapter explains the drop rate control valve setting.
Manual Section: Troubleshooting p. 267Excessive brake pedal travel
Mechanical service brakes go soft gradually, and by the time you notice it on a slope the free play is well out of range. The maintenance section gives the brake pedal free play check, with the factory range of 50.0 to 60.0 mm, and the adjustment procedure.
Manual Section: Maintenance p. 201DPF warning lights during light work
Long stretches of low-load loader or mowing work keep the exhaust too cool and the diesel particulate filter loads up. The operating chapter explains the regeneration procedure and the engine speed management settings that let the filter clean itself instead of derating the tractor.
Manual Section: Operating Instructions p. 135Wheel bolts working loose
Loader work and ballasted rears will loosen wheel hardware that was guessed at instead of torqued. The specification tables give the front and rear wheel torque of 176 to 196 N·m, plus wheel tread settings and tire inflation pressures for the tires fitted to these models.
Manual Section: Specifications p. 271Frequently Asked Questions
Which tractors does this operator manual cover?
It covers the New Holland Boomer 45, Boomer 50, and Boomer 55 compact tractors in both cab and ROPS configurations, for serial numbers LSM0B45Cxx0010001, LSM0B45Rxx0010001, LSM0B50Cxx0010001, LSM0B50Rxx0010001, LSM0B55Cxx0010001, and LSM0B55Rxx0010001 and above. Factory publication number 48115968.
Does it explain DPF regeneration on these Boomers?
Yes. The Operating Instructions section covers Diesel Particulate Filter regeneration along with engine speed management for both cab and ROPS tractors, so you can run a regeneration correctly instead of ignoring the warning light until the engine derates. p. 135
Are fluid capacities and service intervals included?
Yes. The Maintenance section carries the full service charts by hour interval plus capacities: 5.5 L engine oil with filter, 8.7 L cooling system, and 47 L (cab) or 40 L (ROPS) fuel tank. Consumables and specifications are also tabled near the back of the book. p. 201
Will it help me diagnose a problem, not just maintain the tractor?
The Troubleshooting section is organized by symptom across the engine, clutch, mechanical service brakes, hydraulic lift, steering, hydrostatic transmission, and electrical system. It points you to likely causes; for teardown and repair procedures beyond operator-level work you would need the separate service manual. p. 267
