Two seasons in, the DPF light on a Boomer 33 starts interrupting hay work and the instrument panel shows a code that means nothing until you look it up. This New Holland operator manual, publication 47578239, walks the Boomer 33 and Boomer 37 compact tractors end to end: controls and instruments, engine break-in, DPF regeneration, PTO operation, three-point linkage, ballasting, the maintenance chart, troubleshooting tables, and specifications, 214 pages in all.
Guessing on a compact diesel gets expensive fast: the wrong part, a second teardown, field time lost while the weather holds. The manual gives the service intervals, the procedures, and the torque values, wheel bolts at 176 to 196 N·m, so the job is done once.
It is a searchable PDF download, so it rides on a phone in the cab or prints for the bench, wherever the tractor is parked when the light comes on.
What's Inside This New Holland Boomer 33, Boomer 37 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-20 | Safety Rules Diesel Fuel, Biodiesel Fuel, Refueling the Tractor, Consumables |
| Safety Information | 21-54 | Precautionary Statements, Safety Rules, Do Not Operate Tag, Roll Over Protective Structure, Ecology and the Environment, Safety Signs, Instructional Signs, International Symbols |
| Controls and Instruments | 55-90 | Operator's Seat (Seat Belt, Seat Controls, Roll Over Protective Structure) |
| Operating Instructions | 91-126 | Commissioning the Unit (Engine Break-In Procedure, Diesel Particulate Filter Regeneration, Power Take-Off Operation, Three-Point Linkage, Attaching Three-Point Equipment, Extendible Drawbar, Hydraulic Lift Rocker, Hydraulic Power Lift Drop Rate Control Valve) |
| Transport Operations | 127-134 | Road Transport (External Lighting - Identification, Hazard Warning Light Operation, Turn Signal Operation, Road Lights Operation, Work Lights Operation, Rear Work Light, Driving the Vehicle) |
| Working Operations | 135-138 | Tractor Ballasting, Tractor Ballasting Weights, Liquid Ballast |
| Maintenance | 139-184 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level, Cooling System) |
| Troubleshooting | 185-190 | Symptom (Engine - Troubleshooting, Clutch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |
| Specifications | 191-202 | Wheel Tread Settings, Tire Inflation Pressures, Liquid Ballast, Tractor Dimensions |
| Accessories | 203-206 | Optional Equipment |
| Forms and Declarations | 207-214 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear remote valve coupler size | 12.7 mm (0.5 in) | p. 85 |
| ROPS bottom portion mounting bolts torque | 147 N·m (108 lb ft) | p. 153 |
| ROPS cross brace mounting bolts torque | 60 N·m (41 lb ft) | p. 153 |
| Front axle housing fluid capacity | 5.5 L (5.8 US qt) | p. 167 |
| Transmission, rear axle, and hydraulic system oil capacity (Gear transmission) | 32.0 L (8.5 US gal) | p. 168 |
| Cooling system capacity | 5.1 L (5.4 US qt) | p. 169 |
| Battery cold cranking ability | 660 A at -18 °C (0 °F) | p. 174 |
| Battery | 12 V, w/ negative ground, 80 / 660 cca BCI Group 34 | p. 196 |
| Thermostat start to open | 82 °C (179.6 °F) | p. 194 |
| Engine Oil Capacity (with filter) | 4.4L | p. 148 |
| Fuel Tank Capacity | 40L | p. 194 |
| Transmission/Rear Axle Oil Capacity (Gear) | 32L | p. 194 |
New Holland Boomer 33, Boomer 37 Common Problems This Manual Covers
DPF light on and power dropping
Tier 4 Boomers derate when the diesel particulate filter loads up and a regeneration keeps getting postponed. The Operating Instructions section explains Diesel Particulate Filter Regeneration and how to let the cycle finish instead of stacking soot until the tractor protects itself.
Manual Section: Operating Instructions p. 91Engine cranks but will not start

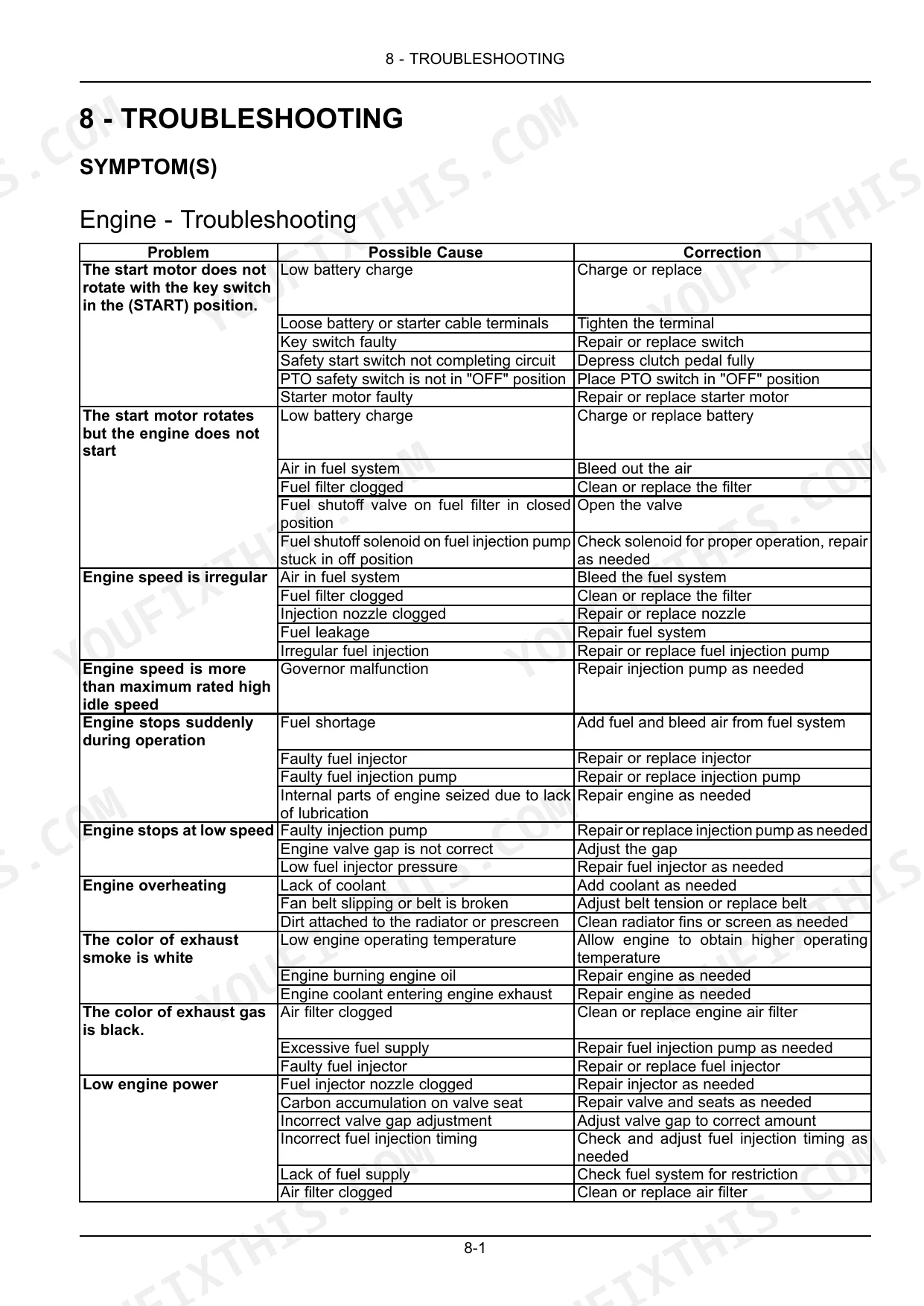

A Boomer that spins over with no fire usually comes down to fuel delivery, a safety interlock, or air in the system after running the tank dry. The Troubleshooting section lists engine symptoms with likely causes and the correction for each.
Manual Section: Troubleshooting p. 185Fault code flashing on the panel
The instrument panel throws engine fault codes that mean nothing without the key to read them. The Controls and Instruments section documents the engine fault codes display, so you know whether you are chasing a sensor or a real failure before parts get ordered.
Manual Section: Controls and Instruments p. 55Three-point hitch drops with a load
An implement that settles on its own or falls too fast on the way down is often nothing more than the drop rate setting. The Operating Instructions section covers the hydraulic power lift, the drop rate control valve, and correct three-point linkage attachment.
Manual Section: Operating Instructions p. 91Running hot during heavy PTO work

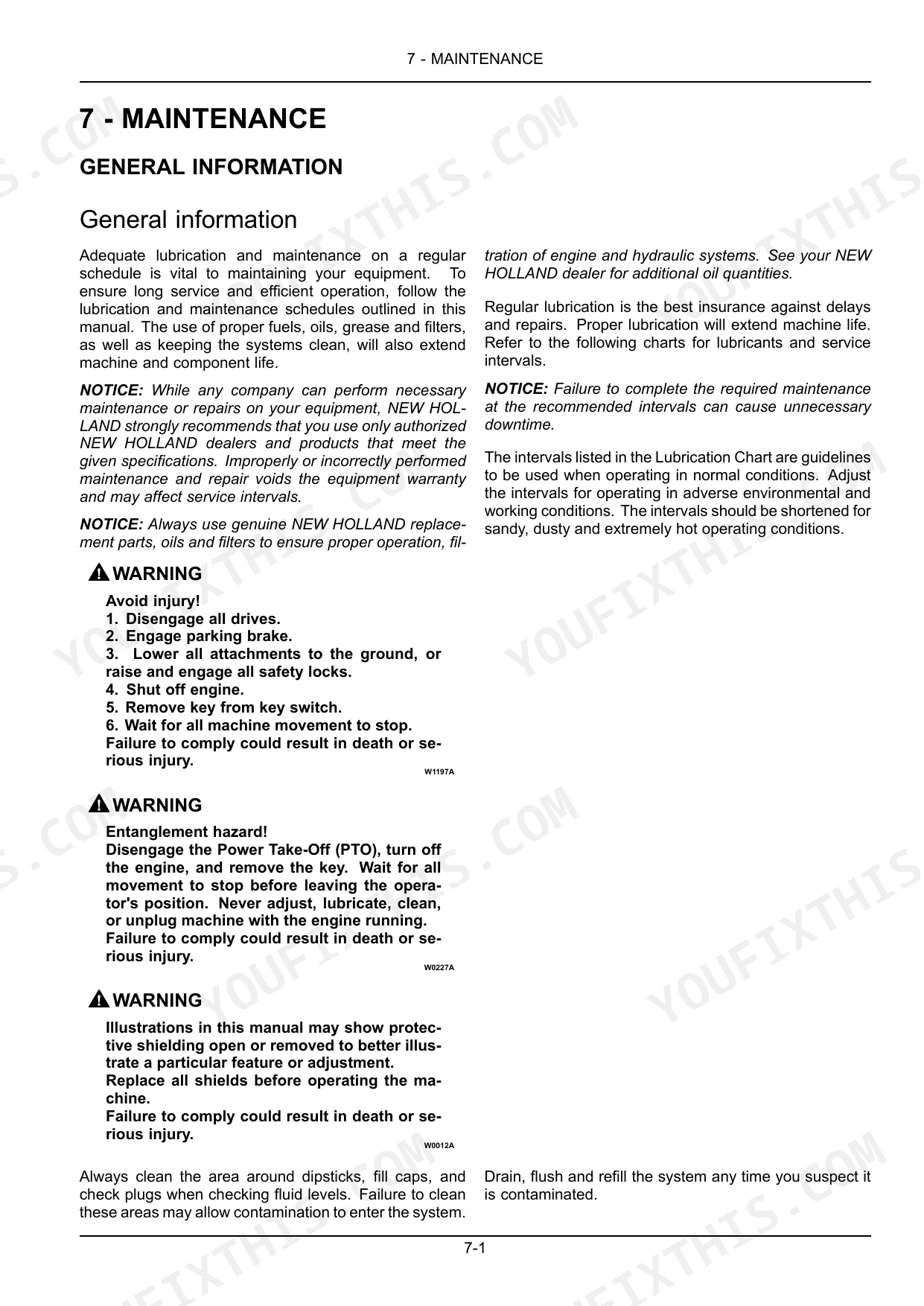

Mowing in summer heat sends the temperature gauge climbing once the radiator screen plugs with chaff. The Maintenance section puts the cooling system on the 10 hour daily checklist and gives the 5.1 L system capacity for a proper drain and refill.
Manual Section: Maintenance p. 139Wheel bolts loosening after tire work
Ballasted tires and loader loads will back off wheel hardware that was never torqued to spec. The Specifications section lists front and rear wheel bolt torque at 176 to 196 N·m (130 to 145 lb ft), alongside tire inflation pressures and wheel tread settings.
Manual Section: Specifications p. 191Slow cranking and electrical gremlins
A Boomer that sits between seasons comes back with weak cranking and flickering gauges. The Troubleshooting section walks electrical system symptoms step by step, and the manual specifies the correct battery: 12 V, BCI Group 34, 660 cold cranking amps.
Manual Section: Troubleshooting p. 185Frequently Asked Questions
Does this manual cover both the Boomer 33 and Boomer 37?
Yes. It is New Holland publication 47578239, the operator manual for the Boomer 33 (N843T-F-24 engine) and Boomer 37 (N843T-F-27 engine) compact tractors. Where the two models differ, such as the 24 kW and 27 kW power ratings, the values are listed side by side.
Does it explain how to handle DPF regeneration?
Yes. The Operating Instructions section covers Diesel Particulate Filter Regeneration as part of commissioning and normal operation, and the Controls and Instruments section documents the DPF switch, so you can run the cycle instead of working around the warning light. p. 91
What torque specs does the manual include?
The Specifications section lists front and rear wheel bolt torque at 176 to 196 N·m (130 to 145 lb ft), ROPS to rear axle mounting at 147 N·m, and seat belt bolts at 54 N·m, in both metric and imperial units. p. 191
Are fluid capacities and service intervals listed?
Yes. The Maintenance section carries the full maintenance chart with capacities: 4.4 L engine oil with filter, 5.1 L cooling system, 32 L shared by the transmission, rear axle, and hydraulics, 5.5 L front axle, and a 40 L fuel tank. p. 139
What exactly do I receive with this New Holland Boomer 33 Operator Manual?
A single searchable PDF file of 214 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Are there any print restrictions on this New Holland Boomer 33 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
