Engine, transmission, hydraulics, three point hitch, brakes: this operator manual walks the New Holland T4.65 and T4.75 through every system a farm puts to work in a season, from starting the F5D engine to engaging four wheel drive and the differential lock for a wet headland. It applies to tractors from serial number ZDAH00008 and above, runs 304 pages in English, publication 47955162.
Guessing at a torque or a fluid quantity is how studs shear and seals weep mid harvest. The Maintenance section pins the real numbers down, 8.5 L in the engine sump, 90 L in the fuel tank, 36 L in the transmission, alongside the full service chart, so the figure you work to came from the factory and not from a forum thread.
As a PDF it lives on the phone or laptop already riding in the cab, so the answer is wherever the tractor is, not back at the house.
What's Inside This New Holland T4.65, T4.75 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-26 | Introduction, Various Controls, Consumables, Capacities, Engine Oil Temperature Chart, Organic Acid Technology Coolant, Biodiesel Fuel - Biodiesel Fuels |
| Safety Information | 27-58 | Safety Rules and Signal Word Definitions, Safety Rules - General Information, Safety Rules - Maintenance, Safety Rules - Wheels and Tires, Safety Rules - Explosions and Fires |

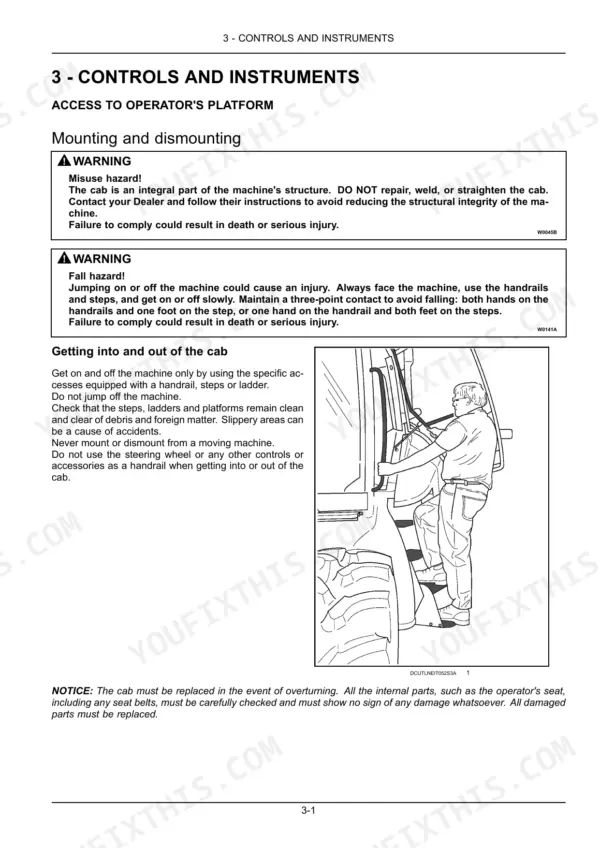

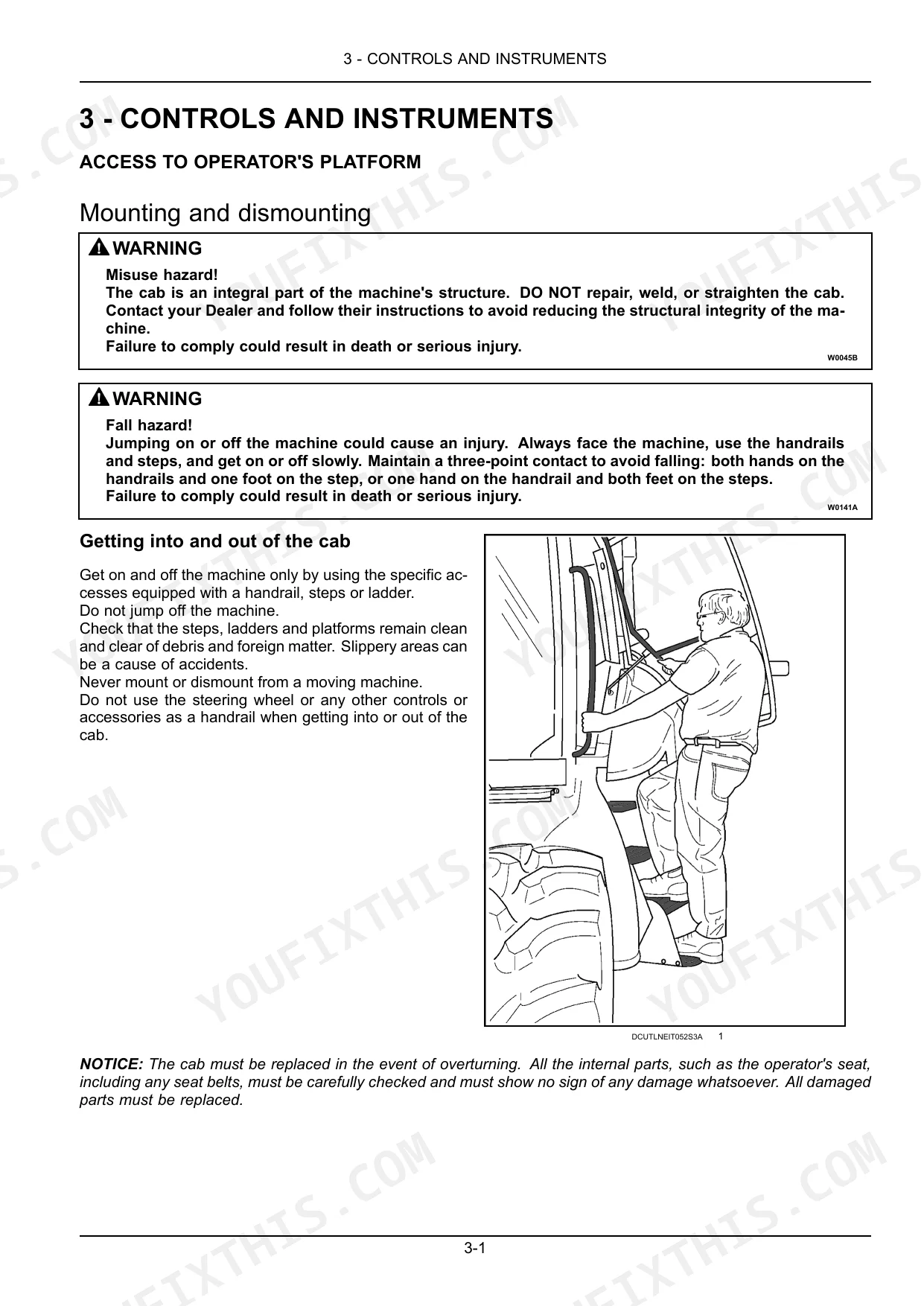

| Controls and Instruments | 59-104 | Access to Operator's Platform (Mounting and Dismounting, Getting to Know the Internal Parts of the Cab, Rear-View Outside Mirrors - Localization Overview, Clock Adjustment) |

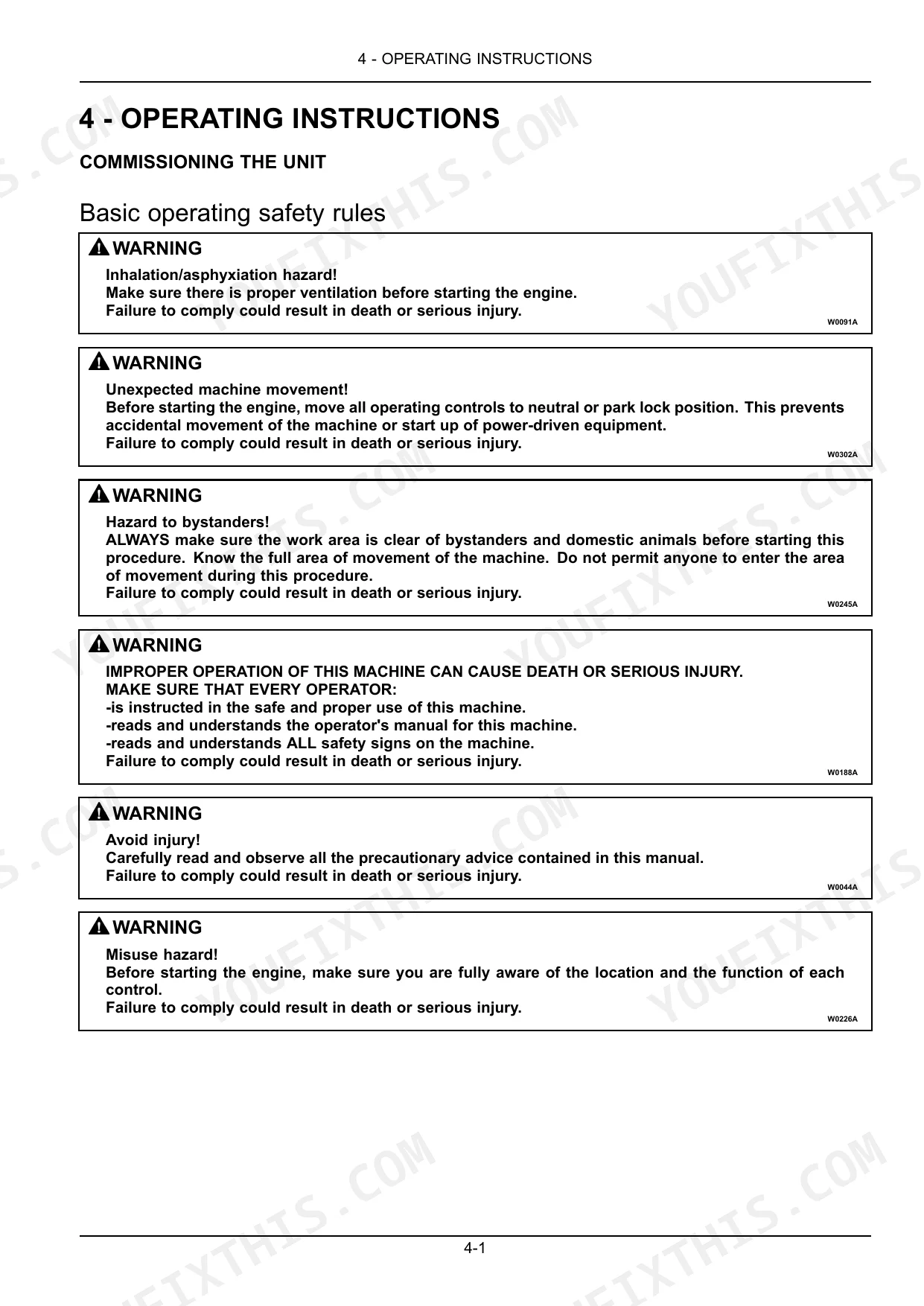

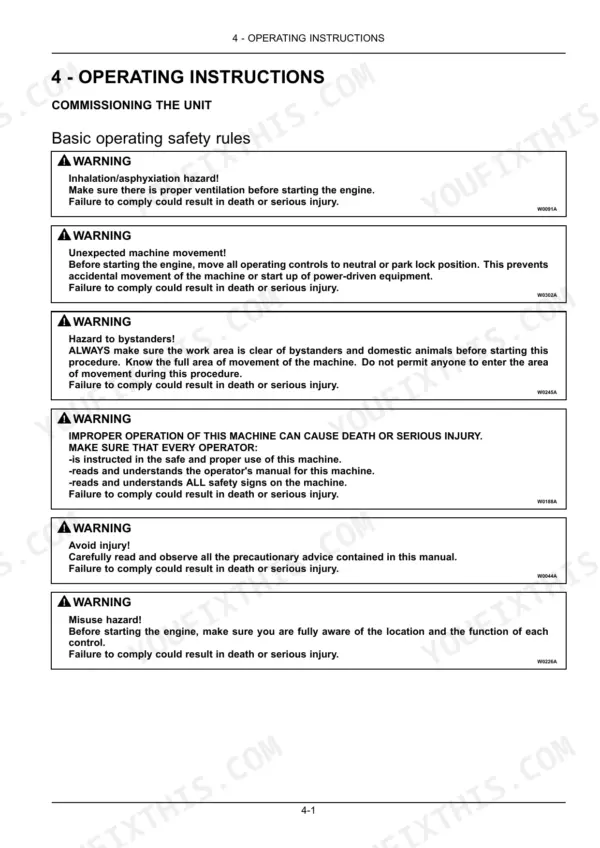

| Operating Instructions | 105-116 | Commissioning the Unit (Basic Operating Safety Rules, Refueling), Starting the Unit (Starting the Engine), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 117-118 | Road Transport (Tractor Transporting), Recovery Transport (Towing the Tractor) |
| Working Operations | 119-172 | Transmission (Operation), Four Wheel Drive (Four-Wheel Drive: Mechanical Engagement, Electro-Hydraulic Control), Differential Lock (Mechanical Differential Lock) |

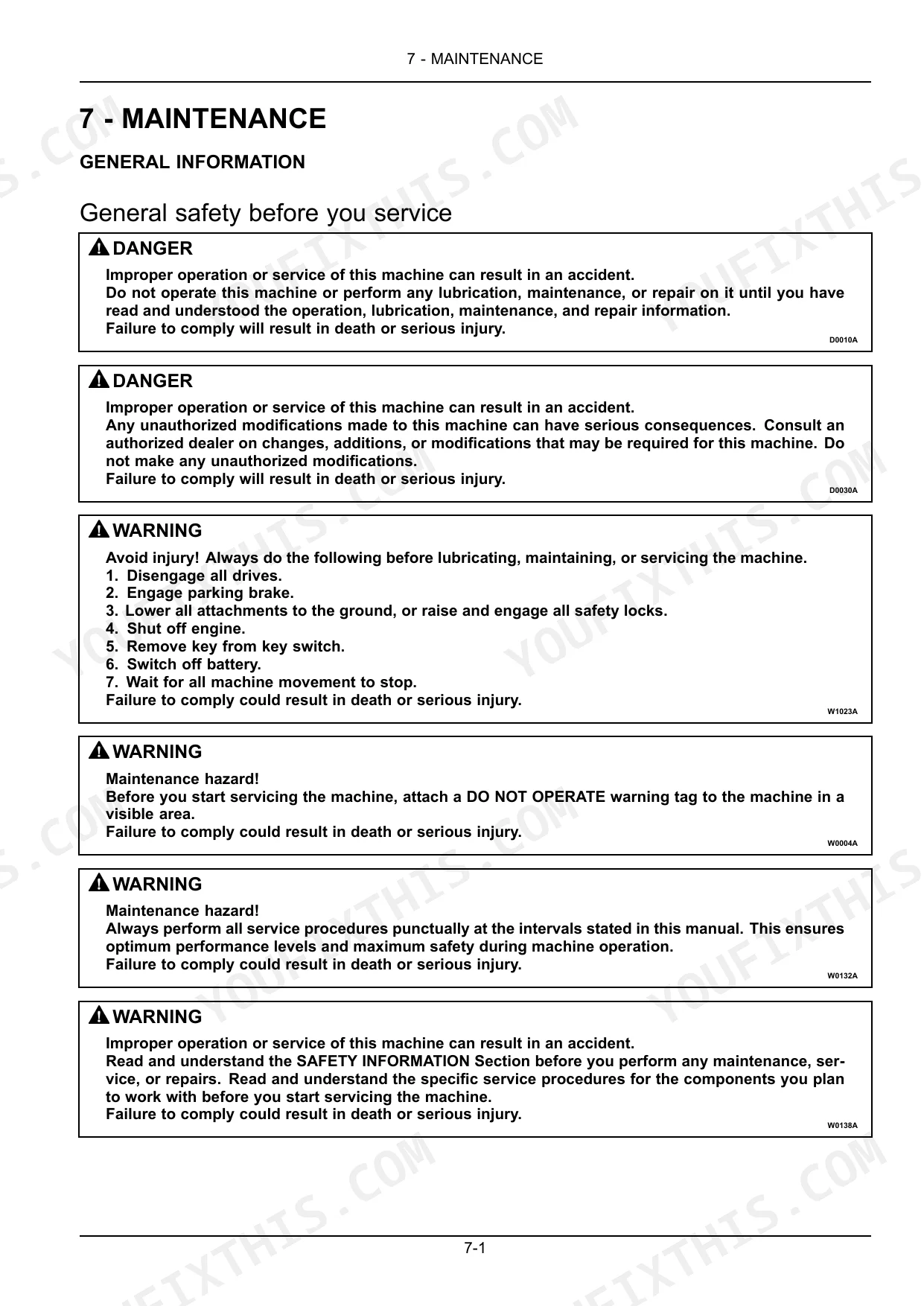

| Maintenance | 173-256 | Maintenance Chart |

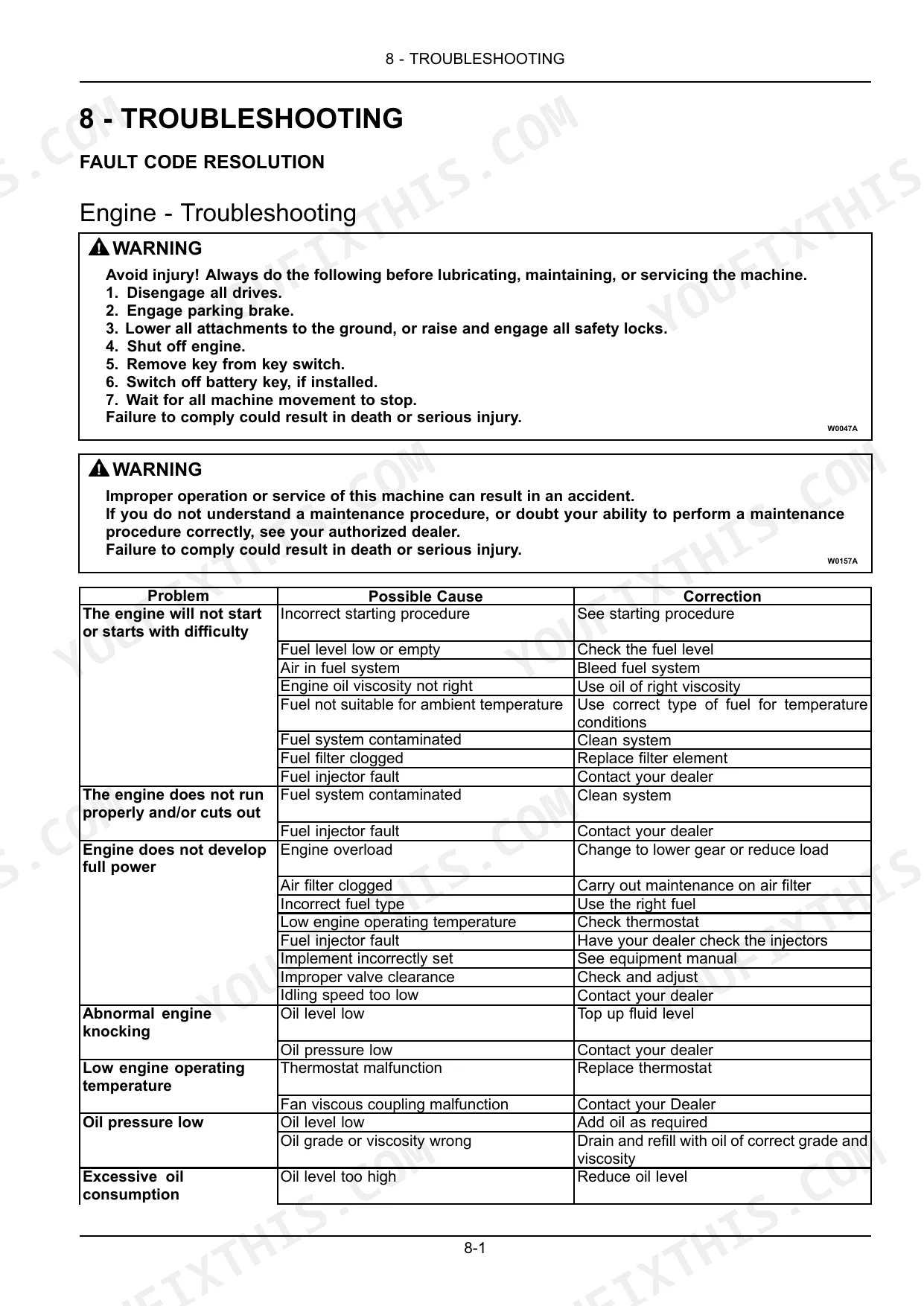

| Troubleshooting | 257-270 | Fault Code Resolution (Engine - Troubleshooting, Electrical System - Troubleshooting, Hydraulic Systems - Troubleshooting, Couplers - Troubleshooting, Rear Three-Point Hitch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Cab Climate Control - Troubleshooting, Front Loader and Bucket - Troubleshooting) |
| Specifications | 271-288 | Dimensions and Weights, Maximum Permitted Loads on Front and Rear Axle, Speed Table for 8 X 8 Gearbox, Speed Table for 8 X 8 Gearbox with Additional Reducer |
| Accessories | 289-304 | Radio, Weather Band Operation, Single Piece Ballast |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| M6 standard hardware torque (8.8) | 12 N·m (9 lb ft) | p. 209 |
| M6 standard hardware torque (10.9) | 17 N·m (13 lb ft) | p. 209 |
| Fuel filter tightening | 3/4 of a turn or by a maximum of one full turn | p. 223 |
| Transmission Synchro Shuttle™ High-pressure circuit Pump capacity | 19.00 cm³ | p. 281 |
| Transmission Synchro Shuttle™ Low pressure circuit Pump capacity | 11.00 cm³ | p. 281 |
| Transmission Synchro Shuttle™ High-pressure circuit Max pump pressure | 190.0 bar | p. 281 |
| Transmission Synchro Shuttle™ Low pressure circuit Max pump pressure | 170.0 bar | p. 281 |
| Engine Sump Oil Capacity | 8.5 L | p. 178 |
| Fuel Tank Capacity | 90.0 L | p. 178 |
| T4.65 | ||
| Torque increase | 38 % | p. 281 |
| Engine Power (T4.65) | 48 kW (65 Hp) | p. 281 |
| T4.75 | ||
| Engine Power (T4.75) | 55 kW (75 Hp) | p. 281 |
New Holland T4.65, T4.75 Common Problems This Manual Covers
Engine fault codes with no explanation
A code on the instrument panel means nothing without the resolution table. The Troubleshooting section covers fault code resolution for the engine, electrical system, and hydraulics so you can tell a sensor fault from a real failure before calling the dealer.
Manual Section: Troubleshooting p. 257Hard starting from fuel contamination
Farm-stored diesel carries water and sediment that clog the filter and leave the tractor cranking without firing. The Maintenance section lays out the fuel filter service intervals and procedure, including how far to tighten the new filter by hand.
Manual Section: Maintenance p. 173Four wheel drive will not engage
Front axle drive that stays out when a loaded trailer needs it is a common complaint on these tractors. The Working Operations section covers both mechanical engagement and the electro-hydraulic control, so you can check the operating procedure before assuming a failure.
Manual Section: Working Operations p. 119Three point hitch lifts slowly
An implement that creeps up or will not lift at all usually traces to the rear hydraulics. The Troubleshooting section includes a dedicated rear three point hitch table plus coverage of the remote couplers, narrowing the cause before anything comes apart.
Manual Section: Troubleshooting p. 257Light rear end under loader work
A cab loader with a full bucket unloads the rear axle and the tractor loses traction and steering feel. The Accessories section covers the single piece ballast option so the machine can be weighted correctly instead of worked dangerously light.
Manual Section: Accessories p. 289Unknown warning lights on the panel
The T4 instrument panel carries symbols that are easy to misread, and ignoring the wrong one costs an engine. The Controls and Instruments section identifies the instrument panel, front controls, and console switches item by item.
Manual Section: Controls and Instruments p. 59Towing a dead tractor safely
Dragging a disabled tractor out of the field the wrong way can damage the transmission. The Transport Operations section covers recovery towing and road transport so the trip to the shop does not create a second repair.
Manual Section: Transport Operations p. 117Frequently Asked Questions
Which tractors does this manual cover?
It covers the New Holland T4.65 and T4.75 tractors with the F5D engine, serial number ZDAH00008 and above. It is the factory operator manual, publication 47955162, 304 pages in English.
Does it list fluid capacities for service?
Yes. The Maintenance section gives the capacities you need at service time: 8.5 L engine sump, 90.0 L fuel tank, 36.0 L transmission, and 4.5 L front axle, along with the maintenance chart that schedules each job. p. 173
Will it help me diagnose fault codes and hydraulic problems?
The Troubleshooting section covers fault code resolution for the engine and electrical system, plus dedicated tables for the hydraulics, remote couplers, rear three point hitch, service brakes, cab climate control, and the front loader and bucket. p. 257
What are the horsepower ratings for these models?
The Specifications section lists the T4.65 at 48 kW (65 Hp) and the T4.75 at 55 kW (75 Hp), together with dimensions, weights, permitted axle loads, and speed tables for the 8 x 8 gearbox. p. 271
