Back the 8970 up to the drill and the first thing you will use this book for is the fast raise and work switch, not the index. New Holland publication 86588682 is the factory operator manual for the 8670, 8770, 8870, and 8970 tractors, serial number D420957 and above, delivered as a 312 page PDF in English.
Inside are the pages that keep guessing off the invoice: the electronic instrument cluster and performance monitor screens explained lamp by lamp, powershift and creeper gear operation, remote hydraulic and three point hitch setup, drawbar and ballasting guidance, and the full lubrication and maintenance schedule. A wrong guess on ballast or a skipped calibration costs a second teardown; these chapters cost a download.
Print the sections you need and let them get greasy on the bench. The weather sets the deadline, and this manual is how you meet it.
What's Inside This New Holland 8670, 8770, 8870, 8970 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 6-18 | Safety Precautions, Operating the Tractor, Safety Cab |
| General Information | 19-46 | Tractor Identification, Protective Shielding, Controls and Instruments |

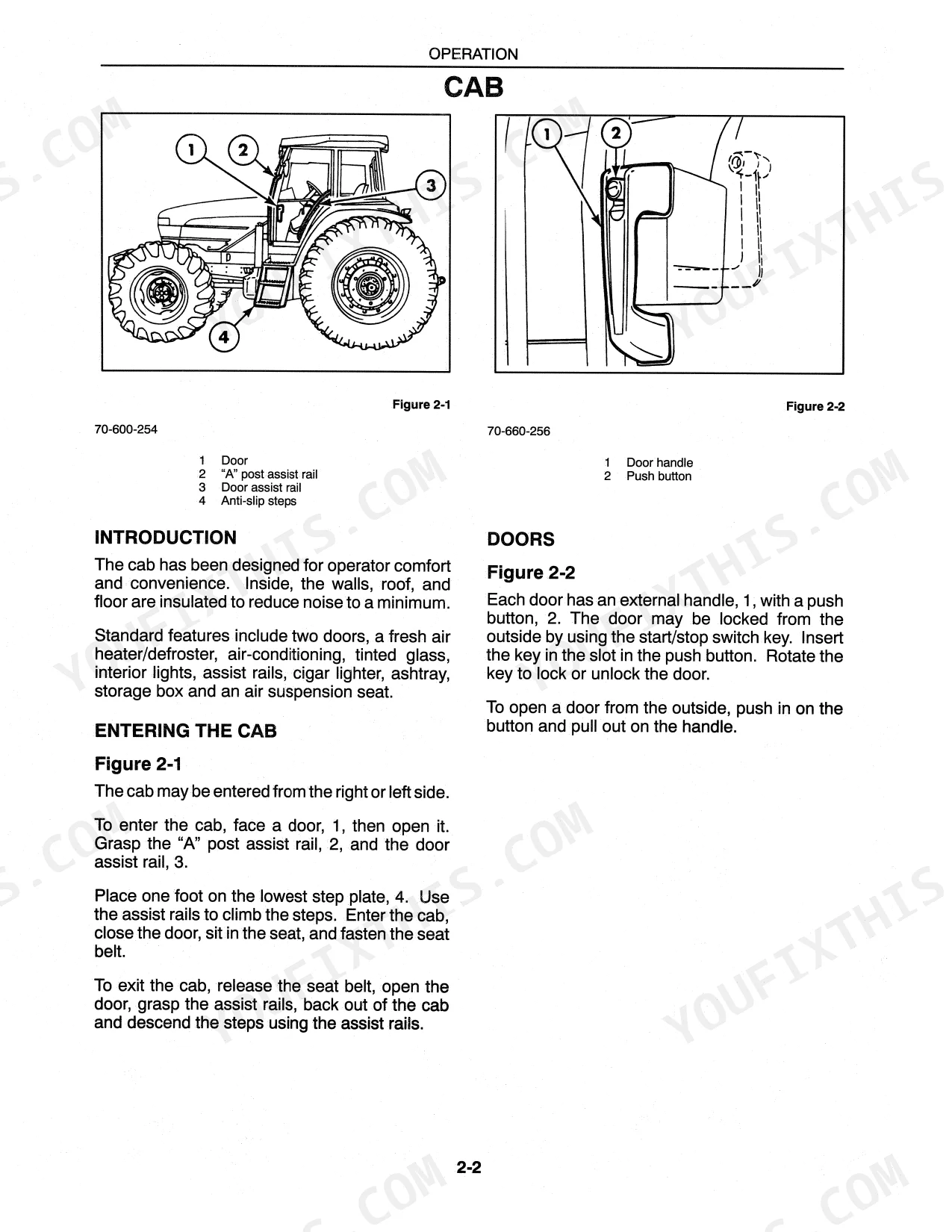

| Introduction and Cab Access | 47-57 | Before Operating, Cab Doors, Operator Seat, Seat Belt, Steering Wheel, Cab Interior Cleaning |
| Electronic Instrument Cluster (Eic) | 58-68 | Eic Overview, Audible Alarm, Indicator Lamps, Bar Graph Displays, Central Display, PTO Speed Display |
| Tractor Performance Monitor (Tpm) | 69-80 | Tpm Overview, Area per Hour Forecaster, Area Accumulator, Wheel Slip, Battery Voltage, Fault Codes |
| Lighting and Accessory Power | 81-87 | Eic Lighting Display, Master Light Switch, Work Lights, Panel Dim Control, Interior Lights, Turn Signals |
| Transmission and FWD Operation | 88-103 | Powershift Transmission, Inching Pedal, Auto Shift, Creeper Gears, Programmable Up/Down Shift, Four Wheel Drive |
| Hydraulic and 3-Point Hitch Controls | 104-140 | Remote Control Valves, Flow Control, Quick Couplers, 3-Point Hitch Modes, Fast Raise/Work Switch, External Hitch Controls |
| Drawbar, Ballasting, and Tires | 141-174 | Drawbar Height/Length, Ballasting, Tire Selection, Wheel Slippage, Front Wheel Track Spacing, Rear Wheel Track Spacing |

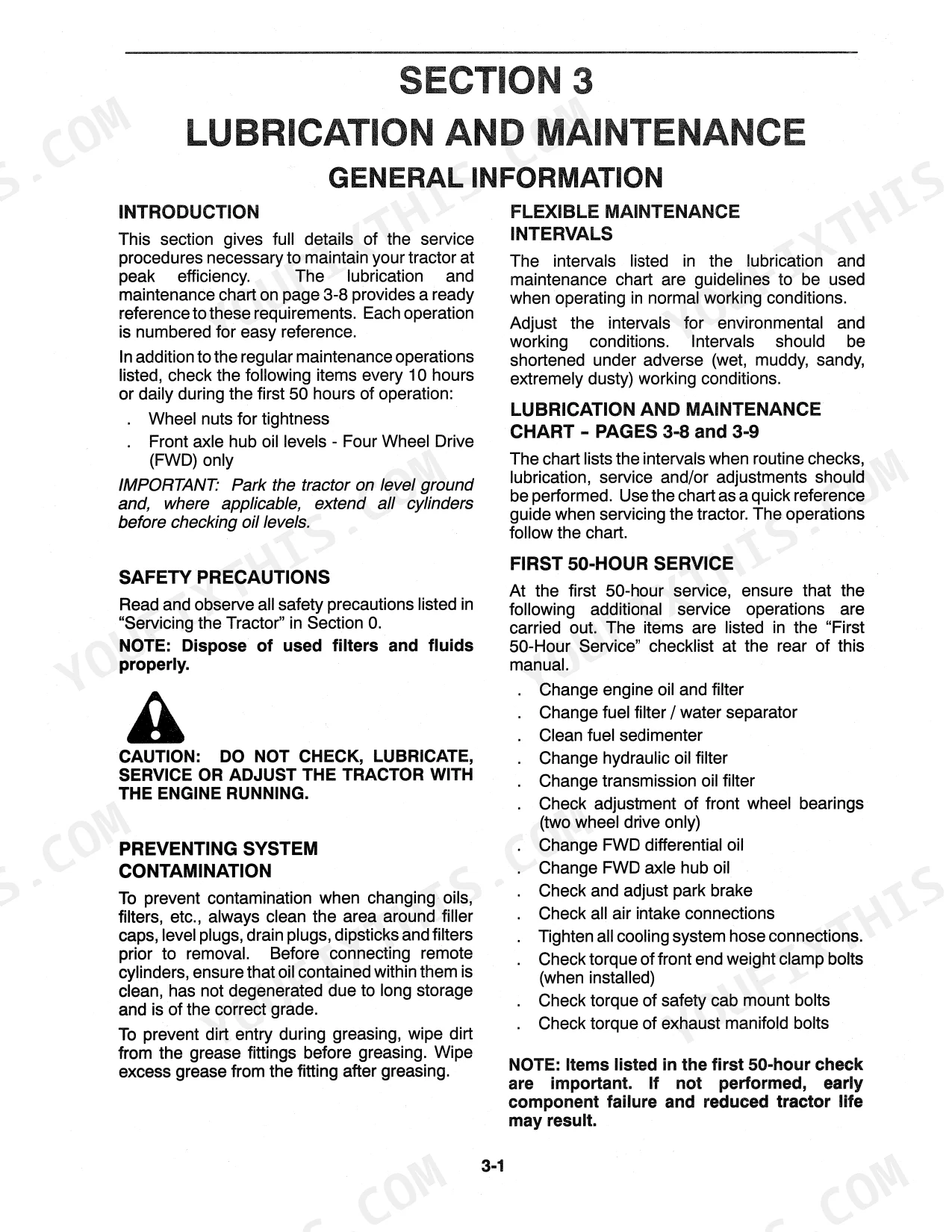

| Lubrication and Maintenance | 175-246 | Fueling the Tractor, Removing Shielding, Engine Air Cleaner |

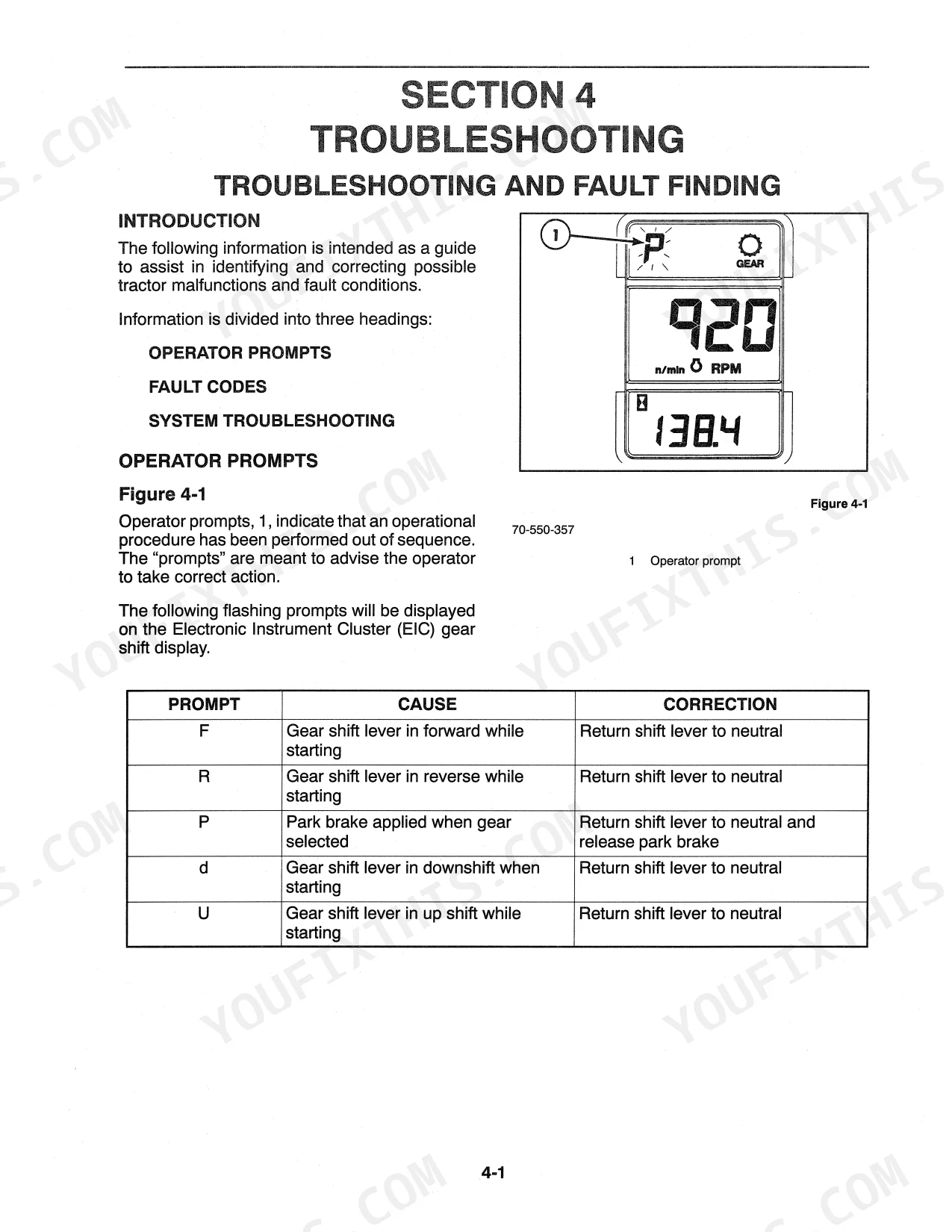

| Troubleshooting | 247-256 | Operator Prompts, Engine Troubleshooting, Hydraulic System Troubleshooting |
| Specifications | 257-284 | General Dimensions, Engine Specifications, Tire Pressures |
| Delivery Reports | 285-288 | Stationary Checks |
| Service Reports | 289-308 | First 50-Hour Service, Hour Service, 300 Hour Service |
| Publications Order Form | 309-312 | Publications Catalog, Operator's Manual, Repair Manual, Parts Manual, Tractor Operator's Videotape |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic pump inlet screen attaching bolts torque | 50 N·m (37 ft. lbs.) | p. 216 |
| Powershift transmission clutch calibration engine speed | 1200 +/- 30 RPM | p. 222 |
| Alternator Heavy-Duty | 12v - 130 amp | p. 264 |
| Engine Oil Change Interval (Average) | 300 hours | p. 266 |
| Engine Valve Clearance (Intake) | 0.36 - 0.46 mm | p. 261 |
| Engine Valve Clearance (Exhaust) | 0.43 - 0.53 mm | p. 261 |
| Front Wheel Toe-in (2WD) | 6.3-12.7 mm | p. 264 |
| 8670 | ||
| Maximum Gross Vehicle Weight (8670) | 9875 kg | p. 165 |
| 8770, 8870, 8970 | ||
| Maximum Gross Vehicle Weight (8770/8870/8970) | 14300 kg | p. 165 |
New Holland 8670, 8770, 8870, 8970 Common Problems This Manual Covers
Powershift shifts harsh or lazy
Clutch pack fill behaviour drifts as the wet clutches wear, and shifts turn harsh or delayed. The manual's transmission clutch calibration procedure runs with the engine held at 1200 +/- 30 RPM and is scheduled after the first 50 hours and every 1200 hours, or sooner at 300 hours if shift quality drops. New Holland recommends an authorised dealer carry it out, and the manual walks the whole sequence so you know what you are paying for.
Manual Section: Transmission Clutch Calibration p. 222EIC alarm and warning lamps
The cluster sounds its audible alarm and lights a lamp, and the tractor sits until you know whether it is oil pressure or a sensor. The Electronic Instrument Cluster section decodes every indicator lamp, bar graph, and central display message.
Manual Section: Electronic Instrument Cluster (EIC) p. 58Performance monitor fault codes
The monitor flashes a fault code mid-field and the wheel slip and area readouts go with it. The Tractor Performance Monitor section covers the fault codes and each display so you can tell a real failure from a setup error.
Manual Section: Tractor Performance Monitor (TPM) p. 69Slow remote hydraulics on implements
A planter lift that used to snap up now crawls, and the cause is often a flow control setting or a quick coupler that never seated. The manual walks remote valve flow control, coupler hookup, and the three point hitch modes step by step.
Manual Section: Remote Control Valves p. 113Excessive wheel slip under load
Too much slip burns fuel and tires; too little strains the driveline. This section shows how to ballast the tractor, set track spacing, and check wheel slippage against the implement on the drawbar.
Manual Section: Ballasting and Tires p. 162Four wheel drive will not engage
FWD that refuses to engage or release is often operating procedure rather than a failure. The Transmission and FWD Operation section explains four wheel drive engagement along with auto shift, creeper gears, and the inching pedal.
Manual Section: Four Wheel Drive (FWD) p. 99Hard starting or power loss
An engine that drags to start or falls flat at harvest usually traces to fuel, air, or an electrical fault. The Troubleshooting section pairs engine and hydraulic symptoms with causes and operator prompts before you call the dealer.
Manual Section: Troubleshooting p. 247Frequently Asked Questions
Which tractors does this manual cover?
It covers New Holland 8670, 8770, 8870, and 8970 tractors, serial number D420957 and above. This is factory operator manual publication 86588682, 312 pages, in English.
Is this an operator manual or a repair manual?
It is the operator manual: controls, operation, calibrations, service schedules, and owner-level maintenance, plus troubleshooting for engine and hydraulic problems. It is not a teardown repair manual; the Publications Order Form on page 309 lists the separate repair and parts manuals if you need them.
Does it explain the monitor fault codes?
Yes. The Tractor Performance Monitor section covers fault codes alongside wheel slip, battery voltage, and area readouts, and the Troubleshooting section works through engine and hydraulic symptoms with operator prompts. p. 69
What service intervals does the New Holland 8670, 8770, 8870, 8970 manual give?
The Lubrication and Maintenance section lays out the schedule, from fueling and engine air cleaner service through the listed 300 hour average engine oil change interval, with capacities and specifications gathered in the Specifications section. p. 266
Do I get instant access to this New Holland 8670 Operator Manual?
Straight to your device: 312 pages of searchable Operator Manual, downloadable the moment payment goes through.
Can I print a copy of this New Holland 8670 Operator Manual for the shop?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
