Part of the New Holland Operator Manuals.
This New Holland operator manual (OEM #86570568) runs 235 pages on the 1998 E-Series backhoe loader, spanning the 555E, 575E, 655E, and 675E in both Power Shuttle and Power Shift builds. Coverage opens with cab controls and instrument panel work, moves through loader and backhoe operating sequences, and lays out a maintenance schedule from daily checks to 1200-hour intervals. System troubleshooting covers engine, transmission, brakes, electrical, and cab faults. You will find the rear wheel nut torque (540 Nm / 400 ft. lbs.) and the 300-hour engine oil interval for fuel under 0.5% sulphur. Bookmarks drop you straight into Loader Controls, the Fluid Capacities table, or Specifications, so finding one number never means scrolling 235 pages.
What's Inside This New Holland 555E, 575E, 655E, 675E Operator Manual
| System | Pages | Key Topics |
|---|---|---|

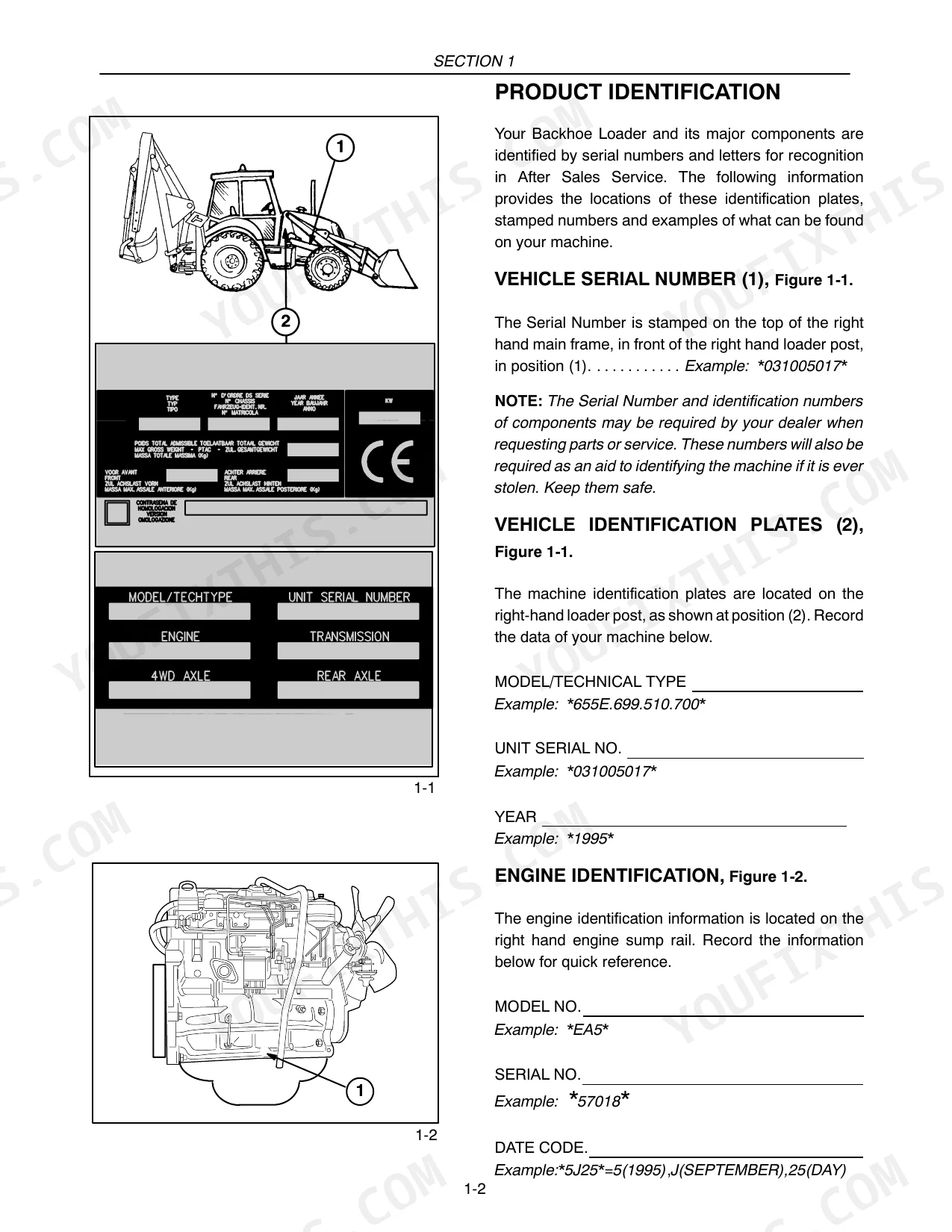

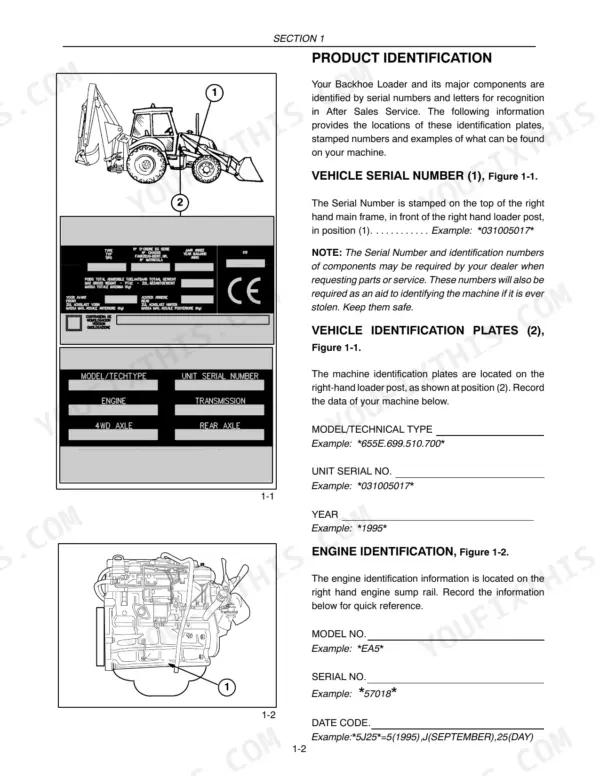

| Introduction | 12-31 | Product Identification, Ecological Considerations, Safety Precautions, Safety Decals, Machine Safety and Security, On Road Travel Requirements, Universal Symbols |

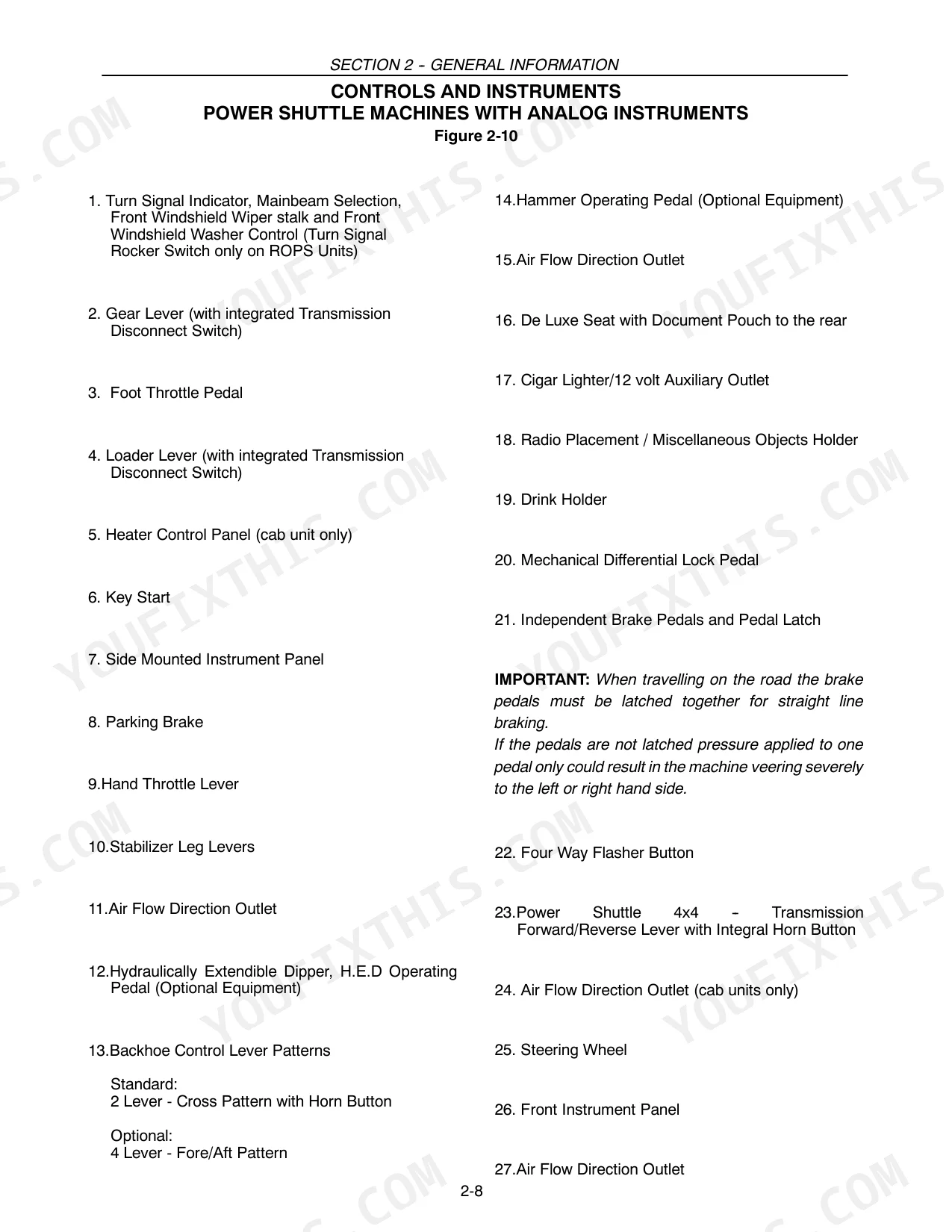

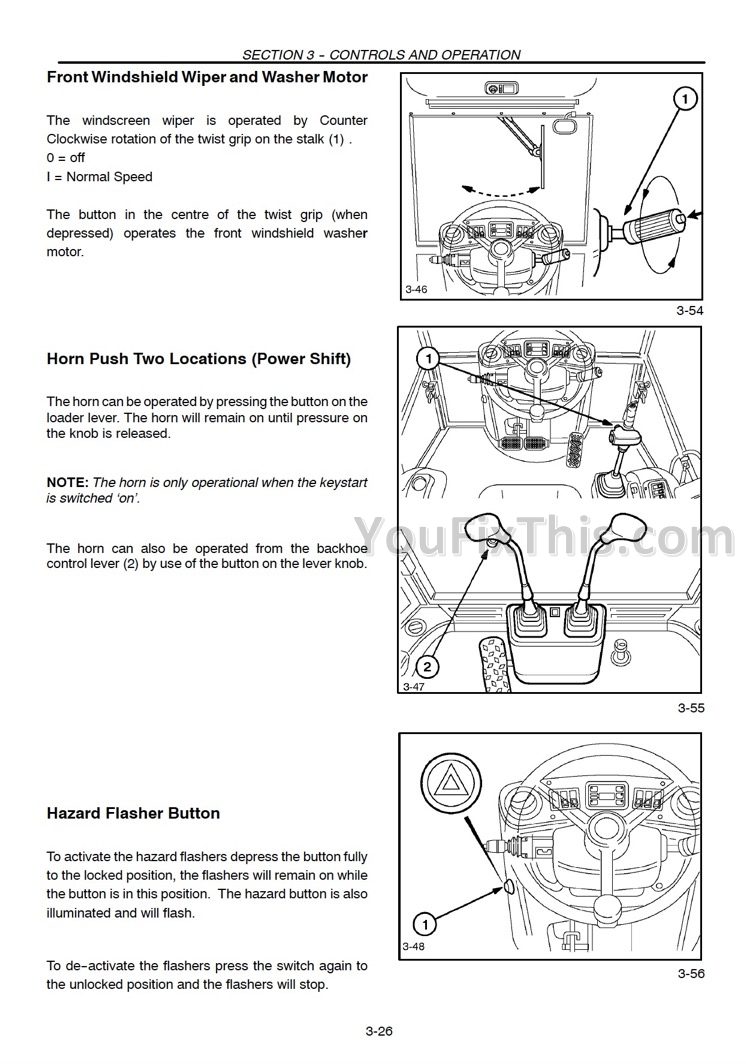

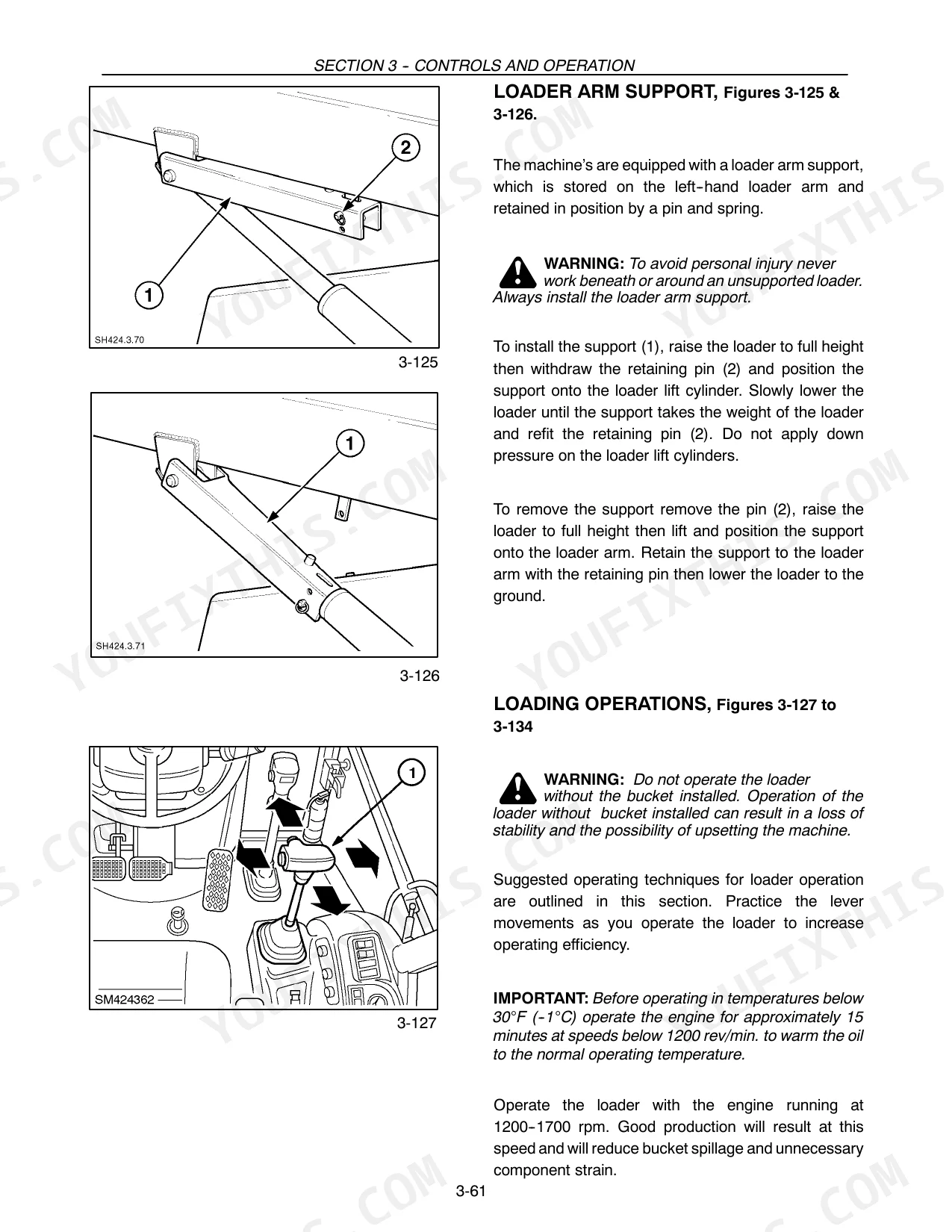

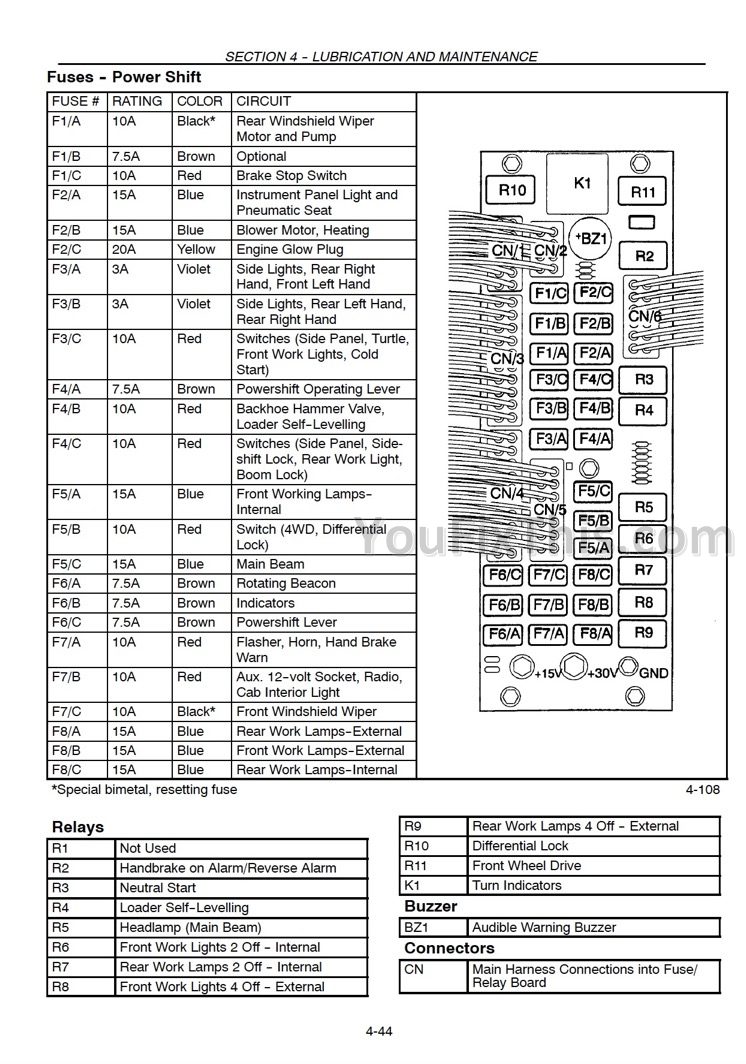

| General Information | 32-67 | Machine Features, Cab, Seat, Controls and Instruments, Electronic Instrument Panel, Transmission Controls, Loader Bucket, Backhoe |
| Controls and Operation | 68-151 | Cab Handles and Windows, Seats and Seat Belts, Cab Climate Controls, Hand and Foot Controls (Power: Shuttle, Shift), Front Instrument Panel (Analog, Electronic) |
| Lubrication and Maintenance | 152-199 | Filling and Service Points, Warning Lights, Lubrication and Maintenance Table, Fuels, Loader Support, Daily Service or As Required, Air Cleaner Servicing, 50--Hour Service |

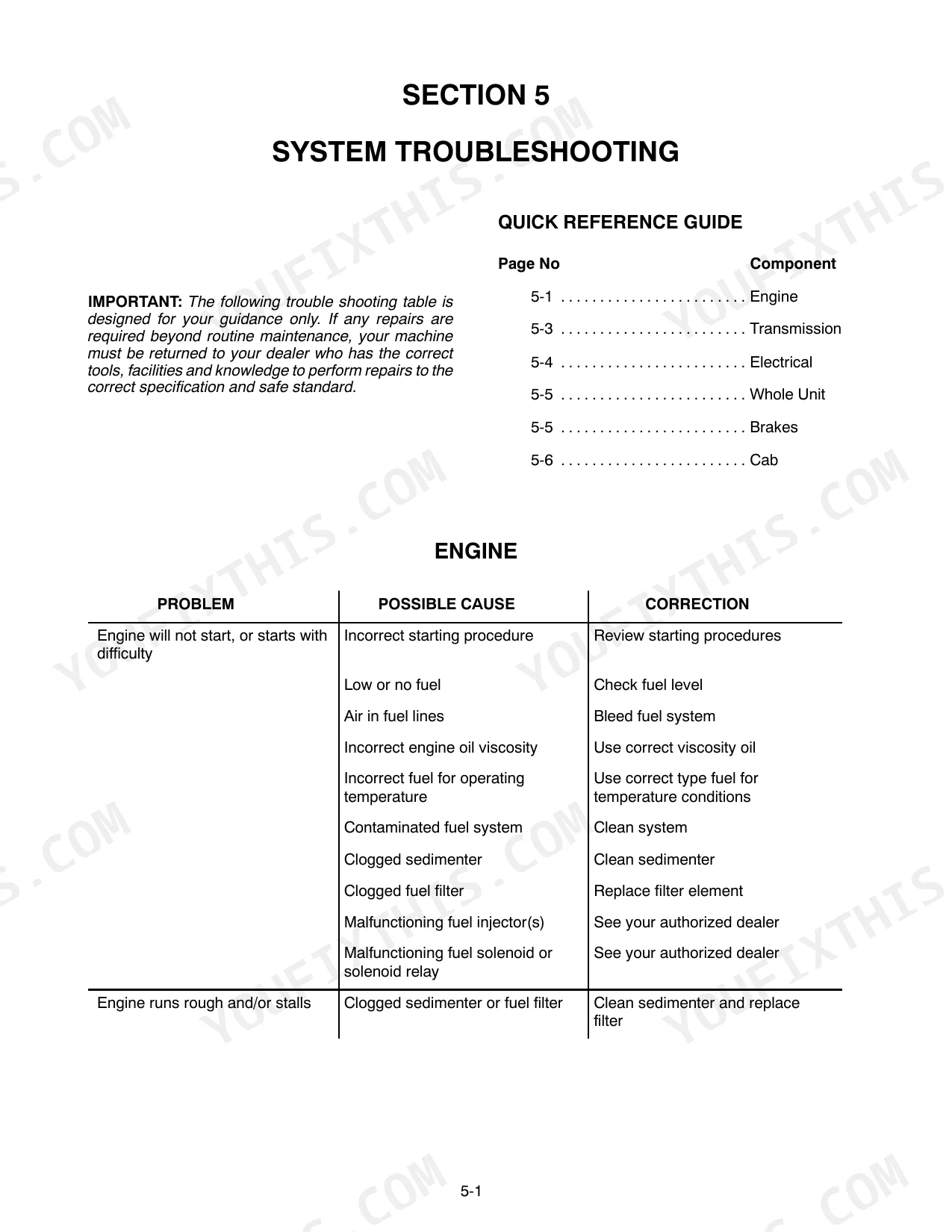

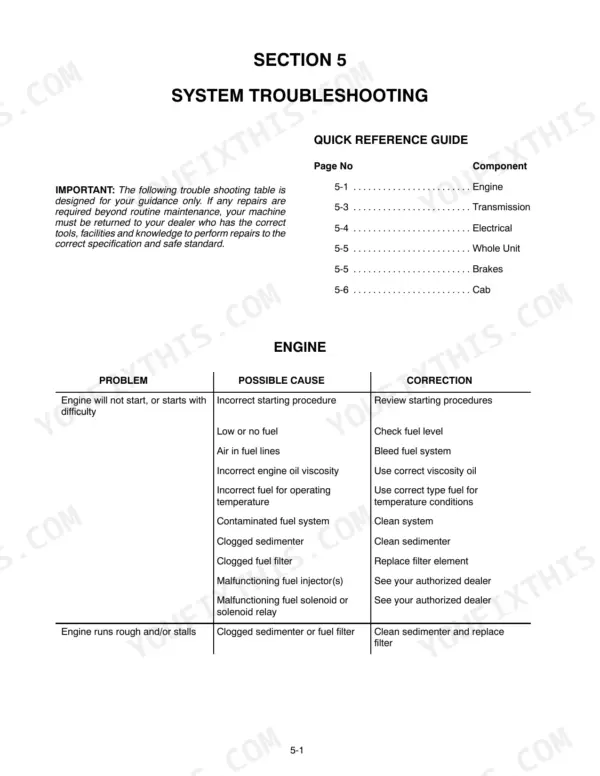

| System Troubleshooting | 200-205 | Engine, Transmission, Electrical, Whole Unit, Brakes, Cab |

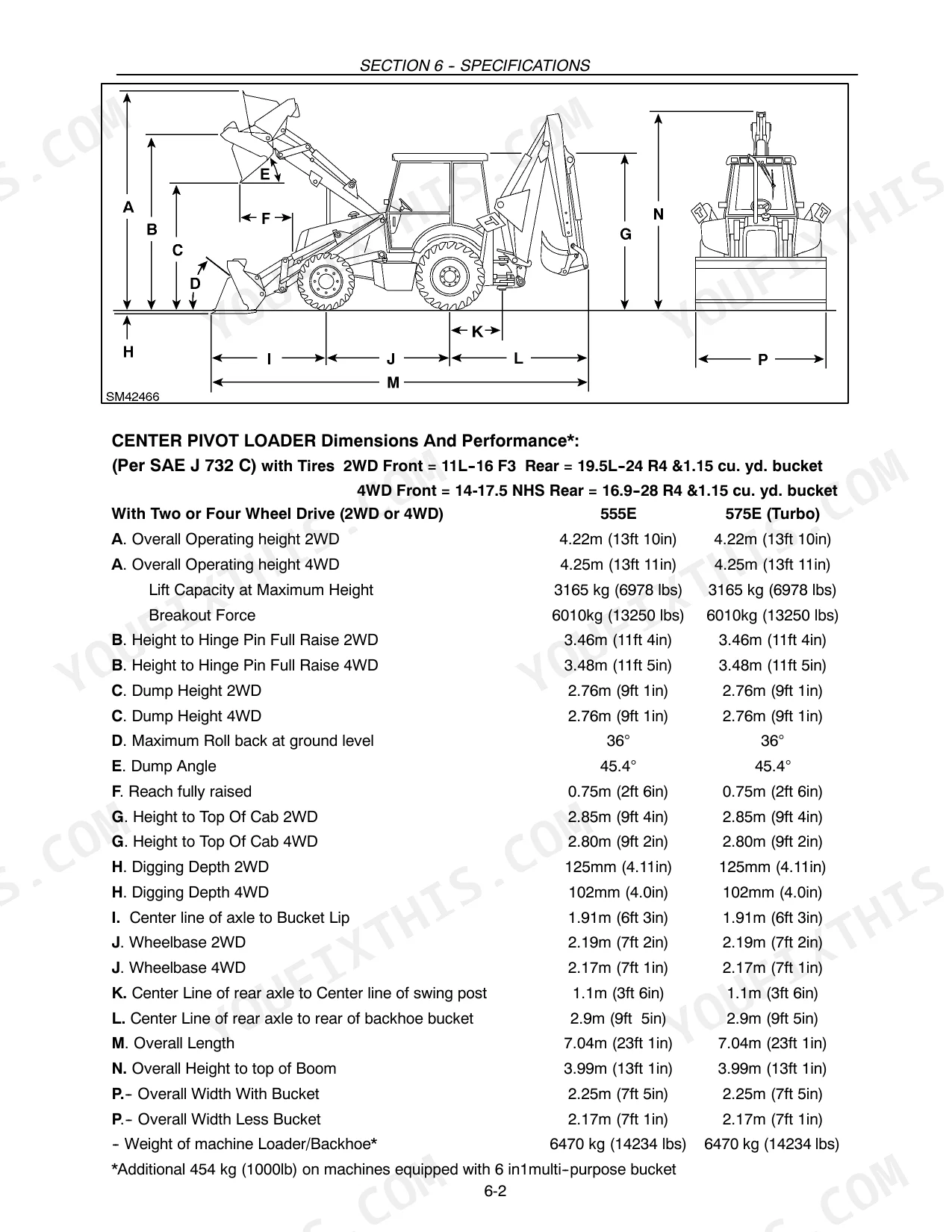

| Specifications | 206-221 | Loader -- Center Pivot, Backhoe -- Center Pivot, Loader -- Side Shift, Backhoe -- Side Shift, Engine--Cooling--Fuel, Electrics, Brakes--Steering--Rear, Axle--Torques--Weights |
| Predelivery Service | 226-229 | Models 555E, 575E, 655E, 675E Backhoe Loaders, E-Series Backhoe Loaders Are Inspected and Fully Serviced Prior to Leaving the Plant. However |
| Delivery Report | 230-233 | Models 555E, 575E, 655E, 675E Backhoe Loaders, Owner's Name, Address, Delivery Date, Dealer's Name |
| First 50-Hour Servic E | 234-235 | Table of Contents, Thermostart, Tire Maintenance, Tire Ballast, Tire Pressure, Tool Box, Towing the Machine, Transmission Lubrication |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Nuts (2WD) | 176 Nm (130 ft. lbs.) | p. 216 |
| Front Wheel Nuts (FWD) | 270 Nm (200 ft. lbs.) | p. 216 |
| Transmission Oil Pressure Warning Light corrective action | Place the transmission in neutral and stop the engine immediately. Check that the oil level is correct and adjust as required. | p. 86 |
| Transmission Oil Temperature Warning Light corrective action | Stop the engine as soon as possible and investigate the cause. Do not continue to drive the machine as failure of the transmission could occur and result in serious injury to you or bystanders. | p. 86 |
| Engine oil change period (sulphur content below 0.5%) | 300 hrs. | p. 171 |
| Engine oil change period (sulphur content between 0.5% and 1.0%) | 150 hrs. | p. 171 |
| Hydraulic filter bypass pressure | 51 PSI (3.5 bar) | p. 217 |
| Hydraulic filter replacement interval | Every 600 Hours | p. 155 |
| Engine oil filter replacement interval | Every 300 Hours | p. 155 |
| Fuel filter replacement interval | Every 600 Hours | p. 155 |
| Dry air cleaner inner element replacement interval | 1200 hours or annually, whichever comes first | p. 184 |
| Battery electrolyte level | 0.25 in (6mm) above the separator plates | p. 163 |
New Holland 555E, 575E, 655E, 675E Common Problems This Manual Covers

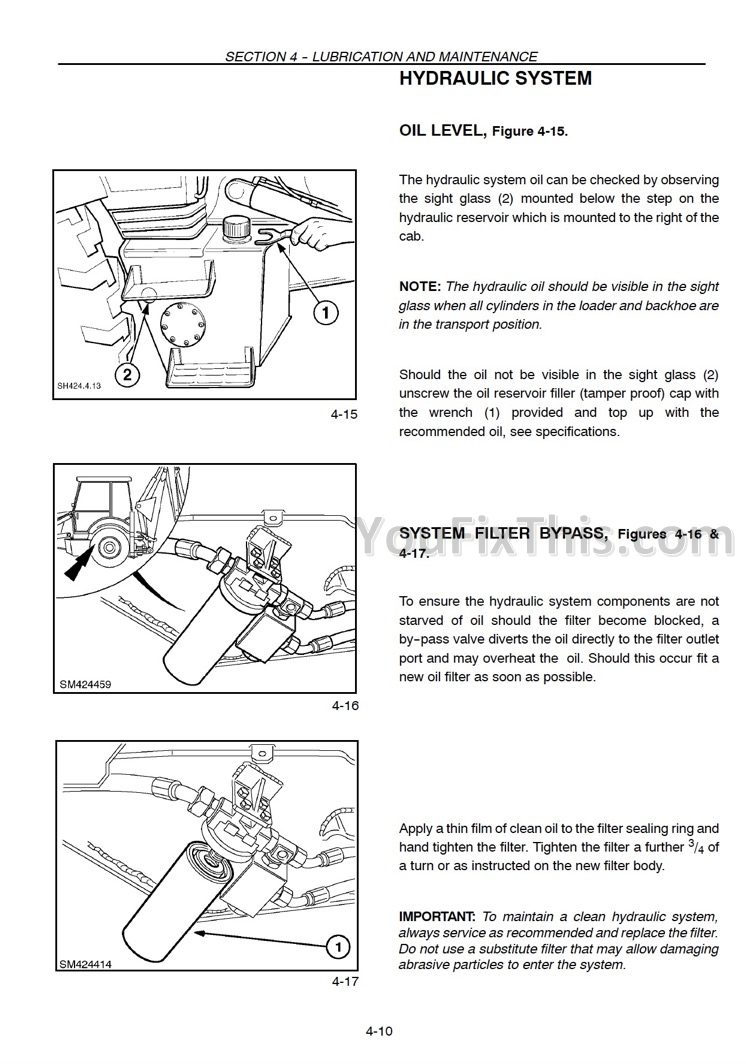

New Holland 555E loader bucket hydraulic functions become weak, slow, or erratic under heavy load p. 217
Check the main system relief pressure on page 217; it should reach 2850 PSI (196.5 bar). Inspect the hydraulic filter and replace it if the machine has passed the 600-hour interval listed on page 155. Confirm hydraulic fluid level daily.
Manual Section: System Troubleshooting575E engine lacks power, runs hot, and blows excessive black smoke during steady trenching p. 184
Inspect the air cleaner assembly and intake hoses for restrictions. Replace the dry air cleaner inner element at 1200 hours or annually, whichever comes first, as specified on page 184. Clean the housing before fitting the new filter.
Manual Section: Lubrication and MaintenanceEngine will not start or starter cranks very slowly during cold weather operation p. 163
Test the battery connections and confirm the electrolyte level sits 0.25 in (6mm) above the separator plates as shown on page 163. Consult the troubleshooting guide on page 200 for slow-cranking conditions before swapping the battery or starter relay.
Manual Section: Electrical System TroubleshootingDashboard maintenance indicator flashes for engine oil service when operating in extreme cold temperatures p. 171
Drain the oil pan and refill with exactly 4.5 gals (17 liters) of fresh engine oil as noted on page 218. Verify on page 171 that your oil change period is 150 hours when operating the machine in temperatures below 10 degrees Fahrenheit.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
What does error code mean on a New Holland 555E/575E/655E/675E?
An 'Err' signal shows when two tire types are fitted or no tire type is set (page 104). On power shift machines, the T-LED and N-LED flash patterns flag specific transmission microprocessor faults (page 110): 'Flashing ON' shows the last recorded fault, 'Flashes Slower' an input error, 'Flashes in Phase' a non-critical output error, and 'Flashes Faster' a safety critical output error. When a fault registers, contact your authorized dealer right away.
How do I clear the transmission or hydraulic warning light on a New Holland backhoe?
Clearing the transmission overheat light starts at the levers: shift both the power reversing and gearshift levers to neutral, then idle the engine at 1000 rev/min until the oil cools and the light goes out. If an oil pressure or temperature light shows instead, stop the engine at once, find the cause, and correct it, often by checking and adjusting the oil level. Hydraulic warnings clear once you fix the root issue, such as replacing a blocked filter.
What are the torque specs for the cylinder head / wheel nuts / loader pins on a New Holland 555E series backhoe?
Wheel nut torque values break down as follows: Front Wheel Nuts (2WD) at 176 Nm (130 ft. lbs.), Front Wheel Nuts (FWD) at 270 Nm (200 ft. lbs.), and Rear Wheel Nuts at 540 Nm (400 ft. lbs.). Injector retaining bolts tighten to 22 Nm (17 ft. lbs.). No torque figures are listed for the cylinder head or general loader pins.
How do I reset the service indicator after an oil change on a New Holland 655E?
Resetting the service indicator after an oil change begins with the ignition key 'On' and the engine off. Hold keys 1 and 2 together for about ten seconds until the first service level (for example, 50 hours) appears. Follow the on-screen prompts with keys 1 and 2 to adjust and store the new maintenance levels, which adds the new interval to the total engine hours.
How to reset service light on New Holland 575E
The service light ties to the maintenance levels, so the reset runs the same way: ignition key 'On', engine off. Hold keys 1 and 2 for roughly ten seconds until the first service level (such as 50 hours) is displayed. Adjust the levels with keys 1 and 2 as needed, then hold key 1 for six seconds to store the changes and leave the programming stage.
How quickly can I access this manual after?
Checkout delivers a 235-page searchable PDF, downloadable on the spot. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Are there any print restrictions on this New Holland 555E, 575E, 655E, 675E?
Yes. The PDF carries no DRM, so print any page or section your shop needs. It works with any standard printer.
