Factory part number 84382195 marks this New Holland TK4020-TK4060 series operator manual PDF as the genuine 178-page book for five crawler tractor variants. Service schedules run from the 10-hour checks through the 1800-hour items, with a lubrication and maintenance table and guidance for when a dashboard indicator light comes on. Your operating sections cover the 8F+8R range and shuttle and 16F+8R creeper transmissions, steering clutches and brakes, the PTO, hydraulic power lift and remote control valves, with fault-finding for the engine, electrical and hydraulic systems. Look for 190 bar (194 kg/cm²) at the pump relief valve. After the first 50 hours, check the track shoe screws at 133 ± 15 Nm. If a fuel filter cartridge is on your next parts order, the maintenance section shows the change and its 15 Nm tightening figure. Bought once, the bookmarked, text-searchable file stays yours for every PTO, power lift and track check this tractor sees.
What's Inside This New Holland TK4020–TK4060 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 11-42 | Tractor Identification, Important Ecological Considerations, Always Work Safely |

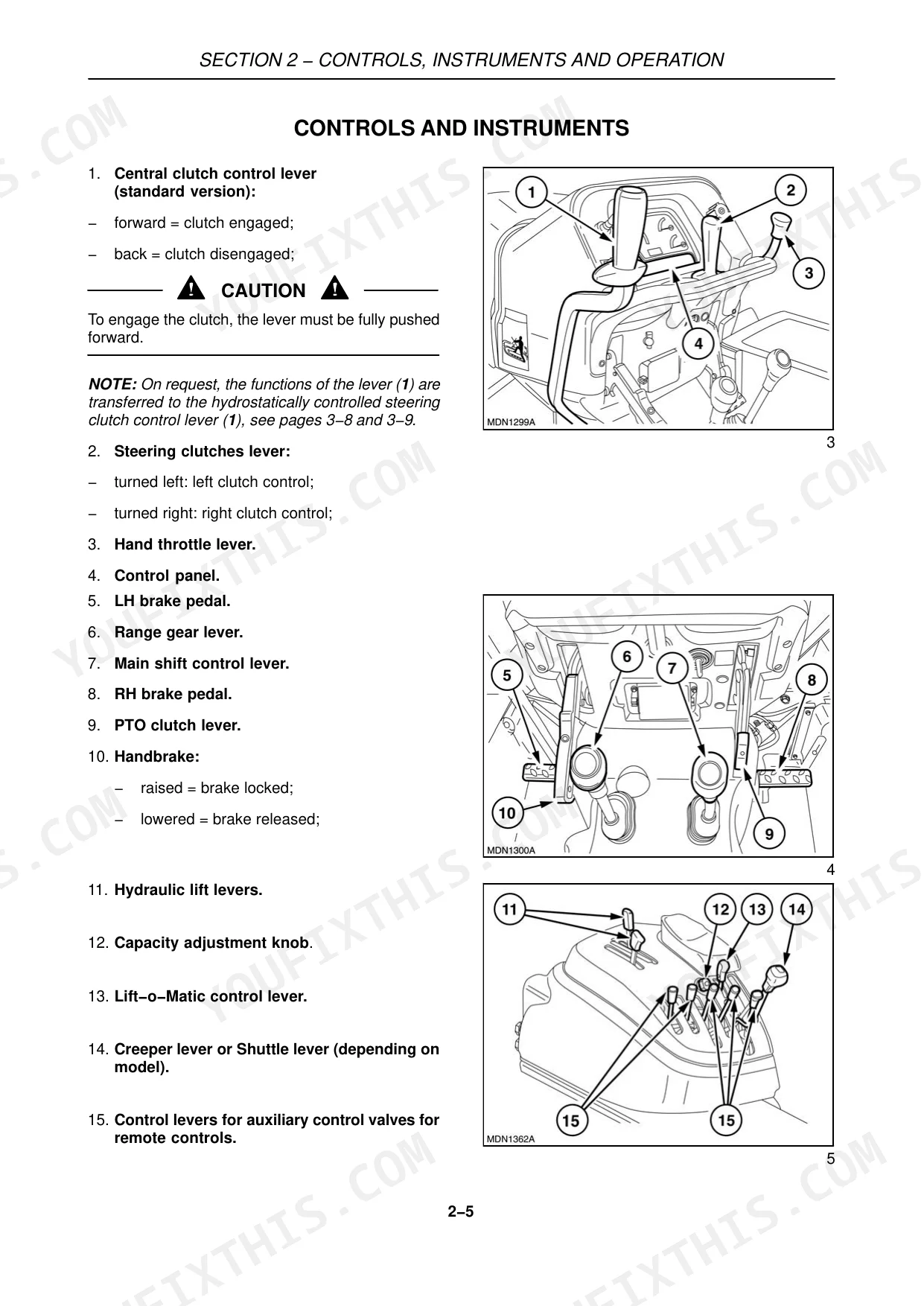

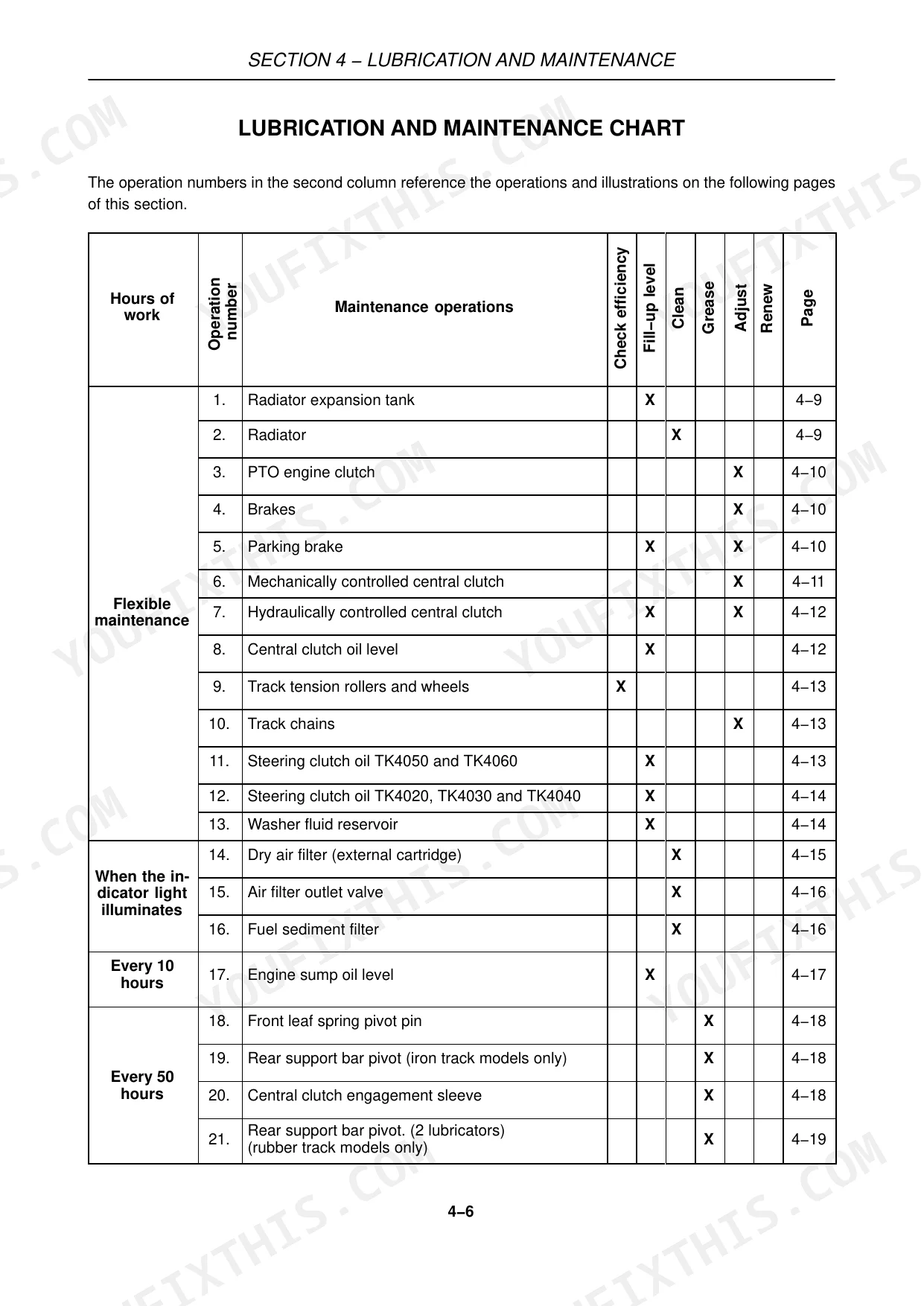

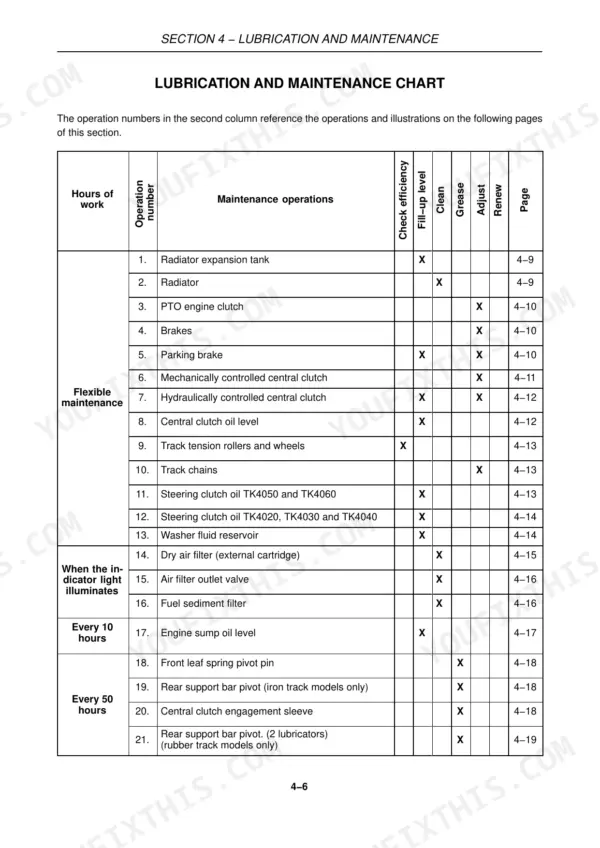

| Controls, Instruments and Operation | 43-66 | Control Panel, Controls and Instruments, Seat Adjustment |
| Field Operation | 67-94 | Operating Instructions, Running in Procedure, Checks Before Using the Tractor, Transporting the Tractor, Steering Clutches and Brakes, Central Clutch, Power Take Off |
| Lubrication and Maintenance | 95-144 | Introduction, Running in Period, Tractor Refuelling, Lubrication and Maintenance Table, Flexible Maintenance, When the Indicator Light Illuminates on the Dashboard |
| Troubleshooting | 145-152 | Engine, Electrical System, Hydraulic System, Hydraulic Power Lift |
| Vehicle Storage | 153-154 | Engine Protection, Battery Maintenance, Fuel Tank, Control Settings, Tractor Covering |
| Accessories | 155-158 | Quick Fit Implement Linkage, Cross Member with Attachment Holes, Weights |
| Specifications and Data | 159-170 | Engine Data, Hydraulic Power Lift |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Track chain shoe screw torque | 133 ± 15 Nm | p. 99 |
| Fuel filter cartridge tightening torque | 15 Nm | p. 120 |
| Hydraulic pump pressure relief valve calibration | 190 bar (194 kg/cm²) | p. 166 |
| Clutch size | 11 1/2 inch | p. 163 |
| Central clutch oil capacity | 0.8L | p. 142 |
| Steering clutches oil capacity | 1.4L | p. 142 |
| TK4020V, TK4030V, TK4030 | ||
| Fuel tank capacity (TK4020V, TK4030V, TK4030) | 83L | p. 97 |
| TK4040, TK4040M, TK4050, TK4050M, TK4060 | ||
| Fuel tank capacity (TK4040, TK4040M, TK4050, TK4050M, TK4060) | 111L | p. 97 |
| TK4020, TK4030, TK4040 | ||
| Engine oil capacity (TK4020, TK4030, TK4040) | 8.5L | p. 142 |
| TK4050, TK4060 | ||
| Engine oil capacity (TK4050, TK4060) | 9.5L | p. 142 |
| TK4020, TK4030 | ||
| Drive line oil capacity (TK4020, TK4030) | 33.3L | p. 142 |
| TK4040, TK4050, TK4060 | ||
| Drive line oil capacity (TK4040, TK4050, TK4060) | 39.0L | p. 142 |
New Holland TK4020–TK4060 Series Common Problems This Manual Covers

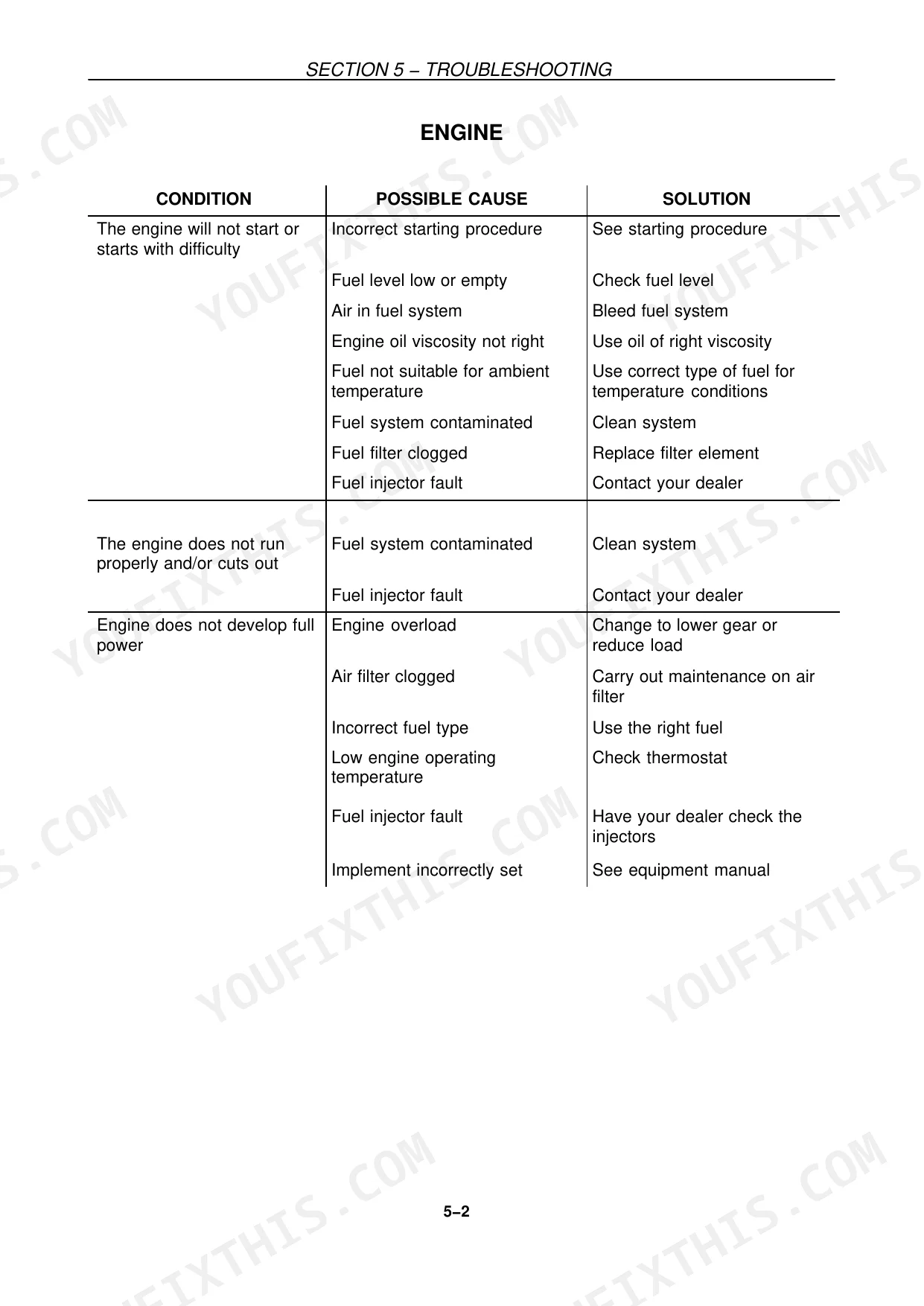

New Holland TK4020 through TK4060 crawler engine cranks but will not start or starts with difficulty

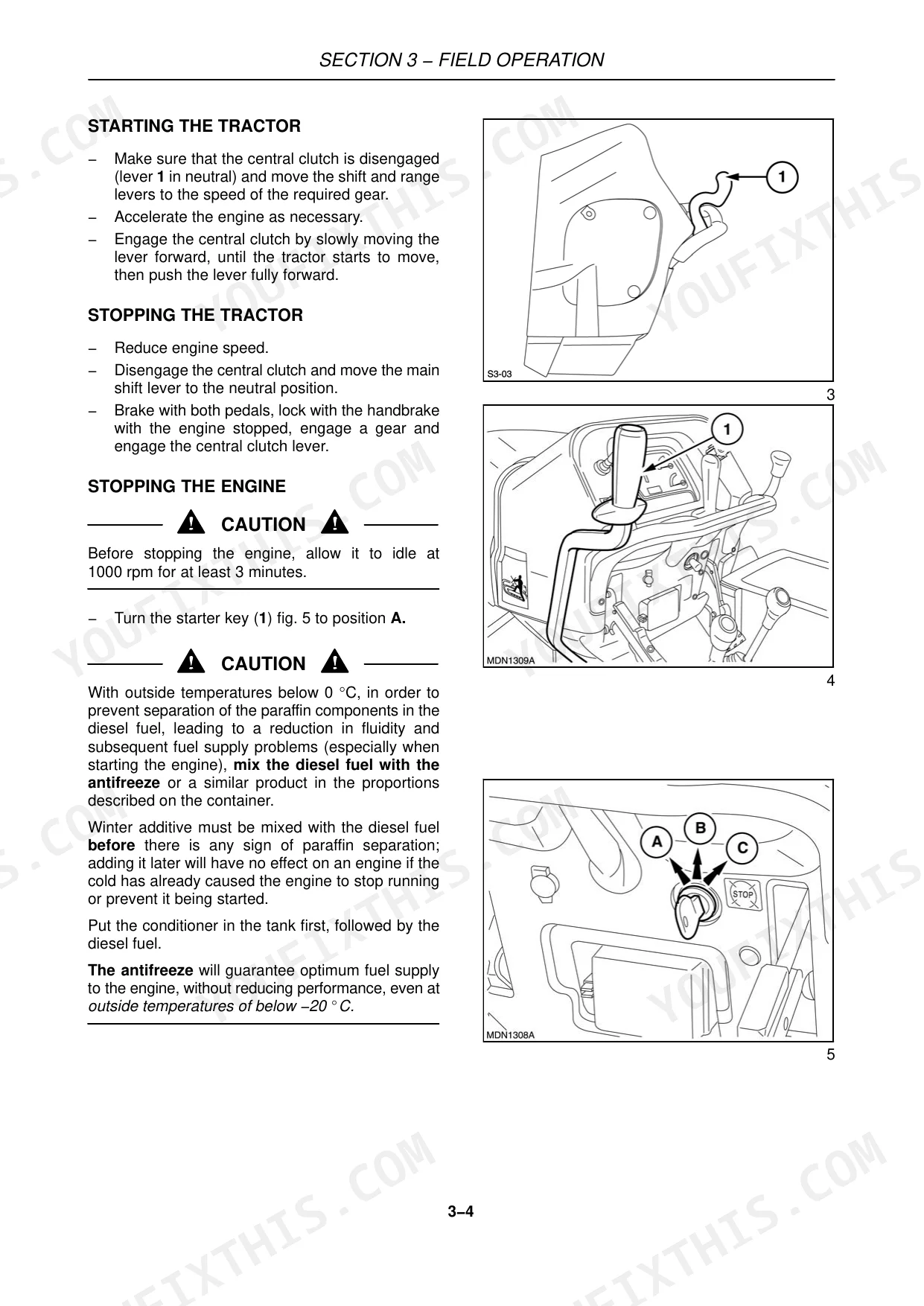

Stop the engine before any service work (page 68). Check fuel level, confirm the starting procedure, then bleed air from the fuel system. Replace a clogged fuel filter element and tighten the cartridge to 15 Nm per page 120. Below 0 °C, mix diesel with antifreeze as page 70 directs. Never use ether with the grid heater installed (page 69). Injector faults go to your dealer.
Manual Section: Engine Troubleshooting p. 146Engine overheats and temperature gauge climbs while pulling under load in the field
Change to a lower gear or reduce load first. Stop the engine before servicing (page 68). Clean a clogged radiator core, top up the expansion tank and check the system for leaks. Replace a defective radiator cap, tighten leaking hose connectors and check the fan belt tensioning device, replacing a worn belt. In winter use water mixed with antifreeze (page 108). A faulty gauge goes to your dealer.
Manual Section: Engine Troubleshooting p. 147Battery charge warning light stays on on the dashboard while the engine is running
Increase idling speed first. Stop the engine before checking the alternator belt tensioning device (page 68). Check that battery charge reads at least 12.6 volts, then check electrolyte level and specific gravity. If the light flashes instead, that signals excessive charge voltage; have the alternator checked by your dealer, page 150. Persistent electrical faults go to your dealer or an authorised workshop.
Manual Section: Electrical System Troubleshooting p. 149Starter motor turns slowly or does not work at all when turning the key
Move the gear lever to neutral; the starter will not work with a gear engaged, and page 68 requires all controls in neutral before starting. Clean and tighten loose or corroded connections and battery terminals. Check that battery charge reads at least 12.6 volts with correct electrolyte level and specific gravity, and charge or replace totally flat batteries. Use oil of the viscosity specified for temperature.
Manual Section: Electrical System Troubleshooting p. 149Central clutch servo control does not engage or disengage when the clutch lever is moved
Check the fuse when the clutch servo control or servo control unit does not respond, and check the relay if the hydraulic circuit electric pump fails to turn. Stop the engine before servicing (page 68), then top up low oil (central clutch capacity 0.8 L, page 142) and clean the hydraulic filter. Lever travel checks and internal hydraulic faults go to your dealer.
Manual Section: Central Clutch System Troubleshooting p. 150Three-point linkage does not move or hydraulic lift operates slowly in draft control
Check that the linkage cylinder tubes are connected correctly; before removing any hydraulic line, confirm the system is not pressurised and wear safety glasses and gloves when hunting leaks (page 20). Reduce the load if the linkage is overloaded. Adjust the combined draft/position control and the implement settings. If lowering stays too slow or the lift runs too fast, have the control valve checked.
Manual Section: Hydraulic Lift and 3-Point Equipment Coupling Troubleshooting p. 152Frequently Asked Questions
What are the torque specifications for the fuel filter and track-chain screws on the New Holland TK4020–TK4060 Series?
The fuel filter cartridge should be tightened by hand by 3/4 of a turn (15 Nm). For lubricated tracks, the screws on the shoes associated with the chain links must be tightened to 133±15 Nm. p. 120
What are the replacement specifications for the hydraulic oil filter on the New Holland TK4020–TK4060 Series?
The lift oil filter cartridge should be replaced and tightened by hand by 3/4 of a turn after greasing the seal. The oil level must then be topped up following the instructions in operation 31. p. 118
What is the correct procedure for bleeding the fuel system after changing the fuel filter?
After changing the fuel filter cartridge, disconnect the pipe from the filter head by pressing the two retaining buttons (or the spring pin on some models). Pump the primer lever until the fuel coming out of the filter contains no air bubbles, then refit the pipe. p. 120
What is the engine oil capacity for the TK4020, TK4030, and TK4040 models?

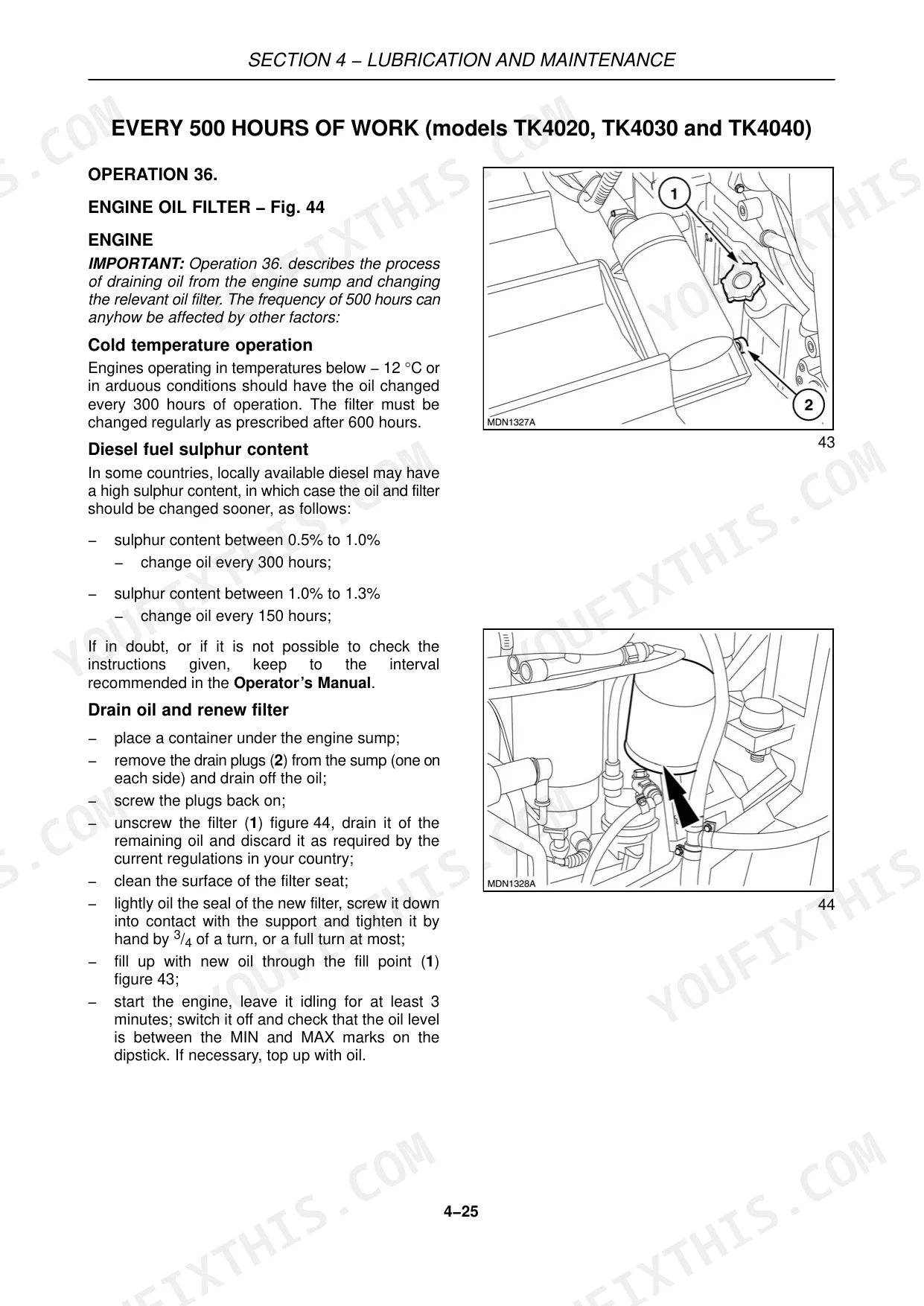

The engine sump capacity for the TK4020, TK4030, and TK4040 models is 8.5 liters (dm3) without the filter. p. 142
What is the pressure relief valve calibration for the hydraulic lift on the TK4060?
The pressure relief valve calibration for the first section at lift on the TK4060 is 190 bar (194 kg/cm2). p. 166
Do I get instant access to this New Holland TK4020–TK4060 Series manual?
A single searchable PDF file of 178 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print just the pages I need from this New Holland manual?
Yes. Many buyers print one chapter at a time for their own shop and keep the rest on a tablet.
