Part of the New Holland Operator Manuals.
Covering operation, daily care and setup for the New Holland TM series, this 379-page Operator Manual (OEM ID 604.53.261.00) spans five tractor variants from the TM115 to the TM165. As a New Holland TM150 operator manual PDF, it sets out the lubrication chart and every service interval from the 10-hour daily check to the 1800-hour service. Fault-finding charts sort symptoms by engine, each transmission type (Synchro, Dual, Range and Power Command), hydraulics, three-point linkage, brakes, cab and electrical. Calibrate a Dual Command transmission only once the oil reaches 20° C (68° F) or over, and torque the PTO output shaft securing nuts to 162 Nm (120 lbf ft). Ordering a replacement PTO output shaft? Both the 6-spline and 21-spline versions are listed at 1.375 in. (34.9 mm), so you can confirm your fit first. Bookmarked by chapter and searchable, the file goes wherever the tractor sits, ready for your next wheel track or ballast change.
What's Inside This New Holland TM115–TM165 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 10-25 | To the Owner, Product Identification, Ecology and the Environment, Safety Precautions, Safety Decals, International Symbols, Airborne Noise Emission |

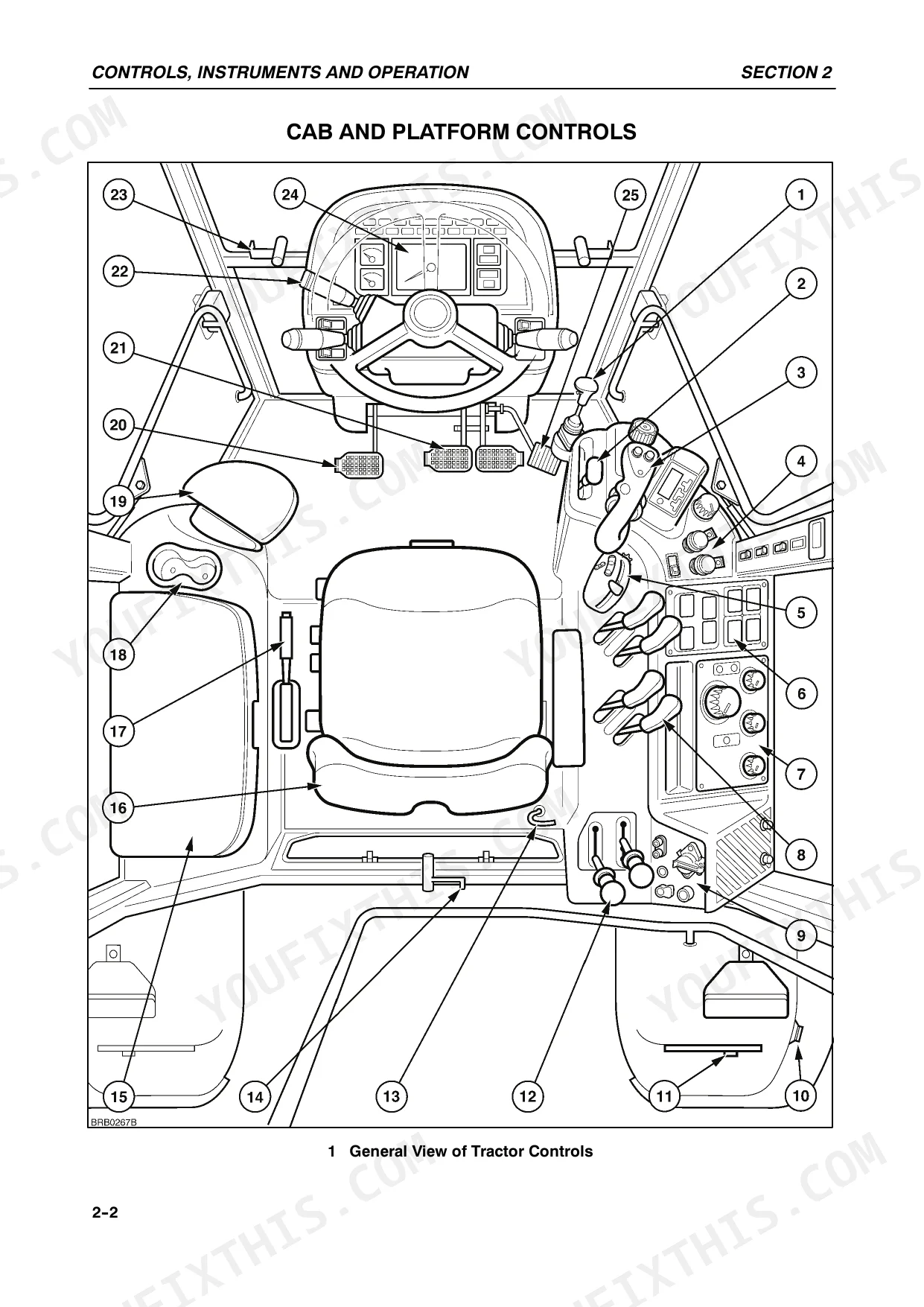

| Controls, Instruments and Operation | 26-131 | Cab, Seats, Handbrake, Throttle and Foot Controls, Instrument Console, Analogue and Analogue/Digital Instruments, Electronic Instrument Panel, Synchro Command Transmission |
| Field Operation | 132-237 | Starting and Stopping the Engine, Rear Power Take-Off, Front Power Take-Off and Hydraulic Lift, Mechanical Lower Link Sensing Hydraulics, Remote Control Valves - Open Centre |
| Lubrication and Maintenance | 238-311 | Lubrication and Maintenance Chart, Servicing When Warning Lights Illuminate, 10-Hour/Daily Service, 50-Hour Service, 300-Hour Service, 600-Hour Service, 1200-Hour/12 Month Service |

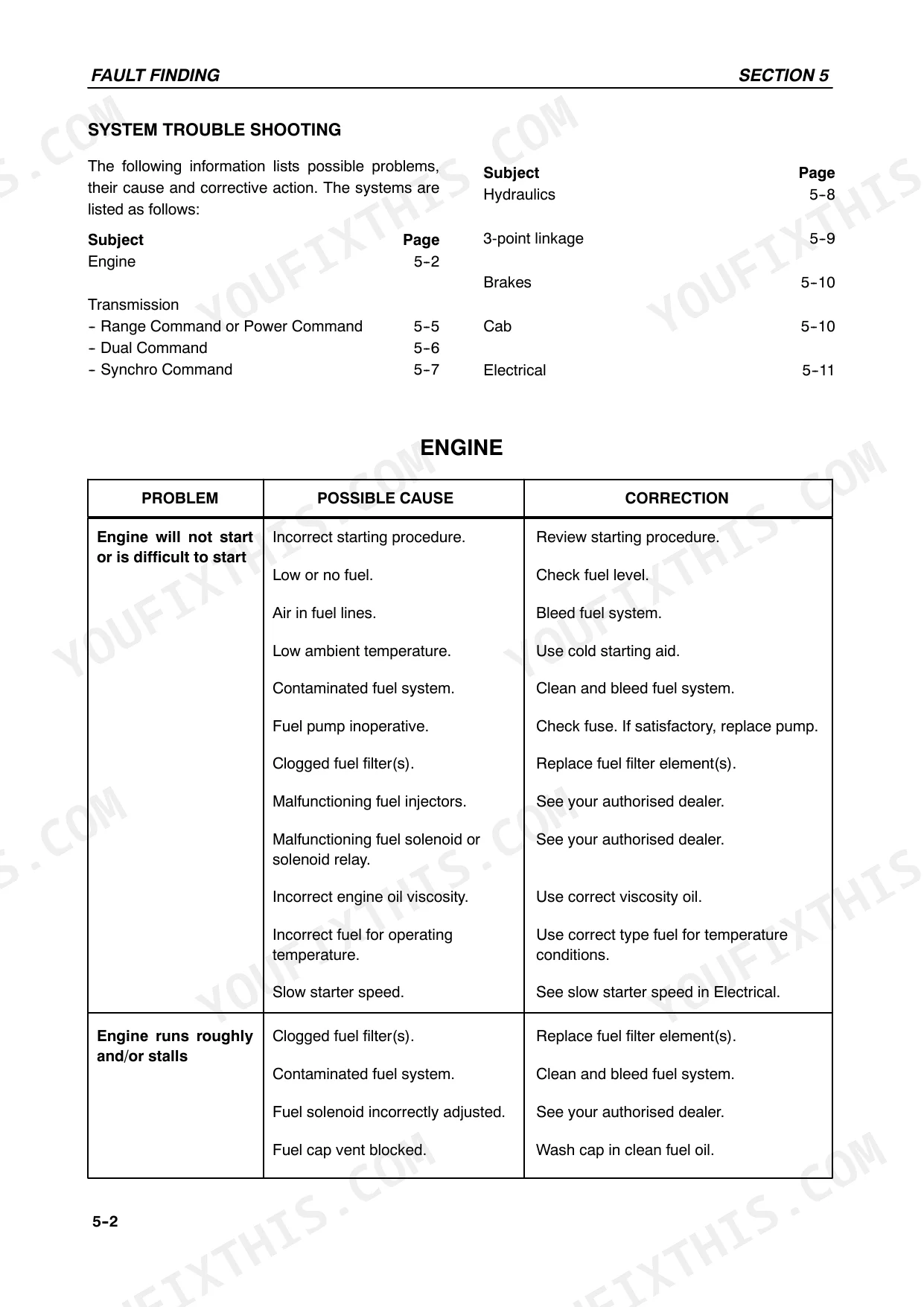

| Fault Finding | 312-323 | Introduction, Engine, Transmission - Range Command and Power Command, Transmission - Dual Command, Transmission - Synchro Command, Hydraulics, 3-Point Linkage, Brakes |
| Vehicle Storage | 324-325 | Tractor Storage, Preparation for Use, Batteries, Exhaust Pipe, Hydraulic Piston Rods, Fuel Tank |
| Accessories | 326-351 | Roof Beacon, Automatic Engine Shut Down, Hydraulic Trailer Brakes, Air-Operated Trailer Brakes, Walterscheid Hitch, Walterscheid Automatic Stabilisers, Sway Block Stabilisers |

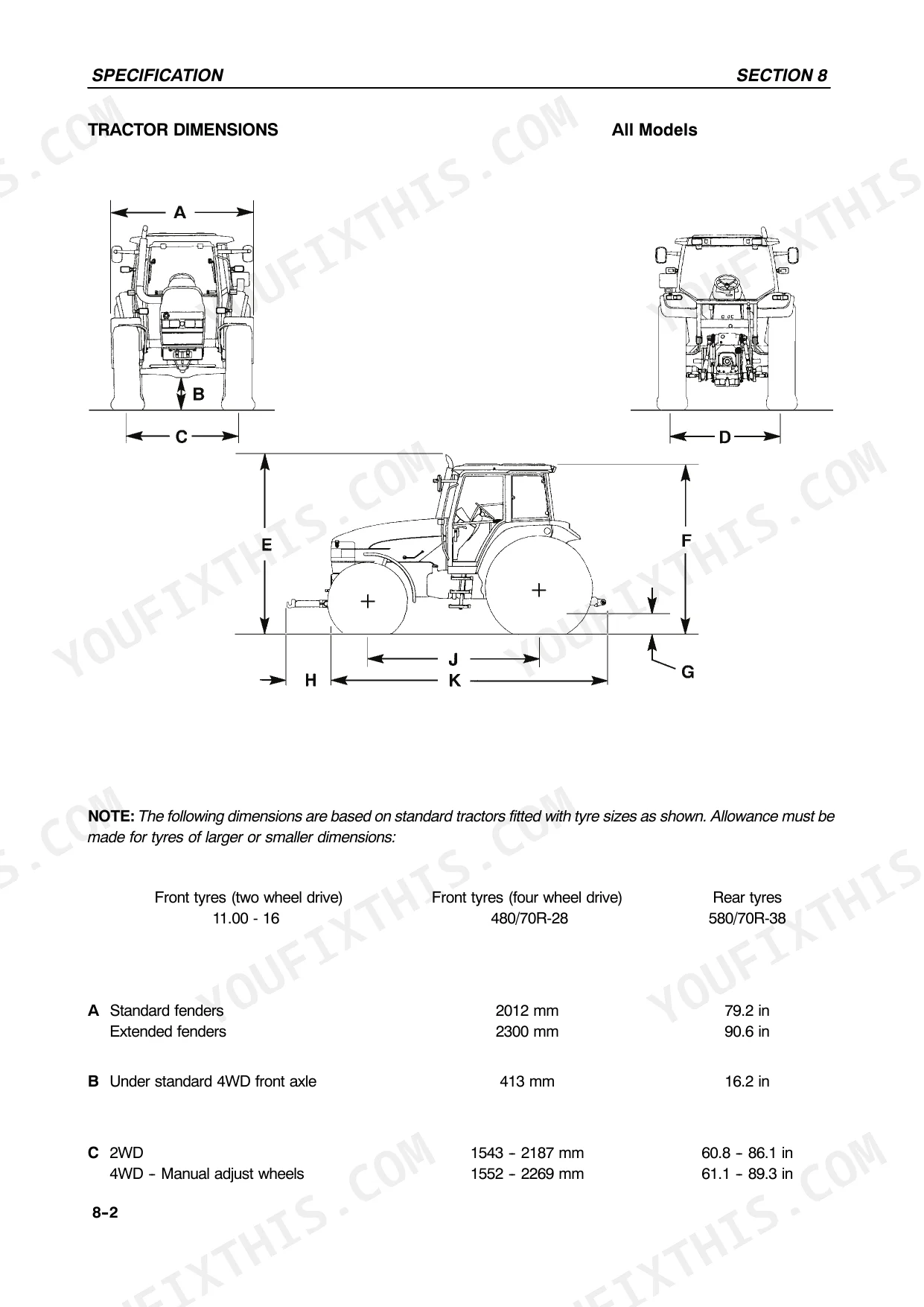

| Specification | 352-363 | Weight, Engine, Fuel System, Cooling System, Transmission Availability, Hydraulic System Availability, Three-Point Lift, Front Power Lift |
| First 50 - Hour Service Forms | 364-367 | Safety Items Checks, Operative Service Checks, Performance Service Checks, Inoperative Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| P.T.O. output shaft diameter (6-spline) | 1.375 in. (34.9 mm) | p. 143 |
| P.T.O. output shaft diameter (21-spline) | 1.375 in. (34.9 mm) | p. 143 |
| P.T.O. output shaft securing nuts torque | 162 Nm (120 lbf. ft) | p. 155 |
| Two wheel drive - Front disc to hub bolts | 300 Nm (220 lbf. ft.) | p. 262 |
| Transmission oil temperature for calibration (Dual Command) | 20° C (68° F) or over | p. 291 |
| Transmission oil temperature for calibration (Range Command) | 20° C (68° F) to 50° C (122° F) | p. 294 |
| Nominal System Pressure | 190 bar ± 3.0 bar | p. 358 |
| Radiator Pressure Cap | 1.0 bar | p. 357 |
| Engine Oil Capacity (including filter) | 19.0 litres | p. 361 |
| TM115, TM125, TM135 | ||
| 4WD Front Hub Oil Capacity | 1.7 litres | p. 361 |
| TM150, TM165 | ||
| 4WD Front Hub Oil Capacity | 2.15 litres | p. 361 |
New Holland TM115–TM165 Series Common Problems This Manual Covers
New Holland TM115 TM125 TM135 TM150 TM165 engine overheating in field work, temperature gauge reading high
Check the radiator pressure cap only once the engine has cooled. Use a cloth, turn it to the first stop and let pressure subside before removing it (page 21 warning). Replace the cap if faulty; it is rated 1.0 bar on page 357. Check the fan belt and automatic tensioner, tighten or replace leaking hoses, and flush a blocked system per page 315. A malfunctioning viscous fan is a dealer job.
Manual Section: Engine Troubleshooting p. 315Diesel engine will not start or is difficult to start in low ambient temperatures

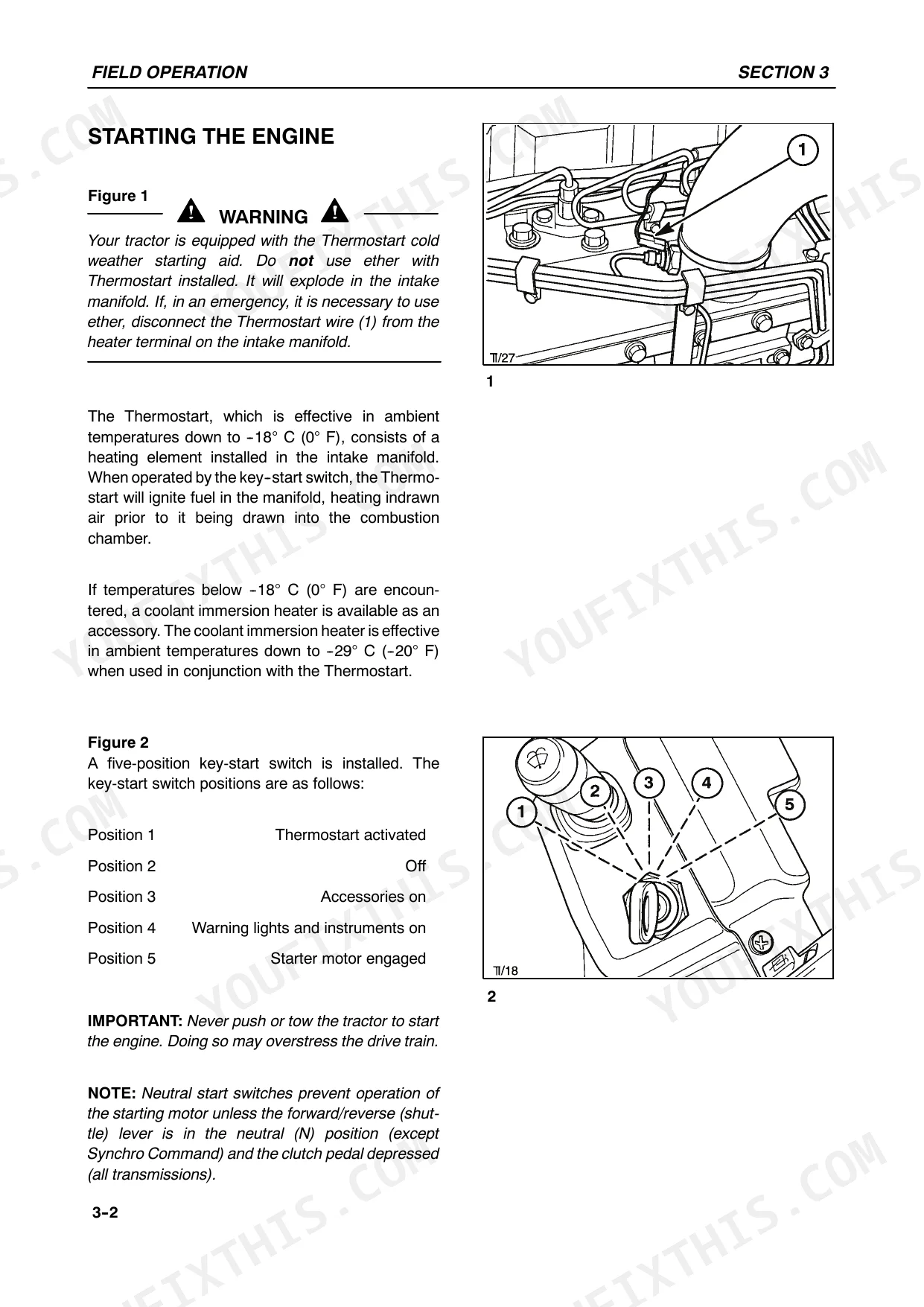

Check the starting procedure and fuel level first, then replace clogged fuel filter elements per page 313. Bleed the fuel system if air is in the lines; clean and bleed it if the fuel is contaminated. Check the fuse before condemning the fuel pump. In cold weather use the Thermostart aid, and never use ether with Thermostart installed, since it will explode in the intake manifold (page 133).
Manual Section: Engine Troubleshooting p. 313Range Command or Power Command transmission gives jerky gear shifting and poor inching control at the clutch pedal
Verify oil temperature, then perform the transmission clutch calibration: Power Command needs 60° C (140° F) to 105° C (221° F) per page 297, Range Command 20° C (68° F) to 50° C (122° F) per page 294. Keep hands away from hot transmission oil pipes (page 294). Until calibration is complete the tractor may be jerky, so pull away using the clutch pedal very carefully (page 299). Persistent faults go to your dealer.
Manual Section: Transmission (Range Command or Power Command) Troubleshooting p. 316Three-point linkage lower links do not move when the lift control lever is moved
Check the display for an error code first; per page 320, a code means a call to your authorised dealer. With no code, put the lift control lever back in phase with the lower links, return the fast raise switch from the external control position, and adjust the height limit control. Before the implement lowers, check the area beneath it so no injury or damage is caused (page 134).
Manual Section: Three-Point Linkage Troubleshooting p. 320Remote hydraulics implement cylinder does not operate when the remote control valve lever is moved
Check that the implement hoses are attached correctly, then verify the remote control valve lever moves freely; adjust the cables or see your dealer, per page 319. With the engine stopped (page 238), check hydraulic oil level and replace blocked hydraulic oil filters. If the load exceeds system capacity, reduce it or fit the correct size cylinder through your dealer. An error code also means a dealer visit.
Manual Section: Hydraulics Troubleshooting p. 319Starter motor inoperative or starter speed slow, engine cranks slowly at startup
Verify all gear shift levers are in neutral and the clutch pedal is fully depressed; never bypass the transmission neutral start switches (page 16). Clean and tighten battery and starter motor connections, then check battery open circuit voltage for a minimum of 12.6 volts per page 322. Wear eye protection near batteries, since they contain sulphuric acid (page 310). Charge or replace dead batteries.
Manual Section: Electrical System Troubleshooting p. 322Frequently Asked Questions
How do I reset the service reminder on a New Holland TM tractor?
To reset the 'Next Service Due' reminder, turn the key-start switch on with the engine stationary. Press and hold button (2) for approximately three seconds until a 'beep' indicates the computer is in programming mode. Use the DIGIT SELECT and DIGIT SET buttons to enter the desired interval (e.g., 0300 hours) and turn the key-start switch off to store the value. p. 68

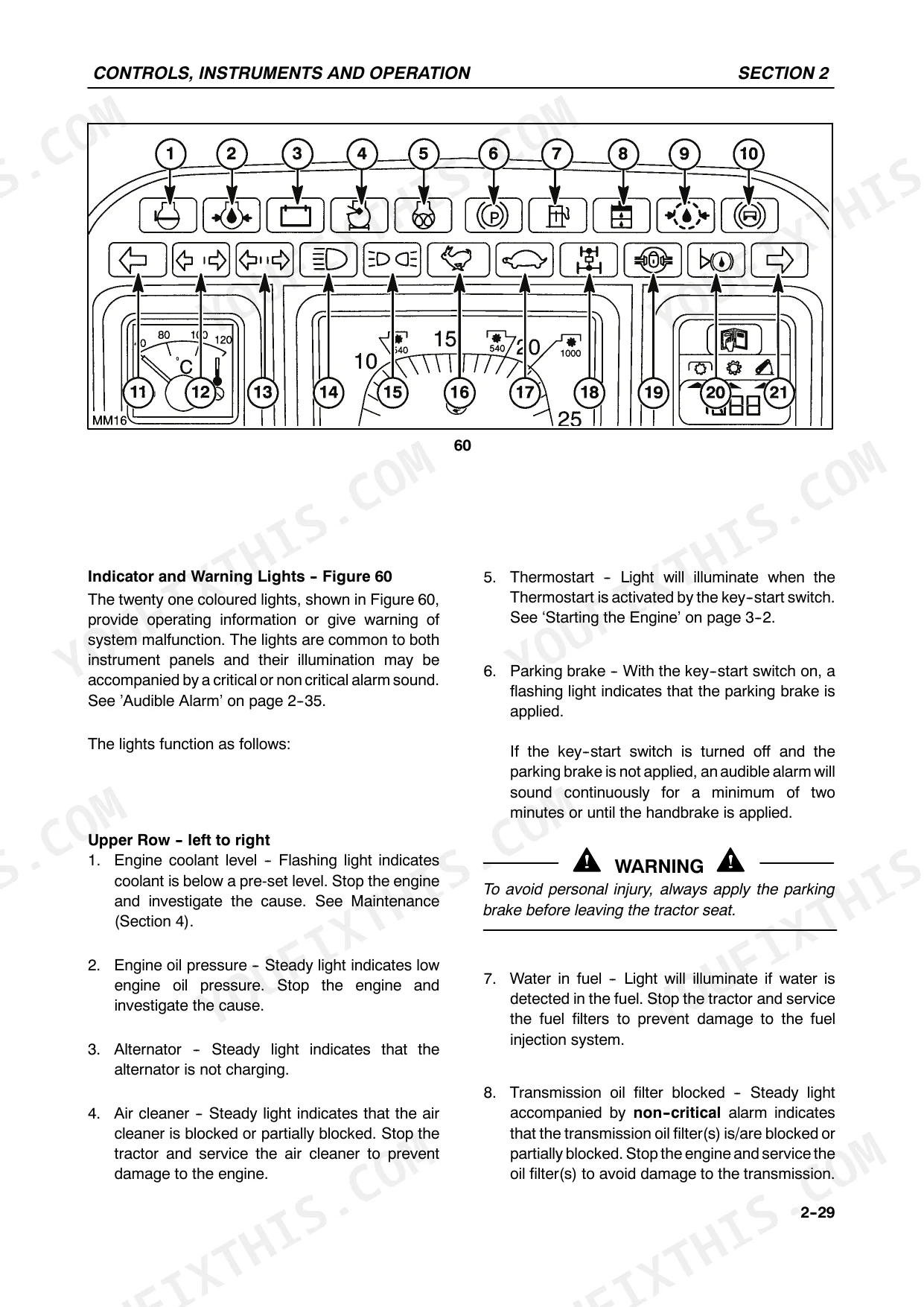

What does a transmission error code mean on a New Holland TM tractor?
An error code indicates a malfunction in an electrical system controlling the transmission, hydraulics, or other functions. These codes are displayed as a flashing one, two, or three-digit number, sometimes preceded by an 'E' or 'F'. You should contact your authorized dealer for assistance in correcting the malfunction indicated by the code. p. 312
What is the correct engine valve clearance for a New Holland TM tractor?
The engine valve clearance for the intake valves is 0.014 - 0.018 in. (0.36 - 0.46 mm), and for the exhaust valves, it is 0.017 - 0.021 in. (0.43 - 0.53 mm). These clearances must be checked with the engine cold. p. 274
What is the engine oil capacity for the New Holland TM tractor?
The engine oil capacity, including the filter, is 19 litres (33.4 Imp. pints) (20 U.S. qts.). p. 265
What is the torque specification for the rear disc to hub nuts on the New Holland TM115–TM165 Series?
The torque specification for the rear disc to hub nuts is 250 Nm (184 lbf. ft.). p. 215
What exactly do I receive with this New Holland TM115–TM165 Series manual?
All 379 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print specific sections of this New Holland TM115–TM165 Series manual?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
