A three-point hitch fault code, a critical alarm or a lit air filter lamp each has its own entry in the New Holland TV6070 operator manual PDF, 266 pages under OEM number 47538609 for your TV6070 tractor. Service work is laid out by hour: daily 10-hour checks, then 50, 300, 600, 1200 and 1800-hour intervals, plus lubricants and capacities and fuse and relay locations. Controls are identified station by station. Working chapters cover PTO operation, hitch position setup, remote control valves, a ballasting weight chart and tire load ratings. Set the drawbar hitch pin 356 mm (14 in) from the PTO shaft for 540 RPM work, and change the hydraulic and hydrostatic oil filters every 600 hours. When the job in front of you is bleeding the fuel injection system or changing the PTO shaft, both are written out as titled procedures. Bought once, the bookmarked, searchable file stays yours for every hitch adjustment on this TV6070.
What's Inside This New Holland TV6070 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-20 | Safety Rules, Engine Hood, Filling the Fuel Tank, Bleeding the Fuel Injection System, Jacking the Tractor, Tire and Rim Service, Lubricants and Capacities, Consumables - Engine Oil |
| Safety Information | 21-40 | Safety Rules, Proposition 65, Ecology and the Environment, Roll Over Protection Structure, Safety Signs, Articulation Lock |

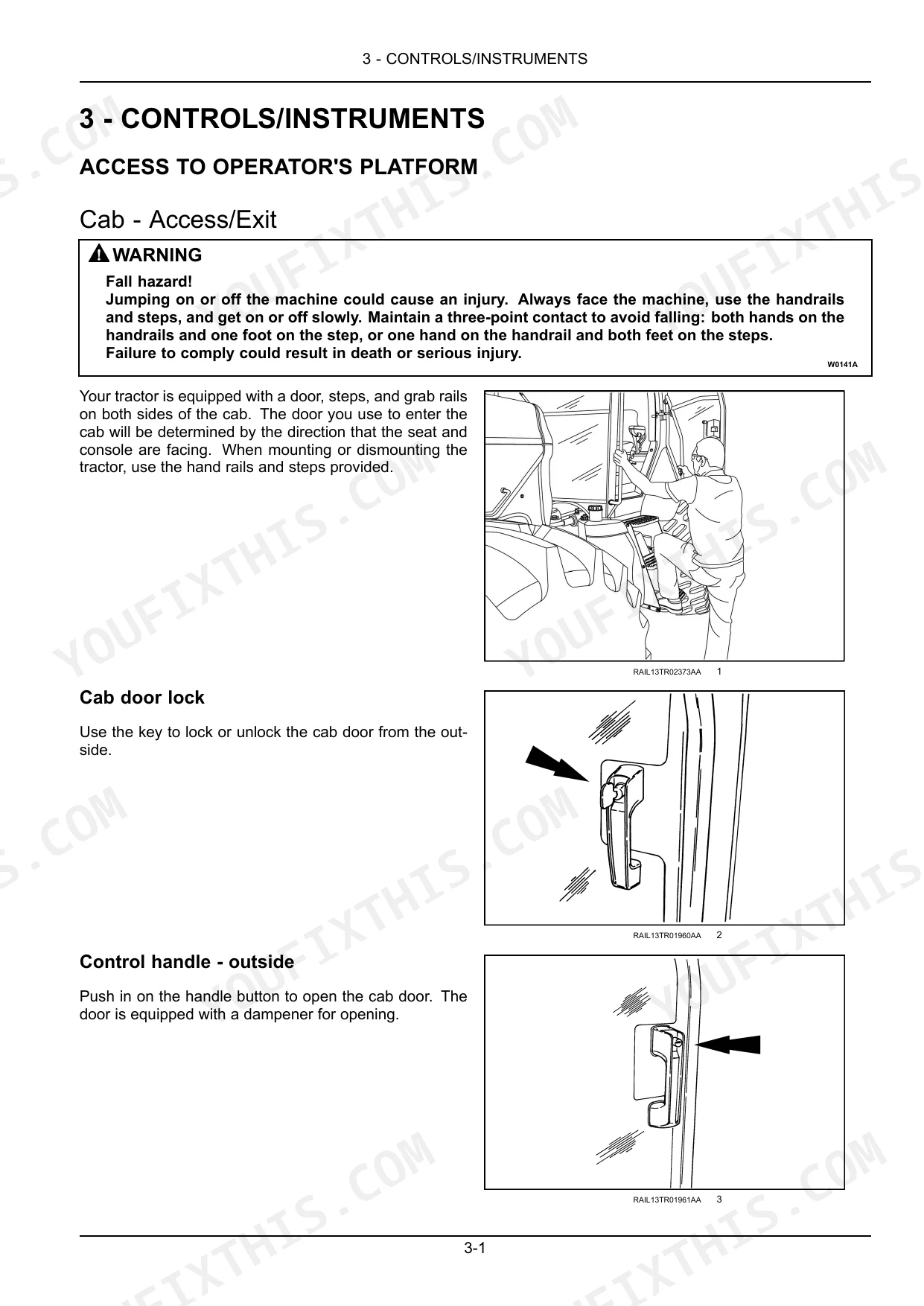

| Controls/Instruments | 41-68 | Access to Operator's Platform (Cab - Access/Exit), Operator's Seat (Overview, Control Identification) |

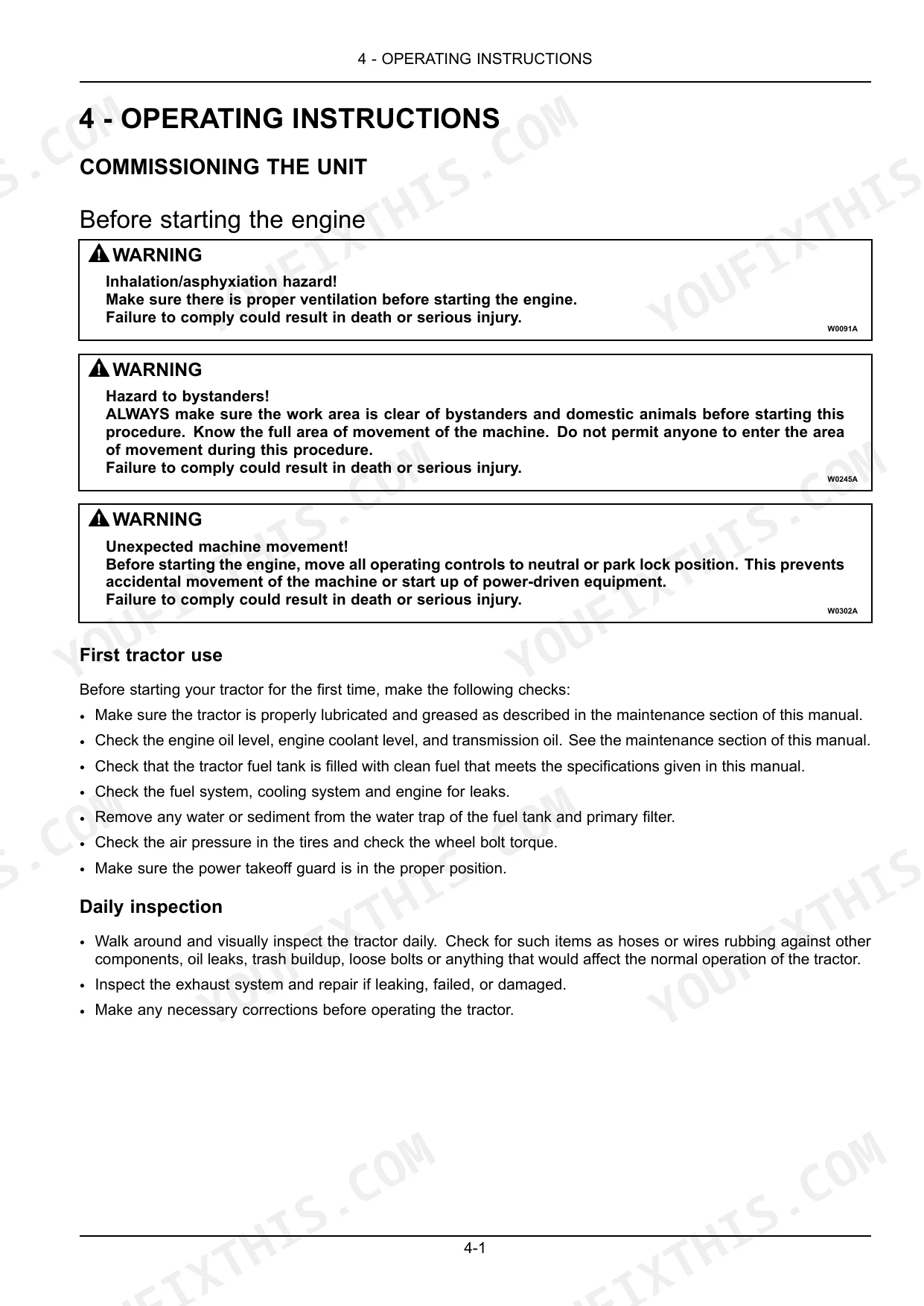

| Operating Instructions | 69-90 | Commissioning the Unit (Before Starting the Engine), Starting the Unit (Normal Engine Starting, Cold Temperature Operation), Stopping the Unit (Stopping the Machine and the Engine) |
| Transport Operations | 91-98 | Road Transport (Tractor Warning Lamps and Slow Moving Vehicle Symbol, Operating the Tractor Warning Lamps, Implement Warning Lamps and Slow Moving Vehicle Symbol, Safety Chain) |
| Working Operations | 99-154 | Power Take Off (Safety Rules, Changing the Power Take-Off Shaft, Connecting the Power Take-Off, Power Take-Off Operation) |

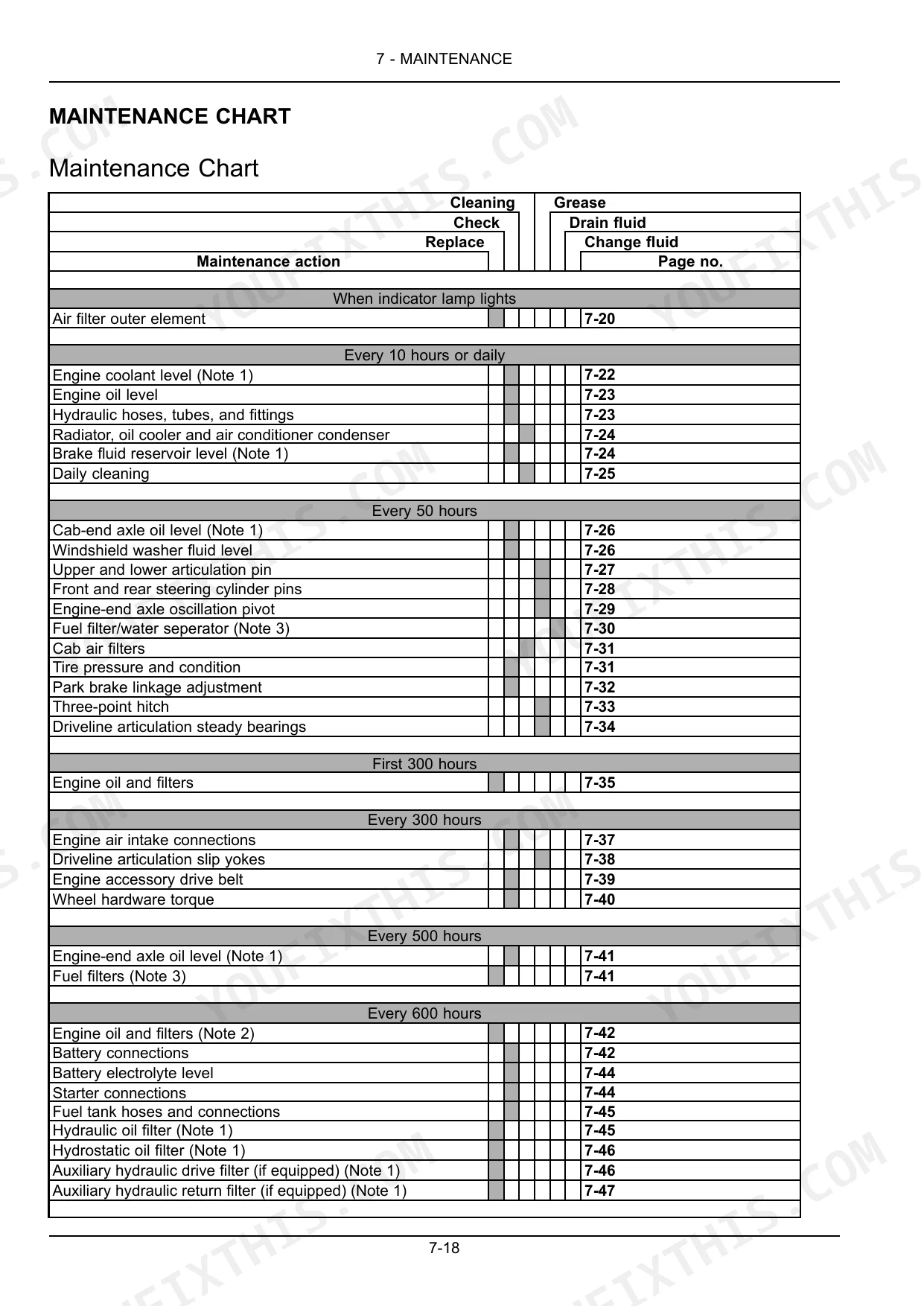

| Maintenance | 155-224 | Maintenance Chart, When Indicator Lamp Lights (Air Filter Outer Element) |
| Troubleshooting | 225-244 | Fault Code Resolution (Three-Point Hitch), Alarm (Critical Alarms, Non-Critical Alarms) |

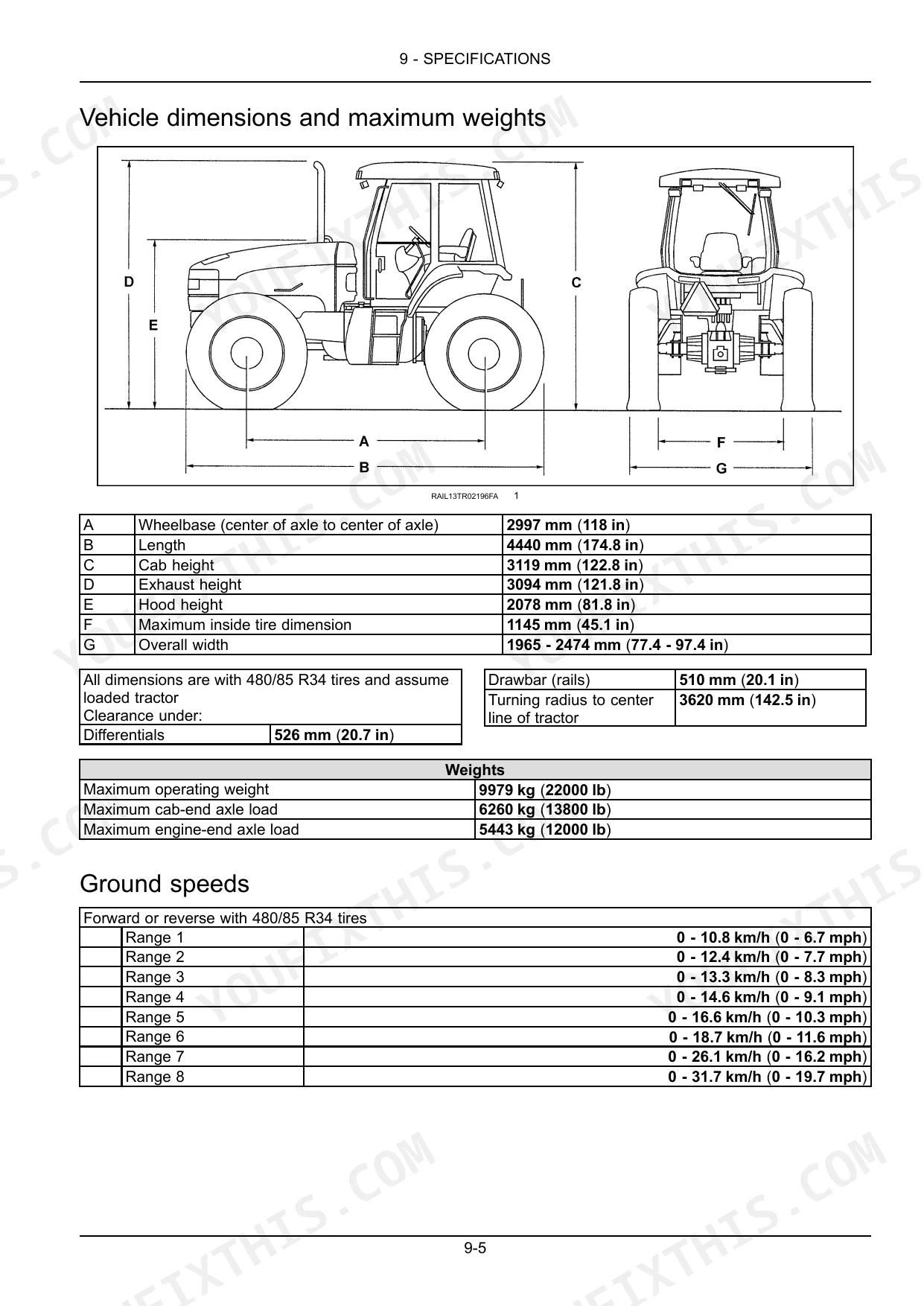

| Specifications | 245-250 | General Specifications, Hydraulic System |
| Accessories | 251-266 | Installation of Cab Mounted Accessories, Tractor Accessories, Loader Accessories |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic oil filter replacement interval | Every 600 hours | p. 6 |
| Hydrostatic oil filter replacement interval | Every 600 hours | p. 6 |
| PTO stub shaft diameter | 34.9 mm (1.375 in) | p. 103 |
| Drawbar hitch pin to PTO shaft distance (540 RPM operation) | 356 mm (14 in) | p. 105 |
| Auxiliary hydraulic system maximum capacity | 132 L/min (35 US gpm) at 316 Kg/cm² (4500 psi) | p. 132 |
| Flow rate of auxiliary hydraulic drive | 0 - 129 L/min (0 - 34 US gpm) | p. 143 |
| System capacity | 114 L/min (30 US gpm) | p. 142 |
| Flow rate for each valve | 11 L/min (3 US gpm) to 113 L/min (30 US gpm) | p. 141 |
| Engine Oil Capacity with filter | 17 L (4.5 US gal) | p. 163 |
| Cooling System Capacity (premixed) | 45 L (12 US gal) | p. 163 |
| Hydraulic System Capacity | 51 l (13.5 US gal) | p. 163 |
| Front Axle Oil Capacity | 25 l (6.6 US gal) | p. 163 |
New Holland TV6070 Common Problems This Manual Covers
New Holland TV6070 hydraulic oil temperature alarm with HYD OIL TEMP flashing and engine shutting down after 20 seconds
Press the ACK/Reset key during the 20 second STOP alarm, as page 229 shows. The engine keeps running while you stop all tractor hydraulic operation and let the oil cool. Power to the hydraulic pump cuts at 116 °C (241 °F) and returns at 107 °C (225 °F) per page 143. Shut off the tractor and correct the overheating before going back to work.

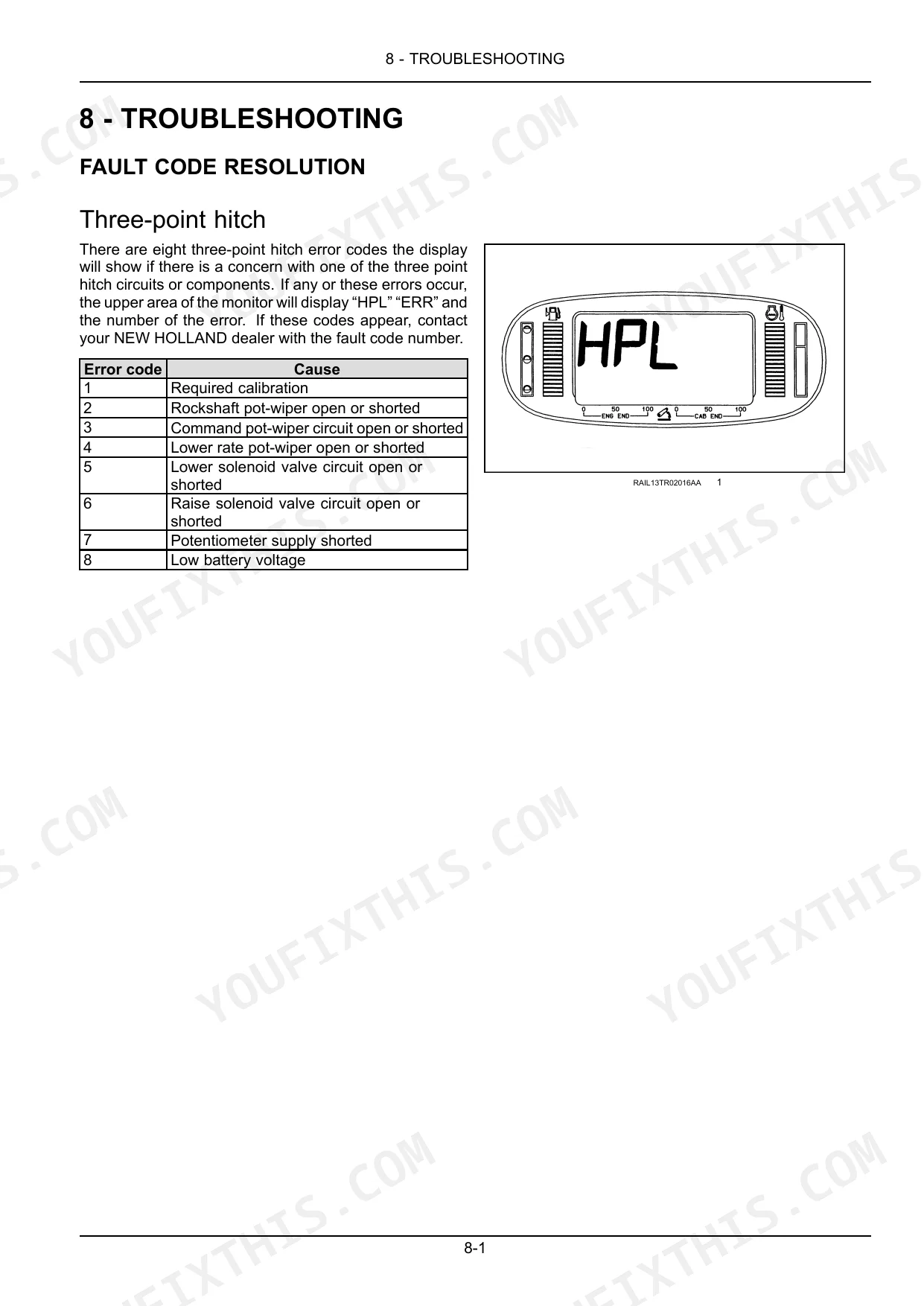

Manual Section: Critical alarms p. 229Three-point hitch error with HPL ERR and a code number displayed in the upper monitor area
Record the number shown after HPL ERR and contact your New Holland dealer with that fault code, as page 225 directs. Code 1 means calibration is required. Codes 2 through 7 point to open or shorted pot-wiper, solenoid valve or potentiometer supply circuits. Code 8 flags low battery voltage on the hitch circuit.
Manual Section: Three-point hitch fault codes p. 225Engine oil pressure light on with ENG OIL PSI flashing and STOP shown on the display
Press the ACK/Reset key during the 20 second STOP alarm only to move the tractor to a safe location, per page 227, then shut it down. Do not restart more than once or run at high speed, because the engine and hydrostatic transmission may have no lubricating oil. Contact your New Holland dealer as page 226 instructs.
Manual Section: Critical alarms p. 227Coolant temperature bar graph in the red with temperature light flashing and constant audible alarm
Check the red bar count against page 228. At 111 °C (231 °F) and above, the display flashes, the alarm sounds constantly and the engine shuts down after 20 seconds. Use ACK/Reset only to reach a safe spot, then shut off and correct the overheating. Let the system cool before removing the cap, and turn it slowly to release pressure (page 24). Cooling system capacity is 45 L (12 US gal) premixed, page 163.
Manual Section: Critical alarms p. 228Display flashing VOLTS symbol with voltage reading and audible alarm beeping while the engine runs
Check the displayed voltage against page 232. A warning triggers above 15 V with the engine running, below 12.5 V above 1500 RPM, or below 11.5 V at any speed. Shut off the tractor promptly and correct the cause. Stop the engine and remove the key before disconnecting electrical connections (page 24). Wear splash-proof goggles and gloves around battery electrolyte (page 196).
Manual Section: Non-critical alarms p. 232Ground speed shows .0 with OPEN or SHCR flashing and hydrostatic drive will not shift into 7th or 8th range
Reset the speed sensor circuit fault by shutting the tractor down and restarting it, as page 233 describes. While the open or short circuit stays active, the electronic instrument control system blocks the hydrostatic drive from 7th and 8th range. If OPEN or SHCR comes back after the restart, contact your New Holland dealer.
Manual Section: Non-critical alarms p. 233Frequently Asked Questions
What do the three-point hitch error codes mean?
There are eight error codes for the three-point hitch system. For example, error code 1 indicates 'Required calibration', code 2 is 'Rockshaft pot-wiper open or shorted', and code 8 is 'Low battery voltage'. If these codes appear, contact your New Holland dealer with the specific fault code number. p. 225
What are the replacement specifications for the hydraulic return filter on a New Holland TV6070?
The auxiliary hydraulic drive high pressure return filter is a cannister type filter. When replacing, tighten the filter bowl to 135 N·m (100 lb ft). p. 201
What is the procedure for calibrating the final drive ratio?
To check the final drive ratio, enter the calibration mode and press the Speed switch. The upper display will flash 'SET' 'FDR'. If the number is not 182, use the 'Up' or 'Down' arrow switches to select 182, then press the ACK/RESET switch to accept the value. p. 64
What is the engine oil capacity for the TV6070 tractor?
The engine oil capacity with the filter is 17 L (4.5 US gal). p. 163
What is the torque specification for the wheel nuts on the New Holland TV6070?
The wheel nuts (oil threads) must be tightened to 353 N·m (260 lb ft). p. 194
What format is this New Holland TV6070 manual in?
Instant PDF download. You get the full 266-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this New Holland TV6070 manual?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
