When the display on a Boomer 8N flashes a fault code and the tractor will not pull forward, you are usually alone in the field with the job half done and the dealer an hour away. This New Holland operator manual for the Boomer 8N compact tractor (publication 84527123, 194 pages, English) is the book that explains what the machine is telling you, from ADIC fault codes to the anti-stall, speed range, and cruise settings on the CVT.
It covers the tractor as New Holland built it: the N844L diesel, three-point linkage, front and rear remote valves, PTO controls, differential lock and 4WD engagement, plus a full maintenance chart with capacities and torque figures in the Specifications pages.
It is a plain PDF download. Print the pages you need, take them to the bench, and let them get greasy while the file stays clean.
What's Inside This New Holland Boomer 8N Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-10 | Torque - Minimum Tightening Torques for Normal Assembly, Torque - Standard Torque Data for Hydraulics, Basic Instructions - Lubrication and Maintenance |
| Safety Information | 11-44 | Precautionary Statements and Signal Word Definitions, Safety Rules - Important Warnings, Working Safely, Starting the Tractor, Using the Tractor, Towing and Transport |

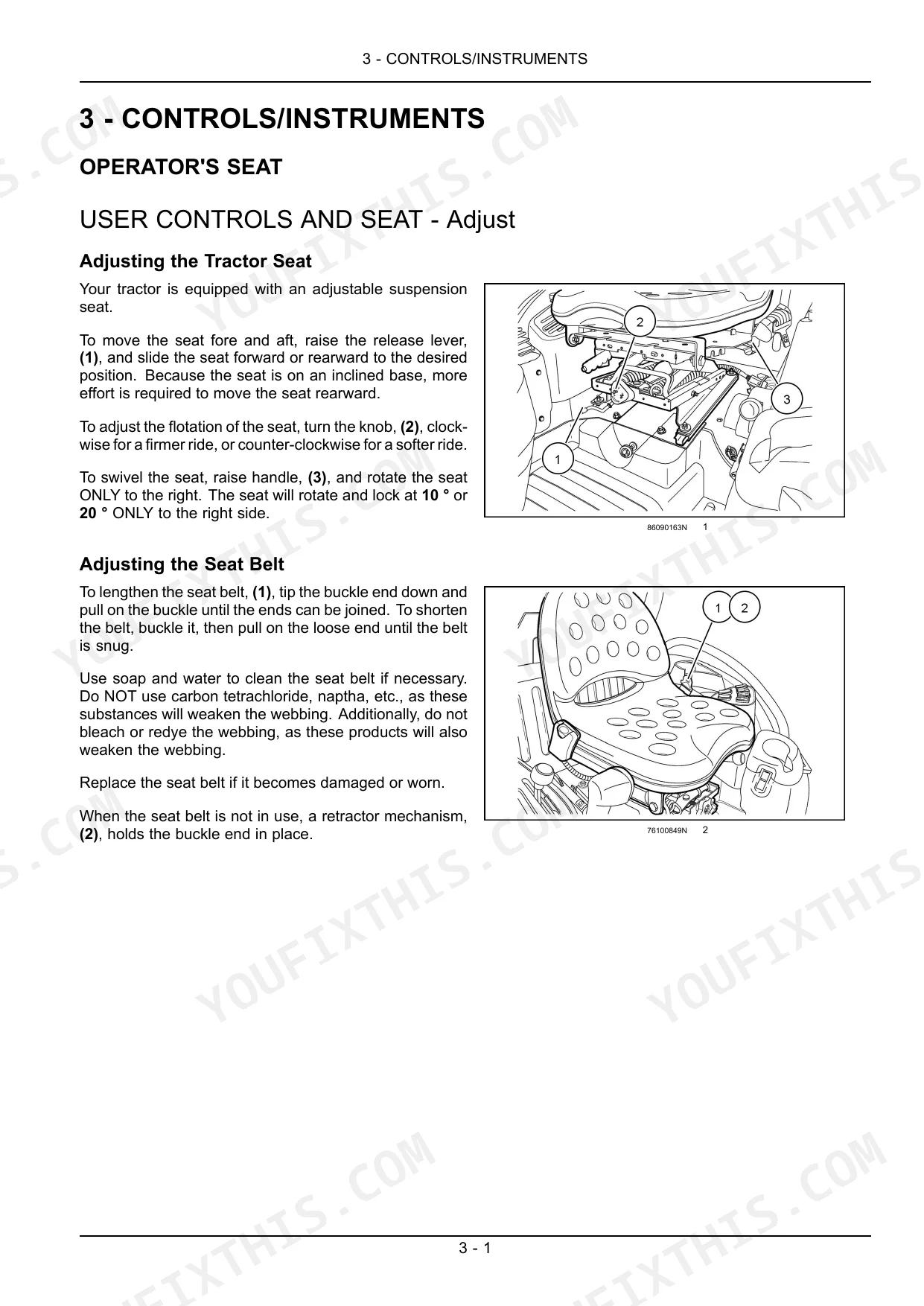

| Controls/Instruments | 45-90 | Operator's Seat (User Controls and Seat - Adjust) |

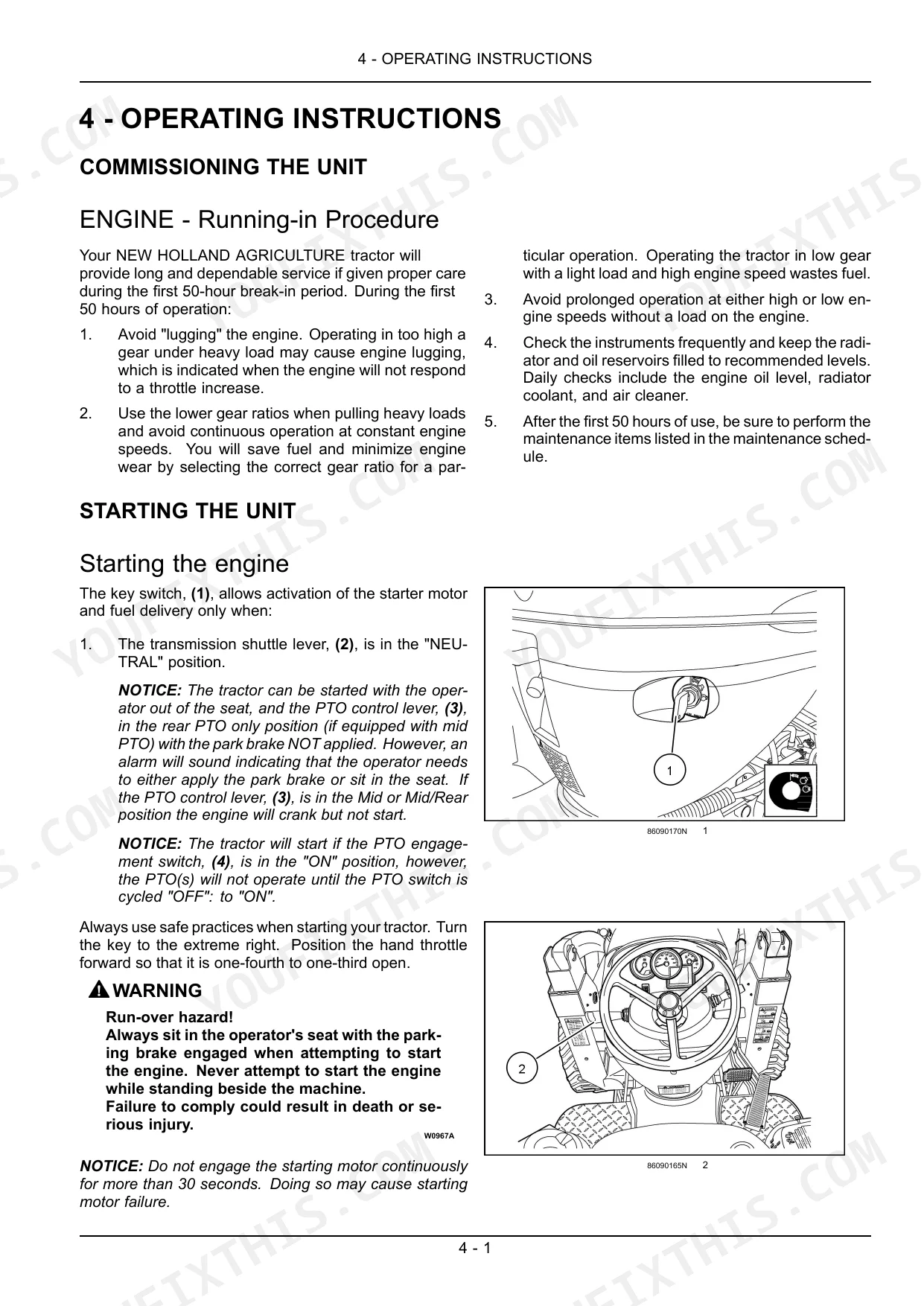

| Operating Instructions | 91-98 | Commissioning the Unit (Engine - Running-In Procedure) |
| Transport Operations | 99-104 | Road Transport (Lighting Operation), Recovery Transport (Preparation for Towing) |
| Working Operations | 105-122 | Tractor Hydraulics (Extendable Drawbar, Three Point Linkage System - Deluxe, Attaching Three-Point Equipment, Detaching Three-Point Equipment, Lifting - Control Identification - Tractor Hydraulics, Front Remote Control Valve - Optional, Rear Remote Control Valve - Optional, Rear Remote Valve Configuration) |
| Maintenance | 123-172 | Maintenance Chart (Advice), Engine (Basic Instructions), Engine Coolant System, Fuel and Injection System (Fuel Filter, - Bleed), Air Intake System (Air Cleaner) |
| Specifications | 173-182 | Engine, Capacities, Cooling System, Electrical System, Fuel System, Brakes, Power Take-Off, Hydraulic Lift |

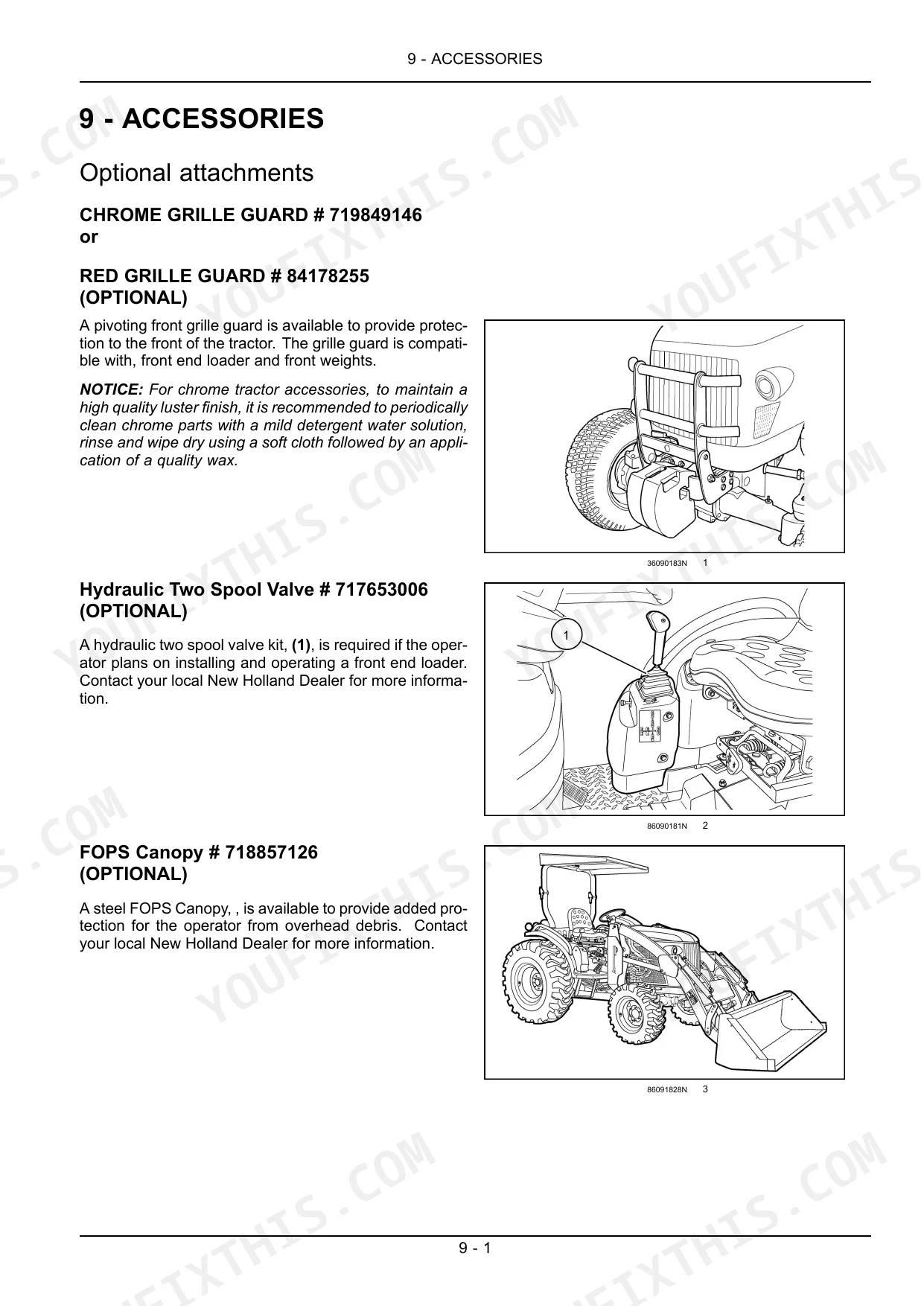

| Accessories | 183-184 | Optional Attachments |
| Forms and Declarations | 185-194 | Delivery Report Owner Copy, Delivery Report Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Torque for 4 size tube nut (7/16-20 thread) | 12 - 16 N·m (9 - 12 lb ft) | p. 126 |
| Torque for 5 size tube nut (1/2-20 thread) | 16 - 20 N·m (12 - 15 lb ft) | p. 126 |
| Rear remote quick-coupler size | 1/2 inch | p. 121 |
| C.V.T. transmission oil capacity | 35.2 l (9.3 US gal) | p. 147 |
| Main fuse rating | 60 A | p. 154 |
| Headlight bulb type | HB3, single element 60 W Halogen | p. 158 |
| System Relief Valve Setting | 171.6 bar (2488 psi) | p. 175 |
| Engine Gross Horsepower | 37.3 kW (50 Hp) | p. 173 |
| Engine Crankcase Oil Capacity (with filter) | 6.0 L (6.3 US qt) | p. 173 |
| Transmission/Rear Axle/Hydraulic Oil Capacity | 35.2 L (9.3 US gal) | p. 173 |
| Front Axle Differential/Final Reduction Gear Case Oil Capacity | 5.3 L (5.6 US qt) | p. 173 |
| Fuel Tank Capacity | 49.2 L (13 US gal) | p. 173 |
New Holland Boomer 8N Common Problems This Manual Covers
Fault code and no forward movement
The CVT can drop into a protective mode where the tractor simply will not drive, with a code on the instrument display. The Controls/Instruments section explains the ADIC fault codes, including the non-numerical display codes, plus the shuttle lever, speed range, and cruise settings, so you can rule out an operator input problem before calling the dealer.
Manual Section: Controls/Instruments p. 45Three-point hitch drops or will not lift
A mower or box blade that sags under load or refuses to raise often traces back to linkage setup or the lift controls rather than a worn pump. Working Operations walks through the deluxe three-point linkage system, attaching and detaching equipment, and configuring the rear remote valves.
Manual Section: Working Operations p. 105Hard starting after fuel filter service
Air trapped in the injection lines will keep the N844L diesel cranking without firing, usually right after a filter change or running the tank dry. The Maintenance section covers fuel filter replacement and bleeding the fuel and injection system so it lights off again.
Manual Section: Maintenance p. 123Engine runs hot in summer work
Mowing and loader work in dusty conditions plug the cooling system faster than the hour meter suggests. The Maintenance section covers the engine coolant system along with the air cleaner service that keeps the little diesel breathing under load.
Manual Section: Maintenance p. 123PTO will not engage or stay running
The independent PTO on the 8N depends on the correct control sequence, and skipping a step leaves the shaft dead with an implement hooked up and daylight burning. The Controls/Instruments section explains the PTO controls for the independent type step by step.
Manual Section: Controls/Instruments p. 45Towing a dead Boomer 8N safely
A tractor with a CVT cannot just be dragged home behind the pickup without risking transmission damage. Transport Operations gives the preparation for towing procedure and the lighting requirements for road transport.
Manual Section: Transport Operations p. 99Frequently Asked Questions
Which tractor does this manual cover?
It is the New Holland operator manual for the Boomer 8N compact tractor with the N844L diesel engine, publication number 84527123. It is 194 pages, in English, delivered as a PDF download.
Does it include service intervals and fluid capacities?
Yes. The Maintenance section has the full maintenance chart, including engine oil changes every 200 hours after the first 50, and fuel filter changes every 300 hours. Capacities such as 6.0 L engine oil, 35.2 L transmission and hydraulic oil, and the 49.2 L fuel tank are listed in Specifications. p. 123
Are torque and hydraulic pressure specs included?
The Specifications section covers engine, electrical, brakes, PTO, and hydraulic lift data, including the 171.6 bar (2488 psi) lift system relief valve setting. Wheel bolt torques (129 N·m front and rear) and hydraulic tube nut torques appear in the Maintenance section. p. 173
Does it explain the fault codes on the dash display?
Yes. The Controls/Instruments section documents the ADIC fault codes, including the non-numerical display codes, along with ADIC programming and instrument panel functions, so you can identify what the display is reporting before parts get thrown at the problem. p. 45
How will I receive this New Holland Boomer 8N Operator Manual?
All 194 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Am I free to print this New Holland Boomer 8N Operator Manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
