Part of the New Holland Repair Manuals.
Spanning 947 pages, this New Holland Boomer 8N service manual PDF (OEM #84307374) breaks down the complete engine, CVT transmission, and PTO systems for your tractor. You get access to complete hydraulic schematics outlining the mechanical lift assembly, full electrical wiring diagrams, and a detailed troubleshooting section covering every fault code. Open to the transmission chapter to find step-by-step rebuild procedures for the forward/reverse shuttle clutch and variator assembly. Verify your PTO clutch disc thickness is exactly 2.2 mm before you lock down the M12 variator assembly bolts to 90-100 N-m. Stop hunting down transmission calibration steps on internet forums. Download this bookmarked file directly to your shop tablet, search for your specific New Holland Boomer 8N spec, and get back to turning wrenches.
What's Inside This New Holland Boomer 8N, New Holland Boomer 8N Manual

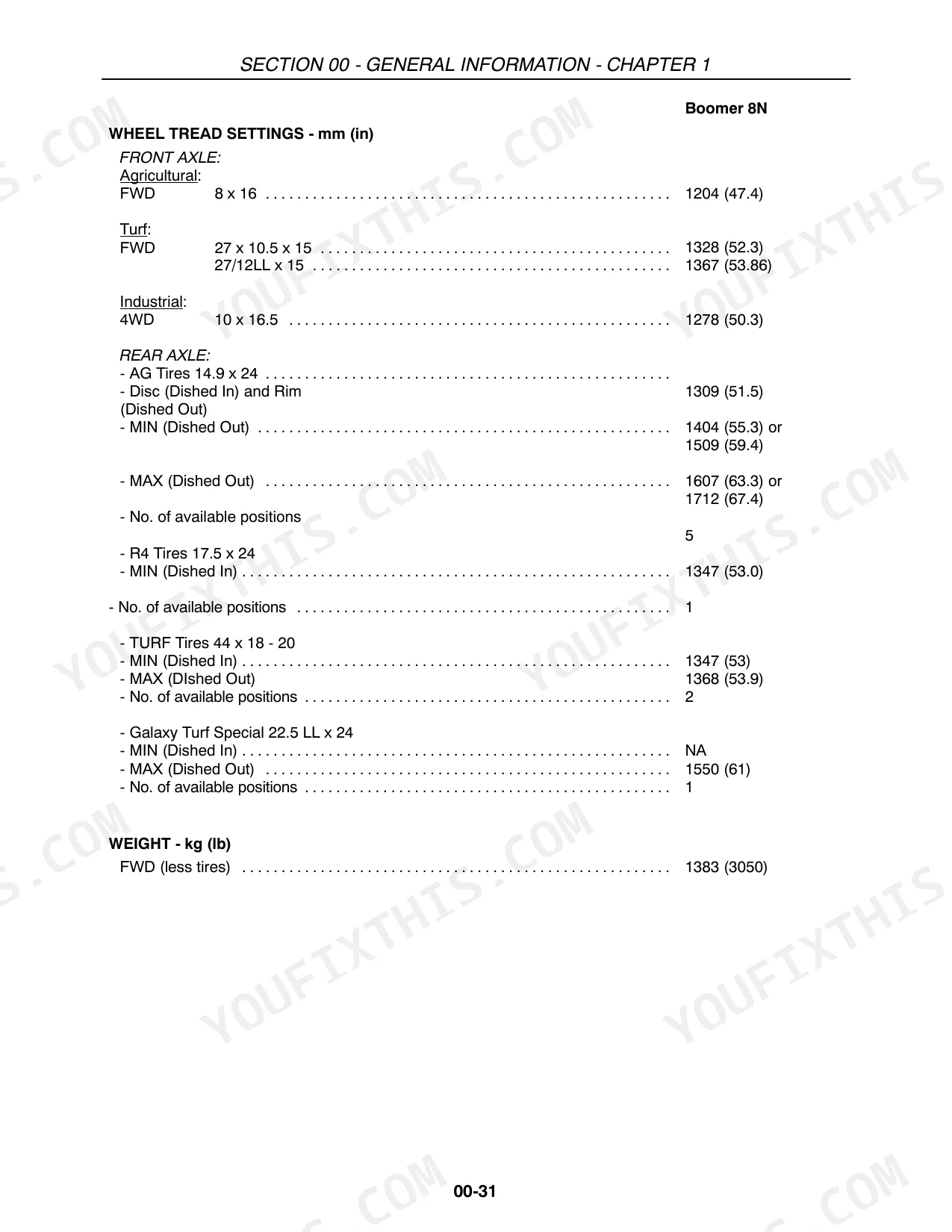

| System | Pages | Key Topics |
|---|---|---|
| General Information | 2-37 | Precautionary Statements, Technical Information, Hardware, Safety Decals, Universal Symbols, Specifications |

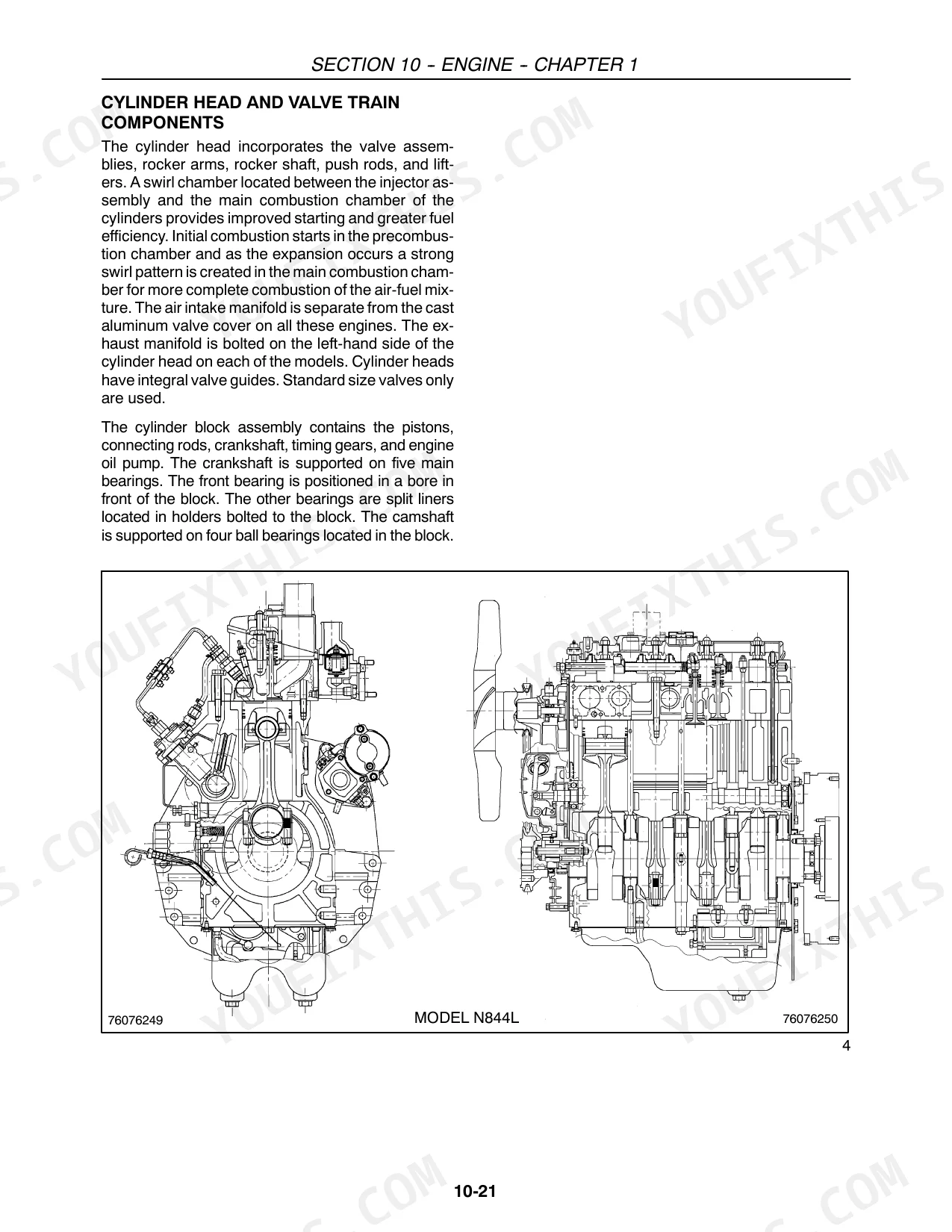

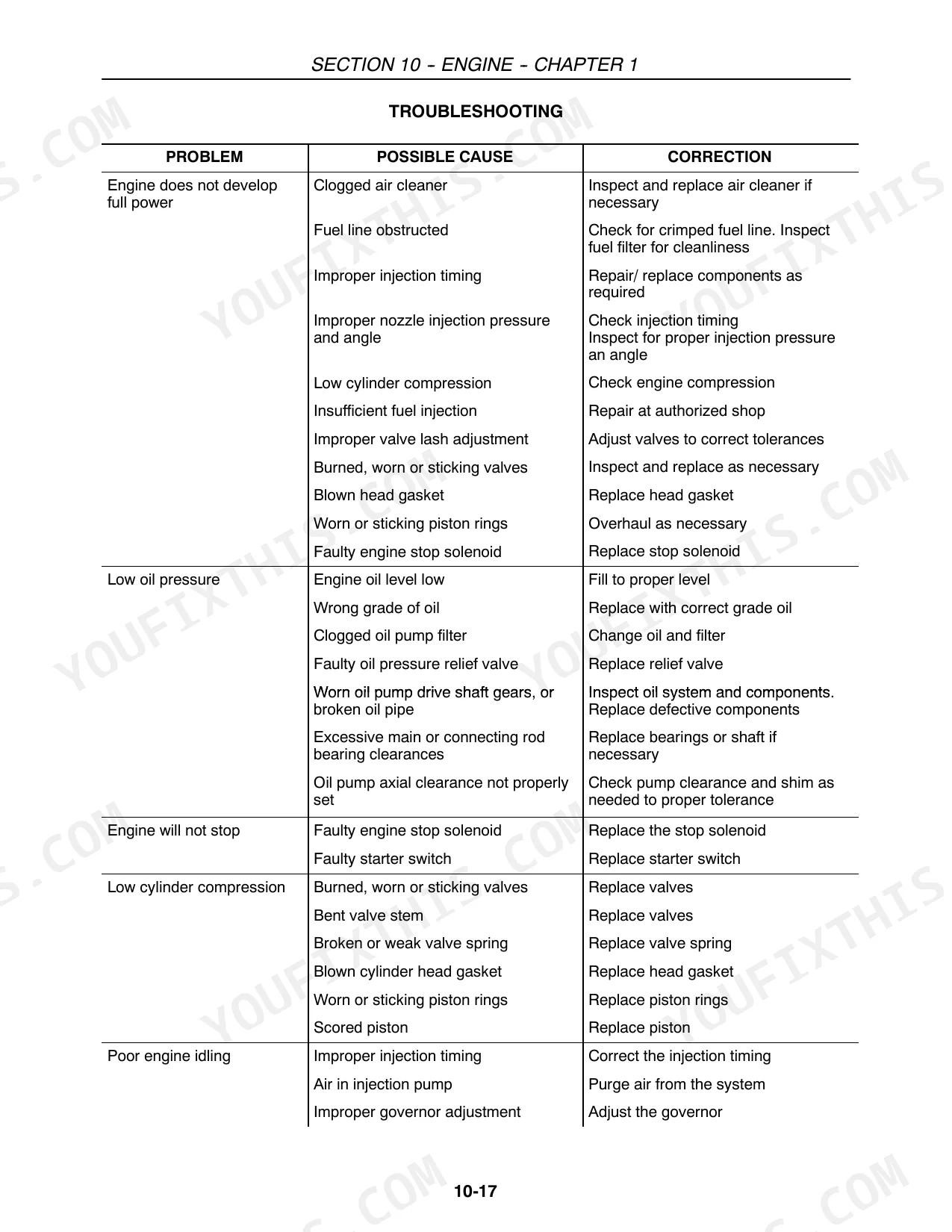

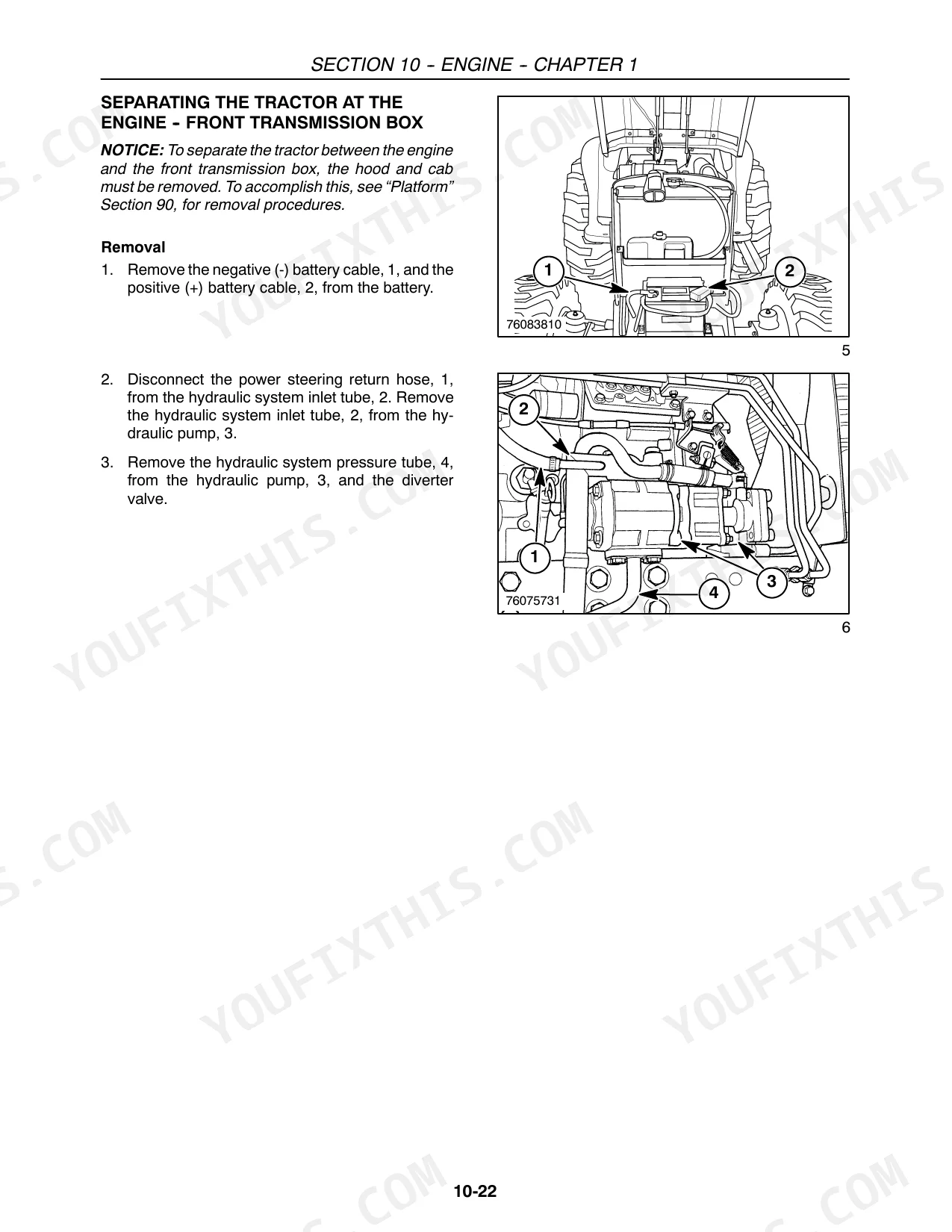

| Engine | 38-171 | Specifications, Cylinder Block, Cylinder Head, Piston, Crankshaft, Lubrication System |
| Transmission | 172-259 | Front Transmission Box, Forward/Reverse Shuttle Clutch, Variator, Hydraulic Pump, Park Lock Control, CVT Transmission Sensors, Valves and Switches |
| FWD Front Axle | 260-291 | Specifications, Front to Rear Axle Ratio, Gear Reduction Drop Box, Differential, 4WD Engage/Disengage Theory of Operation |
| Differential and Rear Axle | 292-341 | Specifications, Differential, Differential Lock, Drive Pinion, Secondary Pulley Output Shaft, Rear Axle |
| Power Take-Off (PTO) Systems | 342-399 | Specifications, PTO Hydraulic System, PTO Clutch, Rear PTO, PTO Activation Electrohydraulic Circuit, Mid PTO |
| Brakes | 400-419 | Specifications, Brake Discs, Stators, Brake Pedal Components, Park Brake, Adjustment |

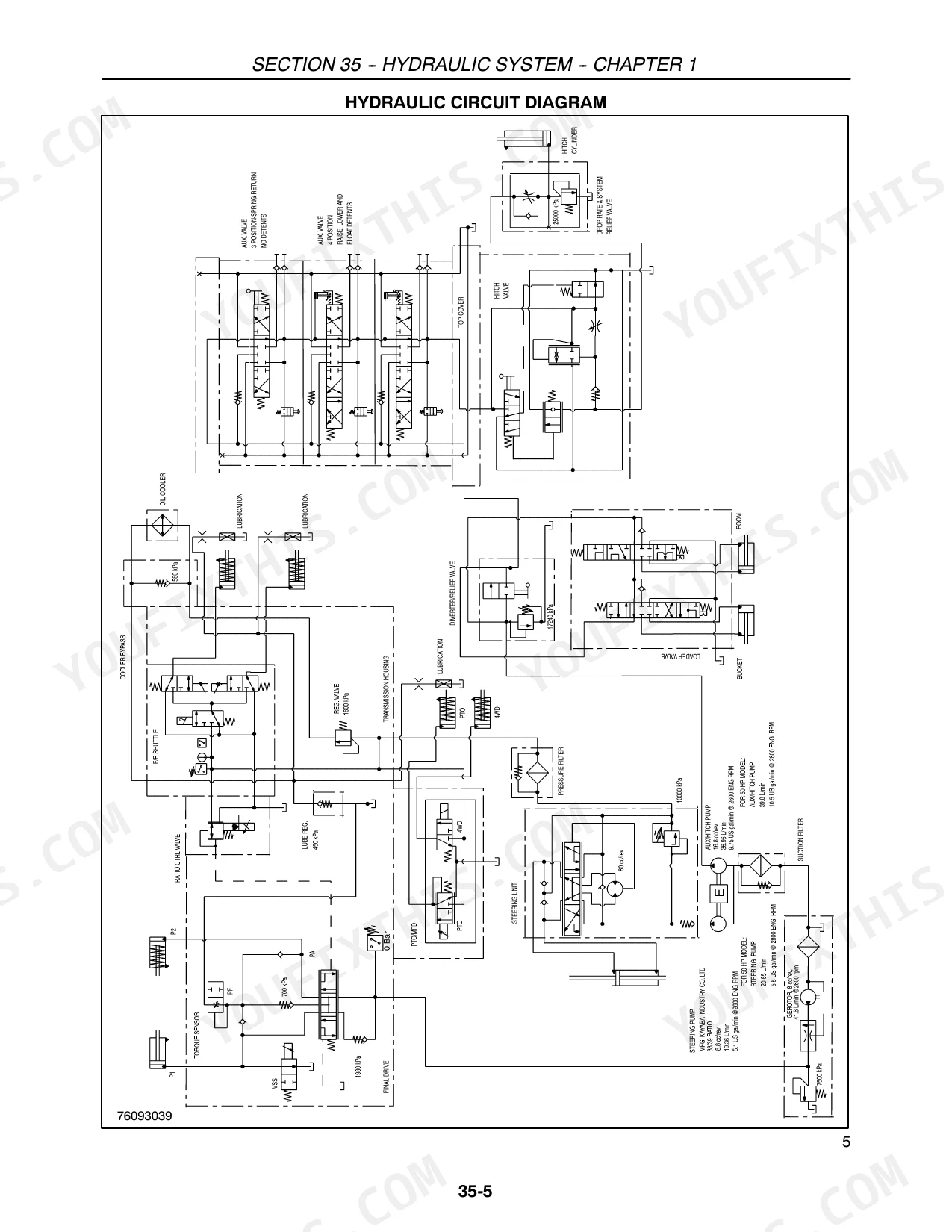

| Hydraulic System | 420-523 | Specifications, Hydraulic Pump, Filter, Mechanical Hydraulic Lift Assembly, Hydraulic Control Valve, Piv Manifold Block |
| Steering | 524-573 | Power Steering System, Power Steering Operation, Steering Cylinder, Control Motor, Power Steering Pump, Pressure Relief Valve |

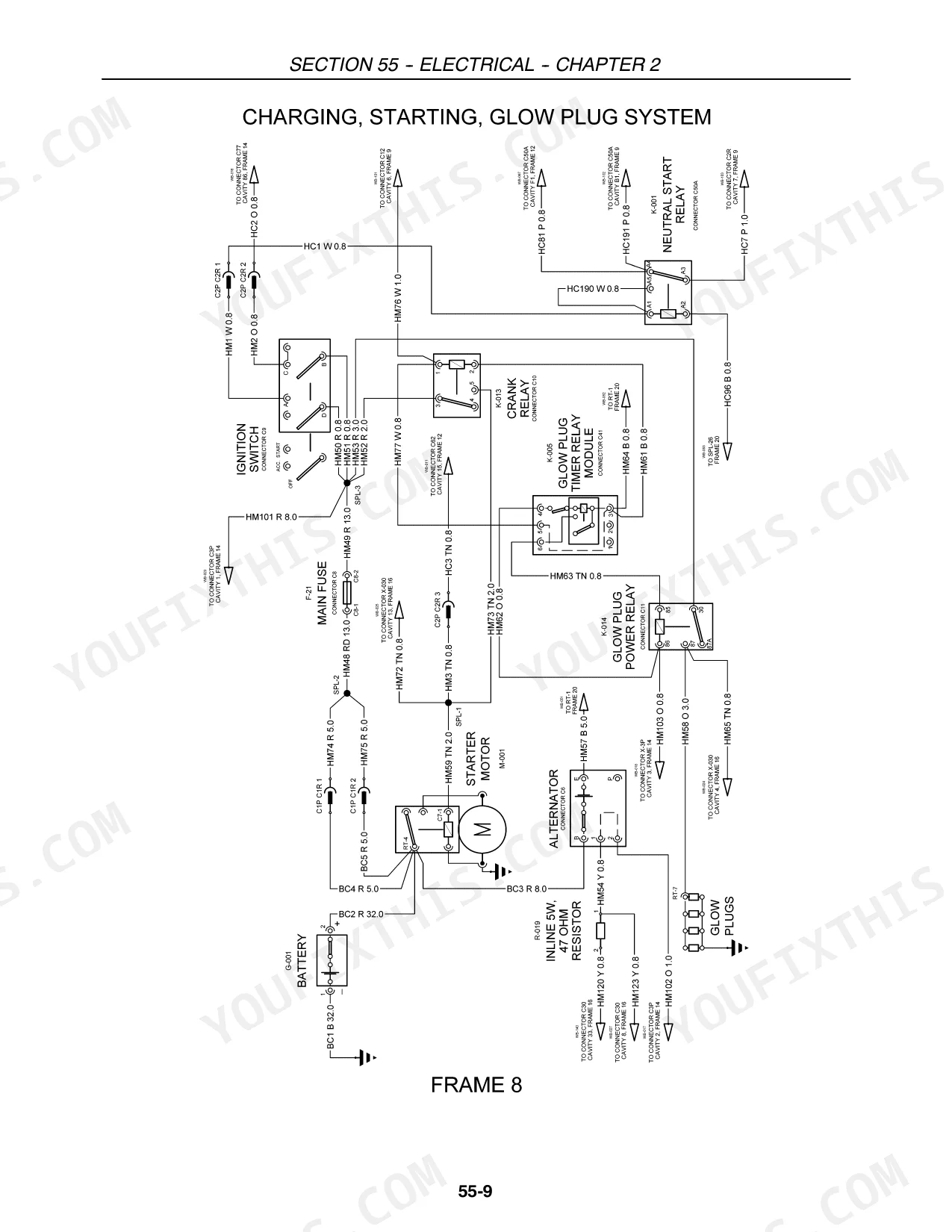

| Electrical | 574-917 | Electrical Schematics, Starting Circuit, Glow Plug Circuit, Headlights Circuit, Charging Circuit, Fault Codes |
| Platform | 918-947 | Hood, Rear Hood Panel, Dash Console, Seat, ROPS, Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| PTO Clutch Disc Quantity | 3 discs | p. 344 |
| PTO Clutch Standard Clutch Disc Thickness | 2.2 mm (0.086 in) | p. 344 |
| M12 Bolt, Variator Assembly Torque | 90--100 N⋅m (66--74 lb ft) | p. 206 |
| Retaining Bolt, Transmission Release Control Torque | 20--25 N⋅m (15--19 lb ft) | p. 206 |
| Oil seal installation depth (from outer most surface of housing) | 2 mm | p. 277 |
| Engine Gross Horsepower | 33.6 kW (45 Hp) | p. 23 |
| Engine Displacement | 2.2 L (135.2 cu in) | p. 344 |
| Fuel Tank Capacity | 49.2 L (13 US gal) | p. 23 |
| Cooling System Capacity | 9.0 L (9.6 US qt) | p. 23 |
New Holland Boomer 8N, New Holland Boomer 8N Common Problems This Manual Covers
New Holland Boomer 8N shows RP release pedal error code and refuses to move forward.
Calibrate the forward and reverse clutches to clear the code. Read the display on page 773 to verify the forward clutch calibration falls within the typical 225 to 500 mA range. Turn the key switch off for at least 5 seconds to store the new transmission calibration values permanently.
Manual Section: Transmission Clutch Calibration p. 773PTO clutch slips under heavy load or fails to engage the driven implement completely.
Inspect the PTO clutch pack for worn friction material. Measure the clutch disc thickness directly. Replace the assembly if any disc measures below the 1.675 mm (0.065 in) minimum thickness limit. Check page 344 for instructions to verify the clutch pack maintains the 0.7 mm (0.02 in) minimum air gap.
Manual Section: Power Take-Off (PTO) Systems p. 344Harsh transmission engagement and constant ground speed surging during normal field operation.
Perform the variator calibration procedure outlined on page 772. Allow the tractor to creep while holding the SET switch until the calibration current is measured seven times. Replace the variator assembly as a complete unit if internal damage is visible, torquing the M12 bolts to 90 to 100 Nm.
Manual Section: Rear Transmission Variator Calibration p. 772Heavy gear oil leaking down the inner tire wall from the front wheel hub assembly.
Remove the front wheel and inspect the axle hub seal for damage. Drive the new oil seal to an exact installation depth of 2 mm from the outermost surface of the housing as shown on page 277. Torque the front wheel disc-to-hub bolts to 129 Nm (95 lb ft).
Manual Section: FWD Front Axle p. 277Frequently Asked Questions
How do I adjust the brake pedal free play on the New Holland Boomer 8N?
The brake pedal free play on the New Holland Boomer 8N should be approximately 30 mm (1 in). If the pedal travel is excessive, adjustments are required by loosening the jam nuts on the cable and rotating the turnbuckle. This procedure is detailed in the "ADJUSTMENT" section. p. 418
What are the torque specifications for the N844L engine bolts on the Boomer 8N?
Torque specifications for the Boomer 8N N844L engine bolts vary by component. For example, Connecting Rod Cap Bolts should be torqued to 49 - 54 N⋅m (36 - 40 lb ft), and Cylinder Head Bolts to 98 - 103 N⋅m (72.3 - 76 lb ft). Refer to the "TORQUE SPECIFICATION N844L" table on page 49 for a complete list. p. 49
What are some of the error codes for New Holland Boomer 8N transmission failure?

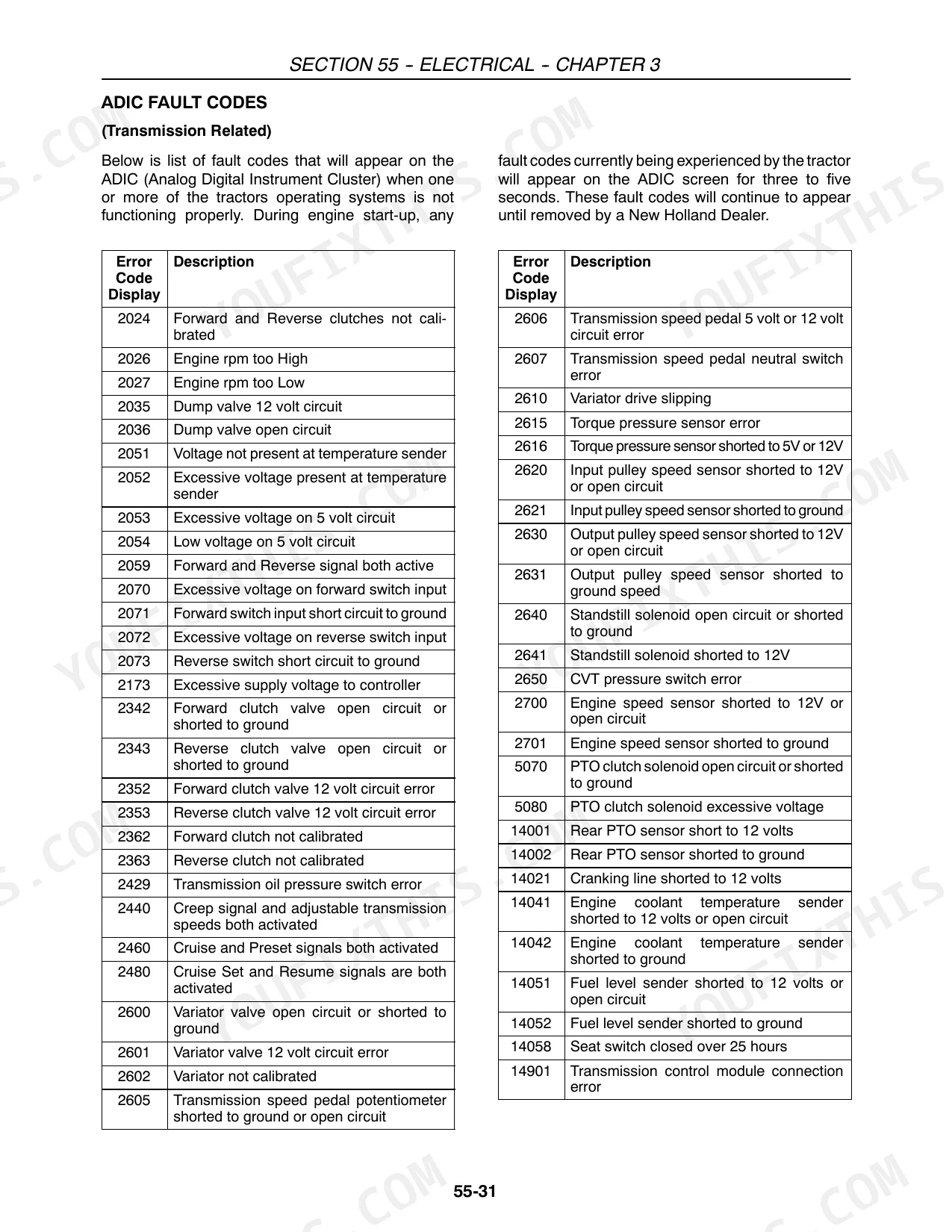

The New Holland Boomer 8N has various error codes related to transmission failure, listed under "Error Codes for the SF module". Examples include 2024 for uncalibrated forward and reverse clutches, 2610 for variator drive slipping, and 2650 for CVT pressure switch error. A comprehensive list can be found on page 778. p. 778
How do I reset the ADIC computer on the New Holland Boomer 8N?
To reset the computer on the New Holland Boomer 8N, you can use the "H8--Clear non-volatile memory (EEPROM)" function in the ADIC. This procedure clears all calibration settings and stored error code information, restoring the module's EEPROM values to factory defaults. A diagnostic jumper (special tool 380000843) is required to access all HH menus. p. 777
Is this New Holland Boomer 8N, Holland Boomer 8N manual a digital download?
Instant PDF download. You get the full 947-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this New Holland Boomer 8N, Holland Boomer 8N Service Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Can I find wiring schematics in this New Holland Boomer 8N, Holland Boomer 8N?
Included. The New Holland Boomer 8N, Holland Boomer 8N Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
