Part of the New Holland Operator Manuals.
Starting procedures, four wheel drive and differential lock operation, the maintenance chart, fault code resolution: this factory operator manual (New Holland publication 84495713) walks the T5.95, T5.105, and T5.115 through all of it in 258 pages, covering the F5DFL413 engine variants fitted to each model.
Guessing a wheel nut torque or a filter tightening spec is how studs shear and housings leak. This book gives the real figures: 255 N·m on disc to hub nuts, a 155 L fuel tank, 6.4 to 8.1 L of engine oil, and scheduled intervals for the fuel, air, and hydraulic filters. Troubleshooting charts cover the engine, electrical system, hydraulics, rear three-point hitch, and cab climate control.
It is a downloadable PDF, bought once and yours to keep with the tractor. When the baler is hitched and rain is two days out, the answer is on your phone or on a printed page in the cab, not an hour away at a dealer counter.
What's Inside This New Holland T5.95, T5.105, T5.115 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-24 | Introduction, Various Controls, Break-In Period, Fuel Supply, Biodiesel Fuel - Biodiesel Fuels, Body Maintenance, Opening the Hood |
| Safety Information | 25-42 | Safety Rules and Signal Word Definitions, Air Conditioning Safety Regulations, Vehicle Vibration Levels, Cab Guard, Personal Protective Equipment, Tractor Jacking Points |

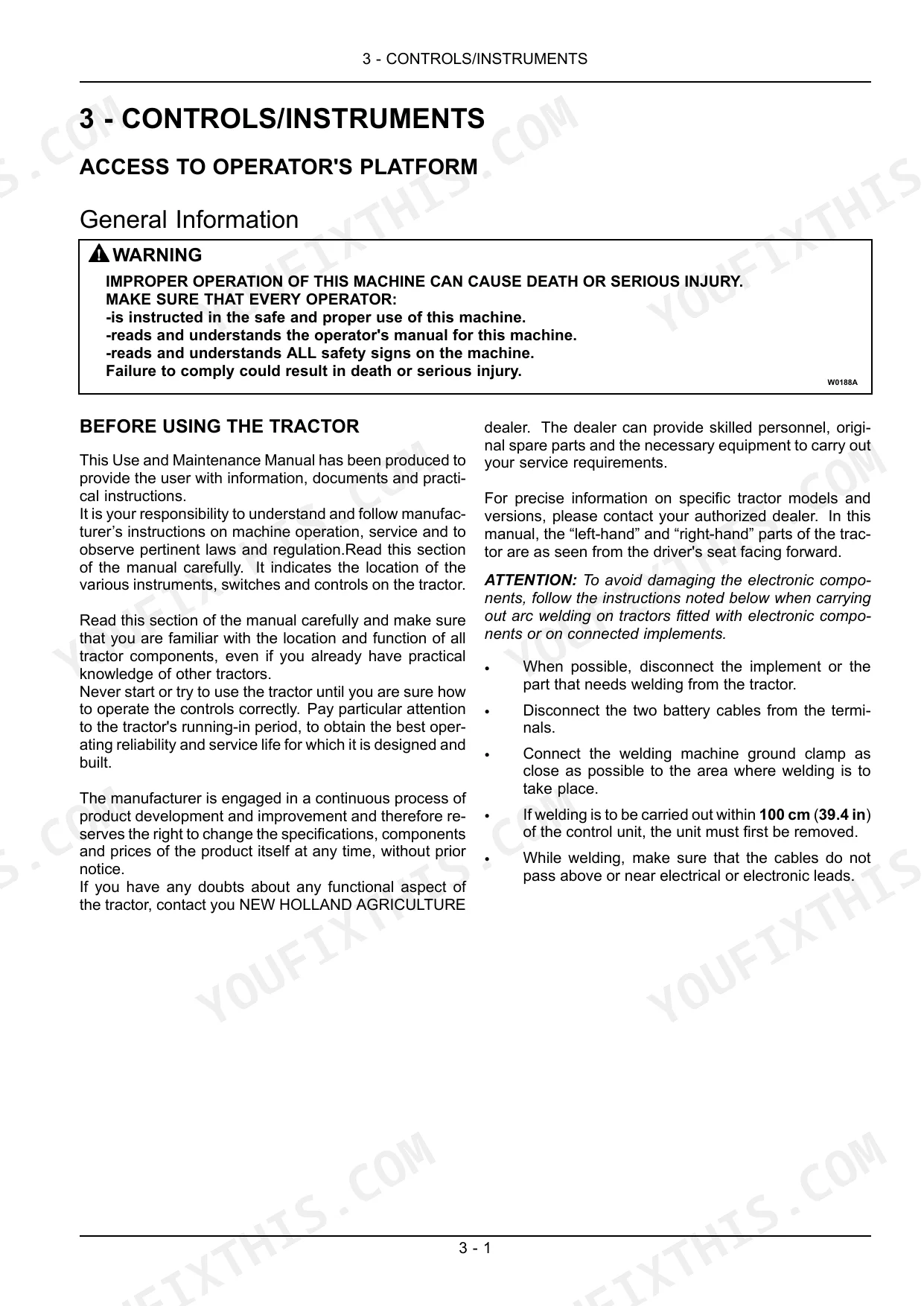

| Controls/Instruments | 43-88 | Access to Operator's Platform (Cab, Heating, Ventilation or Air-Conditioning Control), Operator's Seat (Standard Seat, Air Seat "Deluxe" Model, Air Seat "Premium" Model, Seat Belt) |

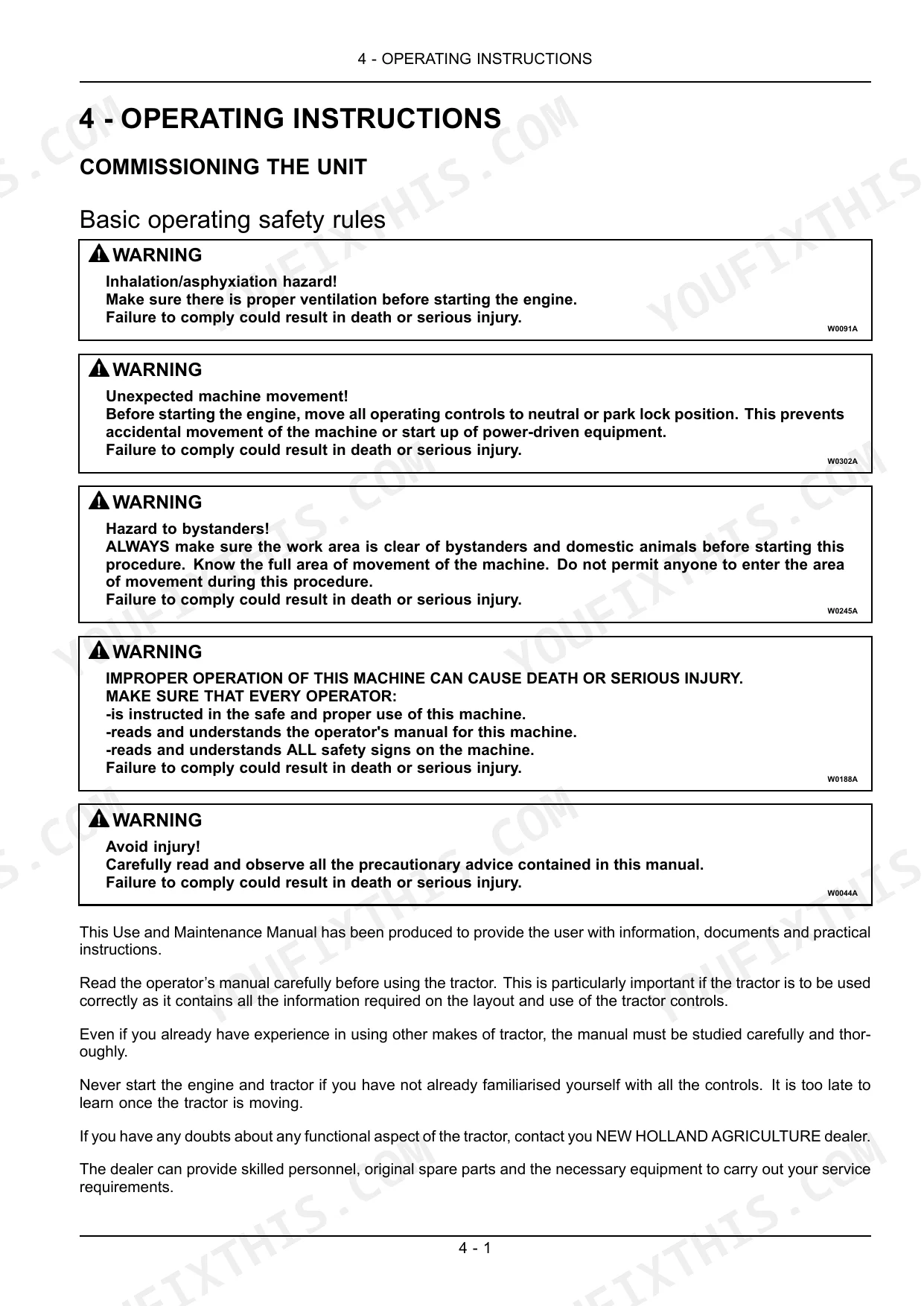

| Operating Instructions | 89-108 | Commissioning the Unit (Basic Operating Safety Rules), Starting the Unit (Starting the Engine, Idle Engine Speed Control), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 109-110 | Road Transport (Transporting the Machine), Recovery Transport (Towing the Tractor) |
| Working Operations | 111-160 | 2WD or 4WD (Four-Wheel Drive with Electro-Hydraulic Control), Differential Lock (Hydraulic Control - Operating) |

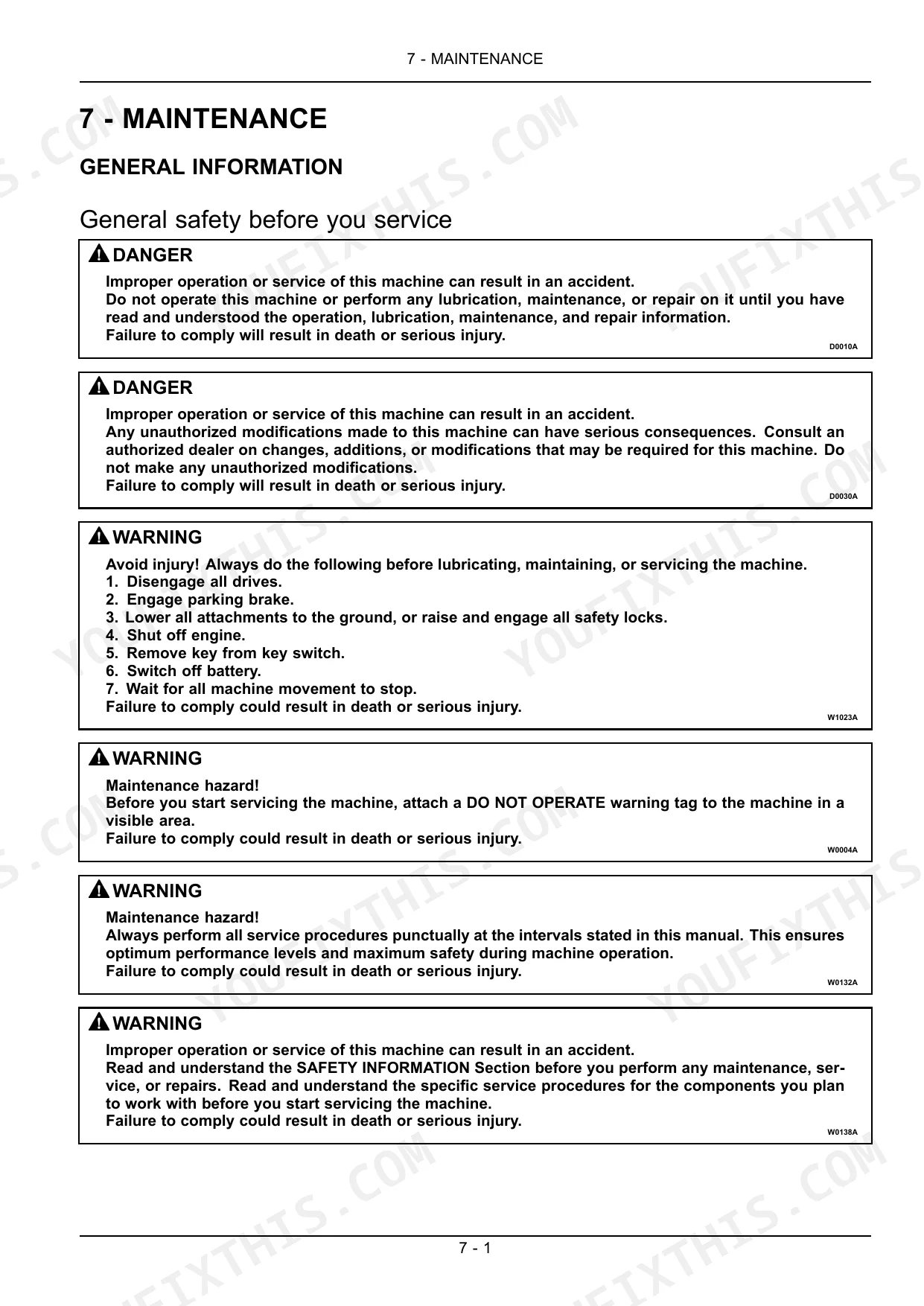

| Maintenance | 161-214 | Maintenance Chart |

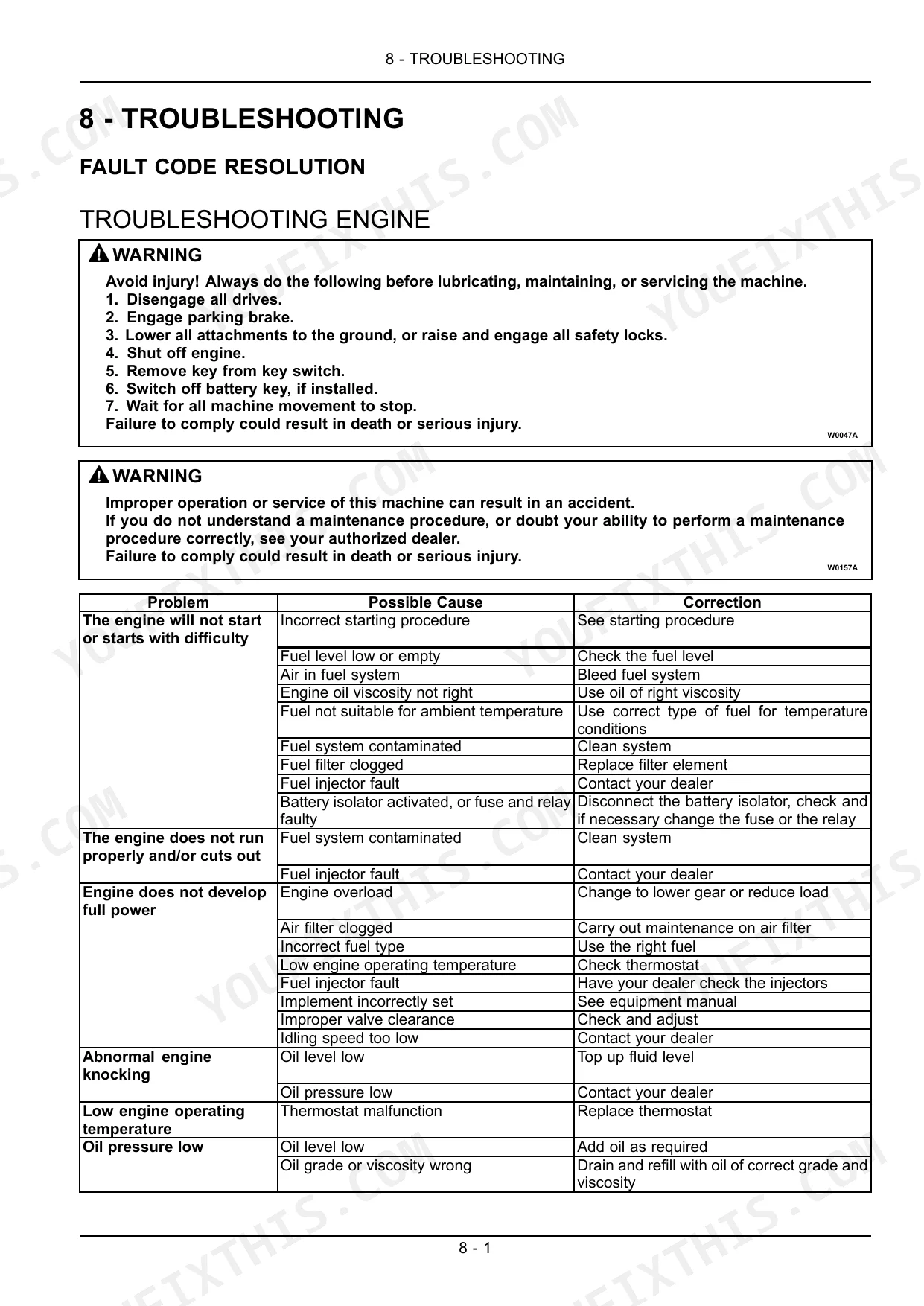

| Troubleshooting | 215-230 | Fault Code Resolution (Troubleshooting Engine, Electrical System - Troubleshooting Electrical System, Hydraulic Systems - Troubleshooting Hydraulic System, Rear Three-Point Hitch - Troubleshooting Hydraulic Lift and 3-Point Linkage, Hydraulic Service Brakes - Troubleshooting, Cab Climate Control - Troubleshooting) |
| Specifications | 231-236 | Dimensions and Weights, Technical Data |
| Accessories | 237-258 | Radio, Front-End Loader, Joystick for Control Valves, Hydraulic Valve for Trailer Brakes, Trailer Brake Connections |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Alternator belt | Every 300 hours | p. 6 |
| Replacing the fuel filters | Every 600 hours | p. 6 |
| Replacing air filters | Every 1200 hours or annually | p. 6 |
| Hydraulic circuit oil filter | Every 300 hours | p. 6 |
| Disc - hub nuts | 255 N·m | p. 152 |
| Disc - rim nuts | 275 N·m | p. 152 |
| Fuel filter tightening | 3/4 of a turn | p. 189 |
| Compressed air pressure for cleaning | 5 bar (72.5 psi) | p. 178 |
| Hydraulic circuit oil filter tightening | 3/4 of a turn | p. 184 |
| Fuel Tank Capacity | 155L | p. 166 |
| T5.95 | ||
| Engine Power (T5.95) | 73 kW | p. 233 |
| T5.105 | ||
| Engine Power (T5.105) | 79 kW | p. 233 |
New Holland T5.95, T5.105, T5.115 Common Problems This Manual Covers
Hard starting and fuel starvation under load
A tractor that cranks long or stumbles when the engine comes under load is often starving through a clogged fuel filter. The Maintenance section schedules filter replacement at every 600 hours and gives the tightening procedure, three quarters of a turn after the seal seats.
Manual Section: Maintenance p. 161Three-point hitch will not lift
An implement that raises slowly, drops on its own, or refuses to lift can trace to the hydraulics or the linkage itself. The Troubleshooting section carries a dedicated chart for the hydraulic lift and 3-point linkage alongside the general hydraulic system tables.
Manual Section: Troubleshooting p. 2154WD or differential lock refuses to engage
Four wheel drive and the diff lock on these tractors engage through electro-hydraulic controls, so a fault can be electrical rather than mechanical. Working Operations explains the correct engagement and disengagement conditions to check before you start chasing wiring.
Manual Section: Working Operations p. 111Wheel nuts working loose after tire changes
Ballast changes, track width adjustments, and seasonal tire swaps mean wheel hardware comes off far more often than on a road vehicle, and a guessed torque is how studs fail in the field. The Maintenance section specifies 255 N·m for disc to hub nuts and 275 N·m for disc to rim nuts.
Manual Section: Maintenance p. 161Weak or dusty cab airflow
Chaff and dust plug the cab air filter fast during tillage and baling, and the air conditioning usually gets the blame. The manual covers cab filter cleaning under Maintenance and includes a separate cab climate control chart in the Troubleshooting section.
Manual Section: Troubleshooting p. 215Recovery towing done wrong
A dead or stuck tractor pulled from the wrong point can damage the transmission or the drawbar area, turning one problem into two. Transport Operations covers towing the tractor and road transport so recovery does not create a second repair.
Manual Section: Transport Operations p. 109Trailer brakes not responding at the coupling
Coupling a braked trailer to the wrong port, or to a valve that is not set up correctly, leaves you on the road with a heavy load and no trailer braking. The Accessories section covers the hydraulic valve for trailer brakes and the trailer brake connections.
