Part of the New Holland Repair Manuals.
This is the factory repair manual for the New Holland T5.95, T5.105 and T5.115 tractors, the same document a dealer technician works from. It follows the CNH product structure: engine, clutch, transmission, four-wheel drive, axles, PTO, brakes, hydraulics, hitches, steering, wheels, electrical and cab. All three tractors share the FPT four-cylinder 3400 cm3 common-rail engine, so the difference between them is rating rather than hardware. The electrical section is the bulk of the book, running from page 748 to page 2141, and most of it is harness drawings, connector views and the engine ECU fault-code tables with their guided test procedures.

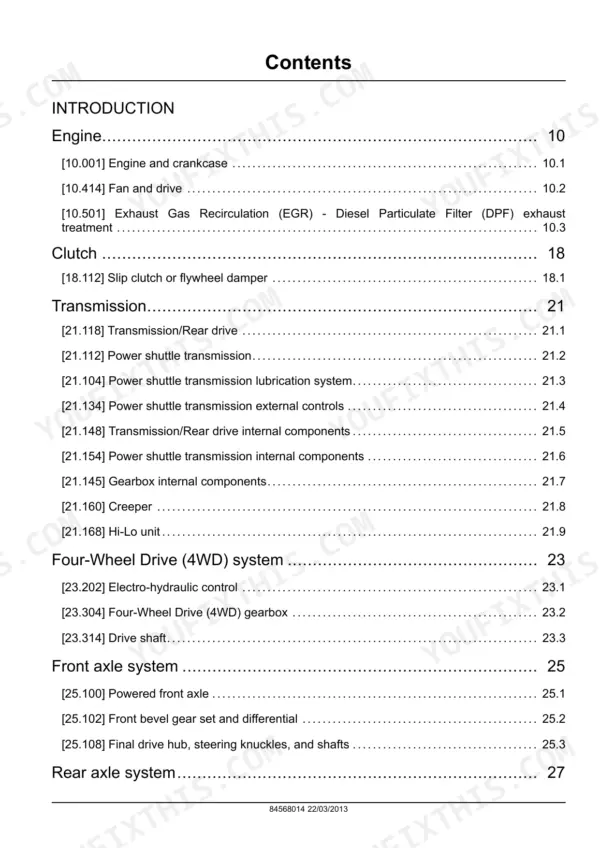

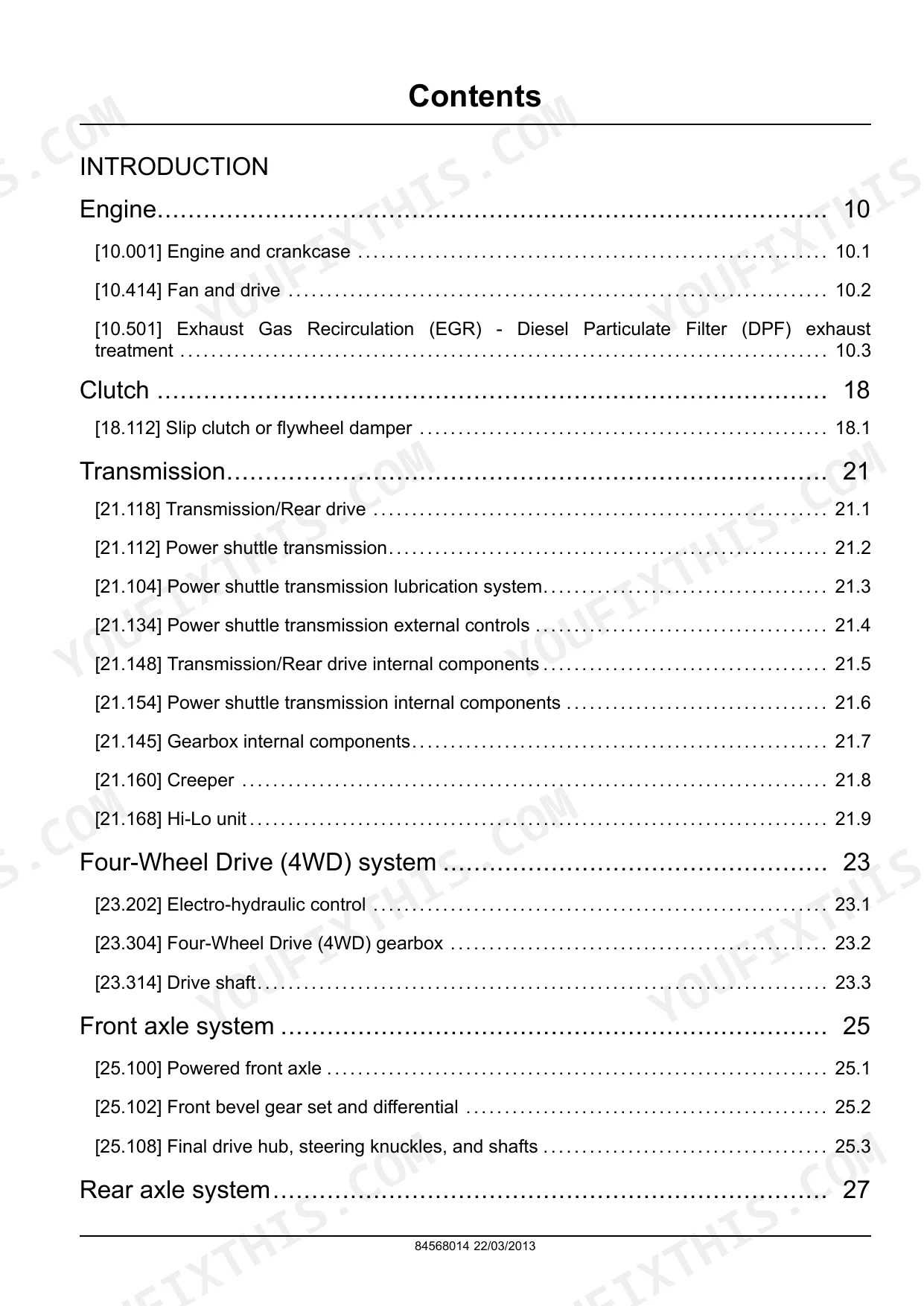

What's Inside This New Holland T5.95, T5.105, T5.115 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 8-19 | Shop Safety, Torque Standards, Approved Fluids and Lubricants, Tractor Identification and How to Use the Manual |
| Engine | 20-73 | Fpt 4-Cylinder 3400 Cm3 Turbocharged and Intercooled Diesel, Bosch Hpcr CP4.1 Common Rail Injection, Hydraulic Valve Lash, Cooling and Lubrication, Turbocharger and Intercooler, Engine Overhaul |
| Clutch | 74-81 | Clutch Assembly and Release Mechanism, Pedal Free Play, Clutch Removal and Refitting |

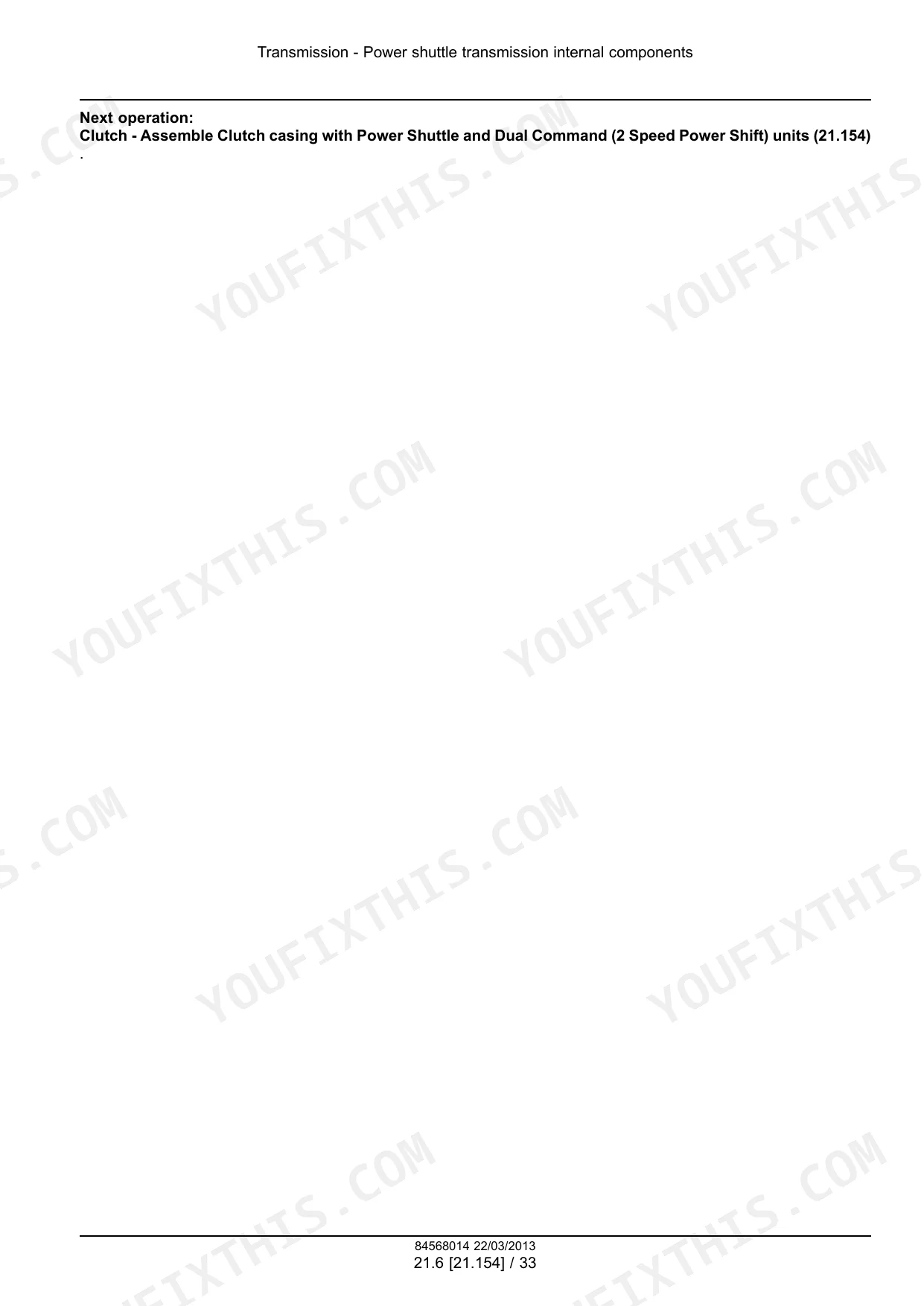

| Transmission | 82-297 | Powershuttle and Range Gearboxes, Creeper, Synchronisers and Shift Forks, Control Valves and Clutch Packs, Transmission Strip-Down and Reassembly |
| Four-Wheel Drive (4WD) System | 298-333 | 4WD Engagement Clutch and Control, Drive Shaft and Support Bearings, 4WD System Testing and Overhaul |
| Front Axle System | 334-407 | Driven Front Axle, Bevel Drive and Differential, Epicyclic Hub Reduction, Steering Knuckles and Pivots, Axle Removal and Rebuild |
| Rear Axle System | 408-443 | Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash Setting |

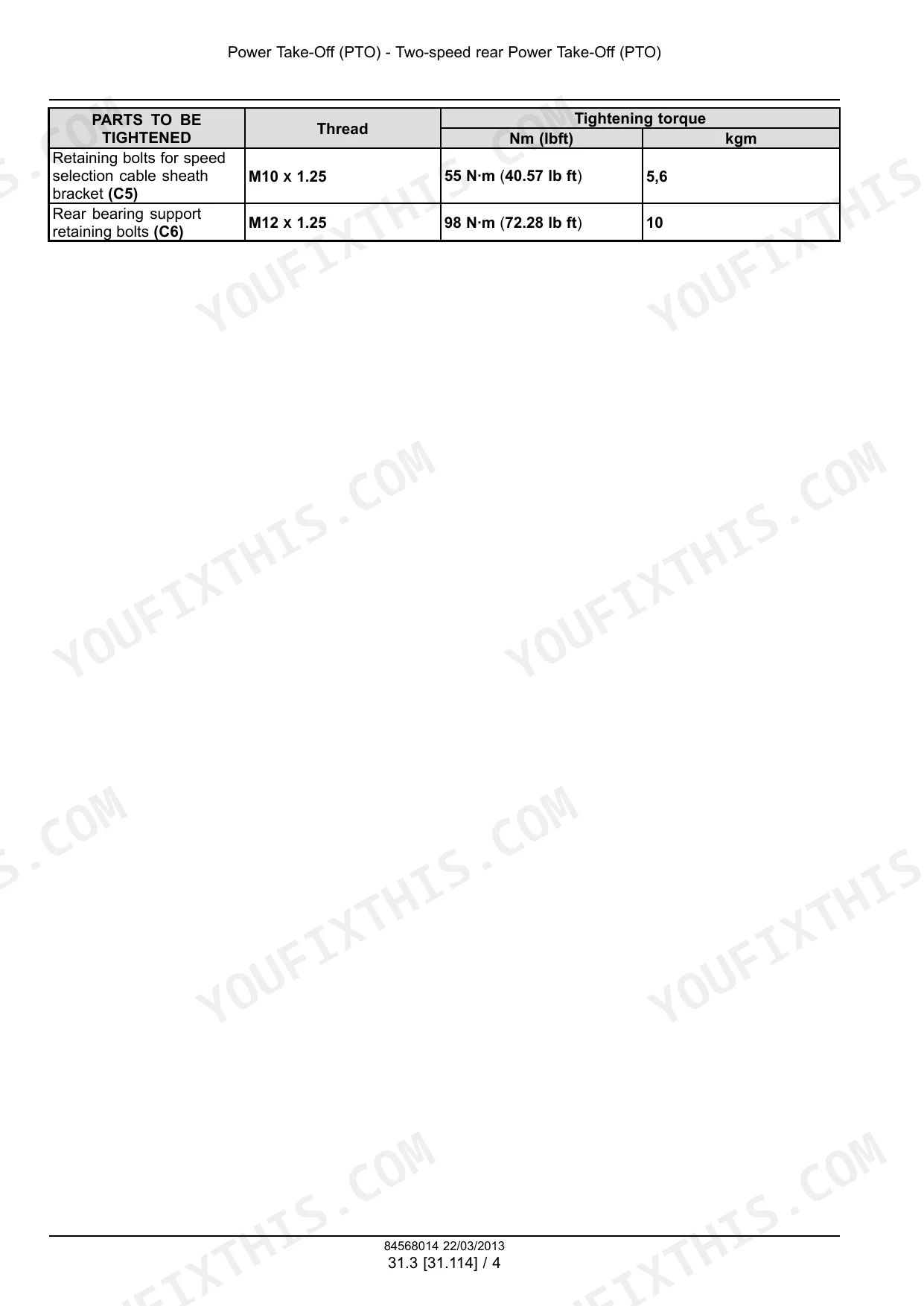

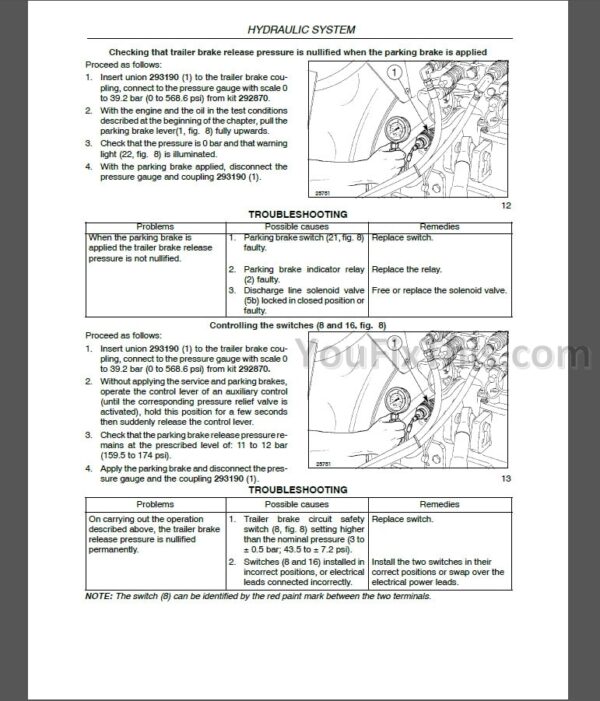

| Power Take-Off (PTO) | 444-511 | Rear PTO Clutch and Brake, PTO Speed Selection and Output Shaft Change, Ground-Speed PTO, PTO Overhaul and Pressure Testing |
| Brakes and Controls | 512-577 | Wet Disc Service Brakes, Parking Brake, Trailer Brake Valve, Pedal Adjustment, Bleeding the Brake Circuit |
| Hydraulic Systems | 578-681 | Hydraulic Pump and Supply Circuit, Rear Lift with Electronic Draft Control, Remote Control Valves, Hydraulic Schematics, Pressure Test Points and Pump Overhaul |
| Hitches, Drawbars and Implement Couplings | 682-697 | Rear Three-Point Hitch and Lift Links, Front Hitch, Drawbars and Pick-Up Hitch, Implement Coupling and Setting |

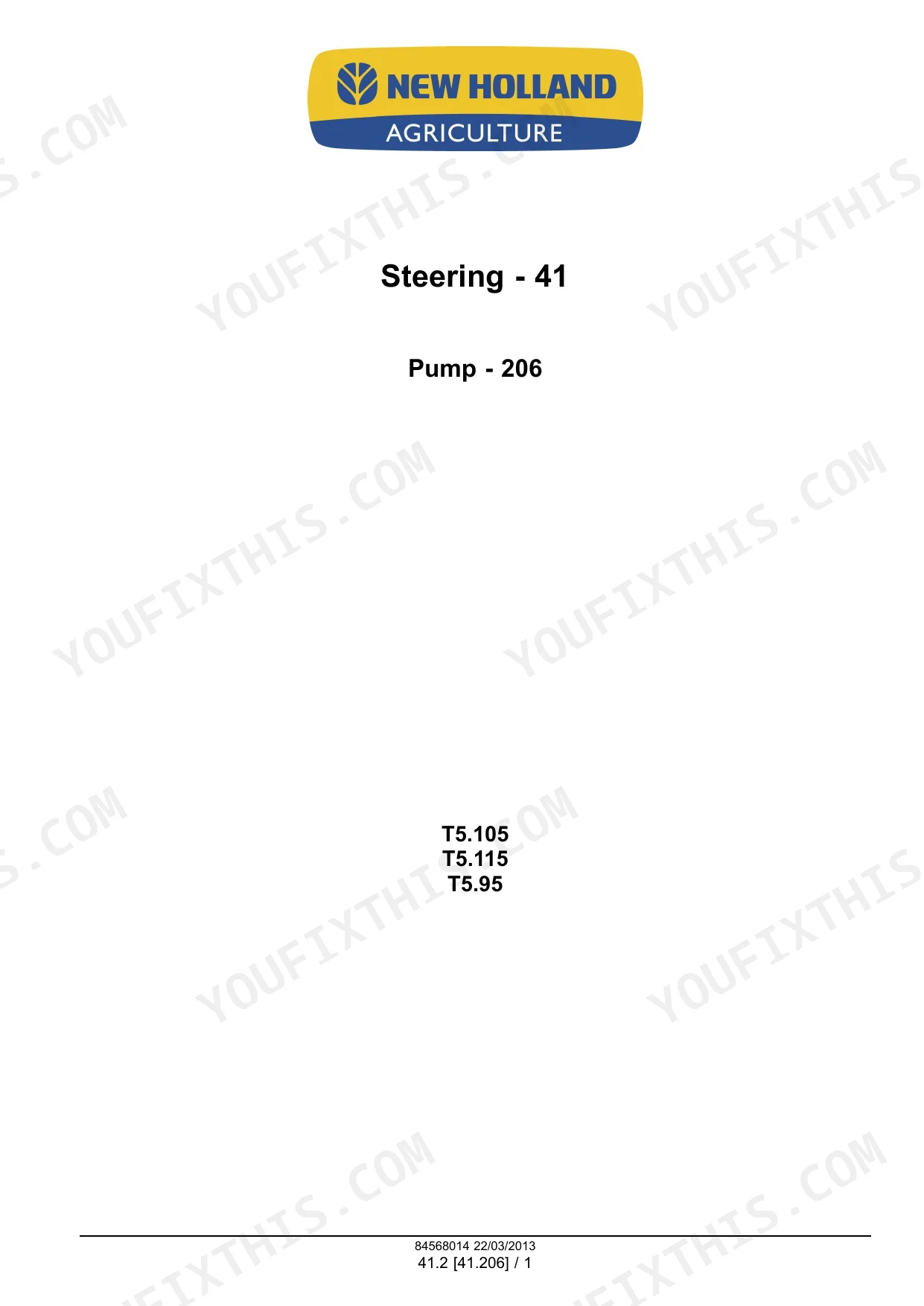

| Steering | 698-739 | Hydrostatic Steering Unit, Steering Control Valve and Cylinder, Steering Column, Steering Circuit Fault Finding |
| Wheels | 740-747 | Wheel and Tyre Fitment, Track Width Adjustment, Wheel Nut Torques, Ballasting |
| Electrical Systems: Sensors and General | 748-787 | Electrical System Overview, Sensors and Switches, Batteries, Fuses and Relays, General Electrical Service |
| Electrical Systems: Harnesses, Connectors and Wiring Schematics | 788-1191 | Complete Wire Harness Drawings and Connector Views, Pin-Out Tables, Component Location, Electrical Schematics for Each Build |
| Electrical Systems: Starting, Charging and Electronic Modules | 1192-1339 | Engine Starting System, Alternator and Charging Circuit, Electronic Control Modules, Module Replacement and Calibration |
| Electrical Systems: Warning Indicators and Fault Codes | 1340-2141 | Warning Indicators and Alarms, Engine ECU Fault-Code Tables, Diesel Particulate Filter and Emissions Faults, Guided Diagnostic Test Procedures |
| Platform, Cab, Bodywork and Decals | 2142-2173 | Cab and Platform Assembly, Bodywork Panels, Hood and Grille, Glazing, Decals and Component Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Engine | FPT 4-cylinder in-line, 3400 cm3, turbocharged with intercooler, direct injection | |
| Injection system | Bosch high-pressure common rail, HPCR CP4.1 | |
| Bore and stroke | 99 mm x 110 mm | |
| Compression ratio | 17 +/- 0.5 : 1 | |
| Valve clearance | Hydraulically controlled, no manual adjustment | |
| Idle speed | 700 to 800 rpm low idle | |
| T5.95 | ||
| Maximum power output | 73 kW (99 Hp) at 2300 rpm | |
| T5.105 | ||
| Maximum power output | 79 kW (107 Hp) at 2300 rpm | |
| T5.115 | ||
| Maximum power output | 84 kW (114 Hp) at 2300 rpm | |
| T5.95 / T5.105 / T5.115 | ||
| Peak torque at 1500 rpm | 407 / 444 / 461 N.m (300 / 327 / 340 lb ft) | |
| Power at the PTO | 62.7 / 68.6 / 73.9 kW (85.1 / 93.3 / 100.4 Hp) | |
New Holland T5.95, T5.105, T5.115 Common Problems This Manual Covers
The dash throws an engine fault code and the tractor derates.
Read the code, then work the guided test rather than swapping the sensor. The fault-code section lists each ECU code with the test type, the conditions that set it and the step-by-step diagnostic that follows, and it covers the diesel particulate filter and emissions codes that derate a Tier 4 engine. When the test sends you to a circuit, the harness drawings and connector pin-out tables in the same section show you exactly which pin to back-probe.
Manual Section: Electrical Systems: Warning Indicators and Fault CodesThe rear lift is slow, will not hold, or a remote valve leaks down.
Start with pressure, not parts. The hydraulic section gives the pump and supply circuit specifications and the pressure test points, so you can separate a tired pump from a lift or remote valve that has drifted. It then covers the rear lift with its electronic draft control, the remote control valves and the schematics, with removal and overhaul procedures for the pump and the lift housing. Remember the draft control is electronic on this tractor, so check for a stored fault code before you strip anything.
Manual Section: Hydraulic SystemsThe engine is down on power, smokes, or will not make its rated speed.
Check the numbers first. Rated power comes at 2300 rpm, and peak torque at 1500 rpm, so a tractor that falls over below 1500 rpm behaves differently from one that never reaches rated speed. Do not chase valve clearances: the T5 uses hydraulic lash control and needs no adjustment. Work the engine section for the turbocharger and intercooler, the Bosch HPCR CP4.1 common rail and its filtration, and pull any stored ECU code before you touch the injectors.
Manual Section: EngineFrequently Asked Questions
Which tractors does this manual cover?
The T5.95, T5.105 and T5.115. All three run the same FPT four-cylinder 3400 cm3 turbocharged common-rail engine with a 99 mm bore and a 110 mm stroke, so the difference between them is the power rating: 73 kW (99 Hp) on the T5.95, 79 kW (107 Hp) on the T5.105 and 84 kW (114 Hp) on the T5.115, all at 2300 rpm.
Does it cover the fault codes and the wiring?
Yes, and that is most of the book. The electrical section runs from page 748 to page 2141. It carries the complete harness drawings, connector views and pin-out tables, the starting and charging circuits, the electronic control modules, and the engine ECU fault-code tables with the guided test procedure behind each code, including the diesel particulate filter and emissions faults.
Do I need to adjust the valve clearances?
No. The T5 engine uses hydraulic valve lash control, so the clearance between the valves and the rocker arms is set automatically and no manual adjustment is required. That is a real difference from the older TN and TL tractors, where the clearances are shimmed by hand and drift with hours.
What torque do these engines make?
Peak torque comes at 1500 rpm: 407 N.m (300 lb ft) on the T5.95, 444 N.m (327 lb ft) on the T5.105 and 461 N.m (340 lb ft) on the T5.115, with a torque rise of 34, 35 and 32 percent respectively. Power measured at the PTO is 62.7 kW (85.1 Hp), 68.6 kW (93.3 Hp) and 73.9 kW (100.4 Hp).
How big is the manual and can I search it?
It is 2173 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
What format is this New Holland T5.95, T5.105, T5.115 manual in?
Immediate download of the complete 2173-page searchable Repair Manual (84 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this New Holland T5.95, T5.105, T5.115 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
