Part of the New Holland Repair Manuals.
Whether you are rebuilding the Powershift gearbox or chasing a cab climate control fault, this 498-page New Holland LM5040, LM5060, LM5080 repair manual pdf (OEM #87755311) gives you every factory procedure for these heavy-duty telehandlers. Inside, you get complete hydraulic schematics detailing the gear and piston pumps, along with highly detailed wiring diagrams mapping out everything from the alternator to the instrument console. Open the dedicated troubleshooting chapters to isolate front axle issues fast, then rely on the factory torque tables to assemble it right. Lock down the F4 Ge 9484 engine mounting bolts to exactly 120 Nm (88.5 ft-lbs) and verify your LM5080 maximum lifting height hits 9.74 meters before returning the unit to the yard. Every hour in the shop costs money. Grab this bookmarked digital download, open it on your tablet right next to the boom, and get the machine back to work.
What's Inside This New Holland LM5040, LM5060, LM5080 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 17-42 | General Instructions, Health and Safety, Product Identification, Environmental Considerations, Maintenance Techniques, Specifications |

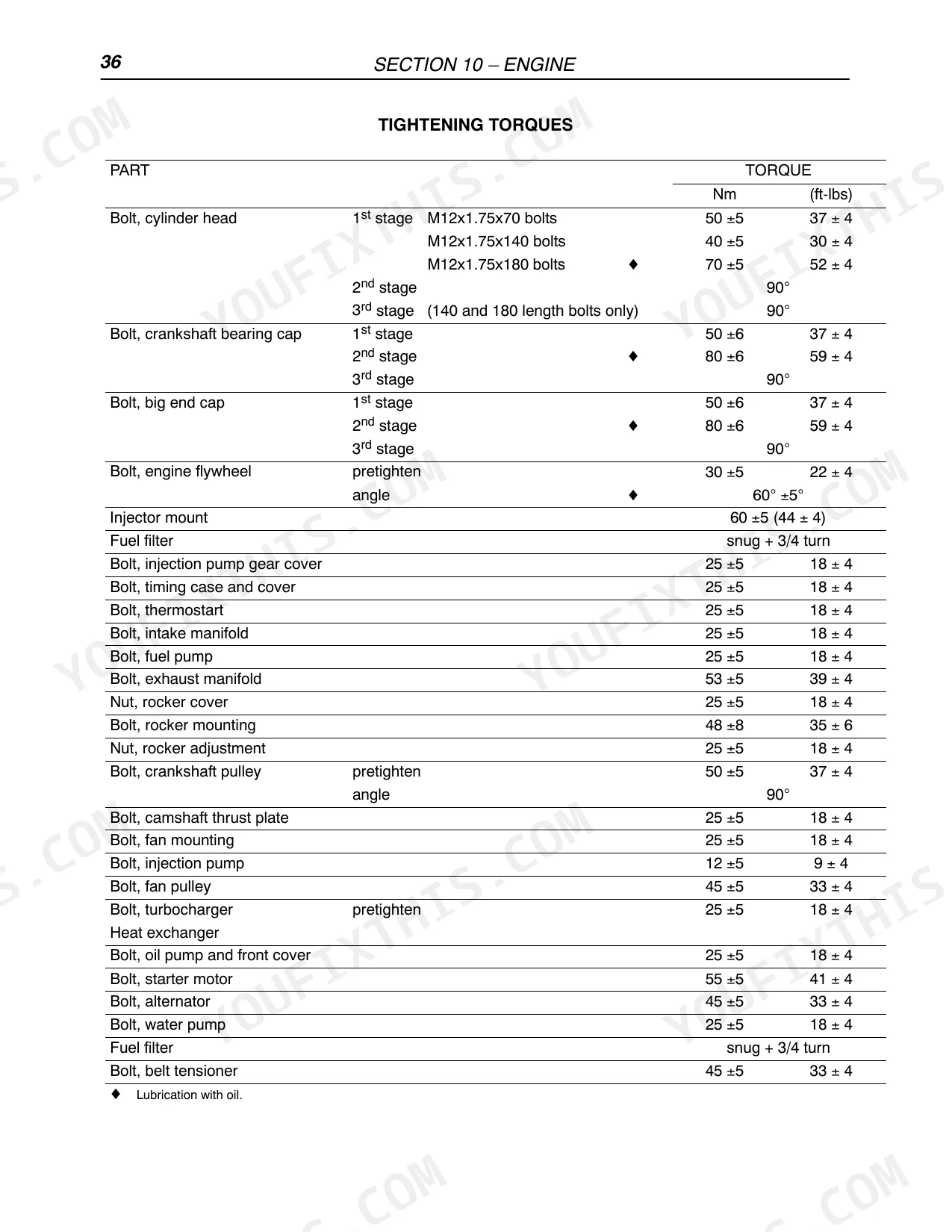

| Engine | 43-78 | F4 Ge 9484 Engine, Engine Specifications, Sectional Views, Overhaul, Troubleshooting, Tightening Torques |

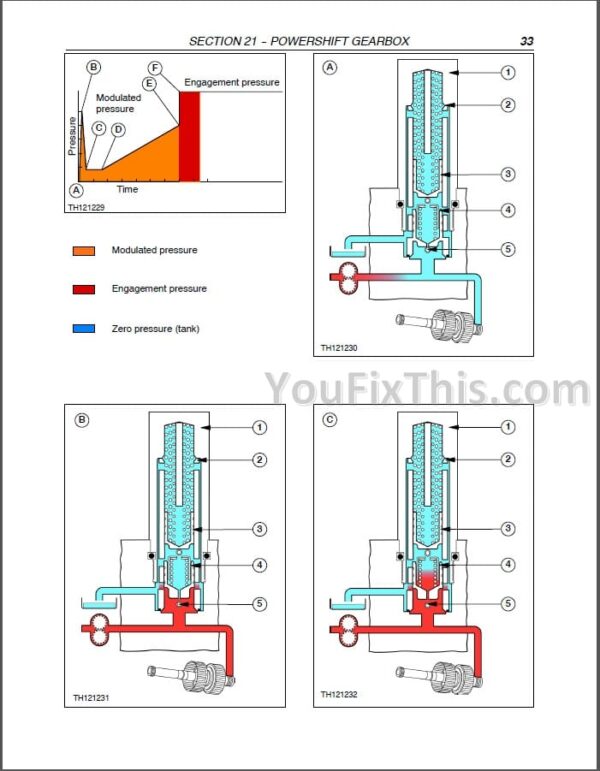

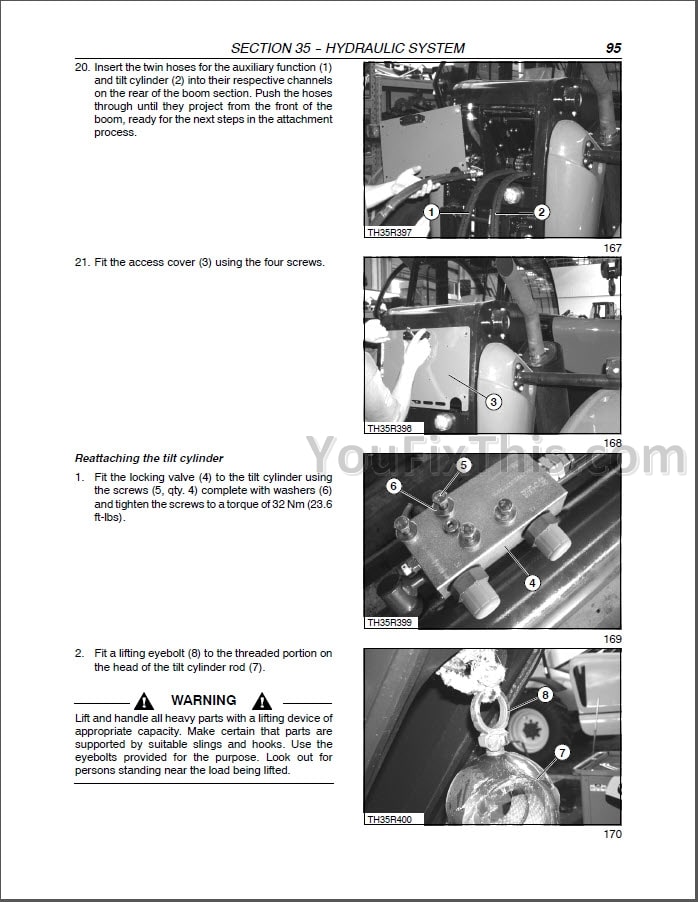

| Powershift Gearbox | 79-184 | Description of Operation, Transmission Power Flows, Solenoid Valve/Clutch Combination, Operation of Modulating Valve, Troubleshooting Guide, Overhaul |
| Front Axle | 185-252 | Specifications, Description of Operation, Troubleshooting, Overhaul, Steering Knuckle, Differential Unit |
| Rear Axle | 253-264 | Specifications, Description of Operation, Overhaul, Rear Drive Shaft, Pivot Bushings |
| Brakes | 265-282 | Specifications, Description of Operation, Service Brakes, Parking Brake, Troubleshooting, Overhaul |
| Hydraulic System | 283-390 | Technical Data, Description and Operation, Hydraulic Gear Pump, Hydraulic Piston Pump, Hydraulic Distributor, Telescopic Boom |
| Cab Climate Control | 391-406 | Description of Operation, Air Conditioning System, Cab Heating-Ventilation Controls, Troubleshooting, Testing Precautions, Special Tools |

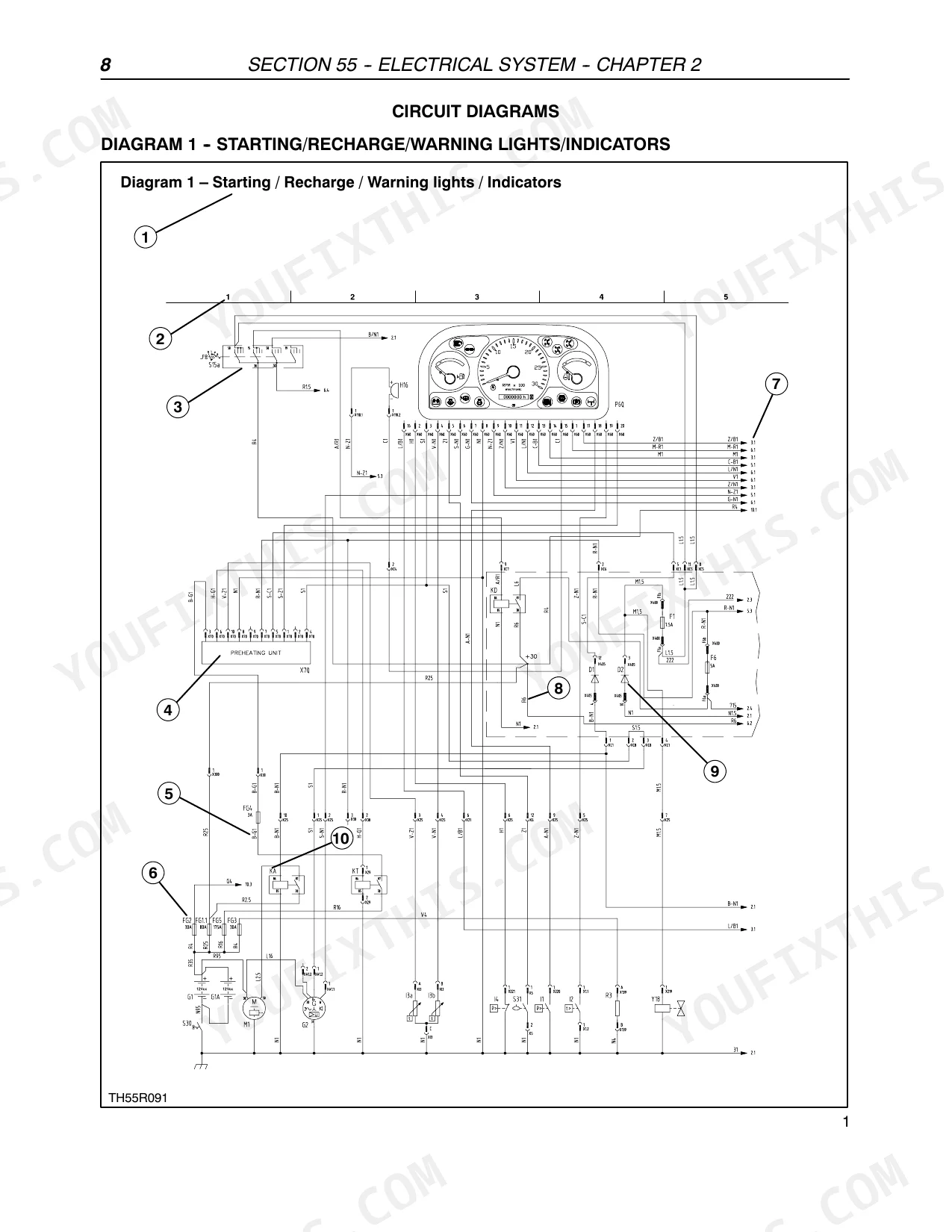

| Electrical System | 407-498 | Ignition Key Switch, Battery, Alternator, Starter, Fuses and Relays, Controls and Instrument Console |
Quick Reference Specifications

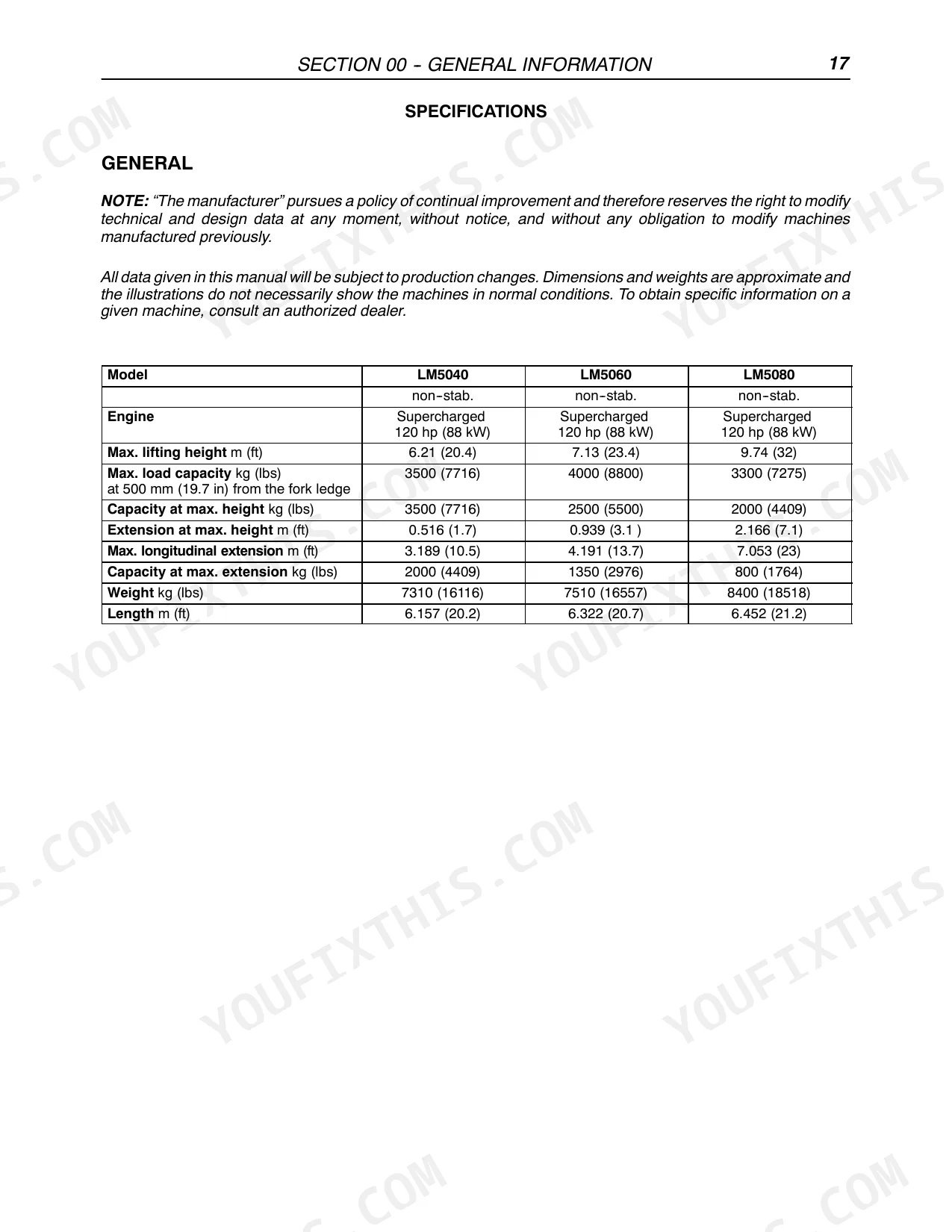

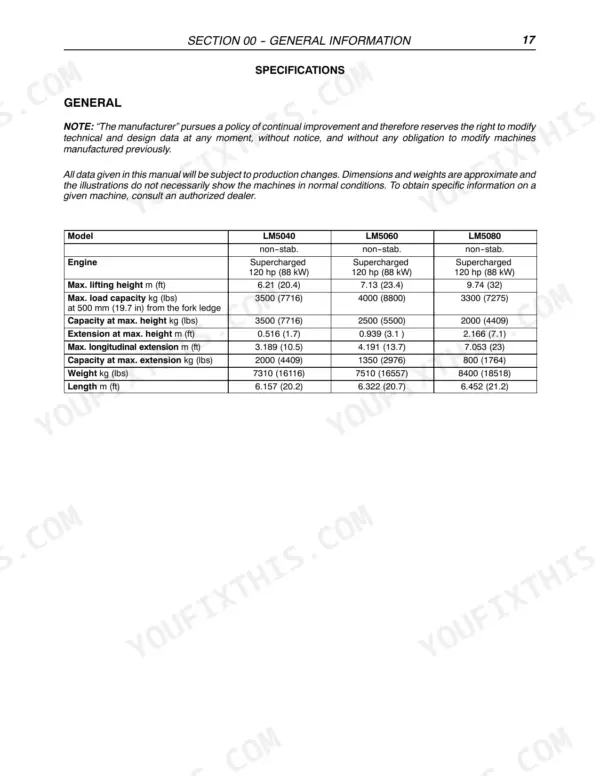

| Specification | Value | Page |
|---|---|---|
| Engine mounting bolts torque | 120 Nm (88.5 ft-lbs) | p. 63 |
| Hydraulic distributor fastening screws torque (M8x80) | Min=42Nm | p. 315 |
| Hydraulic distributor fastening screws torque (M12x70) | Min=120Nm | p. 63 |
| Max. lifting height | LM5040: 6.21 m (20.4 ft), LM5060: 7.13 m (23.4 ft), LM5080: 9.74 m (32 ft) | p. 33 |
| Max. load capacity | LM5040: 3500 kg (7716 lb), LM5060: 4000 kg (8800 lb), LM5080: 3300 kg (7275 lb) | p. 33 |
| Machine Weight | LM5040: 7310 kg (16116 lb), LM5060: 7510 kg (16557 lb), LM5080: 8100 kg (17857 lb) | p. 40 |
| Engine Oil Capacity (with filter) | 7.6 liters (2 gal) | p. 42 |
| Powershift Transmission Oil Capacity (line and cooler) | 12.9 + 4 liters (3.4 + 1 gal) | p. 42 |
| Front and Rear Axle Oil Capacity | 7 liters (1.8 gal) | p. 42 |
| Wheel nuts torque | 540 Nm (398 ft-lbs) | p. 40 |
| Engine Total Displacement | 4485 cm3 (274 cu. in.) | p. 45 |
| Engine Maximum Power | 88 kW (120 hp) | p. 45 |
New Holland LM5040, LM5060, LM5080 Common Problems This Manual Covers
New Holland LM5060 hydraulic boom drops suddenly on its own while holding a load at height
Shut the boom down and relieve pressure before touching anything. Check the pressure reduction valve setting on page 286; it should hold at 35 bar (507.6 psi). If pressure bleeds off with the load static, pull the main control valve and inspect the load-check/counterbalance spool for scoring. If distributor fastening screws are suspected, refer to page 315 for M8x80 screws (42±10 Nm) or page 319 for other screw sizes and their respective torques.

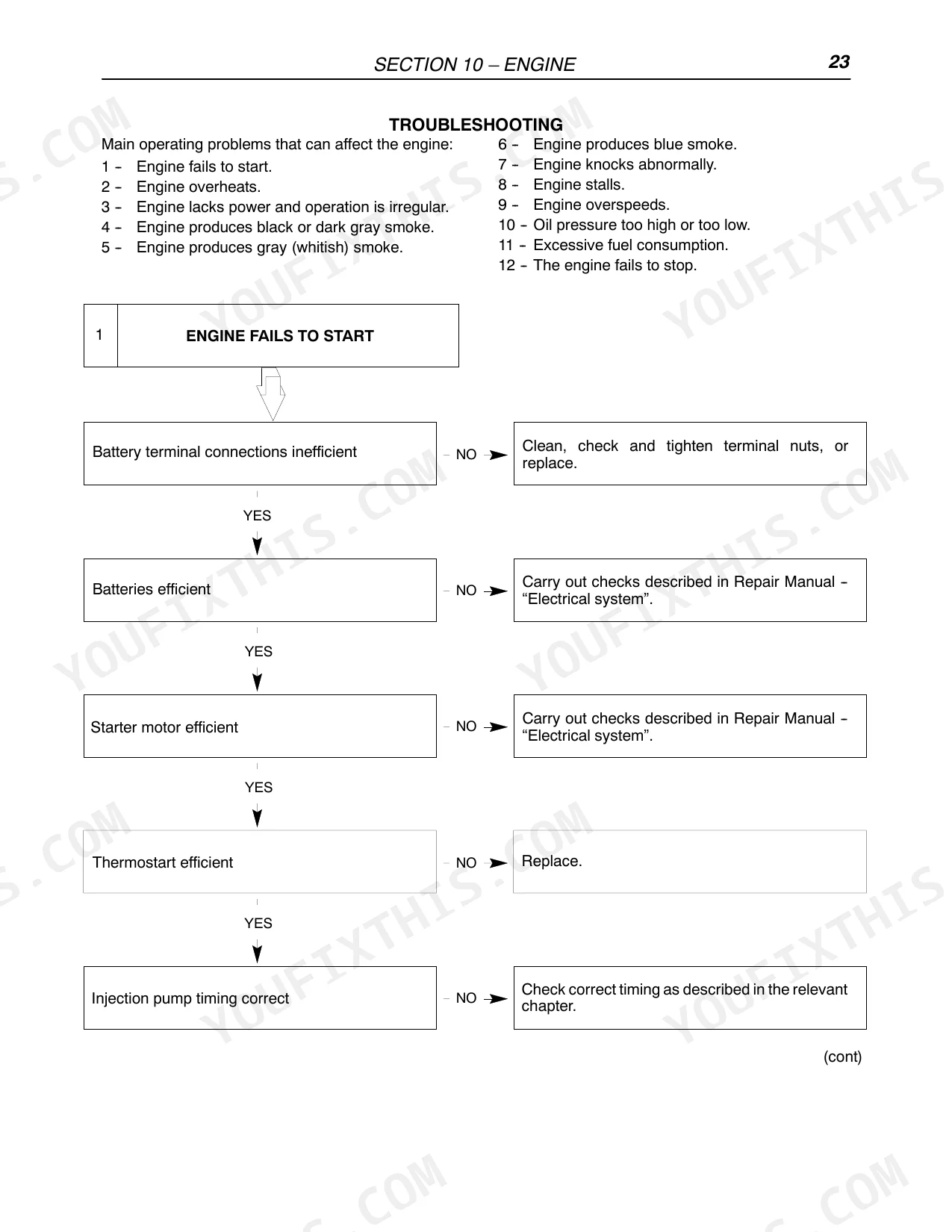

Manual Section: Hydraulic System p. 286Engine dies at full throttle under load with no warning lights or prior symptoms
Don't chase the ECU first; start with fuel delivery. Pull and inspect the fuel filter assembly for restriction, it's the most common cause of unexplained stalling at high demand. If the filter is clean, check ECU-205 for a speed sensor fault; inspect the sensor wiring harness for chafing near the engine mounts. Verify engine mounting bolts are torqued to 120 Nm (88.5 ft-lbs) per page 63 since a loose mount can stress and break sensor wiring over time.
Manual Section: Engine Troubleshooting Procedures p. 65Zero hydraulic pressure, telehandler won't lift or tilt at all
Check for ECU-101 (hydraulic pressure too low) on the display first. Verify the pump drive coupling and shaft are intact; a sheared drive shaft gives zero pressure with the pump spinning free. If the shaft is good, test the pressure reduction valve against its 35 bar (507.6 psi) spec on page 286 and check the main pump outlet directly with a gauge before condemning the control valve.
Manual Section: Hydraulic System p. 283Transmission overheats and locks up after roughly 20 minutes of heavy use
Check fluid level first; the powershift system holds 12.9 + 4 liters (3.4 + 1 gal) across the line and cooler per page 42, and low fluid will overheat fast under load. Inspect the cooler for collapsed fins or blocked airflow, since a partially collapsed cooler starves flow before temps look abnormal at idle. Run the stall test and pressure checks in the troubleshooting guide, and check for ECU-310 (transmission temperature excessive) logged on the display.
Manual Section: Powershift Gearbox Troubleshooting GuideHydraulic system makes a loud grinding noise and loses pressure during operation
Shut down immediately, a grinding pump is close to total failure. Check the pump inlet line for a collapsed hose or air leak, since cavitation is the usual cause of grinding before a pump seizes. Pull the pump and inspect the drive coupling and shaft splines for wear. Confirm the distributor fastening screws (M8x80) are torqued to 42±10 Nm on page 315, loose mounting can induce vibration that mimics pump noise.
Manual Section: Hydraulic System p. 315Hydraulic control valve sticks and won't respond to lever input
Check for ECU-415 (hydraulic control valve stuck) on the dash first. Remove the valve cover and inspect the spool bores for varnish buildup or debris contamination; flush with clean hydraulic fluid before reassembly. Verify the distributor fastening screws are torqued correctly (refer to page 315 for M8x80 screws at 42±10 Nm or page 319 for other screw sizes and their respective torques), since an uneven mount can bind the spool under pressure.
Manual Section: Hydraulic System p. 283Frequently Asked Questions
How to reset hydraulic system on New Holland LM5060 telehandler?
The manual does not describe a general "reset" procedure for the hydraulic system. However, it provides a procedure for bleeding air from the hydraulic circuit after maintenance, which is crucial for proper system function. This involves raising and lowering the telescopic boom 4-5 times with the front tool retracted to prevent air bubbles from forming. "Before using the machine, it is necessary to raise and lower the telescopic boom 4--5 times with the front tool retracted, and therefore with the tilt cylinder in the fully open position, in order to prevent air bubbles from forming inside the hydraulic circuit." p. 379
What are the torque specs for engine mounting bolts on New Holland LM5080 telehandler?

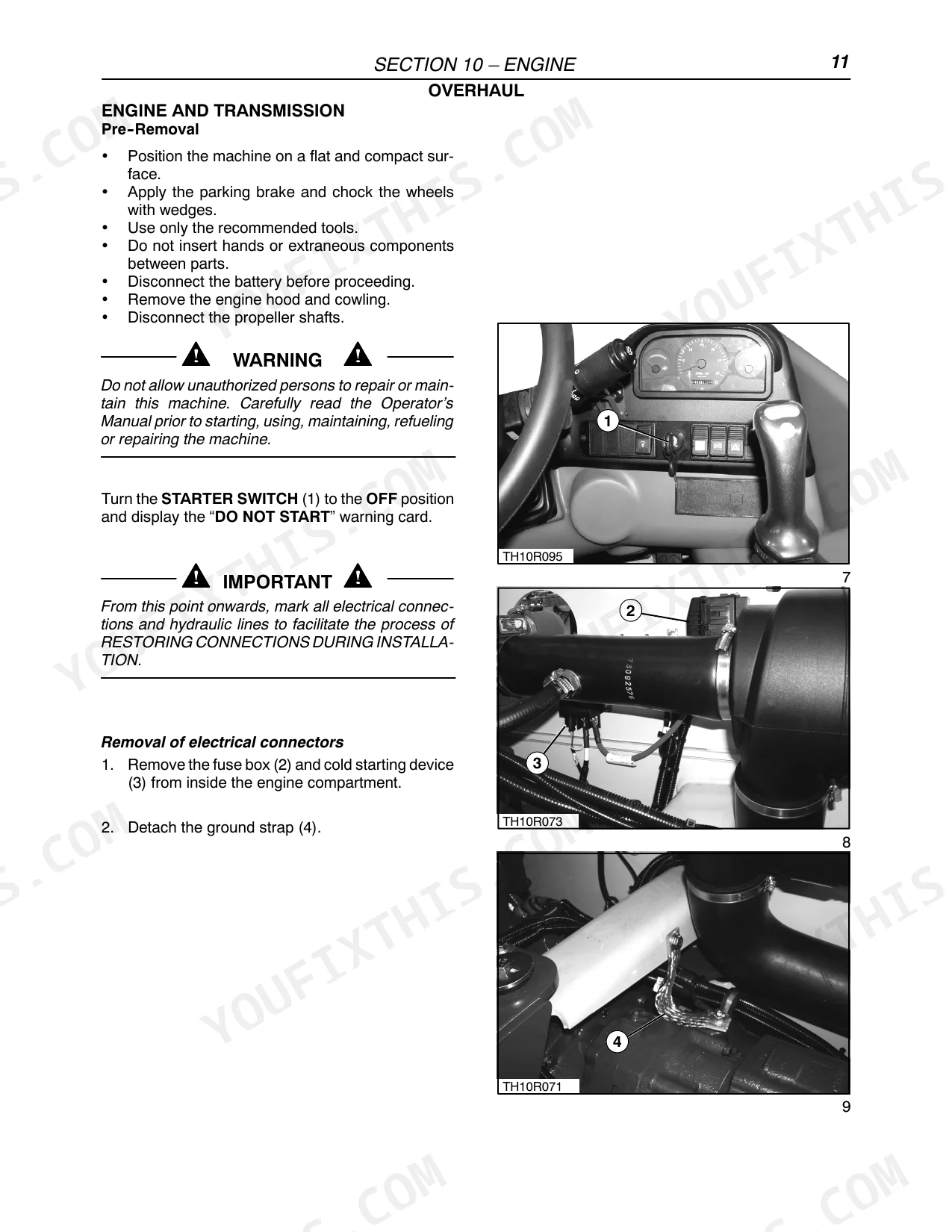

The engine mounting bolts should be tightened to 120 Nm (88.5 ft-lbs) during the engine and transmission installation procedure. This ensures the engine is securely fastened to the mountings. "Tighten the nuts and bolts to secure the engine to the mountings, torquing to 120 Nm (88.5 ft-lbs)." p. 63
What are the replacement specifications for Hydraulic control valve?

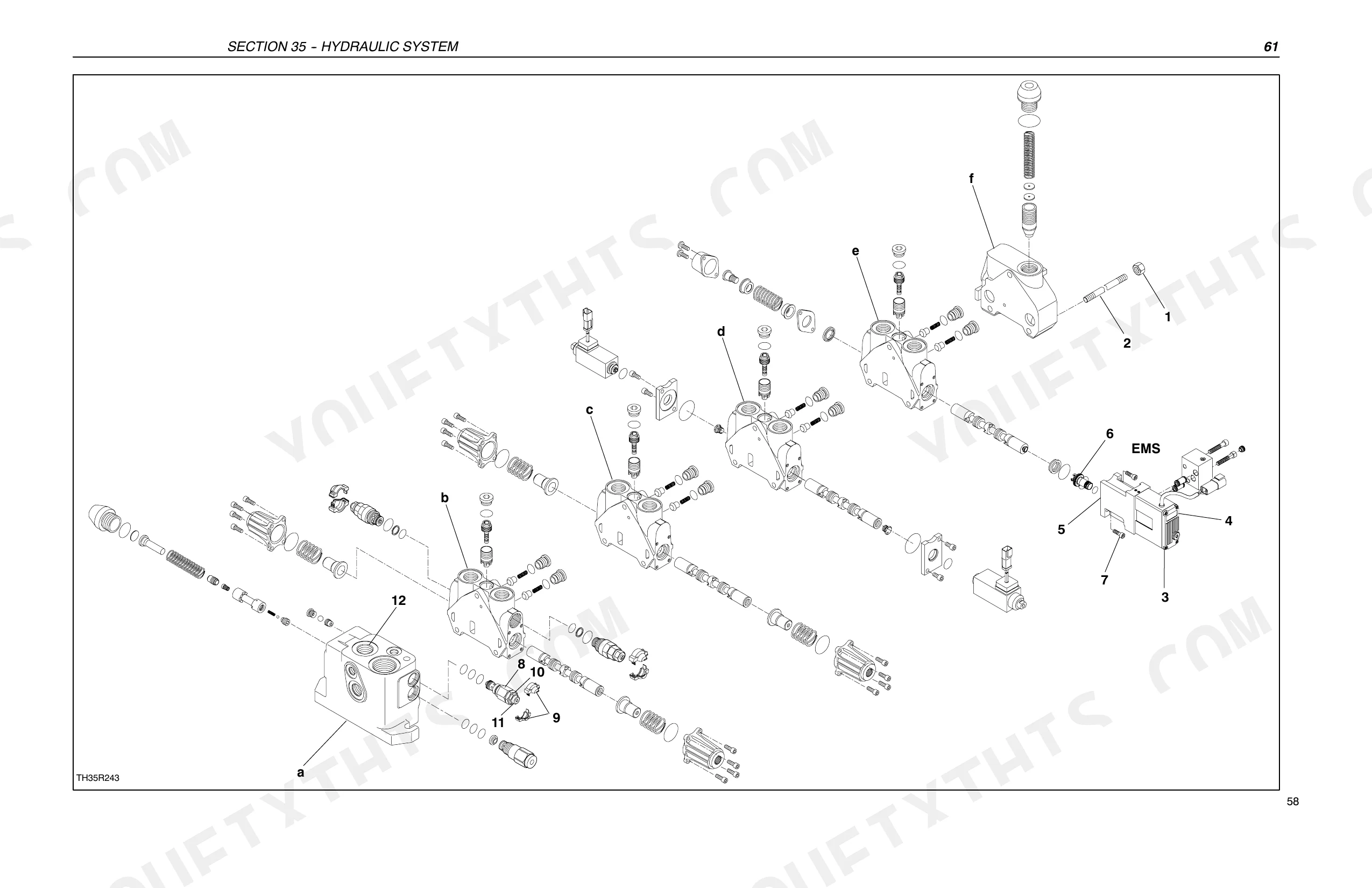

For the Proportional Solenoid EMS Module, the manual states that it is only available as a complete assembly for spare parts, while gaskets and O-rings are available in kits. The valve calibration setting is printed on the metal body of the valve itself. "as regards spare parts, the EMS module is only available as a complete assembly, while gaskets and O-rings are available in kits." p. 342
What are the replacement specifications for Main hydraulic pump?
The hydraulic gear pump has a displacement of 56,545 cm³ (3450 cu. in.) and a maximum continuous pressure of 215 bar (3118 psi). Its operating temperature range is -25 to 80 °C (-77 to 176 °F). "Displacement 56,545 cm3 (3450 cu. in.)", "Max. continuous pressure 215 bar (3118 psi)", "Operating temperature --25 to 80 °C (--77 to 176 °F)". p. 298
How quickly can I access this New Holland LM5040, LM5060, LM5080 manual after?
You get a 498-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this New Holland LM5040, LM5060, LM5080 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

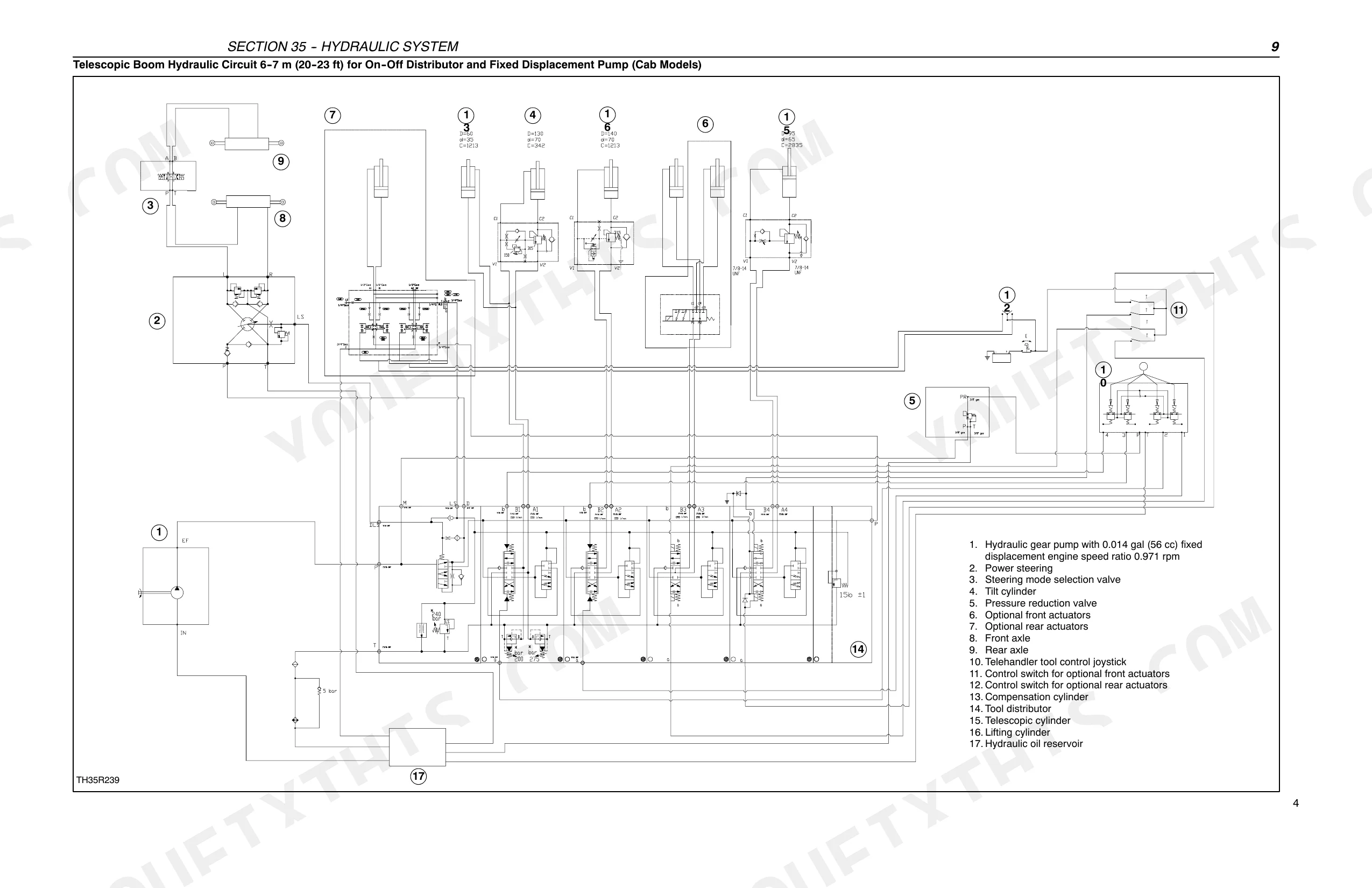

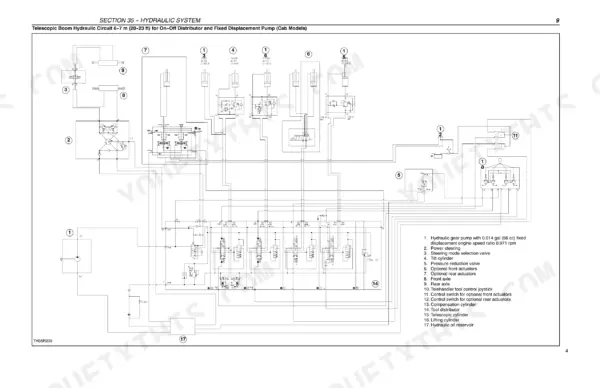

Are hydraulic system diagrams in this New Holland LM5040, LM5060, LM5080 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the New Holland LM5040, LM5060, LM5080.
