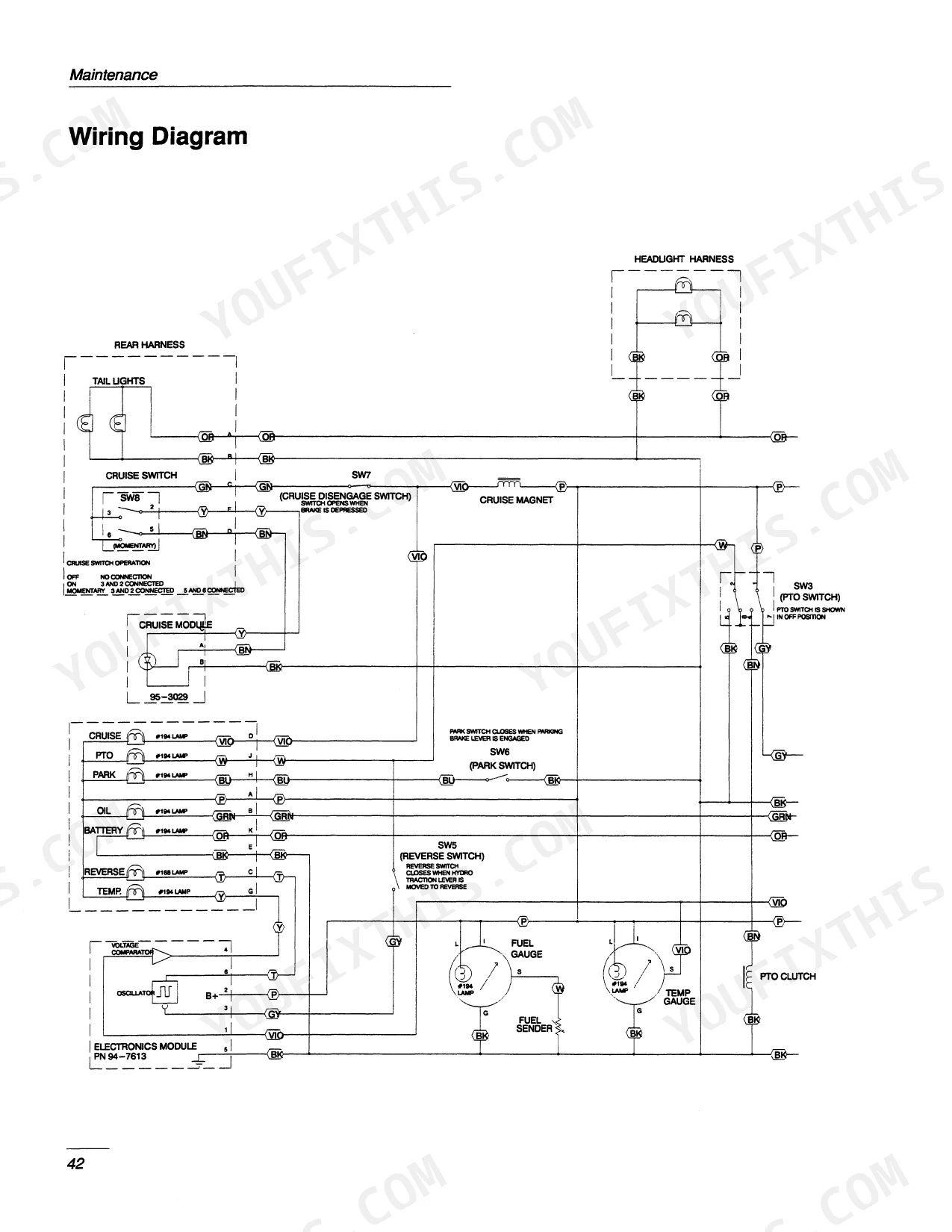

The New Holland GT20 operator manual PDF, 56 pages under OEM part 42682200, puts the factory operating and upkeep routine for your garden tractor down in plain print. A full wiring diagram traces every circuit through the safety interlock system, and the troubleshooting section works through starter, fuel, engine, transmission, steering, and cooling complaints one cause at a time. Maintenance fills nearly half the book, running from the service interval chart to transaxle fluid, brake adjustment, greasing points, and battery care. Clean the foam air filter element every 25 operating hours, swap the paper element at 100, and hold front toe in at 1/8 to 1/4 inch (3.5 to 6.5 mm). Guesswork buys parts the tractor never needed. Bookmarks and a real text layer land you on the right page before the hood latch is even open.
What's Inside This New Holland GT20 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 2-7 | Safe Operating Practices, Slope Chart, Safety and Instruction Decals |
| Check Before Operating | 8-13 | Opening the Hood, Closing the Hood, Removing the Side Panels, Adding Fuel, Check the Engine Oil Level, Check the Cooling System, Check for Debris, Check the Safety Interlock System |

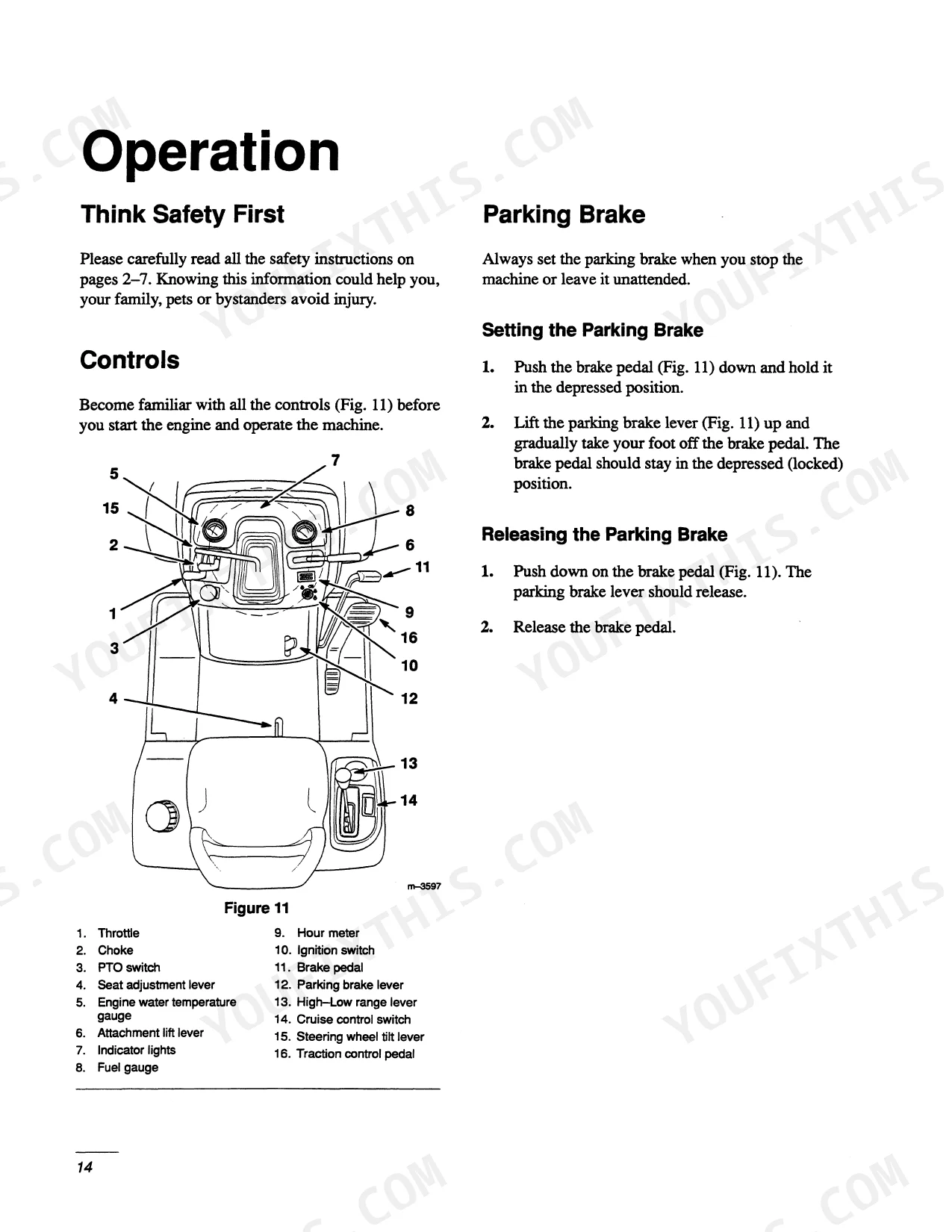

| Operation | 14-22 | Think Safety First, Controls, Parking Brake, Starting and Stopping the Engine, Operating the Power Take Off, Check the Safety Interlock System, Gauges and Indicator Lights |

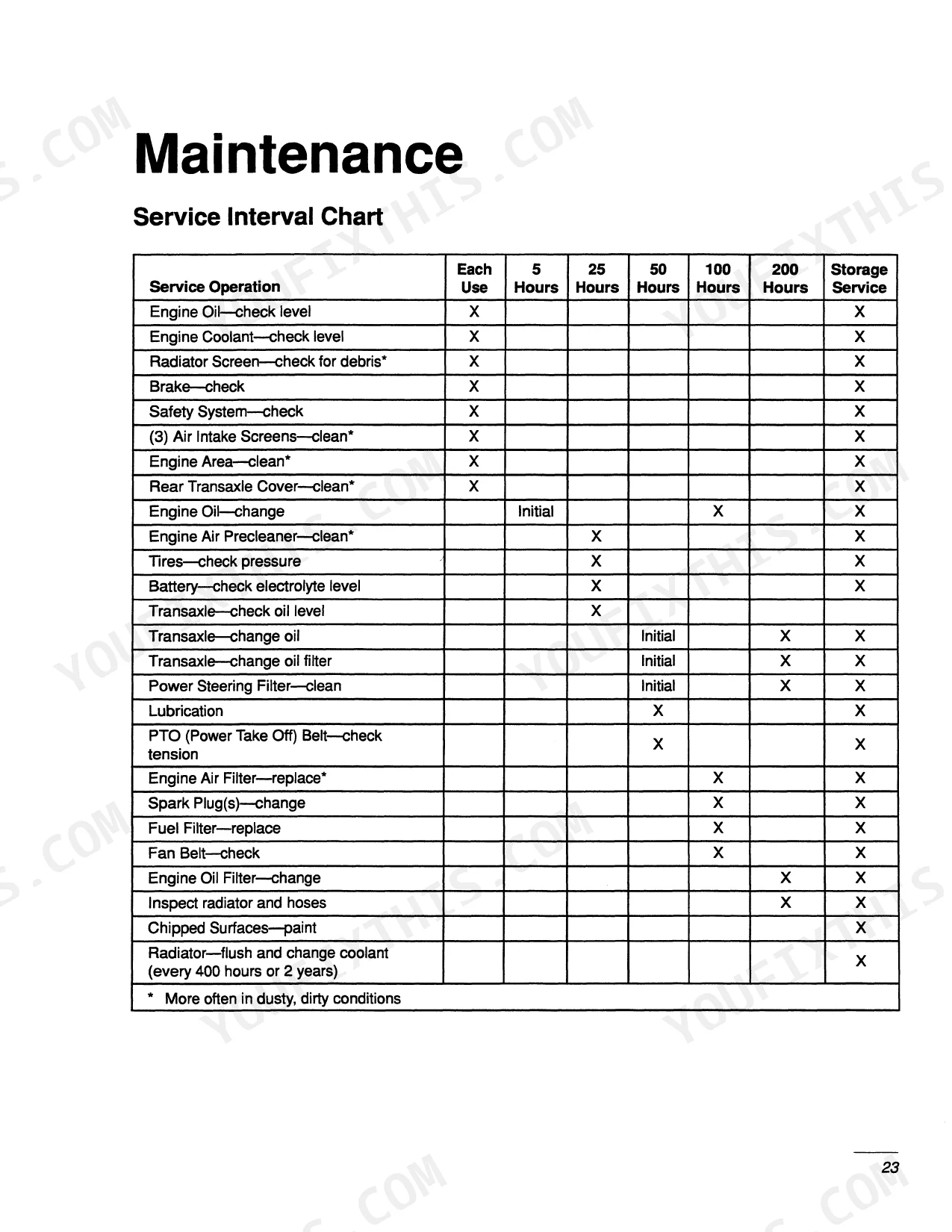

| Maintenance | 23-44 | Service Interval Chart, Engine Oil, Changing the Engine Coolant, Spark Plugs, Greasing and Lubrication, Tire Pressure, Brake, Fuel Tank |

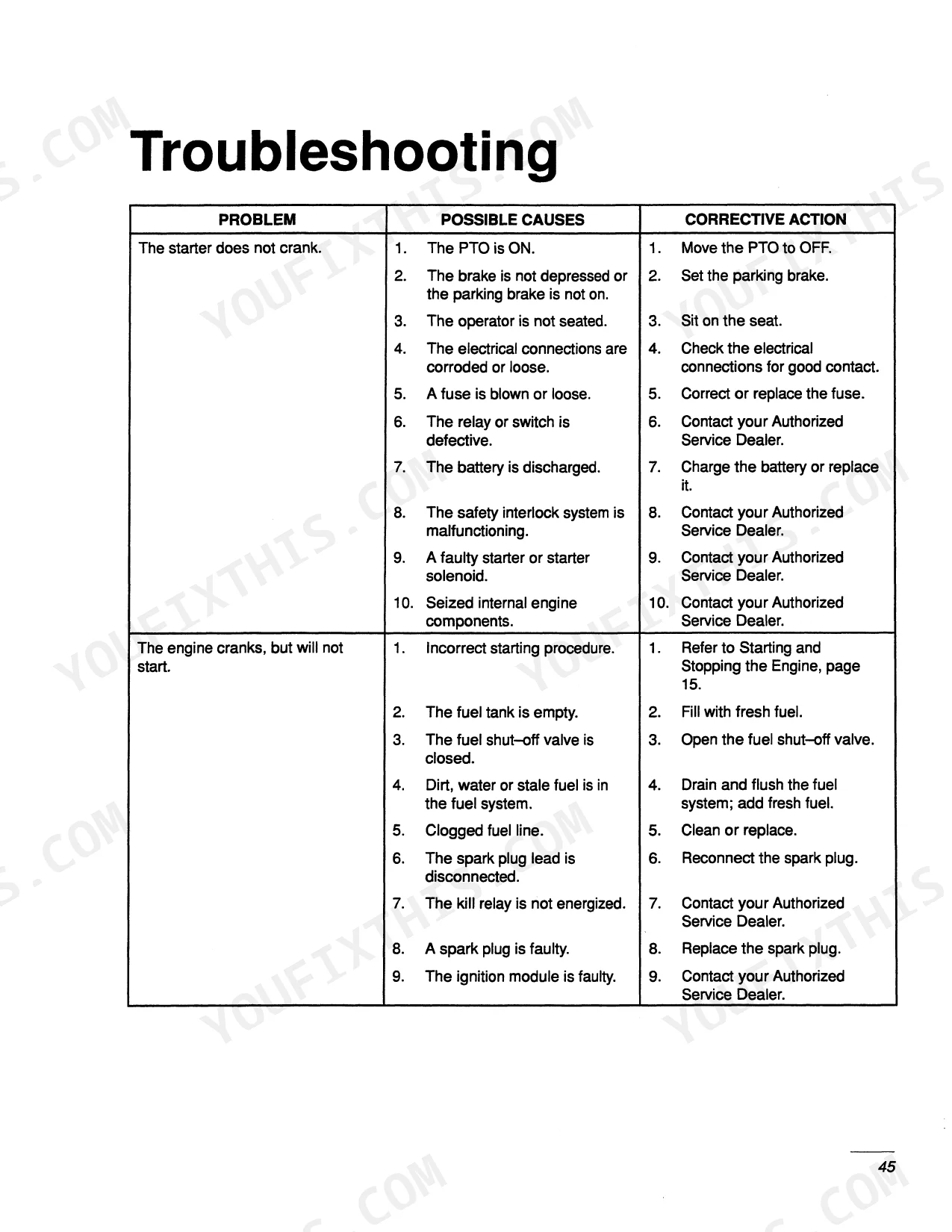

| Troubleshooting | 45-56 | Starter, Fuel System, Engine, Transmission, Steering, Cooling System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Light Voltage Range | 12.1 volts to 15.0 volts | p. 19 |
| Battery size | 12 v, 380 Cold Cranking Amps | p. 41 |
| Foam Element cleaning interval | 25 operating hours | p. 26 |
| Paper Element replacement interval | 100 operating hours | p. 26 |
| Toe-in specification | 1/8-1/4 inch (3.5-6.5 mm) | p. 36 |
| Spark Plug Air Gap | 0.024-0.028 inch | p. 31 |
| Spark Plug Torque | 17 ft-lb | p. 31 |
| Tire Pressure (front and rear) | 12 psi | p. 33 |
New Holland GT20 Common Problems This Manual Covers
New Holland GT20 engine cranks but will not start after sitting all winter, fuel smells stale
Drain the stale fuel and refill the tank with fresh gasoline before chasing anything else. Work through the engine start checks in the troubleshooting procedures on page 47, then pull the spark plug and reset the air gap to 0.024-0.028 inch, the spec on page 31. Confirm the fuel shutoff is fully open.
Manual Section: General Troubleshooting p. 47Engine turns over slowly and battery light stays on in cold weather
Test the battery before blaming the starter. Replace it with the specified 12 volt, 380 Cold Cranking Amp battery from page 41 if it will not hold a charge, and clean both cable terminals to bright metal. With the engine running, the battery light circuit should read 12.1 to 15.0 volts, shown on page 19.
Manual Section: Electrical System p. 41Engine loses power and bogs down when the mower deck hits tall grass
Remove the air cleaner cover and check both elements. Clean and re-oil the foam element every 25 operating hours and replace the paper element every 100 hours, per the maintenance schedule on page 26. Swap the fuel filter if it looks dark, then run the engine power checks in the troubleshooting procedures on page 48.
Manual Section: Maintenance p. 26PTO will not engage and the mower blades never spin up with the switch pulled
Verify every interlock condition first: sit fully on the seat and set the parking brake, then run the safety interlock test on page 18. Check the fuses next, and watch the battery light with the engine running; the clutch coil needs the charging system holding 12.1 to 15.0 volts, listed on page 19, to pull in.
Manual Section: Safety Interlock System p. 18Steering feels stiff and jerky at low speed, front tires scrub sideways in tight turns
Grease every steering fitting first; dry pivots cause most of the stiffness. Set both front tires to 12 psi, the pressure listed on page 33, then measure toe-in and adjust the tie rods until it lands between 1/8 and 1/4 inch (3.5 to 6.5 mm) per page 36. Check the tie rod ends for play.
Manual Section: Steering System p. 36Frequently Asked Questions
What are the replacement fuel filter specifications for a New Holland GT20 garden tractor?
The fuel filter should be replaced after every 100 operating hours. When installing a new filter, ensure the flow direction arrow points toward the engine. p. 36
What is the engine oil crankcase capacity for the GT20?
The crankcase capacity for the engine, including the filter, is 1.9 quarts (1.8 liters). p. 28
What is the correct spark plug air gap specification for the New Holland GT20 garden tractor?
The spark plug air gap should be set between 0.024 and 0.028 inches (0.6 to 0.7 mm). p. 31
What is the required torque for tightening the spark plugs on a New Holland GT20 garden tractor?
When installing the spark plugs, they should be tightened to 17 ft-lb (23 Nm). p. 31
What is the recommended front and rear tire pressure for a New Holland GT20 garden tractor?
The recommended air pressure for both the front and rear tires is 12 psi (.85 kPa). p. 33
Is this New Holland GT20 manual a download or a disc?
Immediate download of the complete 56-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this New Holland GT20 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
