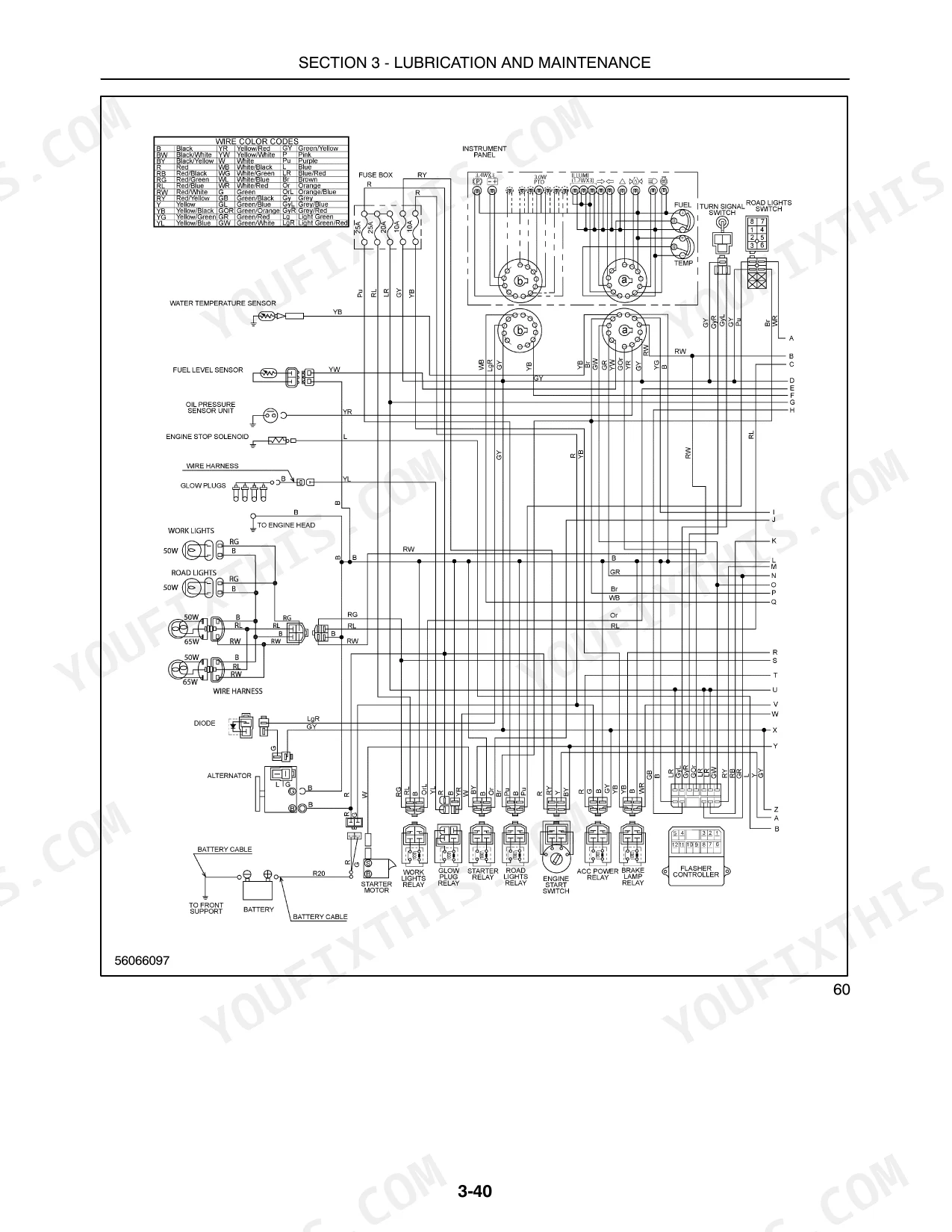

Sold as OEM 87477192, this New Holland Boomer 4055, Boomer 4060 operator manual PDF covers both compact tractors in 127 pages, so whichever of the two sits in your shed, the controls, schedules, and specs inside match it. Wiring diagrams map the electrical system, and working detail on the three-point hitch, PTO engagement, and remote hydraulics fills the operation chapter, the largest block in the book. The lubrication and maintenance section carries you from fuel and lubricant service through cooling system care on a clear interval schedule. Verify the battery against its 700 cold cranking amp rating at -18°C (0°F), then pull the wheel discs to 129 N·m (95 ft-lb). Saturday morning, dealer closed, nobody to ask. Buy it once and it is yours, bookmarked and text searchable, for as long as you own the tractor.
What's Inside This New Holland Boomer 4055, Boomer 4060 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-19 | Precautionary Statements, Operating the Tractor |

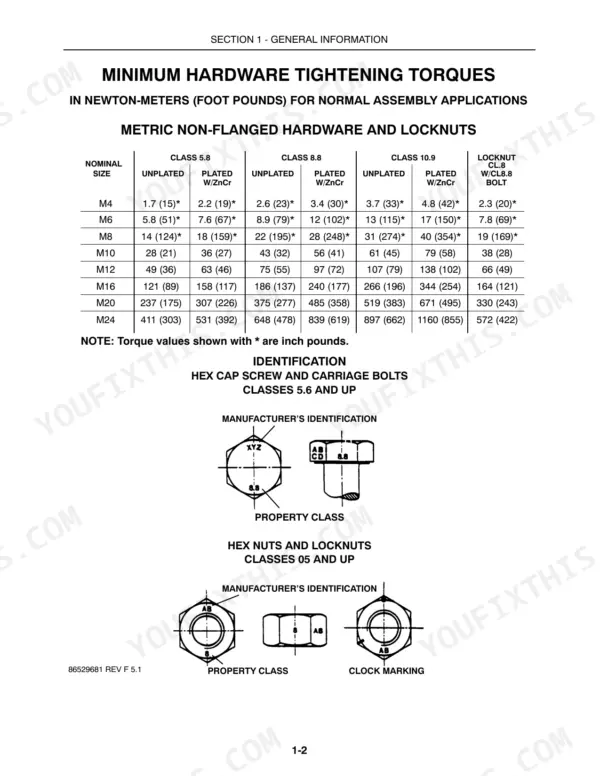

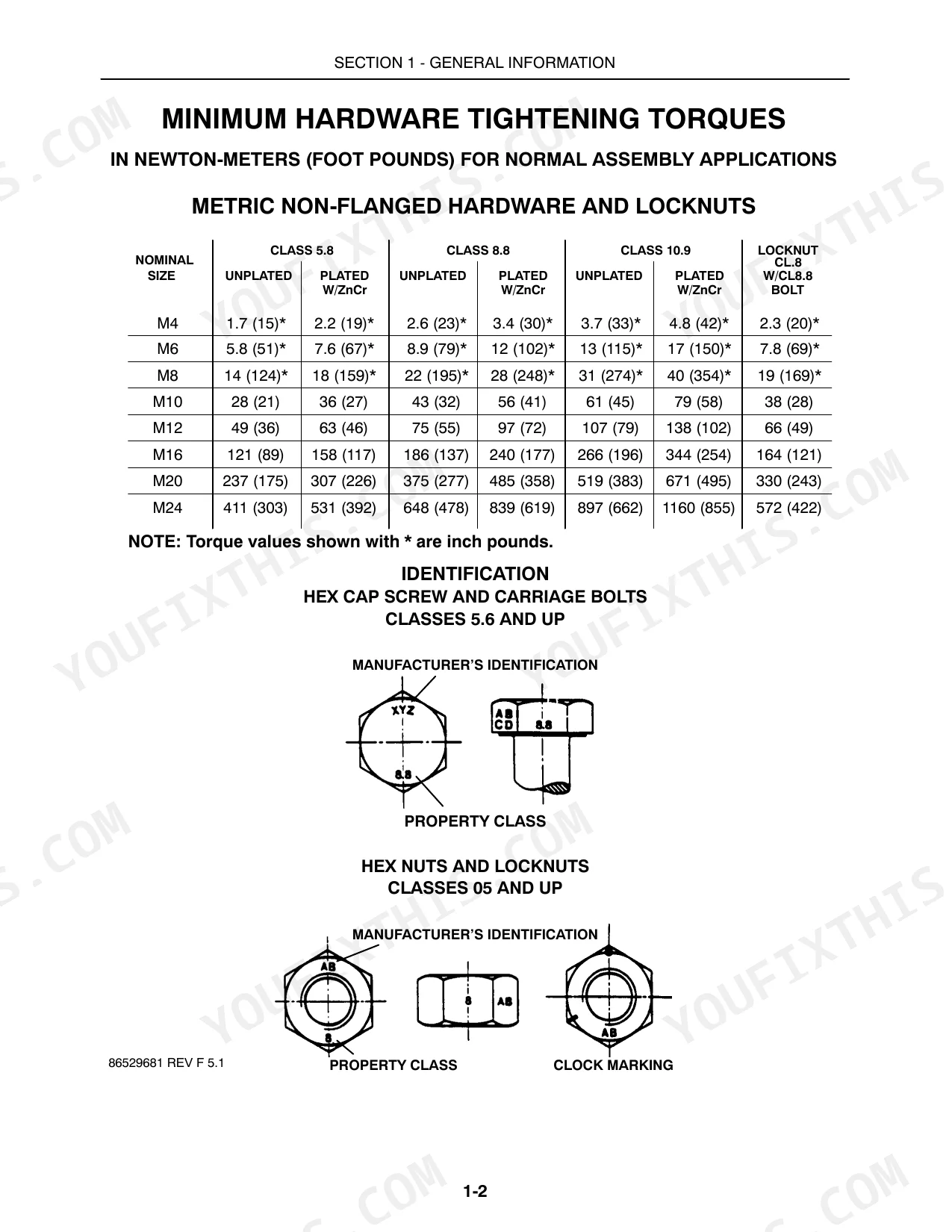

| General Information | 20-23 | Minimum Hardware Tightening Torques |
| Operation | 24-63 | Controls and Instruments, Starting the Engine, Lighting, Tractor Hydraulics |
| Lubrication and Maintenance | 64-105 | Fuel and Lubricant Service Procedures, Cooling System |
| Specifications | 106-121 | Engine, Cooling System |
| Predelivery Service | 124-127 | Tire Pressure, Battery, Engine Oil, Hydraulic System, PTO Engagement, ROPS |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery cold cranking ability | 700 amps at -18°C (0°F) | p. 85 |
| Front Wheel Disc-to-Hub Torque | 129 N·m (95 ft-lb) | p. 114 |
| Rear Wheel & Disc-to-Axle Torque | 129 N·m (95 ft-lb) | p. 114 |
| Battery electrolyte level above plates | 6.35 mm (1/4 in) | p. 85 |
| Thermostat Start to Open | 71 °C (160 °F) | p. 107 |
| Thermostat Fully Open | 82 °C (180 °F) | p. 107 |
| Fuel Tank Capacity | 51.0 liters (13.5 U.S. gals) | p. 106 |
| Engine Crankcase Oil Capacity (with filter) | 7.0 liters (7.4 U.S. qts) | p. 106 |
| Transmission Oil Capacity (Ehss) | 46.0 liters (12.1 U.S. gals) | p. 106 |
| Transmission Oil Capacity (SSS) | 38.0 liters (10 U.S. gals) | p. 106 |
| Boomer 4055 | ||

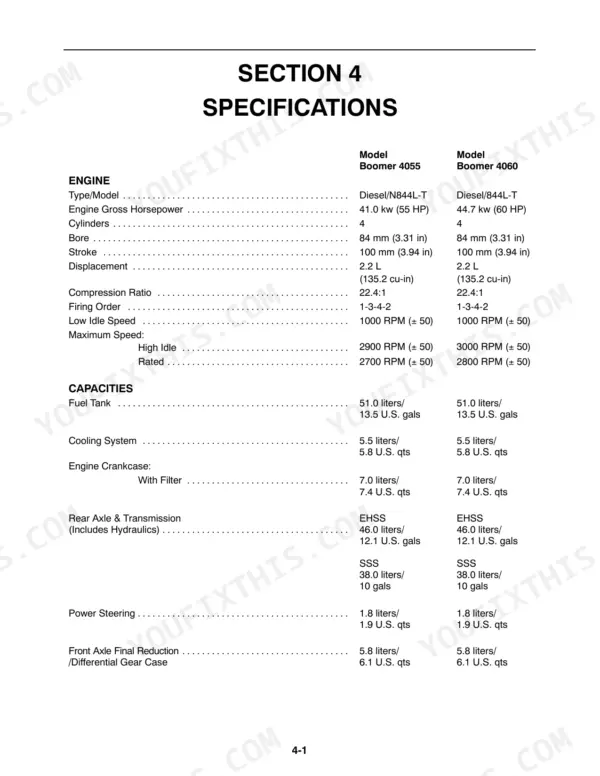

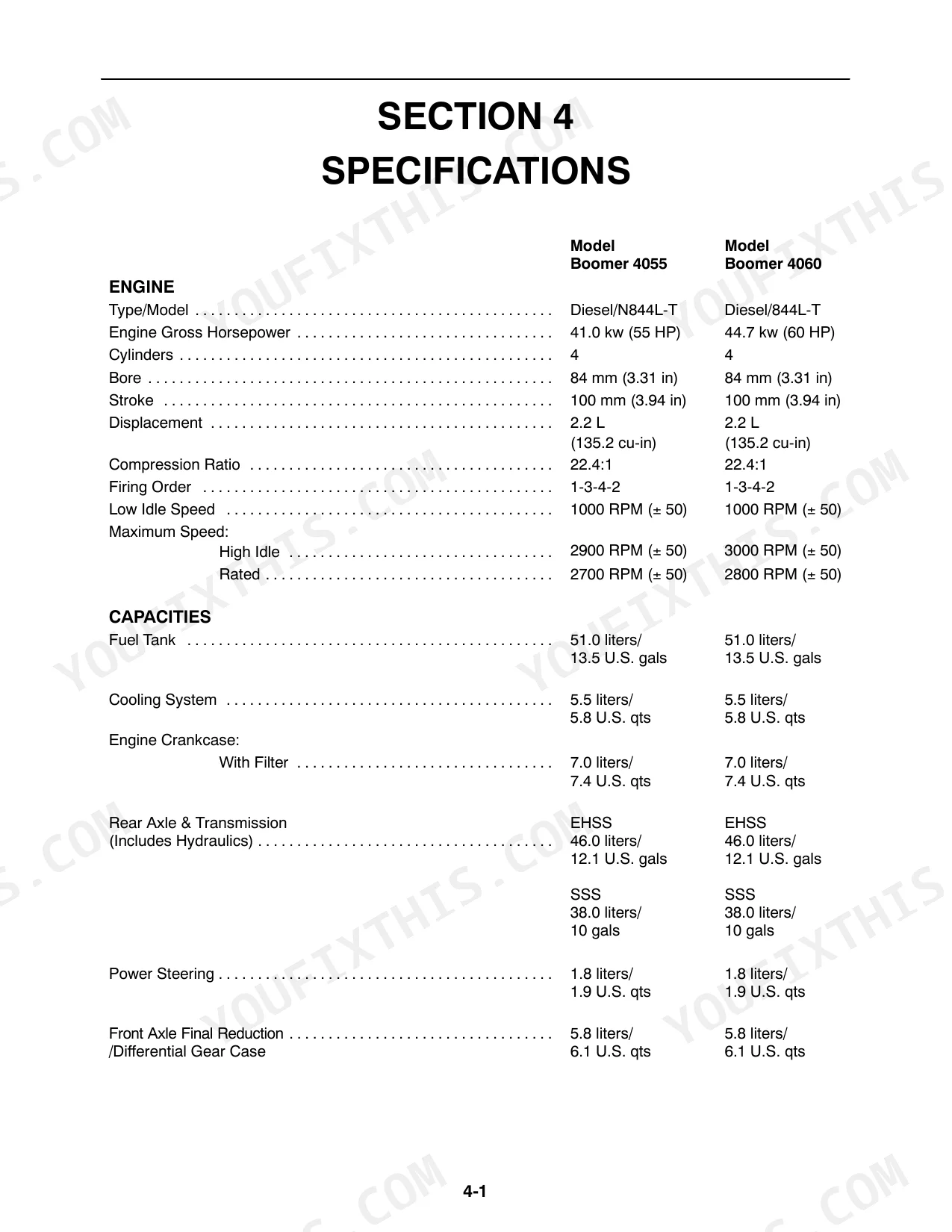

| Engine Gross Horsepower | 41.0 kw (55 HP) | p. 106 |
| Boomer 4060 | ||
| Engine Gross Horsepower | 44.7 kw (60 HP) | p. 106 |
New Holland Boomer 4055, Boomer 4060 Common Problems This Manual Covers
New Holland Boomer 4055 engine stalls under load while mowing, restarts briefly then dies again

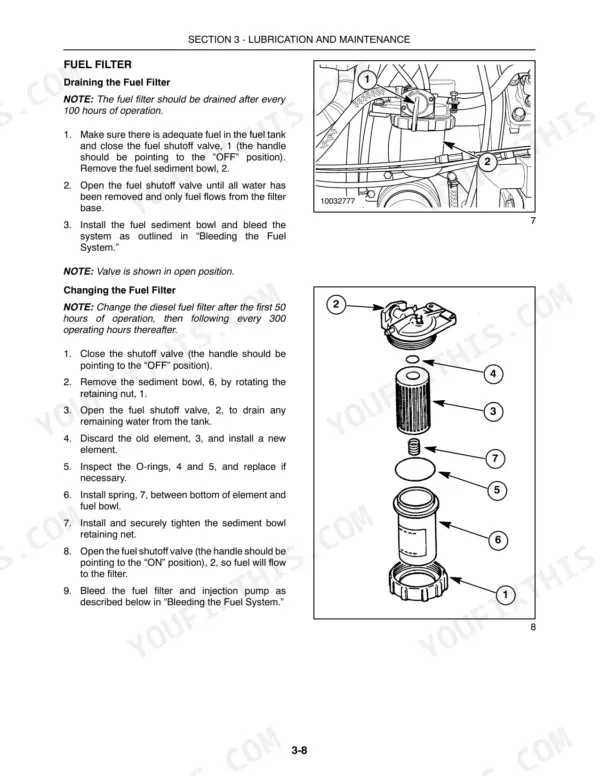

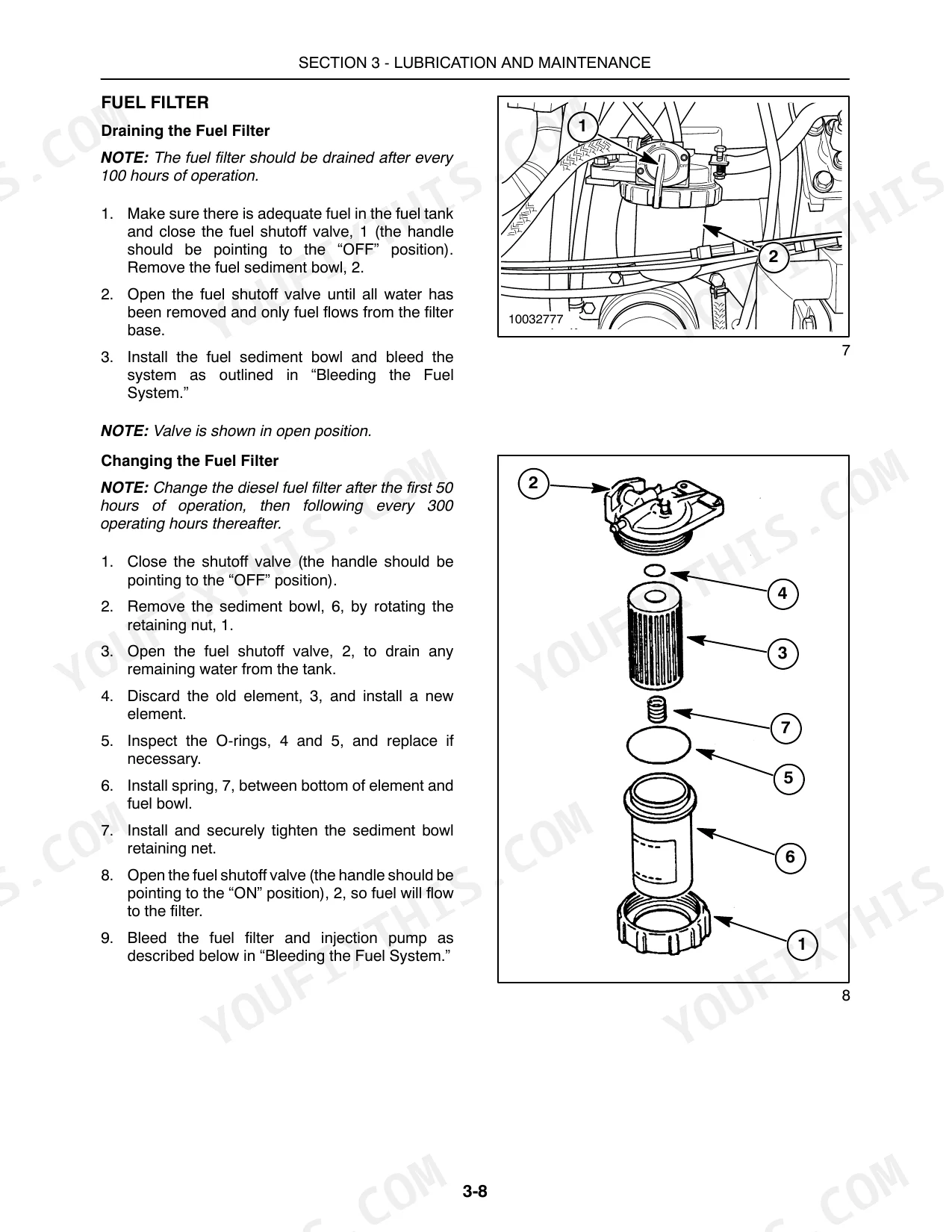

Drain water and sediment from the fuel filter bowl, then replace the element and bleed air from the fuel system using the procedure on page 71. Sediment stirs up in the 51.0 liter (13.5 U.S. gal) tank after winter storage, so refill with fresh diesel before hay season and carry a spare filter.
Manual Section: Fuel System p. 71Engine temperature gauge never climbs to normal operating range even after an hour of mowing
Test the thermostat in heated water before blaming the gauge; the specs on page 107 call for it to start opening at 71 °C (160 °F) and reach fully open at 82 °C (180 °F). Replace it if it hangs open, and confirm the radiator drain tap is fully closed so coolant is not bypassing the block.
Manual Section: Cooling System p. 107Engine cranks slowly or will not turn over on frosty mornings, headlights dim while cranking
Check the battery first; it needs a minimum 700 amps cold cranking at -18 °C (0 °F), the spec listed on page 86. Verify electrolyte sits 6.35 mm (1/4 in) above the plates, clean corrosion from both posts, then follow the cold starting procedure beginning on page 27 before the next hard frost.
Manual Section: Electrical System p. 86Hydraulic oil weeping from loader fittings and hoses, film of oil on the front axle
Clean and dry every loader fitting, cycle the loader a few times, and snug the joint that shows fresh oil; fittings on new tractors work loose in the first season. Check the hydraulic oil level afterward and top off, since the EHSS transmission holds 46.0 liters (12.1 U.S. gals) per page 106 and a slow weep adds up by planting time.
Manual Section: Hydraulic System p. 106Clunk or wobble from front wheels at road speed after first few hours of use
Torque the front and rear wheel bolts to 129 N·m (95 ft-lb) and the rear disc to rim bolts to 244 N·m (180 ft-lb), the values on page 93. Recheck after the first loaded wagon run; hardware on new tractors seats and loosens, and a star pattern keeps the rim pulled down square.
Manual Section: Lubrication and Maintenance p. 93Frequently Asked Questions
What are the torque specifications for the New Holland Boomer 4055 wheel bolts?
The front wheel bolts for the Boomer 4055 should be tightened to 129 N⋅m (95 ft-lb). The rear wheel bolts should also be tightened to 129 N⋅m (95 ft-lb). p. 93
What are the thermostat replacement specifications for the New Holland Boomer 4055, Boomer 4060 tractors?
The thermostat is a heat-sensitive valve. To install a new thermostat, position it in the recess of the water outlet connection so that the heat element (spring end) is in the cylinder head of the engine. p. 82
What is the engine oil capacity for the New Holland Boomer 4055 and 4060?
The engine crankcase capacity for both the Boomer 4055 and 4060, including the filter, is 7.0 liters (7.4 U.S. qts). p. 106
What is the correct fan belt tension for the Boomer 4055/4060?
When 9 - 11 kg (20 - 25 lb) of thumb pressure is applied midway between the belt pulleys, a correctly tightened fan belt will deflect 10 - 15 mm (7/16 - 9/16 in). p. 82

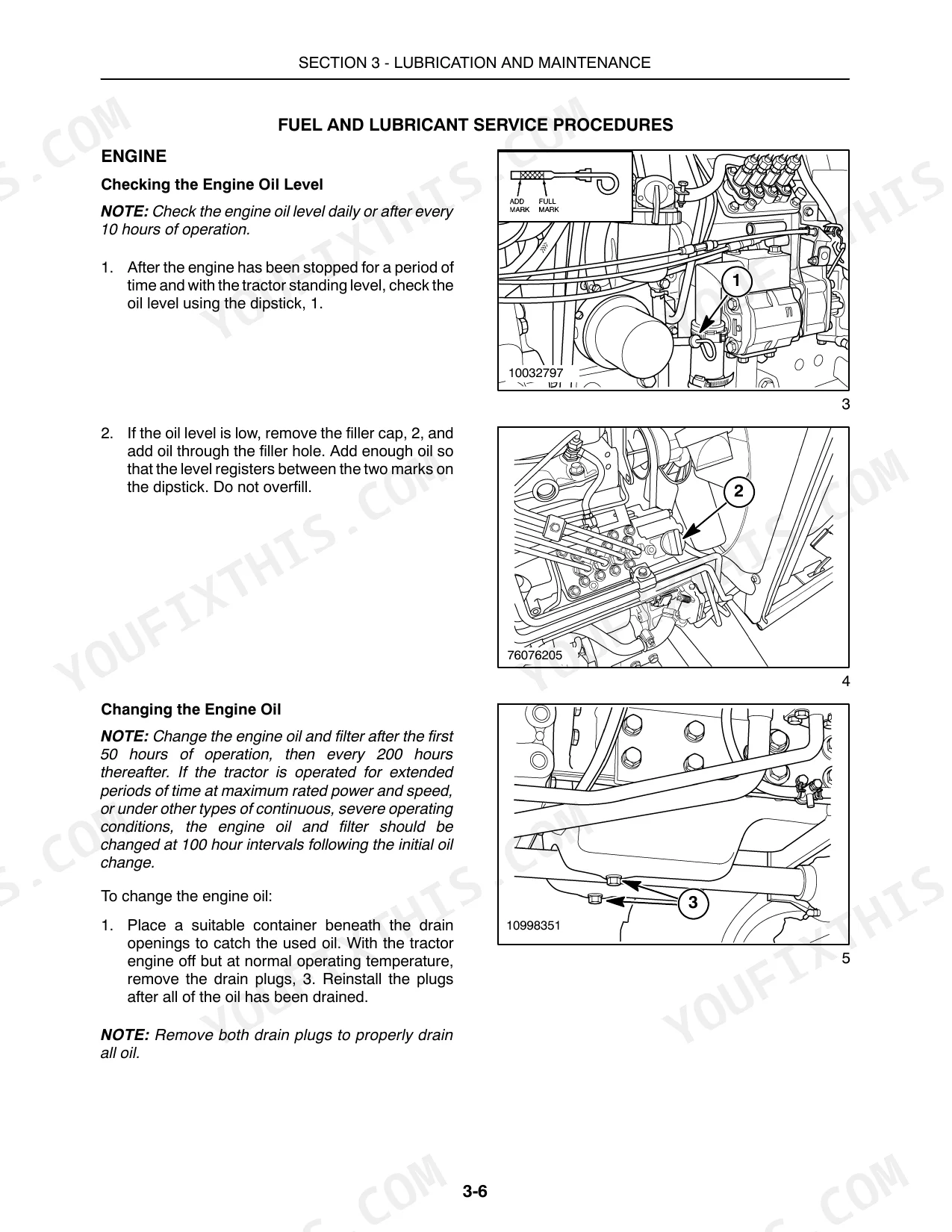

What is the engine oil and filter change interval for the New Holland Boomer 4055, Boomer 4060 tractor?
Change the engine oil and filter after the first 50 hours of operation, then every 200 hours thereafter. If the tractor is operated under severe conditions, change at 100-hour intervals. p. 69
What exactly do I receive with this New Holland Boomer 4055 Operator Manual?
A 127-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this New Holland Boomer 4055 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
