Part of the New Holland Operator Manuals.
Printed by New Holland under part number 87477193, this 173-page operator manual is the factory book for the Boomer 4055 and 4060 compact tractors with cab, covering everything from the seat: controls, starting, lighting, remote hydraulics, and daily service. Wiring diagrams run through a solid block near the back, tracing harness routing and circuit paths when a work light or a start relay quits on you. The lubrication and maintenance chapter, the largest in the book, walks you through fuel and lubricant service and lays out what gets greased and when. Change the inner safety air filter element every third primary element change or every 1000 hours, whichever lands first, and torque both front and rear wheel nuts to 129 N-m (95 ft-lb). Chasing a grease fitting nobody documented wastes an afternoon you do not have. Bookmarked and text-searchable, your copy rides along wherever the tractor is working.
Other edition of this manual
- New Holland Boomer 4055, 4060 Operator Manual — Wiring Diagrams Original price was: $27.99.$19.99Current price is: $19.99.
What's Inside This New Holland Boomer 4055, Boomer 4060 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-25 | Precautionary Statements, Important Warnings, Working Safely |
| General Information | 26-29 | Minimum Hardware Tightening Torques |

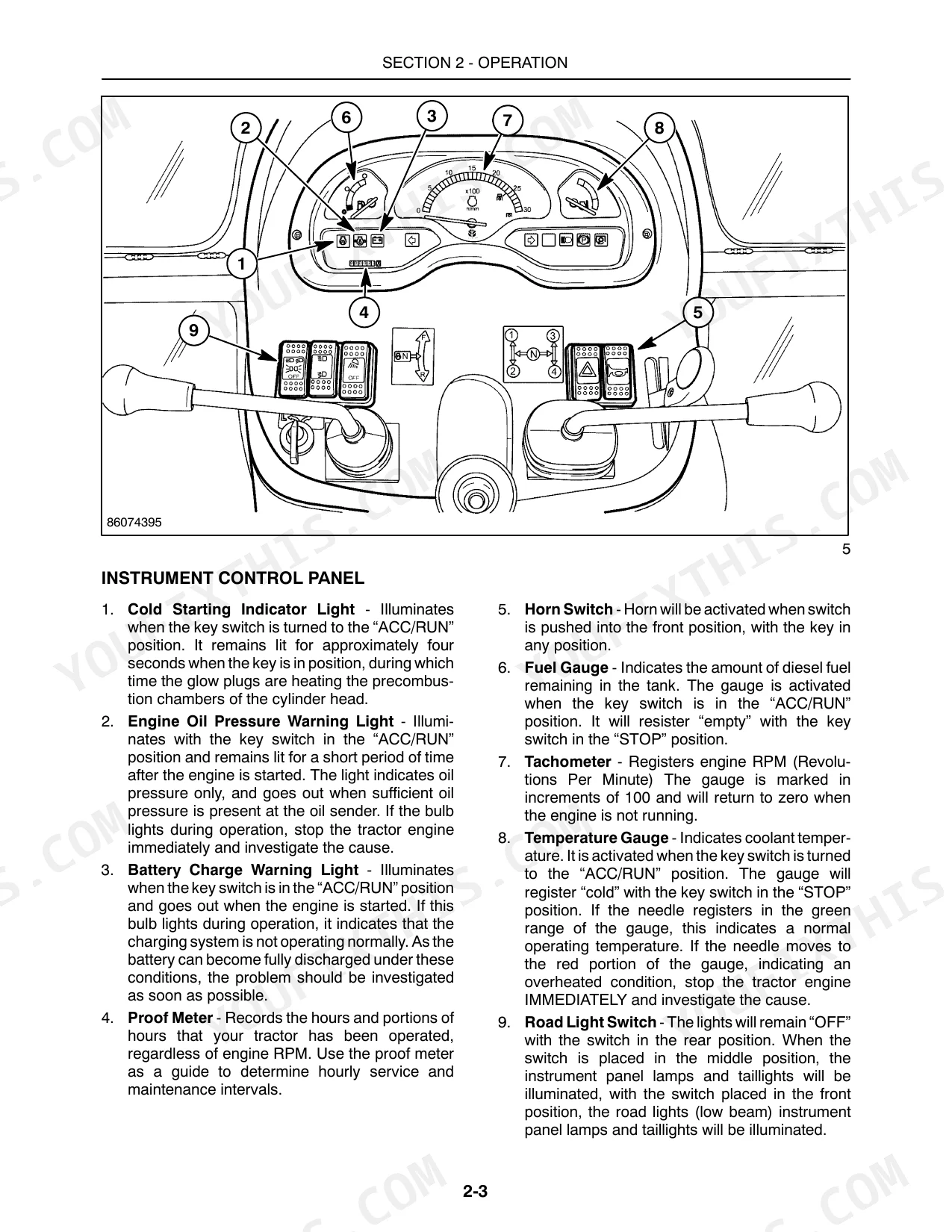

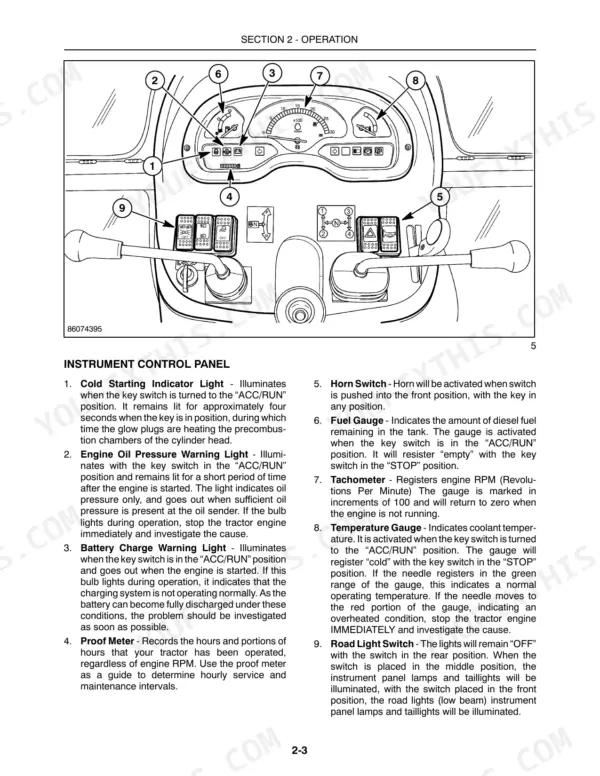

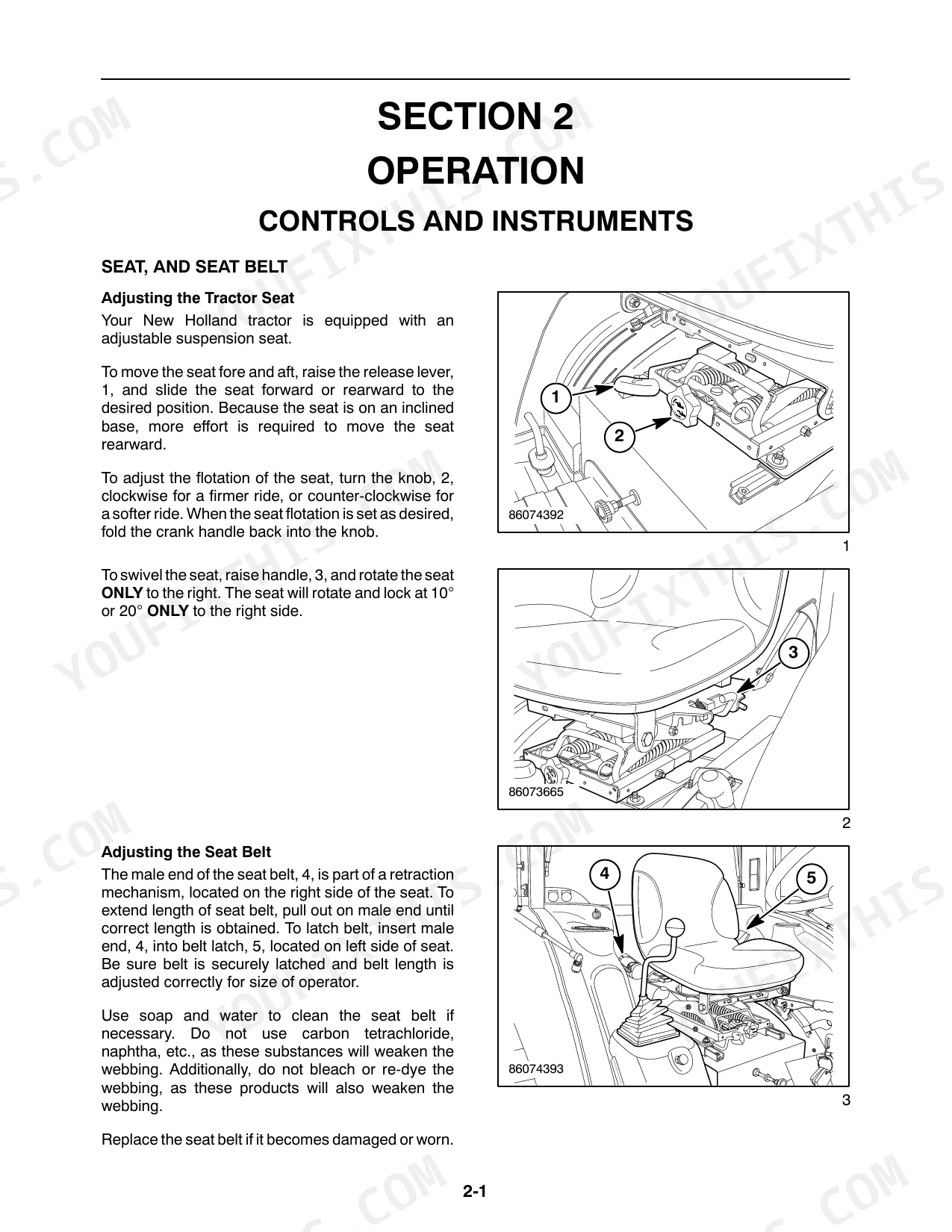

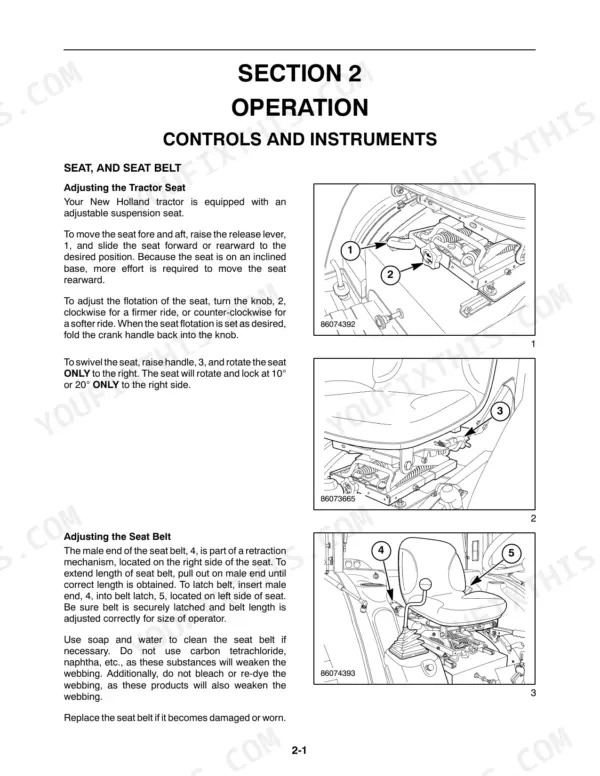

| Operation | 30-81 | Controls and Instruments, Starting the Engine, Lighting, Tractor Hydraulics |

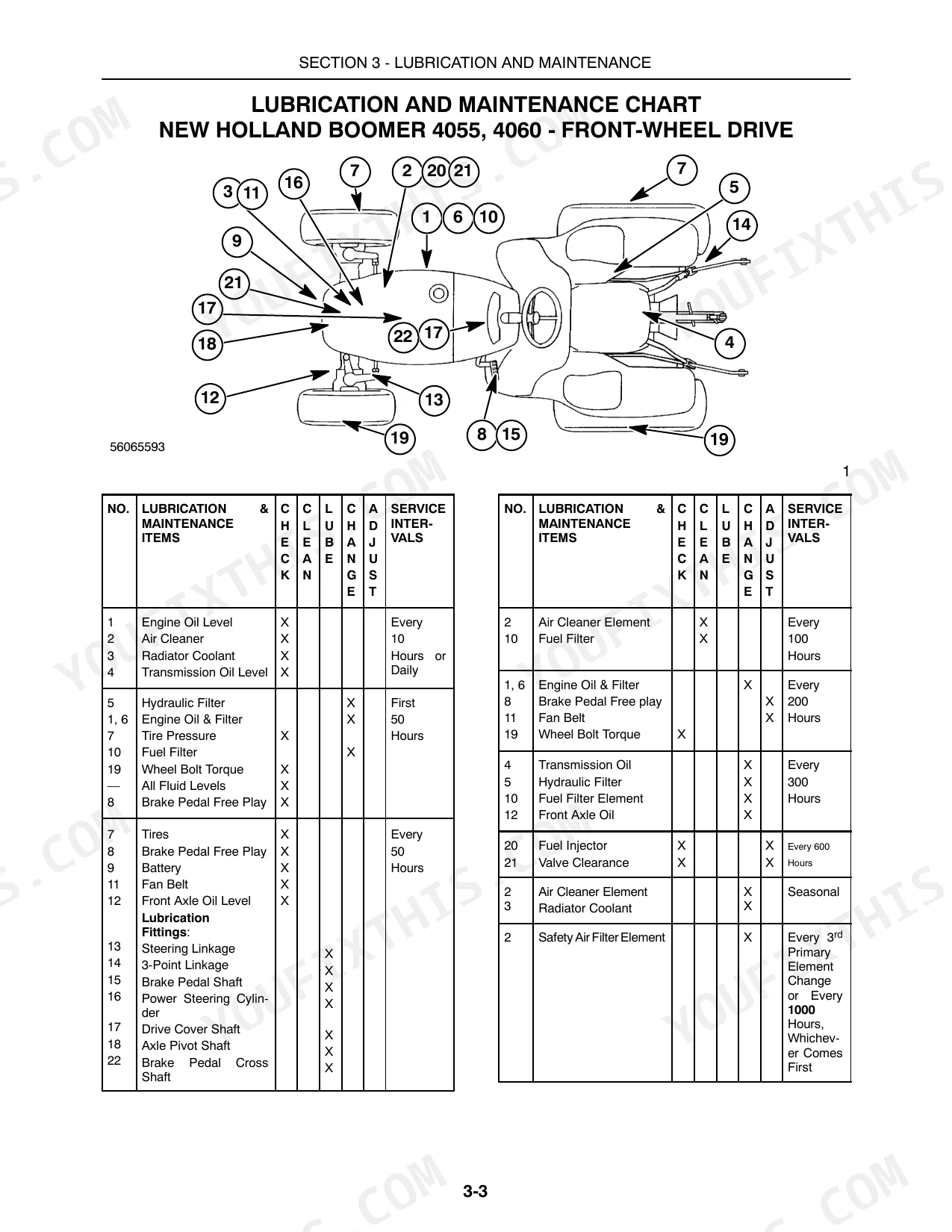

| Lubrication and Maintenance | 82-149 | Fuel and Lubricant Service Procedures, General Maintenance |

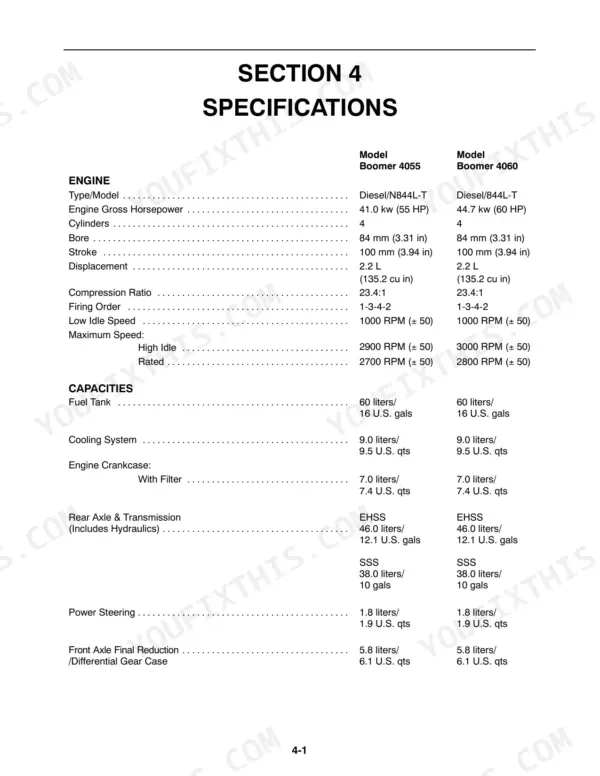

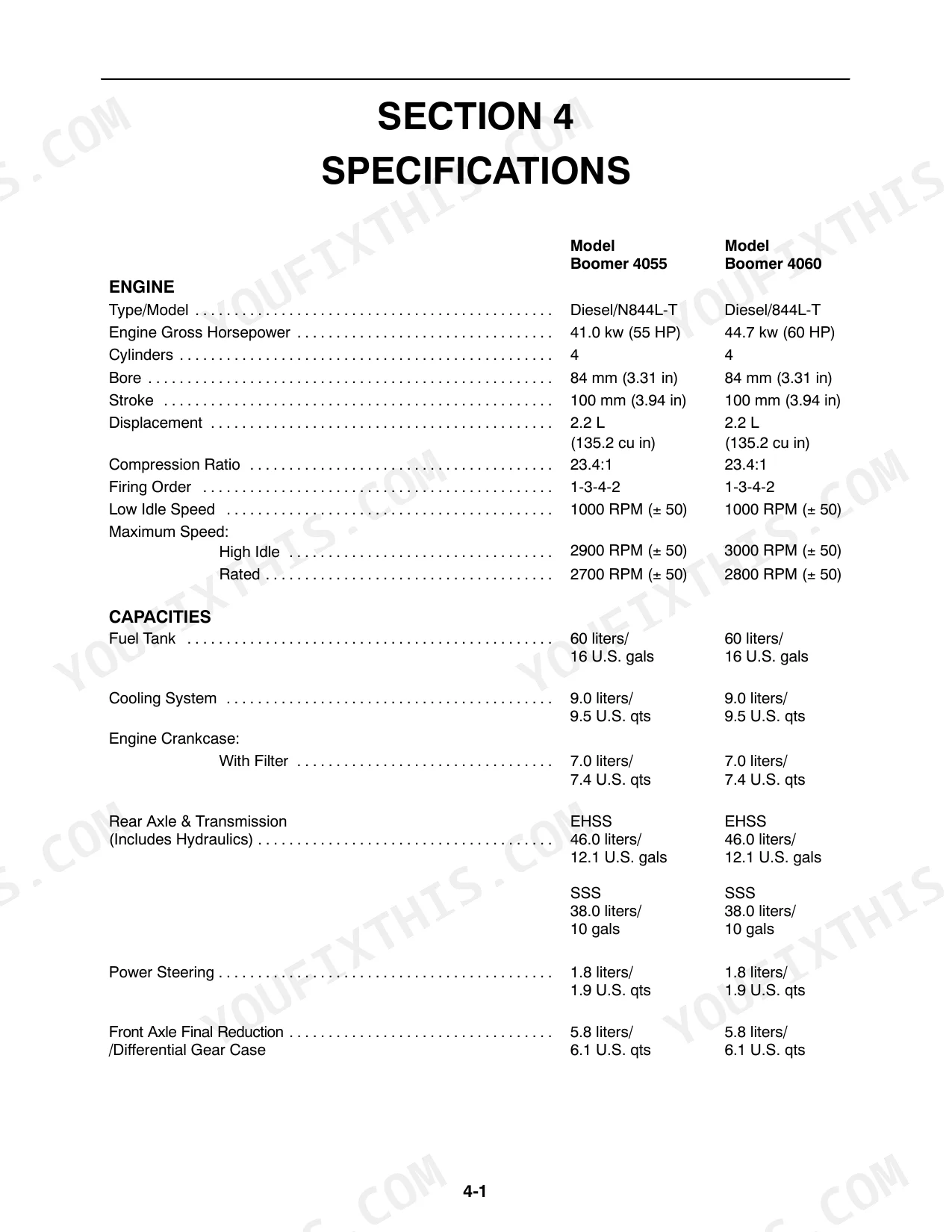

| Specifications | 150-167 | Engine, Cooling System |
| Predelivery Service | 170-173 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Tractor Model Information, Inspection Records |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Torque | 129 N⋅m (95 ft-lb) | p. 114 |
| Rear Wheel Torque | 129 N⋅m (95 ft-lb) | p. 114 |
| Air cleaner inner safety element replacement interval | 1000 hours | p. 84 |
| Thermostat Start to Open | 71°C (160°F) | p. 152 |
| Hydraulic Pump Capacity | 43.9 lpm (11.6 U.S. gpm) | p. 153 |
| Thermostat Fully Open | 82°C (180°F) | p. 152 |
| Fuel Tank Capacity | 60 liters (16 U.S. gals) | p. 150 |
| Engine Oil Capacity (with filter) | 7.0 liters (7.4 U.S. qts) | p. 150 |
| Cooling System Capacity | 9.0 liters (9.5 U.S. qts) | p. 150 |
| Power Steering Oil Capacity | 1.8 liters (1.9 U.S. qts) | p. 150 |
| Front Axle Final Reduction/Differential Gear Case Capacity | 5.8 liters (6.1 U.S. qts) | p. 150 |
| Front Wheel Bolt Torque | 129 N·m (95 ft-lb) | p. 114 |
New Holland Boomer 4055, Boomer 4060 Common Problems This Manual Covers
New Holland Boomer 4055 dies while working under load in the field
Check the fuel gauge first, then confirm the 60 liter (16 U.S. gal) tank is not drawing air from a low pickup. Bleed the fuel system and injector lines. Inspect the fuel filter base for weeping and check the fuse box for a loose fusible link.
Engine runs too cool and never reaches operating temperature on the gauge
Verify coolant level in the recovery tank before blaming the gauge. The thermostat should start to open at 71 C (160 F) and sit fully open at 82 C (180 F), specs listed on page 152. If the needle stays low all morning, the thermostat is stuck open or a coolant drain line is bypassing the block. Replace the thermostat.
Hydraulic fluid leaking from front loader fittings and hoses
Lower the loader, shut down, and relieve pressure before touching a fitting. Check hydraulic oil level per the maintenance procedure on pages 96 through 98 and top off to the full mark. Snug the loader circuit fittings; these lines see 172 bar (2490 PSI) at the system relief setting on page 153, so a weeping flare face will not seal itself.
Battery terminals corroded with acid weeping from the vent caps
Disconnect the ground cable first, then clean both posts and clamps with baking soda and water until the white powder is gone. Fill each cell only to the split ring, never above it. Coat the terminals with dielectric grease and recheck the fuse box locations covered on pages 106 through 108 for acid damage before the next season.
Engine cranks slowly or will not start on a cold morning
Set the range and shuttle lever to neutral and the PTO off so the safety start switches close. Follow the starting procedure on pages 35 and 36, holding the glow plug preheat before cranking. Crank no longer than 30 seconds, then rest the starter a full minute. If jumping, connect the ground last, away from the battery.
Loose bolts and fittings found during first season checks on a new tractor
Walk the tractor before each day in the field and check the obvious fasteners. Torque front and rear wheel bolts to 129 N.m (95 ft-lb) and the rear disc bolts to 244 N.m (180 ft-lb), values listed on page 114. Follow the hardware tightening torque tables on pages 28 and 29 for the three point hitch and drawbar hardware.
Frequently Asked Questions
What is the torque specification for the front wheel bolts on the Boomer 4055 and 4060?
The front wheel bolts must be tightened to a torque of 129 N⋅m (95 ft-lb). p. 114
What is the procedure to reset the transmission if the shuttle lever is shifted too quickly?
If the shuttle lever is shifted very quickly, the transmission will automatically shift into neutral. To reset the transmission, shift the shuttle lever into the neutral position and then into forward or reverse. p. 45
What is the recommended engine oil and filter change interval on a New Holland Boomer 4055 or Boomer 4060 tractor?
The engine oil and filter should be changed after the first 50 hours of operation, and then every 200 hours thereafter. Under severe operating conditions, this interval should be reduced to 100 hours. p. 88
What is the correct procedure for checking the engine oil level?
Check the engine oil level daily or after every 10 hours of operation. Ensure the engine is stopped for a period of time and the tractor is on level ground before using the dipstick. p. 88
What is the required fan belt deflection for the cooling system?
When 9 - 11 kg (20 - 25 lb) of thumb pressure is applied midway between the belt pulleys, a correctly tightened fan belt will deflect 10 - 15 mm (7/16 - 9/16 in). p. 102
How is this New Holland Boomer 4055 Operator Manual delivered?
Instant PDF download. You get the full 173-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this New Holland Boomer 4055 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Reviews
There are no reviews yet.
