Operating and maintaining your S-series tractor requires exact specifications. This 178-page New Holland 3010S, 4010S, 5010S Operator Manual (OEM #42301030) details cold-start sequences, transmission range selection, independent PTO engagement, and three-point linkage adjustments. A dedicated operation section walks through daily use, while the maintenance chapters map every service interval from the 50-hour break-in checklist to 1,200-hour milestones. You will find complete fluid charts, such as the 32-liter 2WD transmission capacity, alongside troubleshooting guides for the engine, hydraulics, and brakes. Torque 2WD disc-to-hub nuts to 133 N·m (98 ft. lbs.) and 4WD hubs to 255 N·m (188 ft. lbs.) with confidence. The file is bookmarked by section and fully searchable, allowing quick access on any device before starting a repair.
What's Inside This New Holland 3010S, 4010S, 5010S Operator Manual

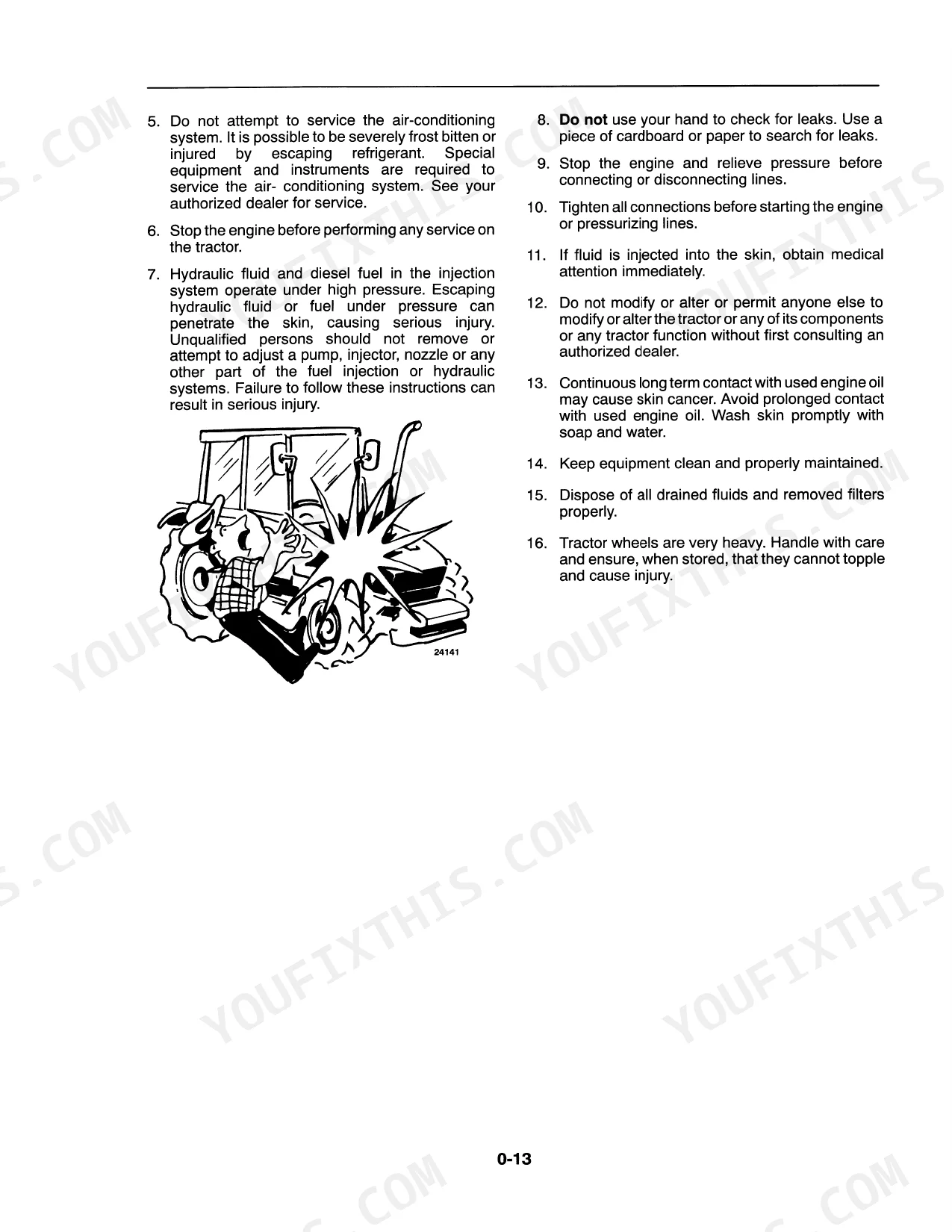

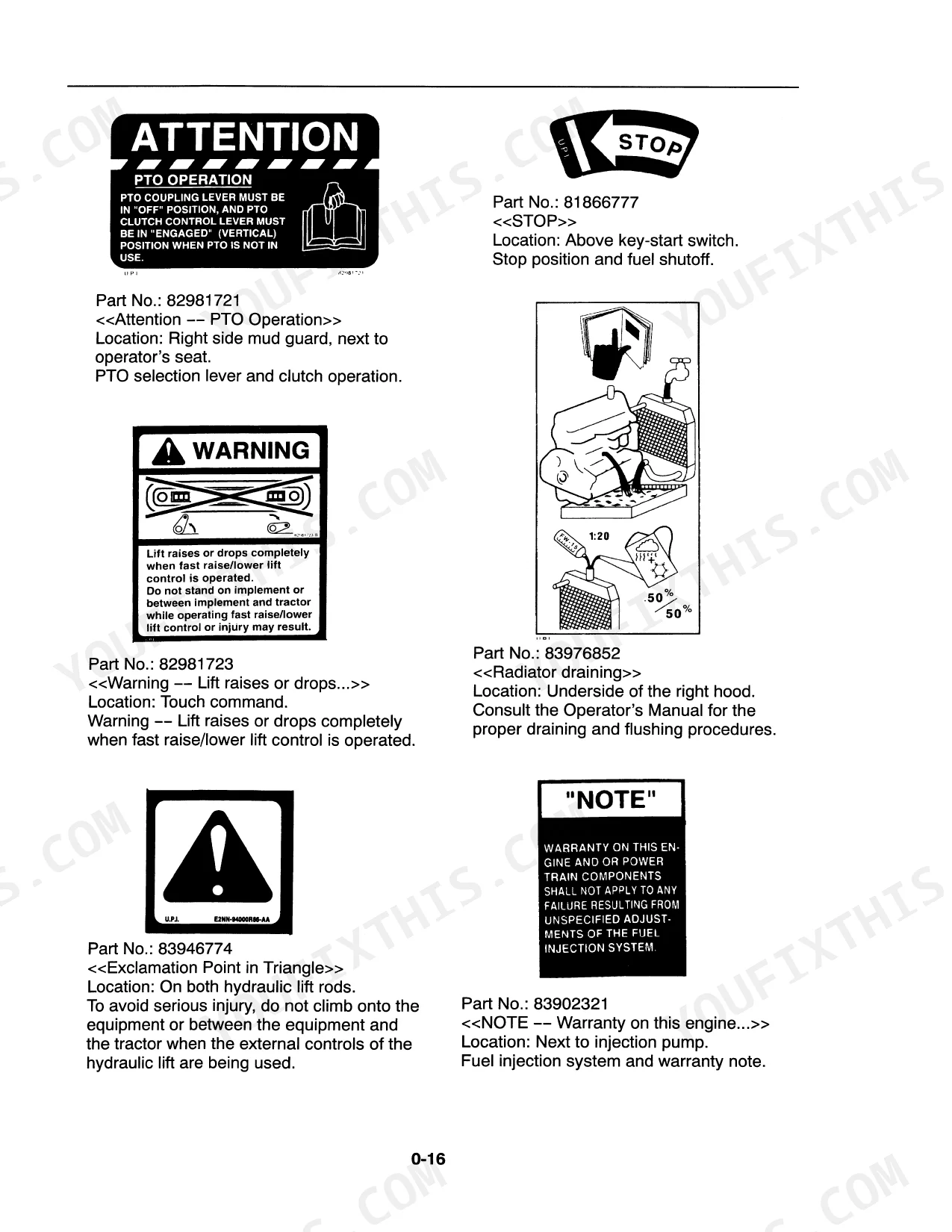

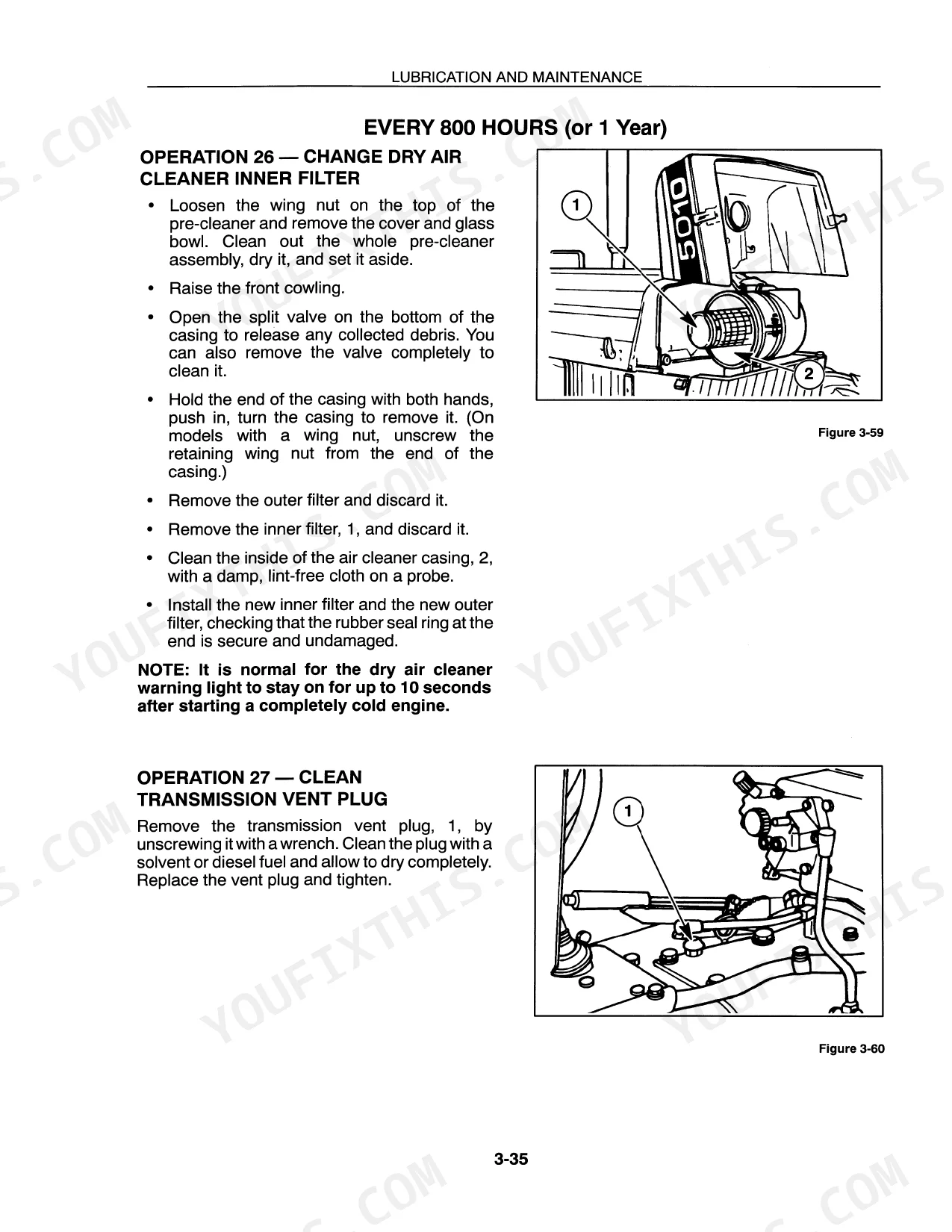

| System | Pages | Key Topics |
|---|---|---|
| Owner Assistance | 6 | Contact the Owner or General Manager, If You Cannot Obtain Satisfaction, If You Need Further Assistance Contact, Contents |
| Safety | 7-22 | - |
| General Information | 23-38 | Introduction (Operation, Lubrication and Maintenance, Troubleshooting, Specifications), Universal Symbols, Protecting the Electrical Systems During Charging or Welding |
| Operation | 39-86 | Starting and Stopping the Engine, Transmission, Independent Power Take-Off (PTO), Hydraulic Lift Operation, Three-Point Linkage, Wheel Track Adjustment |
| Lubrication and Maintenance | 87-136 | Introduction, Lubrication and Maintenance Chart, Running-In Period Guidelines, Safety Precautions, Preventing Contamination of Systems, Maintenance Intervals |
| Troubleshooting | 137-144 | Engine, Electrical System, Hydraulic System, Hydraulic Lift, Brakes |
| Pre-Delivery Checklist | 165-168 | Stationary Inspection, Functional Checks |
| Delivery Report | 169-172 | Safety Precautions and Practice, Lubrication Points and Schedule, Use of Optional Equipment, Operation of All Controls, Preseason Service, All Safety Shielding Is Installed |
| First 50-Hour Service Checklist | 173-178 | Non-Functional Inspections and Operations, Operational Inspections, Functional Inspections, Safety Equipment Inspections |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| 2-Wheel Drive Disc-to-hub nuts torque | 133 N·m (98 ft. lbs.) | p. 121 |
| 4-Wheel Drive Disc-to-hub nuts torque | 255 N·m (188 ft. lbs.) | p. 121 |
| Battery electrolyte level (clearance) | 2.0 to 3.0 mm (0.08 to 0.12 in.) above the top of the separator plates | p. 108 |
| Battery voltage | 12 Volts | p. 155 |
| Fan/alternator belt deflection (clearance) | between 13 mm and 19 mm (0.50 to 0.75 in.) | p. 130 |
| Flasher Unit (Hazard Lights) fuse rating | 10 amp | p. 135 |
| Instrument Cluster Gauges and Warning Lights fuse rating | 5 amp | p. 135 |
| 3010S | ||

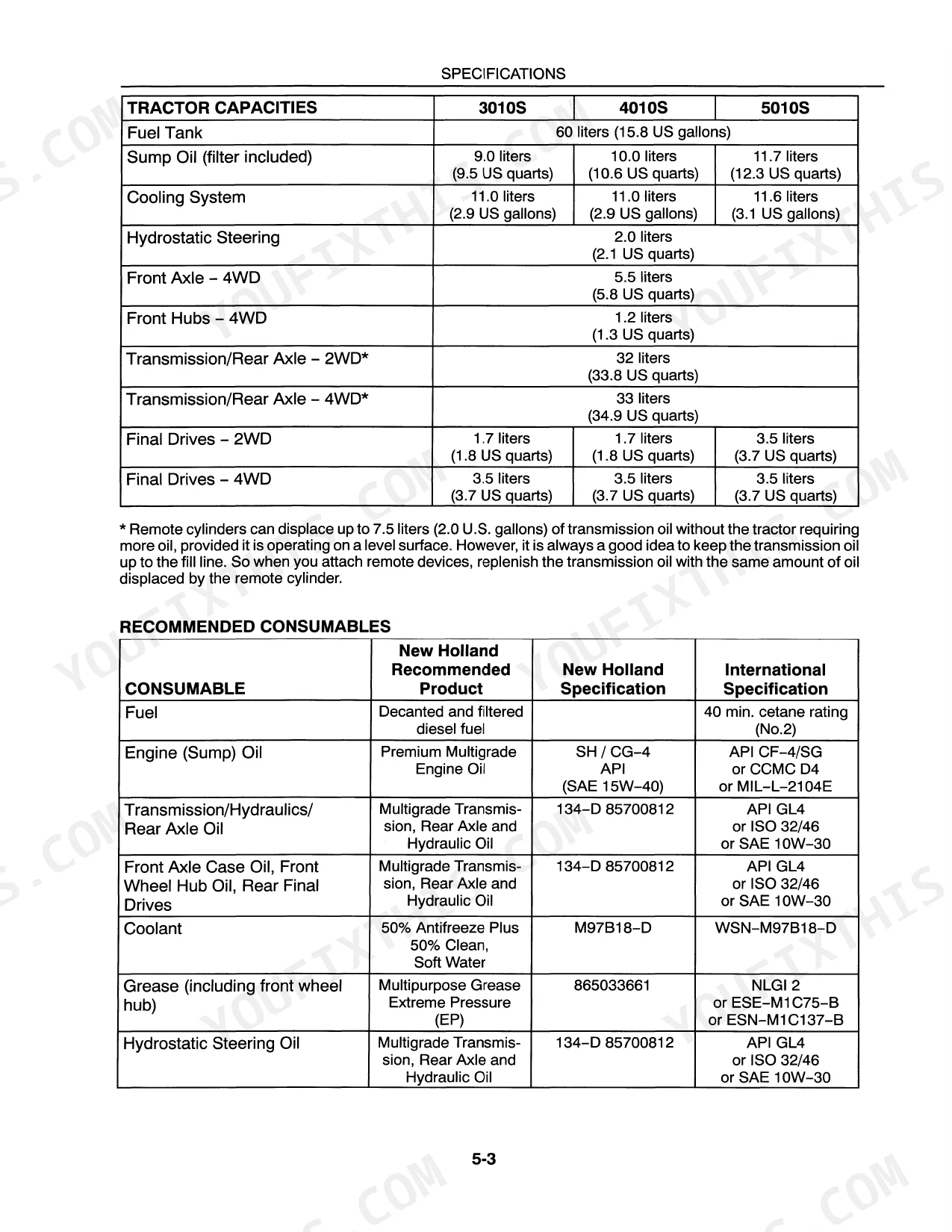

| Engine Oil Capacity (filter included) | 9.0 liters | p. 148 |
| Cooling System Capacity | 11.0 liters | p. 148 |
| 4010S | ||
| Engine Oil Capacity (filter included) | 10.0 liters | p. 148 |
| Cooling System Capacity | 11.0 liters | p. 148 |
| 5010S | ||
| Engine Oil Capacity (filter included) | 11.7 liters | p. 148 |
New Holland 3010S, 4010S, 5010S Common Problems This Manual Covers
Engine turns over slowly or refuses to start in cold weather p. 137
Test battery condition and clean the terminals. Verify voltage reads at least 12 Volts as specified on page 158. Inspect the electrolyte level on page 108, confirming it sits 2.0 to 3.0 mm (0.08 to 0.12 in.) above the separator plates.
Manual Section: TroubleshootingCoolant warning light stays illuminated while engine temperature rises rapidly
Examine the cooling system components for obvious leaks. Check the fan and alternator belt deflection on page 130, adjusting the tension until clearance measures between 13 mm and 19 mm (0.50 to 0.75 in.). Confirm the radiator holds adequate coolant.
Manual Section: Radiator Coolant Level / High Coolant TemperatureInstrument cluster gauges and warning lights suddenly stop working during field operation p. 87
Inspect the fuse panel for blown circuits. Replace the instrument cluster gauges and warning lights fuse on page 135 with a new 5 amp fuse. Verify the battery terminals are tight and check the wiring harness for any signs of loose connections or physical damage.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
What is the fan and alternator belt deflection specification for the New Holland 3010S/4010S/5010S?
Check the fan and alternator belt deflection on page 130. Adjust tension until clearance measures between 13 mm and 19 mm (0.50 to 0.75 in.). Correct tension prevents overheating and premature belt wear.
What is the battery electrolyte level specification for the New Holland S-series tractors?
The electrolyte level should sit 2.0 to 3.0 mm (0.08 to 0.12 in.) above the separator plates, as specified on page 108. Verify battery voltage reads at least 12 Volts (page 158) before cold-weather operation.
What are the torque specs for the New Holland 3010S engine and wheel bolts?
The manual provides torque specifications for wheel nuts but does not specify torque for engine bolts. For 2-wheel drive models, disc-to-hub nuts should be tightened to 133 N·m (98 ft. lbs.). For 4-wheel drive models, disc-to-hub nuts require 255 N·m (188 ft. lbs.) and disc-to-rim nuts 245 N·m (181 ft. lbs.). Rear disc-to-hub nuts are 390 N·m (288 ft. lbs.) and rear disc-to-rim nuts are 240 N·m (177 ft. lbs.). (Refer to page 121 and 124)
What format is this manual in?
You get a 178-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone — bring it right to the shop floor.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy most of the text. The main body text is crisp and clear, making it easy to read without blurriness or fading. Diagrams and illustrations are raster images, which appear clear at normal viewing but will pixelate if zoomed in significantly; their labels are readable. Pages are generally clean with minimal scan artifacts, though some have faint vertical lines on the margins, and there are numerous blank pages, often used as section breaks or for forms.
