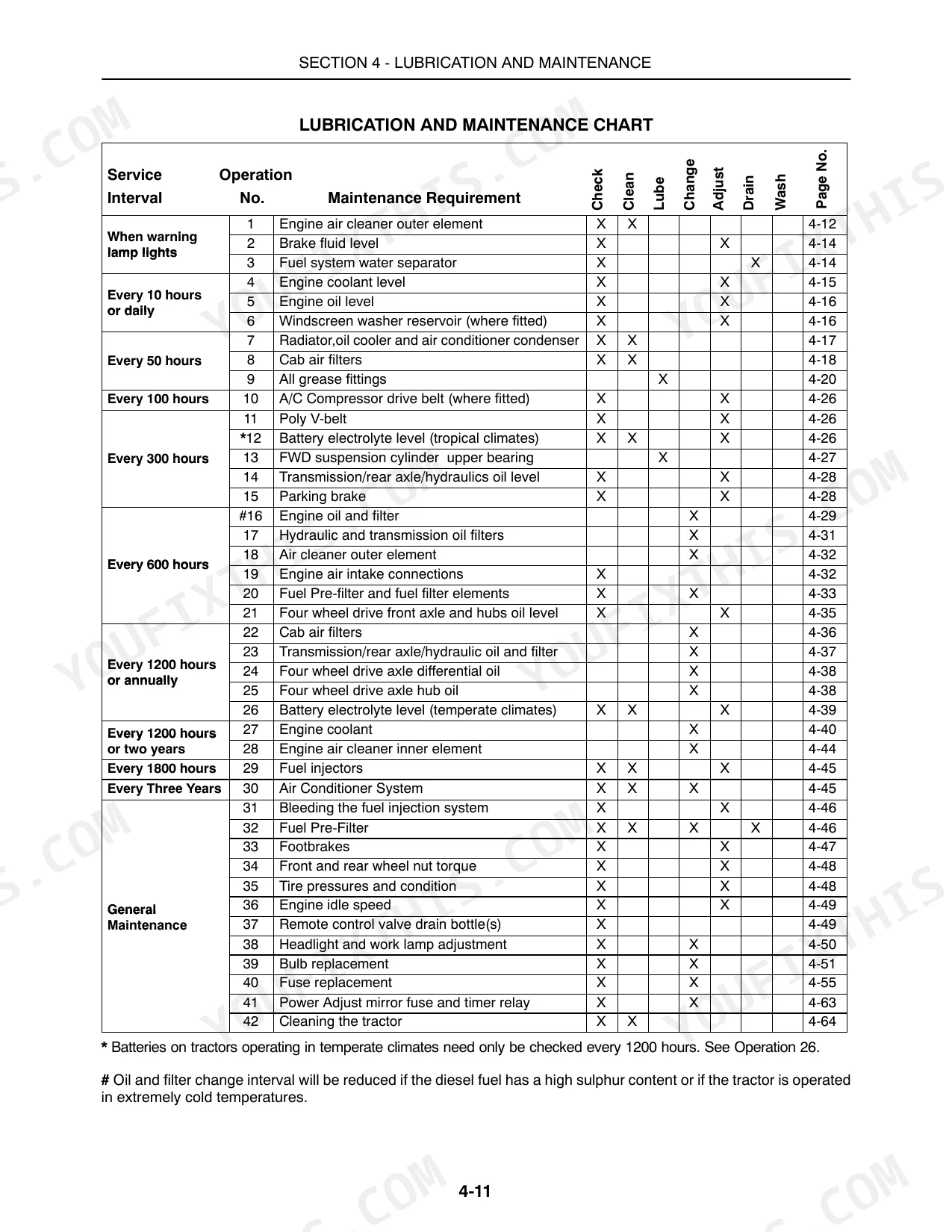

Three-point linkage faults, brake troubles and shift problems on Synchro Command, Dual Command and Electro Command transmissions each have their own troubleshooting entries in this New Holland T6050 operator manual PDF, a 348-page factory book (OEM 87717170) covering five tractors from T6010 to T6070. Controls come first: indicator and warning lights, the dot matrix display and transmission operation, then field chapters on the rear PTO, mechanical and electronic draft control, remote hydraulic valves, drawbars and ballasting. Specifications cover dimensions, weights and capacities per model. Clean the air filter at 2 bar (30 psi) with the nozzle 150 mm (6 in) away, and tighten the fuel filter to 15 N·m (11 ft-lb). Your outer air cleaner element is due every 600 hours, and the maintenance chart runs from the 10-hour or daily checks to the 3-year items. Bookmarked and searchable, it stays on your phone in the cab, with the draft control pages wherever the tractor goes.
What's Inside This New Holland T6010–T6070 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 11-36 | End User Licence Agreement Terms, Ecology and the Environment, Precautionary Statements (Personal Safety, Machine Safety, Information), Safety Precautions |

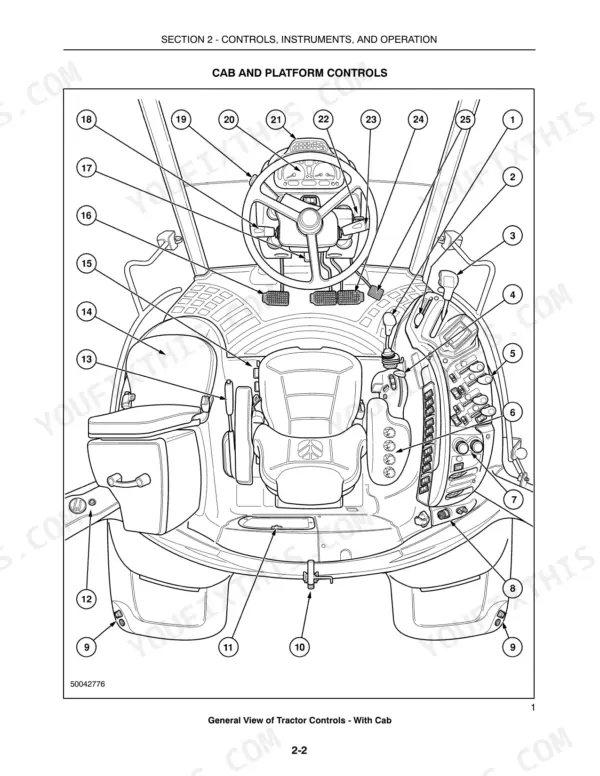

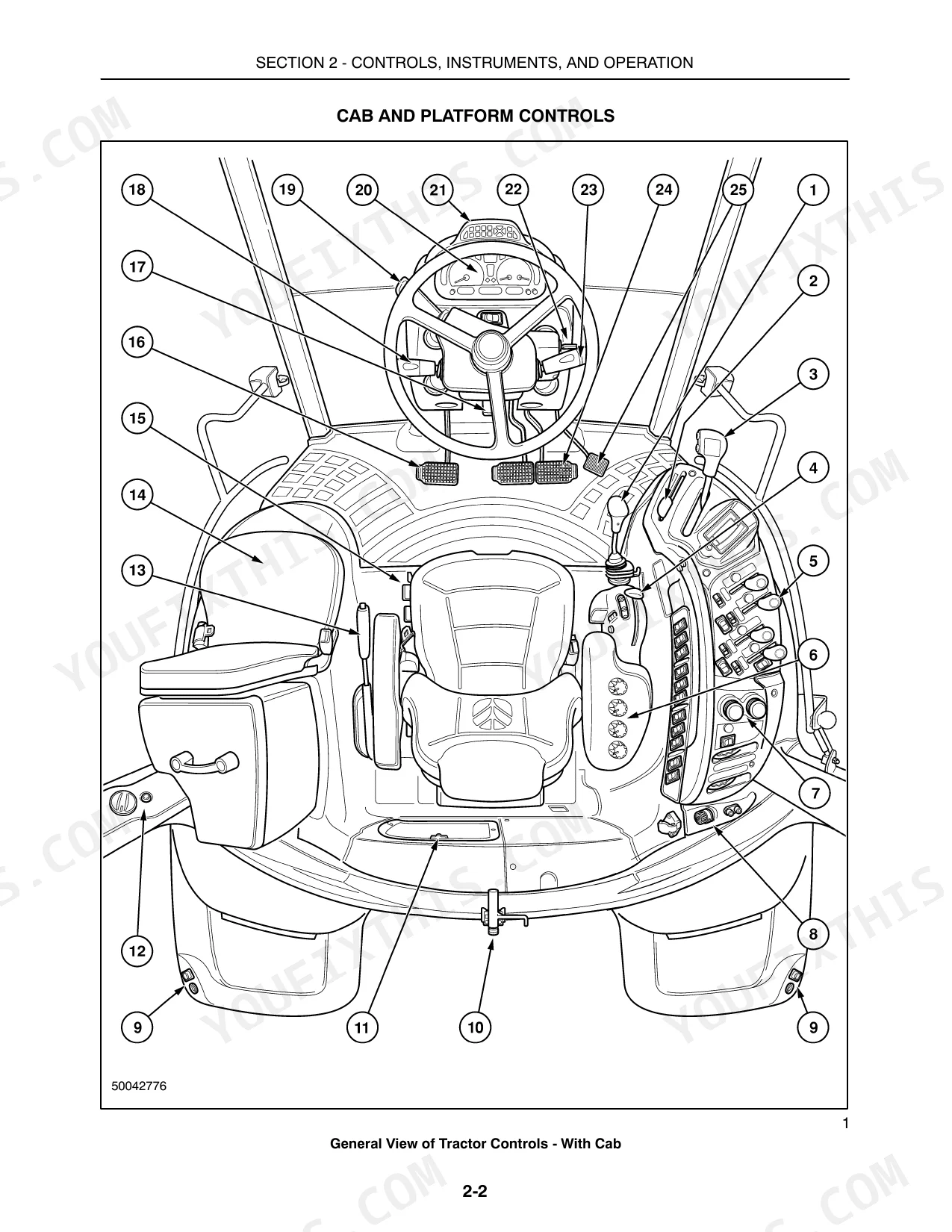

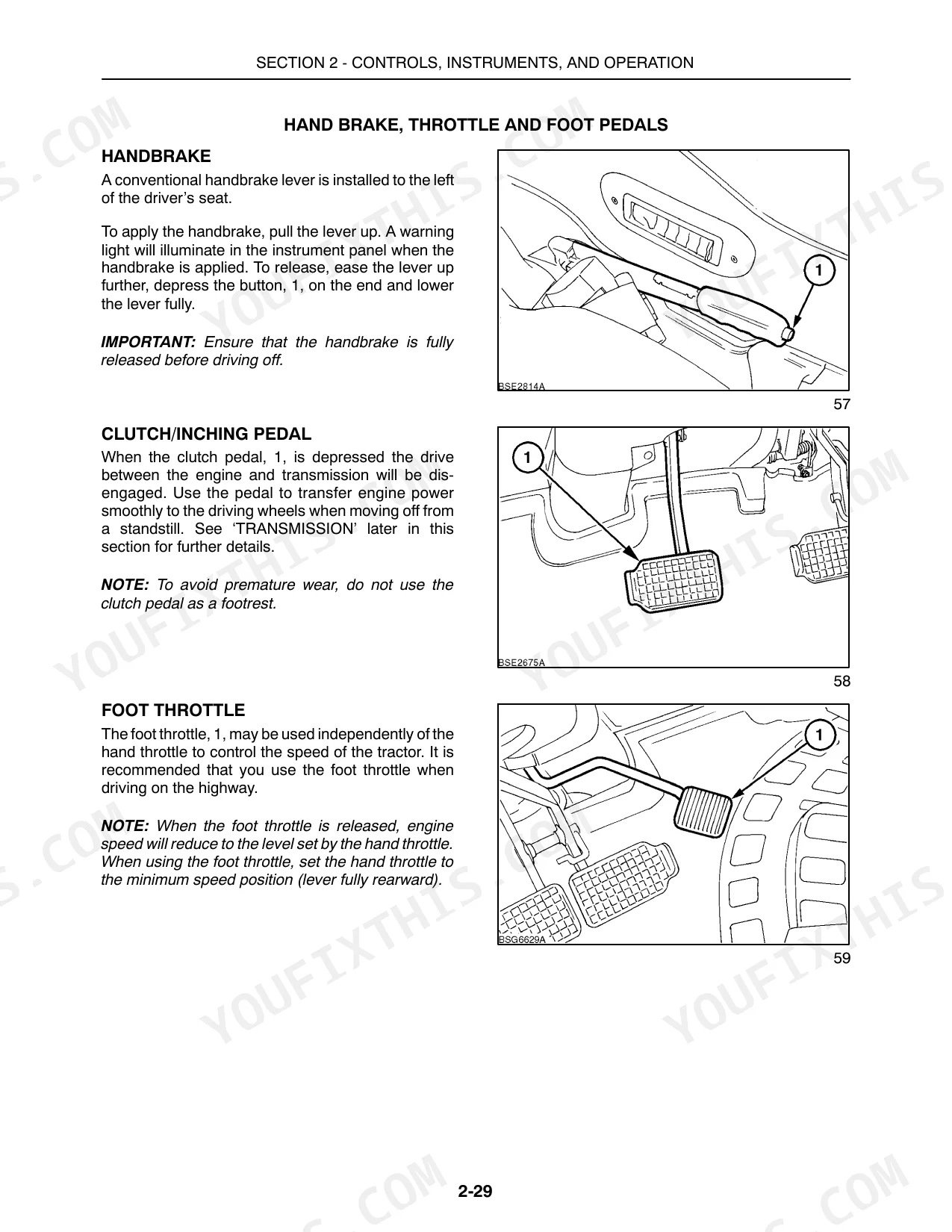

| Controls, Instruments, and Operation | 37-130 | Cab and Platform Controls, Platform Controls, Cab, Seats, Hand Brake, Throttle and Foot Pedals, Instrument Console, Gauges |
| Field Operation | 131-226 | Jump Starting the Tractor, Starting the Engine, Fast Steer, Rear Power Take-Off, Mechanical Draft Control, Electronic Draft Control, Closed Center Hydraulic Remote Control Valves |
| Lubrication and Maintenance | 227-292 | Guards |

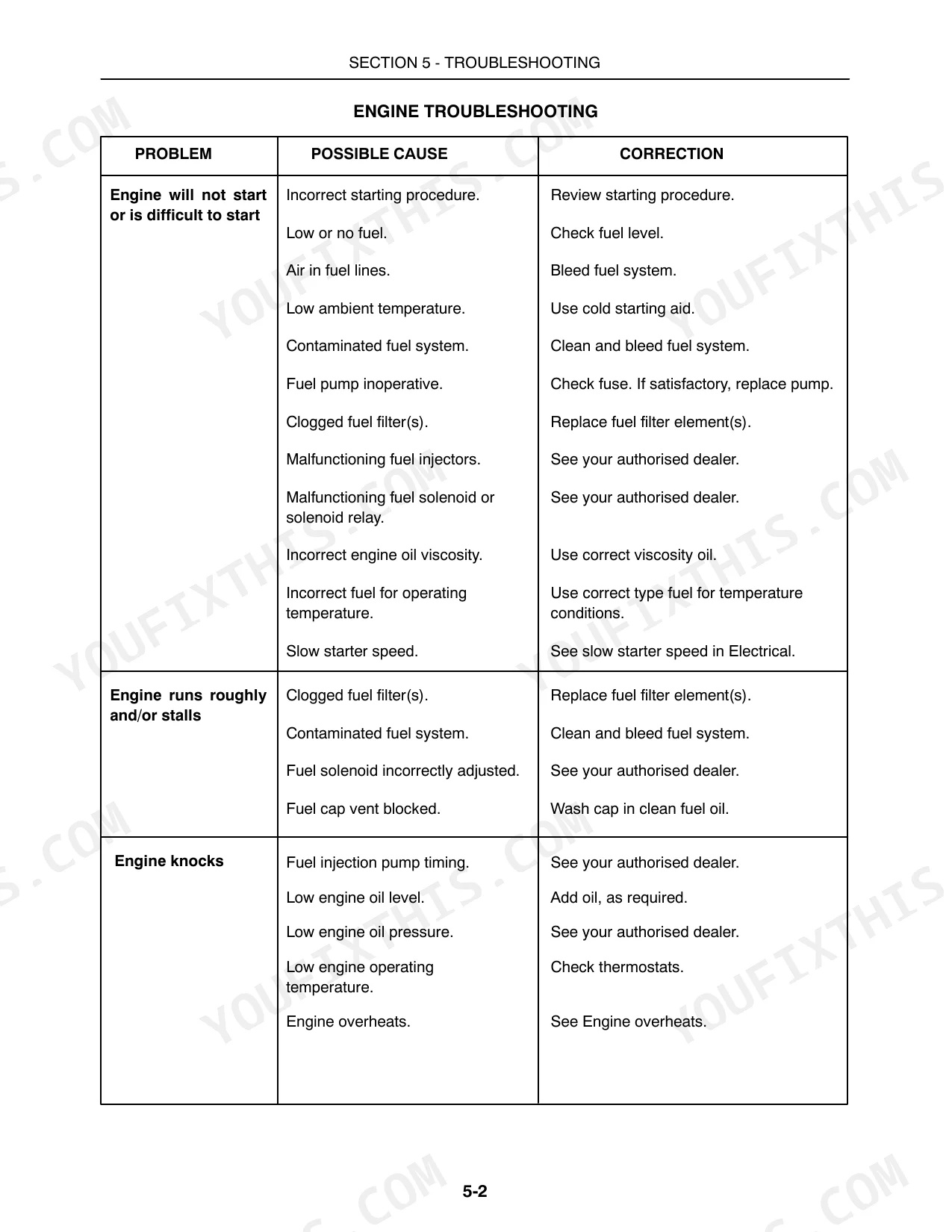

| Troubleshooting | 293-304 | Engine Troubleshooting (Transmission Troubleshooting: Synchro Command, Dual Command, Electro Command), Hydraulics Troubleshooting (Three-Point Linkage Troubleshooting) |
| Vehicle Storage | 305-306 | Tractor Storage, Preparation for Use After Storage |
| Accessories | 307-312 | Coolant Immersion Heater, Transmission Oil Heater, Additional Amp Socket, Adaptor Cable, Auxiliary Headlights, Battery Isolator Switch, Loader Subframe, Control Valve |

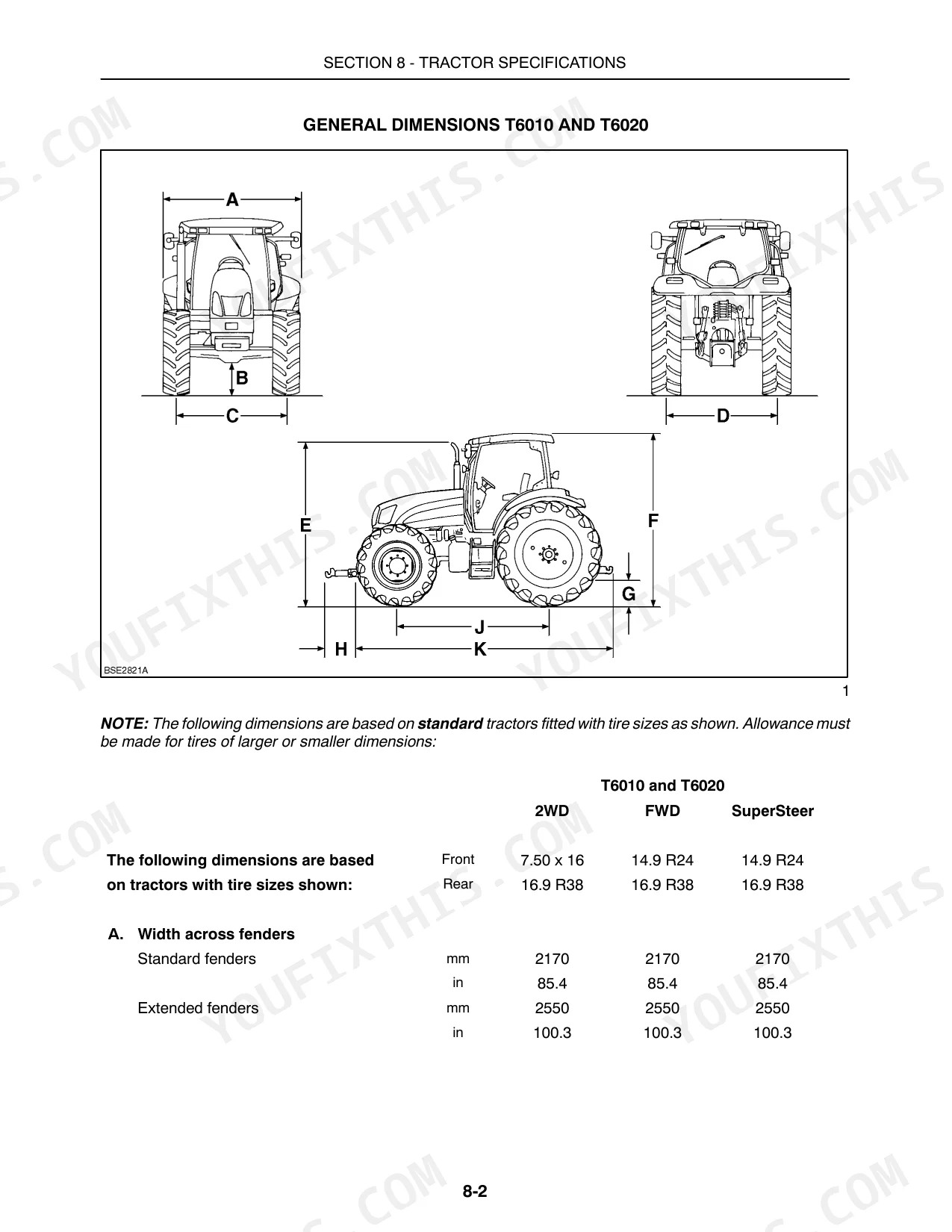

| Tractors Specifications | 313-334 | General Dimensions, Weights, Capacities, Engine, Fuel System, Cooling System, Transmission, Brakes |
| Delivery Report/ First 50-Hour Service | 335-342 | First 50 Hour Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Low standby pressure | 21 to 24 bar (305 to 348 psi) | p. 191 |
| Air cleaner outer element service interval | 600 hours | p. 238 |
| Compressed air pressure for cleaning air filter | 2 bar (30 psi) | p. 239 |
| Fuel filter tightening torque | 15 N⋅m (11 ft-lb) | p. 259 |
| Transmission/Rear Axle/Hydraulic Oil Capacity (24x24, HD axle) | 65.5 Liter | p. 236 |
| Transmission/Rear Axle/Hydraulic Oil Capacity (16x16, HD axle) | 62 Liter | p. 236 |
| Engine Idle Speed | 800-850 rpm | p. 275 |
| Disc to hub nuts torque (8 Stud, steel disc wheels) | 260 N·m | p. 214 |
| T6010 | ||
| Dynamic timing (Btdc) | 0° | p. 321 |
| T6010, T6020 | ||
| Engine Oil Capacity (4 Cyl. engines) | 10 Liter | p. 236 |
| T6030, T6050, T6070 | ||
| Engine Oil Capacity (6 Cyl. engines) | 15 Liter | p. 236 |
| T6010, T6020, T6030, T6050 | ||
| Transmission/Rear Axle/Hydraulic Oil Capacity (12x12, HD axle) | 65 Liter | p. 236 |
