The hydraulic lift is where most Boomer owners get stuck, and the Operating Instructions section is the part of this book that earns its keep: attaching three-point equipment, setting the top link, and adjusting the hydraulic power lift drop rate control valve so a mower or box blade settles instead of dropping. From there it widens out to PTO operation, the extendable drawbar, engine break-in, and the range, shuttle and differential lock controls you touch every hour.
This operator manual, New Holland publication 51559570, runs 226 pages for Boomer 30 and Boomer 35 compact tractors with the S4L and S4L2 engines. Maintenance carries the service chart and the daily checks, Troubleshooting sorts symptoms by system from clutch to hydrostatic transmission, and Specifications holds capacities, tire pressures and torque values.
Download the PDF, print the pages you need, and let them get dirty on the bench.
What's Inside This New Holland Boomer 30, Boomer 35 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-22 | Battery Disconnect Switch, Biodiesel Fuel, Basic Instructions Refueling the Tractor, Change Engine Coolant to Organic Acid Technology Coolant |
| Safety Information | 23-78 | Safety Alert Symbol and Signal Word Definition, Safety Rules, Starting the Machine, Parking the Machine, Ecology and the Environment, Safety Features |

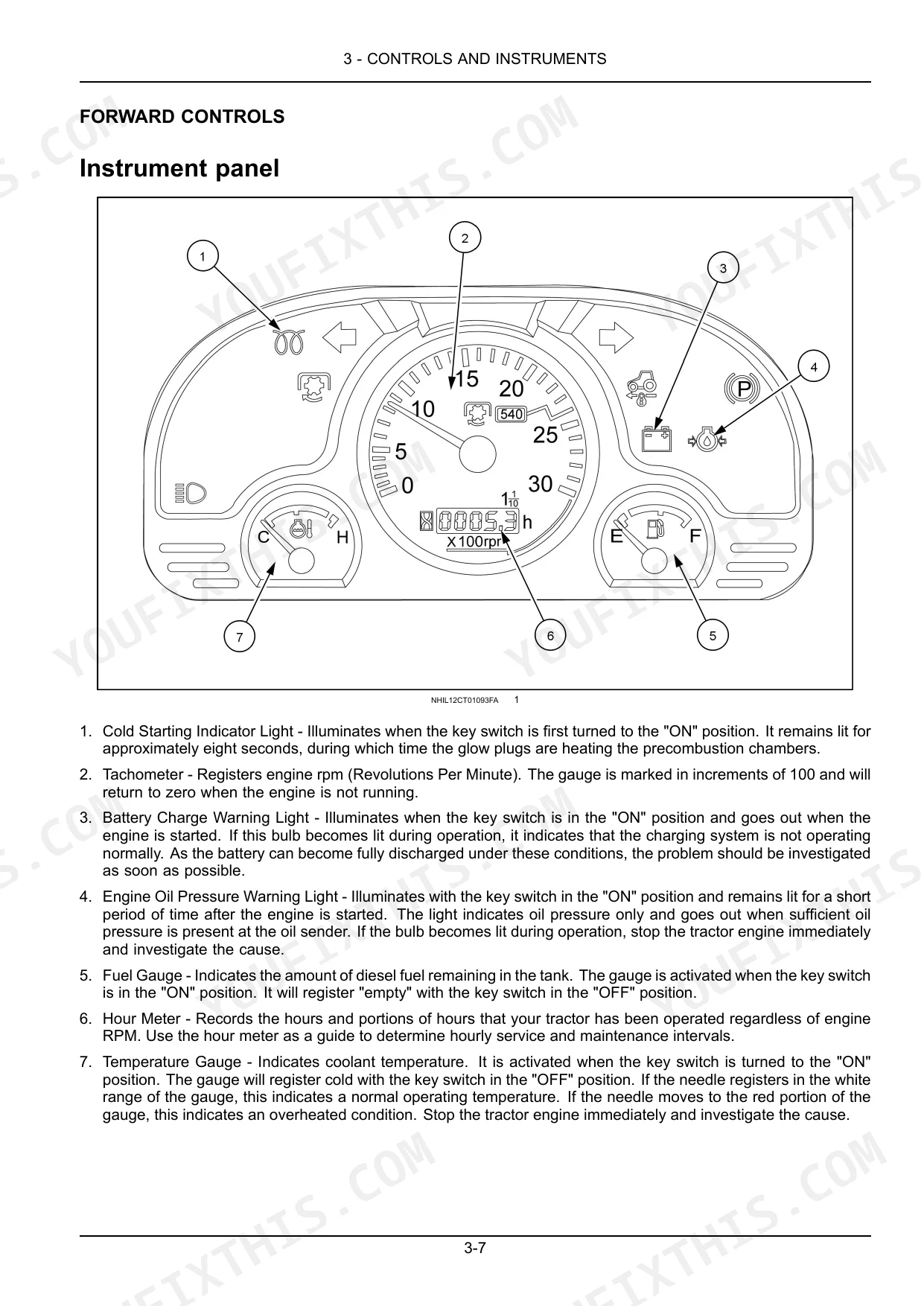

| Controls and Instruments | 79-106 | Operator's Seat (Seat Belt, Seat Controls, Roll Over Protective Structure - Rear Mounted, Roll Over Protective Structure - Front Mounted) |

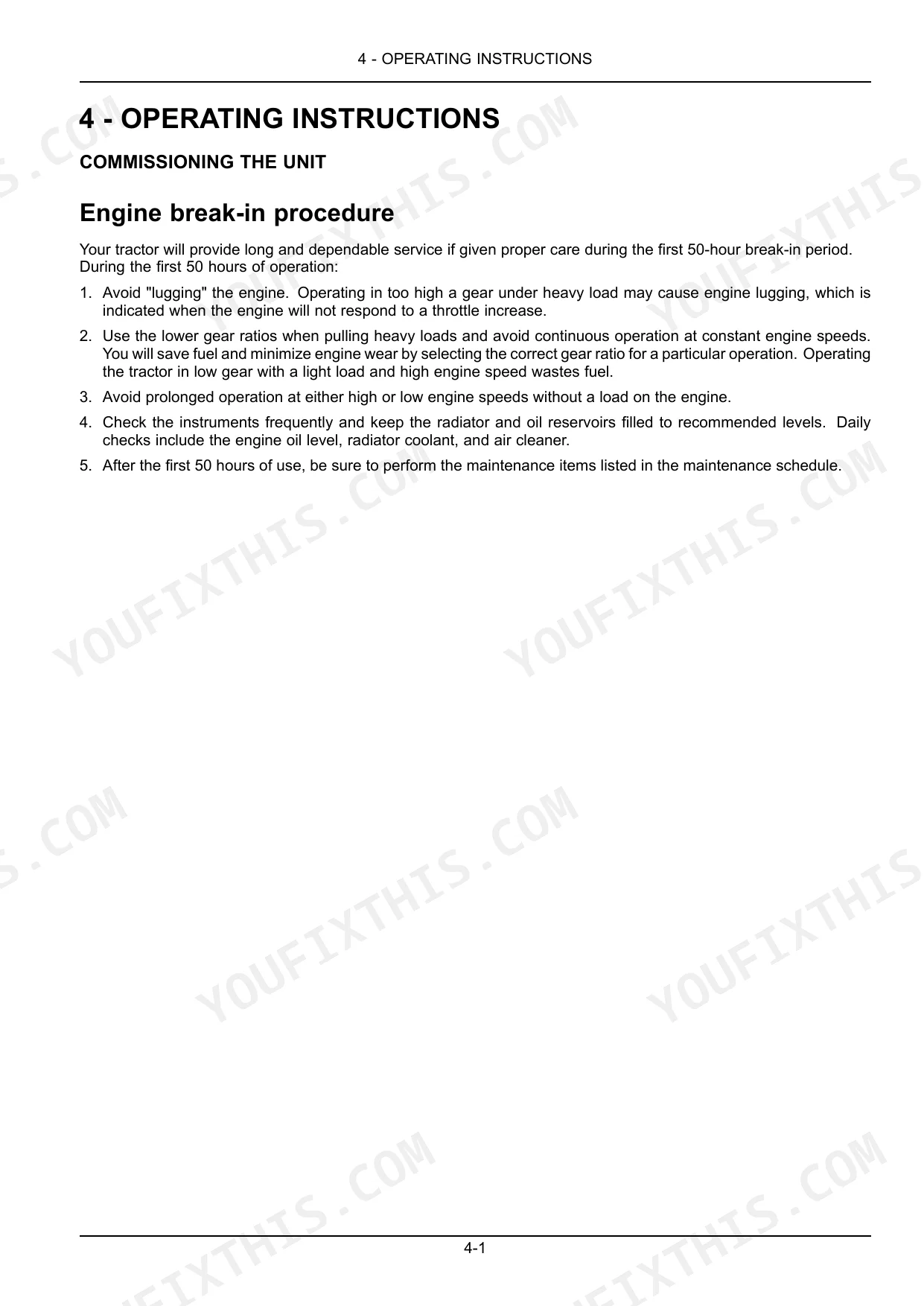

| Operating Instructions | 107-134 | Commissioning the Unit (Engine Break-In Procedure, Power Take-Off Operation, Three-Point Linkage, Attaching Three-Point Equipment, Extendable Drawbar, Top Link, Hydraulic Power Lift Drop Rate Control Valve) |
| Transport Operations | 135-142 | Road Transport (External Lighting Identification, Hazard Warning Light Operation, Turn Signal Operation, Road Lights Operation, Work Lights Operation, Rear Work Light, Driving the Vehicle) |
| Working Operations | 143-146 | Tractor Ballasting |

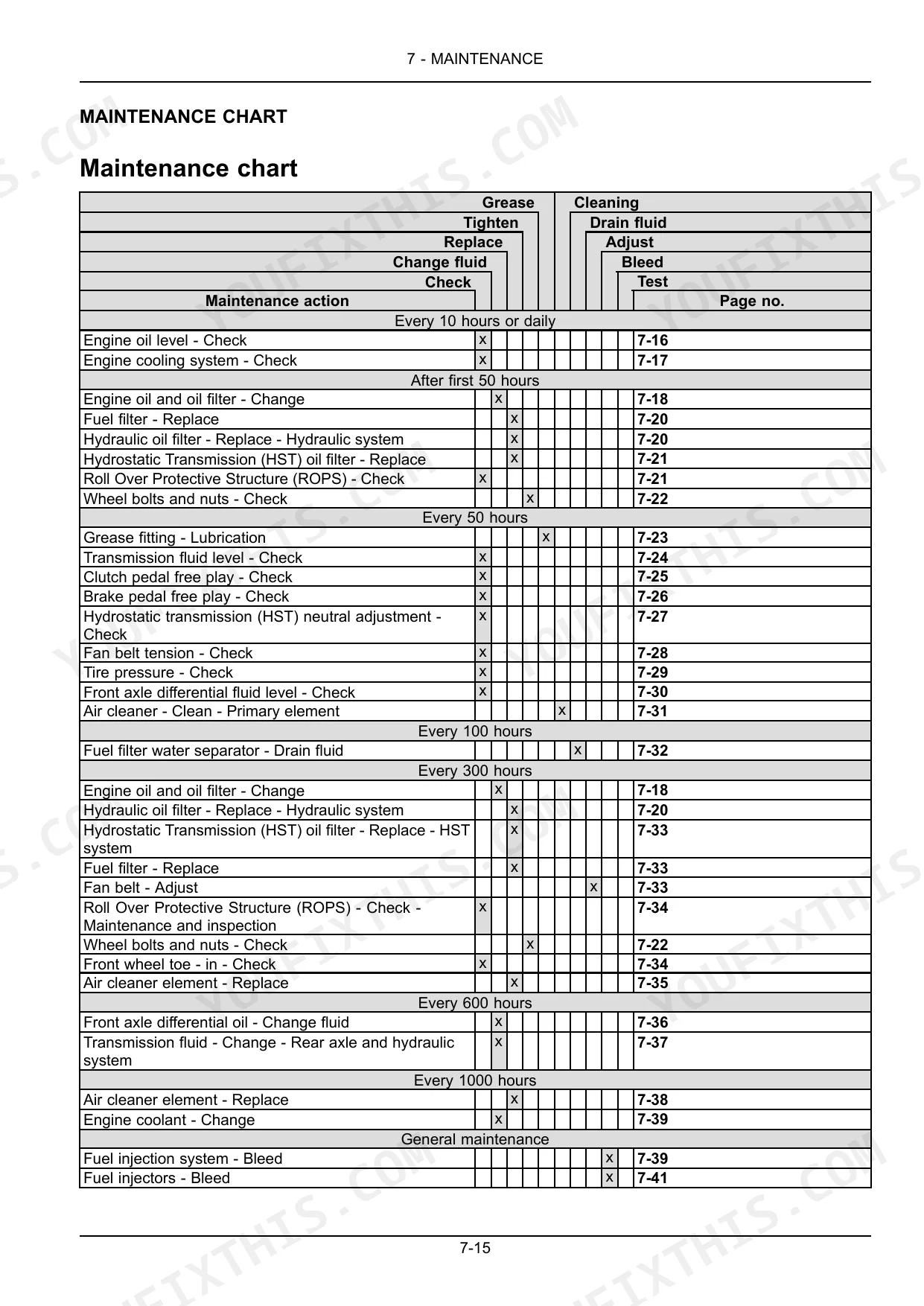

| Maintenance | 147-202 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level - Check, Cooling System - Check) |

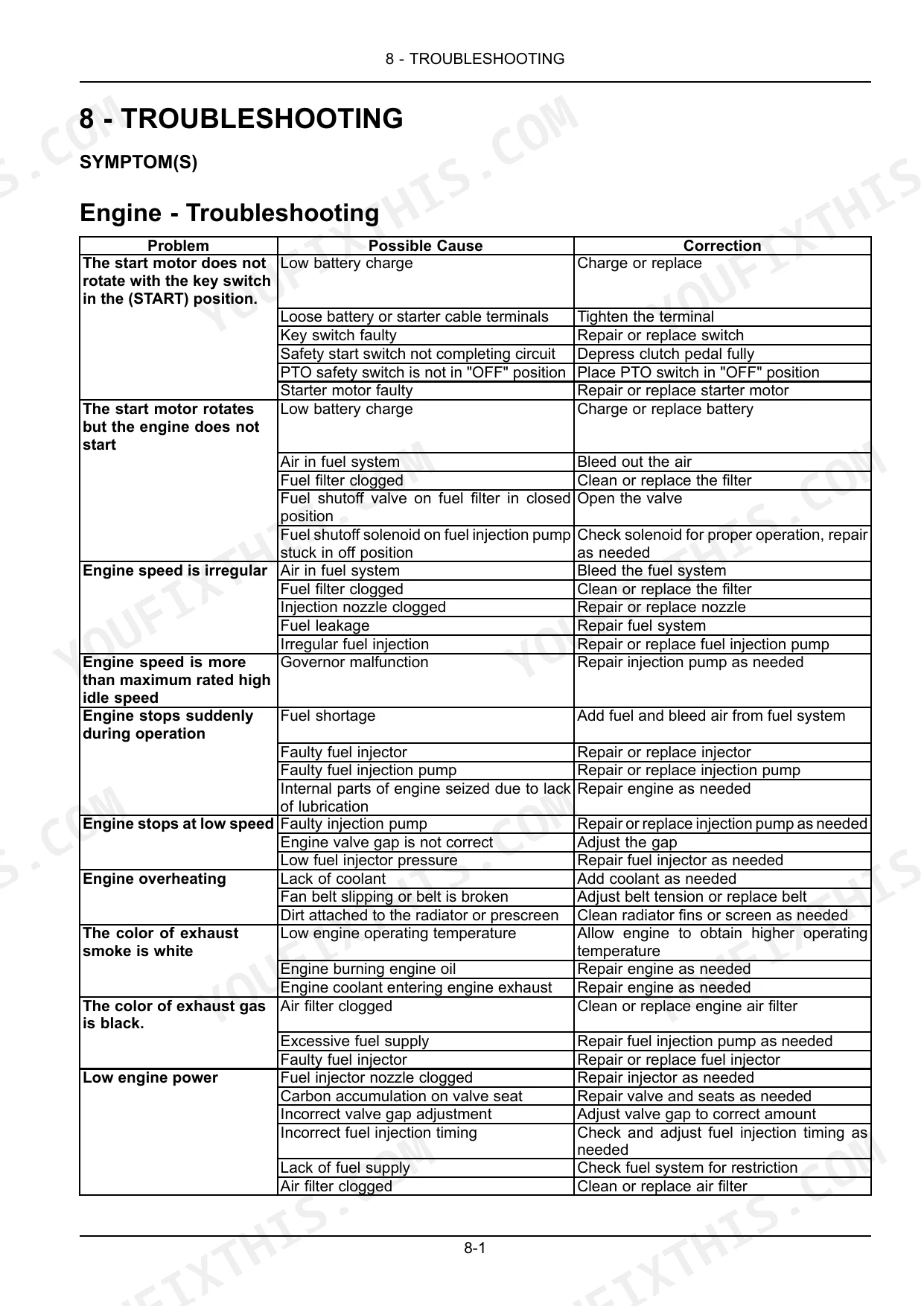

| Troubleshooting | 203-206 | Symptom (Engine - Troubleshooting, Clutch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |

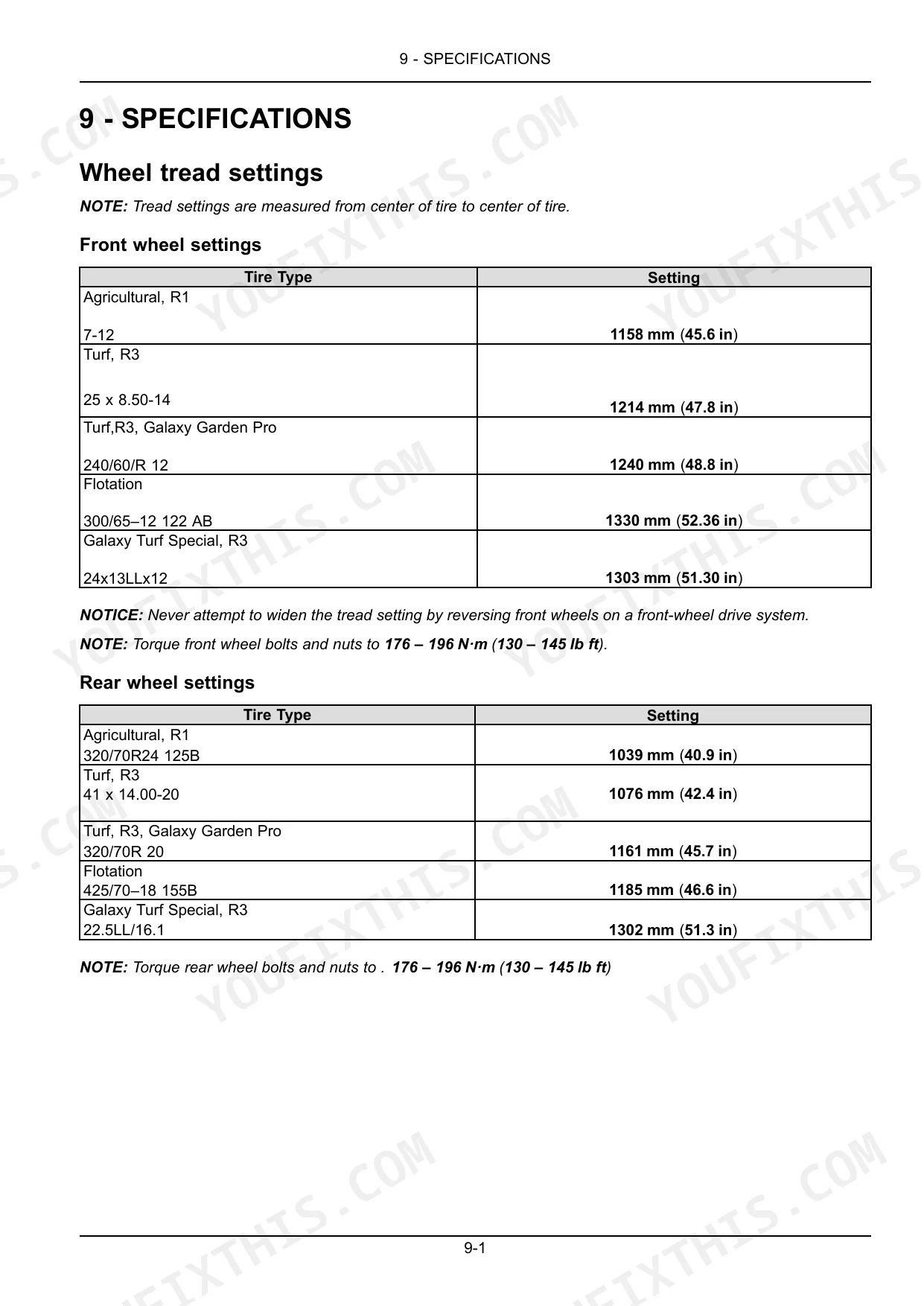

| Specifications | 207-216 | Wheel Tread Settings, Tire Pressures and Permissible Loads, Liquid Ballast, Tractor Dimensions |
| Accessories | 217-218 | Optional Equipment |
| Forms and Declarations | 219-226 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front Wheel Torque | 176 – 196 N·m (130 – 145 lb ft) | p. 180 |
| Rear Wheel Torque | 176 – 196 N·m (130 – 145 lb ft) | p. 180 |
| Thermostat Start to Open | 76.5 °C (170 °F) | p. 211 |
| Thermostat Fully Open | 90 °C (194 °F) | p. 211 |
| Engine Oil Capacity with Filter | 4.7 L (5.0 US qt) | p. 210 |
| Rear Axle & Transmission Capacity (Mechanical) | 32.0 L (8.5 US gal) | p. 210 |
| Rear Axle & Transmission Capacity (HST) | 32.0 L (8.5 US gal) | p. 210 |
| ROPS to Rear Axle Mounting Torque | 132 – 147 N·m (97 – 108 lb ft) | p. 213 |
| Seat Belt Mounting Torque | 49 – 54 N·m (36 – 40 lb ft) | p. 213 |
| Fan Belt Deflection | 10 – 13 mm (0.4 – 0.5 in) at 10 kg (22 lb) pressure | p. 210 |
| Boomer 30 | ||
| Engine Gross Horsepower | 21 kW (28 Hp) | p. 210 |
| Boomer 35 | ||
| Engine Gross Horsepower | 28 kW (38 Hp) | p. 210 |
New Holland Boomer 30, Boomer 35 Common Problems This Manual Covers
Implement slams down instead of settling
The Hydraulic Power Lift (HPL) drop rate control valve regulates the flow of oil from the lift cylinder: turn it IN (clockwise) to slow the rate of drop and OUT (counterclockwise) to make the drop fast. Attach the top link in the lower bracket hole for light draft loads such as mowers and in the top hole for heavier ground engaging equipment (page 115).
Manual Section: Operating Instructions p. 115Engine runs hot during long mowing runs
Check and clean the front radiator screen every 10 hours of operation (page 164). The fan belt should deflect 10 to 13 mm (0.4 to 0.5 in) when 10 kg (22 lb) of pressure is applied midway between the pulleys, and the cooling system holds 4.5 l (4.8 US qt) (page 210).
Manual Section: Maintenance p. 164Hydrostatic drive gets weak when warm
For low HST power the troubleshooting table lists an oil shortage (add transmission oil), air in the HST circuit (check and repair the hydraulic suction line), transmission oil that is too hot (shut down and let it cool), worn HST internal parts and a clogged HST filter (replace it). If the tractor still moves with the pedals in neutral, adjust the neutral position of the HST linkage (page 206).
Manual Section: Troubleshooting p. 206Tractor will not start with the PTO switched on
The key switch lets the starter run only when the shuttle lever is in neutral, the PTO switch is OFF, the mid PTO lever is OFF (if equipped) and the clutch pedal is depressed; an alarm sounds if the park brake is not engaged (page 118). The operator presence system tables show how the tractor reacts with the operator in or out of the seat and the rear or mid PTO on (page 120).
Manual Section: Controls and Instruments p. 118Wheel bolts working loose after ballasting
Tighten the front and rear wheel bolts and nuts to 176 to 196 N·m (130 to 145 lb ft) any time the wheel assembly is removed or the hardware is loosened, and recheck after the first 5 hours, the first 50 hours and every 300 hours (page 180). ROPS to rear axle mounting hardware takes 132 to 147 N·m (97 to 108 lb ft) (page 213).
Manual Section: Specifications p. 180Front end goes light with a loaded bucket
A compact tractor carrying a loaded bucket or a heavy rear implement loses steering bite and traction without proper counterweight. Tractor ballasting is its own short chapter, and liquid ballast and permissible tire loads are tabulated with the specifications.
Manual Section: Working Operations p. 143Cutting battery power before electrical service
The battery disconnect switch sits on the underside of the battery plate on the right-hand side of the tractor. Rotate it clockwise, viewed from above, to disconnect battery power from the vehicle systems whenever an electrical component must be removed or disconnected for service, and counterclockwise to reconnect (page 148).
Manual Section: General Information p. 148Frequently Asked Questions
Which tractors does this manual cover?
New Holland Boomer 30 and Boomer 35 compact tractors with S4L and S4L2 engines, in both mechanical shuttle and hydrostatic versions. PIN coverage runs from LSM0B30RxHLB10001 and LSM0B35RxHLB10001 upward, including LSM0B30RCJLB10084 and above and LSM0B35RLJLB10414 and above. p. 1
Is this an operator manual or a service manual?
It is the operator manual, publication 51559570. It covers running the tractor, the full maintenance chart with service intervals and fluid checks, and symptom based troubleshooting. It does not go into engine teardown or component rebuild the way a workshop manual does.
What fluid capacities are listed?
Engine oil with filter is 4.7 L (5.0 US qt), and the rear axle and transmission hold 32.0 L (8.5 US gal) on both mechanical and HST models. Tire pressures, wheel tread settings and tractor dimensions are in the same Specifications section. p. 210
Does it help me diagnose problems myself?
Yes. The Troubleshooting section is organized by symptom across engine, clutch, hydraulic service brakes, hydraulic lift, steering, hydrostatic transmission and electrical system, so you can start from what the tractor is doing rather than guessing at a component. p. 203
What exactly do I receive with this New Holland Boomer 30, 35 Operator Manual?
This is a 226-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is printing allowed for this New Holland Boomer 30, 35 Operator Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
