Set the range lever, ease down on the hydrostatic pedal, and a Boomer 24 should creep as smoothly at idle as it pulls at full throttle. When it does not, this factory New Holland operator manual (publication 47727071) is where the answer lives. It covers the Boomer 24 compact tractor with the S3L2 diesel, 166 pages delivered as a bookmarked PDF you can keep on the shop laptop or print by the chapter.
Inside are the procedures a dealer would charge a service call for: engine break-in, PTO operation, attaching three-point hitch equipment, drawbar setup, ballasting, plus the full maintenance chart with fluid capacities and torque figures straight from New Holland, not a forum guess. A wrong torque on a wheel bolt or a made-up fill quantity can cost you an axle.
Symptom charts for the engine, hydraulics, steering, and hydrostatic transmission mean less time diagnosing and more time back in the field before the weather turns.
What's Inside This New Holland Boomer 24 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-16 | Safety Rules Diesel Fuel, Biodiesel Fuel - Approved Blend Ratio, Refueling the Tractor, Organic Acid Technology Coolant, Consumables |
| Safety Information | 17-46 | Precautionary Statements, Safety Rules, Do Not Operate Tag, Ecology and the Environment, Safety Signs, Instructional Signs, International Symbols, Proposition 65 |

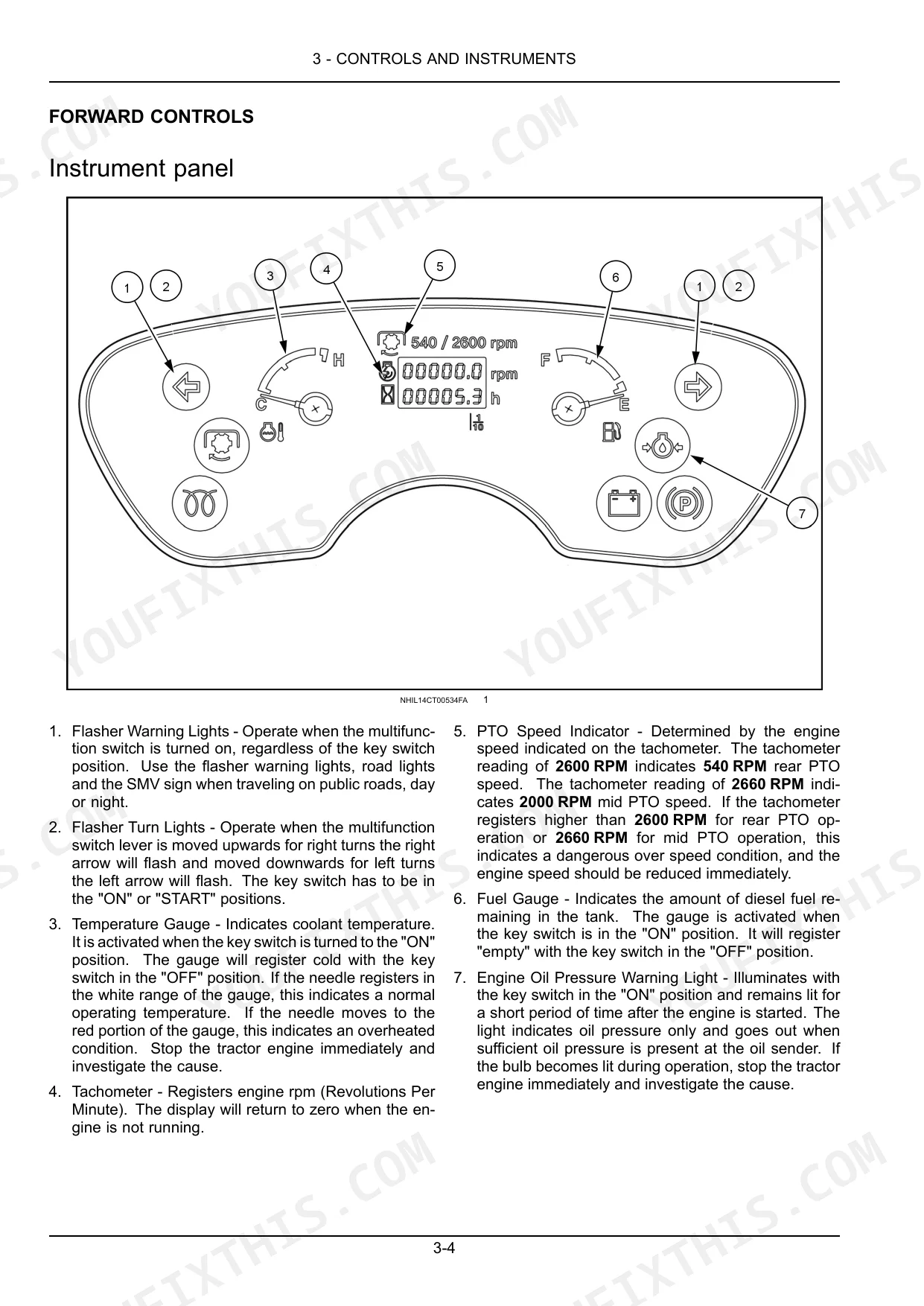

| Controls and Instruments | 47-62 | Operator's Seat (Seat Belt, Seat Controls, Roll Over Protective Structure) |

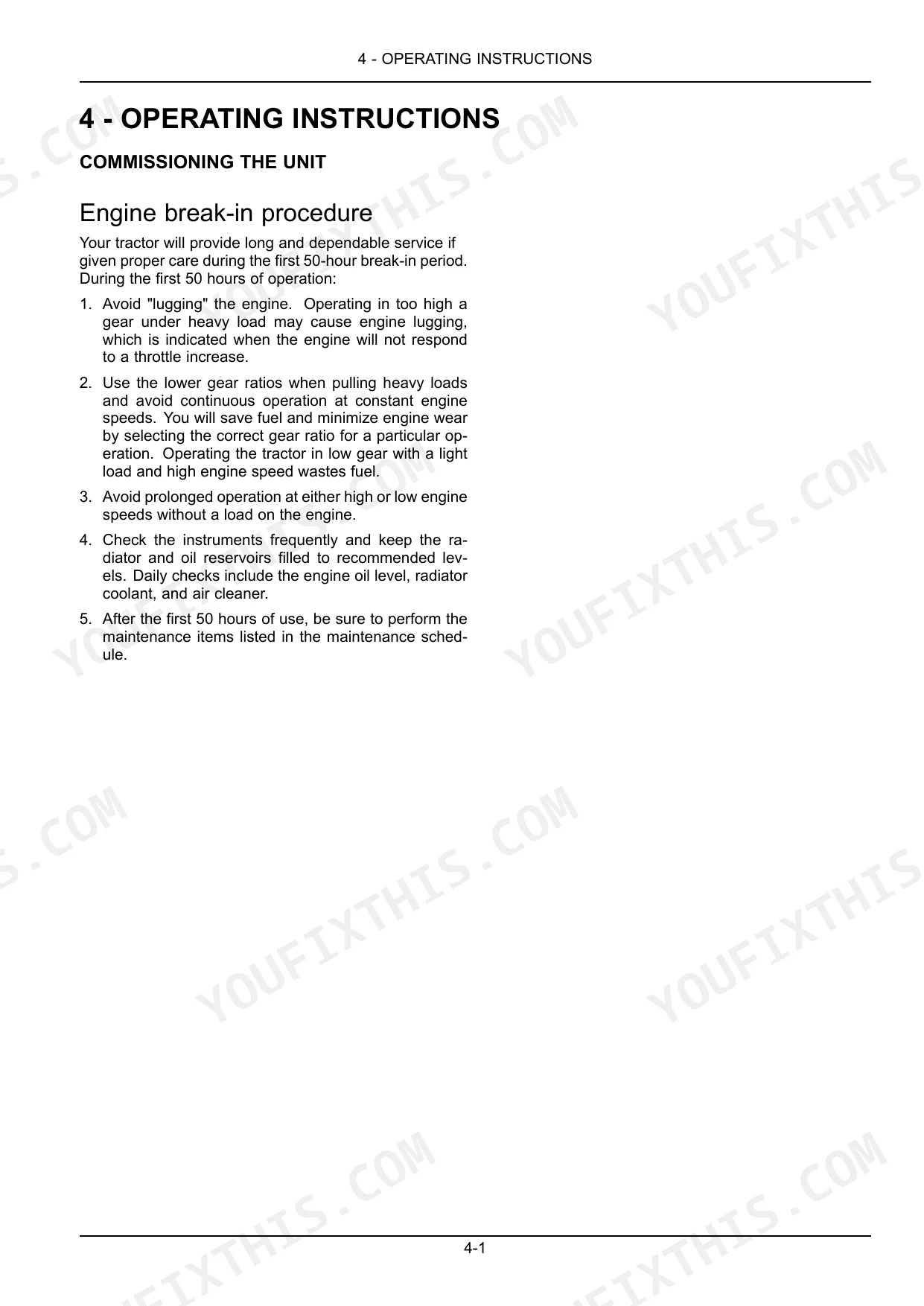

| Operating Instructions | 63-82 | Commissioning the Unit (Engine Break-In Procedure, Power Take Off Operation, Three-Point Hitch, Attaching Three-Point Hitch Equipment, Drawbar Hitch, Hydraulic Lift Rocker) |
| Transport Operations | 83-92 | Road Transport (External Lighting - Identification, Hazard Warning Light Operation, Turn Signal Operation, Headlight/Work Light Operation, Brake Light Operation, Rear Work Light, Driving the Vehicle) |
| Working Operations | 93-96 | Tractor Ballasting |

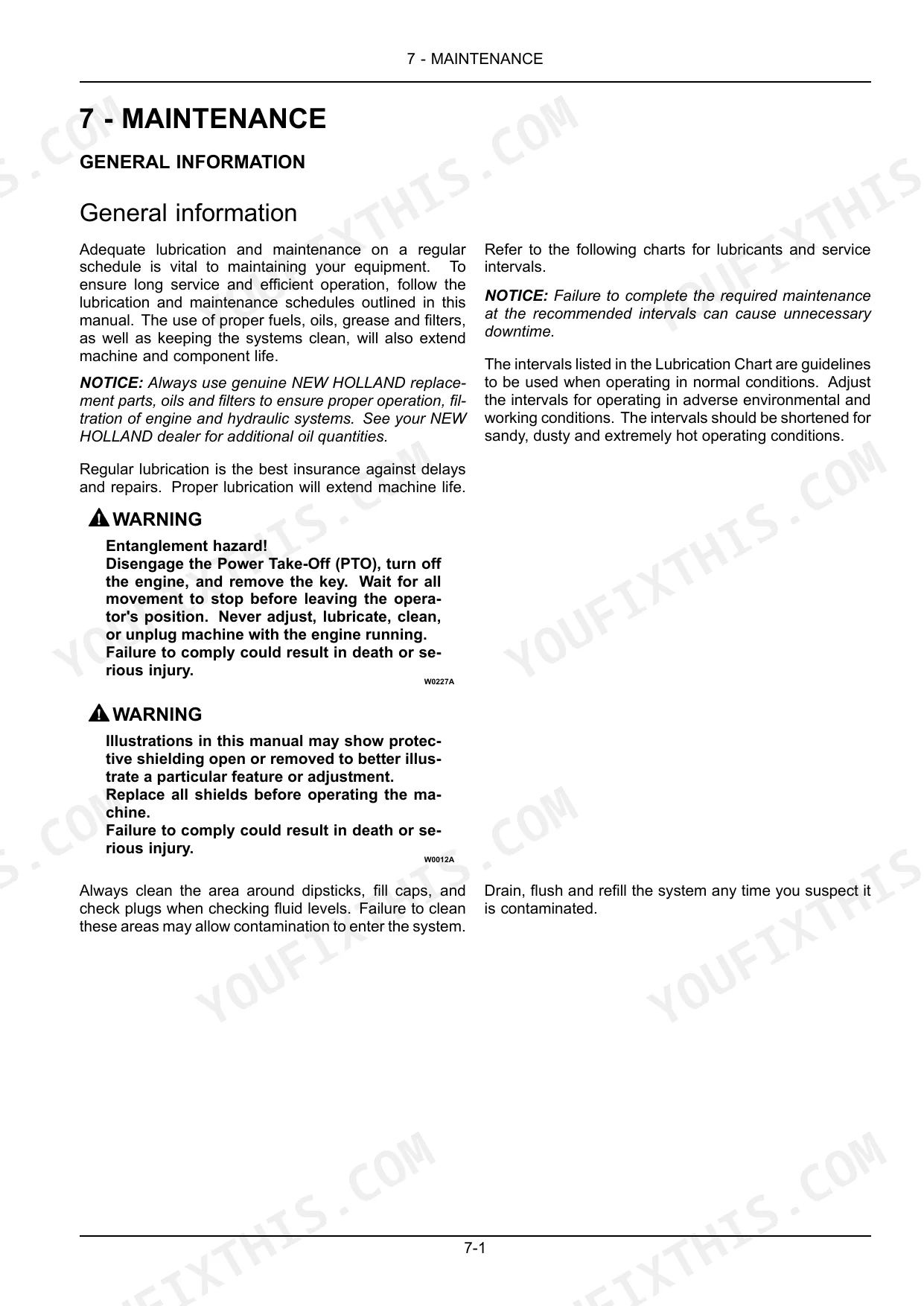

| Maintenance | 97-146 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level, Cooling System) |

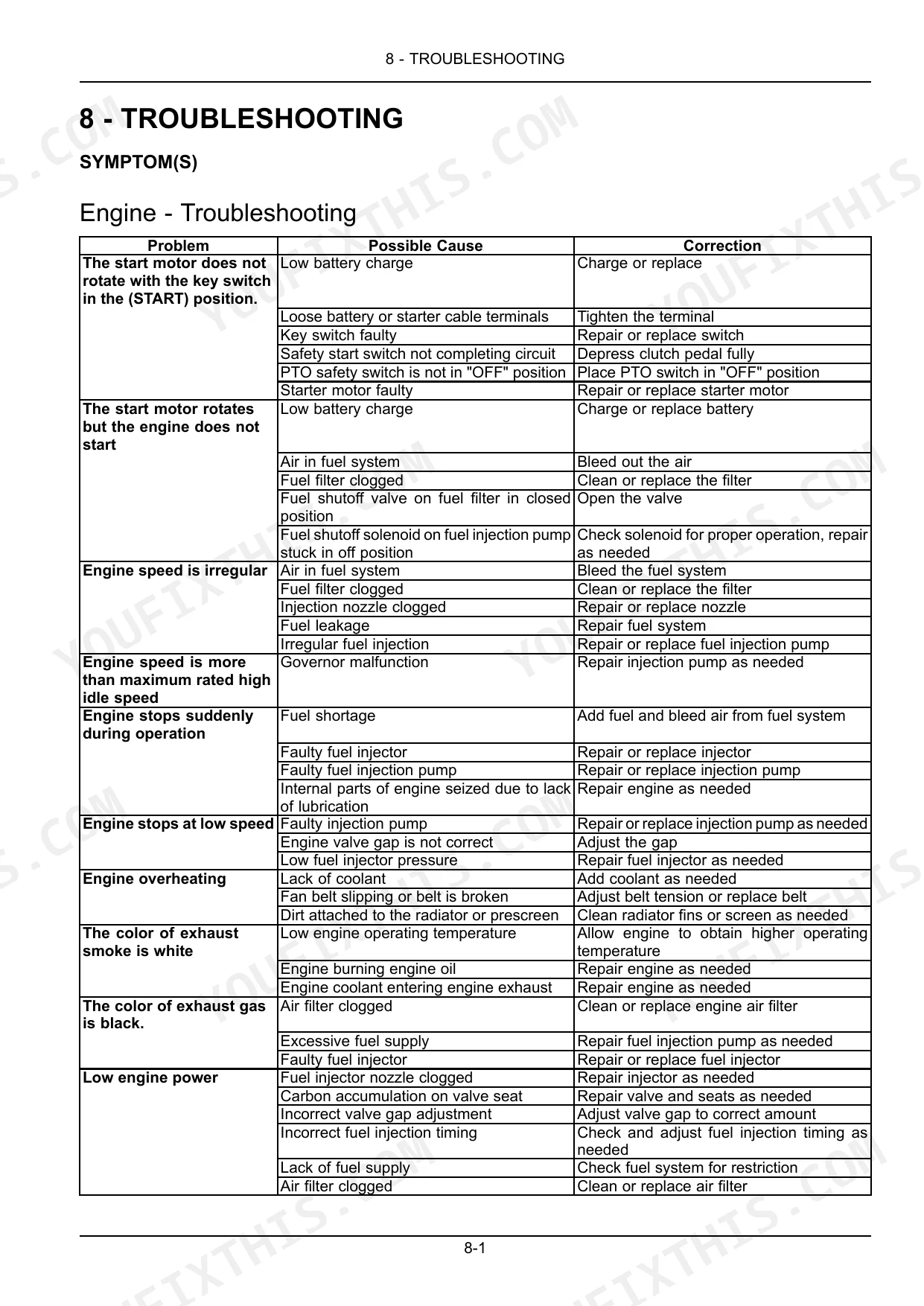

| Troubleshooting | 147-150 | Symptom (Engine - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |
| Specifications | 151-158 | Wheel Tread Settings, Tire Inflation Pressures, Tractor Dimensions |
| Forms and Declarations | 159-166 | Delivery Report - Owner Copy, Delivery Report - Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cold cranking ability | 560 A | p. 135 |
| Injector line fitting torque | 24 - 29 N·m | p. 131 |
| Front wheel bolt torque | 93 - 108 N·m (69 - 80 lb ft) | p. 151 |
| Rear wheel bolt torque | 176 - 196 N·m (130 - 145 lb ft) | p. 151 |
| Battery | 12 V, w/ negative ground, 430 CCA, BCI Group 85 | p. 153 |
| Thermostat start to open | 76.5 °C (170 °F) | p. 153 |
| Thermostat fully open | 90 °C (194 °F) | p. 153 |
| Engine Oil Capacity with filter | 4.2L | p. 107 |
| Transmission/Rear Axle/Hydraulic Fluid Capacity | 20.0L | p. 127 |
| Front Axle Differential Fluid Capacity | 3.0L | p. 126 |
| Fuel Tank Capacity | 25.0L | p. 100 |
| Cooling System Capacity | 3.8L | p. 153 |
New Holland Boomer 24 Common Problems This Manual Covers
Hard starting on cold mornings
A Boomer 24 that cranks but will not fire in cold weather usually traces to fuel supply or starting aids. The engine symptom chart walks through probable causes in order, so you check the cheap items before calling the dealer.
Manual Section: Troubleshooting p. 147Hydrostatic transmission feels weak or jerky
Sluggish pedal response often comes down to tired fluid in the shared transmission, rear axle, and hydraulic reservoir. The maintenance chart gives the service intervals and the correct fill quantity so you are not guessing at the parts store.
Manual Section: Maintenance p. 97Three-point hitch drops or lifts unevenly
Implements that sag or slam down are frequently a setup problem, not a pump problem. The manual covers attaching three-point hitch equipment and the hydraulic lift rocker so the hitch carries a tiller or blade the way it should.
Manual Section: Operating Instructions p. 63PTO will not engage
The PTO on this tractor runs through a switch and a selection lever with safety interlocks, and a missed step in that sequence looks exactly like a failure. The controls chapter shows how each one is supposed to work before you start chasing wiring.
Manual Section: Controls and Instruments p. 47Wheel bolts working loose
Loader work and rough ground will back off wheel hardware, and retorquing to a number somebody remembered is how studs get stretched. The specifications chapter lists the factory front and rear wheel bolt torque values.
Manual Section: Specifications p. 151Engine running hot during mowing
Long PTO loads in tall grass plug the radiator screen fast on a compact tractor. The daily 10-hour checks cover the cooling system so overheating gets caught at the coolant level, not at the temperature gauge.
Manual Section: Maintenance p. 97Battery drains or will not crank
Slow cranking can be the battery, the charging circuit, or a bad ground, and swapping parts blind gets expensive. The Troubleshooting section's electrical symptom chart narrows it down step by step, listing the probable causes against each symptom and the correction for every one, so you test in order instead of guessing at the parts counter.
Manual Section: Troubleshooting p. 147Frequently Asked Questions
Which tractor does this manual fit?
It is the New Holland operator manual, publication 47727071, for the Boomer 24 compact tractor with the S3L2 diesel engine. The General Information chapter includes product identification so you can match it against the serial plate on your tractor. p. 12
What is the transmission and hydraulic fluid capacity of the New Holland Boomer 24?
The Boomer 24 uses a shared reservoir for the transmission, rear axle, and hydraulics with a 20.0 L capacity. The Maintenance section gives the fluid type, change intervals, and fill procedure. p. 97
What are the wheel bolt torque specs on a New Holland Boomer 24?
Front wheel bolts torque to 93 - 108 N·m (69 - 80 lb ft) and rear wheel bolts to 176 - 196 N·m (130 - 145 lb ft), listed in the Specifications section along with wheel tread settings and tire pressures. p. 151
Will it help me diagnose hydrostatic transmission problems?
Yes. The Troubleshooting section has symptom charts for the hydrostatic transmission, plus the engine, hydraulic lift, service brakes, steering, and electrical system, each listing probable causes and corrections. p. 147
How will I receive this New Holland Boomer 24 Operator Manual?
Immediate download of the complete 166-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this New Holland Boomer 24 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
