New Holland Boomer 2030, 2035 Operator Manual — Wiring Diagrams

$19.99 USD · one-time payment

Model: Boomer 2030 | Boomer 2035
Type: Tractor
123 Pages·4.6 MB·Searchable PDF·English·Print-Ready
  • ✓ Wiring Diagrams
  • ✓ Torque Specs
  • ✓ Multi-Level Bookmarks (2-level navigation)
Preview Sample Pages (PDF)
Add to Cart

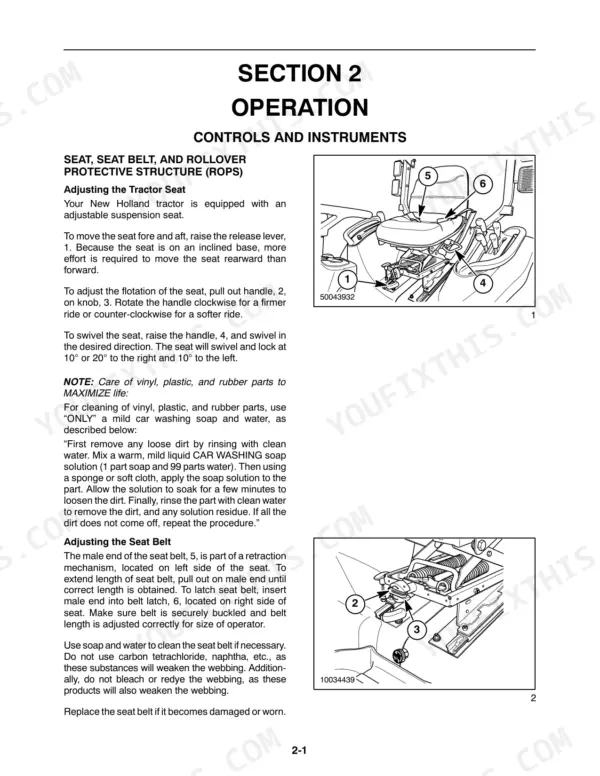

New Holland Boomer 2030, Boomer 2035 manual showing seat and seat belt adjustment procedures, controls, and cleaning instructions.
New Holland Boomer 2030, 2035 Operator Manual — Wiring Diagrams
$19.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

New Holland issued part number 87477103 as the factory operator manual for the Boomer 2030 and 2035 tractors, and this PDF is that exact book, all 123 pages of it. Wiring diagrams map the complete electrical circuit, so you can trace a dead gauge or a blown fuse by the printed wire colors instead of by feel. Lubrication and maintenance fills nearly half the book, covering fuel and lubricant service, air cleaner care, and cooling system checks, while the operation section walks through the instrument panel, ROPS, seat belt, and proper starting procedure. If the temperature gauge climbs, confirm the thermostat begins opening at 71 C (160 F), and plan the day's work around the 27.6 liter fuel tank. Just you, a stalled tractor, and nobody to call. Bookmarked and keyword searchable, this download hands you the answer that gets the Boomer back in the field.

Complete the set for your Boomer 2030, Boomer 2035

What's Inside This Operator Manual

SystemPagesKey Topics
Safety7-17Precautionary Statements
General Information18-21Minimum Hardware Tightening Torques

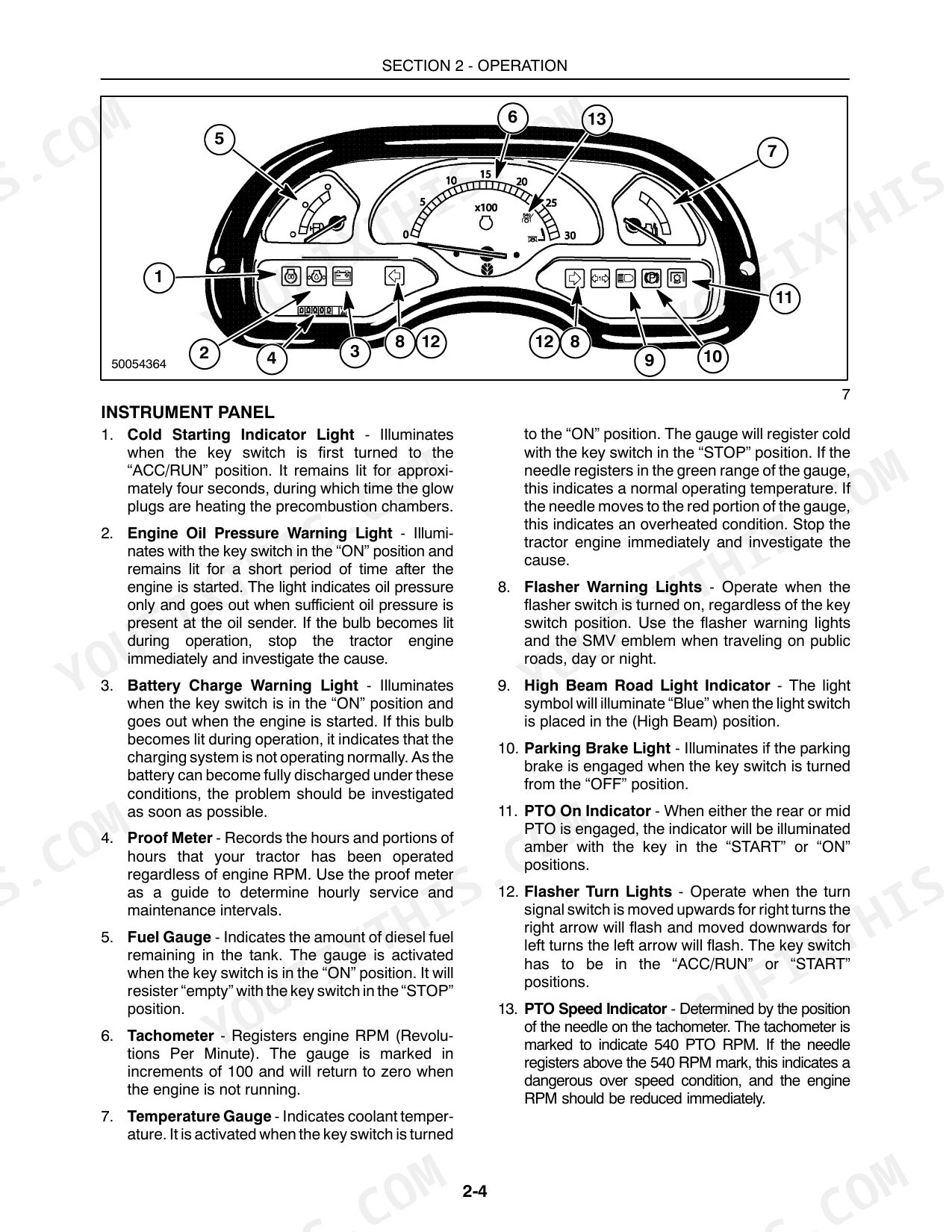

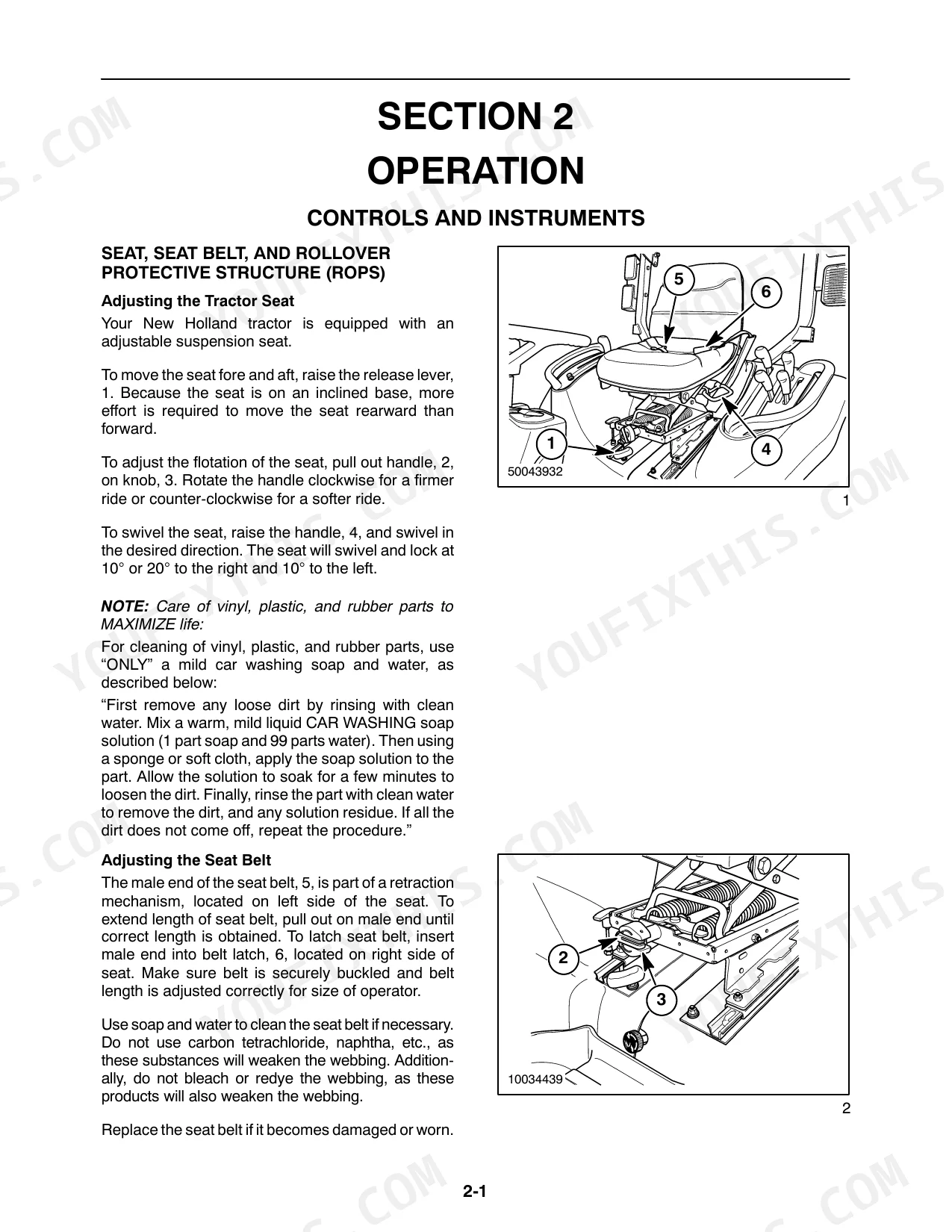

Operation22-57Seat, Seat Belt, And Rollover Protective Structure, Instrument Panel, Starting the Engine

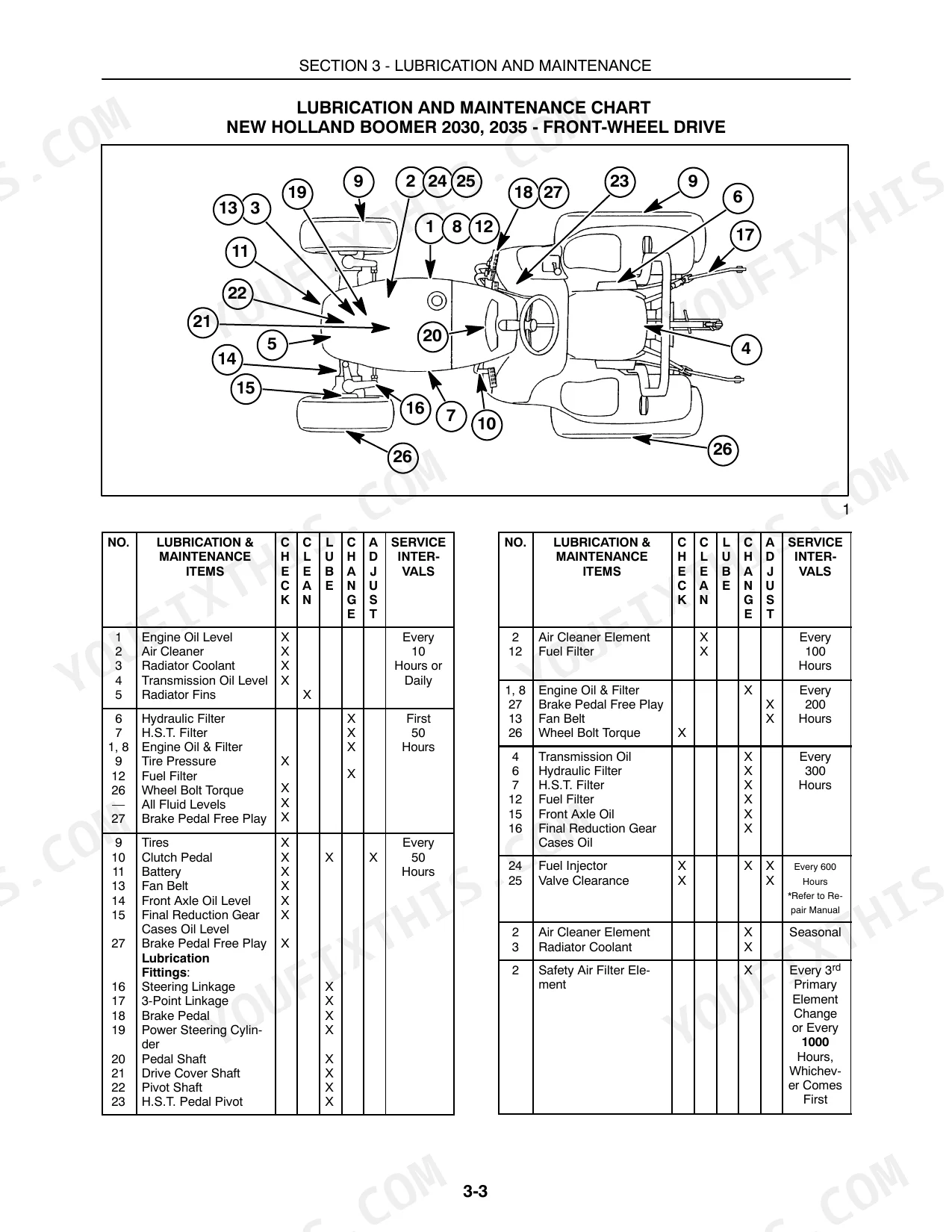

Lubrication and Maintenance58-63Lubrication and Maintenance Chart, Lubrication Fittings, Refueling the Tractor

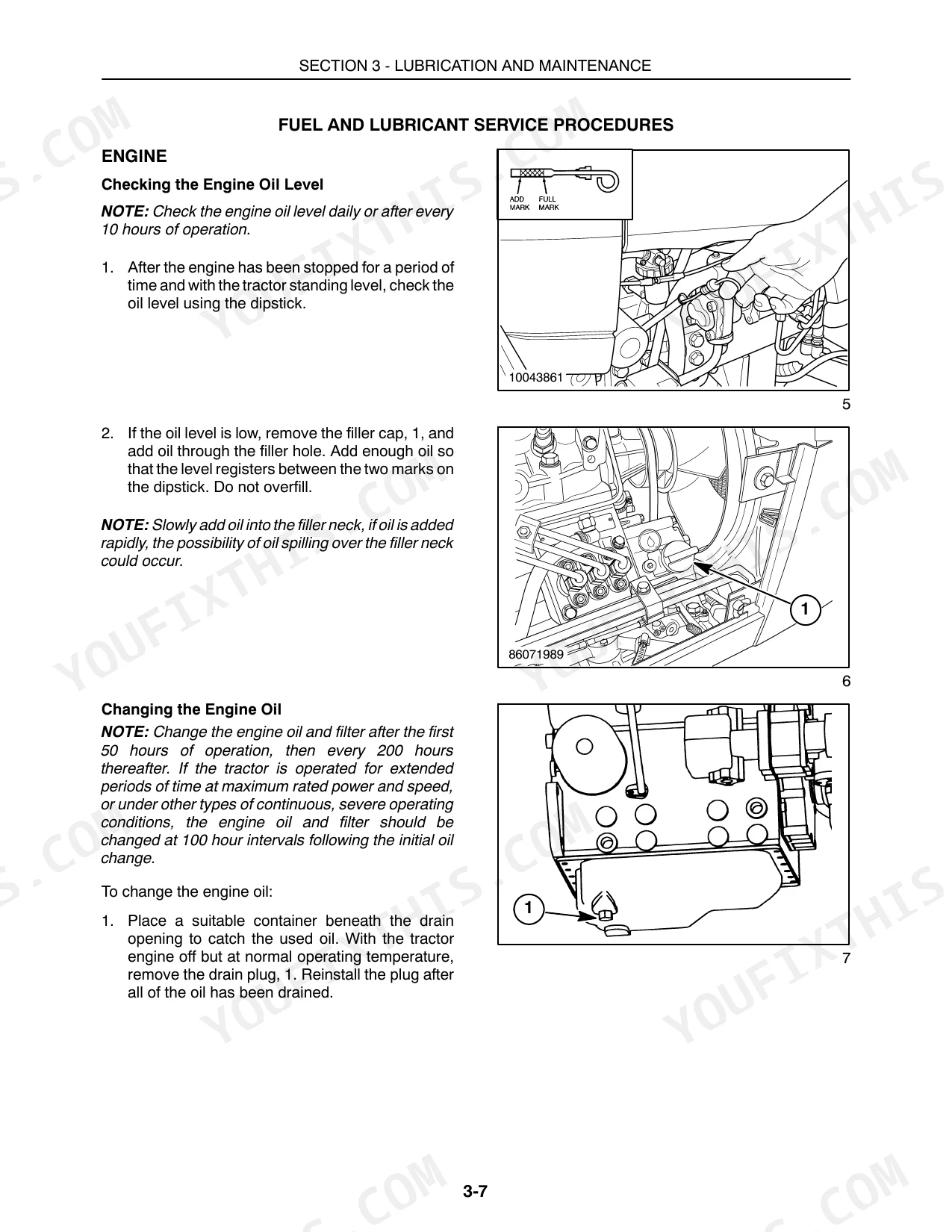

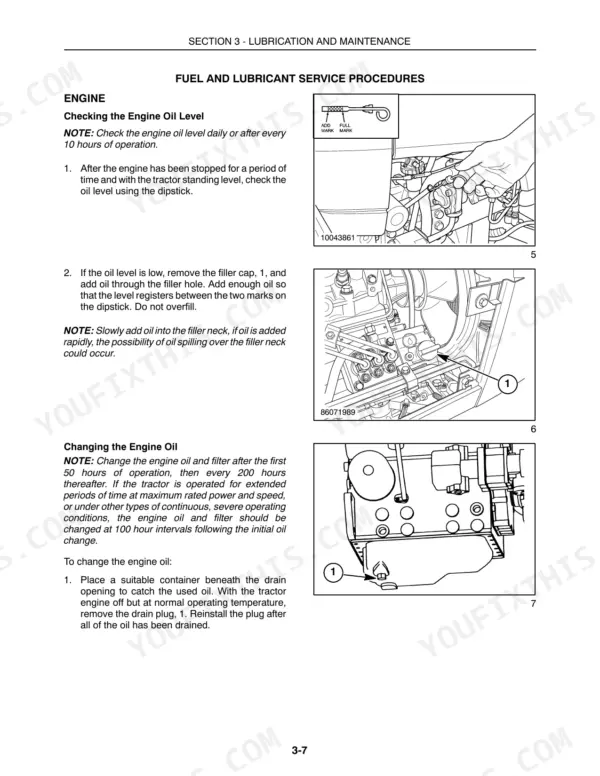

Fuel and Lubricant Service Procedures64-67Checking the Engine Oil Level, Changing the Engine Oil, Changing the Fuel Filter, Bleeding Air From the Fuel System
Air Cleaner68-72Air Cleaner Primary Element, Air Cleaner Inner Safety Element, Hydraulic System Oil Filter, H.S.T. System Oil Filter
General Maintenance73-107Cooling System, Draining and Flushing the Cooling System, Thermostat, Battery, Alternator, Fuse Block, Wheel Bolt Torque, Front Wheel Toe-In, Clutch Pedal Adjustment, Tractor Storage

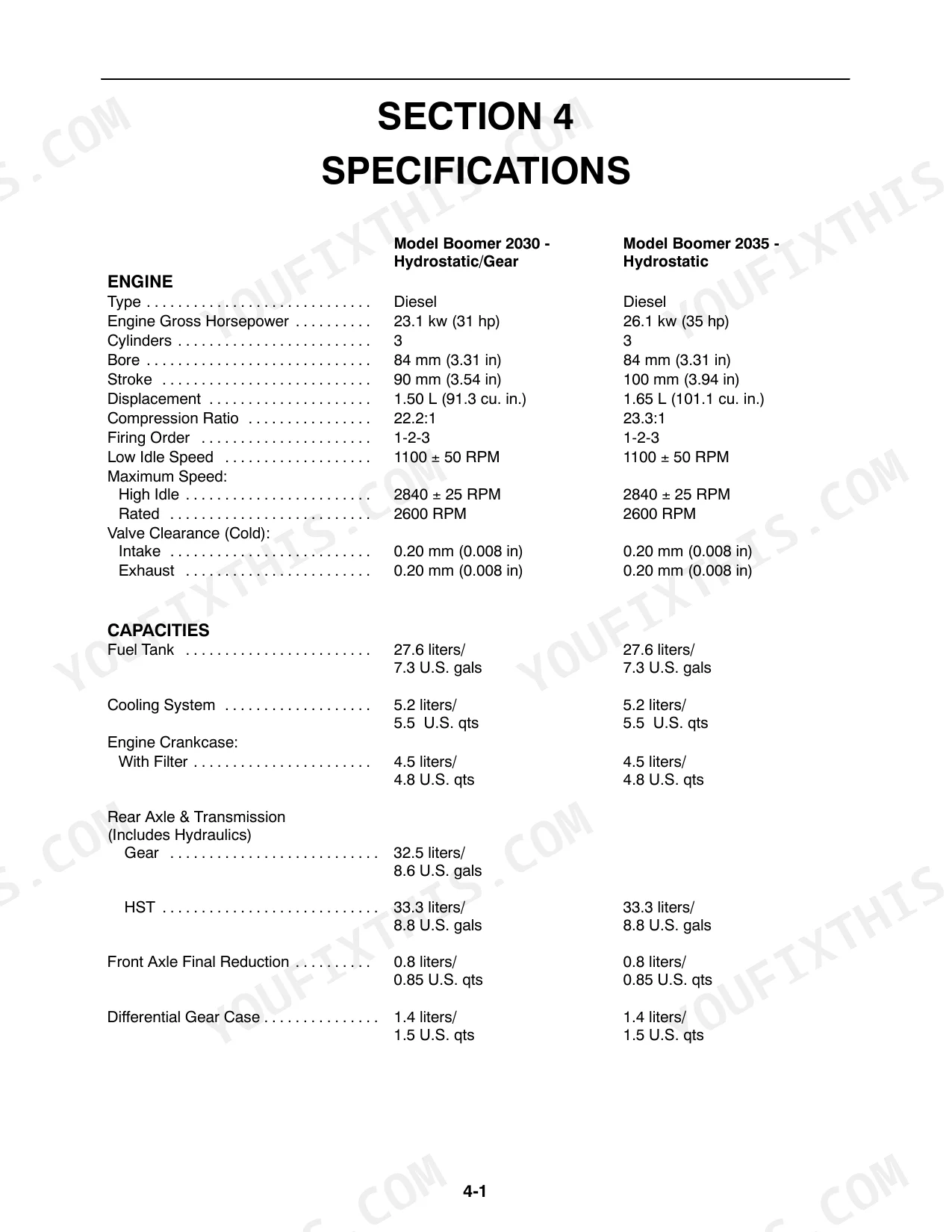

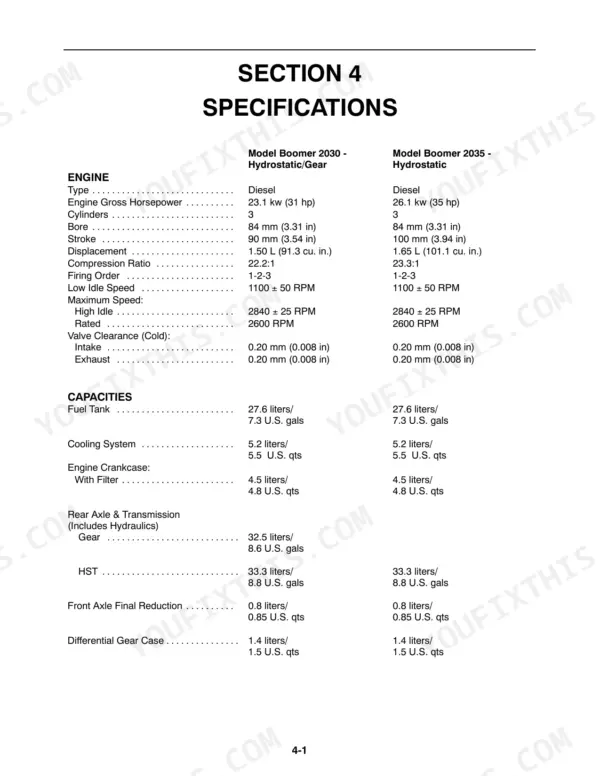

Specifications108-117Engine Specifications, General Dimensions
Delivery Report120-123Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Dealer Representative Signature, Owner Signature

Quick Reference Specifications

SpecificationValuePage
All Models
Minimum Hardware Tightening Torques (Metric)1.7 Nm to 1160 Nmp. 18
Minimum Hardware Tightening Torques (Inch)6.2 Nm to 1356 Nmp. 19
Thermostat Start to Open71°C (160°F)p. 109
Thermostat Fully Open82°C (185°F)p. 109
Fuel Tank Capacity27.6 litersp. 108
Cooling System Capacity5.2 litersp. 108
Engine Crankcase Oil Capacity (with filter)4.5 litersp. 108
Front Wheel Bolt Torque115 N·mp. 113
Rear Wheel Bolt Torque129 N·mp. 113
ROPS to Rear Axle Bolt Torque54 N·mp. 113
Boomer 2030
Engine Gross Horsepower23.1 kw (31 hp)p. 108
Boomer 2035
Engine Gross Horsepower26.1 kw (35 hp)p. 108
BrandNew Holland
ModelBoomer 2030, Boomer 2035
Machine TypeTractor
Manual TypeOperator Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages123
File Size4.6 MB
Manual No.87477103
Wiring DiagramsYes
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
