Covering four New Holland T5 tractors, T5040 through T5070, this 312-page Operator Manual (OEM ID 84339665) is the factory owner's book for each of them. Your New Holland T5060 operator manual PDF explains every transmission build, from range gear with shuttle to Electro-Hydraulic Dual Command, and decodes each fault code and warning light on the instrument panel. Field chapters set up the PTO, three-point linkage, remote valves, wheel track and ballast, while the maintenance schedule runs from 10-hour checks to the 1800-hour service. Check the lift pump relief valve against 190 bar (2755 psi), and run rear rim disk locknuts to 245 N·m (180 ft lb). Tractor identification pages put the right serial in front of the parts counter so the filter you order fits the first time, and the bookmarked, text-searchable file finds any page quickly.
What's Inside This New Holland T5040, T5050, T5060, T5070 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 9-30 | Notice to User, Cleaning the Tractor, Safety, Service After the First 50 Hours of Work, Service Parts, Warranty, Tractor Identification, Important Ecological Considerations |

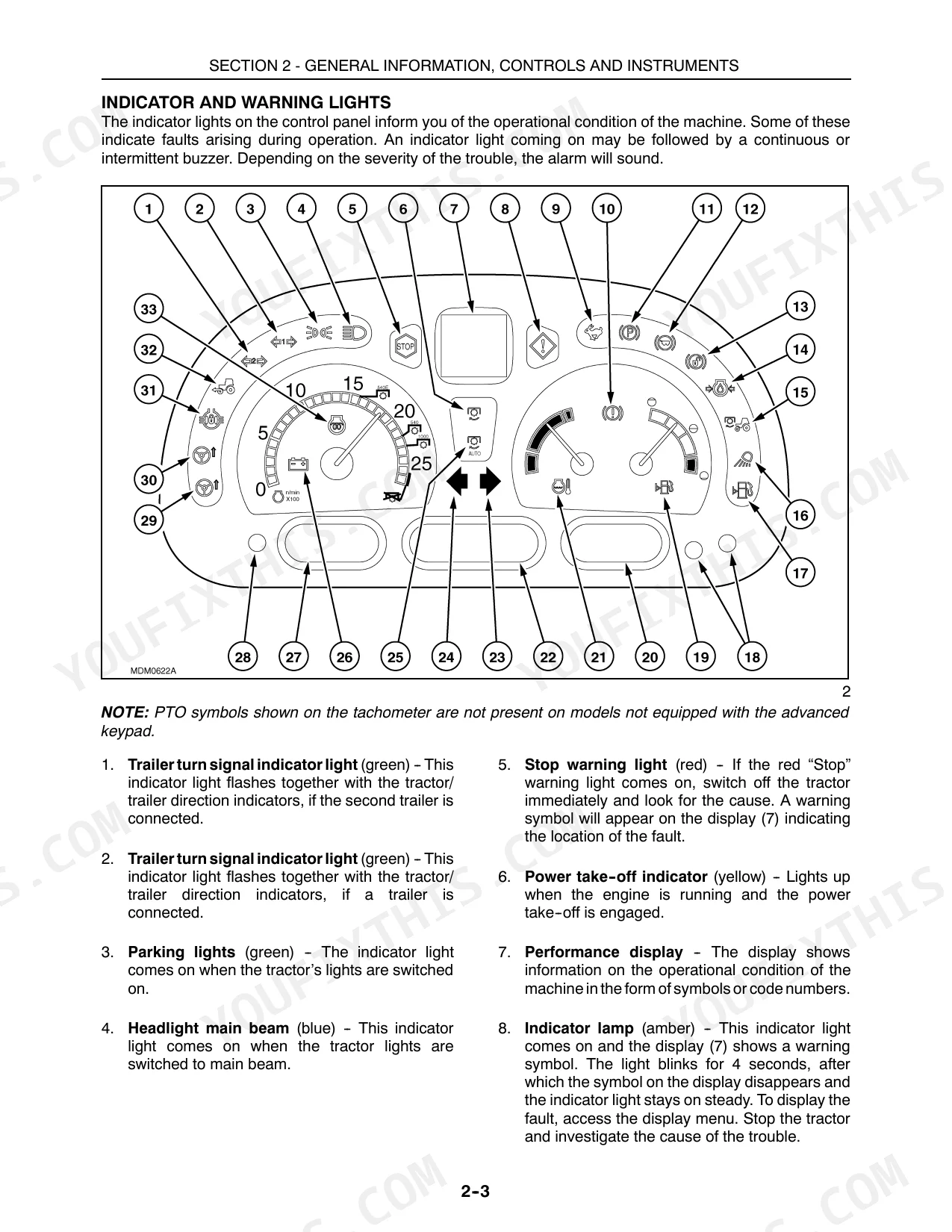

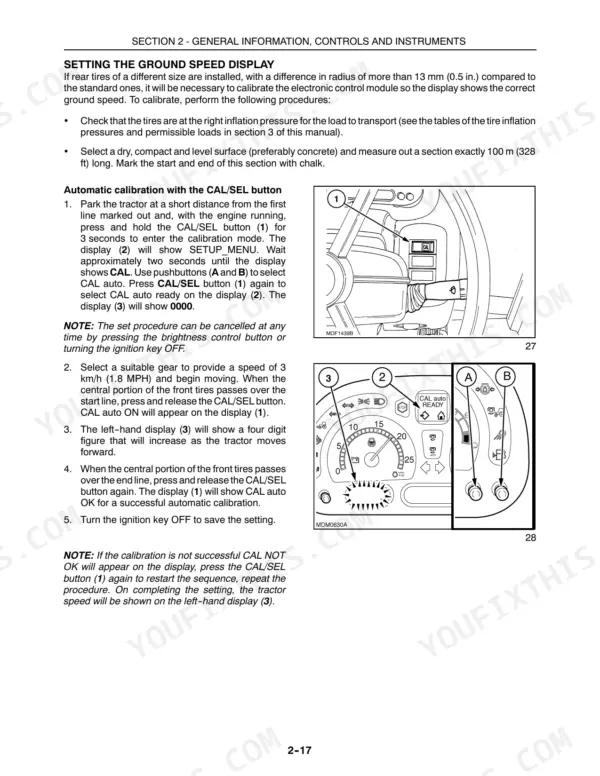

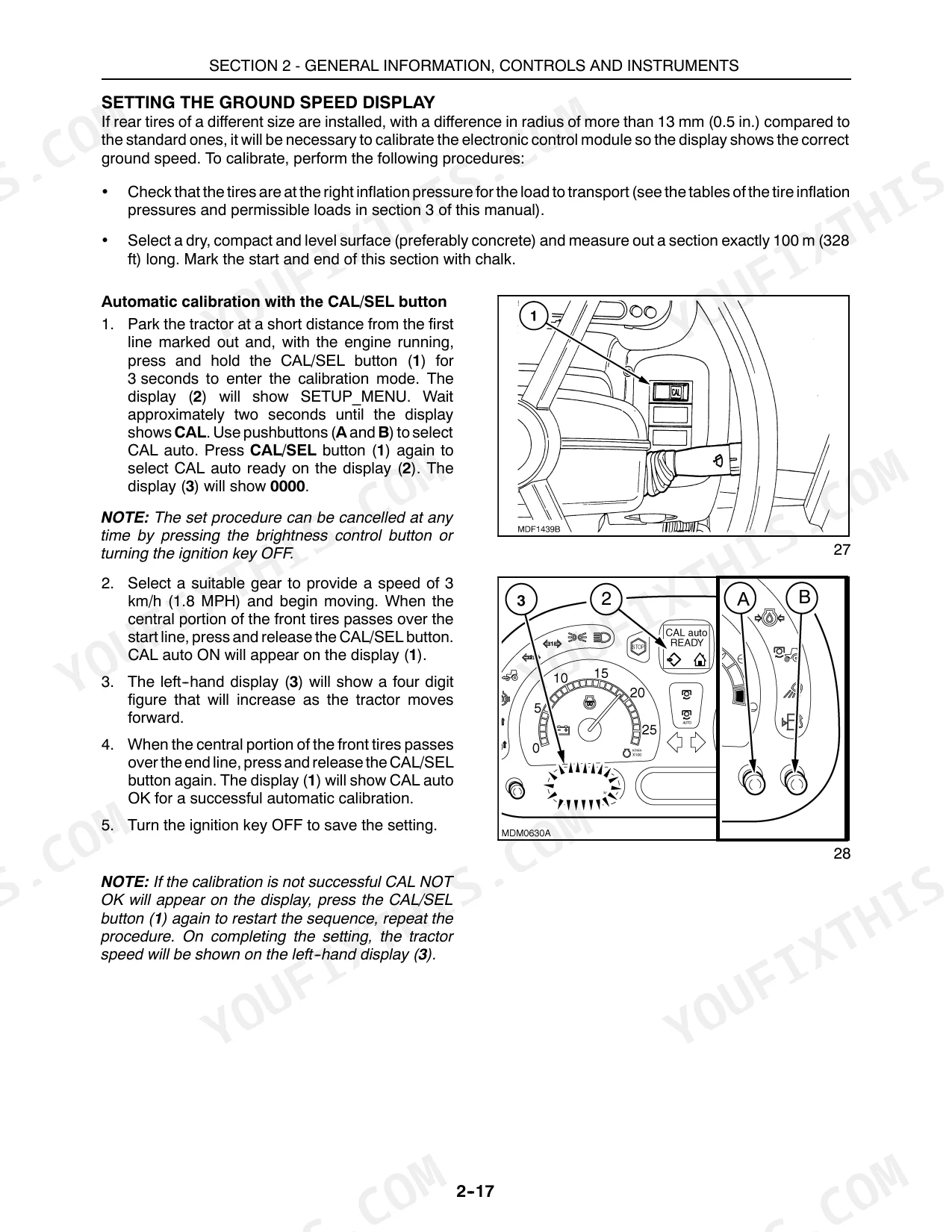

| General Information, Controls and Instruments | 31-114 | Introduction, Indicator and Warning Lights, Analog/Digital Instrument Panel, Advisory Displays and Information, Operating Controls, Operator’s Seat, Cab, Air Conditioned Cab |
| Field Operation | 115-196 | Running-In Procedure, Starting and Stopping, Towing the Tractor, Transporting the Tractor, Electro-Hydraulically Operated Four-Wheel Drive, Using Four-Wheel Drive |

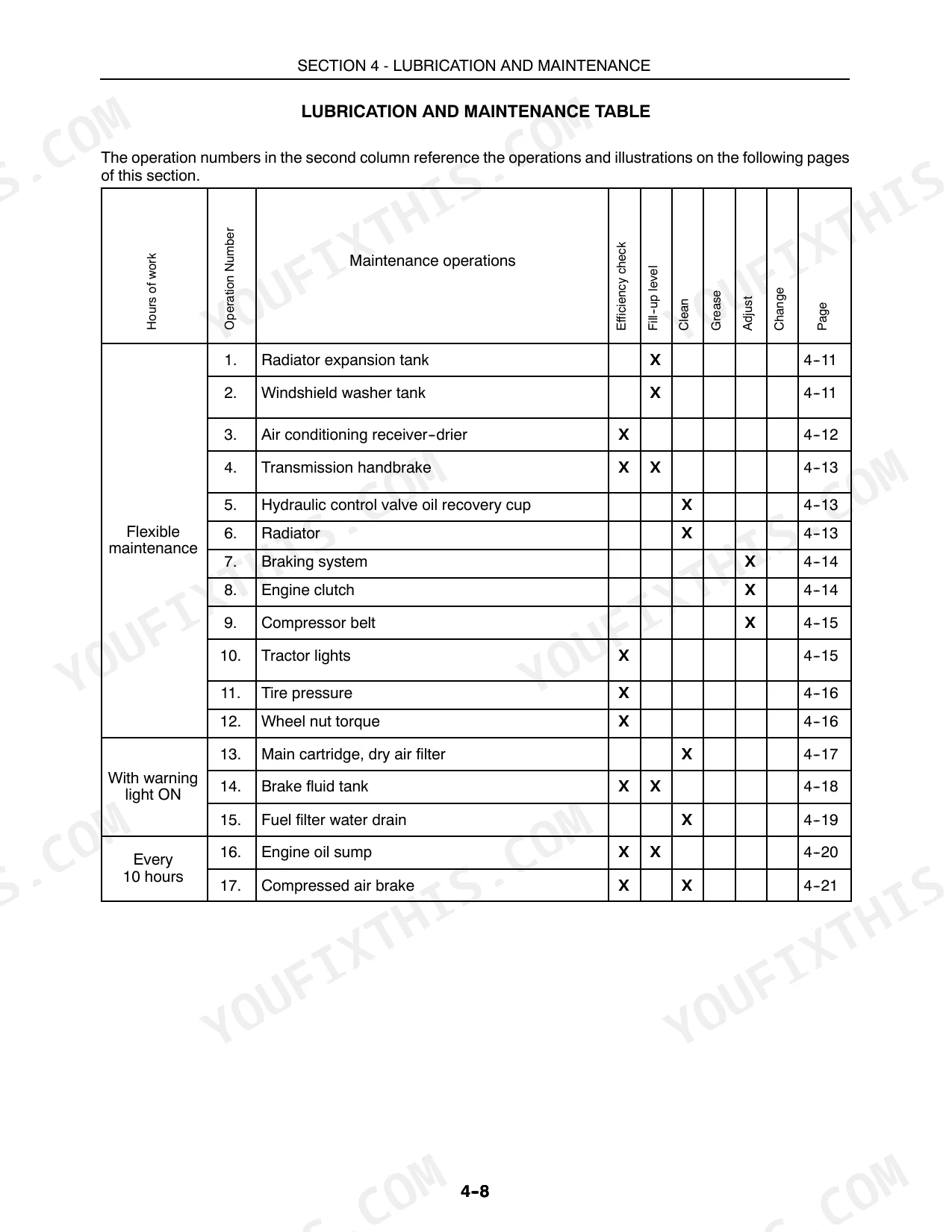

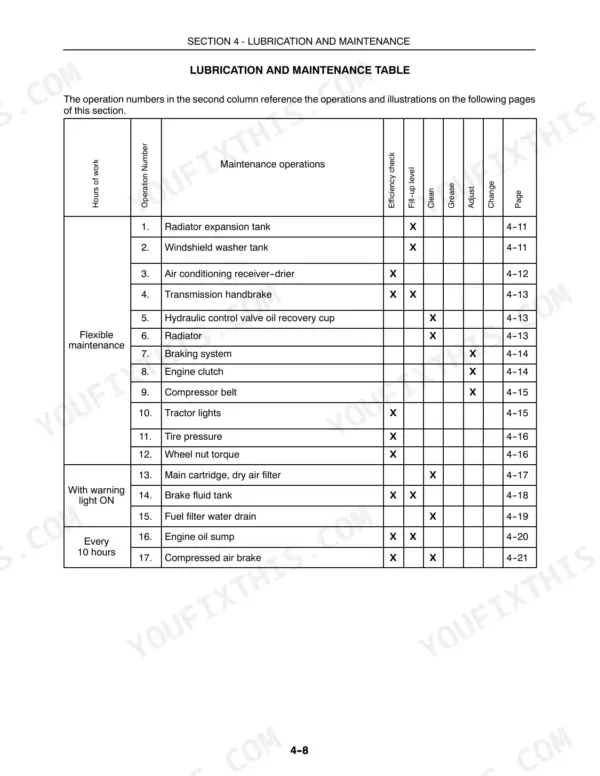

| Lubrication and Maintenance | 197-266 | Introduction, Safety Precautions, How to Prevent Contamination of the System, Maintenance Intervals, Running-In Period, Miscellaneous Checks, Warning Lights |
| Troubleshooting | 267-272 | Introduction, Engine, Electrical System, Hydraulic System, Hydraulic Lift and Three Point Linkage, Brakes, Cab |
| Tractor Storage | 273-274 | Engine Protection, Battery Maintenance, Fuel Tank, Tire Support, Protective Covers |
| Accessories | 275-282 | Fold-Down ROPS, Joystick for Auxiliary Control Valves, Front Loader Prearrangement, Control Valve for Trailer Hydraulic Brakes |
| Specifications and Data | 283-294 | Engine Data, Timing, Fuel System, Lubrication, Cooling, Transmission, Hydraulic Lift, Hydraulic Lift Oil Pump |
| Forms | 295-302 | Delivery Report, First 50 Hour Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| 2WD front axle retaining bolt torque | 294 N⋅m (217 ft lb) | p. 173 |
| Angle adjuster pin nut torque | 294 N⋅m (217 ft lb) | p. 173 |
| 2WD/4WD Rear Wheels hub disk locknuts torque | 255 N⋅m (188 ft lb) | p. 175 |
| 2WD/4WD Rear Wheels rim disk locknuts torque | 245 N⋅m (180 ft lb) | p. 175 |
| Hydraulic lift oil pump pressure relief valve setting | 190 bar (2755 psi) | p. 291 |
| Engine Oil Sump Capacity (with filter) | 9.5L | p. 264 |
| Cooling System Capacity (with cab) | 16L | p. 264 |
| Fuel Tank Capacity (Standard) | 127L | p. 264 |
| Front Axle Housing Oil Capacity | 7.5L | p. 251 |
| Front Axle Final Drive Oil Capacity (without brakes) | 1.4L | p. 264 |
| T5040, T5050, T5060 | ||
| Steering system pressure relief valve calibration (2WD) | 145 bar (2105 psi) | p. 292 |
| T5050, T5060, T5070 | ||
| Fuel Tank Capacity (Optional extension) | 40L | p. 264 |
New Holland T5040, T5050, T5060, T5070 Common Problems This Manual Covers

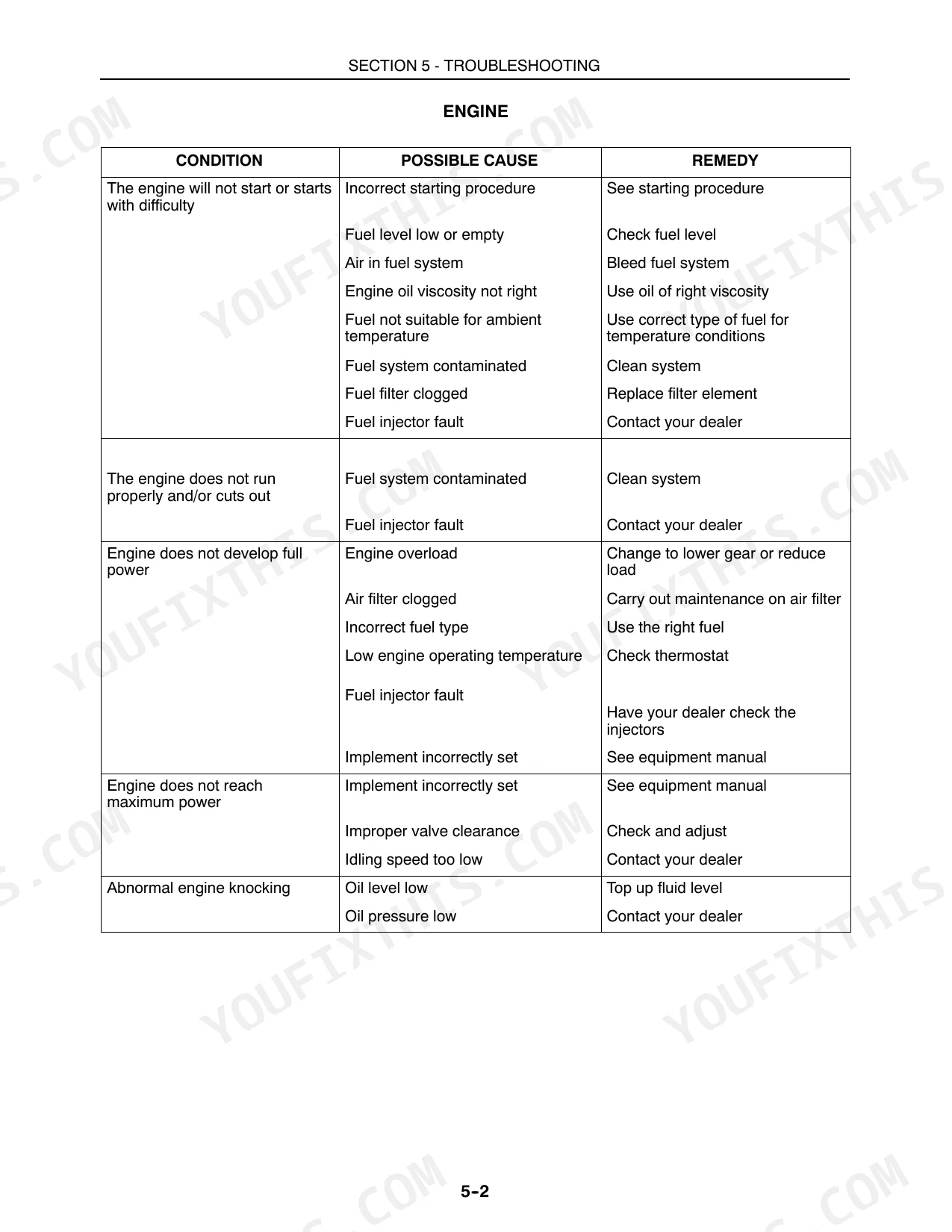

New Holland T5040, T5050, T5060, T5070 engine will not start or starts with difficulty

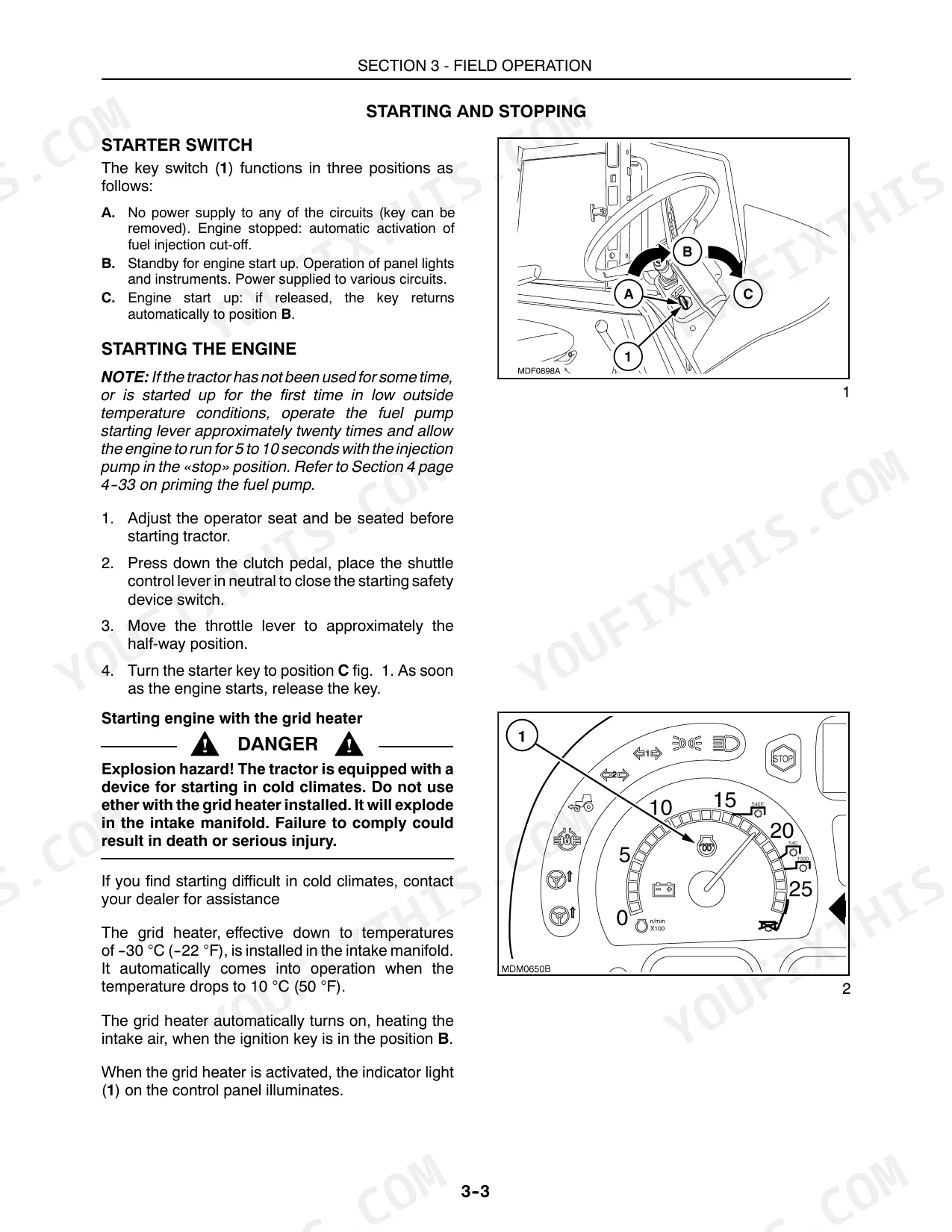

Check fuel level and confirm the correct starting procedure, but never use ether with the grid heater installed; page 117 warns it will explode in the intake manifold. With the engine stopped (page 197), bleed air from the fuel system, replace a clogged fuel filter element, and clean a contaminated system. Match fuel and oil viscosity to ambient temperature. Injector faults go to your dealer.
Manual Section: Engine Troubleshooting p. 268Engine overheating and temperature gauge climbing while pulling a heavy implement under load
Stop the engine before any check, as page 197 requires. Top up coolant in the expansion tank and engine oil, then look for leaking hoses and tighten the connectors. Clean a clogged radiator core, but never direct cold water jets at a hot engine (page 9). Check the fan belt tensioning device, replace a defective radiator cap, and check the thermostat. If overload is the cause, drop a gear or reduce the load.
Manual Section: Engine Troubleshooting p. 269Starter motor cranks slowly or does not work when turning the key
Move the gear lever to neutral first; never disconnect the start-up safety switch to get around it (page 17). Clean and tighten loose or corroded connections, then check that battery charge is at least 12.6 volts along with electrolyte level and specific gravity, per page 270. Charge or replace totally flat batteries, and run engine oil of the viscosity specified for the temperature.
Manual Section: Electrical System Troubleshooting p. 270Battery charge light stays on with the engine running or batteries not charging
Stop the engine before checking anything, as page 197 requires. Check the alternator belt tensioning device and replace a loose or worn belt. Clean and tighten loose or corroded terminals, then verify battery charge is at least 12.6 volts with correct electrolyte level and specific gravity. Raise a low idle speed. If the light stays on or flashes, have your dealer check the alternator.
Manual Section: Electrical System Troubleshooting p. 270Hydraulic system not working properly or hydraulic fluid overheating while using the remote control valves
Park on level ground with the hydraulic cylinders fully extended and the engine stopped before checking oil level (page 197). Top up if low or correct it if too high, and replace a clogged hydraulic filter. Set flow regulation to a lower capacity. Do not alter relief valve calibration (page 17), and keep clear of pressurized oil leaks, which page 20 warns cause serious injury. Otherwise, contact your dealer.
Manual Section: Hydraulic System Troubleshooting p. 271Three-point linkage lifts slowly in draft control or will not lift fully
Adjust the combined draft/position control first, following the chart on page 271. If the linkage stops short, adjust the link arm top limiter; if it will not move at all, check that the linkage cylinder tubes are connected correctly and reduce the load. Slow lowering speed means having the control valve checked. A fault code signal from the electronic lift goes to an authorized dealer so you can get back in the field.
Manual Section: Hydraulic Lift and Three Point Linkage Troubleshooting p. 271Frequently Asked Questions
How do I reset the transmission or shuttle error on my New Holland tractor?
If an error code 'N' appears in the performance display, depress the clutch pedal and shift the shuttle lever to neutral to clear the display and re-engage the drive. For other transmission faults, consult your authorized dealer as the clutches may require calibration, as described on page 2-83. p. 93
How do I bleed the fuel system on my New Holland T5000 series tractor?
To bleed the fuel system after changing the filter cartridge, remove the retaining pin (5) and disconnect the pipe from the filter head. Pump the primer lever (3) until the fuel coming out of the filter contains no air bubbles, then refit the pipe and pin correctly. p. 229
What are the valve clearance specifications for the New Holland T5040, T5050, T5060, T5070 engine?
With the engine cold, the inlet valve clearance should be 0.30 ± 0.05 mm (0.0118 ± 0.0019 in) and the exhaust valve clearance should be 0.55 ± 0.05 mm (0.0216 ± 0.0019 in). p. 232
What's the correct tightening torque for front wheel hub disc nuts on a 4WD New Holland T5040, T5050, T5060, T5070?
The tightening torque for the 4WD front wheel hub disc nuts is 255 N⋅m (188 ft lbs). p. 212
What is the fuel tank capacity for the T5050, T5060, and T5070 models?
The standard fuel tank capacity is 127 liters (33.55 US gal), with an optional tank extension of 40 liters (10.56 US gal) available for the T5050, T5060, and T5070 models. p. 201
What exactly do I receive with this New Holland T5040–T5070 Series manual?
Delivery is instant: a 312-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this New Holland T5040–T5070 Series manual print-friendly?
You can. Print the sections you want for your own use and keep the file as your backup.
