Setting rear wheel track for row spacing or hitching a mower to the three-point linkage goes quicker with the factory pages open beside you, and this 170-page New Holland 4030 operator manual PDF (OEM 42383041) covers four narrow tractor models, the 3830 through the 4430. Controls and operation fill roughly a third of the book, running from shuttle and range shifting through PTO engagement, remote valves, and front and rear track settings. Lubrication and maintenance charts map every service interval, and a first 50-hour checklist walks a new-to-the-farm tractor through its break-in. Hitch with at least 1-1/2 inch (38 mm) of thread engaged on the lift rods, and pull the axle clamp bolts to 163 ft. lbs. (220 N-m) after any track change. A guessed torque is how a wheel works loose mid-field. Print the bookmarked pages, let them catch grease on the bench, and keep your season on schedule.
What's Inside This New Holland 3830, 4030, 4230, 4430 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-18 | Tractor, Diesel Fuel, Safety Cab, Safety Decals |
| Introduction | 19-20 | Identification Data |
| Roll Bar | 21-23 | Roll Bar Positions, Roll Bar Operation, Roll Bar Maintenance and Inspection |
| Safety Cab/ROPS | 24 | Safety Cab/ROPS Maintenance and Inspection |
| Protective Shielding | 25-27 | Shield Locations |
| Universal Symbols | 28 | Dashboard Warning-Lamp Icon Legend |

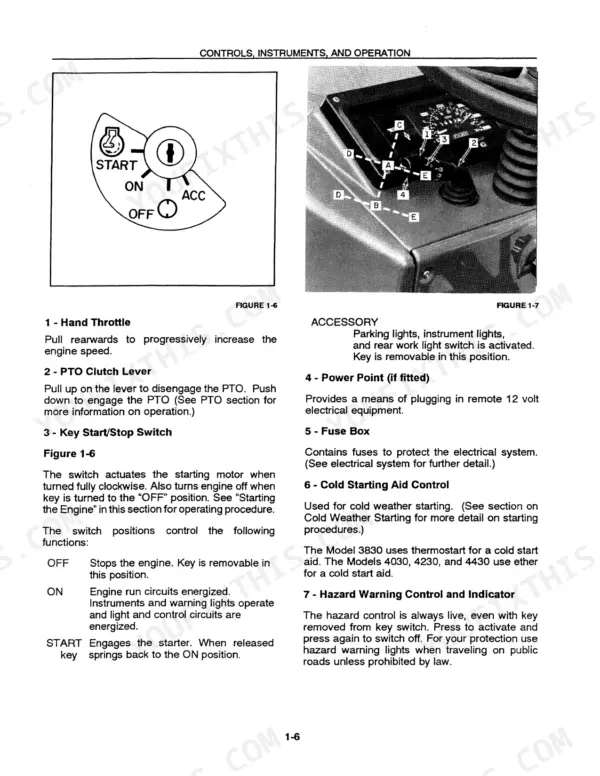

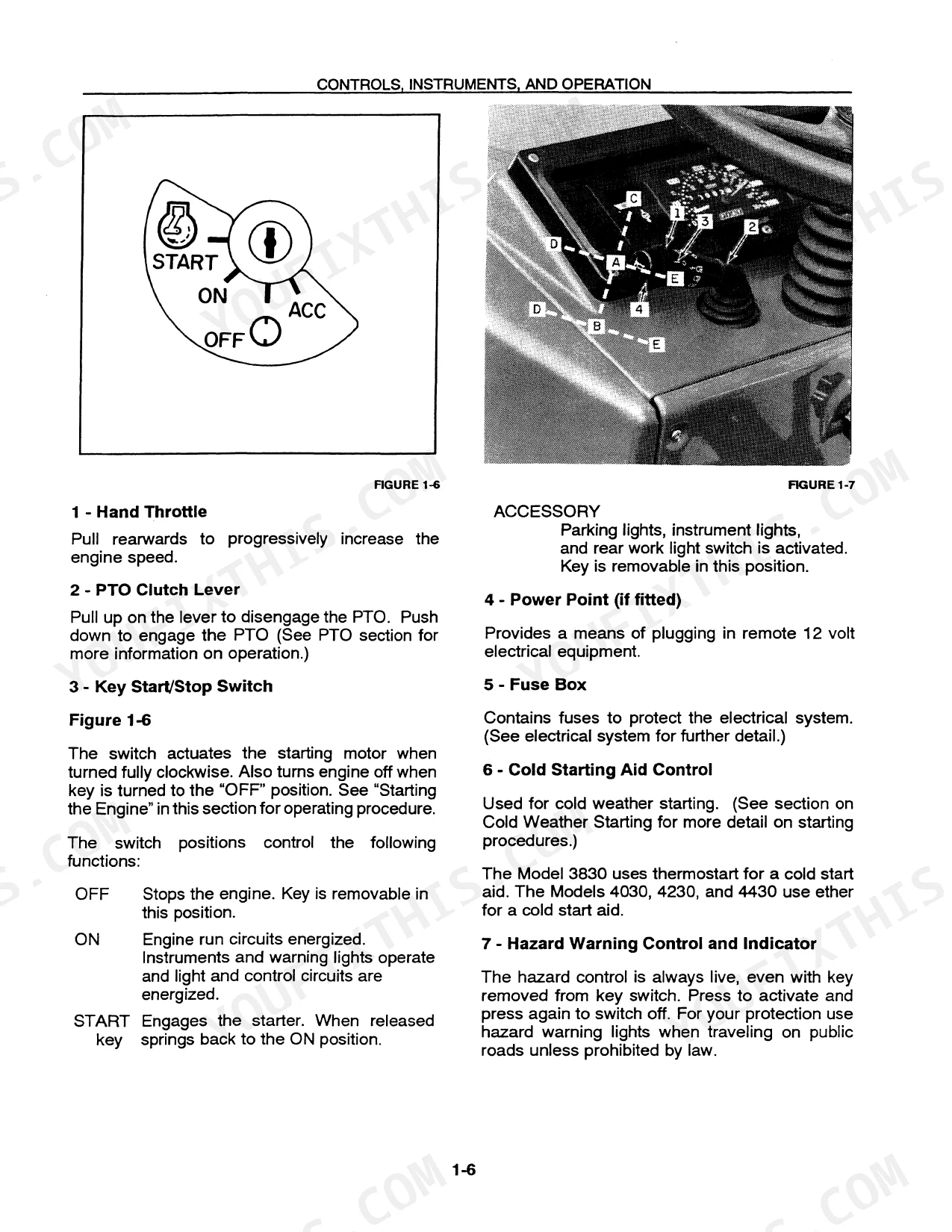

| Controls, Instruments and Operation | 29-92 | Operator's Seat and Seat Belt, Instrument Panel - Gauges and Warning Lamps, Instrument Panel - Controls and Switches, Hand and Foot Controls, Transmission, Four Wheel Drive |

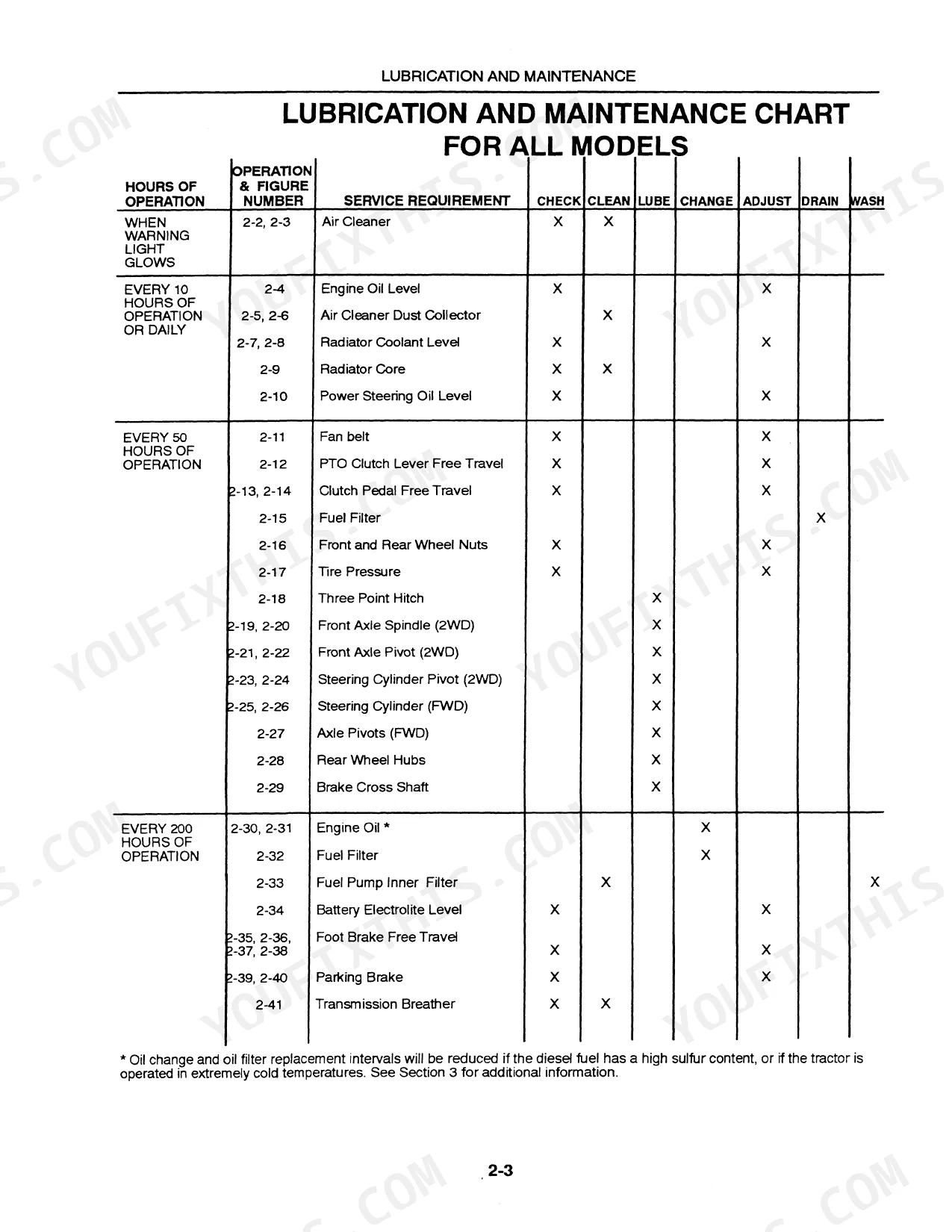

| Lubrication and Maintenance | 93-150 | Lubrication and Maintenance Charts, General Maintenance Cooling System, General Maintenance Fuel System, General Maintenance Electrical System, General Maintenance Storage |
| Specifications | 151-159 | General Dimensions, Engine Specifications, Axle Load Capacity |
| Delivery Report | 161-164 | Inoperative Service Checks, Operative Service Checks, Performance Service Checks, Safety Items Checks |
| First 50-Hour Service | 165-170 | Break-In Service Checklist, Inoperative Service Checks, Operative Service Checks, Performance Service Checks, Safety Items Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Minimum thread engagement for lift rods | 1-1/2 inch (38 mm) | p. 47 |
| Minimum thread engagement for lift rods (when using Lift-O-Matic) | 1-1/2 inch (38 mm) | p. 49 |
| Axle clamp bolts torque | 163 ft. lbs. (220 N-m) | p. 67 |
| Steering cylinder anchor bolt torque | 155 ft. lbs. (210 N-m) | p. 69 |
| 2WD tie rod clamp bolt torque | 29 ft. lbs. (39 N-m) | p. 67 |
| FWD tie rod clamp bolt torque | 29 ft. lbs. (39 N-m) | p. 69 |
| Thermostat opening temperature | 200° F (94° C) | p. 139 |
| Exhaust Tappet Clearance | 0.012 in. (.30 mm) | p. 152 |
| Thermostat starts to open | 185°F (85°C) | p. 152 |
| Fuel Injector Pressure | 3,336 to 3,425 psi | p. 130 |
| Fan Belt Deflection | 1/2 inch | p. 105 |
| Coolant Inhibitor (FW-15) Dosage | 26 fl. oz. per 2 gallons water/2 gallons antifreeze | p. 138 |
New Holland 3830, 4030, 4230, 4430 Common Problems This Manual Covers
New Holland 4030 diesel cranks slow and won't start after sitting over winter
Check battery electrolyte level and state of charge before condemning the starter, then clean and tighten both cable terminals. Verify alternator belt tension; the belt should deflect 1/2 inch (12 mm) under 22 lb. (10 kg) pressure midway between the alternator and fan pulleys, per page 105. A slipping belt leaves the battery half charged all season.
Manual Section: Electrical System Maintenance p. 105Three-point hitch lifts slowly or won't raise a mounted implement to full height
Check the rear axle oil level with the tractor on level ground; low oil starves the pump. Verify the implement is within the tractor's rated lift capacity, listed alongside the 2700 psi (186 bar) system pressure spec on page 153. Confirm the lift rods have at least 1-1/2 inch (38 mm) of thread engaged before hooking up.
Manual Section: Hydraulic System Maintenance p. 153Temperature gauge climbs into the red during heavy tillage on hot afternoons
Check coolant level only when the engine is cold, and inspect the radiator core for packed chaff; blow it clean with compressed air from the fan side. Test the pressure cap, rated 10 psi (0.7 bar) on page 152. If the gauge still climbs, the thermostat should start opening at 185°F (85°C); replace it if it does not.
Manual Section: Cooling System Maintenance p. 152Coolant level drops between checks and needs topping up every few days
Inspect hose clamps and the radiator cap seal for seepage before each refill. When topping up, mix coolant correctly instead of adding straight water: add 26 fl. oz. of FW-15 inhibitor per 2 gallons of water and 2 gallons of antifreeze, as directed on page 138. Recheck the level cold after the next day's work.
Manual Section: Cooling System Maintenance p. 138Front end wanders and steering feels loose between narrow rows at road speed
Check the power steering reservoir oil level and top up before blaming the front axle. Grab each tie rod end and feel for play; replace worn ends before harvest traffic puts you on the road. Measure toe-in between the front tires; the correct setting is 1/4 inch (6 mm), shown on page 72.
Manual Section: Steering System Maintenance p. 72Frequently Asked Questions
What is the torque specification for the front wheel to hub bolts on a New Holland 4030 (two-wheel drive)?
The torque specification for the front wheel to hub bolts on a two-wheel drive New Holland 4030 is 231 ft. lbs. (314 N-m). p. 107
What is the correct valve clearance for the intake and exhaust valves on a New Holland 3830, 4030, 4230, 4430?
The correct valve clearance for both the intake and exhaust valves is 0.012 inches (0.30 mm) when the engine is cold. p. 130
What is the required torque for the engine oil filter when installing it on a New Holland 3830, 4030, 4230, 4430?
After the filter seal contacts the base, tighten the engine oil filter an additional 3/4 turn. p. 123
How often should the transmission, rear axle, and hydraulic oil be changed?
The transmission, rear axle, and hydraulic oil should be changed every 1600 hours of operation or every two years, whichever comes first. p. 96
What is the correct fan belt deflection for the engine?
The fan belt should deflect 1/2 inch (12 mm) when 22 lbs. (10 kg) of pressure is applied midway between the alternator and fan pulleys. p. 105
Is this New Holland 3830 Operator Manual a digital download?
Immediate download of the complete 170-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this New Holland 3830 Operator Manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
