Row unit gearbox timing and slip clutch settings on a 974 corn head are settled by factory literature and nothing else; this 86-page New Holland 974 service manual PDF, OEM number 40097412, is that literature. The gearbox chapters take up most of the book: input shaft and stalk roll drive teardown, gathering chain drive assembly for both Style 1 and Style 2 units, and the backlash checks that keep row unit timing honest. A labor guide and a full specifications chapter cover the auger, stalk rolls, deck plates, and weed knives, so you can plan the whole job before pulling a shield. Mic the sprocket bushing during inspection; past 3.010 in. (76.5 mm) inside diameter it gets replaced, and the auger slip clutch sets at 240 ft. lbs. (325 N-m). When a row unit quits at dusk, there is nobody to ask. Bookmarked and text-searchable, this PDF goes wherever your header sits.
What's Inside This New Holland 974 Manual

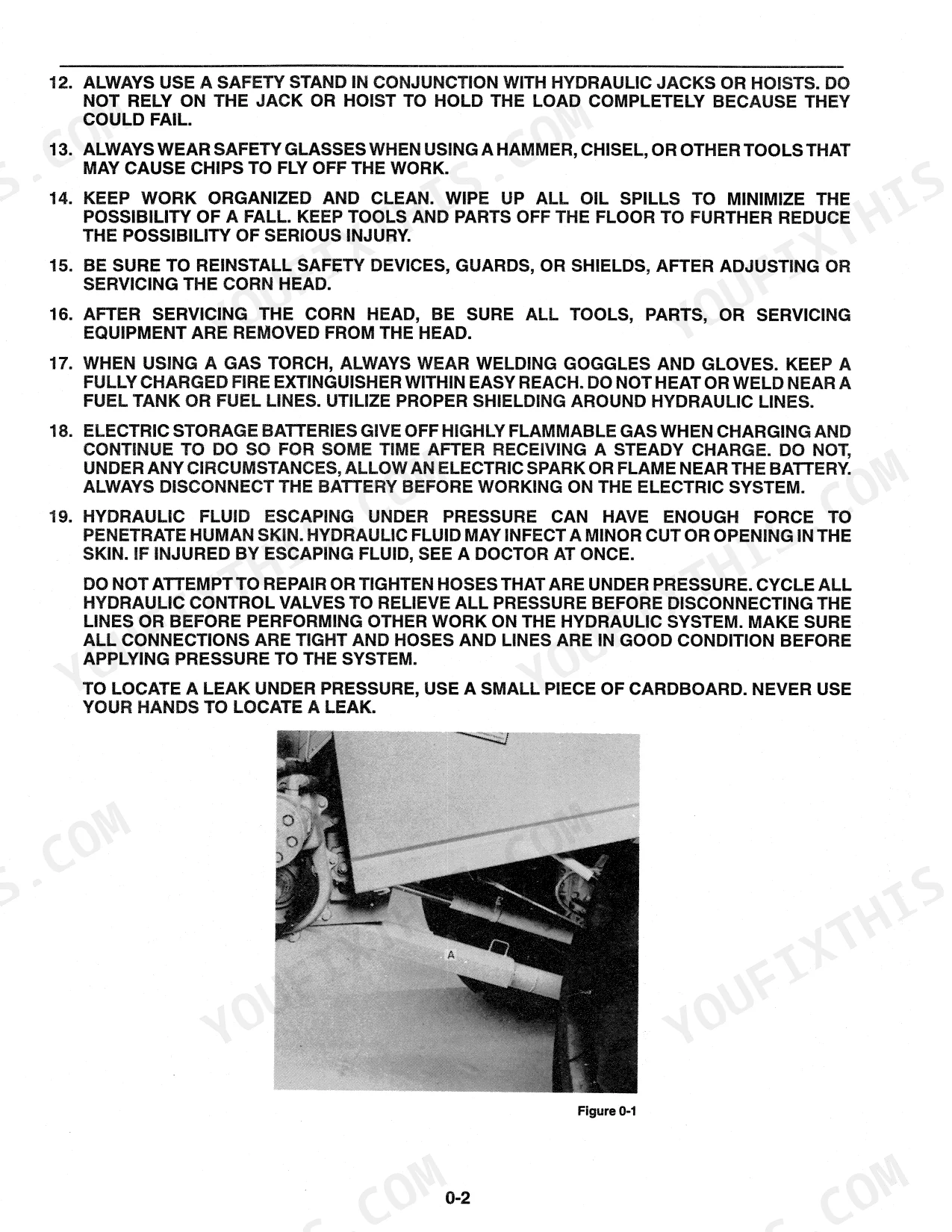

| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-6 | Safety Precautions |
| General Information | 7-8 | Serial Number Plate, Improvements, Hardware Information, Hardware Key |

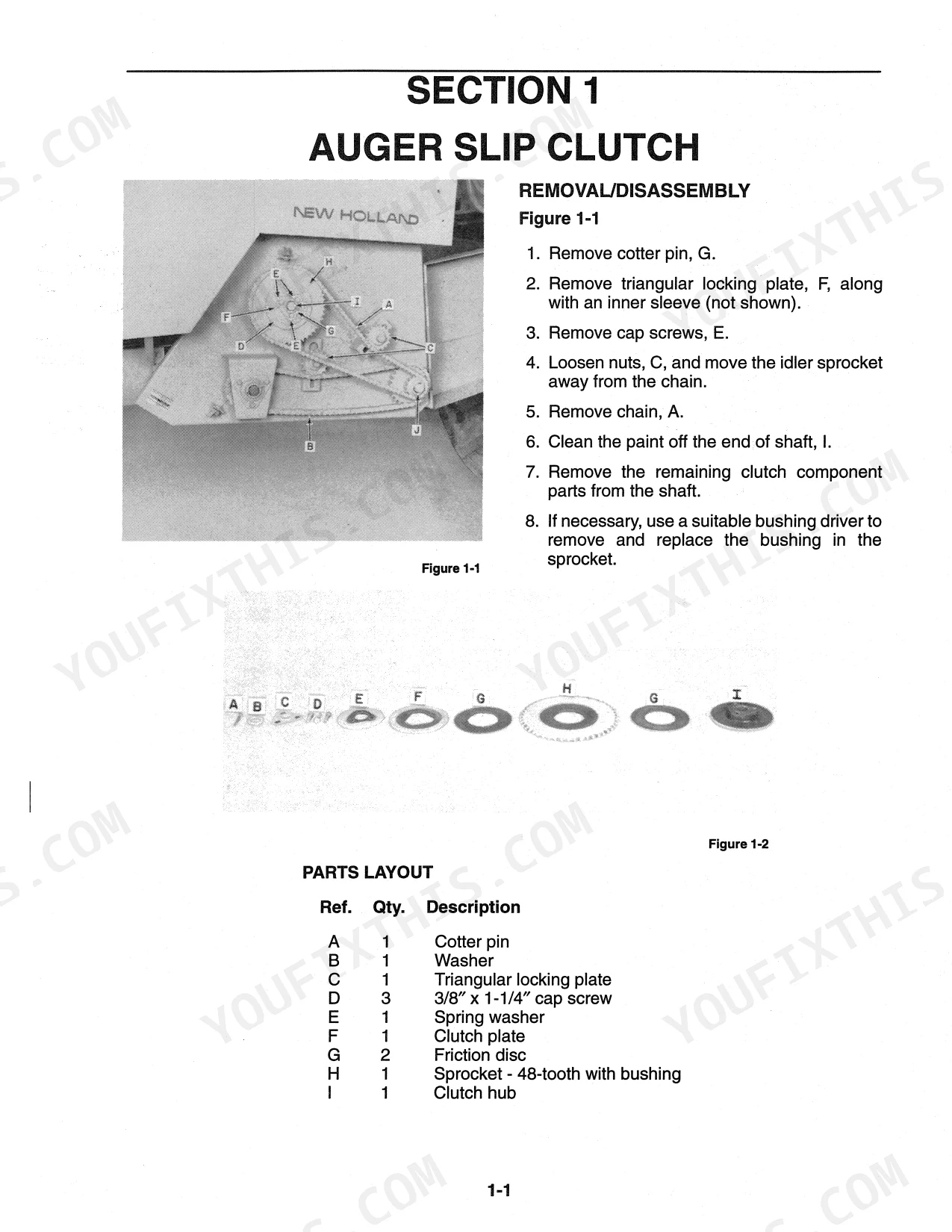

| Auger Slip Clutch | 9-12 | Removal and Disassembly, Inspection |

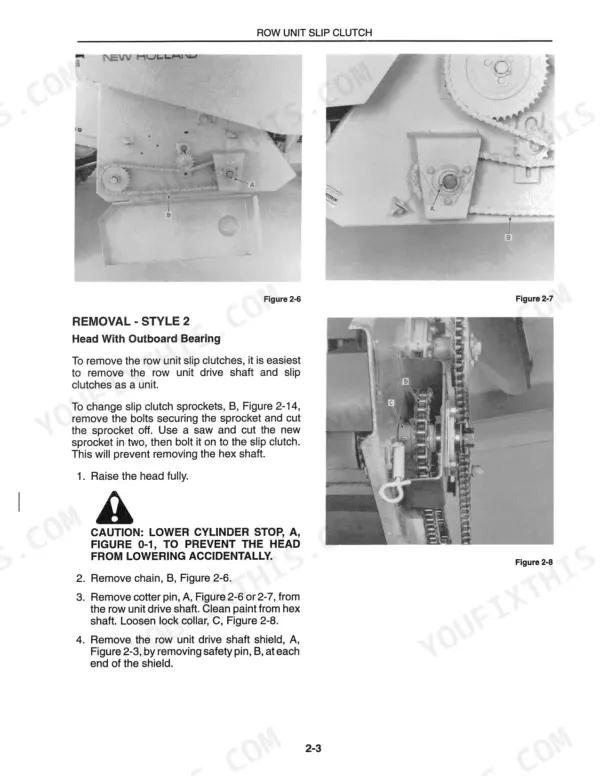

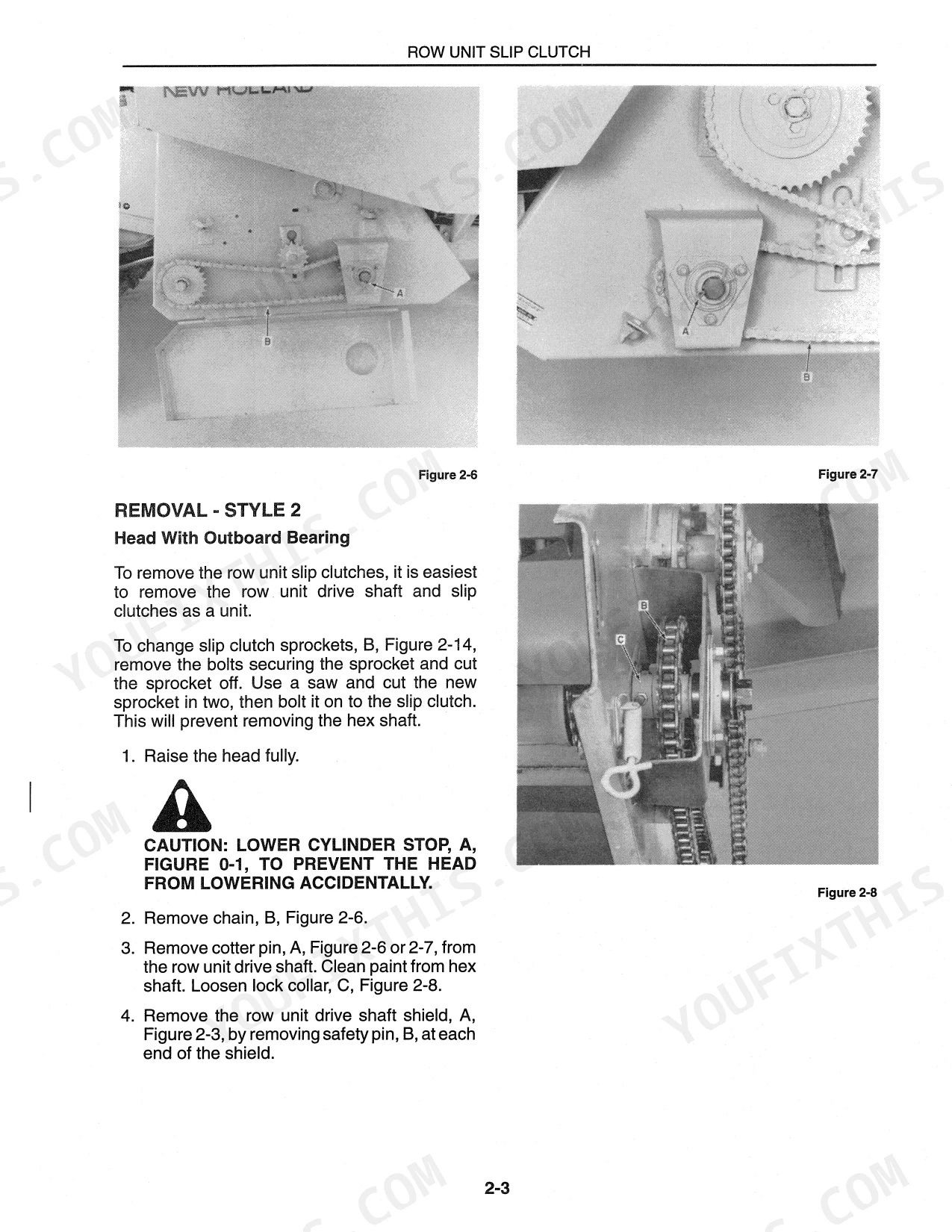

| Row Unit Slip Clutch | 13-38 | Removal Style 1, Removal Style 2, Inspection, Disassembly, Assembly, Installation Style 1, Installation Style 2 |
| Stalk Rolls | 39-44 | Removal, Front Stalk Roll Bearing Removal, Stalk Roll Installation |
| Removal of Row Unit Gearbox | 45-46 | Removal, Crop Dividers, Braces, Drive Shields, Drive Chain |
| Initial Disassembly and Input Shaft | 47-49 | Service Tools, Gearbox Cover, Input Shaft Disassembly, Stalk Roll Drive Disassembly |
| Stalk Roll Drive and Bearing Removal | 50-51 | Roll Shaft Removal, Bearing Removal, Square Shaft Removal |
| Gathering Chain Drive Disassembly | 52-53 | Style 1 Disassembly, Lower Bearing Removal, Upper Bearing Removal |
| Inspection and Assembly Notes | 54-55 | Parts Layout, Inspection Procedures, Assembly Notes |
| Gearbox Assembly and Timing | 56-62 | Gathering Chain Drive Assembly, Input Shaft Assembly, Stalk Roll Drive Assembly, Backlash Check |
| Style 2 Gathering Chain Drive | 63-77 | Style 2 Parts Layout, Style 2 Assembly, Input Shaft End Play, Gear Backlash Adjustment |
| Final Assembly and Installation | 78-80 | Final Assembly, Installation, Labor Guide |
| Labor Guide | 81 | Auger Slip Clutch, Row Unit Slip Clutch, Row Unit Hex Drive Shaft, Stalk Row, Front Stalk Roll Bearings, Row Unit Gearbox, Input Shaft, Gathering Chain Drive |
| Specifications | 82-83 | Gathering Chain, Dividers, Deck Plates, Stalk Rolls, Weed Knives, Auger, Slip Clutches, Row Unit Drive |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Auger slip clutch torque | 240 ft. lbs. (325 N-m) | p. 10 |
| Maximum ID of the sprocket bushing | 3.010" (76.5 mm) | p. 10 |
| Torque for cap screws, D (Figure 3-4) | 66 ft. lbs. (90 N·m) | p. 42 |
| Torque for cap screws, B and C (Figure 3-10) | 15 ft. lbs. (20 N·m) | p. 43 |
| Input shaft bearing puller washer size | 1-1/4" OD x 3/16" thick (32 mm x 5 mm) | p. 49 |
| Stalk roll bearing installation pipe size | 2-5/8" OD x 8" long (67 mm x 203 mm) | p. 51 |
| Cap screws (stalk roll drive gear) | 66 ft. lbs. (90 N·m) | p. 73 |
| Gathering chain free movement | 1/4 inch (6 mm) | p. 75 |
| Row Unit Gearbox Grease Capacity | 5 lbs. | p. 78 |
| Input Shaft End Play | 0.001-0.031 inches | p. 75 |
| Stalk Roll Drive Gear Backlash | 0.015-0.025 inches | p. 75 |
| Gathering Chain Drive Gear Backlash | 0.015-0.025 inches | p. 75 |
New Holland 974 Common Problems This Manual Covers
New Holland 974 row unit drive chain slips or stops in cold muddy corn, offset link keeps breaking
Replace the worn offset link with a full new chain section, then inspect both drive sprockets for hooked or thinned teeth. Check the idler tightener bearing for roughness; these fail yearly on hard-run heads. Drive chain removal starts on page 45.
Manual Section: Removal of Row Unit Gearbox p. 45Gathering chain tightener sticks and rides loose, row unit feeds stalks poorly
Free the spring-loaded tightener during morning greasing; work it back and forth until it pivots without binding, and clean packed dirt from the pivot. Set chain tension so the bottom strand shows 1/4 inch (6 mm) of free movement with moderate finger pressure, the spec listed on page 75.
Manual Section: Style 2 Gathering Chain Drive p. 75Head shells corn on the rolls and throws ears in tough down crop
Inspect stalk rolls for rounded flutes and check deck plates for wear; both wear fast on high-acre heads. Roll removal and bearing replacement start on page 39. When reinstalling, torque the roll mounting cap screws to 66 ft. lbs. (90 N·m) and confirm roll timing before buttoning up the hoods.
Manual Section: Stalk Rolls p. 39Row unit gearbox growls and runs loud after several seasons of heavy acres
Remove the gearbox following page 45, split the cover, and measure gear backlash: stalk roll and gathering chain drive gears should read 0.015 to 0.025 inch (0.38 to 0.63 mm), with input shaft end play at 0.001 to 0.031 inch. Refill the cavity with 5 lbs. (2.3 kg) of multipurpose grease before installation.
Manual Section: Row Unit Gearbox p. 45Cross auger slips and chatters under load, ears pile up instead of feeding
Remove the auger slip clutch, disassemble it, and inspect the facings and sprocket bushing; replace the bushing if the ID exceeds 3.010 inches (76.5 mm). Verify slip torque against the 240 ft. lbs. (325 N·m) spec on page 10, then run the head and confirm the auger carries load without ratcheting.
Manual Section: Auger Slip Clutch p. 9Frequently Asked Questions
What are the standard tightening torque specifications for bolts used on the New Holland 974?
The standard tightening torque for bolts depends on the grade and size. For example, a 1/2" Grade 5 plated bolt requires 92 ft. lbs. (125 N-m) of torque, while a 1/2" Grade 8 plated bolt requires 115 ft. lbs. (156 N-m). p. 6
What is the proper procedure for adjusting the auger slip clutch torque on a New Holland 974 corn head?
Tighten the three cap screws, E, evenly until the clutch slips at 240 ft. lbs. (325 N-m). Turn each screw a maximum of one-third turn each time an adjustment is required. p. 10
What is the required chain deflection for the auger drive chain?
The auger drive chain should be adjusted so that when applying moderate finger pressure midway between the drive and driven sprockets, the chain is deflected 3/4" (19 mm). p. 11
What is the torque spec for the row unit gearbox cover cap screws on a New Holland 974 corn head?
The gearbox rear cover should be secured using eight 5/16" x 3/4" Grade 5 cap screws with lock washers, torqued to 15 ft. lbs. (20 N-m). p. 78
What is the required grease capacity for the row unit gearbox on a New Holland 974 corn head?
The gearbox cavity should be filled with 5 lbs. (2.3 kg) of good grade multipurpose grease or wheel bearing grease. The level is correct when the grease completely fills the lower portion of the gearbox up to the top of the input shaft. p. 78
Is this New Holland 974 manual a PDF I download?
This is a 86-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this New Holland 974 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
