The New Holland T5.110, T5.120, T5.130 and T5.140 AutoCommand tractors run on this 640-page operator manual, OEM number 51496431. Match your plate to the identification pages up front, and this New Holland T5 AutoCommand operator manual PDF is the same book a dealer hands over with a new tractor. Controls and instruments take the longest run of any chapter, covering instrument cluster warning lights, stored fault codes, shuttle lever, differential lock and electronic draft control. Maintenance sits close behind, with hitch, PTO and remote valve setup, ballasting and tire tables, plus troubleshooting charts read by alarm or by symptom. Service intervals step from daily ten-hour checks out to 3600 hours; rear disc to hub nuts pull to 310 N·m (228.6 lb ft), and the primary fuel filter seats at 15 Nm (11.1 lb ft). Every hour that tractor sits is an hour off your weather window. Bookmarked, searchable, and yours to keep for this tractor's life.
What's Inside This New Holland T5.110–T5.140 AutoCommand Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 13-38 | Note to the Owner, Intended Use, Metric and Imperial Units Abbreviations, Electro-Magnetic Interference, Product Identification, Engine Identification, Drive Line Identification |
| Safety Information | 39-76 | Safety Precautions, Safety Decals, Safety Rules, Burn Prevention, Prevention of Fire or Explosions, Fire Extinguisher, Protection Offered by the Tractor, Hazardous Substances |

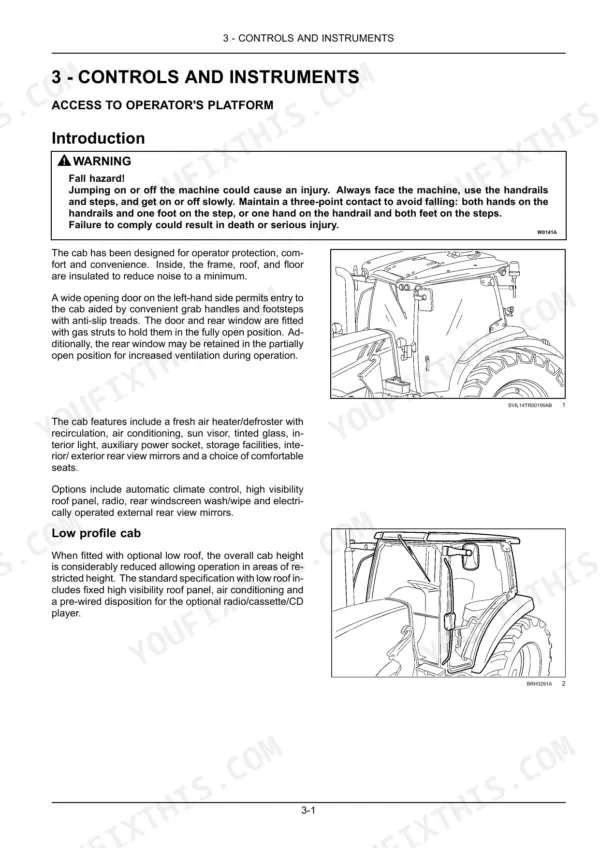

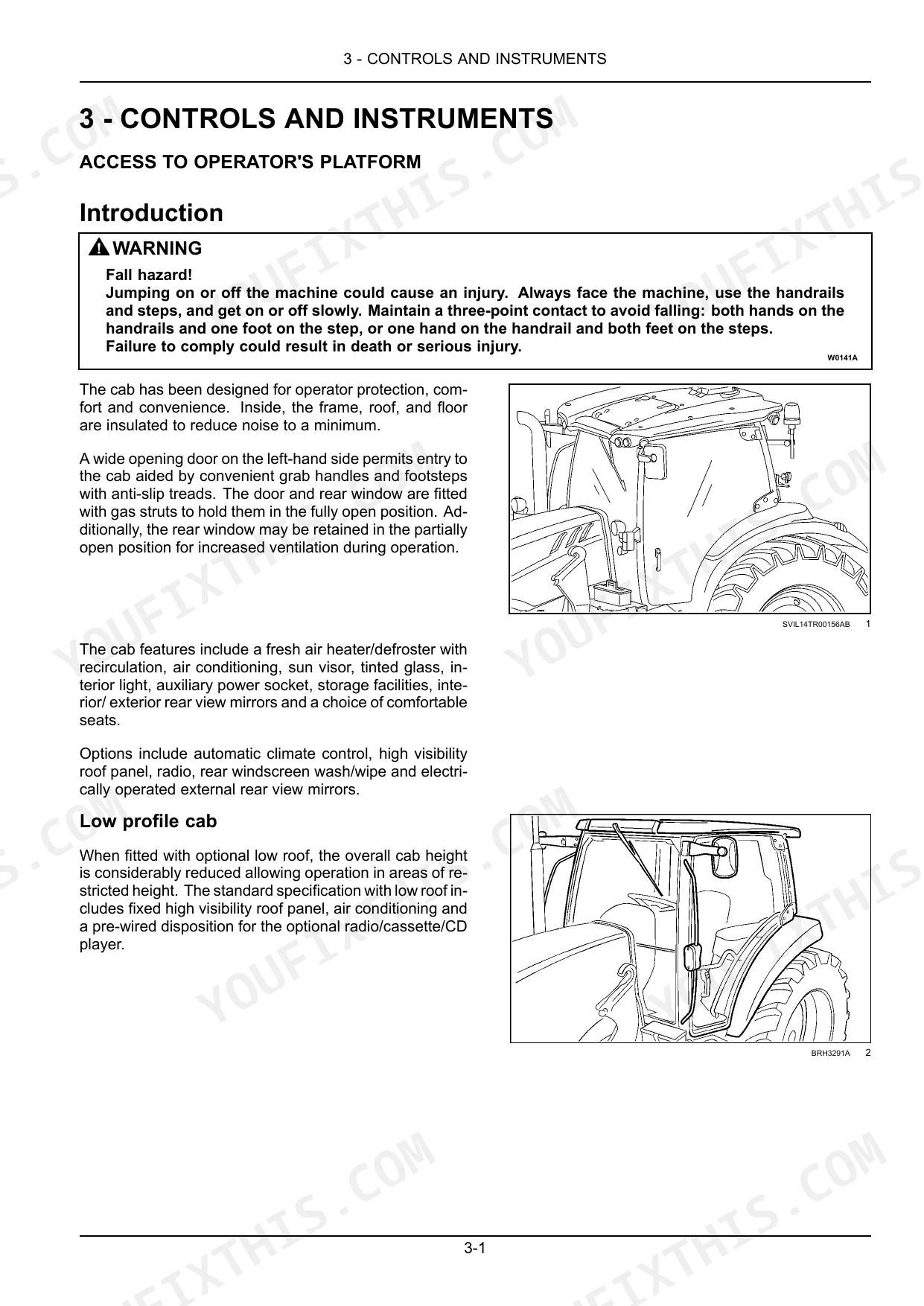

| Controls and Instruments | 77-202 | Access to Operator's Platform (Introduction, Cab Air Filters, In Cab Storage, Cable and Wiring Routing, Mobile Telephone Usage, Implement Monitor Installation) |
| Operating Instructions | 203-216 | Commissioning the Unit (Refueling the Tractor) |
| Transport Operations | 217-218 | Preparing for Road Transport (Carrying the Tractor on a Transporter), Recovery Transport (Towing the Tractor) |

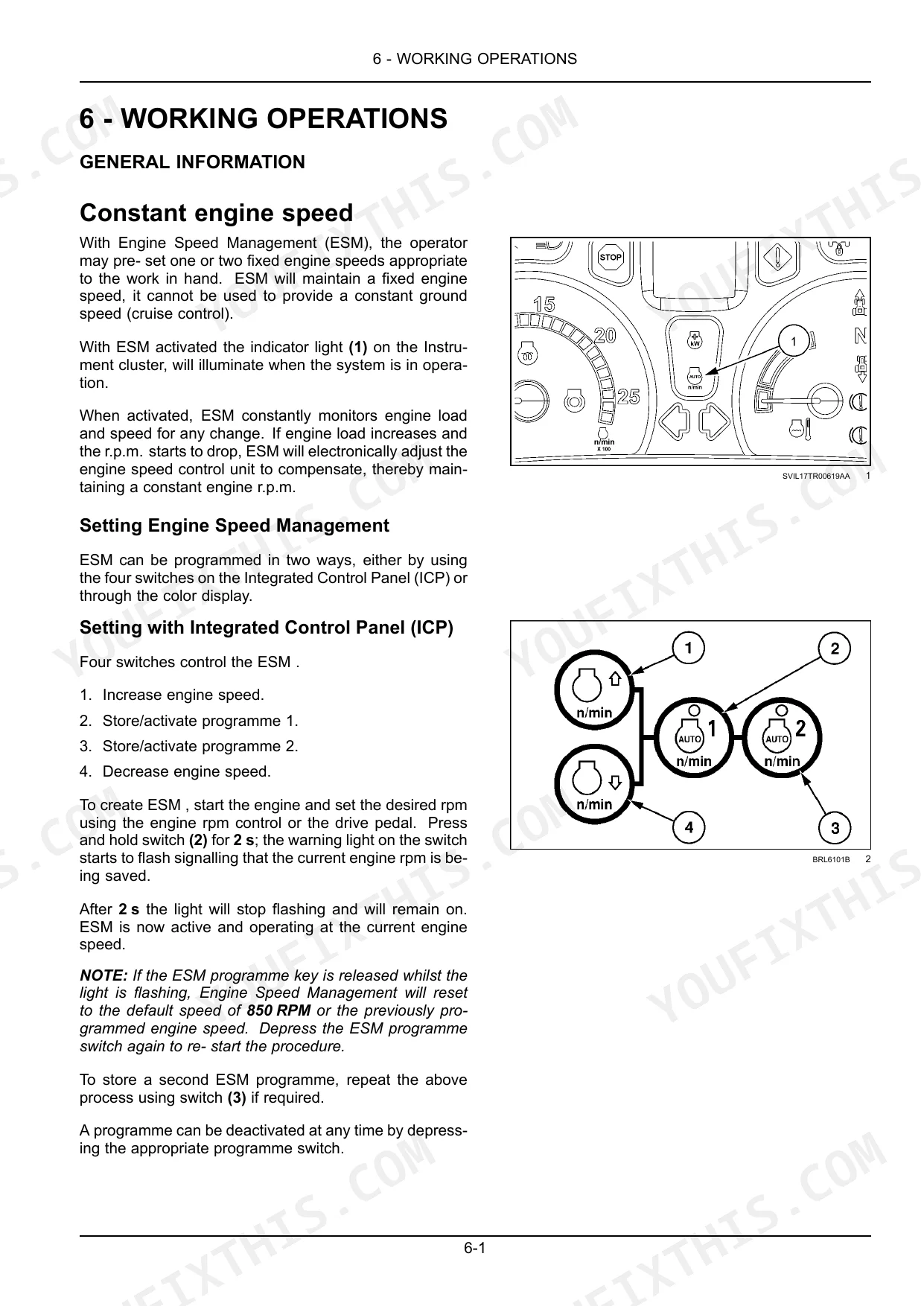

| General Information and Transmission | 219-278 | Constant Engine Speed, Differential Lock, Four Wheel Drive, HTS Standard, Transmission Operation, Drive Pedal |
| Rear Power Take-Off and Rear Hitch | 279-331 | Transmission Controls, Rear Power Take-Off, Rear Hitch, Electronic Draft Control, External Hitch Controls |
| Front Hitch and Hydraulic Remote Control Valves | 332-365 | Front Hitch Settings, Auxiliary Front Couplers, Hydraulic Remote Control Valves, Remote Control Valve Operation, Hydraulic Oil Level |
| Electro-Hydraulic Remote Control Valves | 366-402 | Remote Control Valves, EHR Implement Control Setting, Joystick Operation, Mid Mount Valves, Flow Rate Settings |
| External EHR Controls and Hydraulic Power Beyond | 403-436 | External EHR Controls, Hydraulic Power Beyond Port, Three Point Hitch, Drawbars and Towing Attachments, Trailer Braking Systems |
| Wheel Track Adjustment and Ballasting | 437-492 | Trailer Braking Systems, Front Wheel Track Adjustment, Rear Wheel Track Adjustment, Ballasting and Tires, Tire Dimensions |

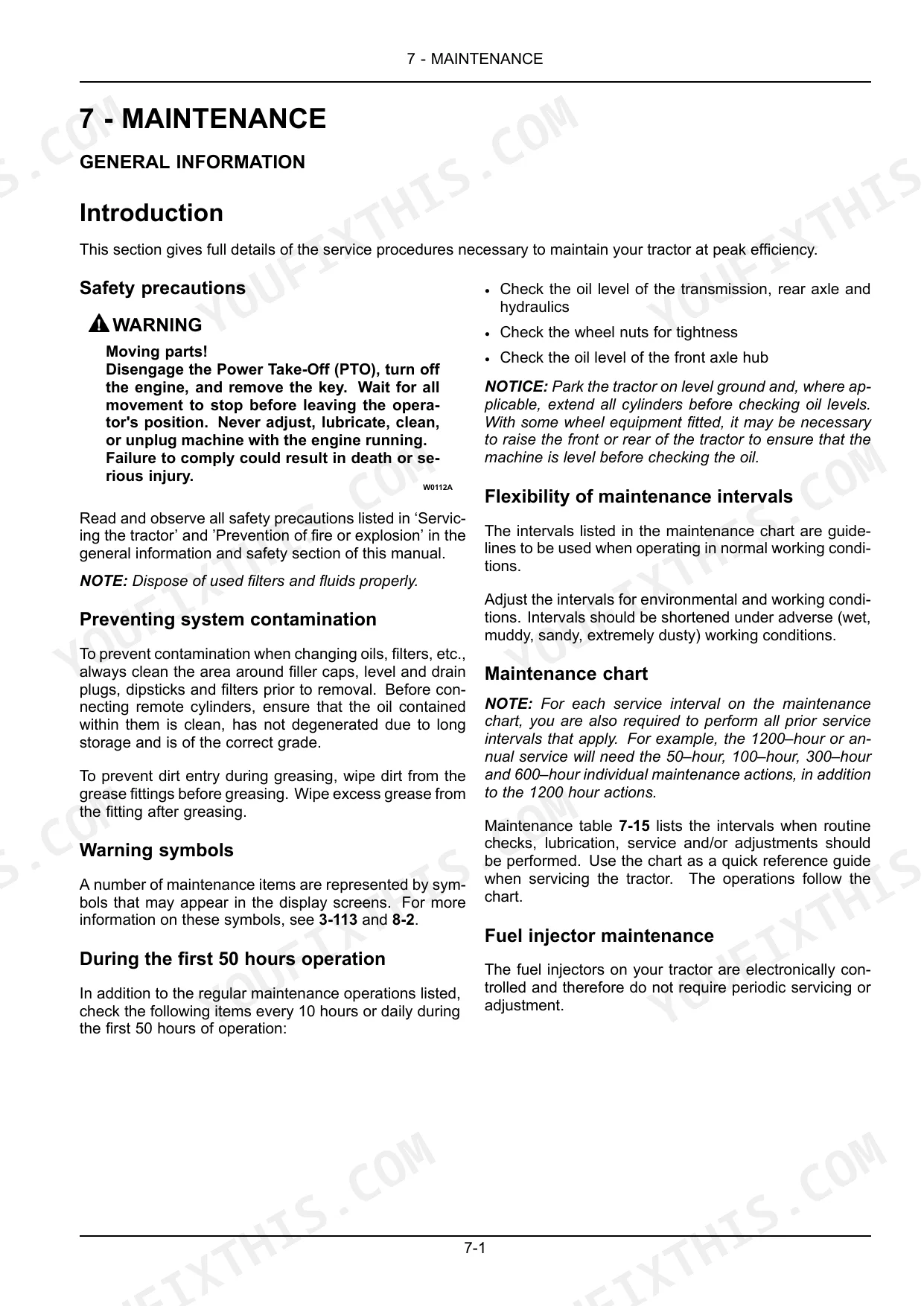

| Maintenance | 493-592 | Maintenance Chart, When the Warning Light Is on, Every 10 Hours or Each Day, First 50 Hours, Every 50 Hours, Every 100 Hours, Every 600 Hours, Every 1200 Hours or Annually |

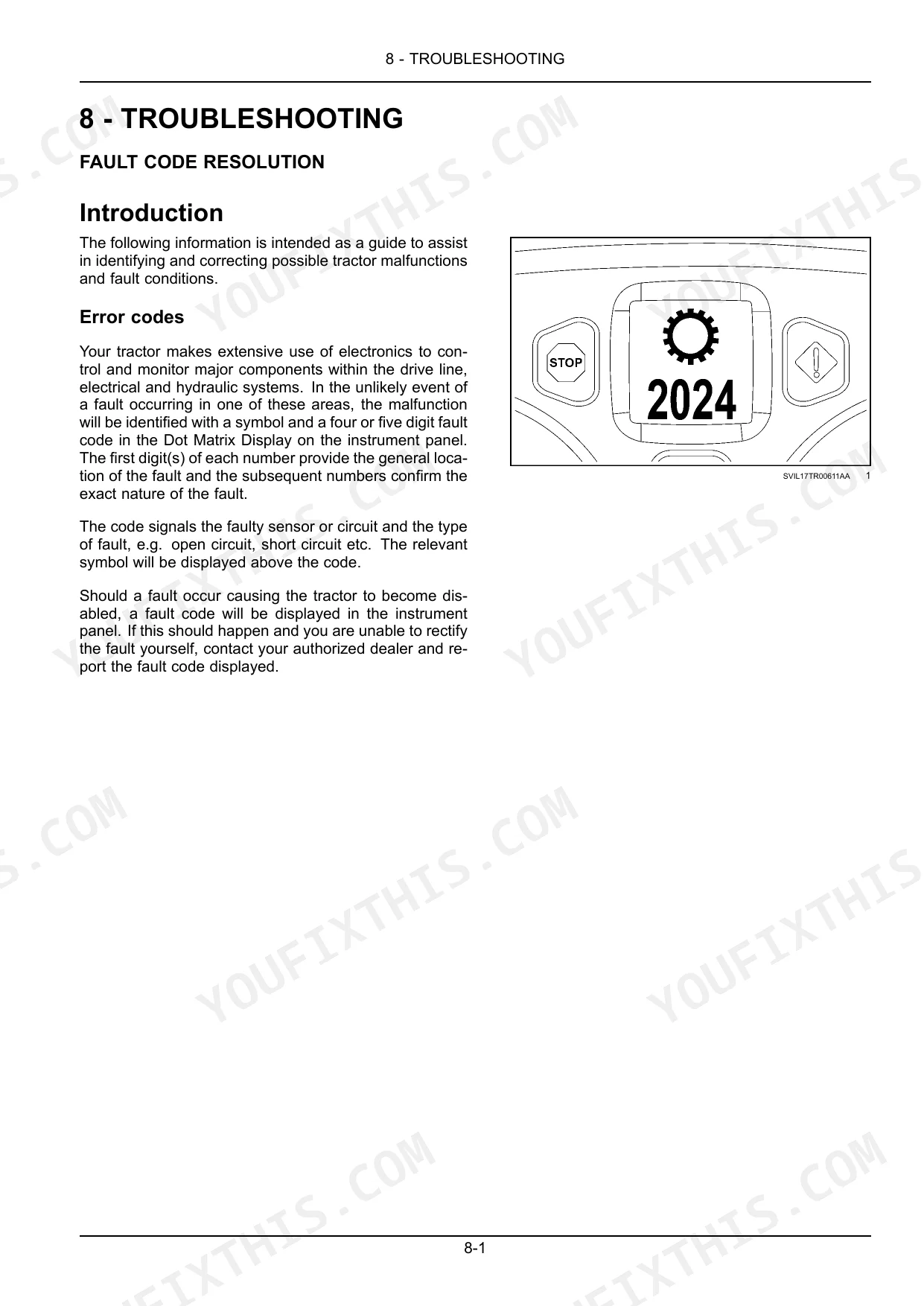

| Troubleshooting | 593-600 | Fault Code Resolution, Alarm(s), Symptom(s) |

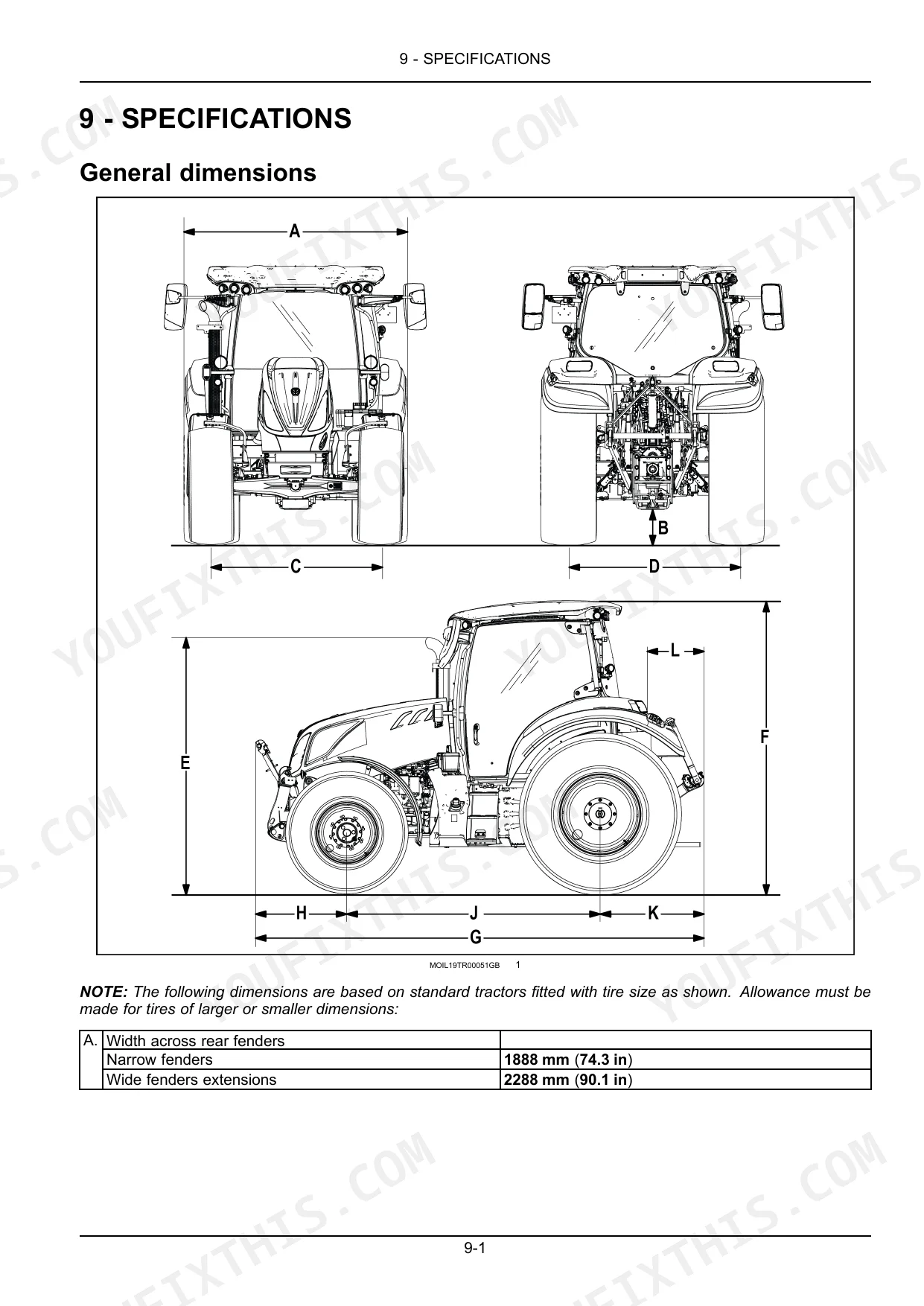

| Specifications | 601-626 | General Dimensions, Engine |
| Accessories | 627-640 | Radio, External Rear View Mirrors |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front disc to hub nuts | 220 N·m (162.3 lb ft) | p. 526 |
| Front disc to rim nuts | 250 – 340.0 N·m (184.4 – 250.8 lb ft) | p. 526 |
| Primary fuel filter tightening torque | 15 Nm (11.1 lb ft) | p. 534 |
| Charge pump oil filter housing torque | 40 Nm (30 lb ft) | p. 538 |
| F369 Brake lights fuse | 15.0 A | p. 580 |
| F375 Brake pedal switch fuse | 7.5 A | p. 581 |
| Battery Standard | 12 V 140 Ah (800 cca) | p. 623 |
| Battery Optional | 12 V 176 Ah (1300 cca) | p. 623 |
| Alternator Standard | 12 V, 120 A | p. 623 |
| Alternator Optional | 12 V, 200 A | p. 623 |
| T5.110 | ||
| Engine power at rated speed (T5.110) | 74 kW (101 Hp) | p. 609 |
| T5.120 | ||
| Engine power at rated speed (T5.120) | 81 kW (110 Hp) | p. 609 |
New Holland T5.110–T5.140 AutoCommand Common Problems This Manual Covers
New Holland T5.110 hard shifting or jerky range changes, transmission warning light on dash
Check the transmission symptom list on page 593 before you pull anything apart. Park level, run the tractor to operating temperature, then verify the transmission, rear axle, and hydraulics share one 60.0 L (15.9 US gal) sump reading at the sight glass. Top up with the specified oil and recheck after shuttle cycling.
Manual Section: Transmission Troubleshooting p. 593Three-point hitch drops slowly or will not raise fully with the implement mounted
Verify draft control and position control levers are set for the implement, not left in transport detent. Check hydraulic oil level cold against the sight glass, then run the engine five minutes and recheck. The hitch troubleshooting symptoms start on page 594. Confirm the 60.0 L (15.9 US gal) system is not aerated before blaming seals.
Manual Section: Three-point hitch Troubleshooting p. 594Engine turns over slowly or will not crank at all after sitting through winter
Clean and load test the battery first. Standard fitment is 12 V 140 Ah (800 cca) and the optional unit is 12 V 176 Ah (1300 cca), listed on page 623. Scrape the earth strap contact surface bright, retorque the terminals, and verify the alternator charges before you chase the starter.
Manual Section: Electrical system Troubleshooting p. 623Coolant temperature climbs under heavy PTO or drawbar load on a hot afternoon
Shut down, let it cool, and blow the radiator and oil cooler fins clean from the fan side out. Chaff packs fast in dusty fields. Check coolant level at the recovery bottle and inspect the alternator belt for glazing. The daily and 10 hour checks in the maintenance schedule on page 493 cover both items.
Manual Section: Maintenance p. 493Engine lacks power, runs rough, or smokes under load
Drain water from the fuel filter bowl and replace the primary filter, tightening it to 15 Nm (11.1 lb ft) as specified on page 534. Check the air cleaner element for chaff. Verify fuel quality in the 180.0 L (47.6 US gal) tank, and confirm engine oil and filter are inside the 600 hour interval.
Manual Section: Engine Troubleshooting p. 534Brake lights stay off or stick on, brake pedal travel feels excessive
Check the F369 brake lights fuse (15.0 A) on page 580 and the F375 brake pedal switch fuse (7.5 A) on page 581 before ordering a switch. Verify the pedals are latched together for road travel, then inspect the switch connector for corrosion and back out any misadjusted pedal stop.
Manual Section: Brakes Troubleshooting p. 580Frequently Asked Questions
How do I reset the service reminder for the tractor?
To reset the service reminder, access the 'Service' screen via the 'Toolbox' menu on the color display. Select the service interval you wish to reset and press 'Service done' to reset the counter and update the maintenance history. p. 507
What is the front disc to hub nut torque on a New Holland T5 AutoCommand four-wheel drive tractor?
The specified torque for the front disc to hub nuts on a four-wheel drive tractor is 220 N·m (162.3 lb ft). p. 526
What is the procedure for bleeding the fuel system?
To bleed the fuel system, loosen the low pressure pipe connection between the main filter and the fuel pump. Unscrew the primer pump knob and pump slowly until no air bubbles appear from the connection, then tighten the connection and screw the pump knob back into the filter head. p. 570
What is the fuel tank capacity on a New Holland T5.110 to T5.140 AutoCommand tractor?
The fuel tank capacity for the tractor is 180.0 L (47.6 US gal). p. 503
What is the recommended engine oil and filter change interval on a New Holland T5.110-T5.140 AutoCommand?
For engine oil meeting the MAT3521 specification (NEW HOLLAND AMBRA UNITEK), the service interval is 600 hours. For other oils meeting API CJ-4, ACEA E6, or ACEA E9 specifications, the interval is 300 hours. p. 501
How quickly can I access this New Holland manual after buying?
A single searchable PDF file of 640 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Are there any print restrictions on this New Holland manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
