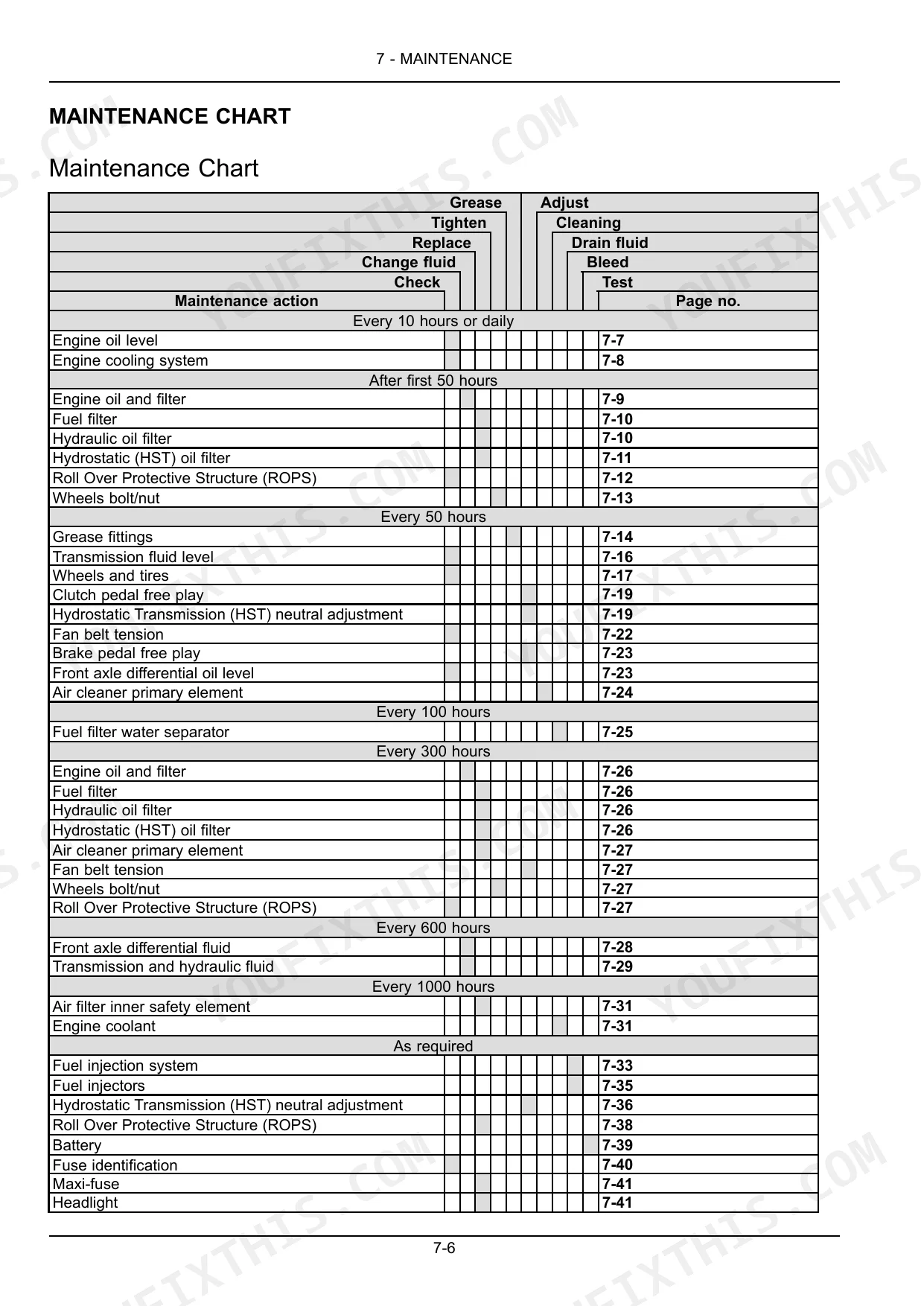

Printed under New Holland part number 47708977, this 180-page Workmaster 35, Workmaster 40 operator manual PDF is the factory book that shipped with the compact tractor, not a rewritten summary of it. Operating instructions run for a good stretch of the book, walking through engine break-in, PTO engagement, three-point linkage hookup, extendible drawbar settings, and the hydraulic power lift drop rate valve. Maintenance is the largest section by far, built around a service chart that sorts every task into 10-hour, 50-hour, 300-hour, 600-hour and 1000-hour columns, with troubleshooting symptom tables for the clutch, brakes, steering, hydrostatic transmission and electrical system behind it. Torque your wheel bolts to 176 to 196 N·m (130 to 145 lb ft), fill the engine with 6.5 L (6.9 US qt) including filter, and drain the fuel filter water separator at 100 hours. A tractor sitting in the yard is acreage you are not covering. Bookmarked, text-searchable, and with you out at the machine.
What's Inside This New Holland WORKMASTER 35, WORKMASTER 40 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-16 | Safety Rules, Biodiesel Fuel - Approved Blend Ratio, Refueling the Tractor, Consumables |
| Safety Information | 17-46 | Precautionary Statements, Safety Rules, Personal Safety, Roll Over Protective Structure Frame - Personal Safety, Safety Signs, Instructional Signs, International Symbols |
| Controls and Instruments | 47-68 | Operator's Seat (Seat Belt, Seat Controls, Roll Over Protective Structure) |

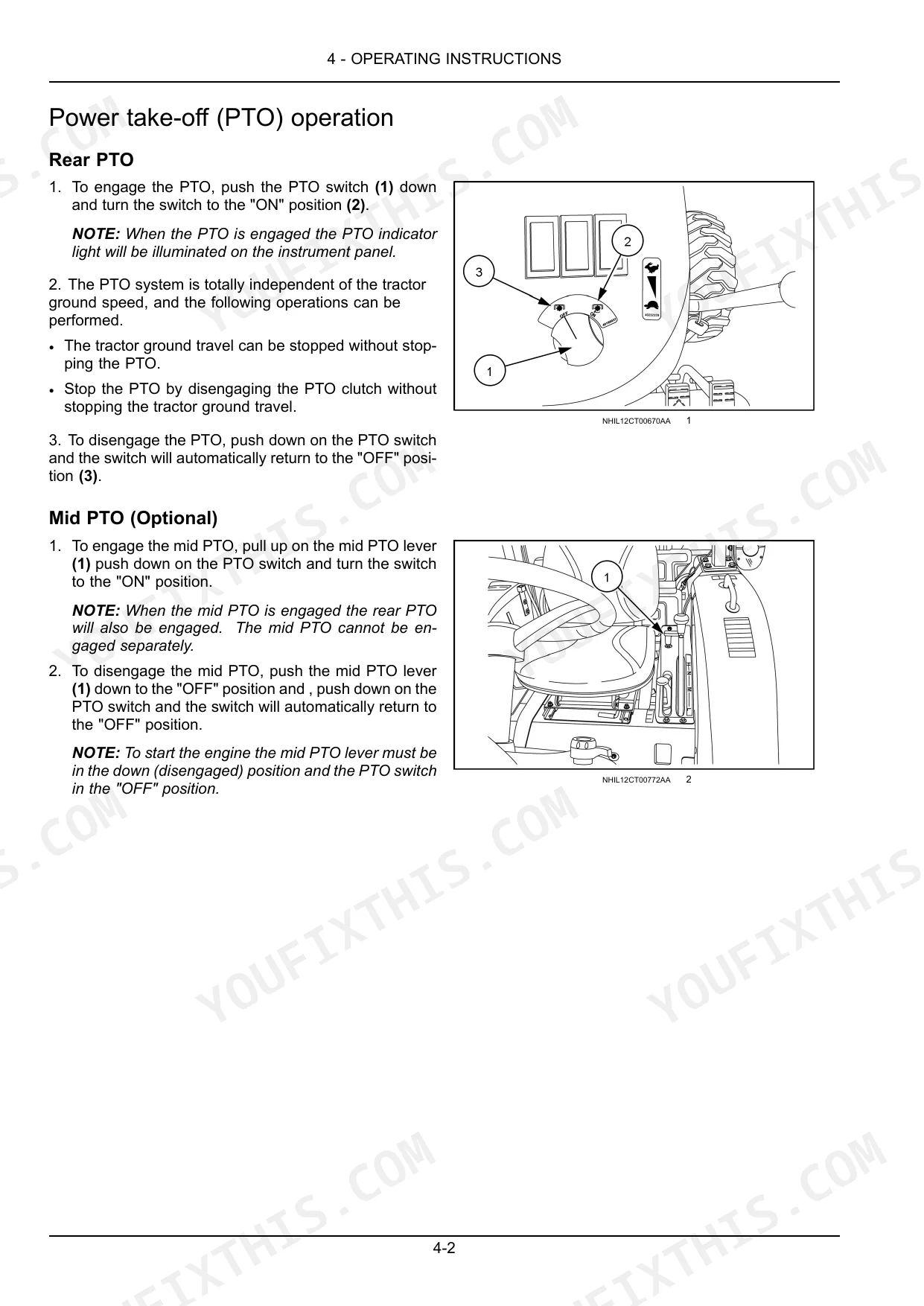

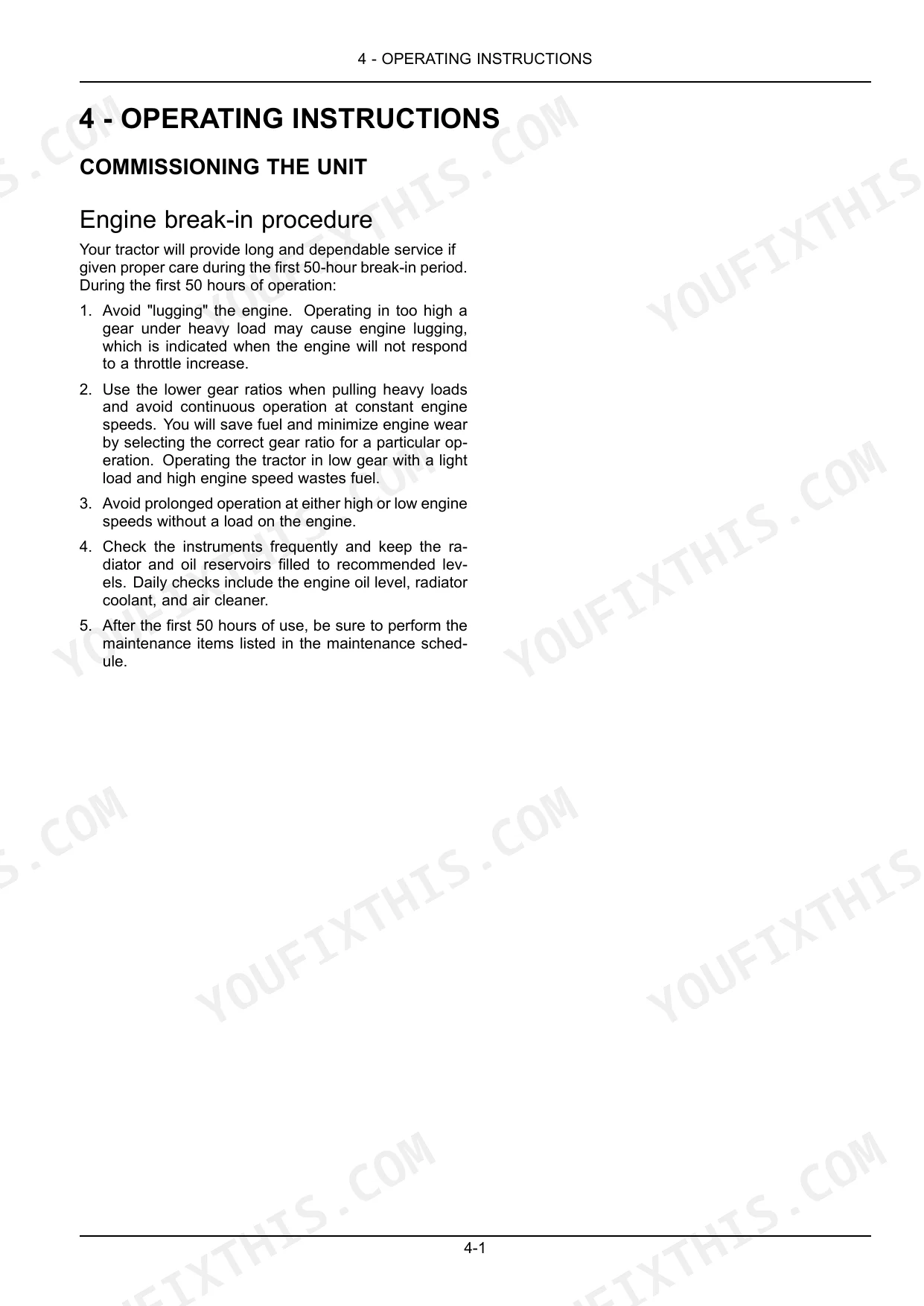

| Operating Instructions | 69-98 | Commissioning the Unit (Engine Break-In Procedure, Power Take-Off Operation, Three-Point Linkage, Attaching Three-Point Equipment, Extendible Drawbar, Hydraulic Lift Rocker, Hydraulic Power Lift Drop Rate Control Valve) |
| Transport Operations | 99-104 | Road Transport (External Lighting - Identification, Hazard Warning Light Operation, Turn Signal Operation, Road Light/Work Light Operation, Rear Work Light, Driving the Vehicle) |
| Working Operations | 105-108 | Tractor Ballasting, Cast Iron Weights, Front Weight Carrier Bracket, Rear Counter Weight Bracket, Ballasting Box, Liquid Ballast |
| Maintenance | 109-156 | Maintenance Chart, Every 10 Hours or Daily (Engine: Oil Level, Cooling System) |

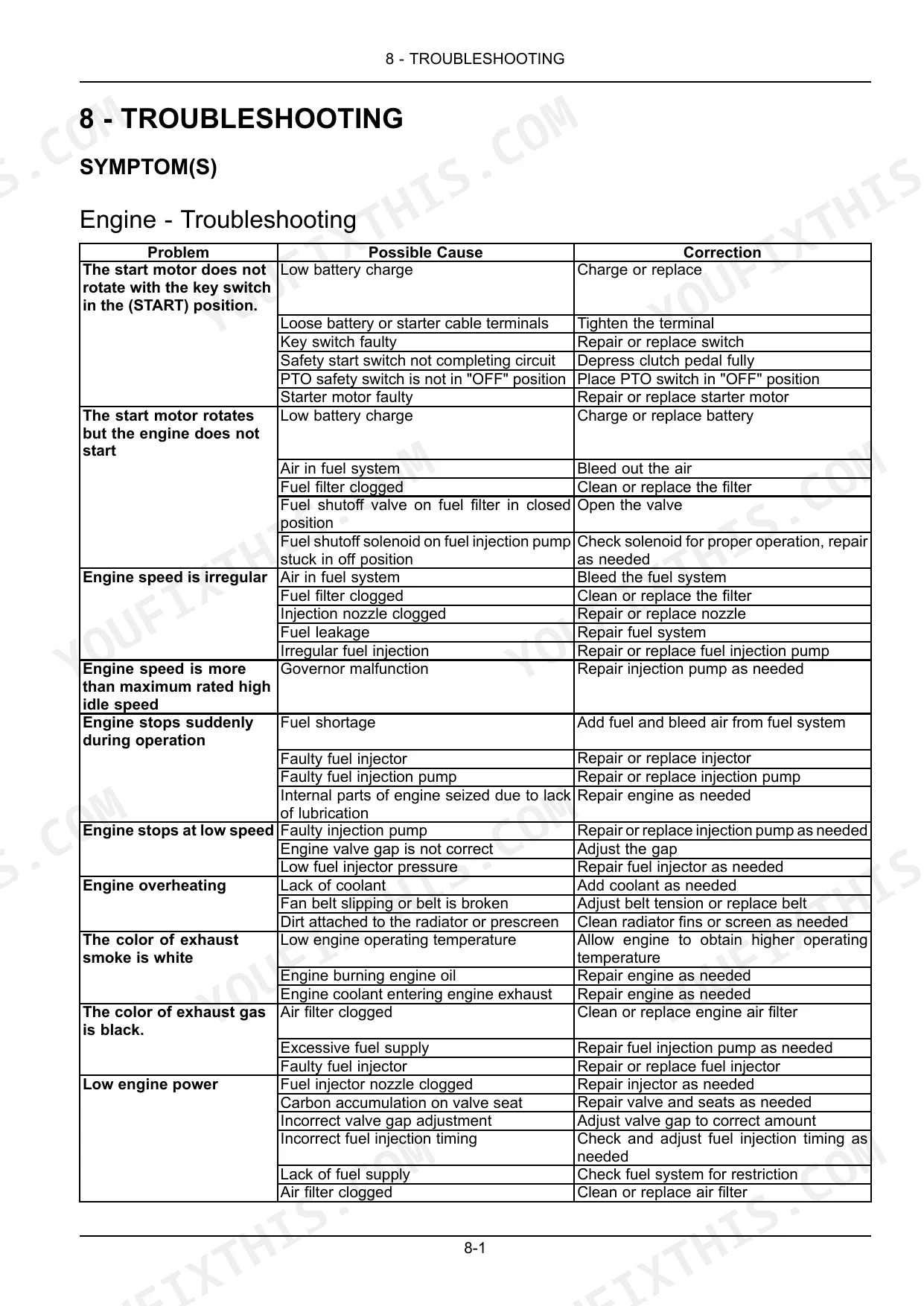

| Troubleshooting | 157-160 | Symptom (Engine - Troubleshooting, Clutch - Troubleshooting, Hydraulic Service Brakes - Troubleshooting, Hydraulic Lift System - Troubleshooting, Steering - Troubleshooting, Hydrostatic Transmission - Troubleshooting, Electrical System - Troubleshooting) |

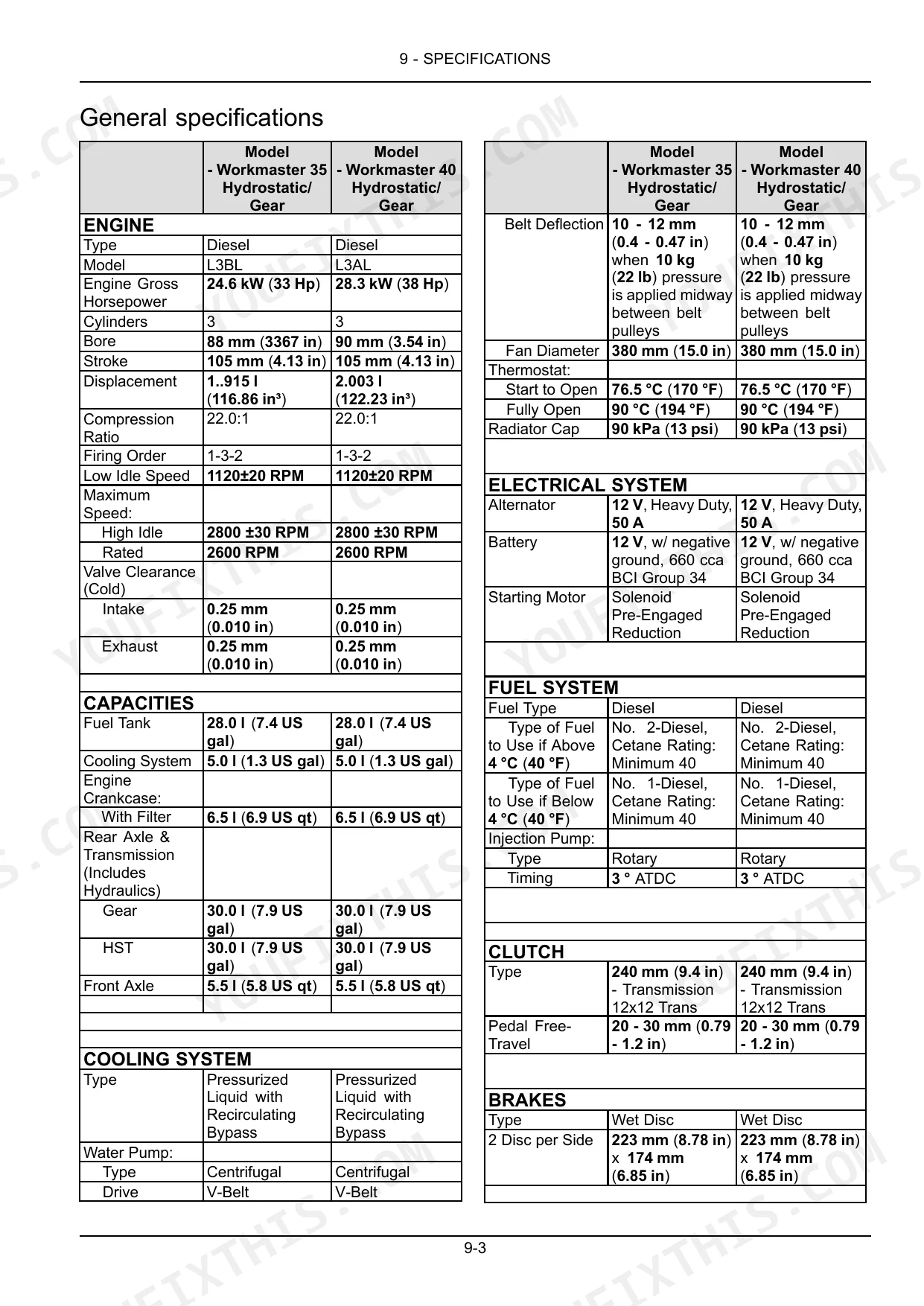

| Specifications | 161-168 | Wheel Tread Settings, Tire Inflation Pressures, Liquid Ballast, Tractor Dimensions |
| Accessories | 169-172 | Optional Equipment |
| Forms and Declarations | 173-180 | Delivery Report Owner Copy, Delivery Report Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front Wheel Torque | 176 - 196 N·m (130 - 145 lb ft) | p. 121 |
| Rear Wheel Torque | 176 - 196 N·m (130 - 145 lb ft) | p. 121 |
| Engine oil capacity with filter | 6.5 L (6.9 US qt) | p. 117 |
| Fuel filter drain interval | 100 hours | p. 133 |
| Fuel filter replacement interval | 300 hours | p. 134 |
| Engine oil and filter replacement interval | 300 hours | p. 134 |
| Battery cold cranking ability | 660 A at -18 °C (0 °F) | p. 147 |
| Main fuse rating | 50 A | p. 149 |
| Transmission/Hydraulic Oil Capacity (Gear) | 30.0 L (7.9 US gal) | p. 138 |
| Workmaster 35 | ||
| Engine Gross Horsepower (Workmaster 35) | 24.6 kW (33 Hp) | p. 163 |
| Workmaster 40 | ||
| Engine Gross Horsepower (Workmaster 40) | 28.3 kW (38 Hp) | p. 163 |
New Holland WORKMASTER 35, WORKMASTER 40 Common Problems This Manual Covers
New Holland Workmaster 35 feels weak under load and won't throttle up when pulling hard
Check the engine troubleshooting chart on page 157 for low power symptoms first. Drain water from the fuel filter bowl at the 100 hour interval listed on page 133, and swap the filter element every 300 hours per page 134. Inspect the air cleaner element for chaff packing, then confirm the tank holds clean fuel.
Manual Section: Engine Troubleshooting p. 157Engine temperature gauge climbing into the red or reading erratically during field work
Shut down and let the engine cool before opening anything. Blow the radiator screen and grille clear of chaff and dust from the fan side out, checking daily during dry harvest work. Verify coolant fills to the full mark, and remember the system holds 5.0 L (1.3 US gal) as listed on page 140. Check the overflow bottle for leaks.
Manual Section: Engine Troubleshooting p. 140Tractor won't crank or starts intermittently, dash lights dim when key is turned
Clean and tighten both battery posts and the ground strap to bare metal first. Verify the battery meets the 660 A cold cranking rating at -18 C (0 F) shown on page 147, and load test it if the tractor sat all winter. Check the 50 A main fuse on page 149 before condemning the starter. Confirm the range lever sits in neutral.
Manual Section: Electrical System Troubleshooting p. 147Hydraulic oil weeping or dripping from a hose underneath the tractor near the crossover lines
Park on level ground, lower the three point hitch, and wipe the hose runs dry so you can spot the source. Inspect where lines cross brackets and the front axle for rub marks and cracked cover. Check the transmission hydraulic level, which holds 30.0 L (7.9 US gal) per page 138, and top off before the next field pass.
Manual Section: Hydraulic Lift System Troubleshooting p. 158Three-point hitch drops slowly or won't lift an implement to full height
Verify the drop rate control valve is opened and the lift rocker is set correctly before blaming the pump. Check the hydraulic oil level cold on the sight gauge; the system capacity is 30.0 L (7.9 US gal) on page 138. Replace the hydraulic oil filter at the 300 hour interval listed on page 134, and confirm the implement weight sits within rated lift.
Manual Section: Hydraulic Lift System Troubleshooting p. 158Steering feels heavy or stiff, especially at low engine speed with a loaded bucket
Run the engine at full rated speed and retest, since steering assist falls off at idle. Check the transmission hydraulic oil level, since the steering circuit shares the 30.0 L (7.9 US gal) supply noted on page 138. Verify front tire pressures match the inflation table starting on page 161, and add front ballast only to the rated limit.
Manual Section: Steering Troubleshooting p. 159Frequently Asked Questions
What are the torque specifications for the New Holland Workmaster 35 and 40 wheel bolts?
The torque specification for both the front and rear wheel bolts and nuts on the Workmaster 35 and 40 is 176 - 196 N·m (130 - 145 lb ft). This torque should be checked after the first 5 hours, the first 50 hours, and every 300 hours of use. p. 121
What is the engine oil capacity for the Workmaster 35 and 40?
The engine oil capacity for the Workmaster 35 and 40, including the filter, is 6.5 liters (6.9 US quarts). p. 117
What is the correct fan belt tension for the Workmaster 35 and 40?
When 10 kg (22 lb) of pressure is applied midway between the belt pulleys, a correctly tightened fan belt will deflect 10 - 12 mm (0.4 - 0.5 in). p. 130
What is the transmission and hydraulic fluid capacity for the Workmaster 35 and 40?
The transmission and hydraulic system share a common sump with a capacity of 30.0 liters (7.9 US gallons) for both the gear transmission and the HST transmission models. p. 138
What is the valve clearance specification for the Workmaster 35 and 40 engines?
The valve clearance for both intake and exhaust valves on the Workmaster 35 and 40 engines is 0.25 mm (0.010 in) when cold. p. 163
