Part of the New Holland Operator Manuals.
Chaff packs the radiator screen faster than any hour meter predicts, and the temperature gauge climbs with a wagon still half loaded behind you. The Maintenance section puts that screen on a 10 hour interval and shows how it comes out, so the fix takes minutes instead of a trip to the dealer.
Written for the New Holland Workmaster 35 and Workmaster 40 compact tractors, this 236 page operator manual PDF (publication 51485746) covers serial numbers LSM0W35Rxx0010001 and LSM0W40Rxx0010001 and above with the L3C19-T5 and L3C19-T4 engines. Controls and Instruments identifies the forward, left-hand, and right-hand control groups, and Operating Instructions walks through starting, moving, and parking the tractor.
Maintenance carries the schedule from daily checks out to the 1500 hour items, with fluid capacities, wheel torque, pedal free play, and fuse and relay locations. Print the pages you need and get the tractor back in the field.
What's Inside This New Holland Workmaster 35, Workmaster 40 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-16 | Note to the Owner, Intended Use, Electromagnetic Compatibility, Product Identification, Operator's Manual Storage, Machine Orientation, Emissions Overview |
| Safety Information | 17-52 | Safety Rules and Signal Word Definitions, Safety Rules, Do Not Operate Tag, Roll Over Protective Structure Frame - Personal Safety, Ecology and the Environment, Safety Signs |

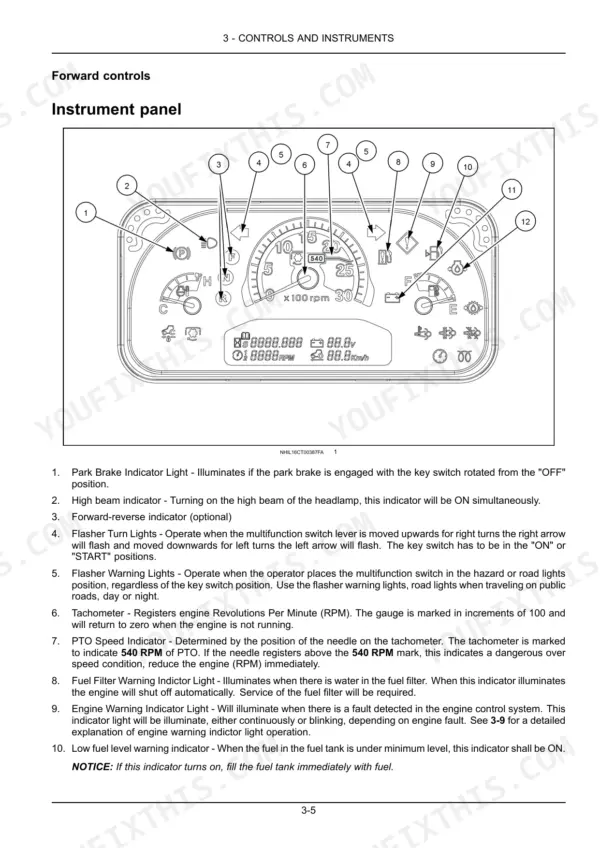

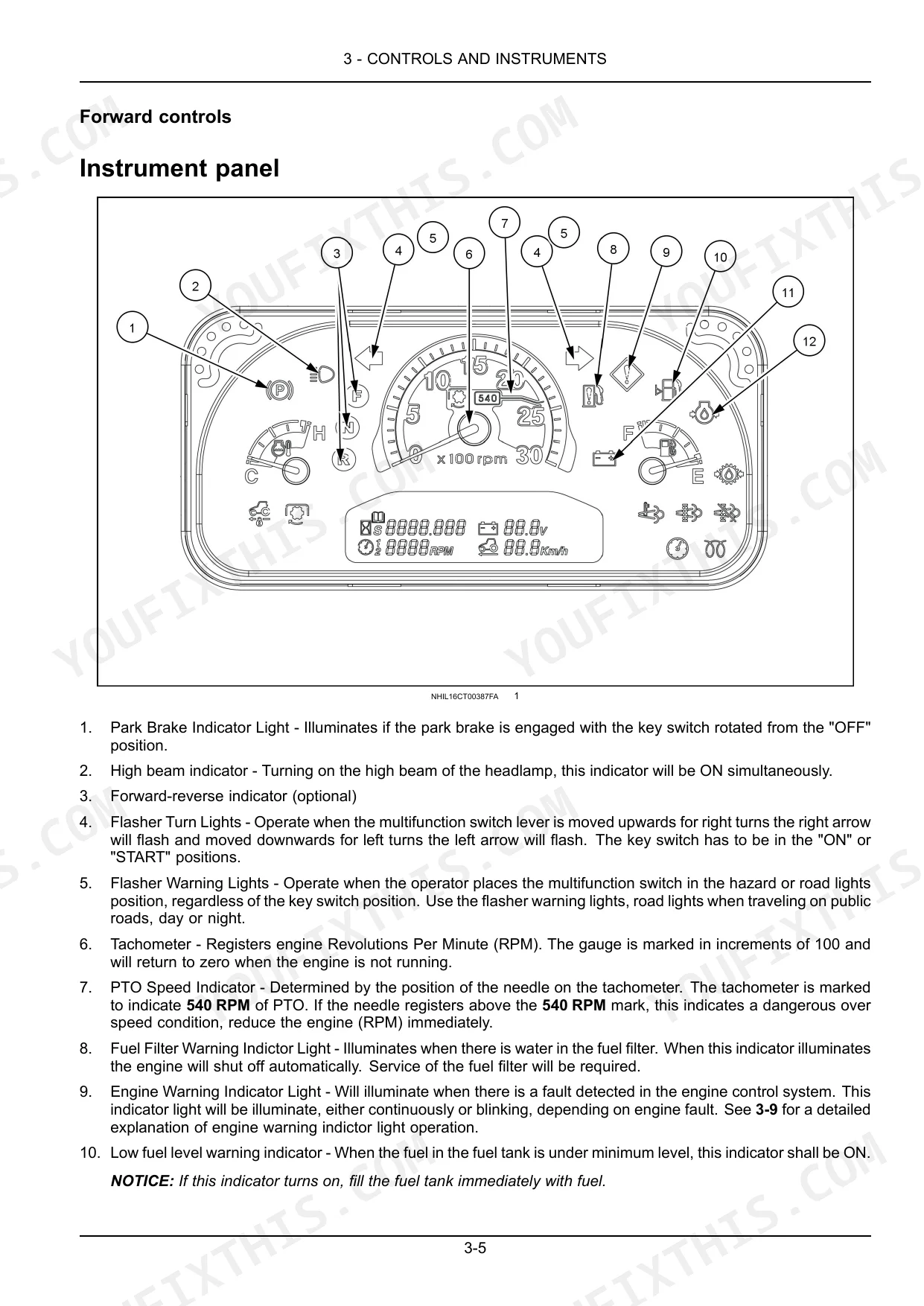

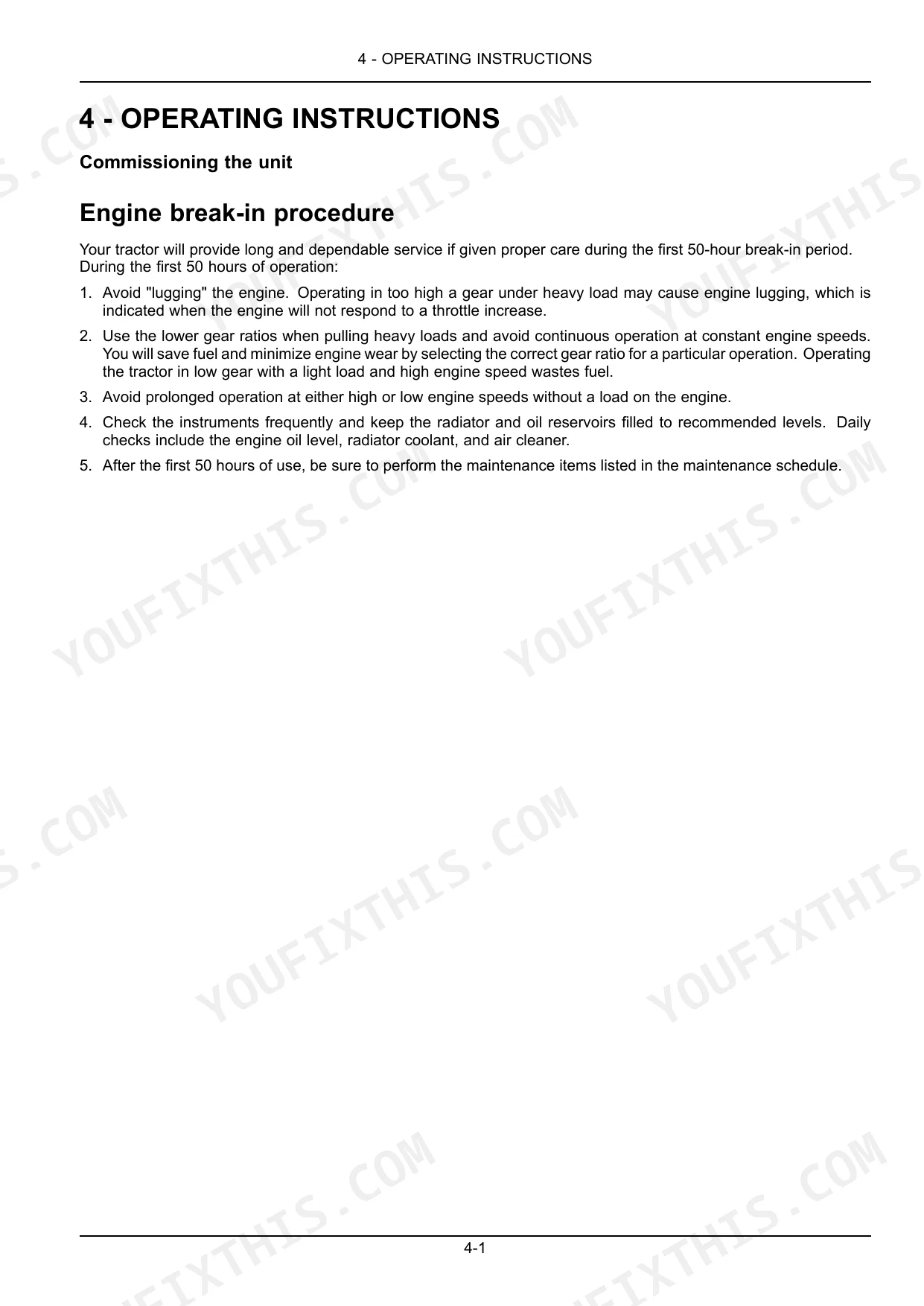

| Controls and Instruments | 53-94 | Access to Operator's Platform, Operator's Seat, Forward Controls, Left-Hand Side Controls, Right-Hand Side Controls, Exterior Controls |
| Operating Instructions | 95-134 | Commissioning the Unit, Starting the Unit, Stopping the Unit, Moving the Unit, Parking the Unit |
| Transport Operations | 135-144 | External Lighting, Brakes and Controls, Shipping Transport |
| Working Operations | 145-148 | Ballast, Ballast Weight Requirements, Liquid Ballast |

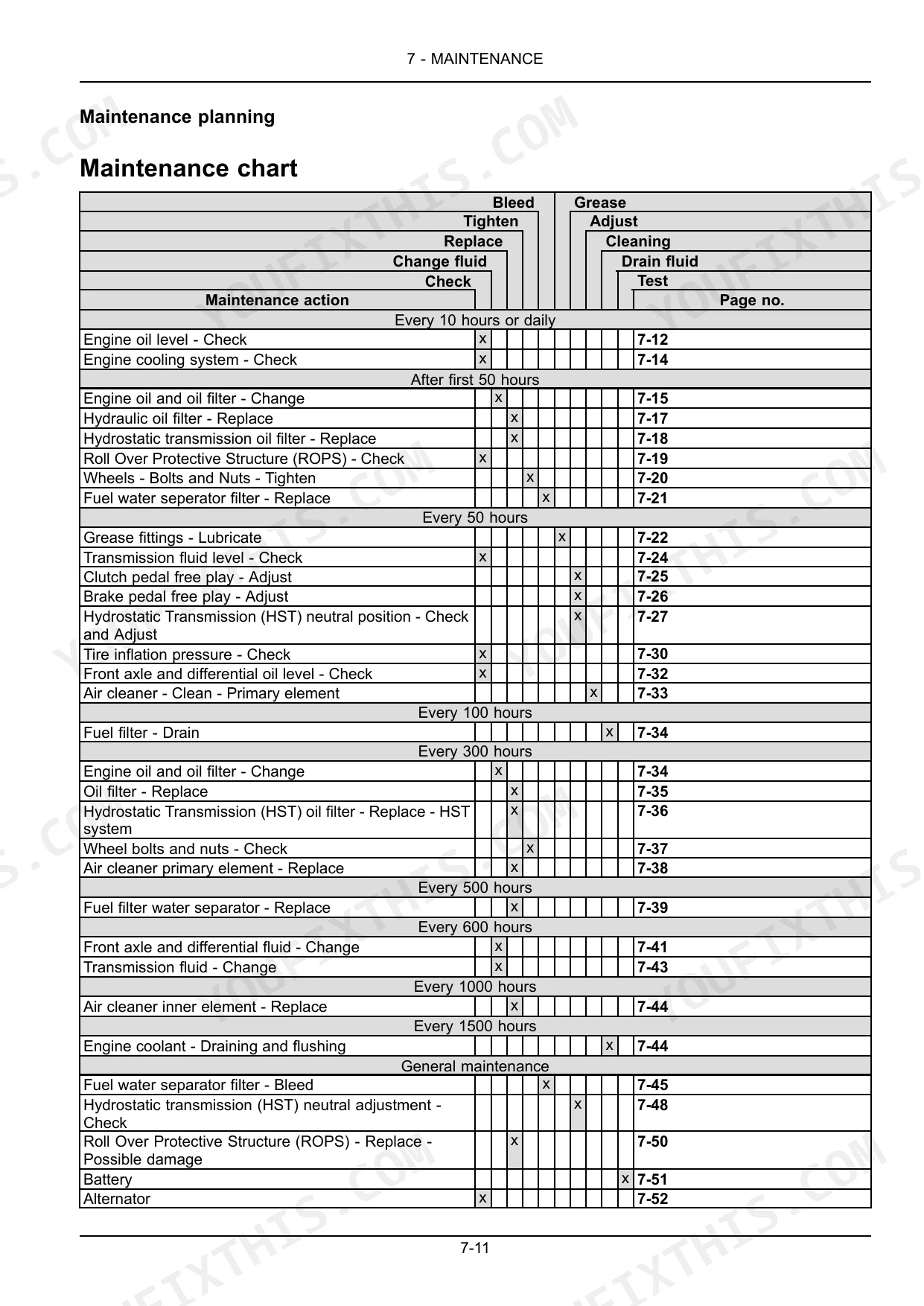

| Maintenance | 149-212 | Maintenance Planning, Every 10 Hours or Daily, After First 50 Hours, Every 50 Hours, Every 100 Hours, Every 300 Hours, Every 500 Hours, Every 600 Hours |
| Troubleshooting | 213-216 | Engine Troubleshooting, Hydraulic Lift System Troubleshooting |

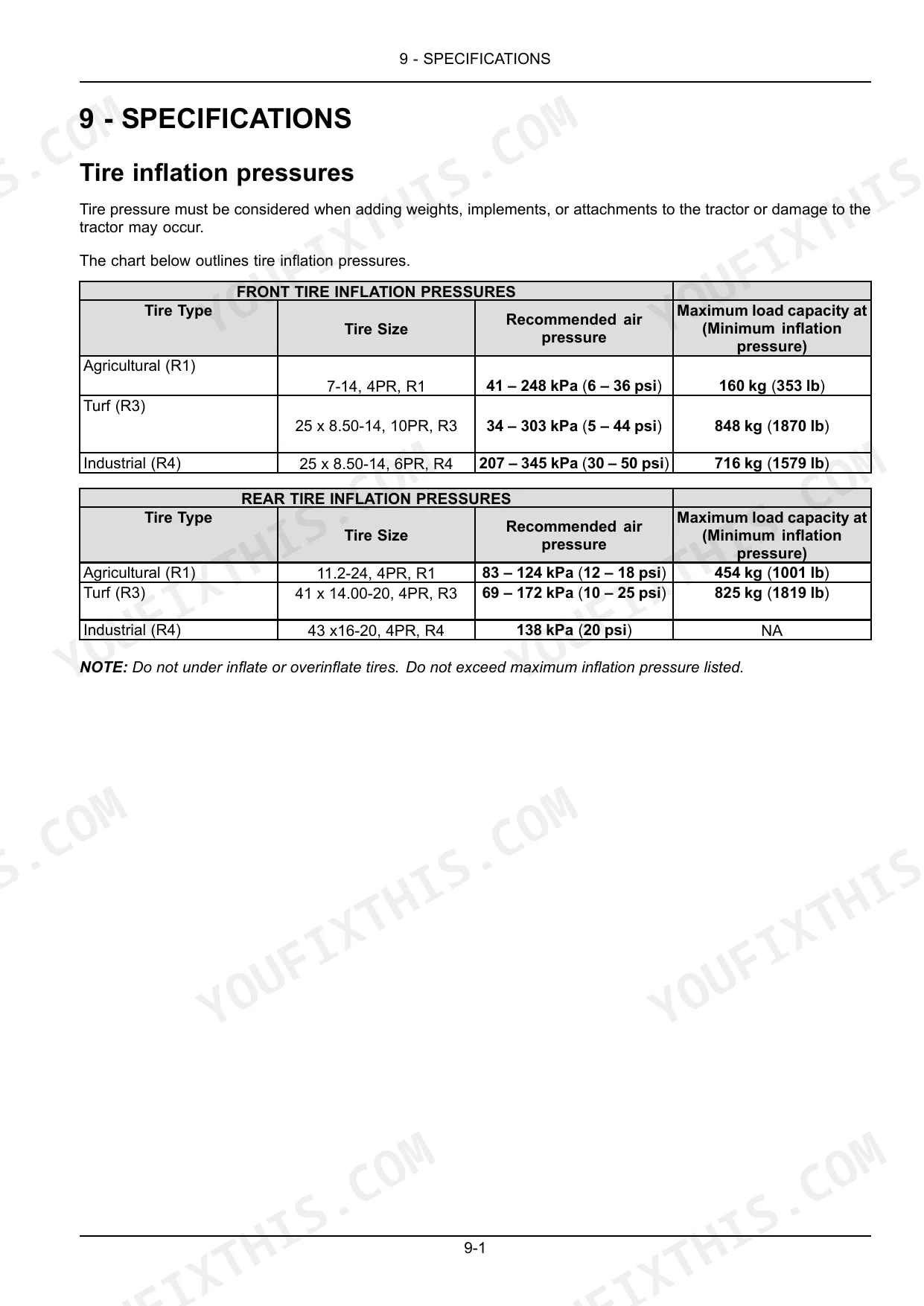

| Specifications | 217-226 | Tire Inflation Pressures, General Specification, Dimensions |
| Accessories | 227-228 | Grille Guard |
| Forms and Declarations | 229-236 | Delivery Report Owner Copy, Delivery Report Dealer Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Torque | 176 – 196 N·m (130 – 145 lb ft) | p. 168 |
| Radiator screen cleaning interval | 10 hours of operation | p. 162 |
| Rear Wheel Torque | 176 – 196 N·m (130 – 145 lb ft) | p. 168 |
| Battery cold cranking ability | 660 A at -18 °C (0 °F) | p. 199 |
| Battery type | BCI group 34, 12 V | p. 199 |
| Front wheel toe-in | 0 – 5 mm (0 – 0.2 in) | p. 206 |
| Engine Oil Capacity | 5.5 L (5.8 US qt) | p. 158 |
| Engine Coolant Capacity | 7 L (7.5 US qt) | p. 158 |
| Transmission / Hydraulic Oil Capacity | 32.0 L (8.5 US gal) | p. 158 |
| Front Axle Oil Capacity | 6.5 L (6.9 US qt) | p. 158 |
| Fuel Tank Capacity | 28.0 L (7.4 US gal) | p. 158 |
| ROPS Bottom Portion Mounting Bolt Torque | 147 N·m (108 lb ft) | p. 167 |
New Holland Workmaster 35, Workmaster 40 Common Problems This Manual Covers
Overheating from a chaff packed radiator screen
In mowing and baling work the radiator screen loads up long before anything else asks for attention, and coolant temperature climbs under load. Maintenance sets radiator screen cleaning at every 10 hours of operation.
Manual Section: Maintenance p. 162Slow cranking on a cold morning
A tired battery turns the three cylinder over lazily and costs you the early window when the ground is still firm. Maintenance specifies a BCI group 34, 12 V battery with 660 A at -18 °C (0 °F), so you can tell whether the replacement on the shelf is actually up to the job.
Manual Section: Maintenance p. 199Clutch drags or shuttle grinds on shifts
As the disc wears, free travel closes up and the tractor creeps or fights you going into gear. Maintenance gives clutch pedal free travel of 20 to 30 mm (0.79 to 1.18 in) along with the adjustment.
Manual Section: Maintenance p. 173Brake pedals uneven on headland turns
Independent brakes drift apart over a season and one side grabs when you pivot at the end of a row. Maintenance sets brake pedal free play at 50 to 60 mm (1.97 to 2.36 in) and walks the adjustment.
Manual Section: Maintenance p. 174Wheel bolts loosening after tire work
Rims moved for track width or pulled for liquid ballast often go back on by feel, and the bolt holes start to elongate. Maintenance calls for 176 to 196 N·m (130 to 145 lb ft) on both front and rear wheels.
Manual Section: Maintenance p. 168Front end goes light with rear implements
Hang a heavy mower or box blade on the three-point hitch without ballast and steering turns vague, especially on a slope. Working Operations covers ballast weight requirements and liquid ballast so you match weight to the implement rather than guessing.
Manual Section: Working Operations p. 145Three-point hitch will not lift

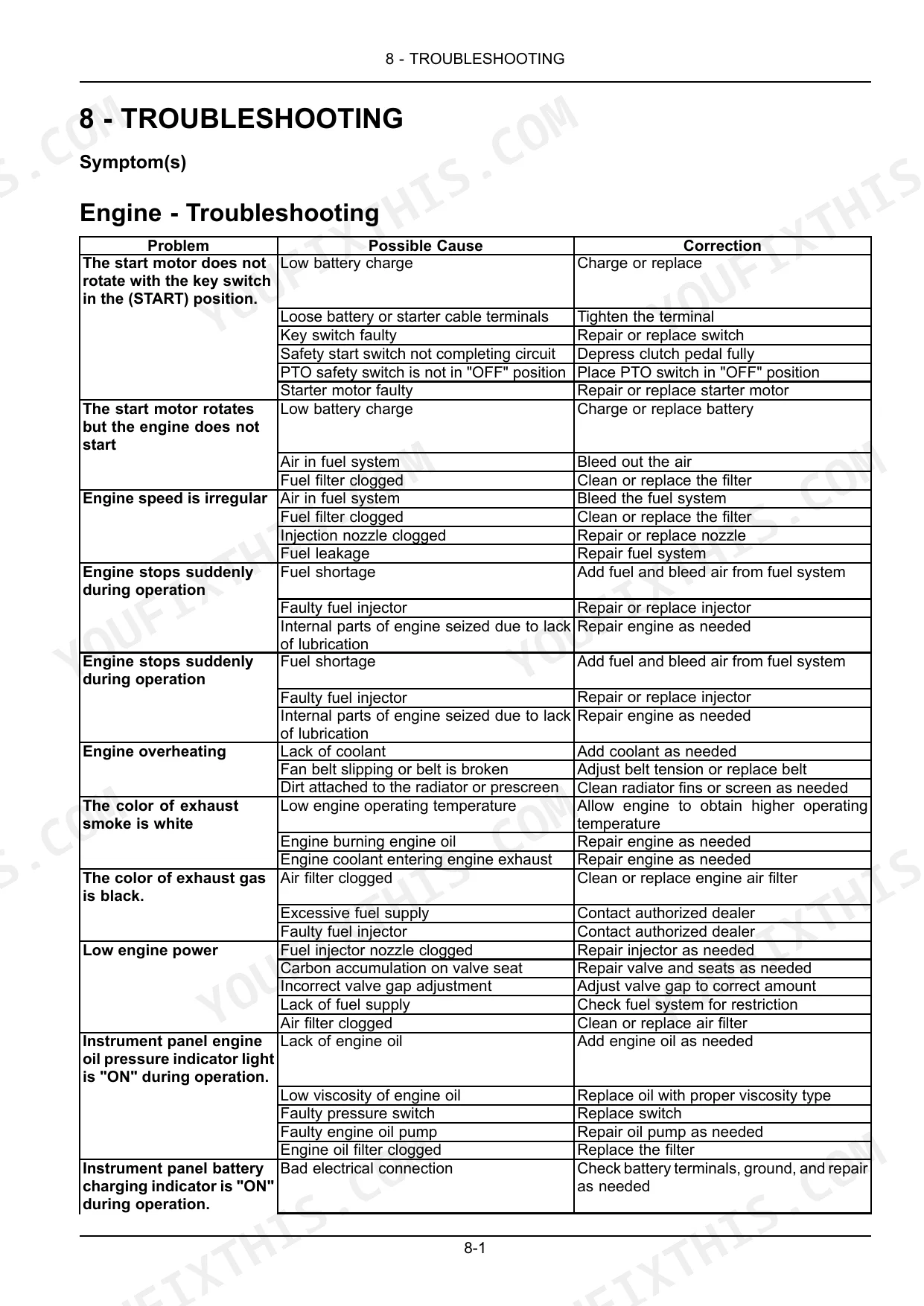

An implement that stays on the ground at the end of a row stops the whole job while daylight burns. The Troubleshooting section carries a hydraulic lift system symptom chart next to the engine symptoms, so you can work the obvious causes before the tractor goes on a trailer.
Manual Section: Troubleshooting p. 213Frequently Asked Questions
Which tractors and serial numbers does this manual cover?
New Holland Workmaster 35 and Workmaster 40 compact tractors, serial numbers LSM0W35Rxx0010001 and above and LSM0W40Rxx0010001 and above, built with the L3C19-T5 and L3C19-T4 engines. It is New Holland publication 51485746, 236 pages.
Does it list fluid capacities for a service?
Yes. Maintenance gives engine oil at 5.5 L (5.8 US qt), coolant at 7 L (7.5 US qt), transmission and hydraulic oil at 32.0 L (8.5 US gal), front axle at 6.5 L (6.9 US qt), and fuel at 28.0 L (7.4 US gal). p. 158
What is the wheel bolt torque on a Workmaster 40?
Front and rear wheels torque to 176 to 196 N·m (130 to 145 lb ft). The Maintenance section covers the wheel and tire checks that go with it. p. 168
How deep does it go on repairs?
This is the operator manual: controls, operation, the full maintenance schedule, fuse and relay locations, and a Troubleshooting section with engine and hydraulic lift symptom charts. It is not the component level service manual, so it stops short of internal transmission and engine rebuild procedures. p. 213
Is this New Holland Workmaster 35 manual a PDF I download?
Immediate download of the complete 236-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print just the pages I need from this New Holland Workmaster 35 manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
