Common Rail fault diagnosis is where most engine jobs stall, and this book starts there: Blink-Code reading, the guided routines for engines without it, and CNH diagnosis tool procedures, all inside 299 factory pages catalogued under OEM number 604.13.639. The New Holland F4GE0484E, F4GE0684F, F4HE0684J, F4AE0684K, F4AE0684L repair manual PDF runs bench overhaul for both the four cylinder and six cylinder families, from cylinder cluster repair through valve gear, distributing shaft and piston assembly. Wiring coverage closes the book out, tracing sensor locations, starter motor and alternator circuits. Set the thermostat check against 81 ± 2 °C, torque the coolant temperature sensor screw to 20 ± 3 Nm, and hold injection pressure to 245 bar on the F4GE0684F. Guessing costs you a ruined injector and a second teardown. Bookmarked and searchable, it travels with you to whatever bench the engine is sitting on.
What's Inside This New Holland F4GE, F4HE, F4AE, F4BE Repair Manual

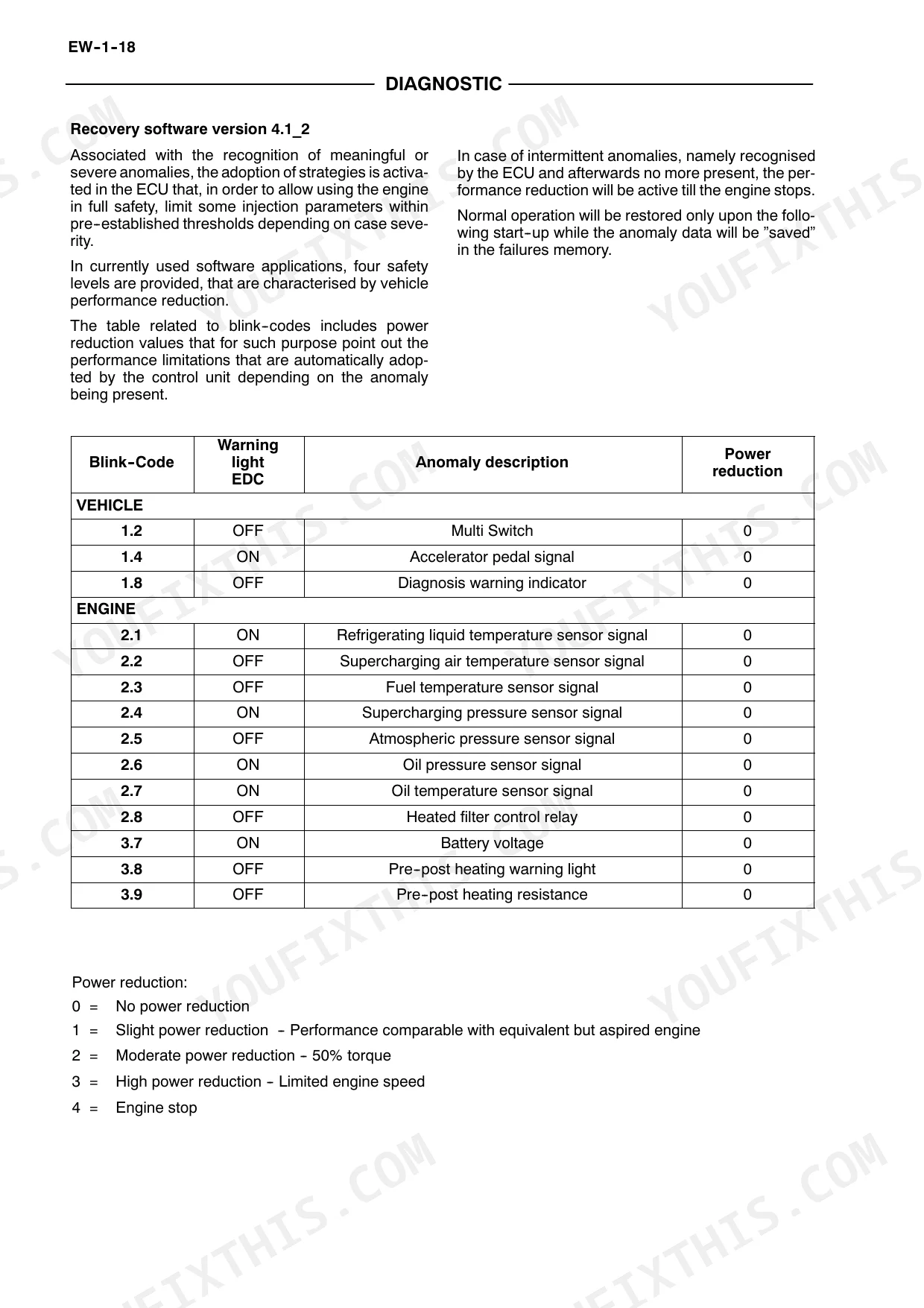

| System | Pages | Key Topics |
|---|---|---|
| Diagnostics | 8-41 | Mechanic Injection Engines Diagnostic |
| Engine F4BE0484 Overhaul 4 Cylinders | 42-125 | Description of Main Mechanic Engine Components, Engine Bench-Overhaul, Repair Work on Cylinder Cluster |
| General Information and Engine Coding | 126-132 | Engine Coding, Main Engine Features, Assembly Specifications, Tightening Torque |
| Engine Component Description and Lubrication | 133-163 | Crankcase, Drive Shaft, Connecting Rods, Pistons, Lubrication System, Heat Exchanger |
| Cooling and Injection Systems | 164-185 | Cooling System, Water Pump, Fuel Prefilter, Fuel Filter, Mechanical Supply Pump, High-Pressure Pump |

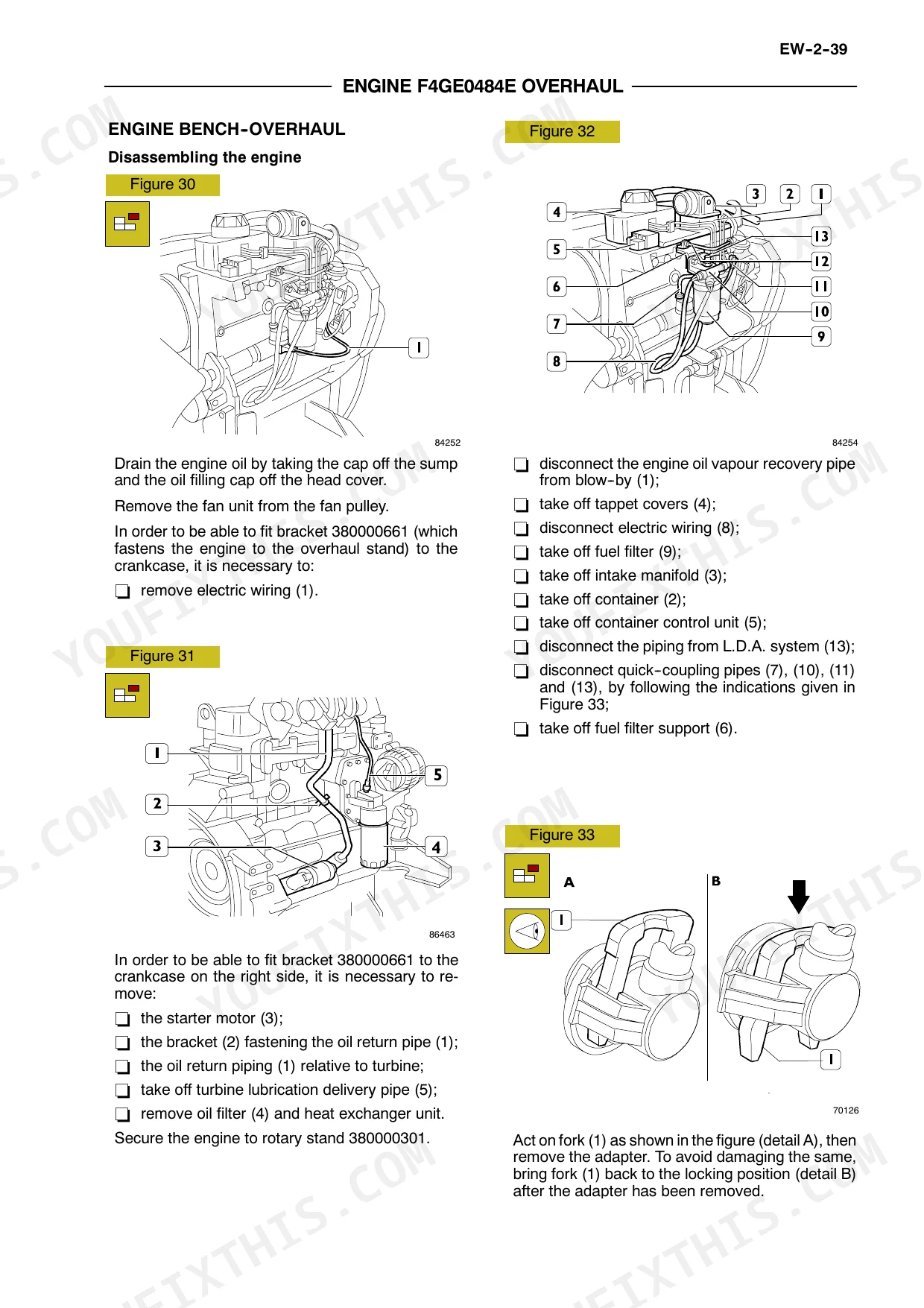

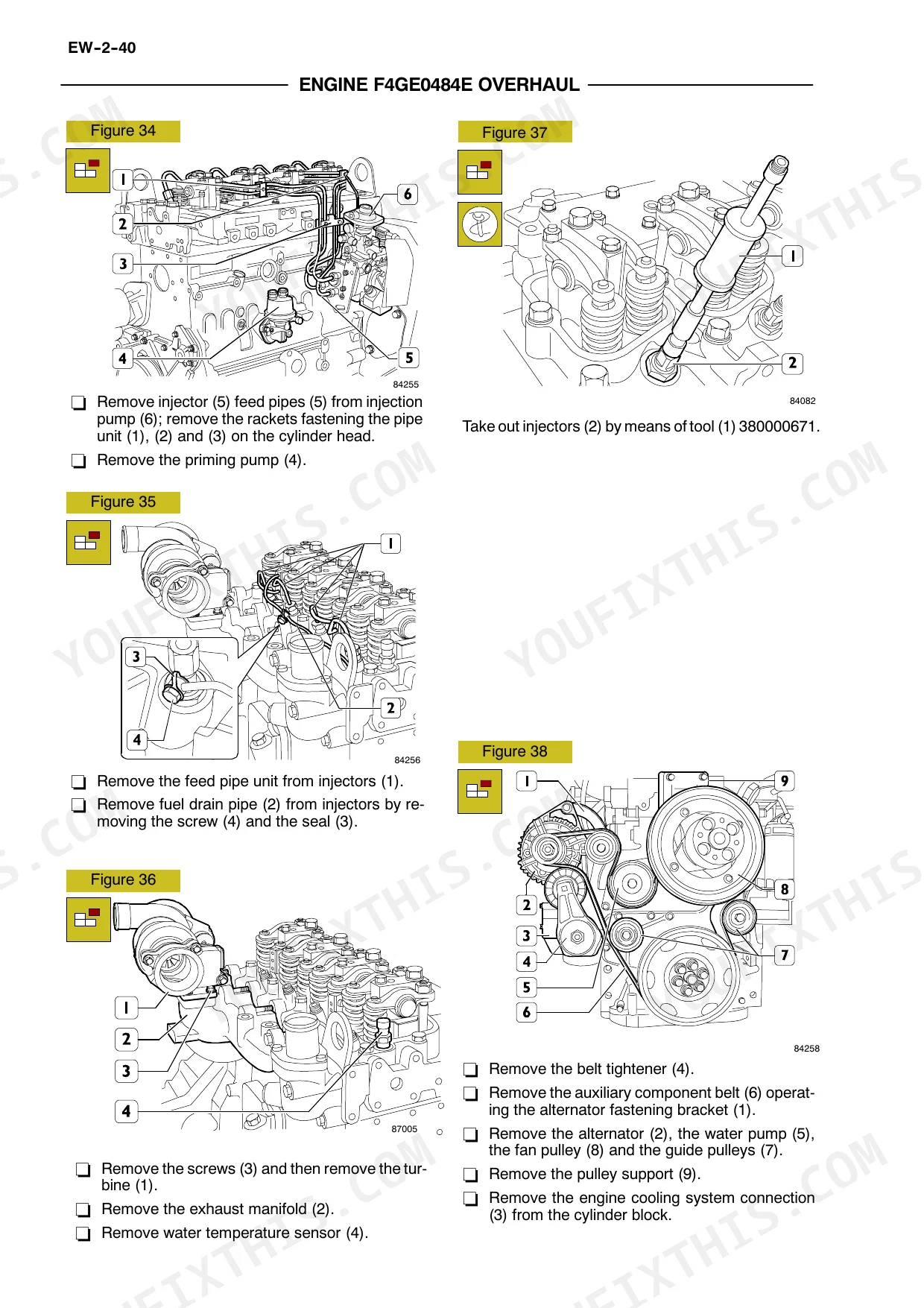

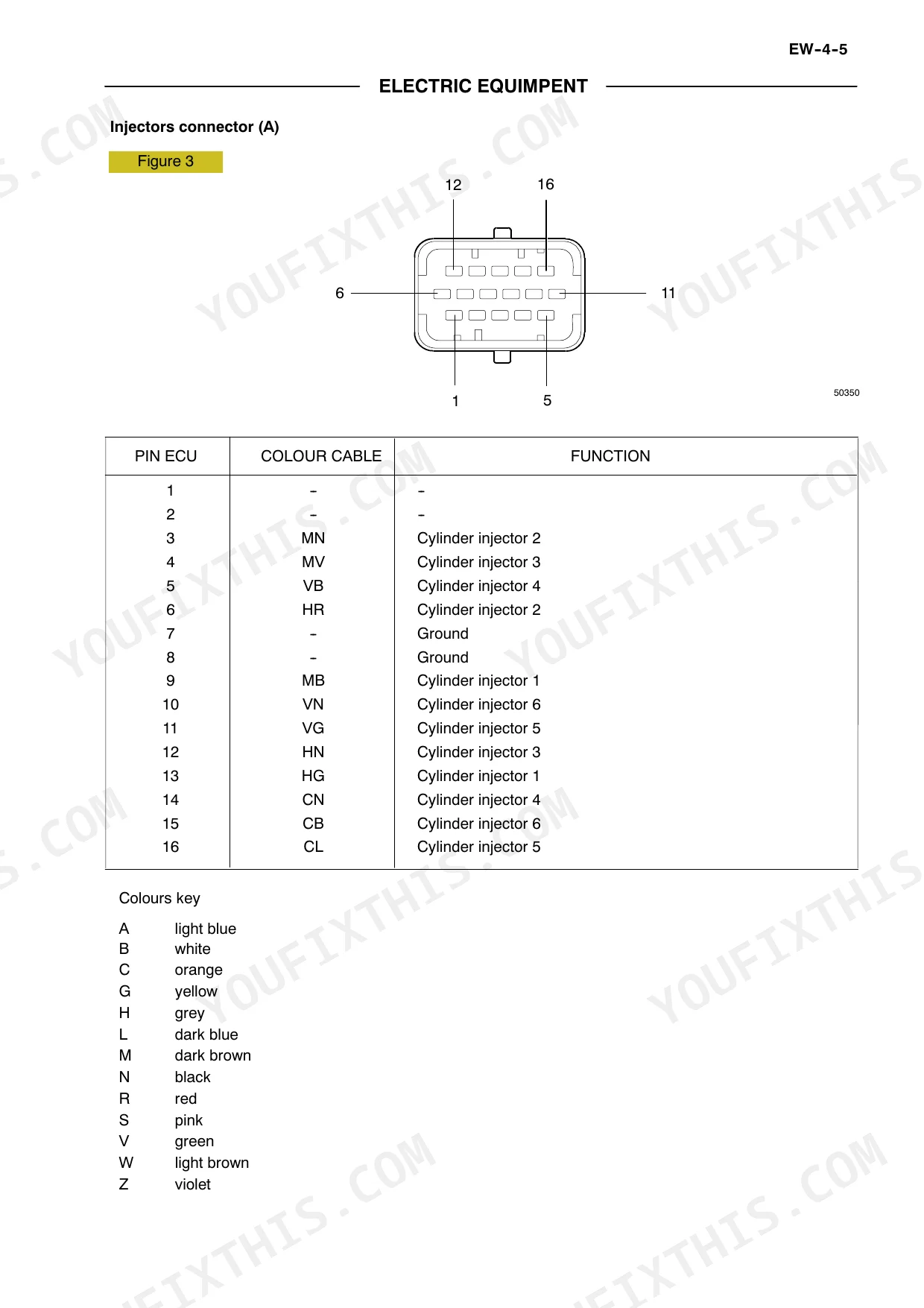

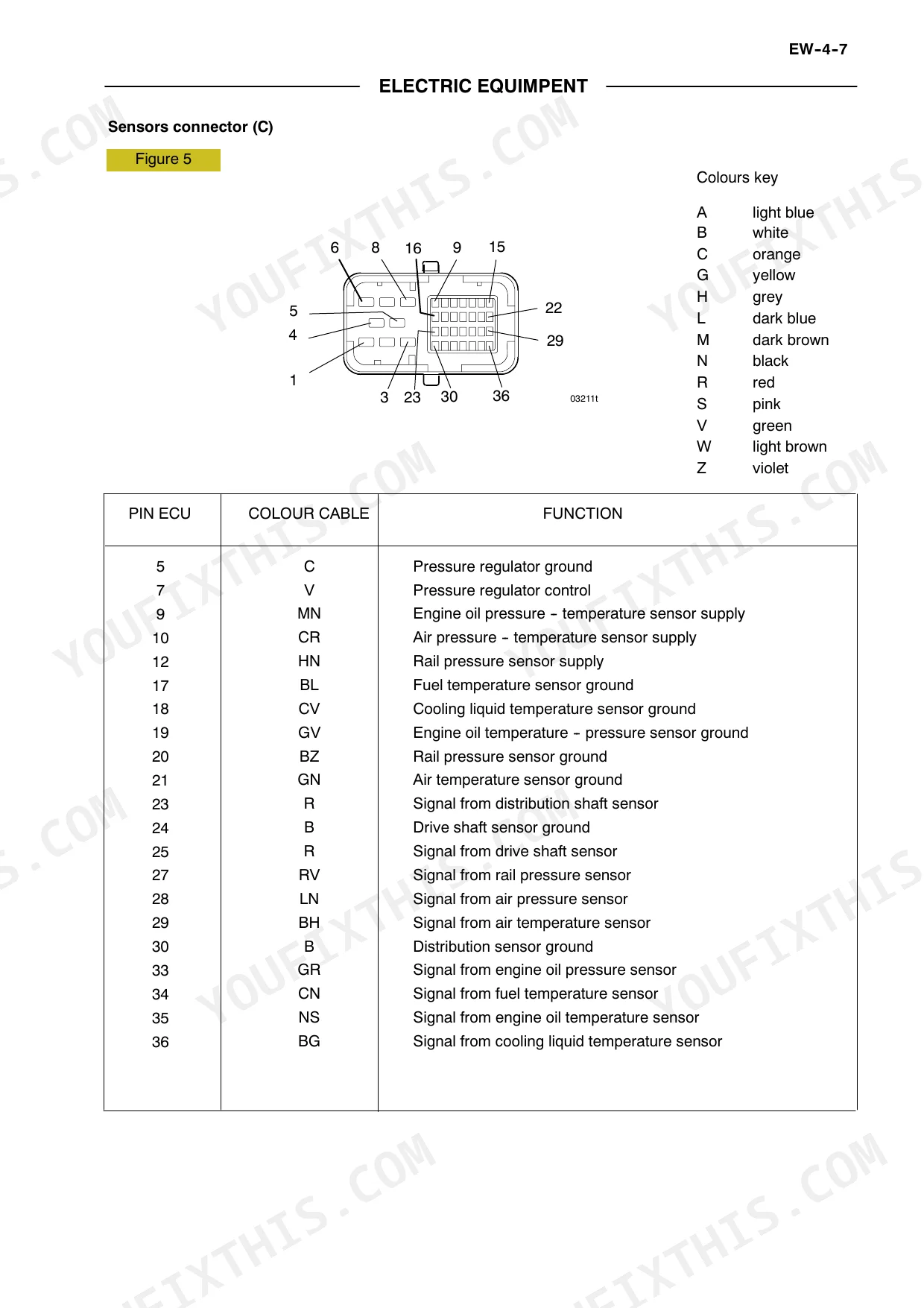

| Engine Overhaul - Mechanic Injection | 186-211 | Disassembling the Engine, Cylinder Cluster Repair, Valve Gear, Distributing Shaft, Piston Assembly |
| Engine Overhaul - Common Rail | 212-233 | Crankpin Assembling Play, Cylinder Head Overhaul, Injector Replacement, Rocker Arm Assembly, Tappet Adjustment |
| Engine Refitting and Final Assembly | 234-279 | Engine Refitting, Timing Gear Case, Flywheel Cover Case, Injector Fitting, Wiring Support |
| Electric Equipment | 280-299 | Sensors Location, Starter Motor, Alternator |
Quick Reference Specifications

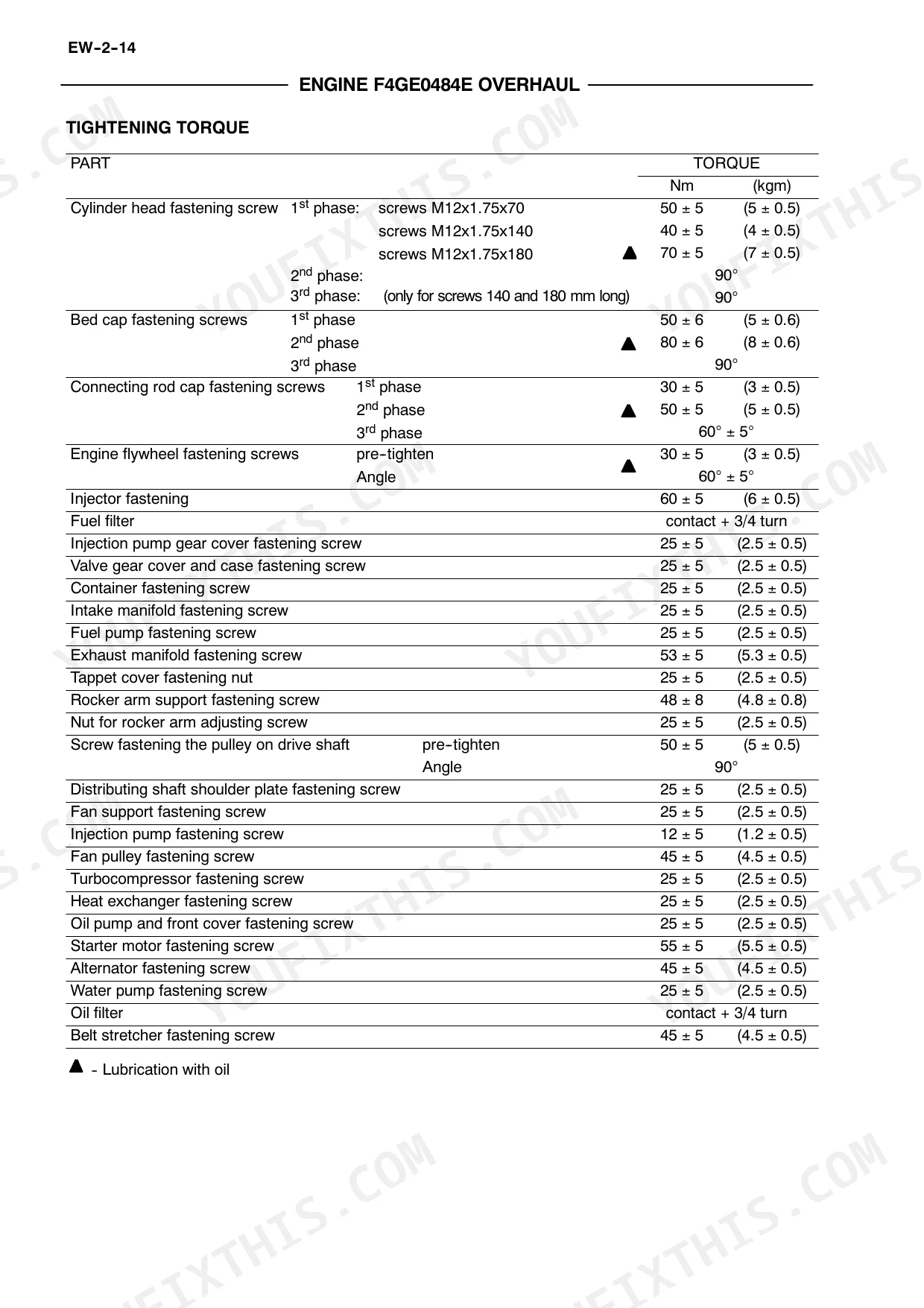

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine coolant temperature sensor fixing screw M14 | 20 ± 3 Nm | p. 141 |
| Oil temperature-pressure sensor fixing screw M5 | 6 ± 1 Nm | p. 141 |
| Pump setting | 0° ± 0,5° | p. 48 |
| Thermostat start of opening | 81 ± 2 °C | p. 48 |
| Max. torque | 850 Nm at 1400 min-1 | p. 131 |
| Injection pressure (F4GE0684F) | 245 bar | p. 132 |
| Starter fixing screw | 43 ± 6 Nm | p. 141 |
| F4GE0484E | ||
| Thermostat start of opening | 81 ± 2 °C | p. 48 |
| Injection pressure | 245 bar | p. 48 |
| F4GE0684F, F4HE0684J, F4AE0684K, F4AE0684L | ||

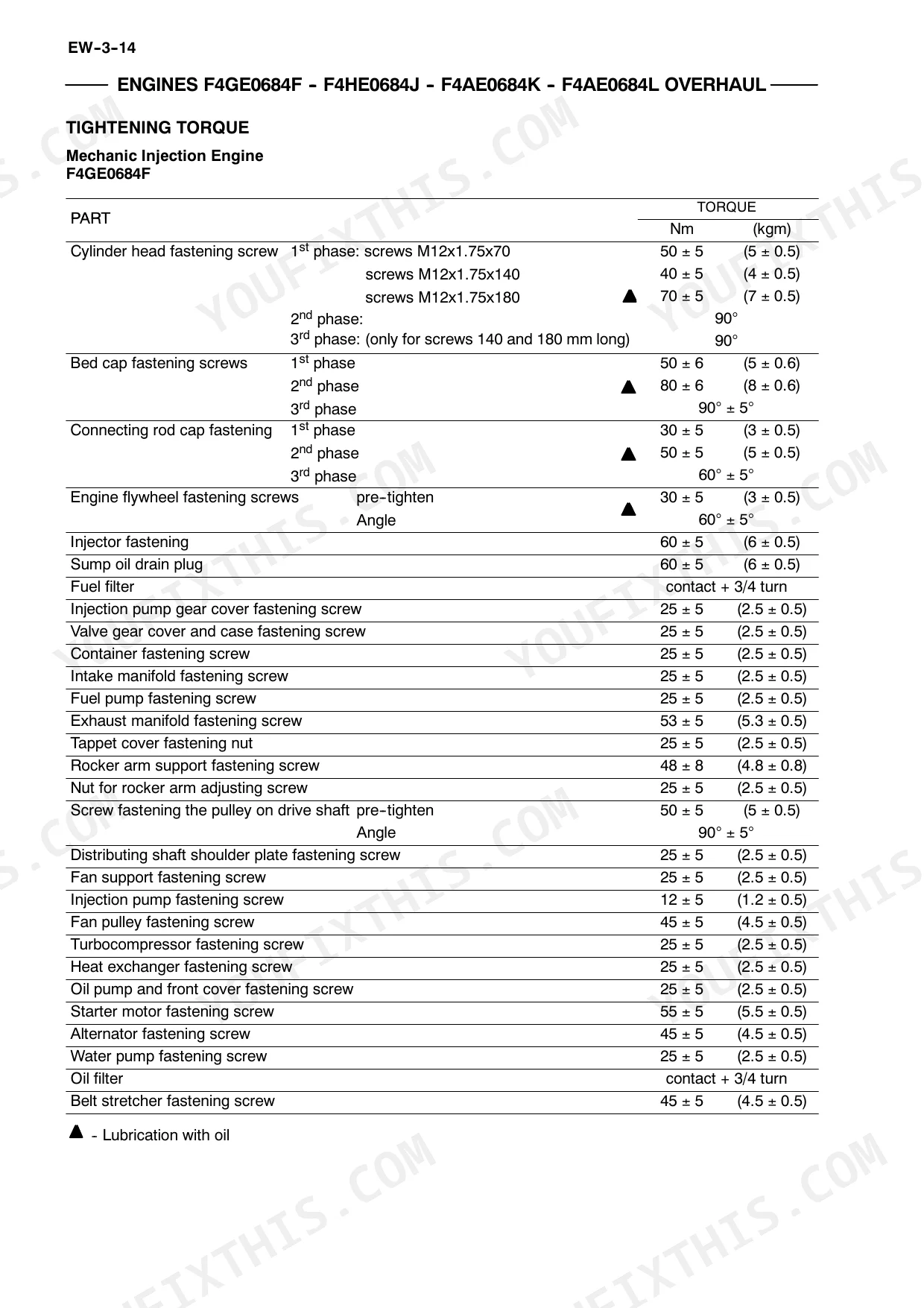

| Thermostat start of opening | 81 ± 2 °C | p. 132 |
| F4GE0684F | ||
| Injection pressure | 245 bar | p. 132 |
| F4HE0684J, F4AE0684K, F4AE0684L | ||
| Injection pressure | 250 - 1450 bar | p. 132 |
New Holland F4GE, F4HE, F4AE, F4BE Common Problems This Manual Covers
New Holland F4GE0484E won't start, cranks slowly or not at all after sitting
Check battery terminals and clamps first, then the starter motor draw, before you condemn anything internal. Work the no-start chart in the diagnostics section starting on page 8. If cranking speed is normal, run a compression test and inspect the oil vapour vent. Torque the starter fixing screws to 43 ± 6 Nm on reassembly.
Manual Section: Diagnostics p. 8Engine overheats, coolant temperature climbs under load and won't come back down
Verify coolant level cold, then pull the thermostat and bench test it in hot water. It should start opening at 81 ± 2 °C as listed on page 48. Anything later than that, replace it. Inspect the water pump and radiator core passages in the cooling system section beginning on page 75 for scale or restriction.
Manual Section: Cooling and Injection Systems p. 75Low or erratic oil pressure at idle, gauge drops off once the engine warms
Measure oil pressure at the sender port with a mechanical gauge on a hot engine at idle. Spec is 1.2 bar per page 47. If you are below that, drop the pan and inspect the pickup screen, relief valve, and main and rod bearing clearance. Torque the oil temperature-pressure sensor screw to 6 ± 1 Nm.
Manual Section: Engine Component Description and Lubrication p. 133Engine lacks power, works erratically, blows black smoke under load
Inspect the air filter and intake ducting for restriction before touching fuel. Replace the prefilter and filter cartridge, torquing the filtering cartridge to 18 ± 0.1 Nm. Then check injection pump timing against the 0° ± 0,5° pump setting on page 48 and pop test injectors against the 245 bar injection pressure spec.
Manual Section: Diagnostics p. 8Irregular knocking under load, heavy grey or white smoke at the stack
Test compression cylinder by cylinder and pull the injectors for pop pressure and spray pattern. Set valve lash cold to 0.25 ± 0.05 mm on the intake side as given on page 119. If a cylinder reads low, tear into the head and check ring end gap and crankshaft endplay during overhaul.
Manual Section: Engine Overhaul - Mechanic Injection p. 186Head gasket replaced but bolts pulled or head lifted again within a few hours
Measure head and block deck flatness before you lay a gasket. Clean every bolt hole with a chaser and blow it dry. Follow the tightening sequence outward from center, taking the M12x1.75x70 screws to 50 ± 5 Nm on the first phase per page 55, then finish the angle stages before setting valve lash.
Manual Section: Engine Overhaul 4 Cylinders p. 55Frequently Asked Questions
How do I reset the New Holland engine fault code?
To reset the error memory, keep the blink code pushbutton pressed with the key-switch in the OFF position, and continue to hold it for 4 to 8 seconds after turning the switch to ON. Wait at least 10 seconds before disengaging the key-switch. p. 24
What are the torque specifications for the cylinder head fastening screws on the F4GE0484E engine?
For the F4GE0484E engine, the cylinder head fastening screws (M12x1.75x70) are tightened to 50 ± 5 Nm (5 ± 0.5 kgm) in the first phase, followed by a 90° angle in the second phase, and another 90° angle in the third phase for 140 and 180 mm long screws. p. 55
How do I read New Holland F4GE/F4HE error codes?
Error codes are retrieved by pressing the diagnosis pushbutton. The LED beside the button will signal codes with two series of emissions at different frequencies; slow blinking identifies the anomaly area, and quick blinking identifies the specific anomaly. p. 24
What is the intake and exhaust valve clearance for the F4GE0684F engine?
The valve clearance for the F4GE0684F engine is 0.25 ± 0.05 mm for intake valves and 0.50 ± 0.05 mm for exhaust valves. p. 233
What is the oil pressure specification for the F4GE0484E engine at peak rpm?
The oil pressure for the F4GE0484E engine with a warm engine at peak rpm is 3.8 bar. p. 47
How is this New Holland F4GE0484E Repair Manual delivered?
You get a 299-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this New Holland F4GE0484E manual print-friendly?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
