Part of the New Holland Repair Manuals.

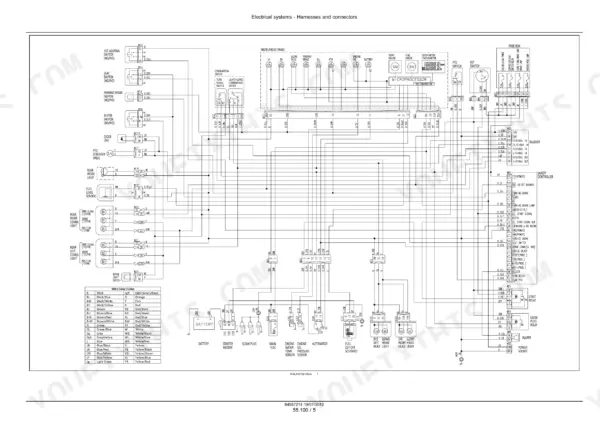

Rebuilding the hydrostatic drive or tearing into the front axle? This 740-page New Holland Boomer 20, Boomer 25 service manual PDF (OEM #84557214) details the exact factory procedures for your compact tractor. You get complete wiring diagrams, detailed hydraulic schematics for the three-point hitch, and extensive troubleshooting charts to track down phantom electrical faults. Open any section and find exploded views covering every inch of the final drive hubs, steering knuckles, and electrohydraulic PTO. Adjust the main hydrostatic relief valve to 19.5 MPa and verify the engine crankcase holds exactly 4.2 liters of oil before turning the key. Stop throwing expensive parts at a dead machine. Download this bookmarked file, pull it up on your shop tablet, and get back to work.
What's Inside This New Holland Boomer 20, Boomer 25 Manual
| System | Pages | Key Topics |
|---|---|---|

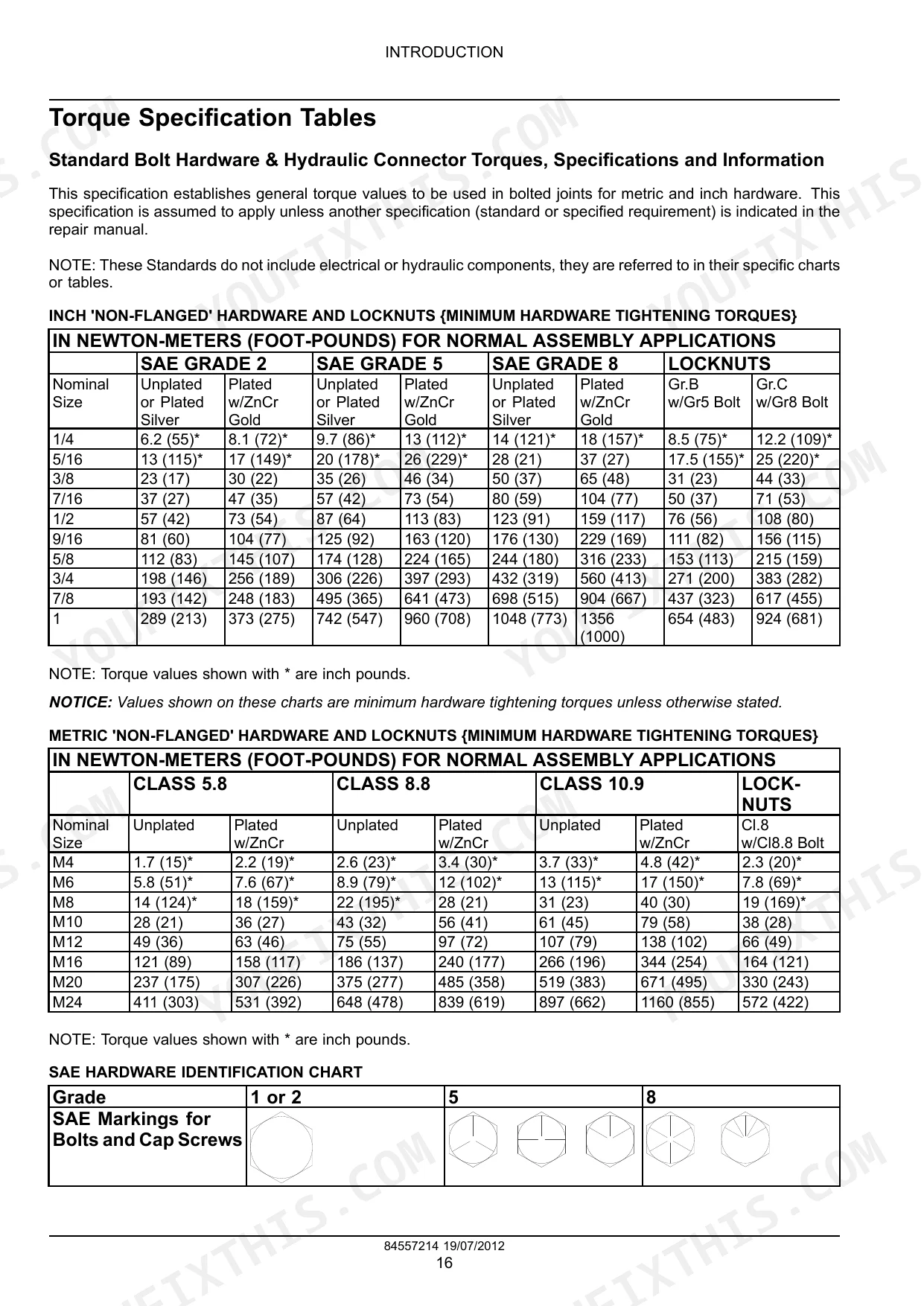

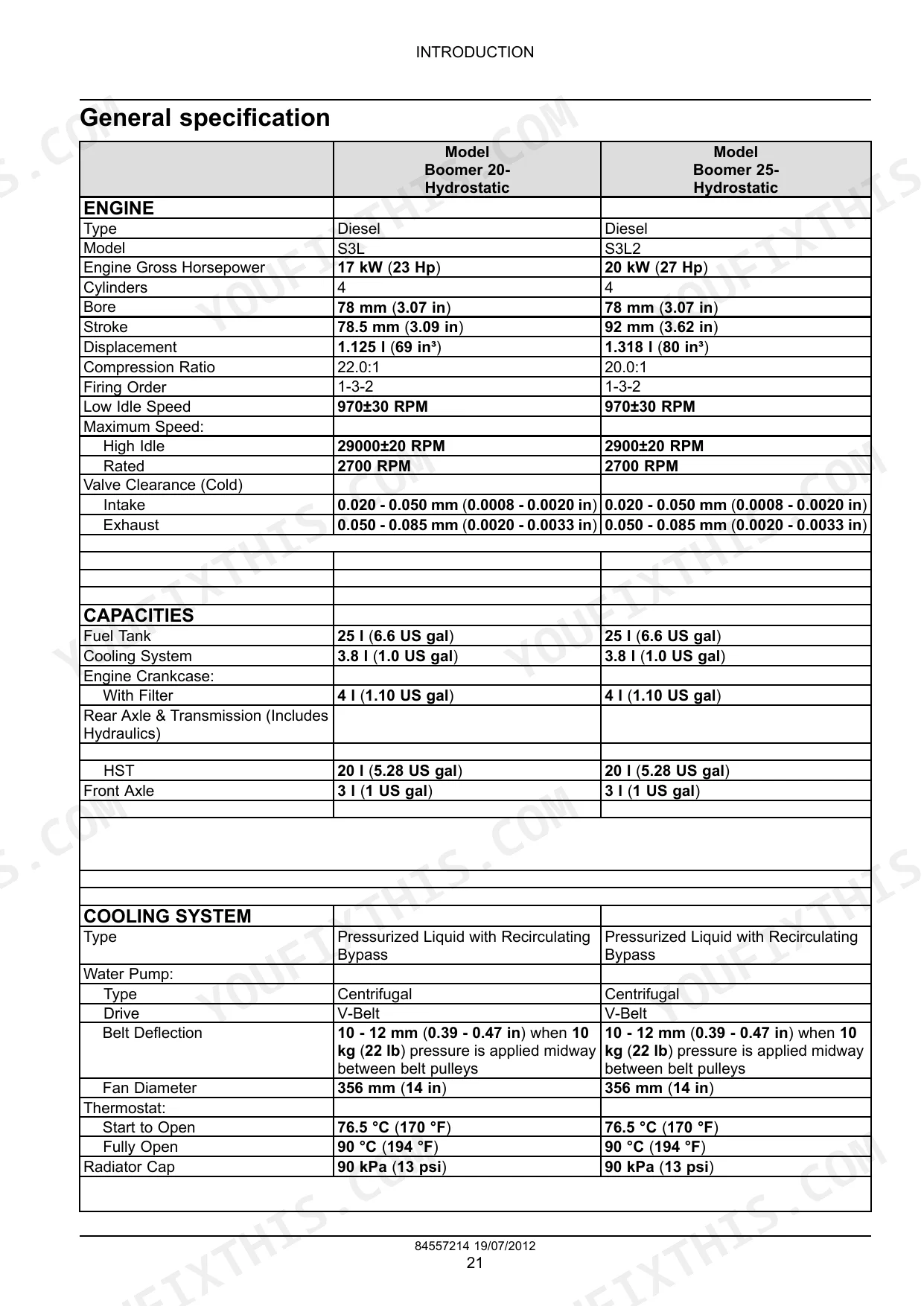

| Introduction | 6-35 | International Symbols, Safety Rules, Basic Instructions Hardware, Torque Specification Tables, General Specification, Product Identification |

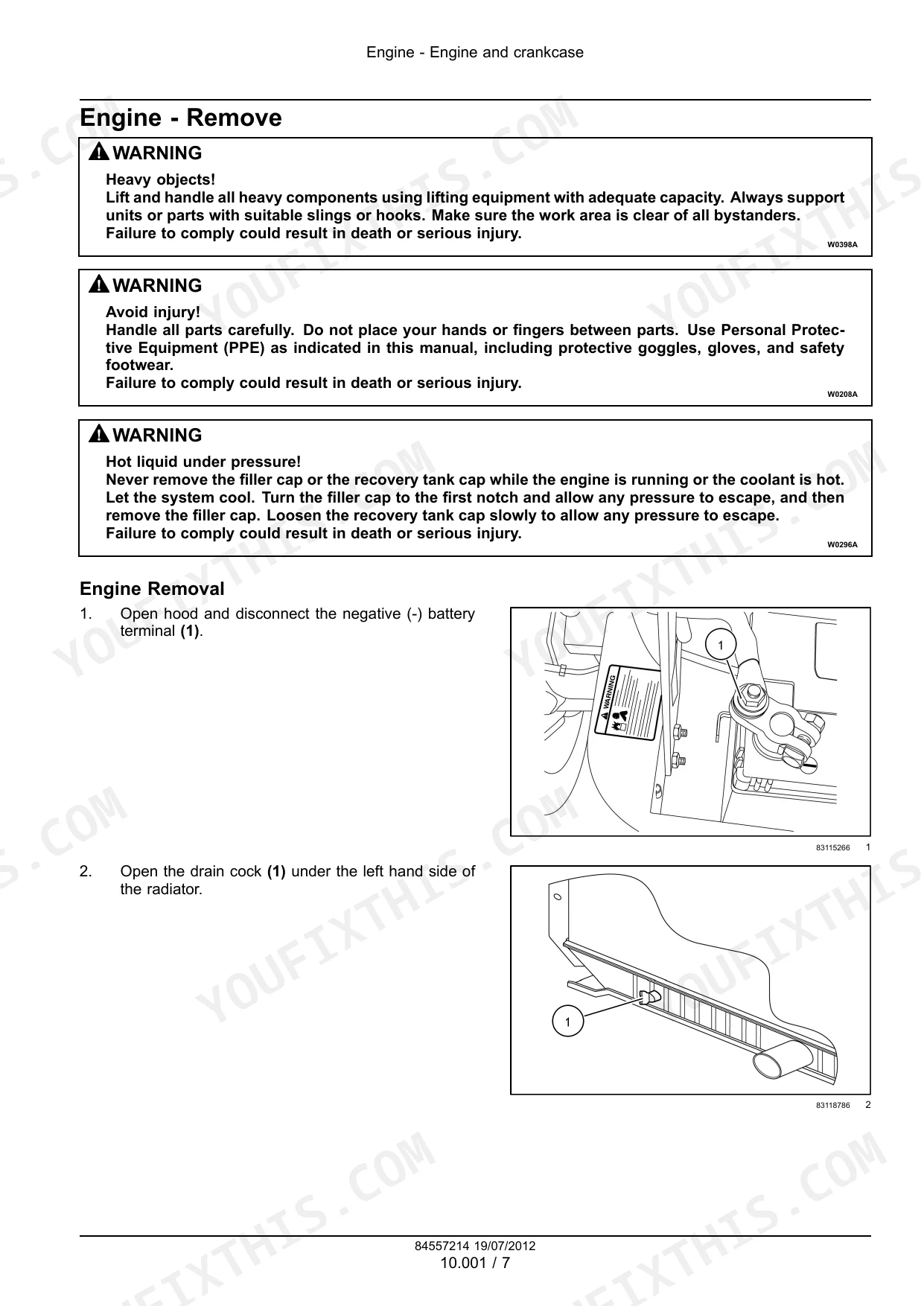

| Engine - 10 | 36-63 | Engine and Crankcase, Engine Lubrication System, Engine Cooling System |

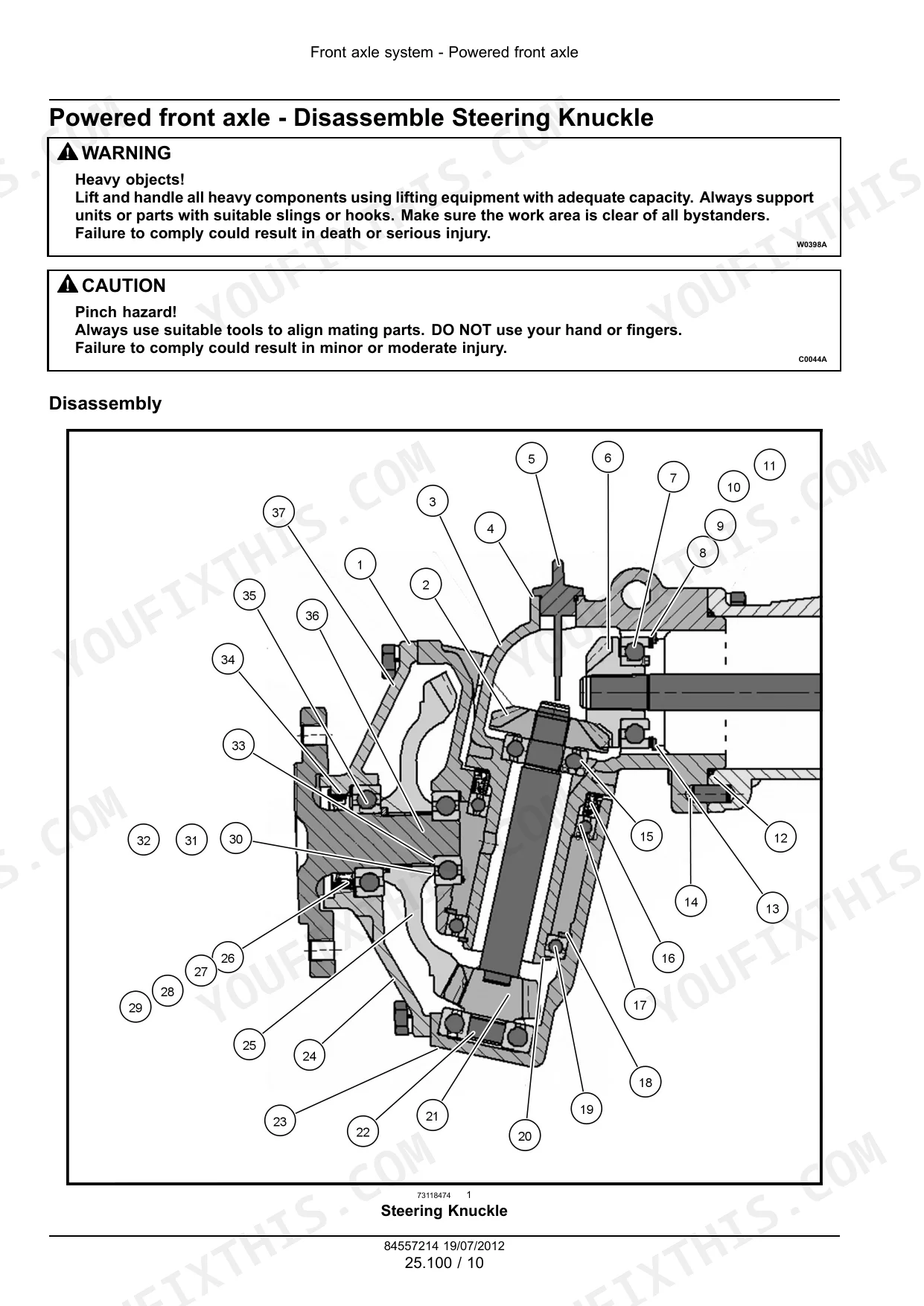

| Front Axle System - 25 | 64-121 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |
| Rear Axle System - 27 | 122-149 | Rear Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |

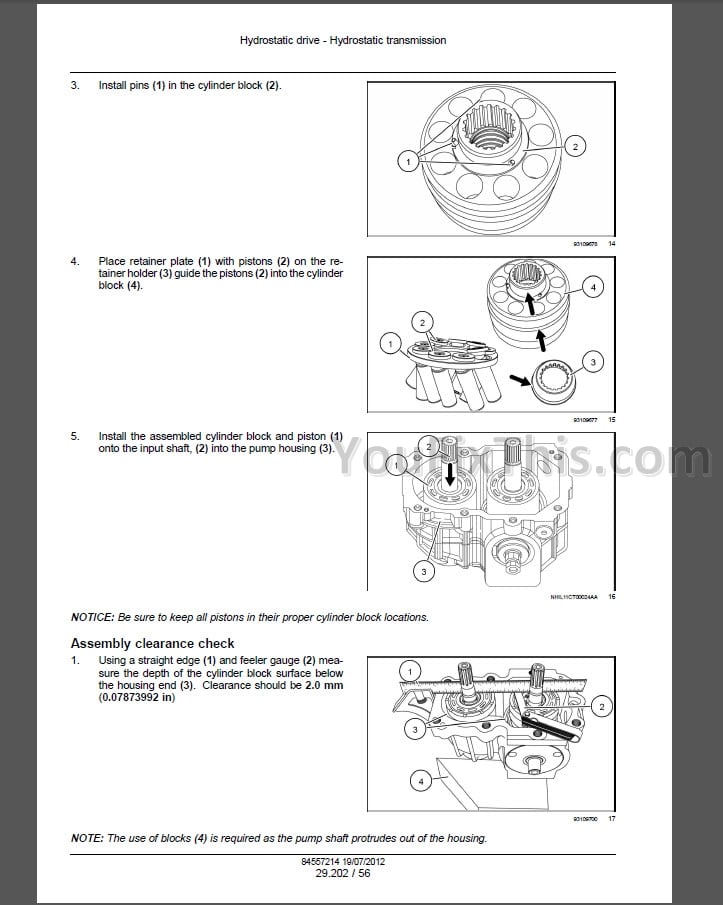

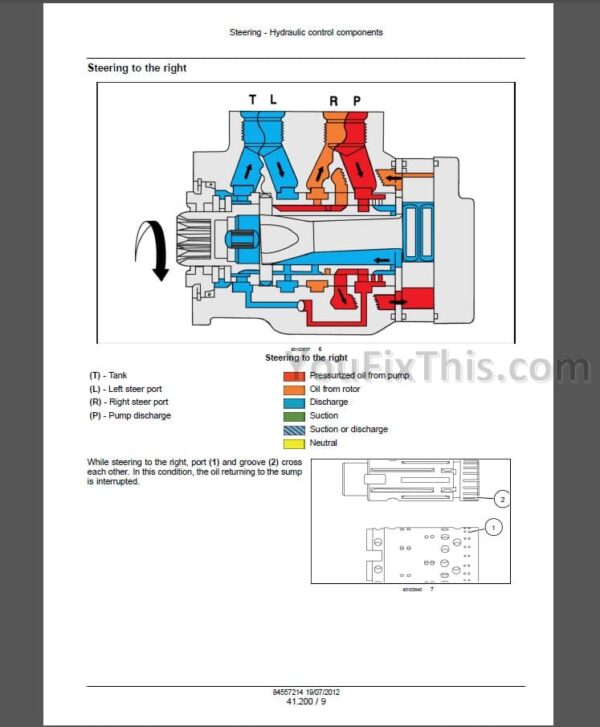

| Hydrostatic Drive - 29 | 150-251 | Transmission and Steering Hydrostatic Control, Hydrostatic Transmission, Reservoir, Cooler, And Lines, Pump and Motor Components |
| Power Take-Off (PTO) - 31 | 252-319 | Rear Mechanical Control, Rear Electrohydraulic Control |
| Brakes and Controls - 33 | 320-345 | Parking Brake / Parking Lock - Static Description, Mechanical Service Brakes - General Specification, Mechanical Service Brakes - Overview, Brake Package |
| Hydraulic Systems - 35 | 346-441 | Fixed Displacement Pump, Three-Point Hitch Control Valve, Three-Point Hitch Cylinder, Remote Control Valves, Reservoir, Cooler, And Filters, Safety and Main Relief Valves |
| Hitches, Drawbars, and Implement Couplings - 37 | 442-451 | Rear Three-Point Hitch - Dynamic Description |
| Steering - 41 | 452-527 | - |
| Wheels - 44 | 528-541 | - |

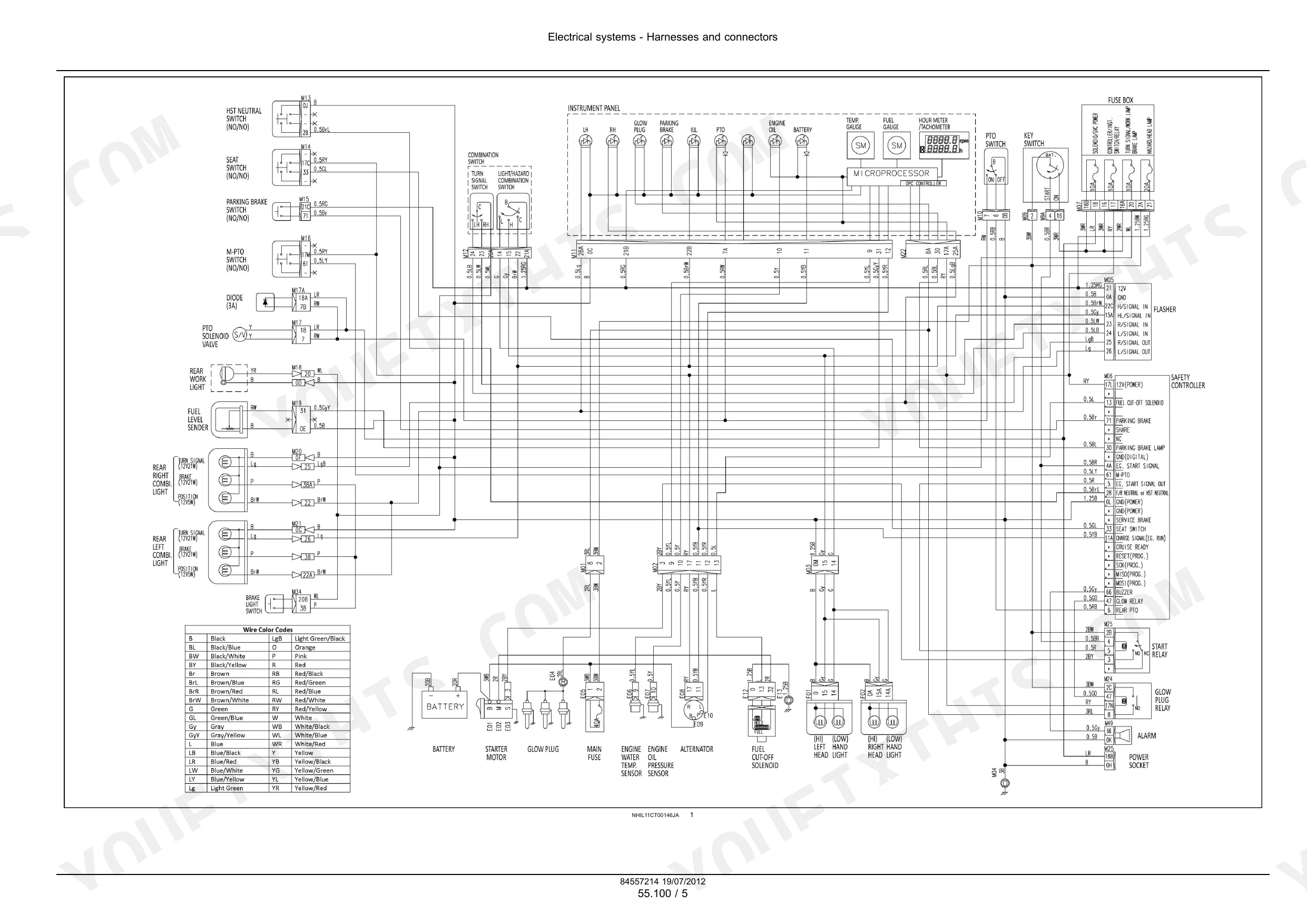

| Electrical Systems - 55 | 542-731 | - |
| Platform, Cab, Bodywork, and Decals - 90 | 732-740 | - |
New Holland Boomer 20, Boomer 25 Common Problems This Manual Covers
New Holland Boomer 25 loud squealing noise coming from under the seat during operation
Inspect the drive belt tension and alignment on the hydraulic pump under the seat panel. Remove the seat, check belt deflection by hand; replace if cracked, glazed, or stretched beyond a half inch (12.7 mm) of play. Verify pulley alignment is within 1/16 inch (1.6 mm). Reference the Hydrostatic Drive section starting page 150 for pump layout.
Manual Section: Hydrostatic Drive - 29 p. 150Blown hydraulic seals with fluid leaking from the axle housing after heavy load
Check the axle housing seal seats for scoring or contamination before installing new seals. Clean the shaft and lubricate the seal lip with clean hydraulic fluid; press the seal squarely to avoid cocking. Torque the final drive hub bolts to spec per the torque tables on page 20. Reference the Rear Axle System section starting page 122.
Manual Section: Rear Axle System - 27 p. 122Hydrostatic transmission erratic operation with abnormal whining noise that gets louder at higher ground speeds
Check the hydrostatic fluid level and condition at the reservoir; low or aerated fluid causes pump cavitation noise. Inspect the charge pump inlet screen for debris and confirm hose connections are tight with no air leaks. Bleed the system by running at low RPM for several minutes. Reference the Hydrostatic Drive section starting page 150.
Manual Section: Hydrostatic Drive - 29 p. 150Rear power take-off fails to disengage fully and clutch pack slips intermittently under load
Inspect the PTO clutch linkage and electrical switch for wear or misadjustment before disassembly. Check clutch pack plate thickness and adjust linkage free play to 1/8 inch (3.2 mm). Verify the PTO switch grounds properly and engages at the rated 540 RPM without hesitation. Reference the Power Take-Off section starting page 252 for clutch pack service.
Manual Section: Power Take-Off (PTO) - 31 p. 252Engine overheating with coolant temperature gauge climbing above normal during light-duty operation

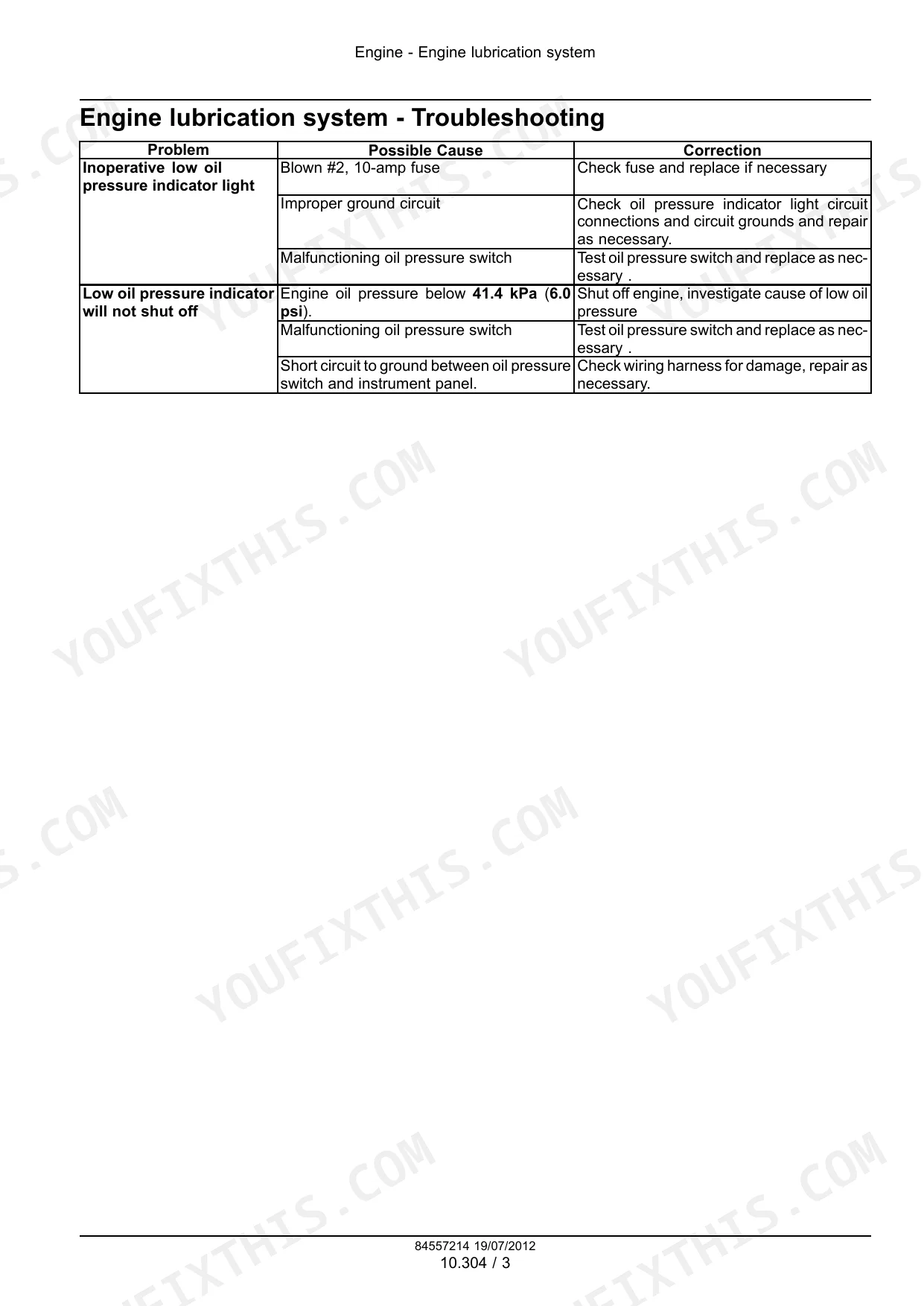

Check the coolant level in the radiator and overflow tank with the engine cold; top off with the correct 50/50 coolant mix. Inspect the radiator fins and screen for mud or chaff blocking airflow. Verify the fan belt tension deflects no more than a half inch (12.7 mm). Reference the Engine troubleshooting procedures on page 55.
Manual Section: Engine - 10 p. 55Hydraulic system pressure warning triggers while the three-point hitch is slow to raise heavy implements
Check the hydraulic reservoir fluid level and filter condition; a clogged filter starves the pump and drops system pressure. Inspect the fixed displacement pump for wear and test the relief valve for proper reseating. Cycle the lift cylinder at idle for 2 to 3 minutes to purge trapped air. Reference the Hydraulic Systems section starting page 346.
Manual Section: Hydraulic Systems - 35 p. 346Frequently Asked Questions
What are the torque specifications for the New Holland Boomer 20/25 engine bolts?
The torque specifications for various engine bolts are provided in the manual. For instance, the cylinder head bolt (M10 x 1.75) should be torqued to 83 - 93 N·m (61 - 69 lb ft), and the flywheel bolt (M12 x 1.25) to 127 - 137 N·m (94 - 101 lb ft).
Is this New Holland Boomer 20, Boomer 25 SERVICE MANUAL a digital download?
Immediate download of the complete 740-page searchable SERVICE MANUAL (81 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this New Holland Boomer 20, Boomer 25 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

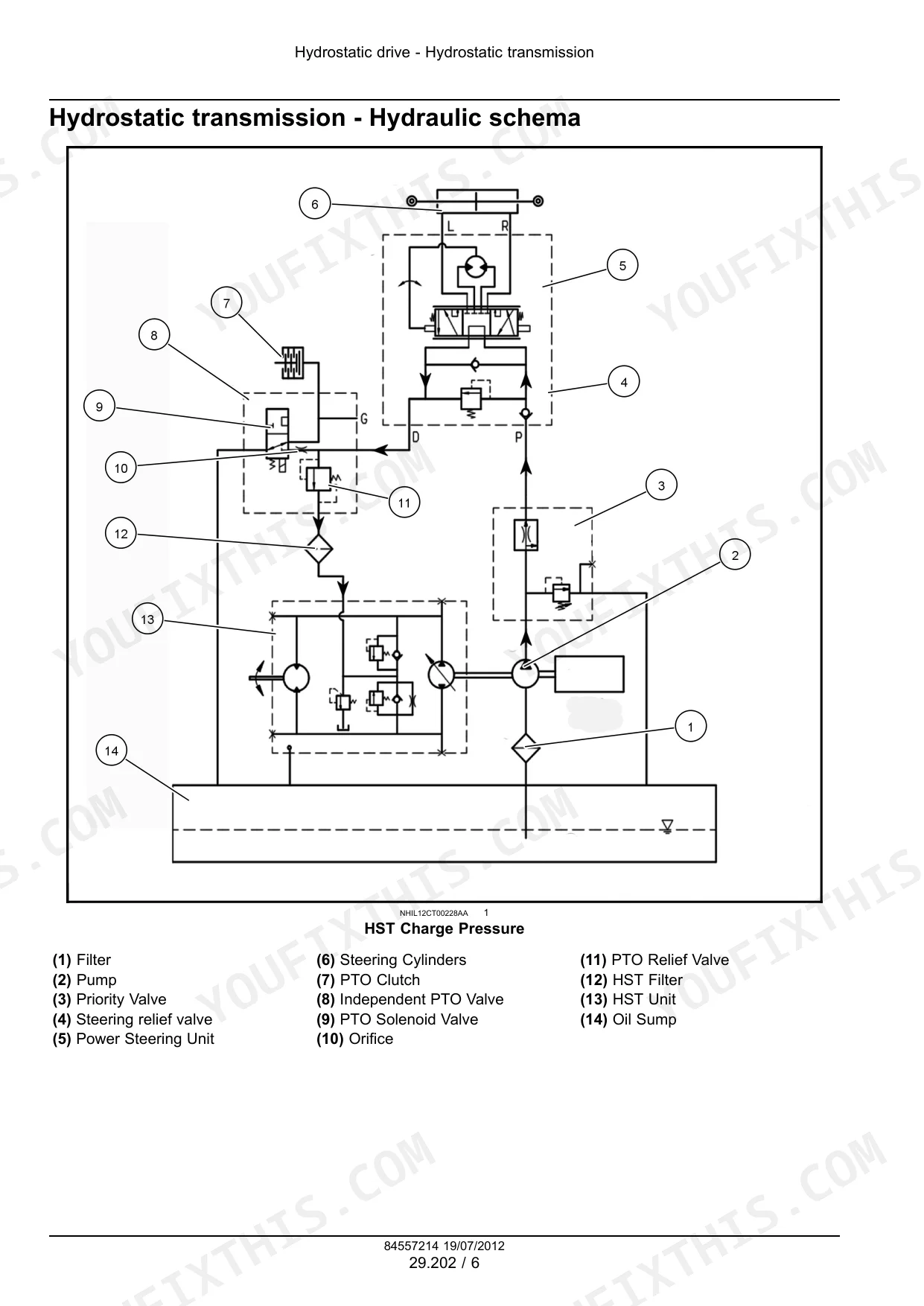

Can I find hydraulic circuit diagrams in this New Holland Boomer 20, Boomer 25?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
