![New Holland TT45A TT50A Repair Manual [Tractor]](https://youfixthis.com/wp-content/uploads/2017/06/2017-06-14_15-22-19-300x300.jpg)
Part of the New Holland Repair Manuals.
This is the full factory repair manual for the New Holland TS90, TS100 and TS110 tractors, the same service information a dealer technician works from. It covers the whole tractor: the engine, the electrical system with the wiring diagrams, the hydraulic lift and control valves, the braking and hydrostatic steering systems, the power train and clutch, the two-wheel-drive and four-wheel-drive front axle, the PTO and the cab air conditioning, along with the special service tools. Every section carries the specifications, pressure settings, fault-finding and step-by-step overhaul procedures, so whether you are chasing a hydraulic, power train or electrical fault you can put it right instead of guessing.
What's Inside This New Holland TS90, TS100, TS110 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | General Instructions, Safety, Standard Torque Values, Consumables and Sealants, Maintenance Intervals, Model Coverage | |

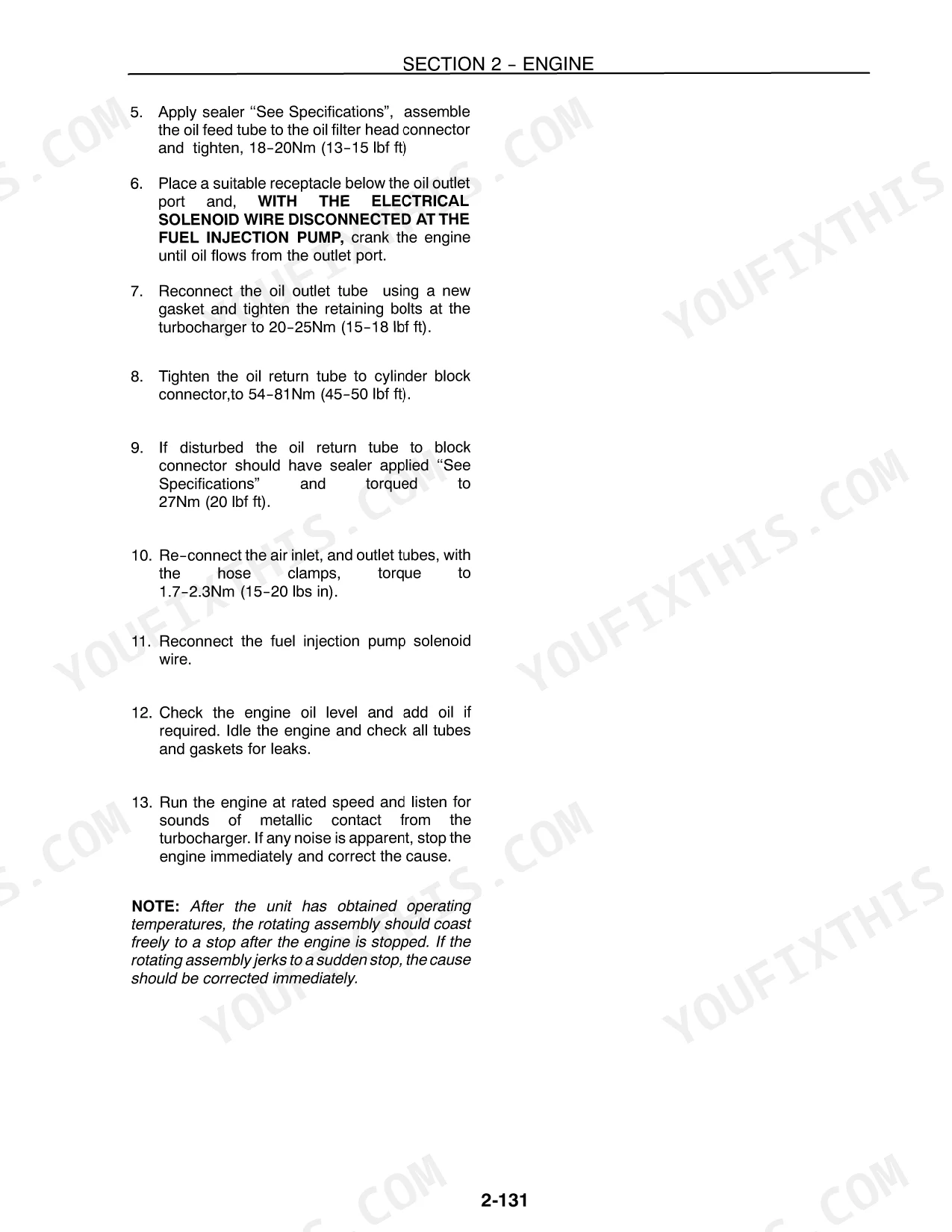

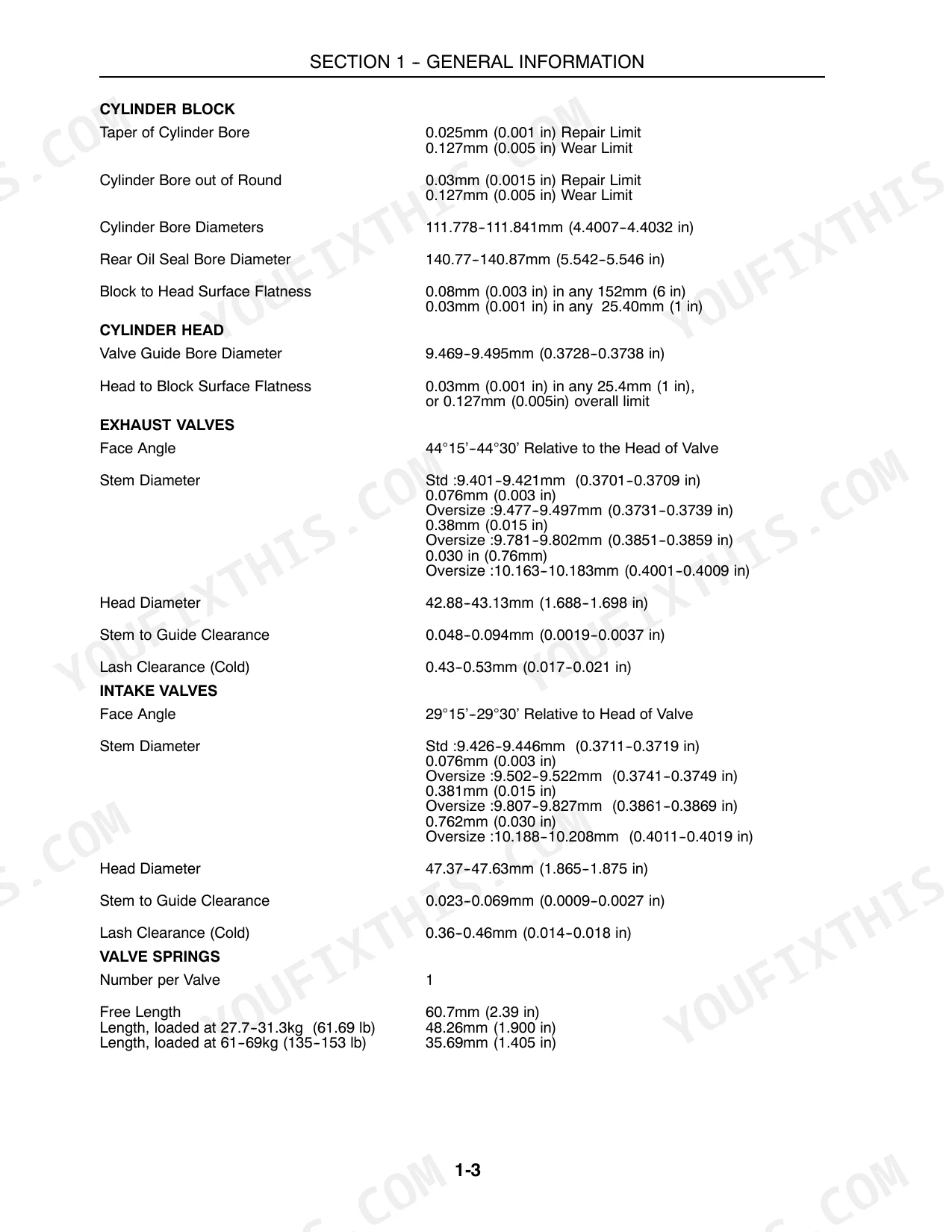

| Engine | Engine Specifications and Data, Cylinder Head and Block, Timing, Lubrication and Cooling, Fuel Injection, Troubleshooting, Removal and Overhaul | |

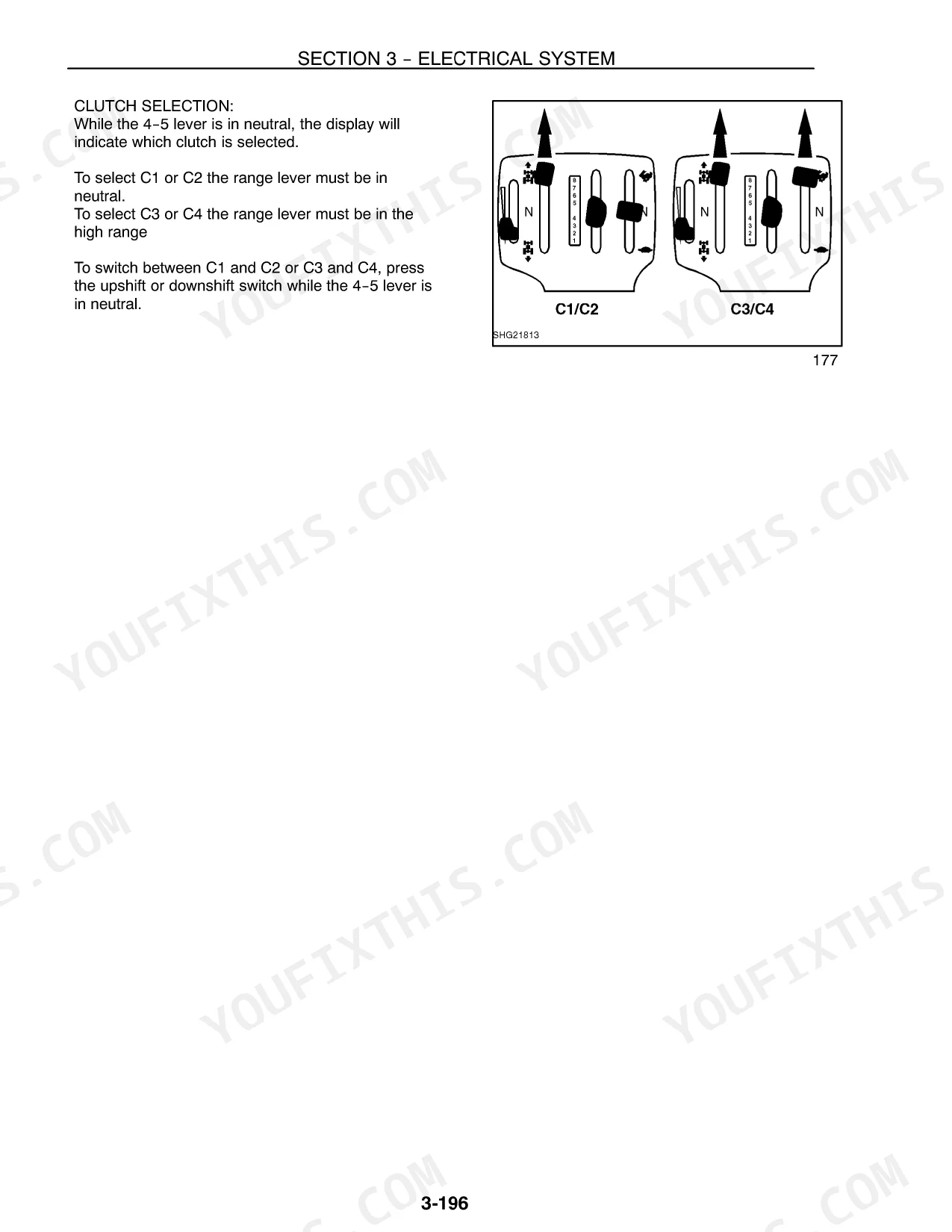

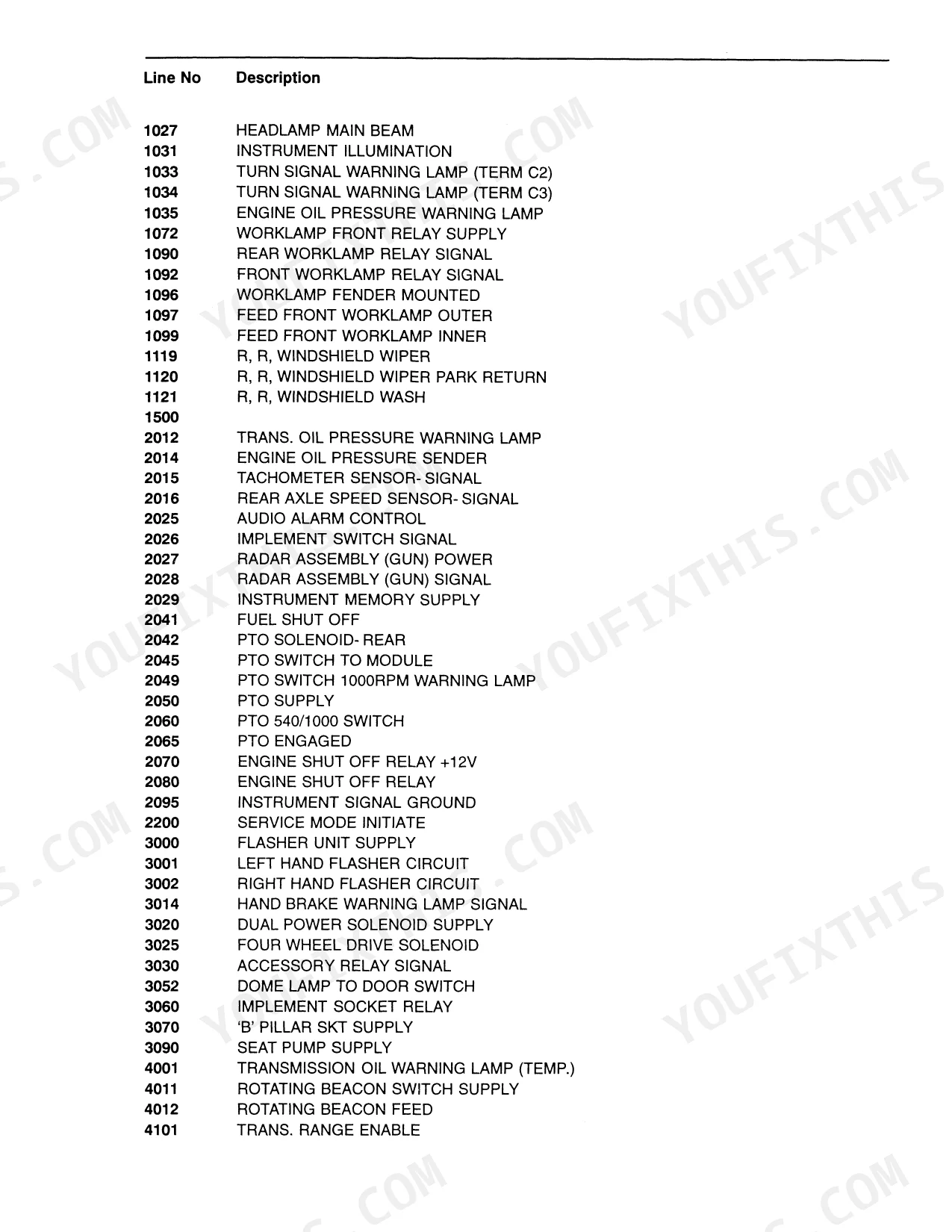

| Electrical System | Wiring Diagrams, Starting and Charging Systems, Battery, Instruments and Gauges, Sensors and Switches, Lighting, Fault Diagnosis | |
| Hydraulic Systems | Three-Point Hitch Lift, Lift Cylinder Relief Valve, Asc Control Valve, Remote Valves, Pump, Pressure Testing and Adjustment, Overhaul | |
| Braking and Steering Systems | Service and Parking Brakes, Hydraulic Brake Circuit, Hydrostatic Power Steering, Steering Pump and Cylinder, Fault Diagnosis, Overhaul | |
| Power Train | Clutch, Transmission and Range Gears, Gear Clutch Packs and Calibration, Shuttle, Description and Operation, Fault Diagnosis, Overhaul | |
| Front Axle | Two-Wheel-Drive and Four-Wheel-Drive Front Axle, Differential and Final Drives, Wheel Hubs and Bearings, Fault Diagnosis, Overhaul | |
| Power Take-Off | PTO Clutch and Shafts, PTO Speeds, Description and Operation, Engagement, Fault Diagnosis, Housing Removal and Overhaul | |
| Air Conditioning | Cab Air Conditioning and Heating, Compressor and Controls, Refrigerant Handling, Blower and Vents, Fault Diagnosis, Service | |
| Special Tools | Dealer Special Service Tools Required for Engine, Transmission, Axle and Hydraulic Overhaul Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TS90 | ||
| Rated Engine Power | approx. 90 hp | |
| TS100 | ||
| Rated Engine Power | approx. 100 hp | |
| TS110 | ||
| Rated Engine Power | approx. 110 hp | |
| All models | ||
| Hydraulic Lift Cylinder Relief Valve | 2850-3050 lbf/in2 (197-210 bar) | |
| Gasket Sealant Part No. | 82995770 (50 ml) / 82995771 (300 ml) | |
New Holland TS90, TS100, TS110 Common Problems This Manual Covers
Engine overheats under load.
Usually a dirty radiator core, a clogged air filter or a failing water pump. The Engine section covers the cooling system checks, the thermostat test and the water pump and radiator service to bring temperatures back down.
Manual Section: EngineHydraulic system overheats and leaks oil.
A worn hydraulic filter or failed seals are the usual cause. The Hydraulic Systems section covers the lift relief valve and ASC valve pressure tests and the pump and cylinder overhaul to reseal the circuit and restore pressure.
Manual Section: Hydraulic SystemsGear shifting is rough or the tractor will not move in a gear.
An uncalibrated gear clutch pack or worn clutch components are the usual cause. The Power Train section covers the clutch-pack calibration, fault diagnosis and overhaul with the reassembly torques.
Manual Section: Power TrainPower steering is heavy or slow to respond.
The Braking and Steering Systems section covers the hydrostatic steering valve, pump and cylinder with the pressure tests and overhaul, so you can find a worn steering pump or a leaking cylinder behind the heavy steering.
Manual Section: Braking and Steering SystemsFrequently Asked Questions
Does this manual include the wiring diagrams for the TS90, TS100 and TS110?
Yes. The Electrical System section carries the wiring diagrams, the starting and charging systems, instruments, sensors and switches, so you can trace an electrical fault instead of guessing.
The hydraulics or the lift are overheating or leaking - where do I start?
The Hydraulic Systems section covers the lift cylinder relief valve (set to 2850-3050 psi), the ASC control valve and the pump, with the pressure tests and overhaul to find a worn seal or a tired pump behind the overheating and leaks.
Does it cover the power train and gear-shift problems?
Yes. The Power Train section covers the clutch, transmission and gear clutch packs including calibration, with the fault diagnosis and overhaul for the shifting problems that come from an uncalibrated clutch pack or worn components.
The engine is overheating - what does the manual cover?
The Engine section covers the cooling system, the radiator and thermostat and the fault diagnosis. Overheating is usually a dirty radiator, a clogged air filter or a tired water pump, and the section has the checks and overhaul to sort it.
Which models and drive types does this manual cover?
It covers the TS90, TS100 and TS110 tractors in two-wheel-drive and four-wheel-drive configurations, with the engine, power train, front axle, PTO, hydraulics, brakes, steering, cab and electrical systems.
What do I get after purchasing this New Holland TS90, TS100, TS110 manual?
Immediate download of the complete 1815-page scanned Repair Manual (198 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this New Holland TS90, TS100, TS110 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
