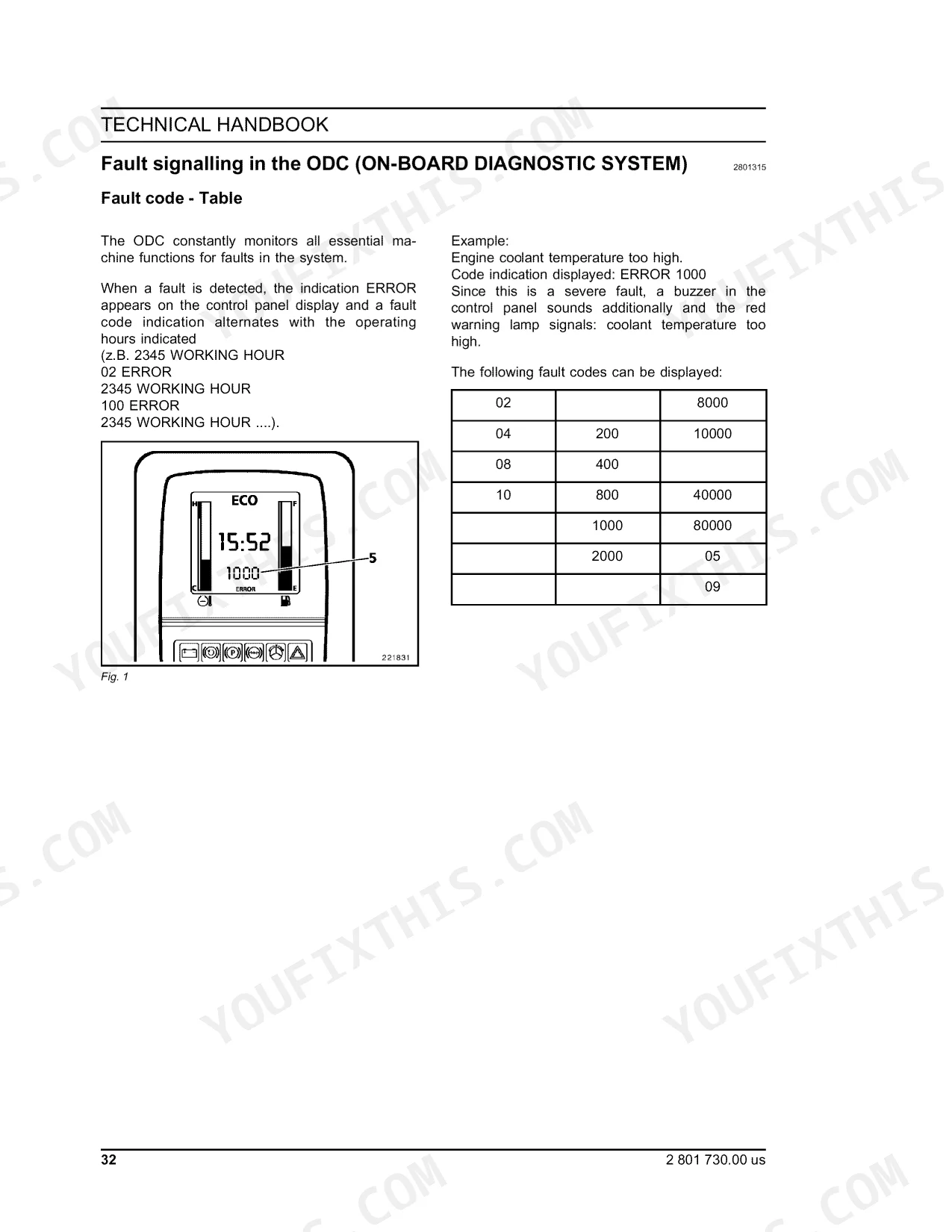

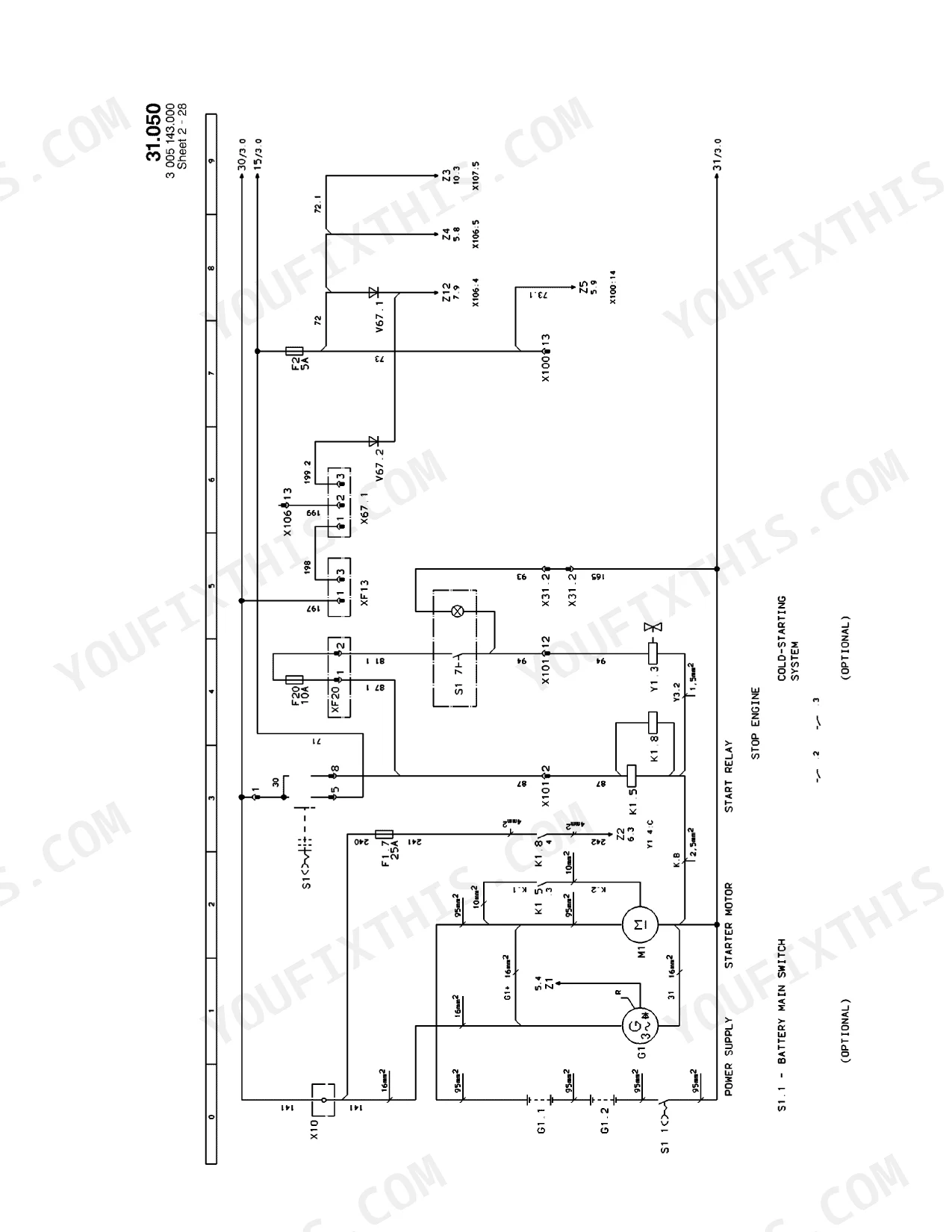

Need factory data for your New Holland EC 215? This 726-page New Holland EC 215 service manual PDF (OEM #73179384) takes the hydraulic excavator apart system by system: undercarriage, swing bearing, gearboxes, hydraulics, and the full electrical package. You get hydraulic schematics tracing the pump, servo control valve, and 6-way control block, plus wiring diagrams for the alternator, starter, fuses, and load limit governor. Inside: a full service-data section with wear limits, fluid specs, and page after page of tightening torques, backed by travel and swing gearbox rebuild procedures and error codes for the control system. Torque the bottom rollers to 355 Nm (262 lbft) and set primary relief on the working pumps to 350 bar (5080 psi). Your excavator isn't earning money on its side. Bookmarked PDF opens on any laptop, tablet, or phone; bring it straight to the machine.
What's Inside This New Holland EC 215 Manual
| System | Pages | Key Topics |
|---|---|---|

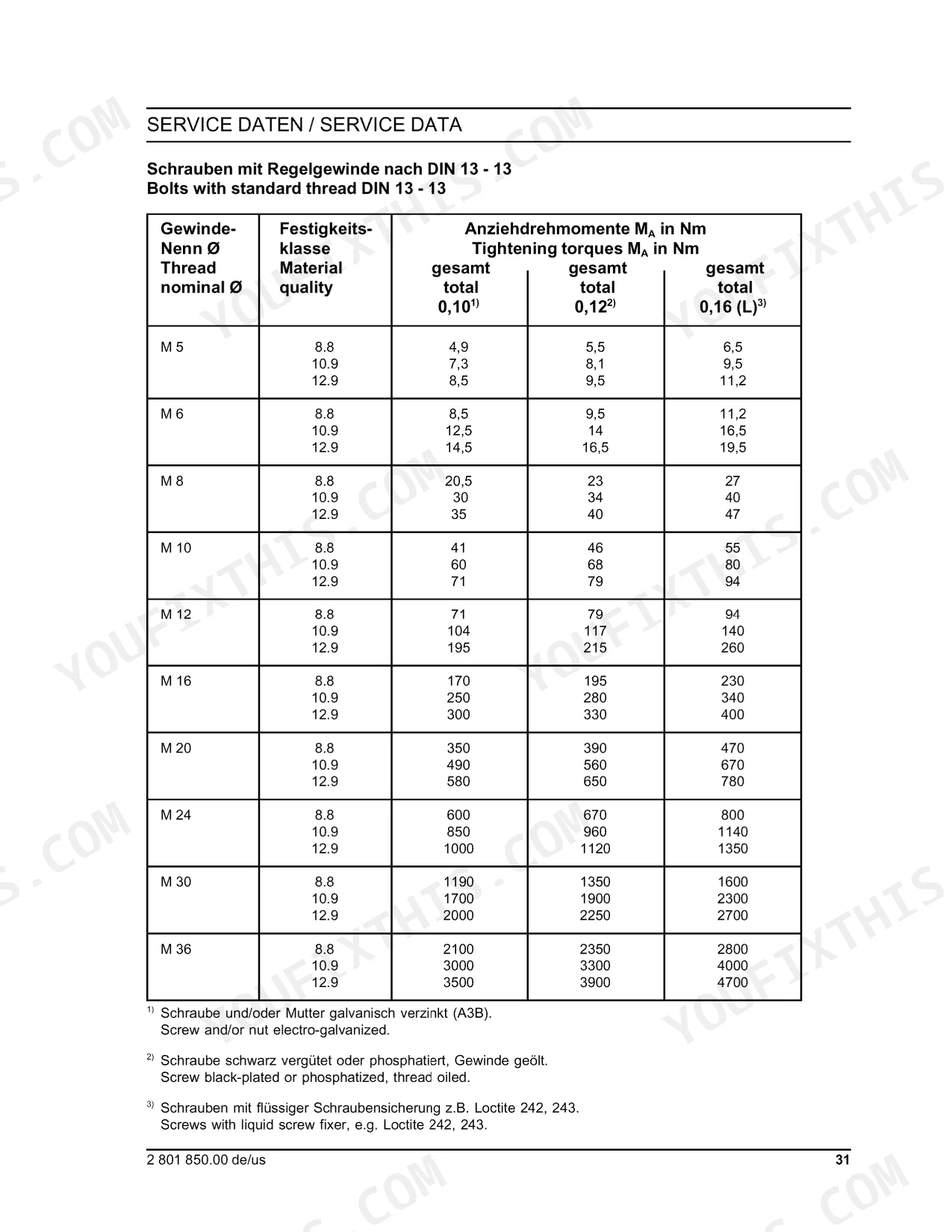

| Service Data / Service Daten | 22-77 | Engine, Transmission Gears, Hydraulic System, Service Fluids, Wear Limits, Tightening Torques |
| Special Tools | 78-84 | Pcs Tester, Solenoid Valve Tester, Vacuum Pump, Pressure Gauge, Stroke-Measuring Device |

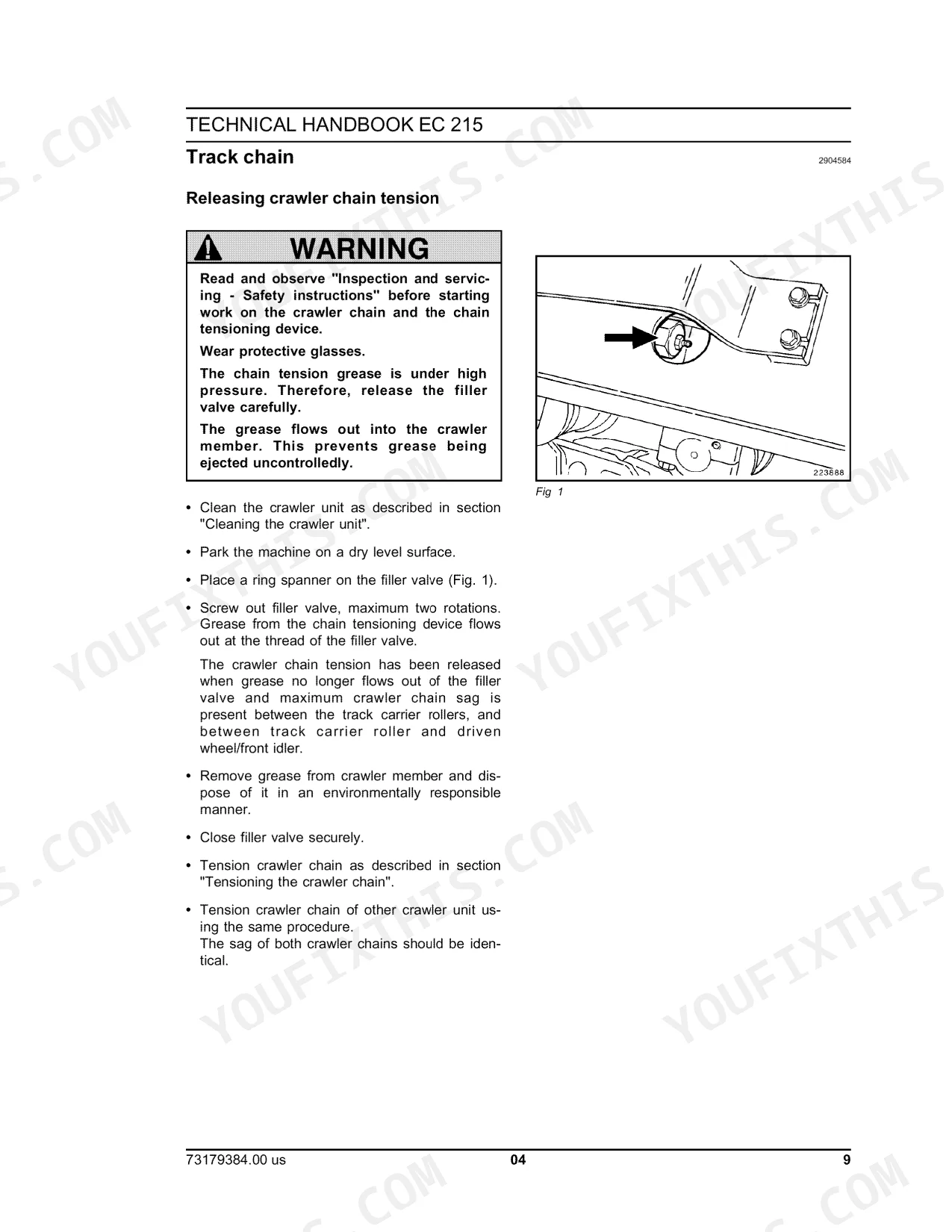

| Undercarriage | 85-114 | Travel System, Track Chain, Idler, Bottom Rollers, Top Roller, Sprocket |

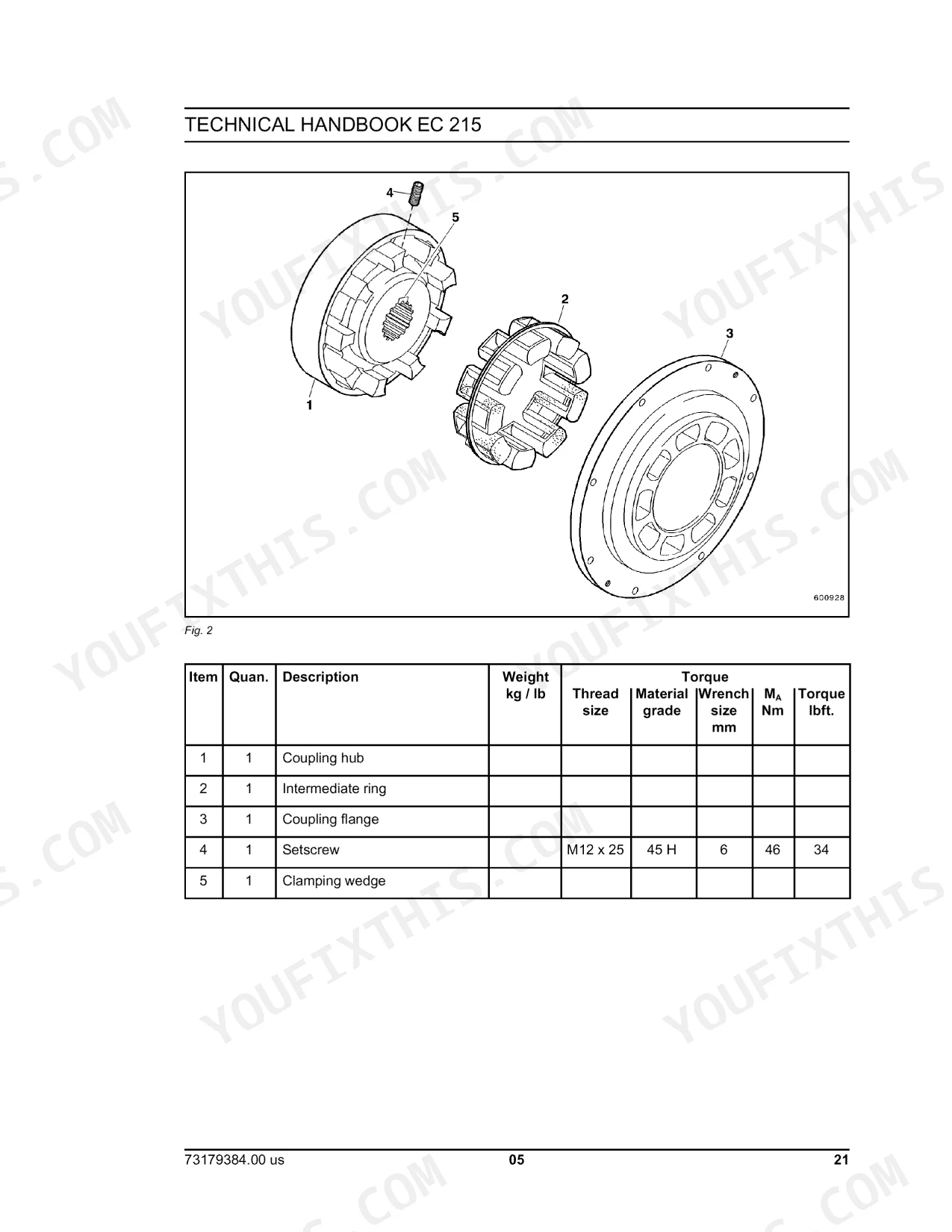

| Superstructure | 115-137 | Ball-Bearing Swing Bearing, Swing Gearbox, Engine Installation, Coupling |
| Diesel Engine | 138 | - |
| Gear Boxes | 139-263 | Traveling Gearbox, Swing Gearbox, Multi-Disk Brake, Planet Carriers |
| Hydraulic System | 264-372 | Hydraulic Pump, Servo Control Valve, 6-Way Control Block, Boom Cylinder, Stick Cylinder, Bucket Cylinder |
| Electrical System | 373-544 | Alternator, Starter Motor, Battery, Fuses, Control Panel, Load Limit Governor |
| Working Equipment | 545-551 | Fittings, Pipes and Hoses, Welding for Maintenance and Repair, Sealing, Protective, Checking and Cleaning Agents |
| Fittings, Pipes and Hoses | 552-726 | Steel Pipes, Hoses, Plastic Pipes, Pipe Couplings, Bulkhead Couplings, Flange Couplings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bottom roller tightening torque | 355 Nm / 262 lbft | p. 75 |
| Top roller tightening torque | 295 Nm / 218 lbft | p. 75 |
| Piston stroke control block - equipment / travelling | 11 mm / 0.43 inch | p. 66 |
| Piston stroke control block - adjusting cylinder | 9 mm / 0.35 inch | p. 66 |
| Primary pressure relief for working pumps | 350 bar / 5080 psi | p. 66 |
| Lock-nut (2) tightening torque | 20 Nm | p. 337 |
| Safety valve (1) tightening torque | 90 Nm | p. 342 |
| Hose length tolerance | -4 % to +2 % | p. 566 |
New Holland EC 215 Common Problems This Manual Covers
New Holland EC 215 all hydraulic functions weak and slow, boom and bucket barely move under load
Check the hydraulic oil level and pull the tank breather; a plugged breather starves both pumps. Tee a gauge into the main circuit and verify the primary relief for the working pumps holds 350 bar (5080 psi), listed in the service data on page 66. Hunt down external leaks before condemning the pump.
Manual Section: Hydraulic System Troubleshooting p. 264Hydraulic oil runs hot during normal digging, temperature warning comes on after an hour
Clean the oil cooler core with compressed air from the back side, then replace the hydraulic filter and check its bypass valve. If you open any servo line while checking the neutral circuit, cycle the control levers about 30 times first so residual pressure bleeds down to 2 bar, per the venting procedure on page 271.
Manual Section: Hydraulic System Troubleshooting p. 264Boom or stick slow to respond while travel and swing work normally, feels like sticking spool
Measure control spool travel with a stroke gauge; boom, stick, and bucket spools should reach a full 11 mm, listed on page 339. A spool short of full stroke points to sticking or servo pressure loss. Flush the servo circuit and polish burrs off the spool rather than swapping the whole block.
Manual Section: Hydraulic System p. 339Boom drifts down and bucket curls back with controls in neutral, machine parked on level ground
Isolate the drifting cylinder by swapping control valve sections; if the creep follows the cylinder, reseal the piston. If it stays with the valve, inspect the circuit safety valve, reinstall the housing, and torque it to 90 Nm as shown on page 342. Retest with the bucket loaded and controls in neutral.
Manual Section: Hydraulic Cylinder Troubleshooting p. 342Hydraulic hoses weeping at the fittings, one hose bulging near the boom base
Inspect every hose for bulging, chafing, and weeping at the crimps, then replace suspect lines using the hose specifications starting on page 552. Measure replacement hoses against nominal length; permissible stretch under pressure runs from minus 4 percent to plus 2 percent, noted on page 566. Route hoses without twist before final tightening.
Manual Section: Fittings, Pipes and Hoses p. 552Frequently Asked Questions
How do I reset the service interval on a New Holland EC215?
To reset the service interval, navigate to the 'Special Functions' menu on the control panel by pressing F6, then select F6 again for 'Control Panel'. Press F1 to select 'Reset servicing interval', confirm by pressing '1' when prompted, and then switch the ignition off and on again to complete the reset. p. 500
What is the torque specification for the New Holland EC215 track pad bolts?
The torque specification for the track pad bolts (M 18 x 1.5) is 568 Nm (419 lbft). p. 75
What are the replacement specifications for the hydraulic return flow filter?
The hydraulic return flow filter element (10 m absolute) should be replaced every 500 operating hours. The part number for the filter element is 73171648. p. 73

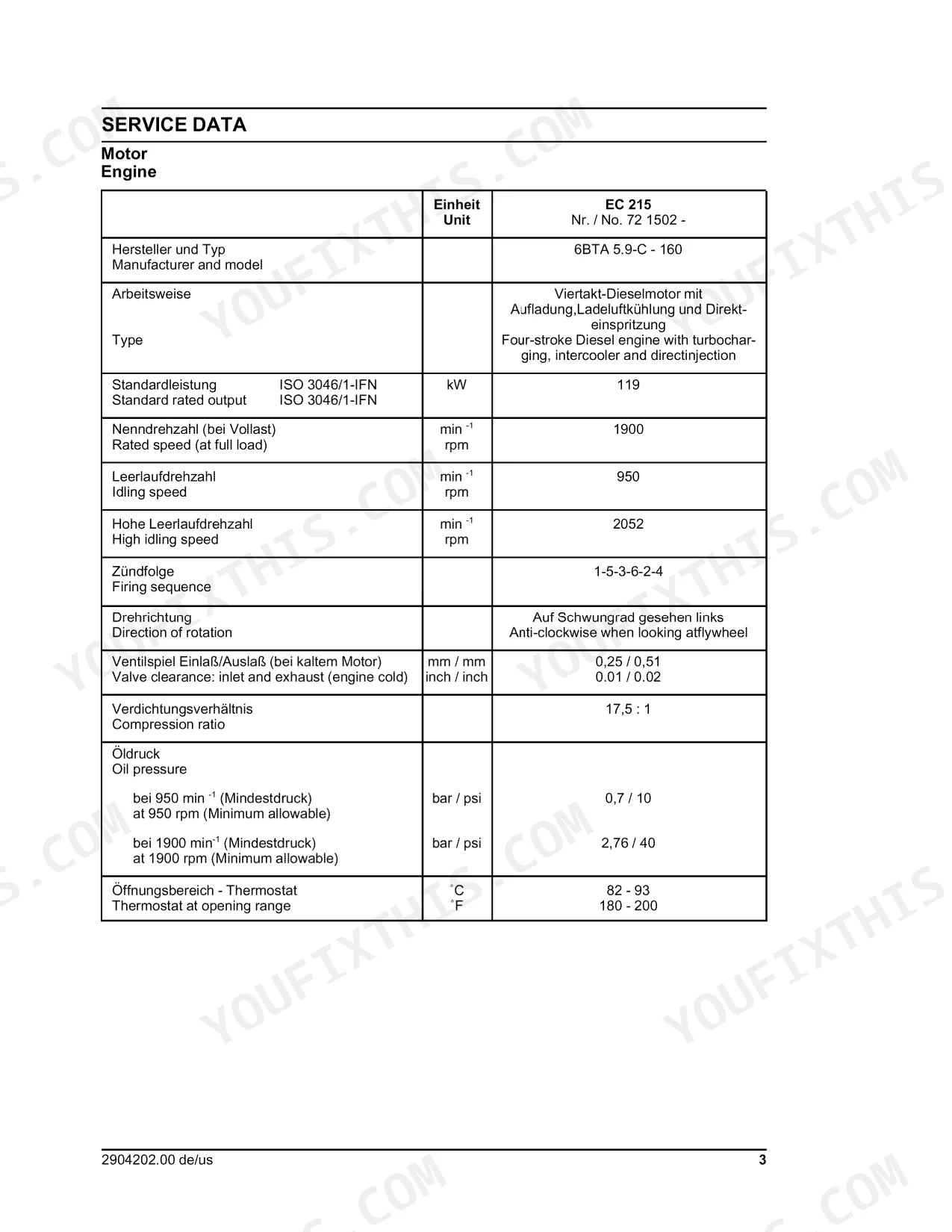

What is the valve clearance for the engine on the New Holland EC215?
The valve clearance for both the inlet and exhaust valves on the 6BTA 5.9-C 160 engine is 0.25 mm (0.01 inch) for the inlet and 0.51 mm (0.02 inch) for the exhaust. p. 64
What is the engine oil capacity for the New Holland EC215?
The engine oil capacity, including the filter, is 25 liters (6.6 gallons). p. 72
How quickly can I access this New Holland EC 215 manual after buying?
You download the Service Manual yourself: 726 pages, scanned PDF, available immediately. Keep a copy on every device you use.
Am I able to print pages from this New Holland EC 215 manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
