Rebuild, test and adjust your New Holland E26B SR or E29B SR mini excavator with factory service manual 84563189B, printed in English in April 2014. It covers the canopy and cab versions of both models, each powered by the Yanmar 3TNV82A-SYB engine.
This book takes you through the hydraulic schematics, pressure and performance tests, pump and main control valve. It also covers the swing and travel motors, undercarriage, wiring diagrams and electrical troubleshooting.
It prints the figures you work to, such as a 20 l (5.3 US gal) hydraulic oil tank and a travel hydraulic motor set pressure of 23 MPa (3336 psi).
What's Inside This New Holland E26B SR, E29B SR Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-34 | Foreword, Safety Rules, Machine Tightening Torques, General Specifications, Operating Mass, Fluid Capacities, Product Identification |

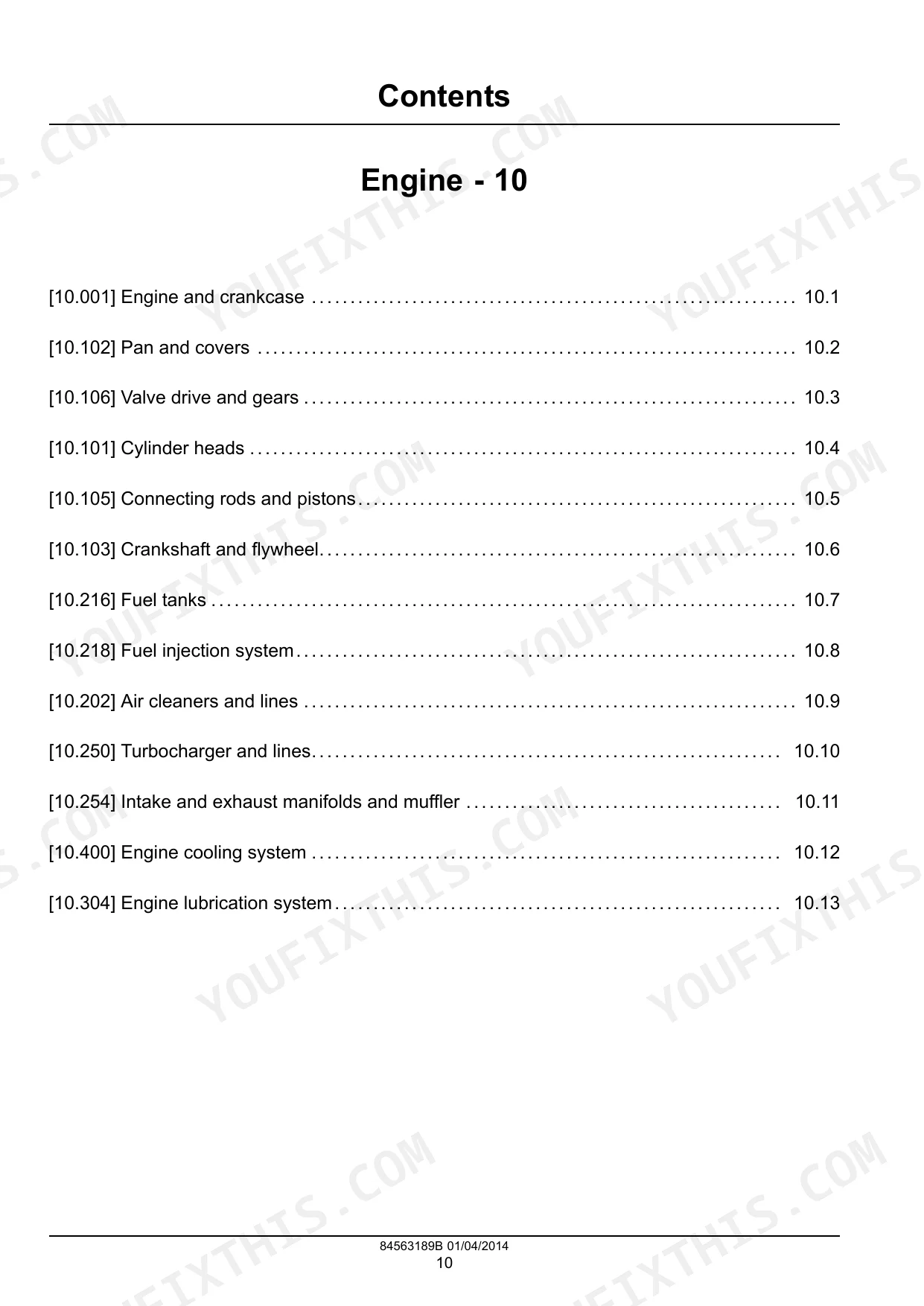

| Engine | 35-314 | Engine and Crankcase, Valve Drive and Cylinder Heads, Connecting Rods and Pistons, Crankshaft and Flywheel, Fuel Injection, Air Cleaner, Cooling and Lubrication |
| Hydraulic Systems | 315-539 | Hydraulic Schematics, Pressure and Performance Tests, Reservoir, Cooler and Filters, Variable Displacement Pump, Main Control Valve, Relief Valves, Hand and Foot Controls |

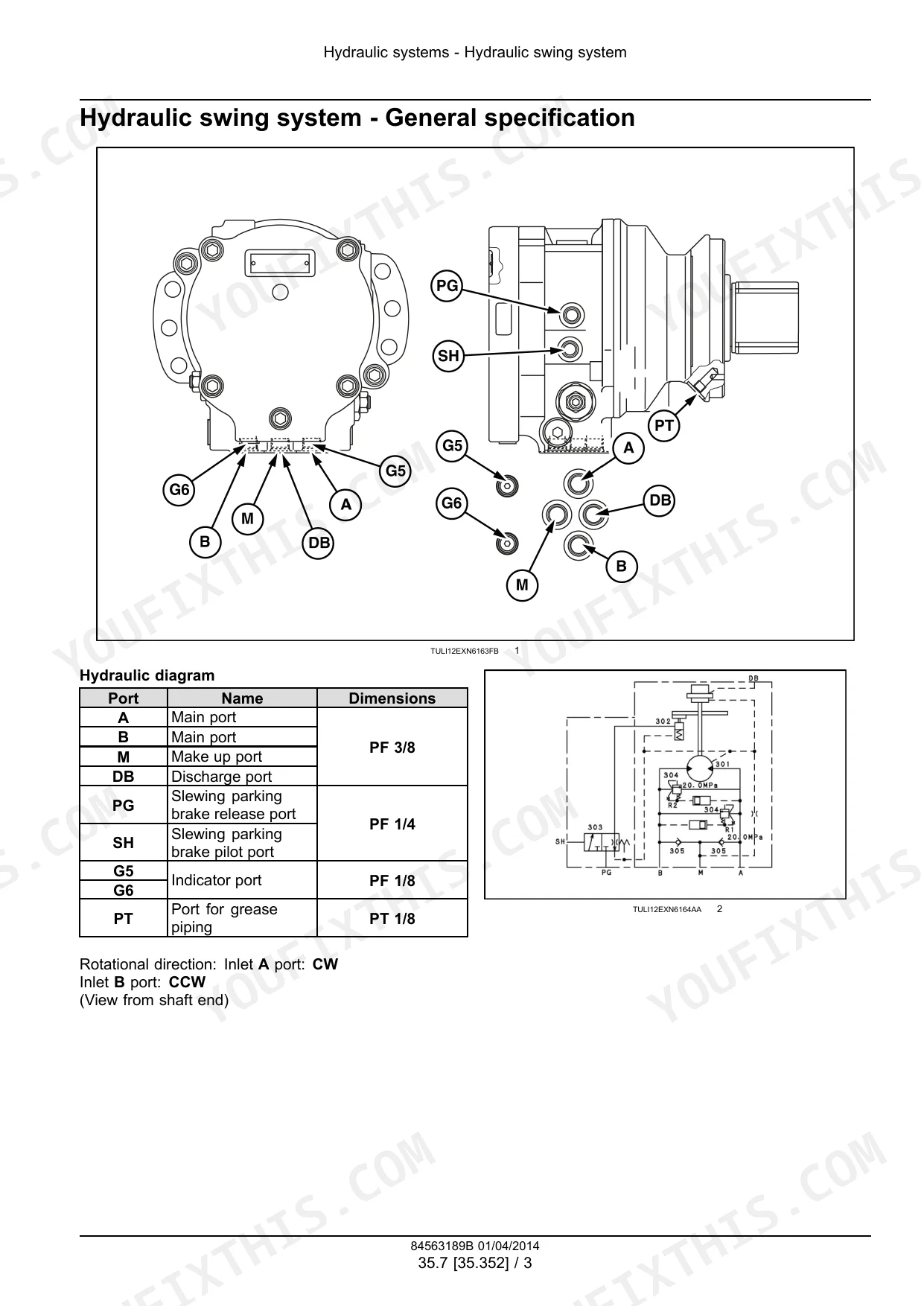

| Hydraulic Swing, Travel and Cylinders | 540-738 | Swing Motor and Parking Brake, Travel Motors and Two-Speed Control, Hydraulic Central Joint, Boom, Dipper, Bucket, Swing Arm and Dozer Blade Cylinders |

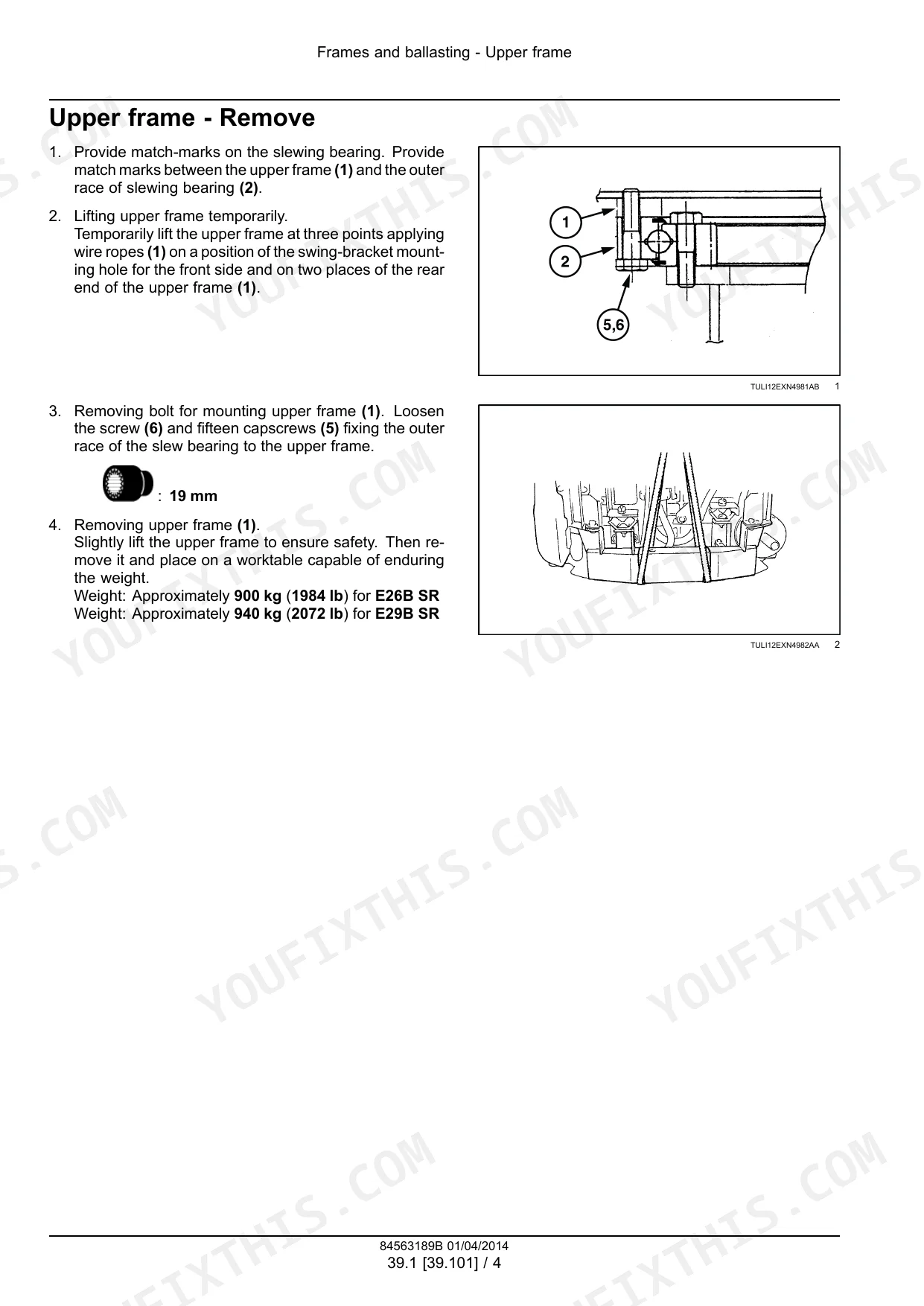

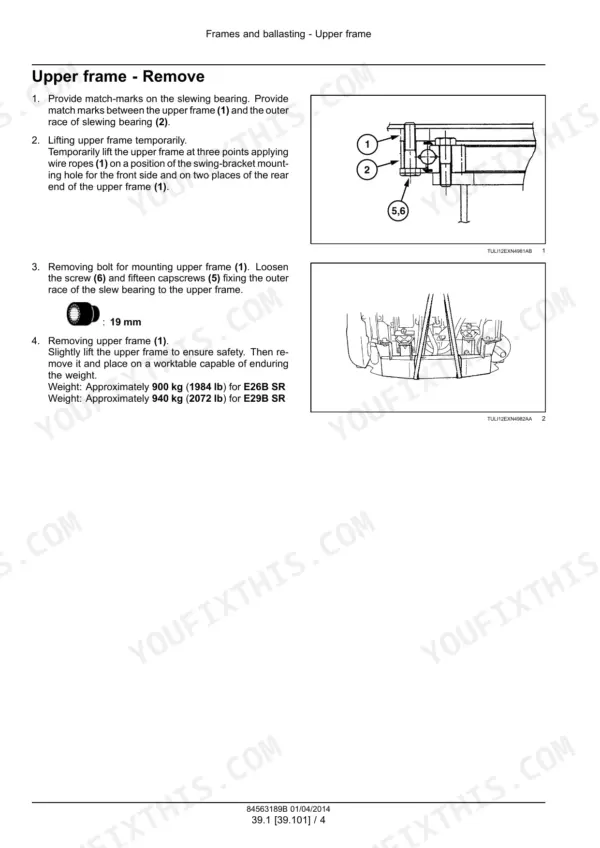

| Frames and Ballasting | 739-764 | Upper Frame Removal and Installation, Slewing Bearing, Swing Bearing Disassembly and Assembly, Counterweight |
| Tracks and Track Suspension | 765-824 | Track Frame and Driving Wheels, Rubber and Steel Tracks, Track Tension Units, Lower and Upper Track Rollers, Undercarriage Service Limits |

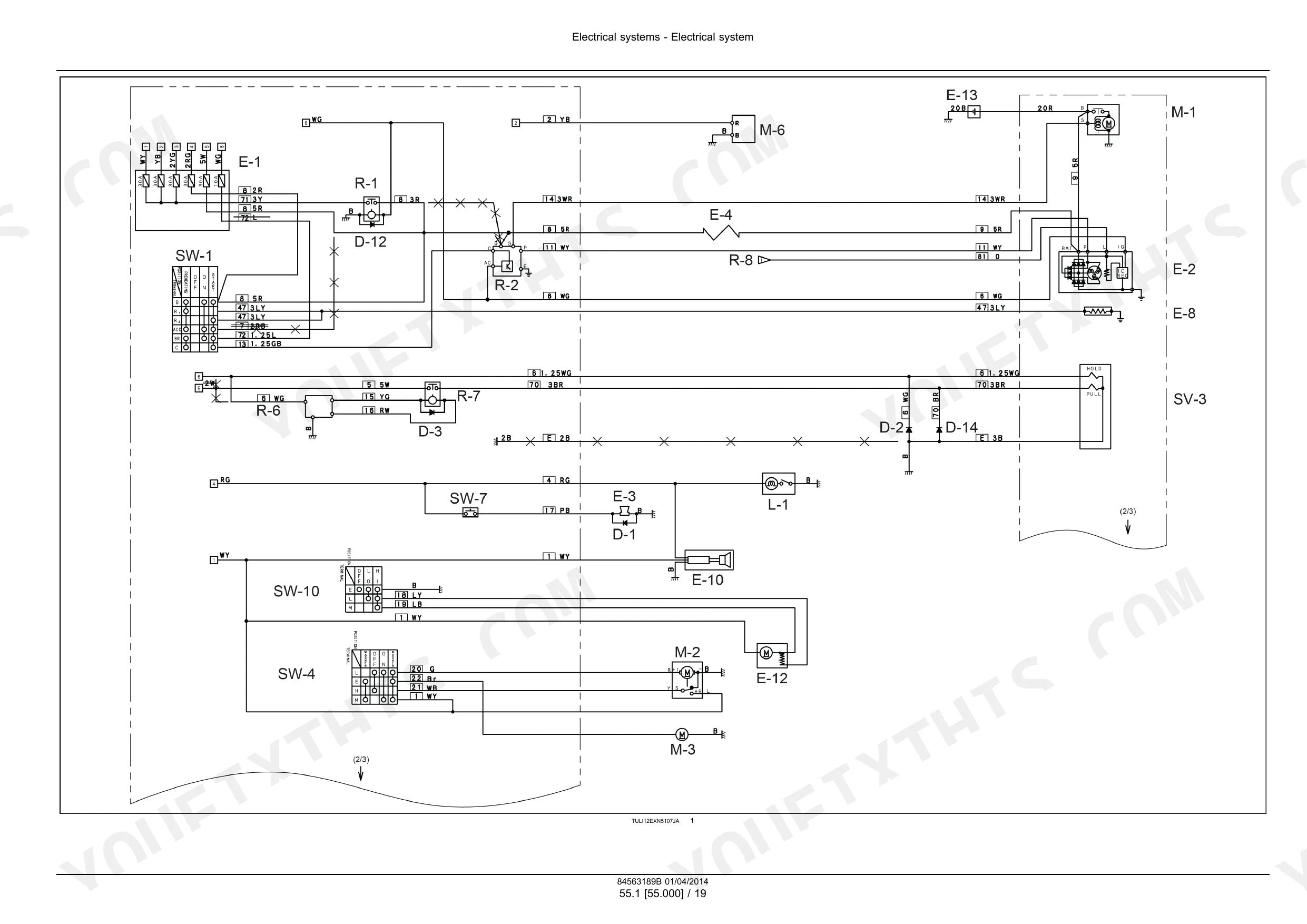

| Electrical Systems | 825-972 | Electrical Schemas, Harnesses and Connectors, Engine Control and Starting, Alternator, Battery, Fuel and Oil Sensors, External Lighting, Electrical Troubleshooting |

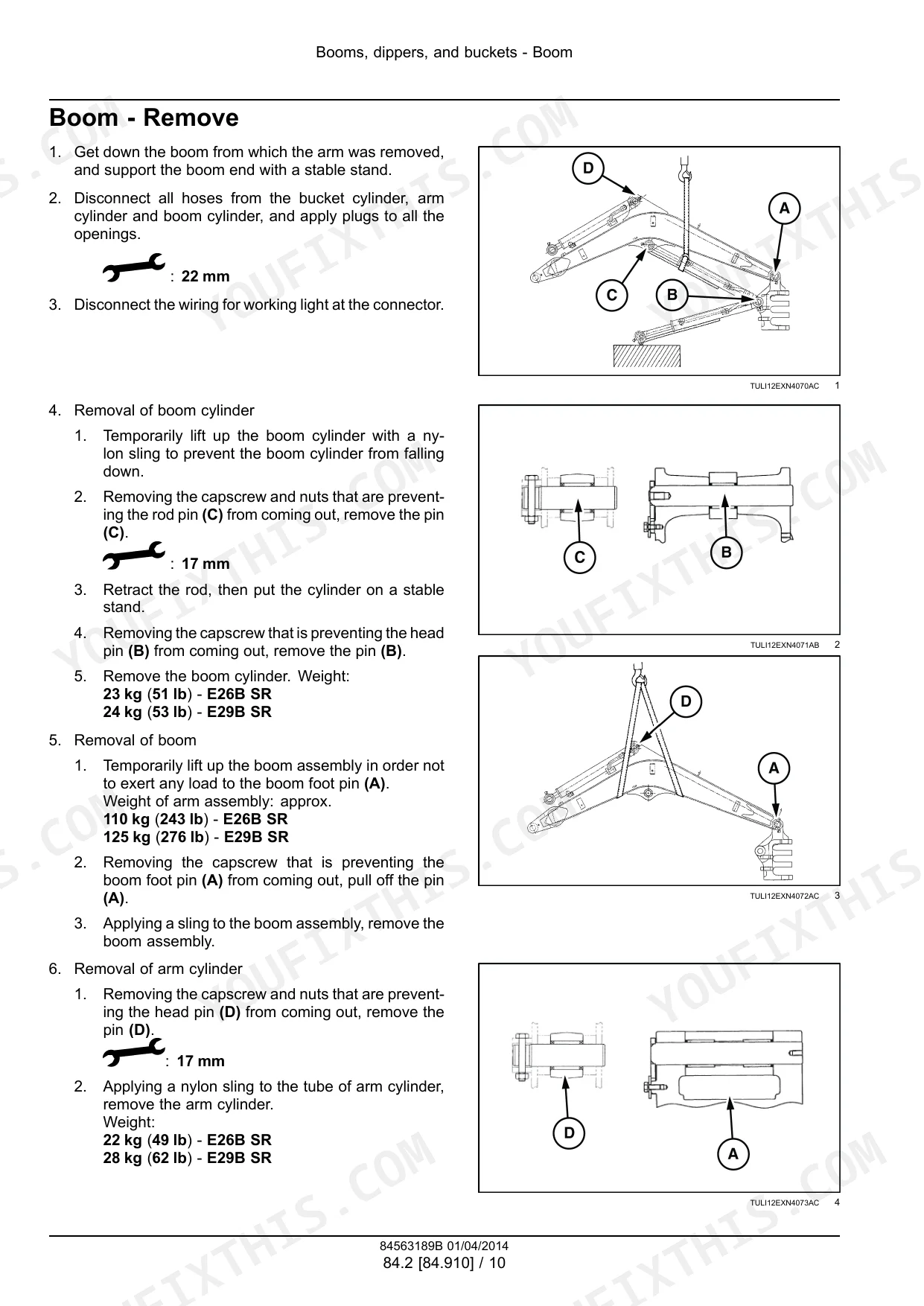

| Booms, Dippers and Buckets | 973-1022 | Boom Pivoting Support, Boom, Dipper Arm, Bucket |

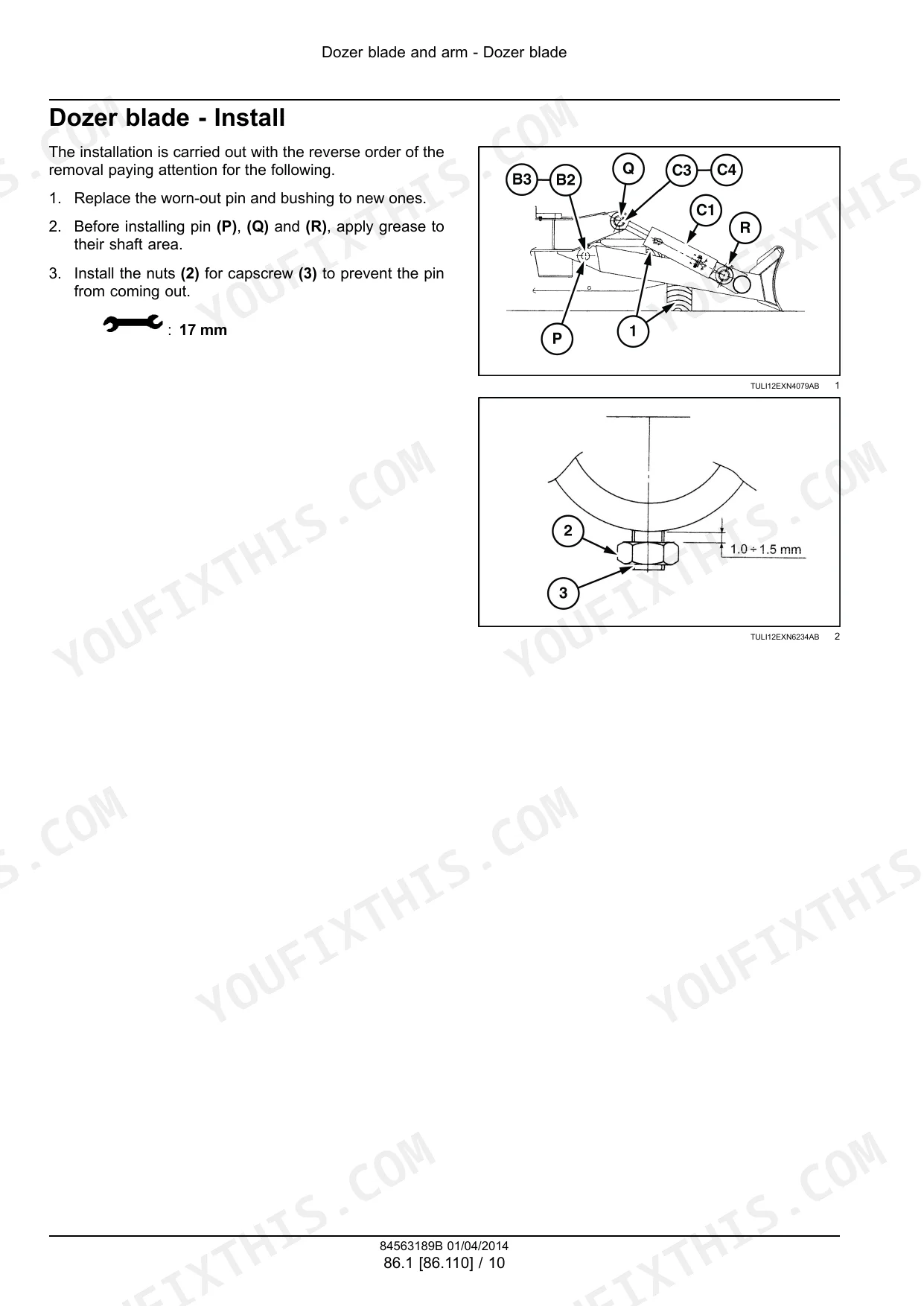

| Dozer Blade and Arm | 1023-1036 | Dozer Blade Dimensions, Pin and Bushing Service Limits, Dozer Blade Removal and Installation |
| Platform, Cab, Bodywork and Decals | 1037-1075 | Cab, Operator Platform Less Cab, ROPS Frame Canopy, Machine Shields and Guards, Fenders, Special Tool Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum engine power | 16.5 kW (22.4 Hp) at 2200 RPM | p. 24 |
| Engine model | Yanmar 3TNV82A-SYB | p. 24 |
| Engine total displacement | 1.331 l (0.352 US gal) | p. 24 |
| Fuel injection pressure | 19.6 - 29.6 MPa (2843 - 4293 psi) | p. 59 |
| Lubrication oil pressure | 0.392 MPa (57 psi) at 2200 RPM | p. 59 |
| Operating mass, E26B SR canopy | 2380 kg (5247 lb) | p. 25 |
| Operating mass, E26B SR cab | 2700 kg (5952 lb) | p. 25 |
| Operating mass, E29B SR canopy | 2700 kg (5952 lb) | p. 25 |
| Operating mass, E29B SR cab | 2840 kg (6261 lb) | p. 25 |
| Fuel tank capacity | 28 l (7.40 US gal) | p. 233 |
| Hydraulic oil tank capacity | 20 l (5.3 US gal) | p. 394 |
| Hydraulic system total volume | ~ 38 l (10 US gal) | p. 28 |
| Main relief P1, P2 | 23 - 23.5 MPa (3336 - 3409 psi) at 26.4 l/min (7.0 US gpm) | p. 451 |
| Main relief P3 | 23.0 - 23.5 MPa (3336 - 3409 psi) at 14.3 l/min (3.8 US gpm) | p. 451 |
| Travel hydraulic motor set pressure | 23 MPa (3336 psi) | p. 590 |
| Slew relief set pressure, E29B SR | 18.5 MPa (2683 psi) | p. 553 |
| Boom length, E26B SR | 1880 mm (74.02 in) | p. 985 |
| Boom length, E29B SR | 2150 mm (84.65 in) | p. 985 |
| Dozer stroke (up/down), E26B SR | 425 mm (17 in) / 290 mm (11 in) | p. 24 |
| Dozer stroke (up/down), E29B SR | 445 mm (18 in) / 336 mm (13 in) | p. 24 |
New Holland E26B SR, E29B SR Common Problems This Manual Covers
Measured compression pressure is below the limit value
Before you blame rings or valves, start where the troubleshooting chart in the Engine section starts: the air cleaner element. Clean the element and retest compression. If it still reads low, work down the chart to the next items.
Manual Section: Engine - Measured value and troubleshooting p. 125Every attachment is slow, has poor power or does not respond
When every function goes weak at once, the stacked control valve troubleshooting chart points to a relief valve malfunction. Measure the relief valve pressure with the procedures in the pressure and performance tests. Compare your reading to the printed main relief setting for P1 and P2, 23 - 23.5 MPa (3336 - 3409 psi) at 26.4 l/min (7.0 US gpm).
Manual Section: Stacked control valves - Troubleshooting p. 492Pedal control damping does not work
When the pedal damping does not work, the pedal control troubleshooting chart lists air trapped in the piston chamber. Bleed it out by working the pedal through its travel several times, then check the damping again.
Manual Section: Pedal control - Troubleshooting p. 538External oil leakage at the hydraulic swivel
Oil weeping from the hydraulic swivel in the middle of the undercarriage is traced by the hydraulic swivel troubleshooting chart to a defective O-ring. The troubleshooting chart says to replace all of the seal parts, not just the one that is leaking. Use the hydraulic central joint procedures for removal, disassembly and reassembly.
Manual Section: Hydraulic swivel - Troubleshooting p. 656Frequently Asked Questions
Which New Holland mini excavators does this service manual cover?
This is New Holland service manual 84563189B, printed in English in April 2014. It covers the E26B SR and E29B SR mini excavators, in both the canopy and cab versions of each model. p. 1
What are the fuel tank and hydraulic capacities of the New Holland E26B SR, E29B SR mini excavator?
The fuel tank holds 28 l (7.40 US gal). The hydraulic oil tank holds 20 l (5.3 US gal). The whole hydraulic system holds about 38 l (10 US gal). p. 233
What engine do the E26B SR and E29B SR use and how much power does it make?
Both models use the Yanmar 3TNV82A-SYB. It makes a maximum of 16.5 kW (22.4 Hp) at 2200 RPM from a total displacement of 1.331 l (0.352 US gal). p. 24
What are the main relief and travel motor pressure settings on the New Holland E26B SR, E29B SR mini excavator?
Main relief P1 and P2 is 23 - 23.5 MPa (3336 - 3409 psi) at 26.4 l/min (7.0 US gpm). Main relief P3 is 23.0 - 23.5 MPa (3336 - 3409 psi) at 14.3 l/min (3.8 US gpm). The travel hydraulic motor is set at 23 MPa (3336 psi). On the E29B SR, slew relief is set at 18.5 MPa (2683 psi). p. 451
Does the manual include hydraulic schematics and electrical wiring diagrams?

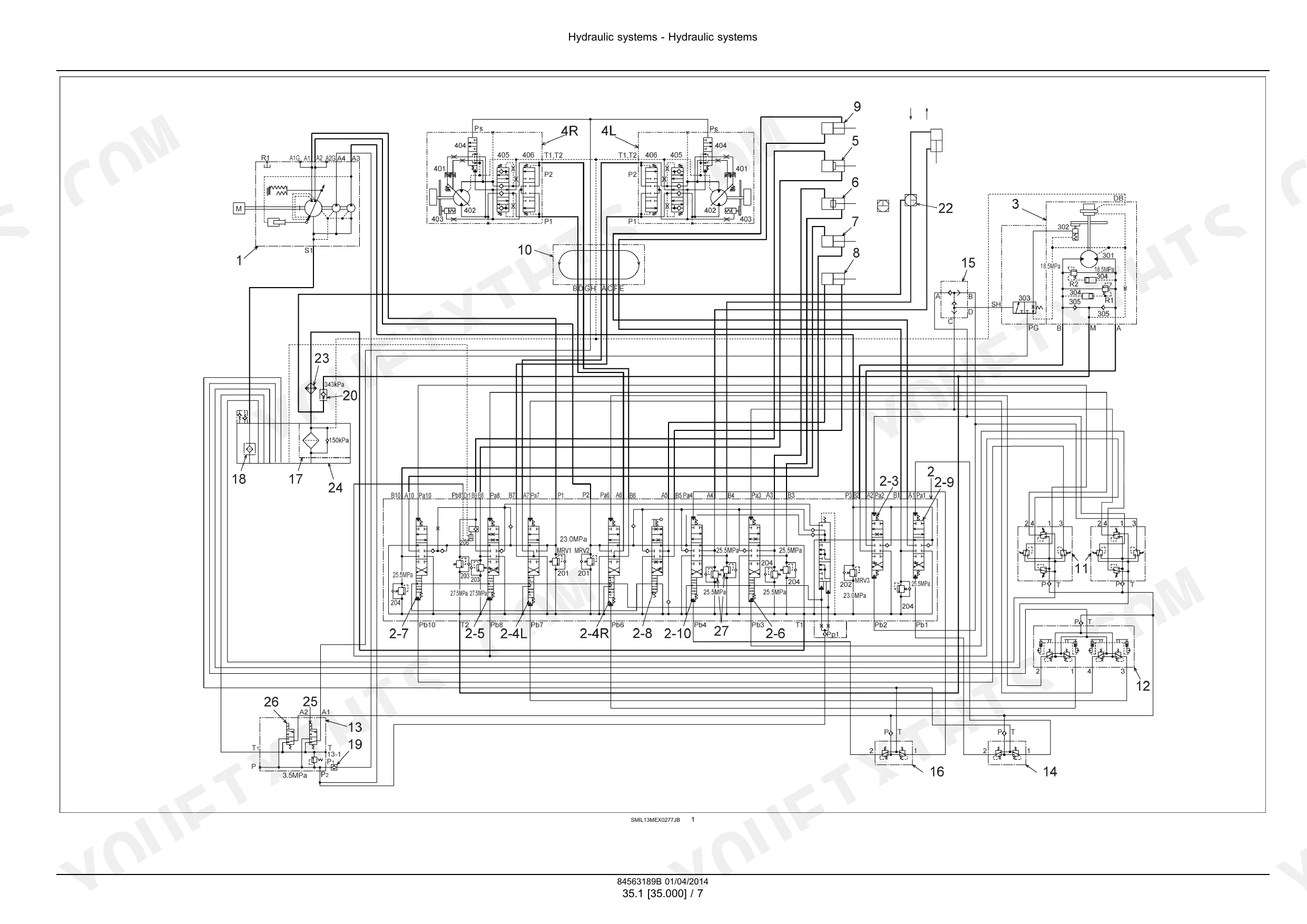

Yes. The hydraulic systems section has the standard specification hydraulic schematic, the hydraulic circuit operation diagrams, schematic piping and the boom and arm safety valve lines. The electrical systems section has the electrical schema, the upper frame wiring schema and the electrical troubleshooting. p. 321
