Within the hour you might be draining the Powershuttle box, pulling the radiator or chasing a slow bucket on a B95C, B95CTC, B95CLR or B110C. This New Holland Tier 4 Loader Backhoe service manual, part number 84596886A, 1st edition English from May 2012, covers that work.
The book gives you the engine ratings for both power levels, the fluid fills and the 210 bar loader main relief setting for mechanical controls. It also has hydraulic and electric diagrams and tables of engine and transmission error codes.
Buy it once and it stays yours, on the bench or behind the seat, for as long as you run this machine.
What's Inside This New Holland B95C, B95CTC, B95CLR, B110C Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Safety Rules | 1-11 | Model Applicability, Safety Symbols, Intended Use, Personal Protection, Fire and Explosion Prevention, Waste Disposal |
| Maintenance | 12-19 | Service Preparation, Machine Immobilization, Pressure Release, Welding Precautions, Tyre Servicing, Fitting and Hardware Torques, Sealants |
| Technical Specifications | 20-51 | Model Configurations, Diesel Engines, Transmissions and Axles, Brakes and Steering, Hydraulic Pumps, Tyres, Dimensions, Fluid Capacities |

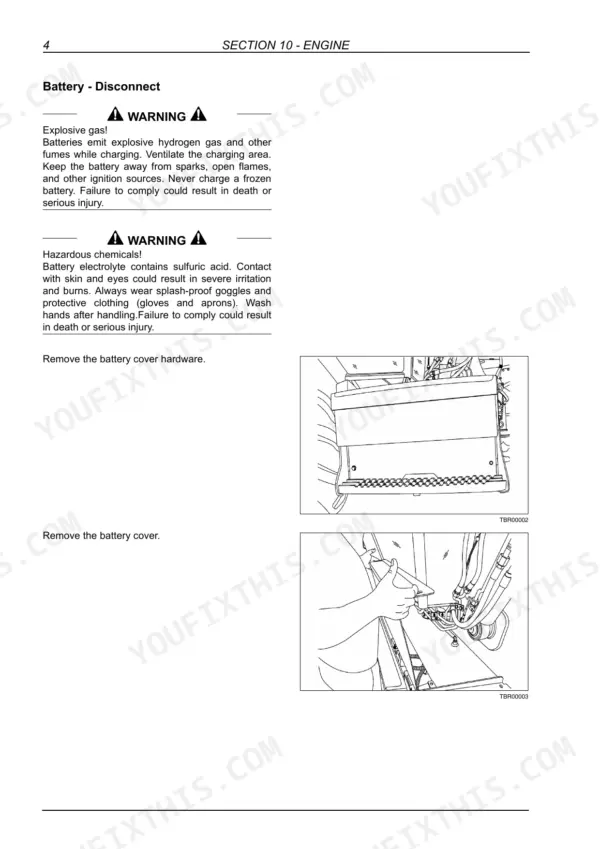

| Engine | 52-101 | Battery Disconnection, Engine Hood Removal, Radiator Removal, Engine Removal and Installation, Engine Error Codes |
| Powershuttle Transmission | 102-266 | Transmission Contents, Specifications, Travel Controls, Lubrication, Removal and Assembly, Clutch and Brake Servicing, Troubleshooting, Error Codes |
| Powershift Transmission | 267-449 | Specifications, Shift Controls, Lubrication, Removal and Assembly, Clutch and Brake Servicing, Troubleshooting, Error Codes, Special Tools |

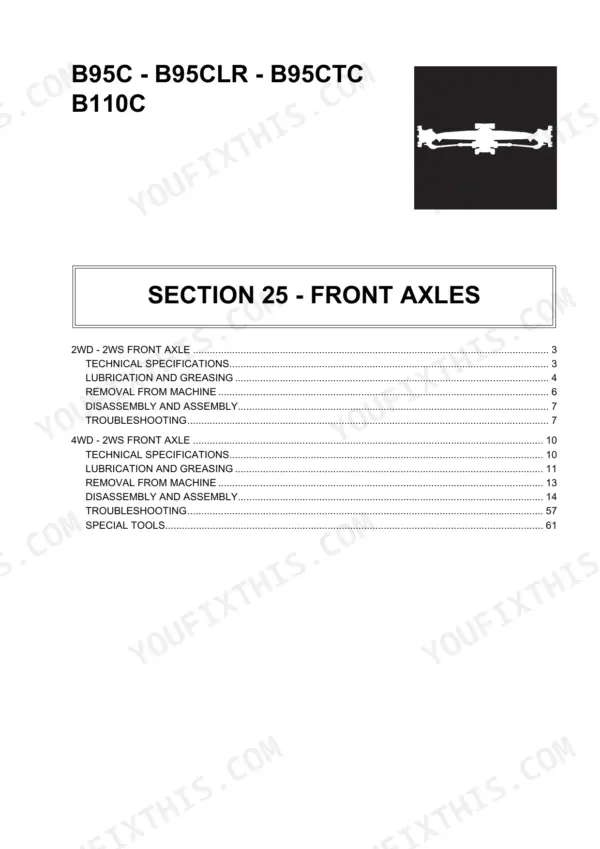

| Front Axles | 450-511 | 2WD Front Axle, 4WD Front Axle, Lubrication and Greasing, Axle Removal, Disassembly and Assembly, Troubleshooting |
| Rear Axle | 512-643 | B95C and B95CTC Axle, B110C Axle, Lubrication, Axle Removal, Differential and Reduction Gears, Troubleshooting |

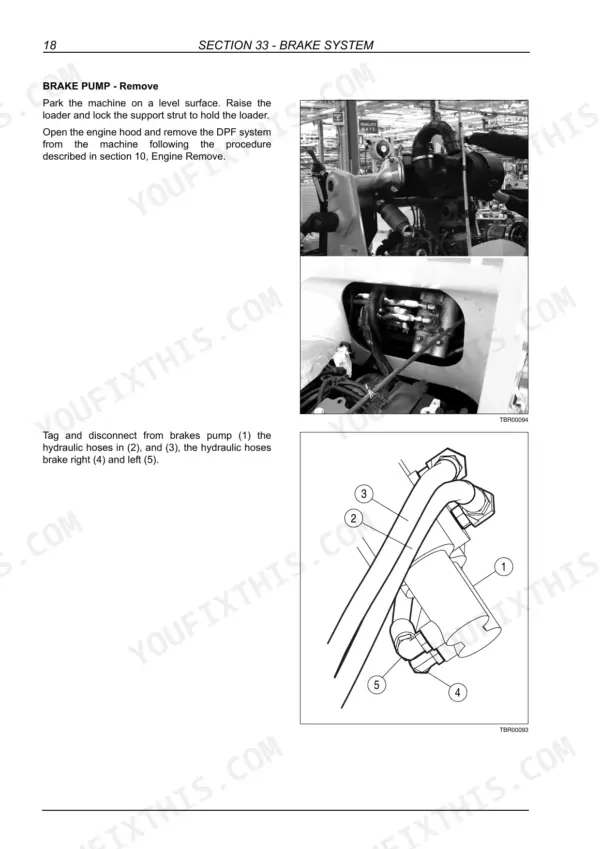

| Brake System | 644-667 | Parking Brake, SAHR Operation, Emergency Brake Release, Brake Disassembly, Service Brakes, Brake Pump |
| Hydraulic System | 668-803 | Hydraulic Diagrams, Gear and Piston Pumps, Loader and Backhoe Control Valves, Relief Valves, Ride-Control Accumulator, Swing System, Cylinders, Troubleshooting |

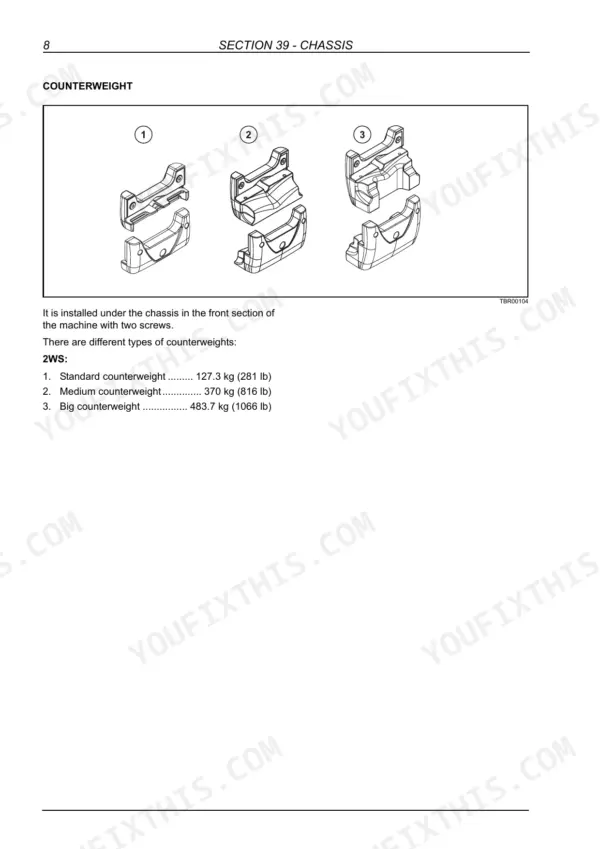

| Chassis | 804-815 | Chassis Description, Internal, Lower, External and Upper Chassis Components, Removal and Installation |
| Steering System | 816-835 | 2WS Steering, Power Steering, Specifications, Steering Components, Disassembly and Assembly |

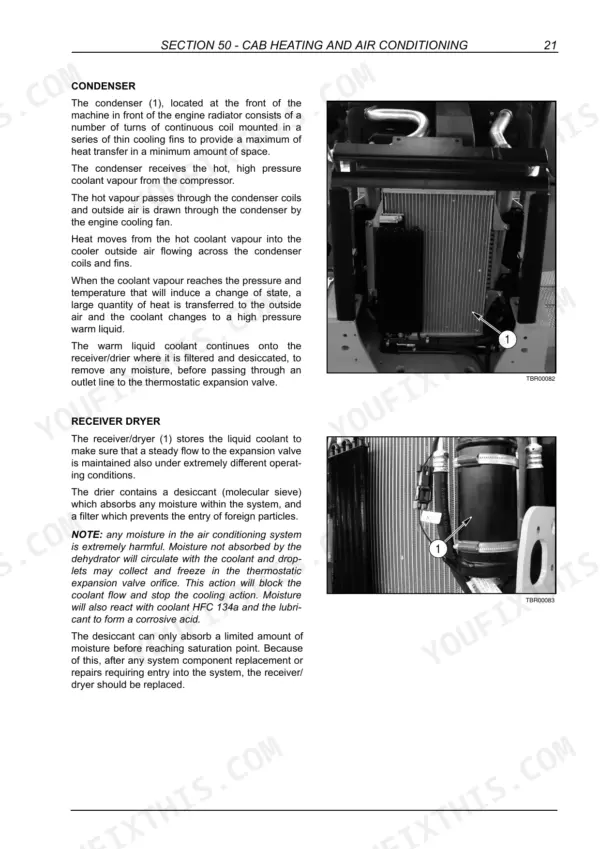

| Cab Heating and Air Conditioning | 836-901 | Cab Heating, Air-Conditioning Principles, Controls, Fault Finding and Testing, Flushing, Draining and Charging, Compressor, Troubleshooting |
| Electric System | 902-1013 | Electrical Diagrams, Fuses and Relays, Controls and Instruments, Diagnostic Display, On-Board Code Retrieval, Starting System, Alternator, Battery |
| Loader | 1014-1035 | Loader Controls, 4x1 Bucket, Bucket Self-Levelling, Safety Struts, Bucket Replacement, Quick Coupler, Loader Removal |

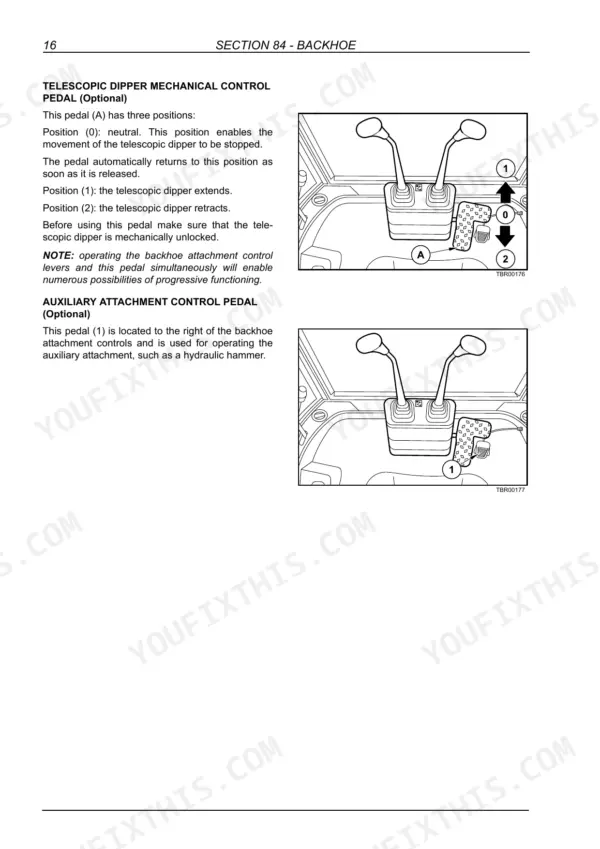

| Backhoe | 1036-1067 | Mechanical and Pilot Controls, Attachment Disassembly, Bucket Replacement, Bucket Teeth, Dipper Removal, Telescopic Dipper Overhaul |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine power, B95C, B95CLR, B95CTC | 72 kW - 97 HP @ 2200 rpm | p. 24 |
| Engine power, B110C | 82 kW - 110 HP @ 2200 rpm | p. 25 |
| Maximum torque, B95C, B95CLR, B95CTC | 453 Nm (334 lbf·ft) @ 1400 rpm | p. 24 |
| Maximum torque, B110C | 516 Nm (380 lbf·ft) @ 1400 rpm | p. 25 |
| Low idle speed at no load | 1000 ± 50 rpm | p. 24 |
| Engine oil with filter | 8 litres (2.11 gal) | p. 51 |
| Cooling system | 24 litres (6.30 gal) | p. 51 |
| Hydraulic system | 118 litres (31.10 gal) | p. 51 |
| Powershuttle transmission oil, 2WD | 18.5 litres (4.07 gal) | p. 115 |
| Powershuttle transmission oil, 4WD | 20.8 litres (4.57 gal) | p. 115 |
| Powershift transmission oil, B110C | 20.8 litres (4.57 gal) | p. 278 |
| Steering system pressure | 170 ÷ 175 bar (2465 ÷ 2538 psi) | p. 28 |
| Parking brake release pressure | 13.5 ÷ 18 bar (196 ÷ 261 psi) | p. 646 |
| Loader main system relief valve, mechanical controls | 210 bar (3045 psi) | p. 705 |
| Telescopic dipper relief valve, pilot controls | 124 bar (1798 psi) | p. 719 |
| Front wheel nut torque | 330 Nm (243 lbf·ft) | p. 31 |
| Rear wheel nut torque | 540 Nm (398 lbf·ft) | p. 31 |
| Front tyre option | 12-16.5 R4 10PR | p. 31 |
| Rear tyre option | 19.5L-24 R4 10PR | p. 31 |
New Holland B95C, B95CTC, B95CLR, B110C Common Problems This Manual Covers
Powershuttle gear fails to engage
The Powershuttle Transmission troubleshooting table lists a damaged gearshift lever as a cause, and the fix is to replace the gearshift lever. The travel controls and removal and assembly pages in the same chapter show how the lever and its controls are assembled.
Manual Section: Section 21 - Transmission - Powershuttle Transmission - Troubleshooting p. 260Powershuttle transmission overheating
The Powershuttle Transmission troubleshooting table names an unintentionally activated parking brake as a cause of overheating, and the remedy is to deactivate it. The Brake System chapter covers the parking brake and SAHR operation, with a release pressure of 13.5 ÷ 18 bar (196 ÷ 261 psi).
Manual Section: Section 21 - Transmission - Powershuttle Transmission - Troubleshooting p. 258Loader bucket fails to operate, is slow or has loss of power
The Hydraulic System troubleshooting for Husco control valves points at the system relief valves: stuck open, set too low or leaking at the seat. The check it calls for is the bucket system relief valve test. The loader control valve pages in the same chapter give the main system relief valve setting of 210 bar (3045 psi) for mechanical controls.
Manual Section: Section 35 - Hydraulic System - Troubleshooting (with Husco control valves) - Loader p. 800All backhoe systems fail to operate, are slow or have loss of power
If the supply system is performing normally, the Hydraulic System troubleshooting for Husco backhoe control valves sends you to the regenerative check valve in the control valve outlet end cover. It can stick open or leak at the seat. The remedy the table prints is to examine the regenerative check valve; the backhoe attachment control valve pages are in the same chapter.
Manual Section: Section 35 - Hydraulic System - Troubleshooting (with Husco control valves) - Backhoe p. 801Frequently Asked Questions
Which New Holland loader backhoes does this service manual cover?
It covers the B95C, B95CTC, B95CLR and B110C Tier 4 Loader Backhoes. The book is New Holland part number 84596886A, 1st edition English, dated May 2012. The model table puts B95C and B95CLR in one column. No serial number ranges are printed, so go by the model name on your machine. p. 1
What engine power do the different models have?
B95C, B95CLR and B95CTC run the Iveco 72 kW - 97 HP engine, rated 72 kW - 97 HP @ 2200 rpm. Maximum torque is 453 Nm (334 lbf·ft) @ 1400 rpm. The B110C gets the Iveco 82 kW - 110 HP engine, rated 82 kW - 110 HP @ 2200 rpm, with 516 Nm (380 lbf·ft) @ 1400 rpm. p. 24
How much transmission oil does the manual specify?
The Powershuttle takes 18.5 litres (4.07 gal) on a 2WD machine and 20.8 litres (4.57 gal) on a 4WD machine. The Powershift on the B110C takes 20.8 litres (4.57 gal). Check whether your machine is 2WD or 4WD before you pour, because the Powershuttle fills differ. p. 115
What relief valve pressures does the manual give for the loader and backhoe?
On the loader control valve with mechanical controls, the main system relief valve is set at 210 bar (3045 psi). On the backhoe control valve with pilot controls, the telescopic dipper relief valve is 124 bar (1798 psi). These are different valves on different control setups, so do not mix the two numbers up at the gauge. p. 705
Does the manual include electrical and hydraulic diagrams and error codes?

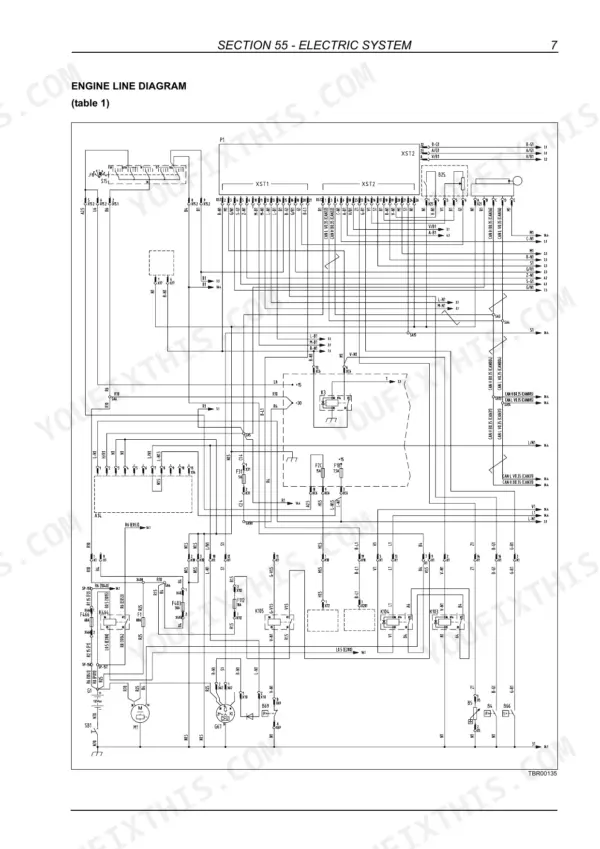

Yes. The hydraulic system section opens with hydraulic diagrams, including 2WS center pivot and B95CTC versions. The electric section has diagrams for Powershuttle ROPS, Powershuttle Cab and Powershift Cab (B110C) machines, plus line diagrams such as the engine line diagram and the transmission control unit line diagram. Engine, Powershuttle and Powershift error codes are tabulated, for example 3028 Oil Pressure Too Low and 4200 First shift solenoid shorted to ground. The book also explains how to pull codes on board through the display. p. 904
