Part of the New Holland Repair Manuals.
Pull the right numbers for a New Holland B95C, B95C LR, B95C TC or B110C backhoe loader from the factory service manual, part number 48038049. This 1st edition from November 2016 covers Tier 4B (final) machines. The B95C, B95C LR and B95C TC start at PIN NGHH02222, and the B110C starts at PIN NGHH02228.
It covers the FPT 3.4 l HPCR diesel with SCR/DEF, both the power shuttle and powershift transmissions, the axles, brakes, loader and backhoe valves, cab climate and a large fault code section. Fold-out electrical and hydraulic schematic posters are at the back of the book.
Each system has its own section with troubleshooting tables, and a special tool index lists the service tools by part number.
What's Inside This New Holland B95C, B95C LR, B95C TC, B110C Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-101 | Model Applicability, Safety Rules, Fluid Capacities, Engine Specifications, Attachment Performance, Identification Plates |

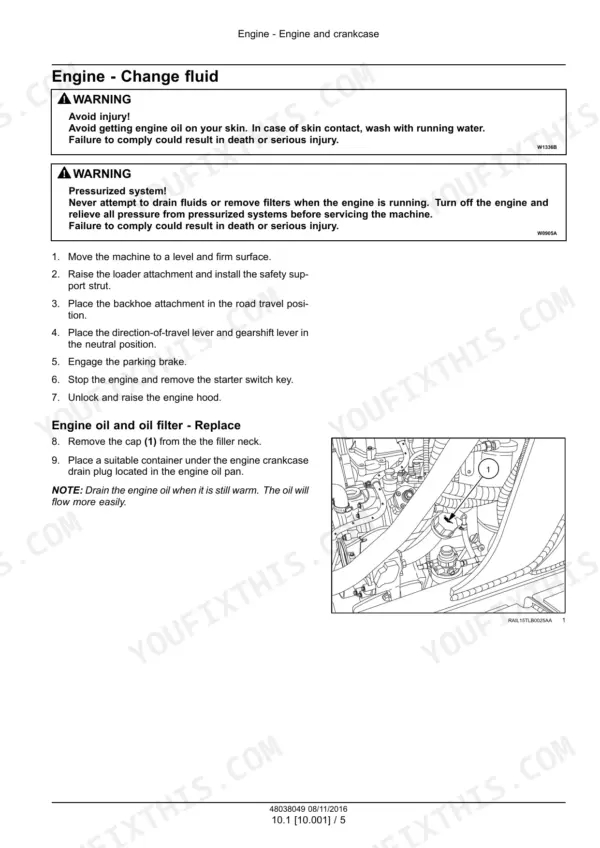

| Engine | 102-221 | Engine Removal and Installation, Crankcase Lubrication, Fuel Tanks and Filters, Fuel Injection, SCR/DEF Inducement, Cooling System, Fan Drive |
| Power Shuttle Transmission | 222-429 | Power Shuttle Specifications, Transmission Housing, External Controls, Control Valve Modulation, Oil Pump and Filters, Drive and Driven Shafts, Troubleshooting |
| Powershift Transmission | 430-659 | Powershift Specifications, Fault Code Index, Shift Control Valve, Lubrication Pump, Clutch Packs, Shaft Assemblies, Shifting Disk System |
| Front Axle | 660-735 | Powered and Non-Powered Front Axles, Bevel Gears and Differential, Steering Knuckles, Planetary Hubs |
| Rear Axle | 736-847 | Bevel Gears and Differential, Rear Final Drives, Differential Lock |

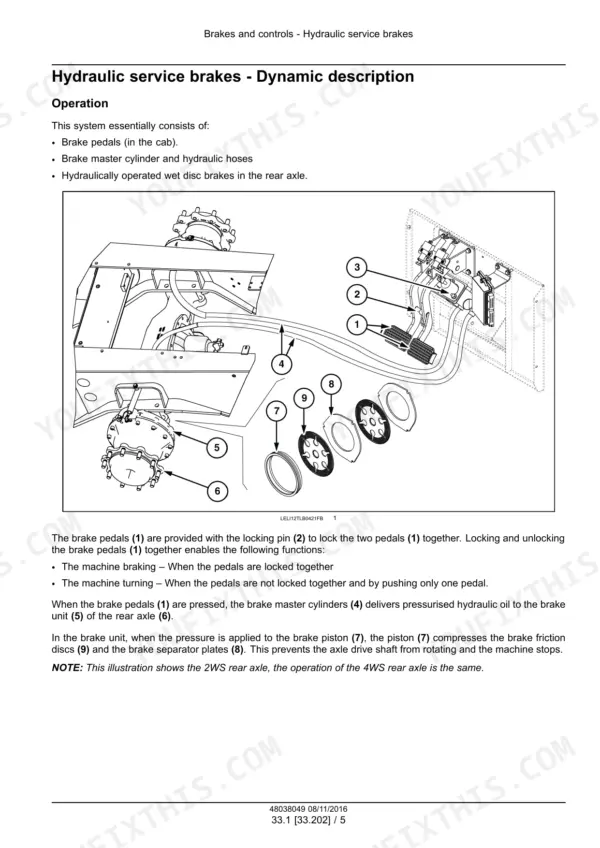

| Brakes and Controls | 848-905 | Hydraulic Service Brakes, Master Cylinder, Brake Discs, Parking Brake, Brake Adjustment, Brake Removal and Assembly |
| Hydraulic Systems | 906-1145 | Hydraulic Schematic Frames, Reservoir and Filters, Fixed and Variable Displacement Pumps, Relief Valves, Loader and Backhoe Control Valves, Hydraulic Cylinders, Troubleshooting |
| Frames, Steering and Wheels | 1146-1219 | Frame Removal, Counterweights, Steering Control, Hydraulic Control Components, Steering Pump, Front and Rear Wheels, Tire Inflation, Wheel Fastening |

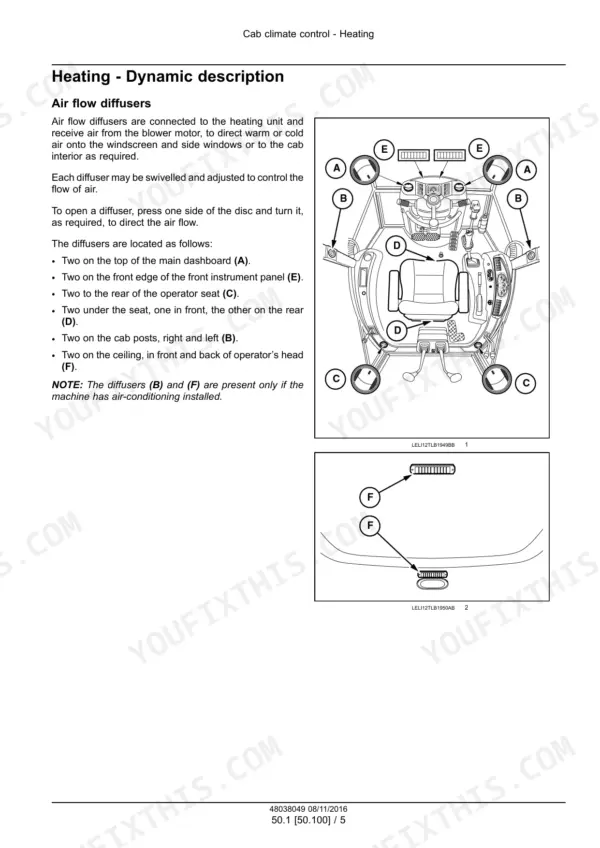

| Cab Climate Control | 1220-1323 | Heating Circuit, Water Valve Calibration, Ventilation Filters, Air Conditioning Cycle, Refrigerant Service, Compressor, Evaporator, Troubleshooting |
| Harnesses and Connectors | 1324-1370 | Electrical Failure Modes, Connector Inspection, Harness Repair, Harness Routing, Ground Connections, Schematic Item Legends |

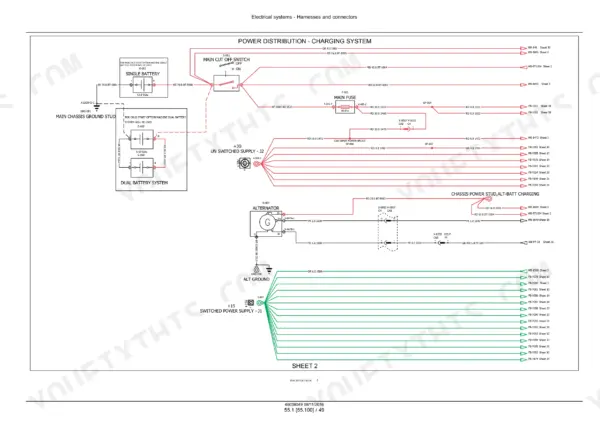

| Electrical Schematic Sheets | 1371-1559 | Powershift Cab, Power Shuttle Cab and Power Shuttle Canopy Schematic Sheets, Power Distribution, Engine ECU Connections, SCR Pre-Start Circuits, CAN Diagnostics |
| Wire Connector Component Diagrams | 1560-1745 | Connector Pin Numbers, Wire Numbers, Circuit References, Schematic Frame References, Engine and Cab Harness Interfaces, SCR Connectors |
| Starting and Charging | 1746-1777 | Starting Circuit Checks, Starter Removal and Installation, Starter Motor Troubleshooting, Alternator Testing, Battery Replacement, Battery Disconnection and Connection |
| SCR Electrical, Modules and Lighting | 1778-1799 | DEF Dosing Module Removal and Installation, CAN Data Bus, Electronic Modules, Front Work Light Switch Testing, Flasher Relay Testing |
| Instrument Cluster and Cab Electrics | 1800-1841 | Auxiliary Power Sockets, Instrument Cluster Gauges, LCD Menus, Hour Meter, Engine Throttle Settings, Engine Protection Shutdown, Auto-Glide Ride Control, FleetForce Telematics |

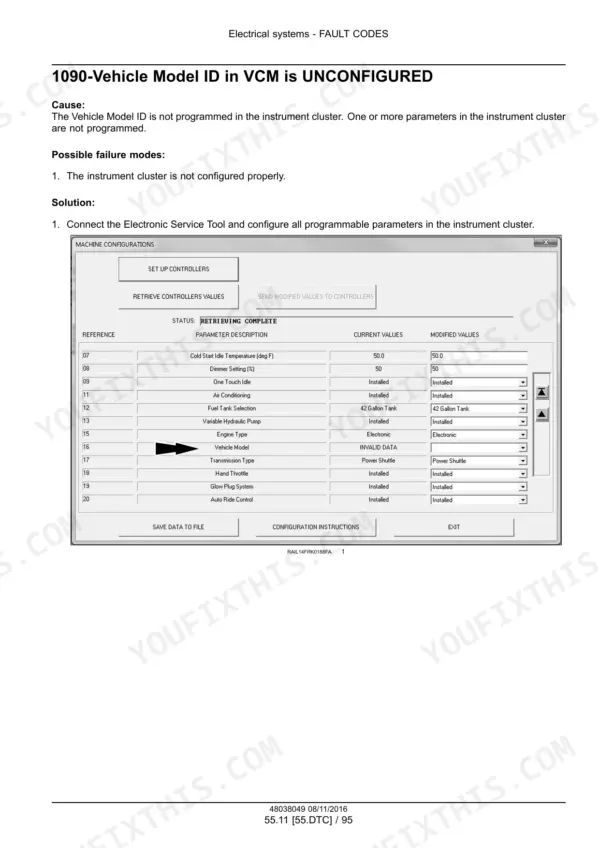

| Fault Codes (DTC) | 1842-2601 | Engine, Transmission Temperature, Throttle Sensor, CAN Communication, SCR/DEF and Heater Circuit Fault Codes, Diagnostic Measurements, Repair Verification |
| Front Loader and Bucket | 2602-2629 | Loader Arm Operation, Removal and Installation, Loader Controls, Bucket Removal, Bucket Self-Levelling, Bucket Teeth, Loading Bucket Fork Installation |

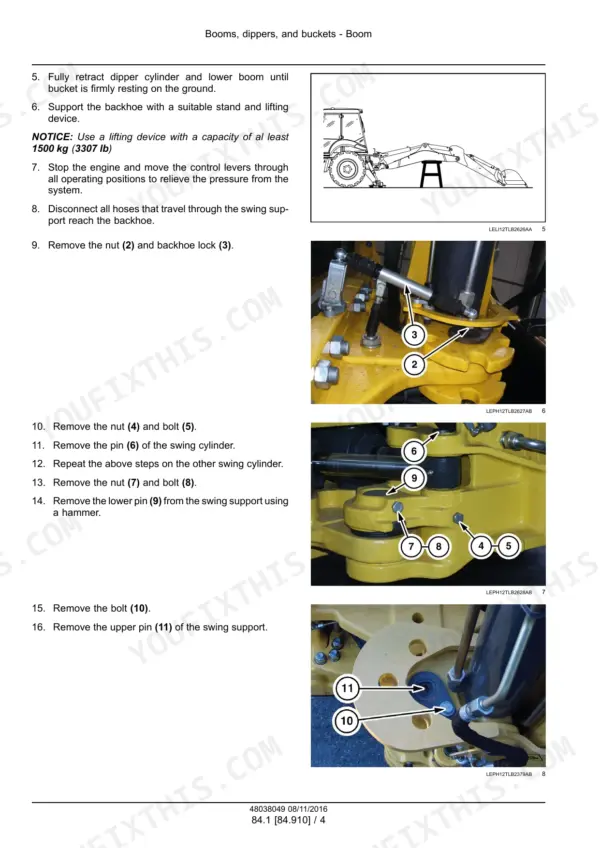

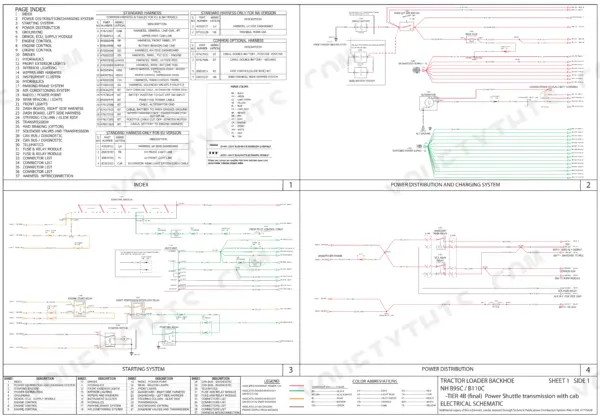

| Booms, Dippers and Buckets | 2630-2655 | Boom Disassembly, Dipper Arm Removal, Backhoe Bucket Removal and Installation, Bucket Digging Angle, Bucket Teeth Replacement |
| Platform, Cab and Bodywork | 2656-2665 | Engine Hood Removal and Installation, Hood Adjustment Test, Hood Latch Bracket and Latch Bolt Adjustment |
| Special Tool Index | 2666-2677 | Tool Part Numbers, Engine, Transmission, Front Axle and Rear Axle Service Tools, Service-Operation Page References |
| Electrical and Hydraulic Schematic Posters | 2678-2707 | Power Shuttle Cab Poster 47775438, Powershift Cab Poster 47775439, Power Shuttle Canopy Poster 47775440, Pilot-Control and Mechanical-Control Hydraulic Poster 47787159 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine crankcase oil with filter change | 8.0 L (8.5 US qt) | p. 69 |
| Fuel tank capacity | 131.0 L (34.6 US gal) | p. 69 |
| DEF/AdBlue tank capacity | 13.2 L (3.5 US gal) | p. 69 |
| Cooling system, with or without heater | 24.0 L (25.4 US qt) | p. 69 |
| Hydraulic system total, B95C / B95C LR / B95C TC | 106 L (28 US gal) | p. 69 |
| Hydraulic system total, B110C | 132.4 L (35.0 US gal) | p. 71 |
| Hydraulic reservoir refill to sight glass line | 51.2 L (13.5 US gal) | p. 69 |
| Power shuttle transmission total system, 4WD | 20.8 L (22.0 US qt) | p. 69 |
| Powershift transmission total system, 4WD | 18.0 L (19.0 US qt) | p. 69 |
| Gross horsepower at 2200 RPM, B95C / B95C LR / B95C TC | 72 kW (98 Hp) | p. 79 |
| Gross horsepower at 2200 RPM, B110C | 82 kW (111 Hp) | p. 80 |
| Gross peak torque at 1400 RPM, B95C / B95C LR / B95C TC | 459 N·m (339 lb ft) | p. 79 |
| Gross peak torque at 1400 RPM, B110C | 467 N·m (344 lb ft) | p. 80 |
| Engine displacement | 3.4 l (207.5 in³) | p. 79 |
| Rated speed, full load | 2200 RPM | p. 79 |
| Loader main relief pressure (fixed displacement pump) | 205 bar (2972 psi) +/- 3 bar (44 psi) | p. 952 |
| Swing relief pressure (fixed displacement pump) | 207 bar (3002 psi) +/- 3 bar (44 psi) | p. 952 |
| Front tires, B95C / B110C with standard bucket | 12.5-18 SLR4 | p. 86 |
| Open center gear pump to engine bolts (2) | 105.0 N·m (77.4 lb ft) | p. 961 |
| Front loader arm fastening screws | 500 N·m (369 lb ft) | p. 2611 |
New Holland B95C, B95C LR, B95C TC, B110C Common Problems This Manual Covers
Fault code 19264-DEF/AdBlue tank heater actuator open load failure
In the Fault Codes (DTC) section, code 19264 points to an internal failure in the DEF/AdBlue tank heating valve Y-9102. Measure resistance between Y-9102 pin 1 and pin 3. It should read 11 - 16 Ω. If it reads outside that range, replace the heating valve. The Wire Connector Component Diagrams chapter gives the connector pin numbers.
Manual Section: FAULT CODES - 19264 DEF/AdBlue tank heater actuator open load failure p. 2531Power shuttle transmission overheating
The Power Shuttle Transmission troubleshooting table lists a damaged cooling system as a cause of overheating, and the fix is to repair the cooling system. Total power shuttle system capacity on 4WD machines is 20.8 L (22.0 US qt). The same chapter covers the oil pump and filters and control valve modulation.
Manual Section: Power shuttle transmission - Troubleshooting p. 289Foamy hydraulic oil
In Hydraulic Systems pump troubleshooting, the first cause listed for foamy oil is low oil level, and the remedy is to fill the tank. Refilling the reservoir to the sight glass line takes 51.2 L (13.5 US gal). The pump chapter also gives the loader main relief pressure for fixed displacement pump machines, 205 bar (2972 psi) +/- 3 bar (44 psi).
Manual Section: Hydraulic systems - Troubleshooting - Hydraulic pump p. 934Starter motor anomalous noise
Starter motor troubleshooting in the Starting and Charging section lists anomalous bushing wear as a cause of anomalous noise, and the fix is to replace the bushing. The same section covers starter removal and installation. It also gives the battery disconnection and connection procedure.
Manual Section: Engine starter - Troubleshooting - Starter motor p. 1762Frequently Asked Questions
Which backhoe loaders does the New Holland B95C / B110C Tier 4B service manual cover?
It covers the B95C, B95C LR, B95C TC and B110C Tier 4B (final) machines. The B95C, B95C LR and B95C TC start at PIN NGHH02222. The B110C starts at PIN NGHH02228. The variant list shows the B95C and B110C in 2WD and 4WD, and the B95C TC in 4WD only. Check the PIN on your machine against these ranges. p. 1
What is the engine power of the New Holland B95C and B110C?
The B95C, B95C LR and B95C TC make 72 kW (98 Hp) gross at 2200 RPM. The B110C makes 82 kW (111 Hp) gross at the same rated speed. Peak torque at 1400 RPM is 459 N·m (339 lb ft) on the B95C models and 467 N·m (344 lb ft) on the B110C. All of them use a 3.4 l (207.5 in³) four-cylinder turbocharged diesel. p. 79
What is the hydraulic system capacity of the New Holland B95C and B110C?
The total system holds 106 L (28 US gal) on the B95C, B95C LR and B95C TC, and 132.4 L (35.0 US gal) on the B110C. Refilling the reservoir to the sight glass line takes 51.2 L (13.5 US gal) on all of them. p. 69
How big are the fuel and DEF tanks on the New Holland B95C and B110C?
The fuel tank holds 131.0 L (34.6 US gal) and the DEF/AdBlue tank holds 13.2 L (3.5 US gal) on every model in the book. Engine oil with a filter change takes 8.0 L (8.5 US qt). The cooling system takes 24.0 L (25.4 US qt) with or without the heater. p. 69
Does the New Holland B95C / B110C manual include wiring diagrams, hydraulic schematics and fault codes?
Yes. It has electrical schematic sheets for the Powershift cab, Power Shuttle cab and Power Shuttle canopy builds, plus fold-out posters 47775438, 47775439 and 47775440. On the hydraulic side there are schematic frames 01 to 05 and poster 47787159, which covers pilot and mechanical controls. The DTC section lists codes such as 1001-Engine Air Filter Blocked, with diagnostic steps and measurements. p. 1371
