Part of the New Holland Repair Manuals.
Need the factory book for your New Holland TT60A or TT75A? This 708-page repair manual (OEM #84154805) covers both tractors from the engine hood panel down to the rear axle, and your fix is in here somewhere. Inside you get full wiring diagrams, hydraulic schematics for the entire hydraulic system, exploded parts views for every assembly, and a dedicated troubleshooting section that walks you through engine compression testing instead of guesswork. Torque tables run through every system: engine, clutch, transmission, front drive axle, PTO, and brakes. Real numbers back it up: oil consumption below 0.4% is normal, no repair needed, and the steering pump should rate 26.4 liters/min (7.0 gal/min). Your oil pressure warning light finally makes sense once you see page 6. Stop pulling panels blind and chasing forum threads for specs that don't match your machine. Bookmarked and searchable, so you jump straight to the Hydraulic Systems or Electrical section and get back under the tractor.
What's Inside This New Holland TT60A, TT75A Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 33-70 | Shimming, Rotating Shaft Seals, O-Rings, Sealers, Spring Pins, Bearings |

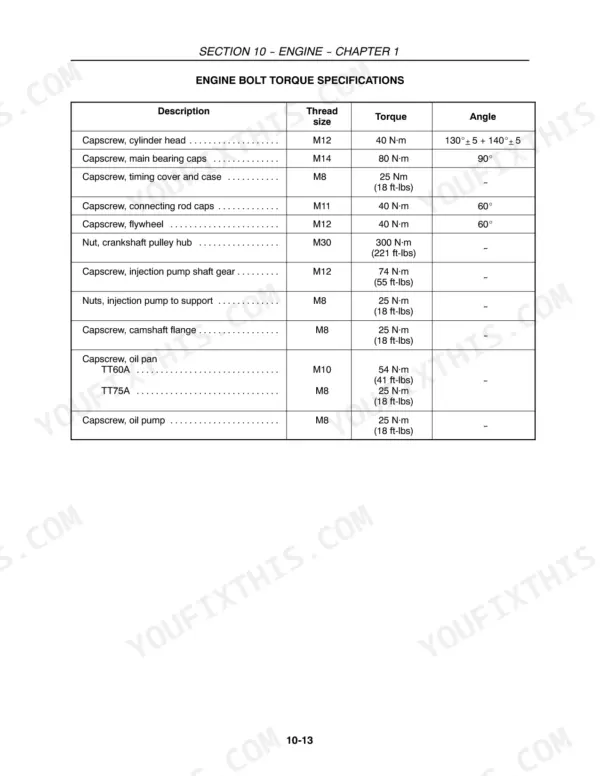

| Engine | 71-190 | Engine Bolt Torque Specifications, Engine Components, Engine Removal -- Installation, Engine Compression Test, Troubleshooting |
| Clutches | 191-228 | Sectional Views, Clutch Assembly, PTO Clutch Lever, Transmission Clutch Pedal Free-Travel and Adjustment, Tightening Torques |
| Transmission System | 229-272 | Shaft Seals, Adjusting Shims, Troubleshooting, Bearings, Tightening Torques |
| Front Drive Axle | 273-322 | Front Axle, Steering Knuckle Pins and Bearings, Bevel Drive Adjustments, Toe in Adjustment, Tightening Torques |
| Mechanical Rear Wheel Drive | 323-394 | Ring/Pinion and Differential Assembly, Differential Lock, Differential Unit, Adjustments and Settings, Tightening Torques |
| Secton 31 - Power Take-Off | 395-414 | Sectional View, PTO Clutch, PTO Shaft Assembly, PTO Brake, Tightening Torques |
| Braking System | 415-436 | Sectional Views -- Brake Control Assembly, Brake Pedals and External Linkages, Parking Brake Linkage, Brake Assembly, Tightening Torques |

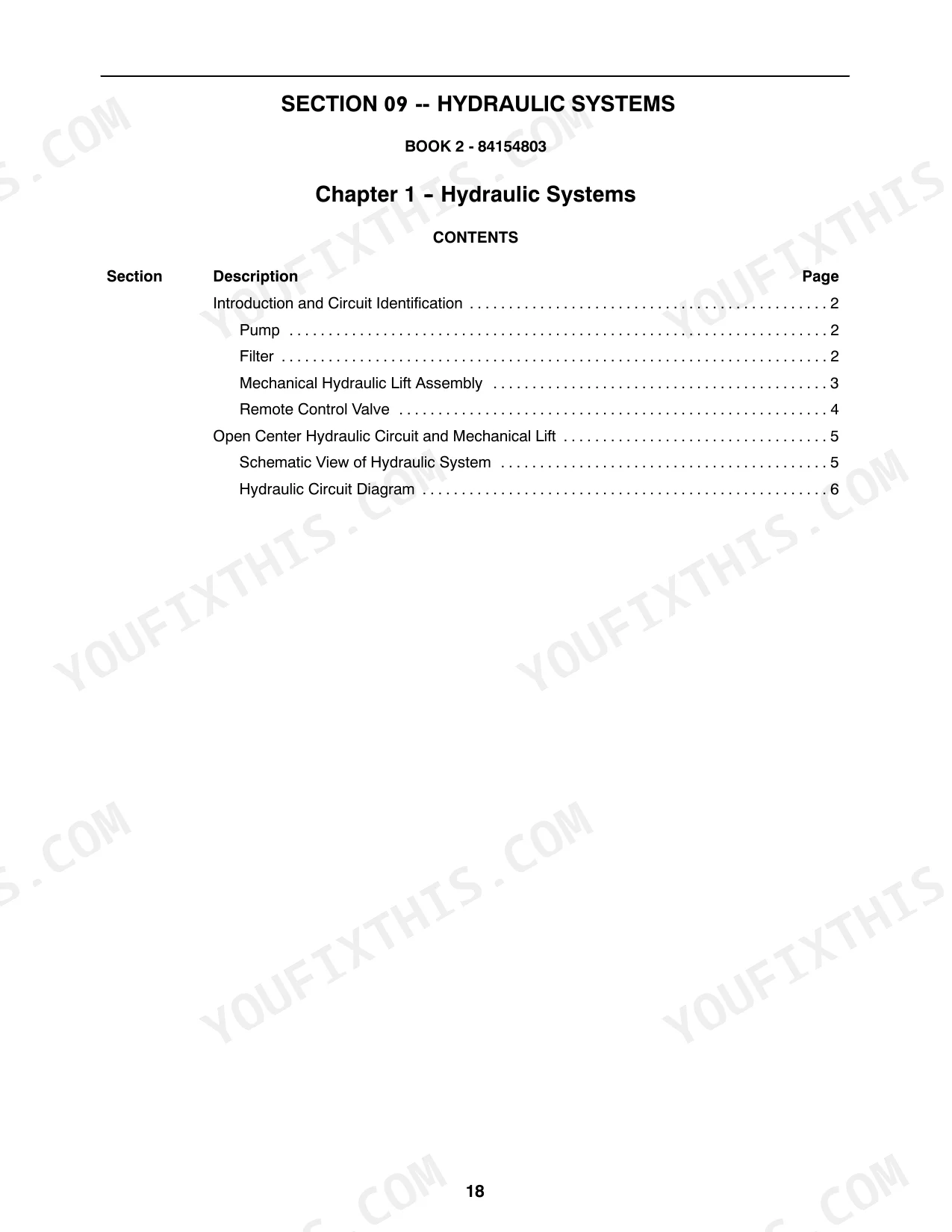

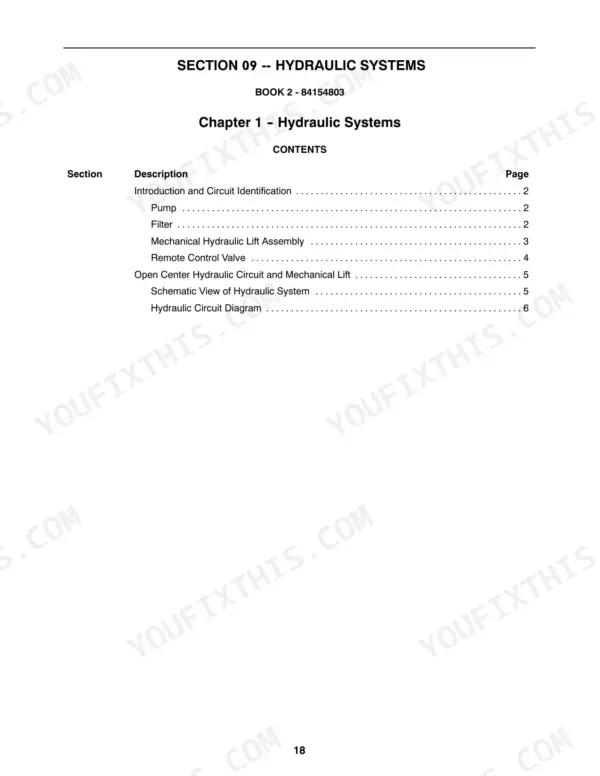

| Hydraulic Systems | 437-518 | - |
| Steering System | 519-564 | - |
| Front Axle | 565-586 | - |
| Electrical System | 587-700 | - |
| Bodywork | 701-708 | - |
Every system also includes specifications.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Oil Pressure Warning System | 108 | p. 6 |
| oil consumption | below 0.4% | p. 109 |
| Front Axle Pinion-ring gear ratio | 9/38 = 1:4.2 | p. 274 |
| Steering Pump Rated Output | 26.4 liters/min (7.0 gal/min) | p. 521 |
New Holland TT60A, TT75A Common Problems This Manual Covers
New Holland TT60A engine burns oil fast and puffs blue exhaust smoke between scheduled services
Run the engine troubleshooting checks for excessive oil consumption complaints. Perform a ring and valve seal inspection if consumption tracks above the 0.4% threshold on page 109; below that, no repair action is needed per the manual, and smoke likely traces to an overfilled sump or clogged breather. Drain and refill to the correct level before retesting.
Manual Section: EngineFront tires wear unevenly and the tractor feels unstable at highway speeds
Check toe-in adjustment and steering knuckle pins in the Front Drive Axle section starting page 273. Confirm the pinion-ring gear ratio matches the factory 9/38 (1:4.2) spec on page 274; a mismatched ring and pinion changes the final drive ratio and causes uneven tire scrubbing. Reset toe-in to spec and torque the tie rod clamps before road testing.
Manual Section: Front Drive Axle p. 274Steering wheel feels heavy and slow to respond at low engine RPM
Check the Steering System troubleshooting section starting page 519 for hard or slow steering. Measure pump output at the test port; rated flow is 26.4 liters/min (7.0 gal/min) per the spec on page 521. If flow reads well below that, inspect the pump drive coupling for wear and check the relief valve spring before replacing the pump.
Manual Section: Steering System p. 521Frequently Asked Questions
Is this New Holland TT60A, TT75A Repair Manual a digital download?
Immediate download of the complete 708-page scanned Repair Manual (44 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this New Holland TT60A, TT75A manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this New Holland TT60A, TT75A manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
