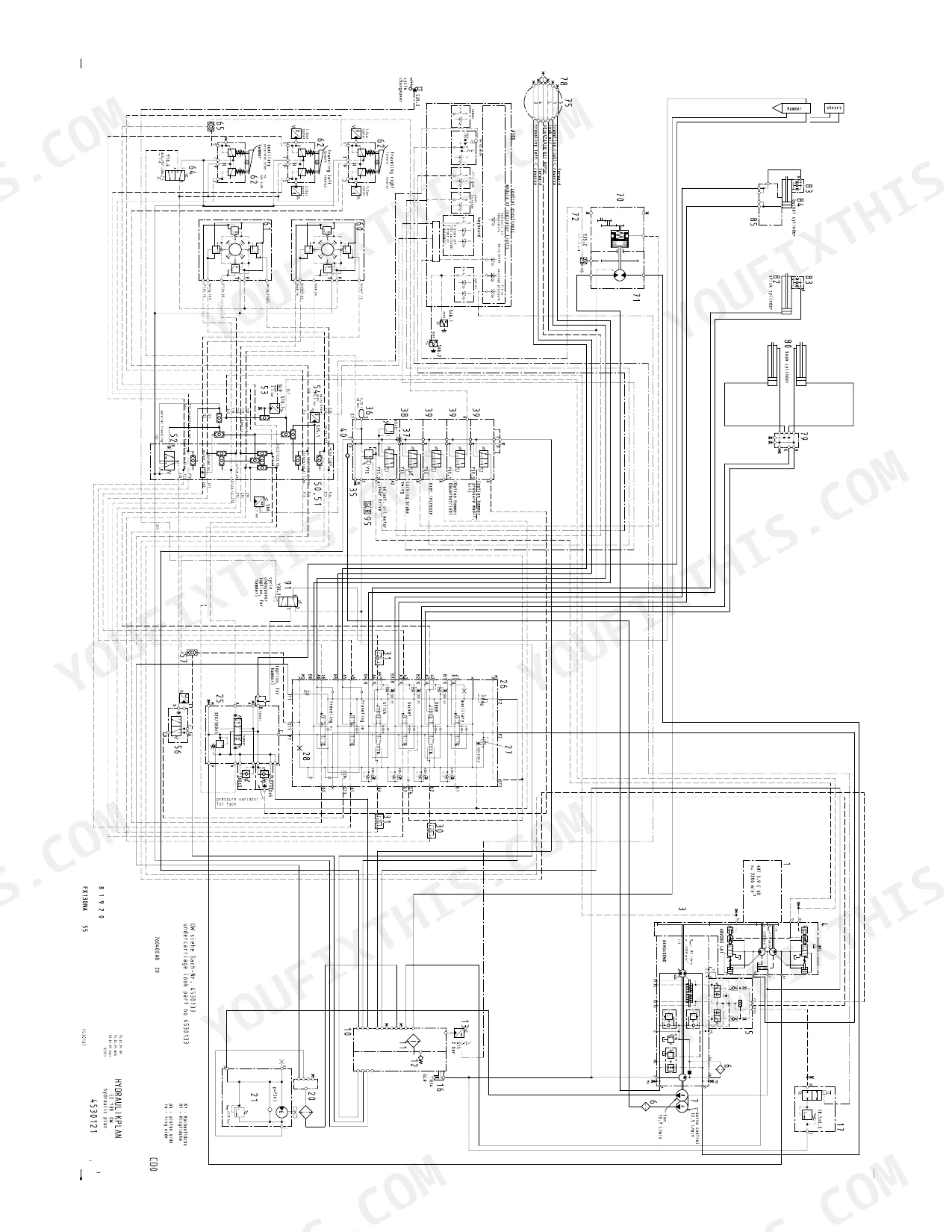

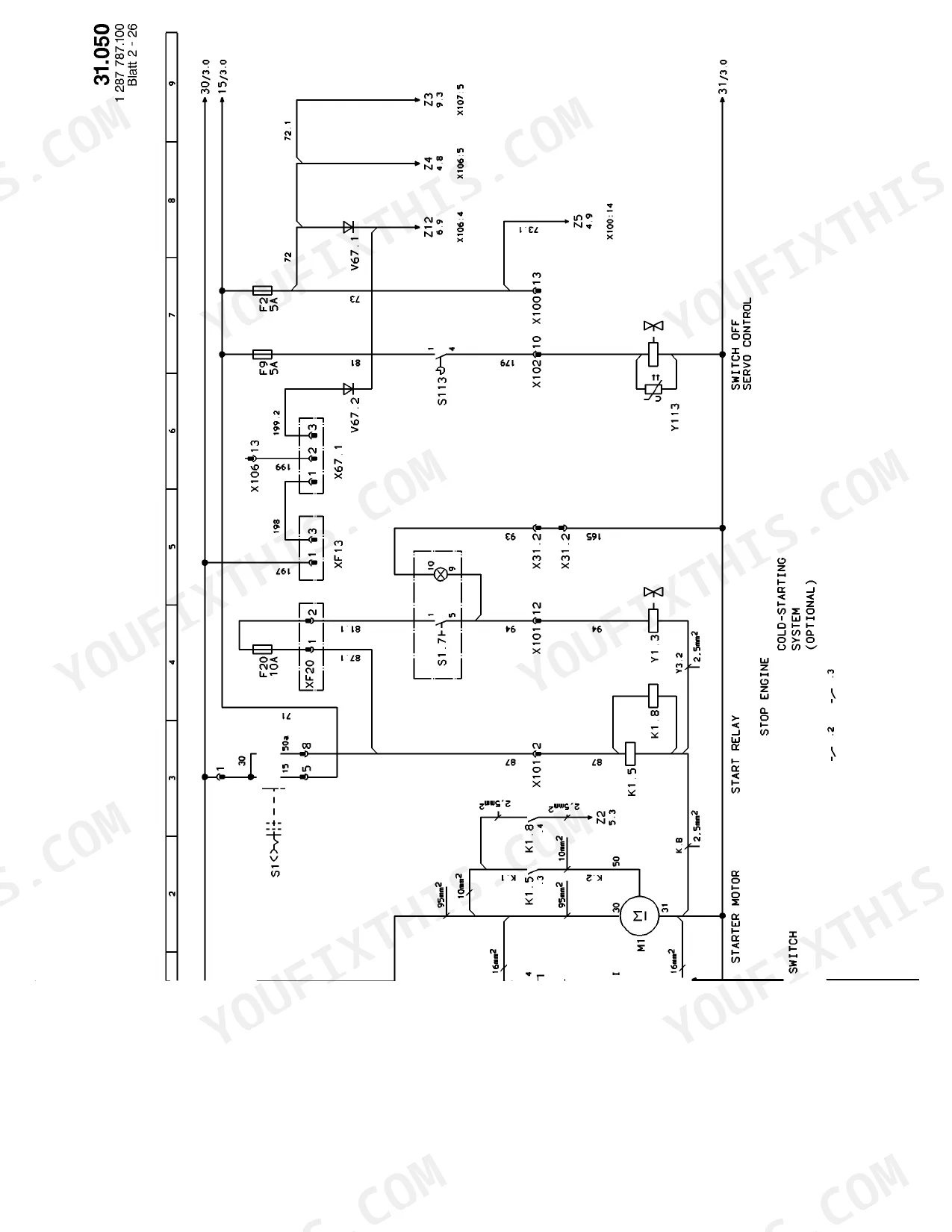

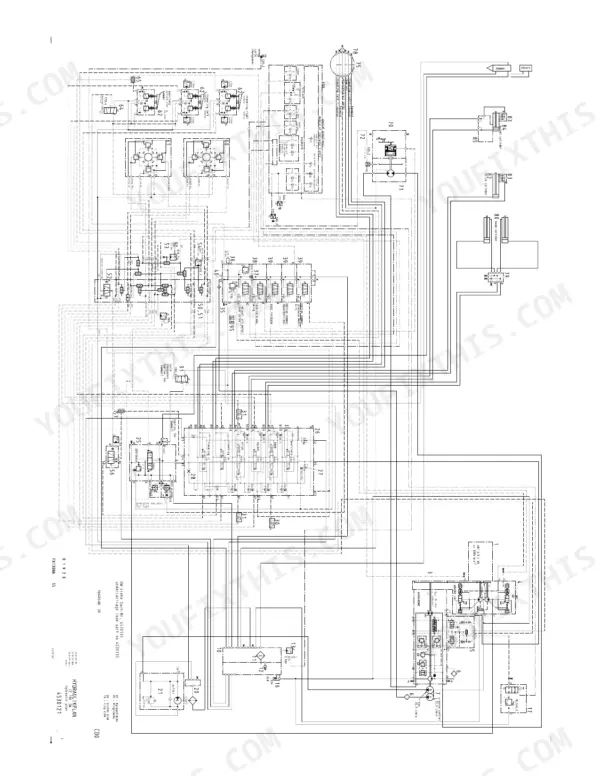

Need factory answers for your 1999 New Holland EC130 crawler excavator? This 730-page New Holland EC130 service manual PDF covers the undercarriage, superstructure, diesel engine, travel and swing gearboxes, hydraulic system, and full electrical system in one download. You get hydraulic schematics for the working, travel, and servo control circuits, plus wiring diagrams tracing power generation, battery, alternator, starter, lighting, and fuses. A dedicated troubleshooting section and page after page of tightening torques back up the step-by-step repair procedures. Torque the track pads to 235 Nm, the bottom rollers to 330 Nm, and the swing gear bolts to 250 Nm; every number comes straight off the factory page. No more chasing wiring faults with a multimeter and a prayer. Bookmarked chapters and a real text layer let you jump to any section, find your spec, and get back to wrenching.
What's Inside This New Holland EC130 Manual
| System | Pages | Key Topics |
|---|---|---|
| Welding Operations | 24-26 | Welding Operations - Safety Instructions |
| Service Data General | 27-85 | Units of Space and Mass, Time-Related Quantities, Units of Force Energy and Power, Conversion Tables, Fuel Consumption |
| Tools | 86-96 | Pcs Tester, Solenoid Valve Tester, Measuring Adapter, Vacuum Pump, Pressure Gauge, Stroke-Measuring Device |
| Undercarriage | 97-126 | Travel System, Track Chain, Idler, Bottom Rollers, Top Roller, Sprocket |
| Superstructure | 127-150 | Ball-Bearing Swing Bearing, Swing Gearbox, Diesel Engine, Coupling |
| Diesel Engine | 151-152 | Engine Repair Instructions, Assisted Starting, Engine Specifications, Oil Pressure, Thermostat |
| Gearboxes | 153-269 | Traveling Gearbox, Swing Gearbox, Multi-Disk Brake, Gear Components, Tightening Torques |
| Hydraulic System | 270-365 | Working Hydraulic System, Travel Hydraulic System, Servo Control System, Hydraulic Pumps, Hydraulic Motors, Hydraulic Cylinders |
| Electrical System | 366-541 | Power Generation, Battery, Alternator, Starter, Lighting System, Fuses |
| Working Equipment | 542-551 | Fittings, Pipes and Hoses, Welding for Maintenance and Repair, Sealing, Protective, Checking and Cleaning Agents |
| Fittings, Pipes and Hoses/ Welding for Maintenance and Repair/ Sealing, Protecti | 552-730 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

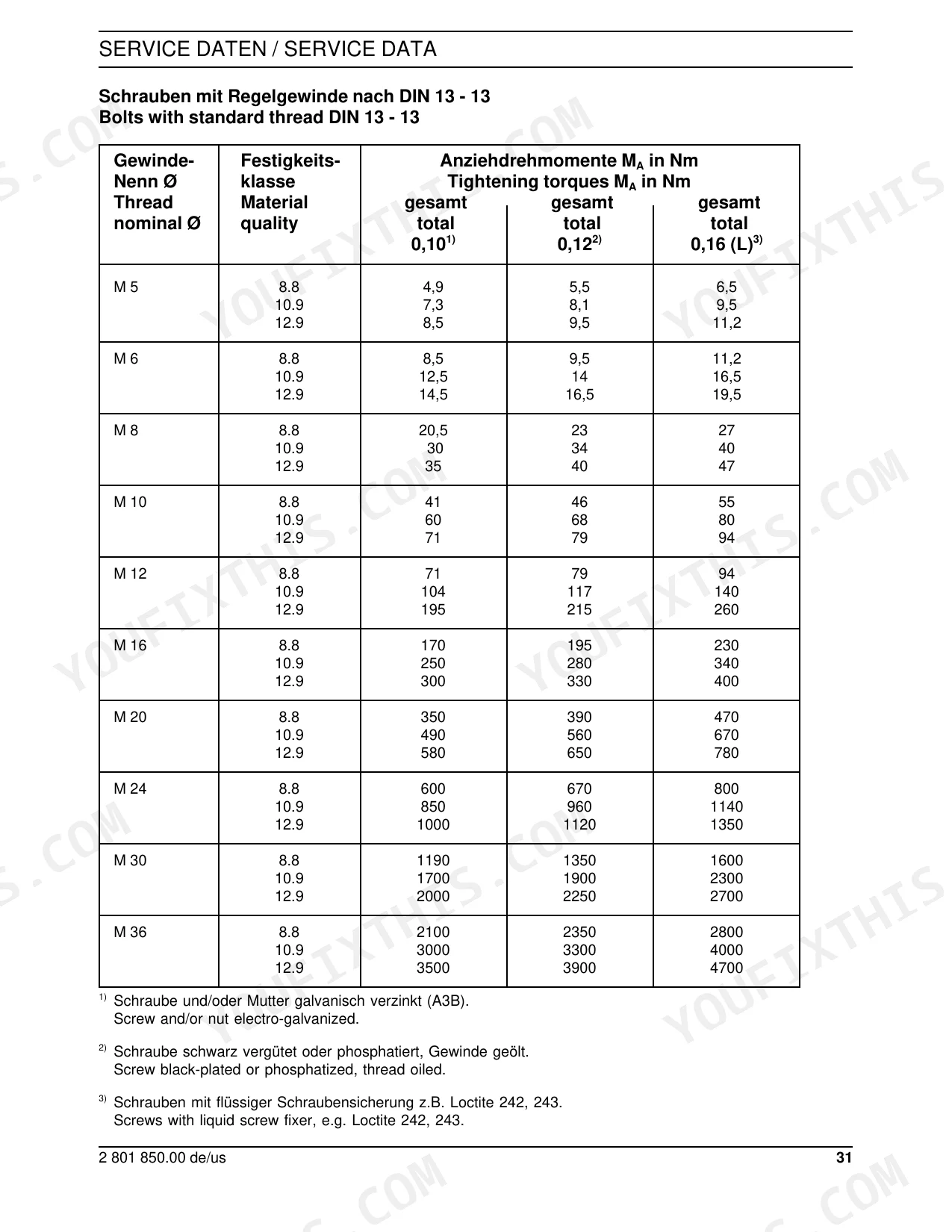

| Swing gear tightening torque | 250 Nm | p. 84 |
| Track pad tightening torque | 235 Nm | p. 83 |
| Bottom roller tightening torque | 330 Nm | p. 83 |
| Top roller tightening torque | 250 Nm | p. 83 |

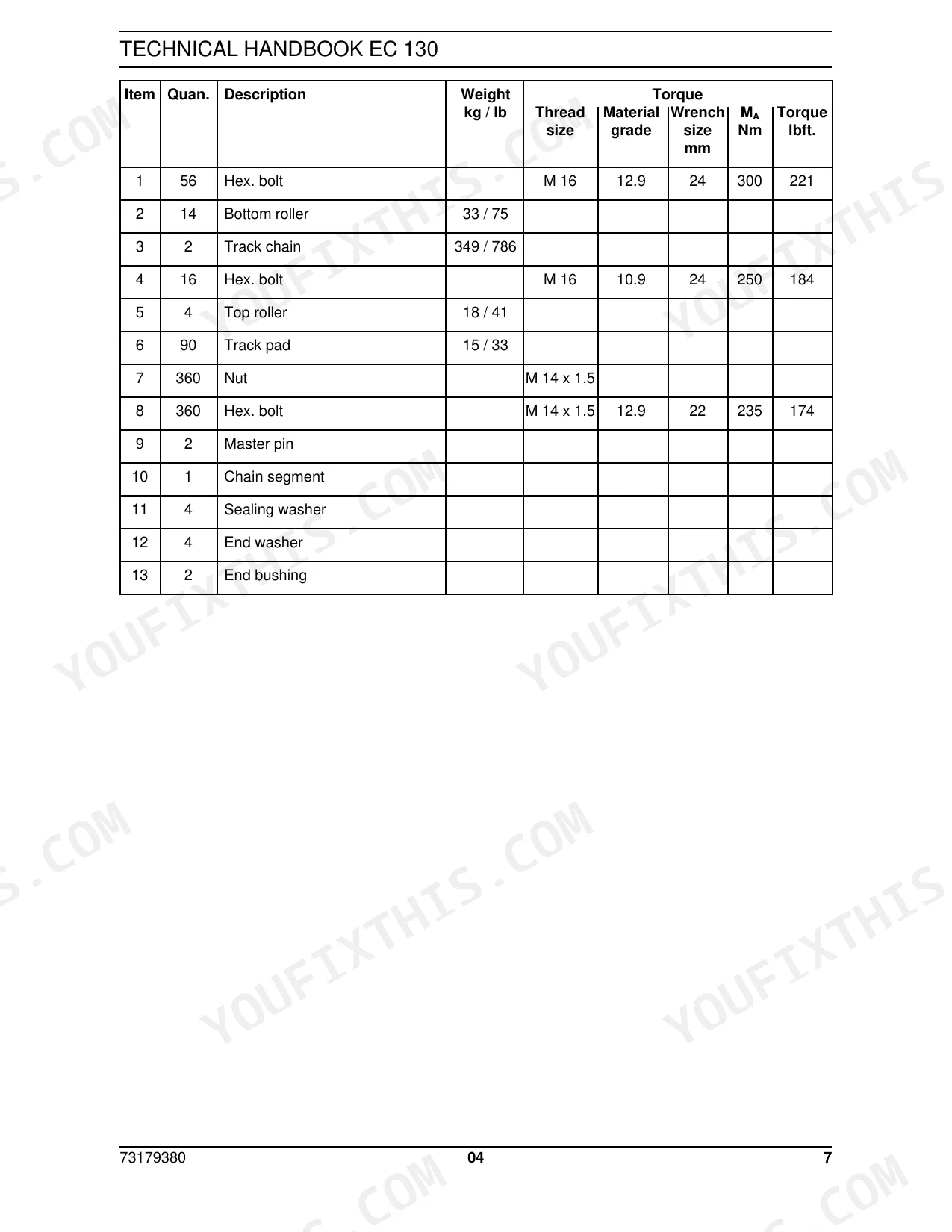

| Hex. bolt (Item 1) Torque | 300 Nm / 221 lbft. | p. 104 |
| Hex. bolt (Item 4) Torque | 250 Nm / 184 lbft. | p. 104 |
| Track pad weight | 15 kg / 33 lb | p. 104 |
| lock-nut (2) torque | 15 Nm | p. 495 |
| Engine Rated Speed (at full load) | 2200 rpm | p. 72 |
| Engine Idling Speed | 1000 rpm | p. 72 |
| Engine High Idling Speed | 2450 rpm | p. 72 |
| Valve Clearance (Inlet/Exhaust, cold) | 0.25 mm / 0.51 mm | p. 72 |
New Holland EC130 Common Problems This Manual Covers
New Holland EC130 boom and bucket weak or slow under load, digging power fades
Check main relief and servo pressures first against the values in the hydraulic technical data — the Hydraulic System section starts on page 270 and its own contents page points you at the primary valve with pressure cut-in stage. If readings are low, inspect suction lines for air intrusion and replace clogged hydraulic filters, then follow the troubleshooting procedures in that section to isolate pump, valve, or cylinder damage.
Manual Section: Hydraulic System p. 270One attachment function works in only one direction or drifts under load
Swap the hoses at the control valve to confirm whether the fault follows the cylinder or the valve. If it follows the cylinder, pull it and replace the piston seals; inspect the rod guide and dampening bushes while it is apart. Verify servo pressure against the technical data so the spool strokes fully both ways.
Manual Section: Hydraulic System p. 270Tracks derail on turns, shoes wear fast, or chain feels too tight after adjustment

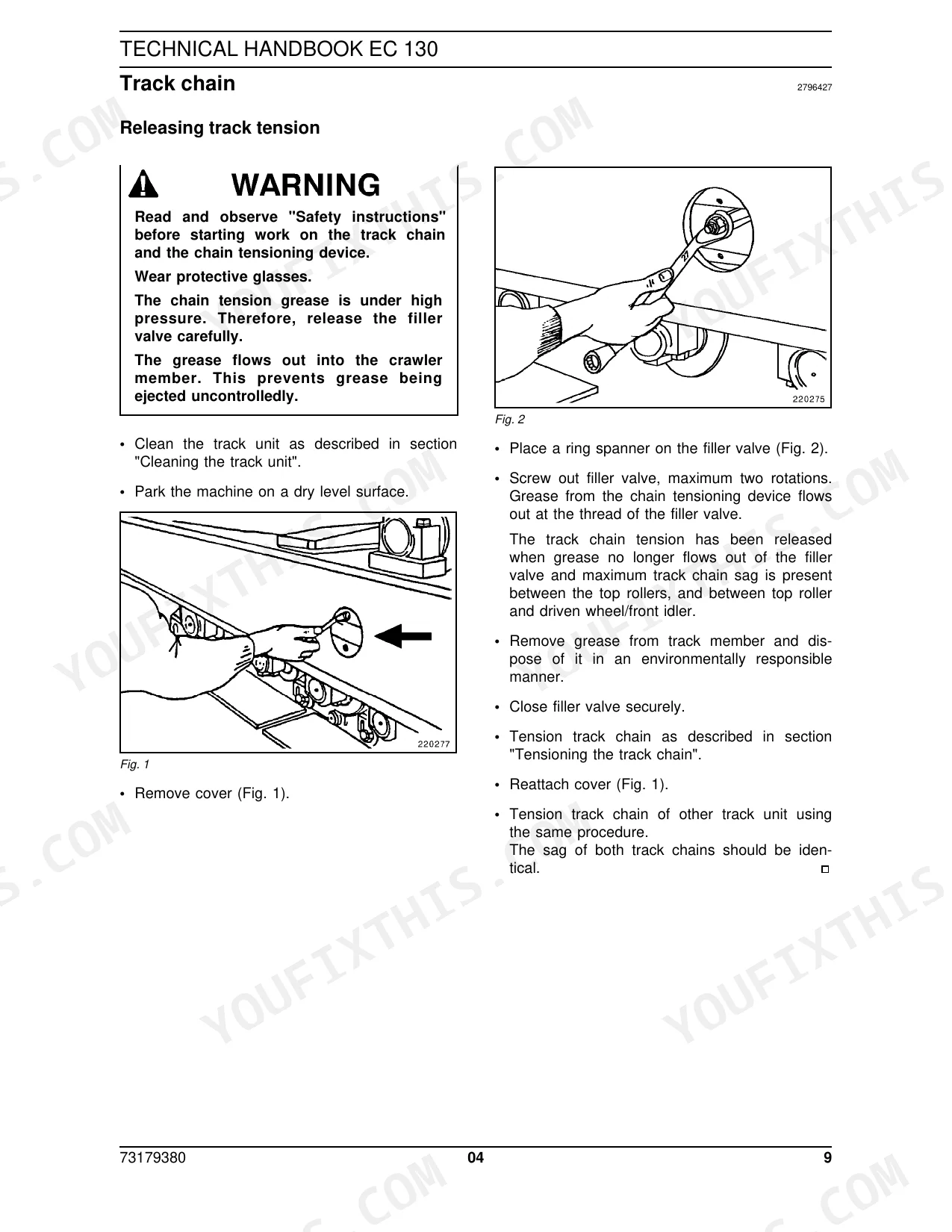

Measure sag between a board laid across the track and the ridge of the shoe: the spec on page 112 is 3 cm to 4 cm. Adjust tension at the grease valve, then inspect rollers, idlers, and sprockets for uneven wear. Torque replacement track pad bolts to the value in the undercarriage torque table before returning the machine to work.
Manual Section: Undercarriage p. 112Engine cranks slowly, won't fire, or blows abnormal smoke on cold mornings

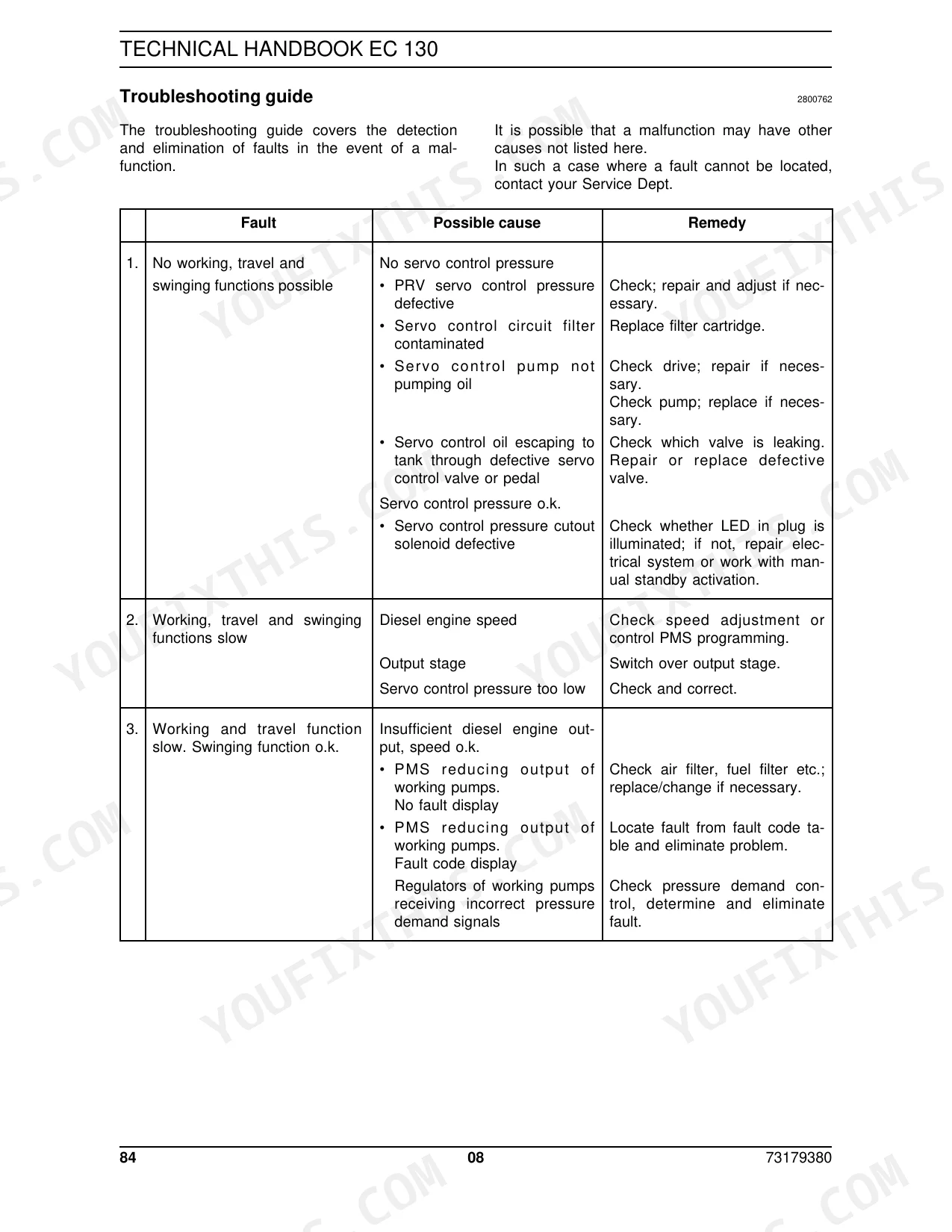

Test battery voltage and connections, then work through the fault-finding diagram for engine start failure in the electrical section beginning on page 366. Drain water from the fuel filter and replace clogged fuel and air filters. Once running, verify idle and full-load speeds against the engine technical data.
Manual Section: Electrical System p. 366Hydraulic oil overheats and functions slow down after a few hours of digging
Clean the radiator and hydraulic oil cooler cores with compressed air, working from the fan side out. Drain deteriorated hydraulic oil and flush the system per the hydraulic section starting on page 270. Verify the relief valves hold their rated pressure; a valve stuck partly open dumps flow to tank as heat.
Manual Section: Hydraulic System p. 270Frequently Asked Questions
How do I reset the service interval on a New Holland EC130?
To reset the service interval, open the 'Special Functions' menu by pressing F6 in the Main Menu, then press F6 again to access the 'Control Panel' menu. After selecting F1, the request 'Reset servicing interval' will appear. Confirm the reset by pressing '1'. After switching the ignition off and then on again, the control panel will display the next service interval. p. 499
What are the replacement specifications for the engine oil filter?
The engine oil filter (including the engine oil) should be changed every 250 hours. The required capacity for the engine oil is 11.5 liters (3.04 gallons). p. 80
What is the tightening torque for the swing bearing bolts?
The tightening torque for the swing bearing bolts (M 16 x 90) is 250 Nm (185 lbft). p. 133
What is the correct valve clearance for the engine?
The valve clearance for the inlet and exhaust valves on a cold engine is 0.25 mm (0.01 inch) for the inlet and 0.51 mm (0.02 inch) for the exhaust. p. 72
What is the pressure setting for the servo control pressure?
The servo control pressure is set to 45 bars. p. 329
How will I receive this New Holland EC130 Service Manual?
Immediate download of the complete 730-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Does this New Holland EC130 manual allow printing?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
